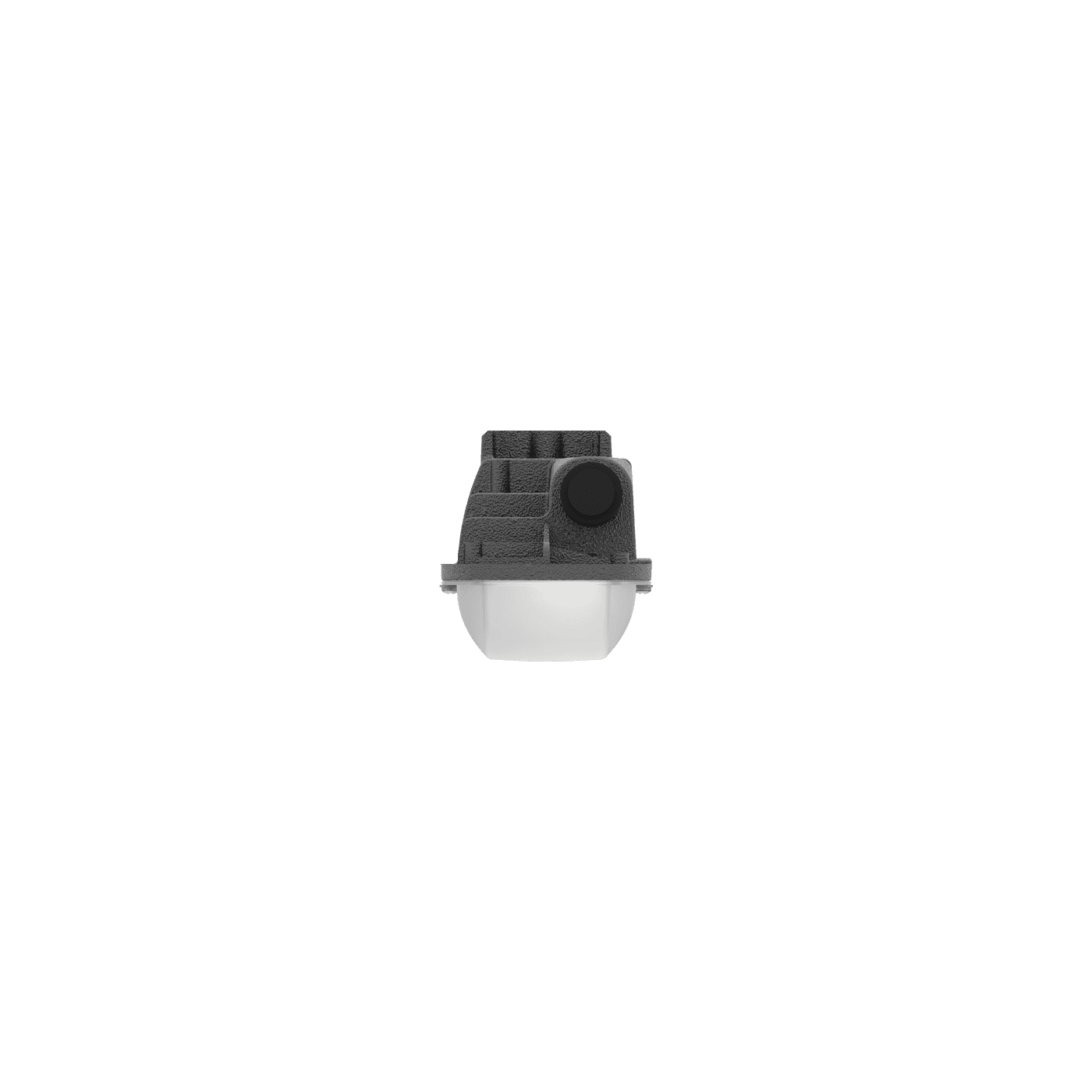

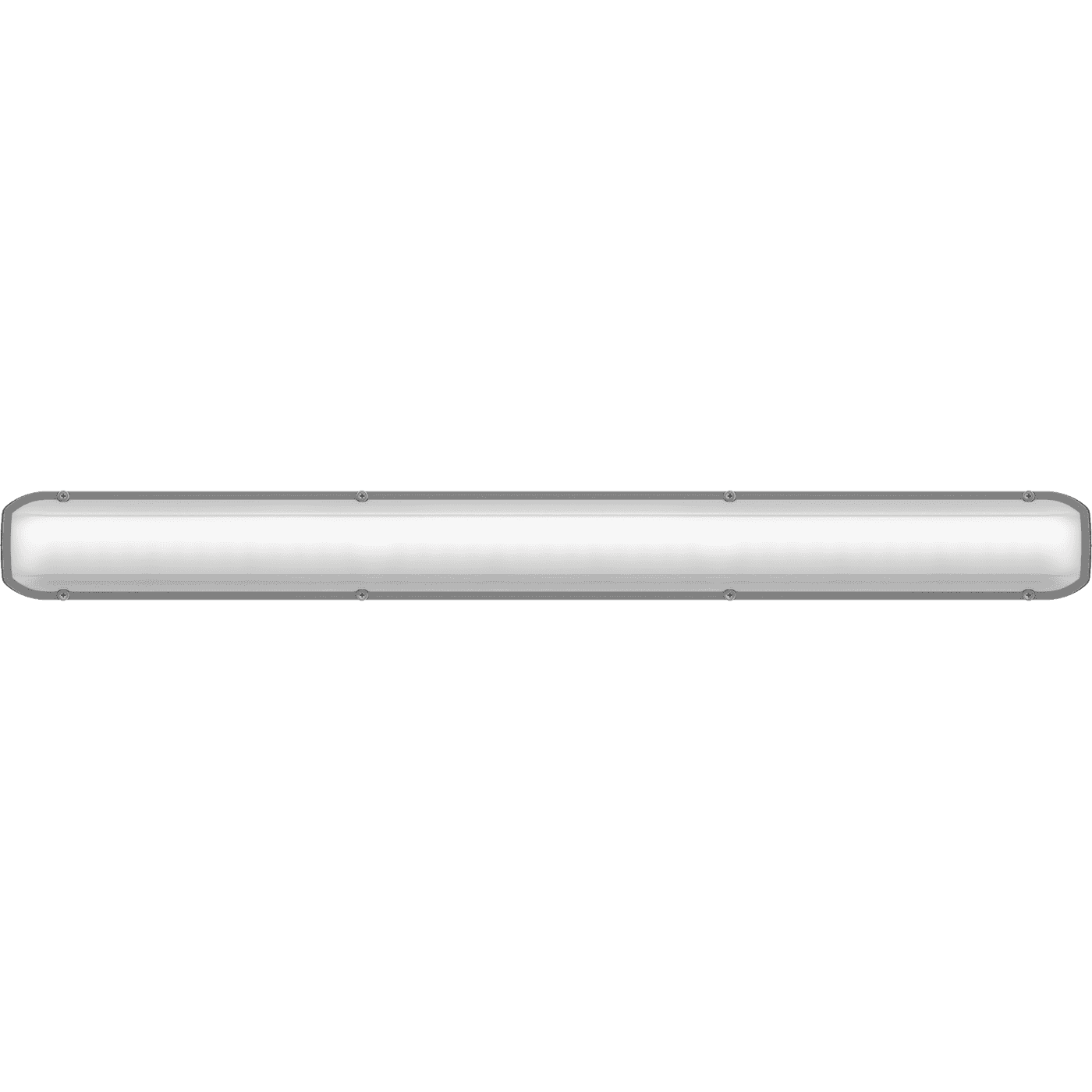

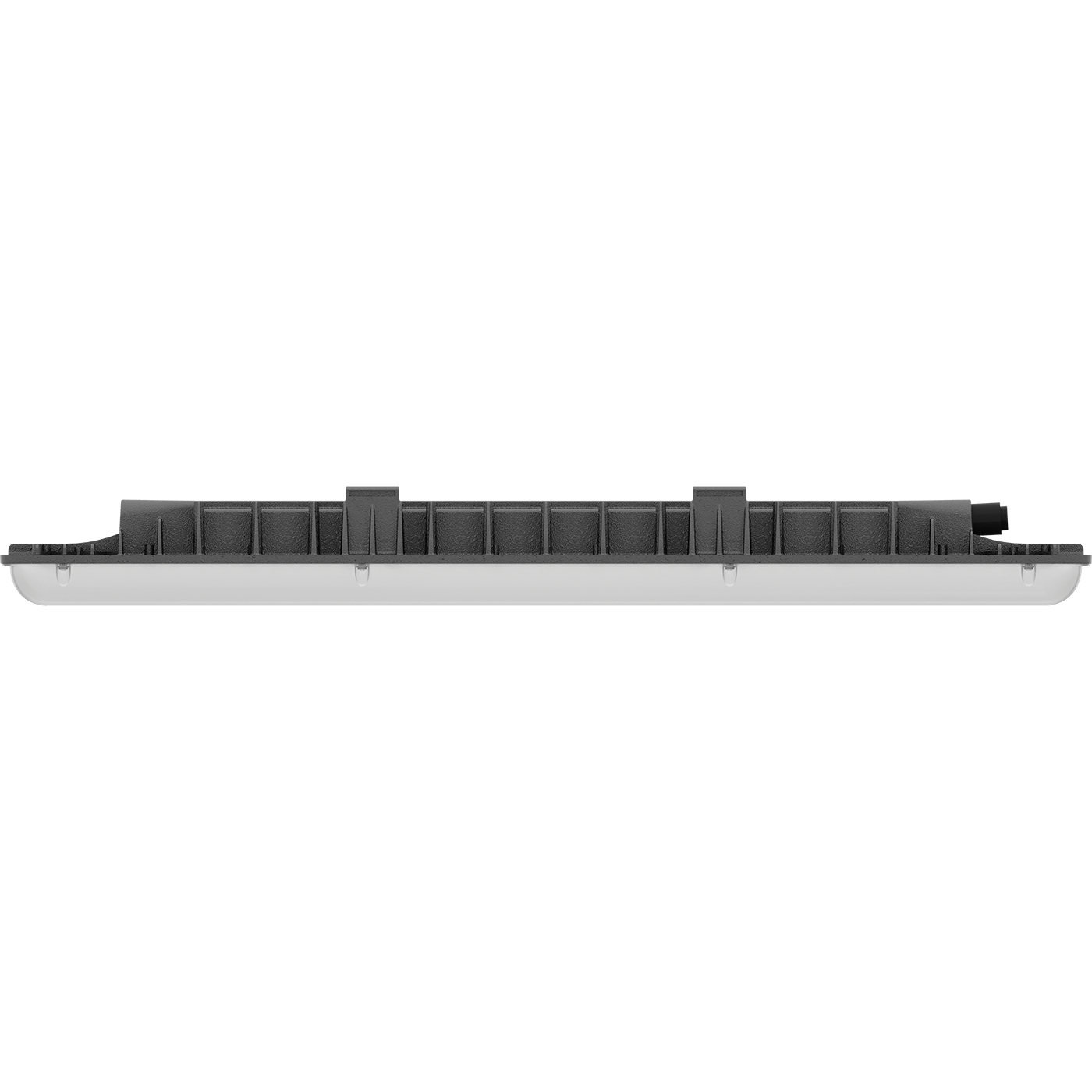

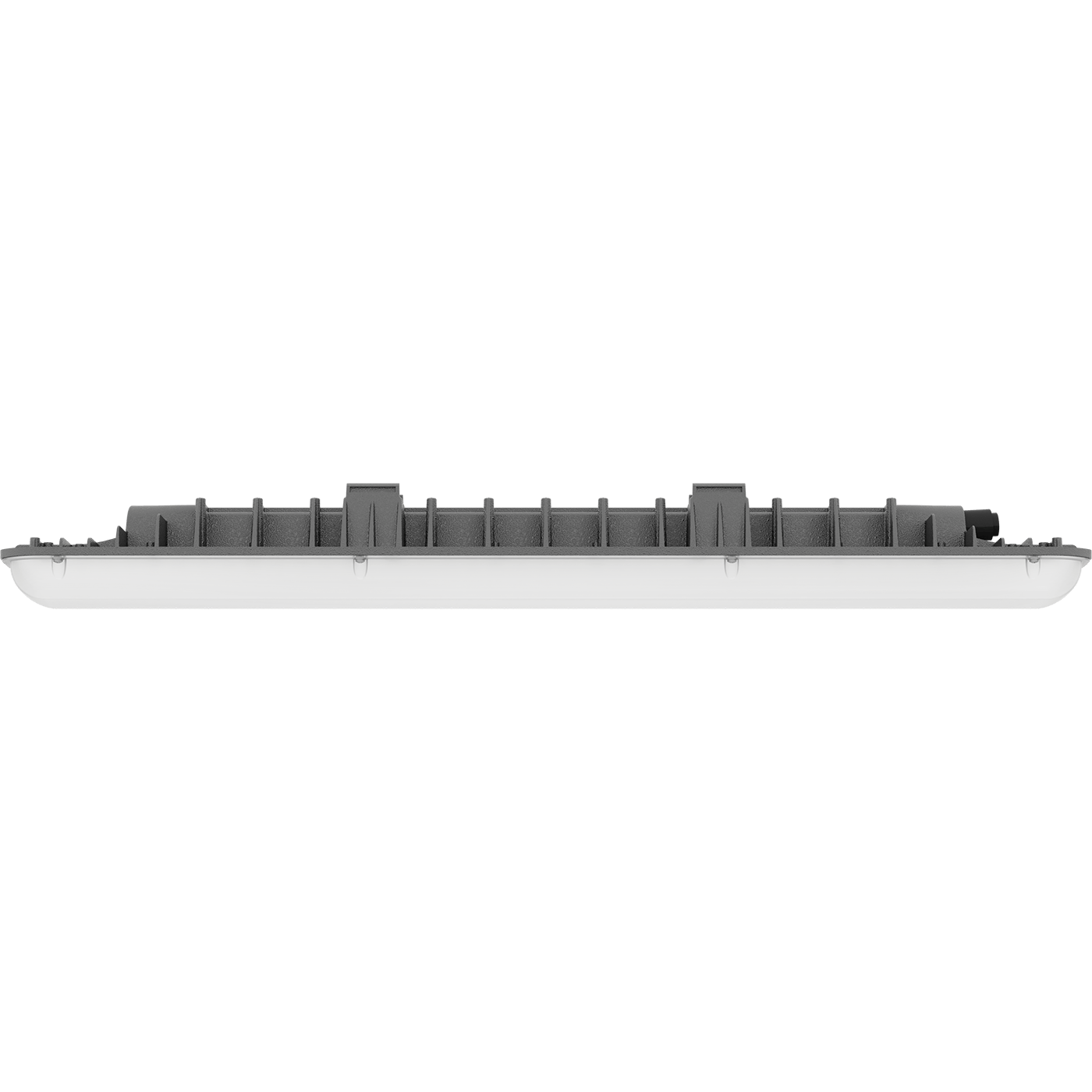

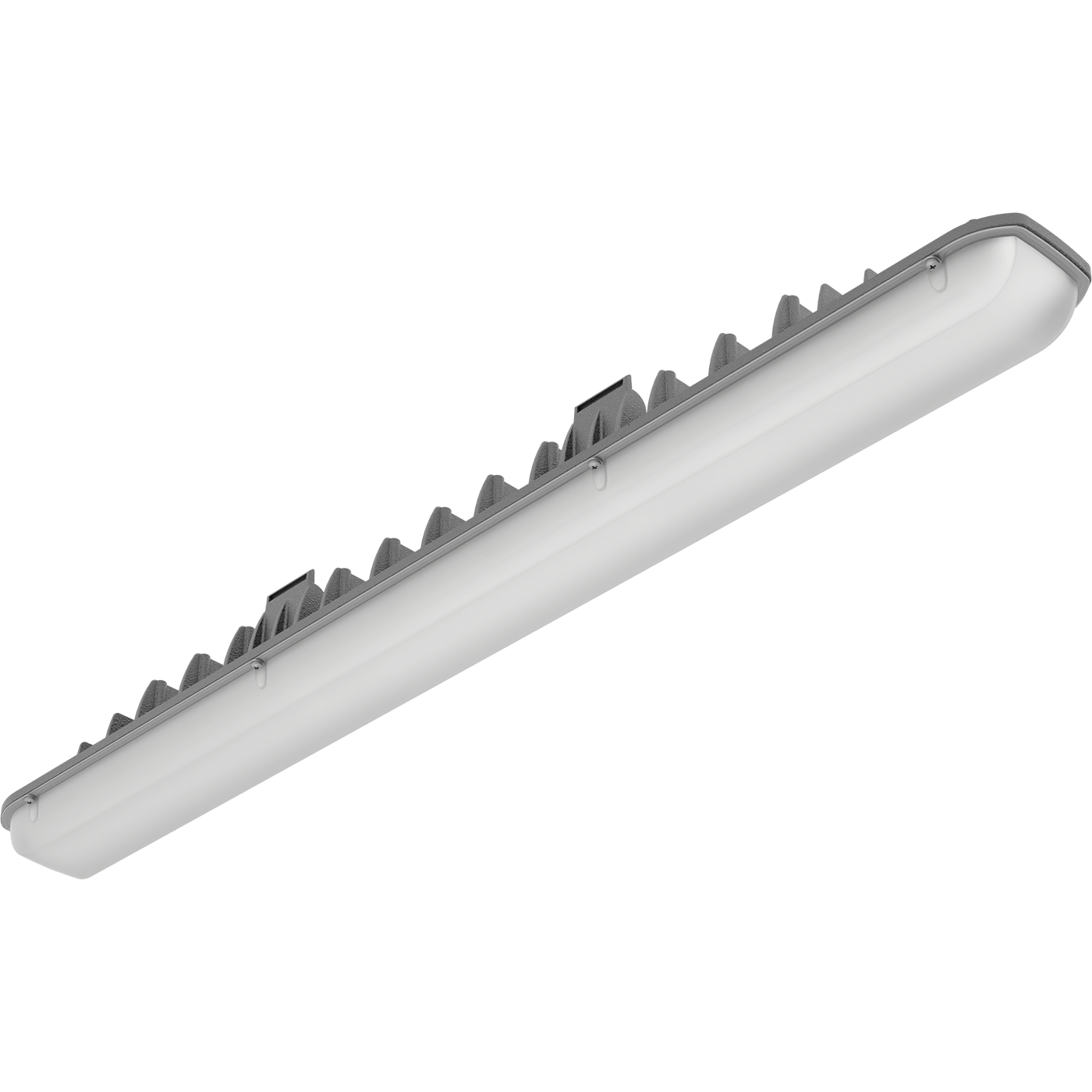

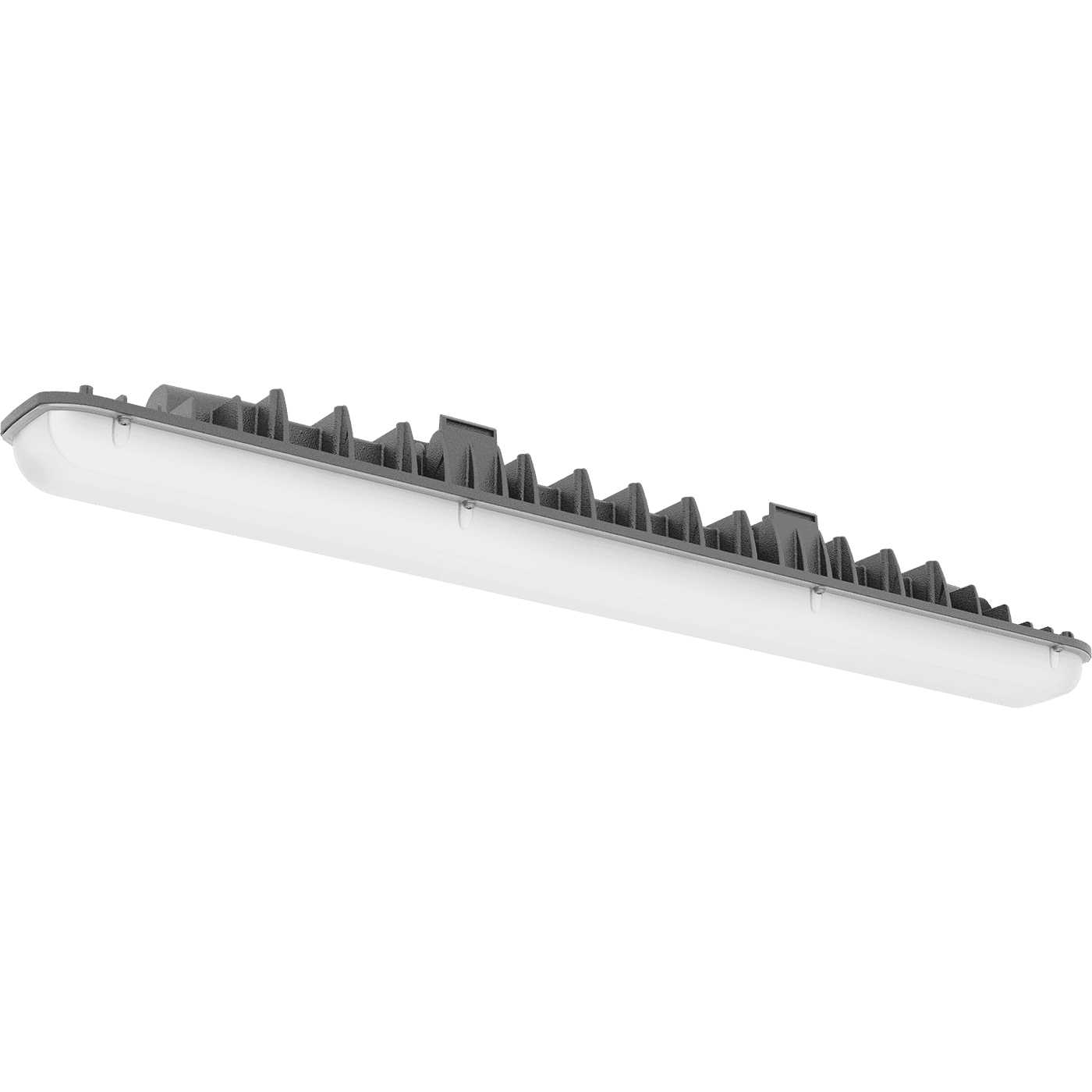

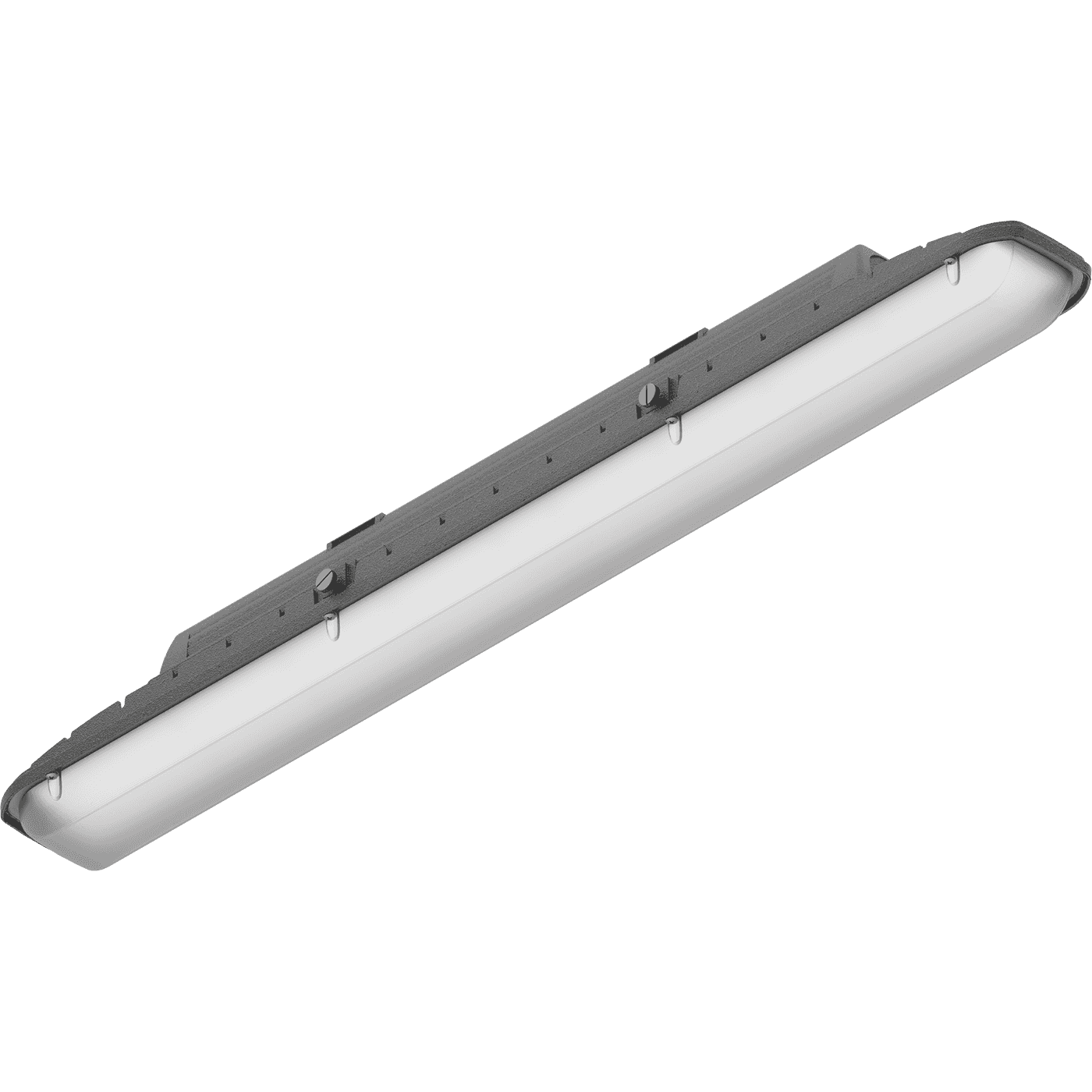

ROCKET.PRS ECO LED 45 Ex 5000K
ROCKET.PRS ECO LED 45 Ex 5000K
40 Wluminaire power
5200 lmlight flow
130 lm/Wenergy efficiency
code
1404000050
color temperature
5000 K
beam angle
D120
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
5200 lmcolor rendition index (CRI)
>70flickering factor
<1%energy efficiency
130 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
5200 lm
color rendition index (CRI)
>70
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
40 W
electric shock protection
I
power factor
> 0,97
maximum cross-section of the connected cable
2.5 mm2
starting current
25 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
length
953 mm
width
96 mm
height
105 mm
material
Сплав алюминиевый
housing color
Серый
mounting type
Накладной
weight
2.5 kg
emergency
emergency power supply
Нет
common
code
1404000050
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +55 C
model files
model files
CAD/BIM files

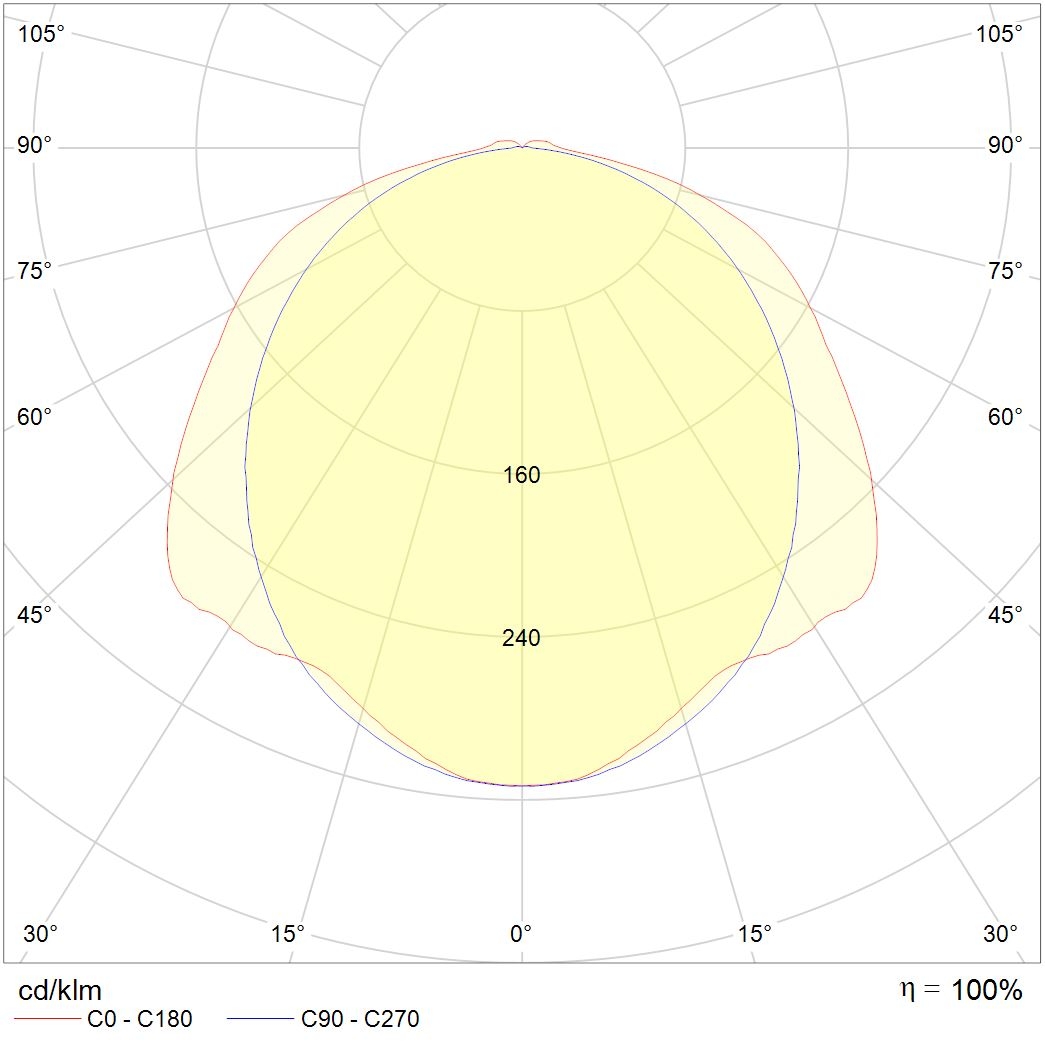

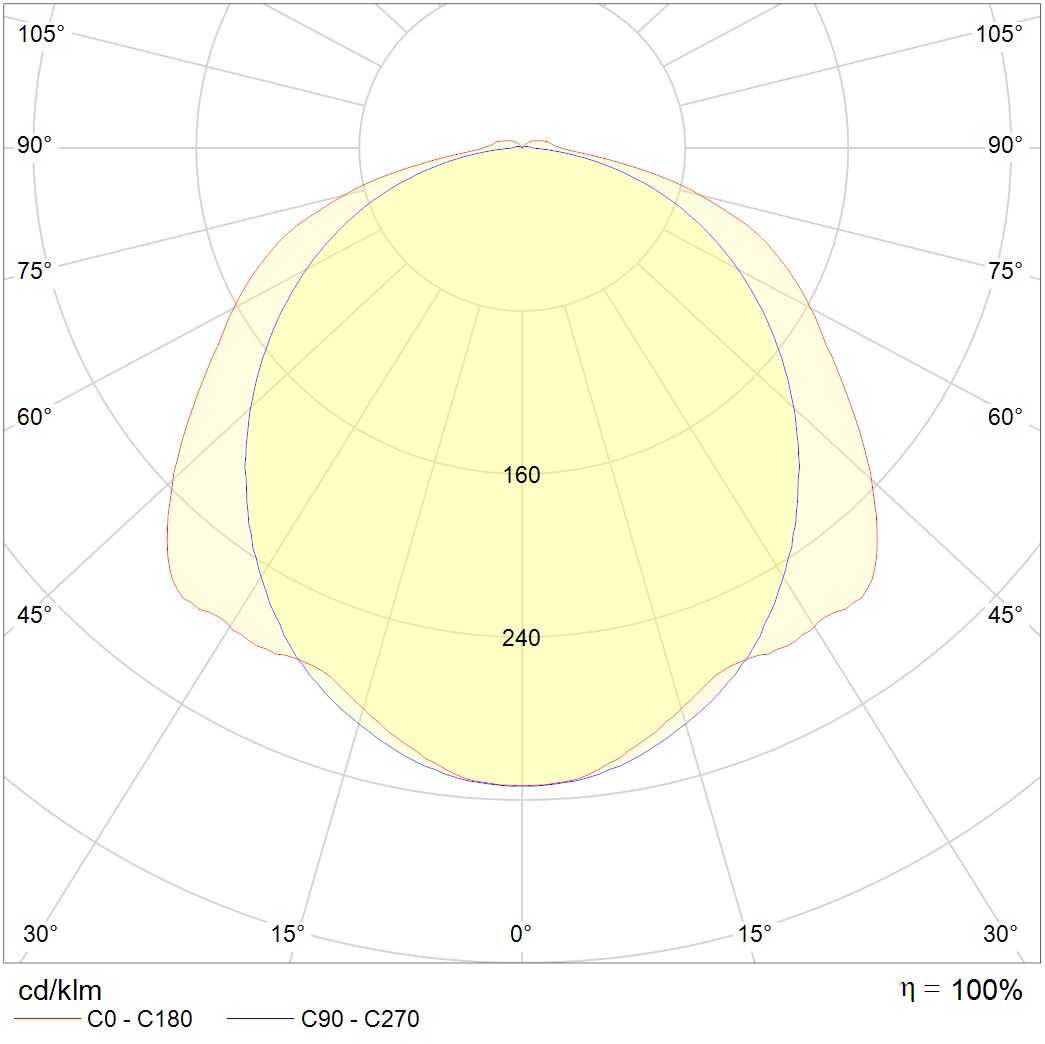

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.5 mB
photometric files
ies263.2 kB
jpg81.6 kB
ldt207.2 kB
documents
passport941.3 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011298.8 kB
Declaration of Conformity EAEU TR 037/2016295.1 kB
