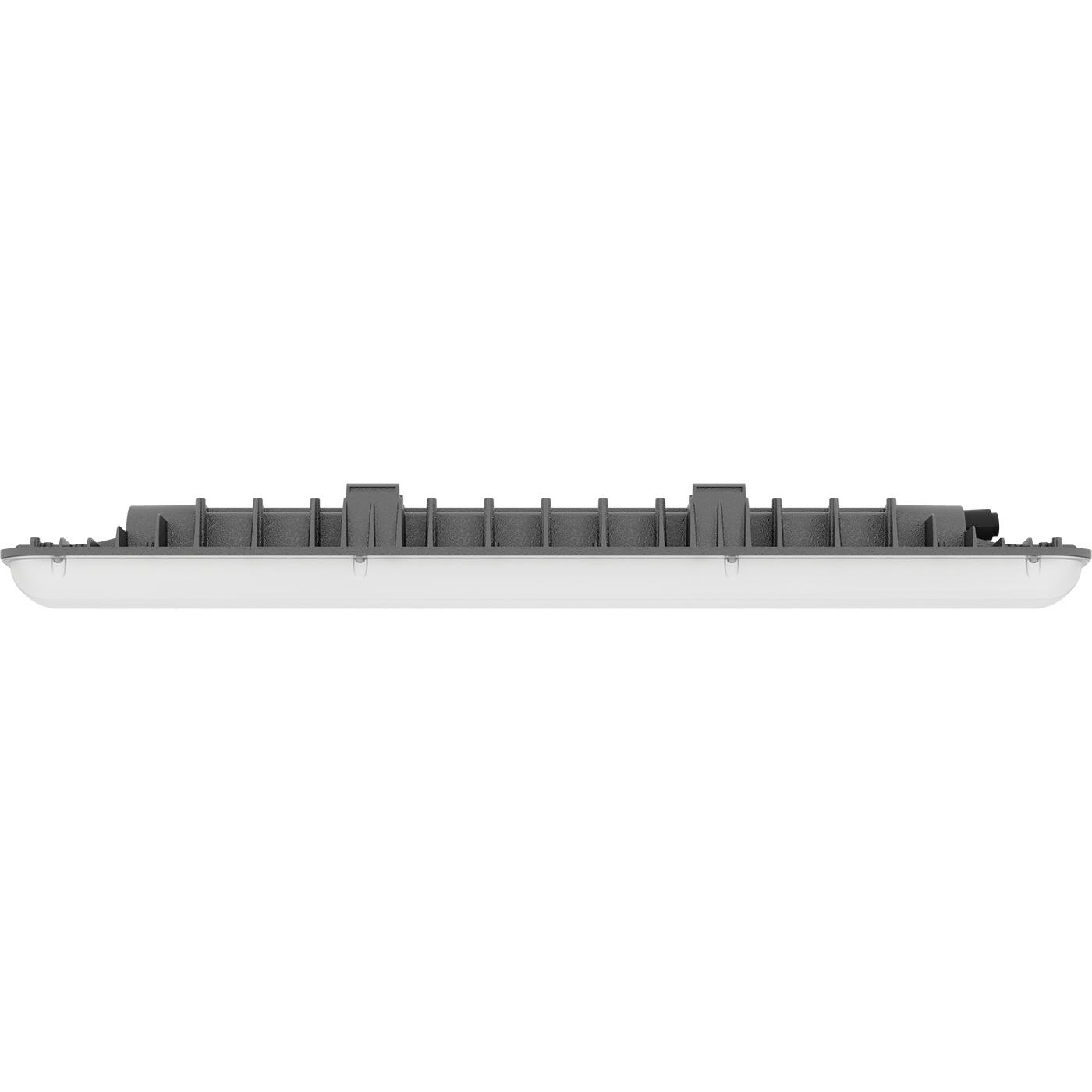

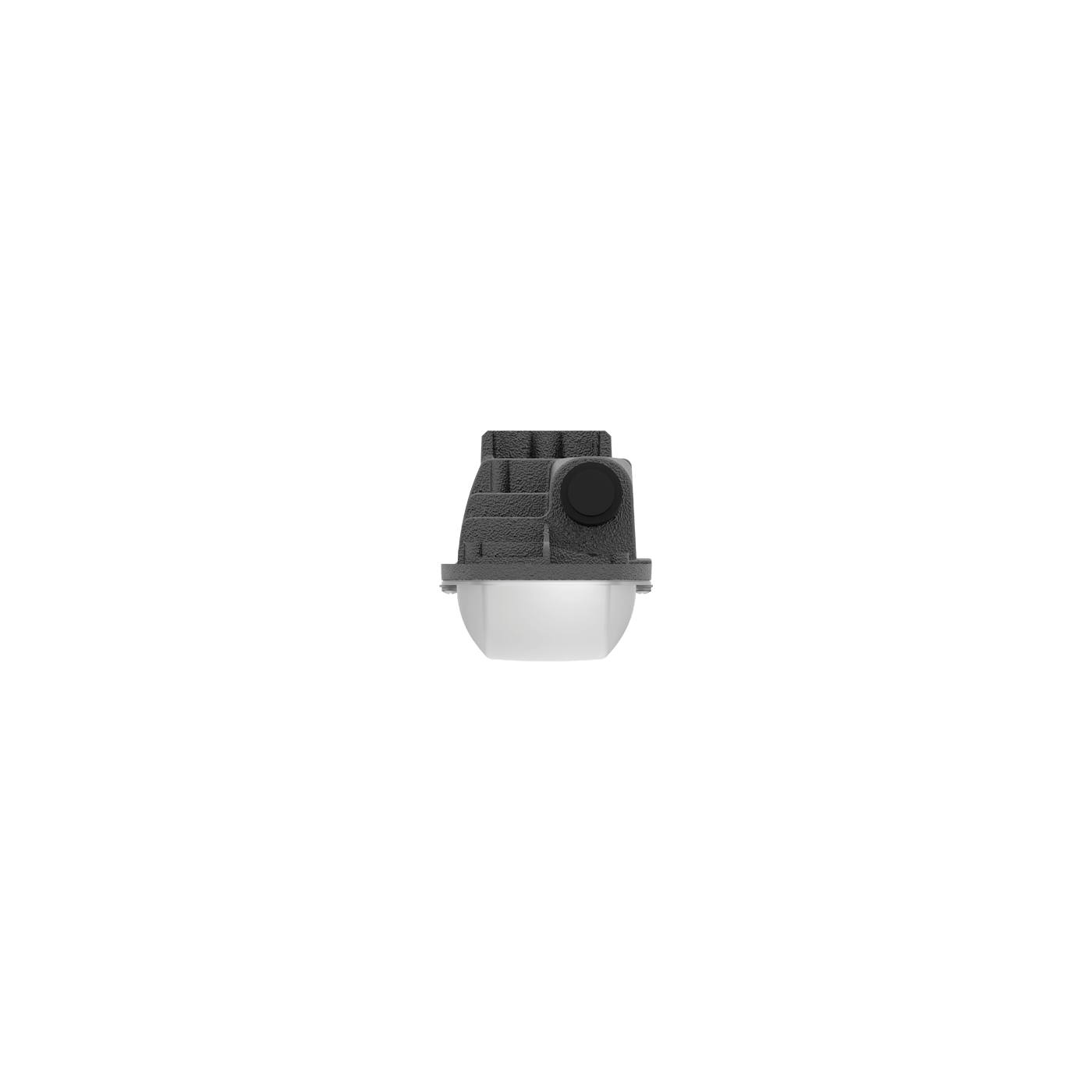

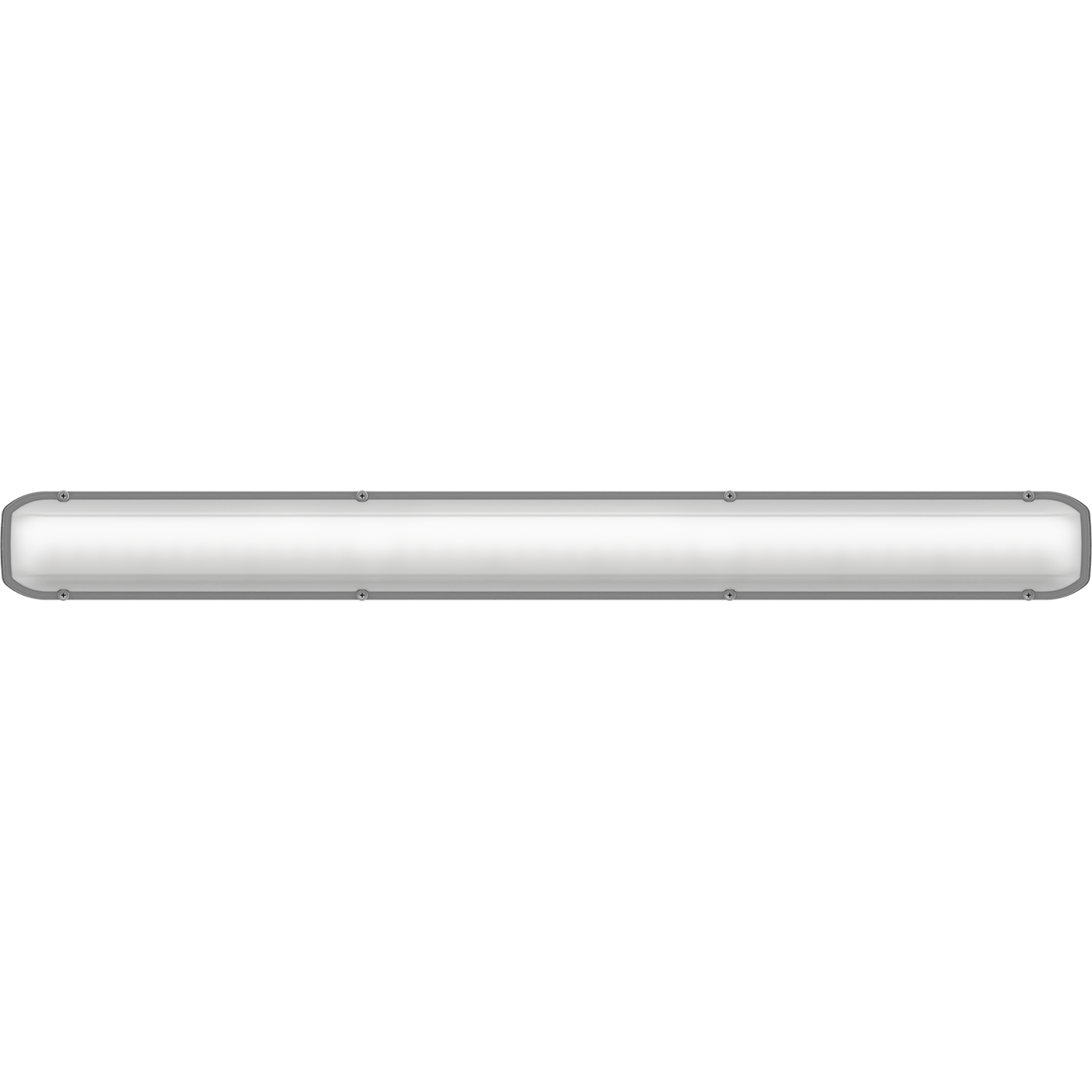

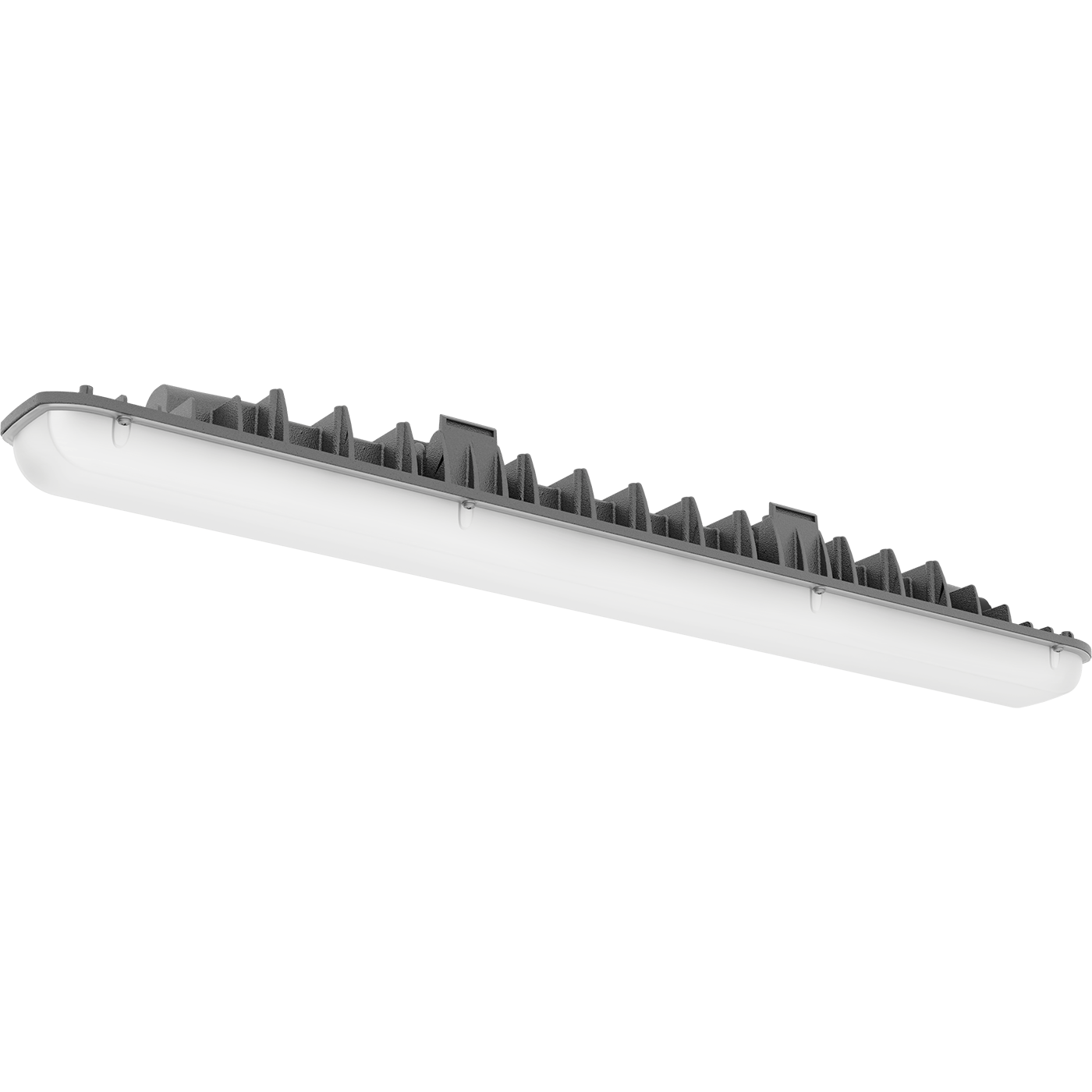

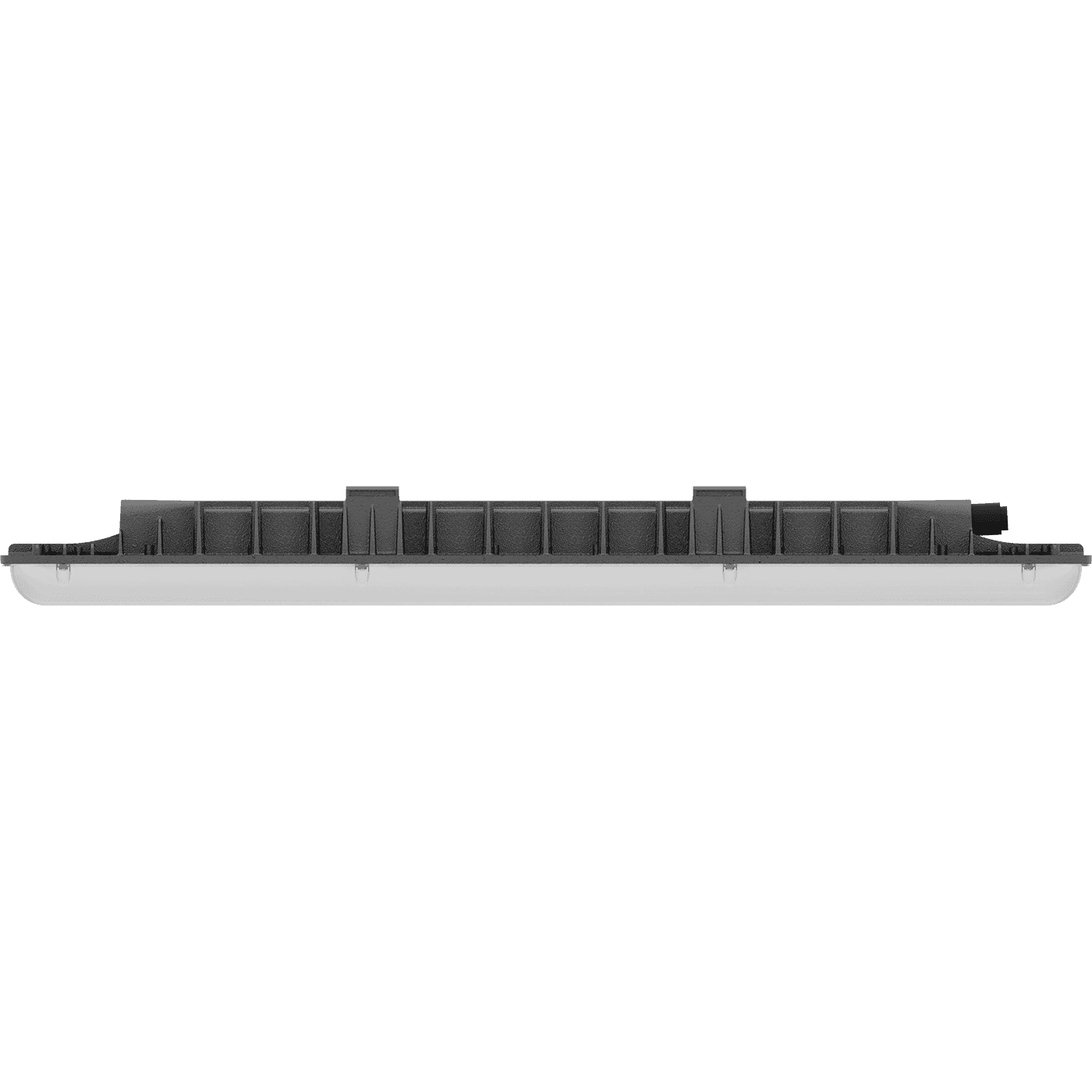

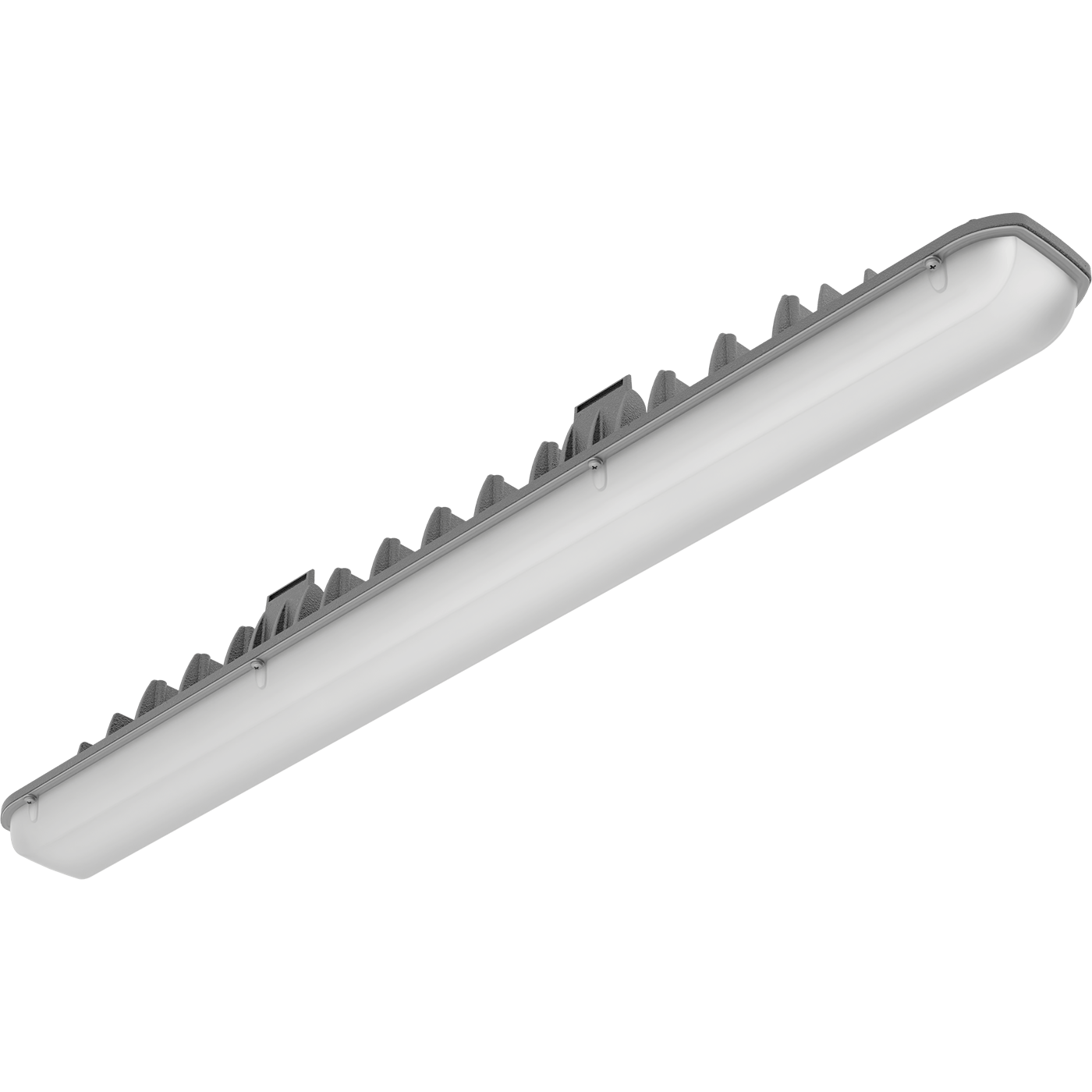

ROCKET.PRS ECO LED 30 Ex 5000K (RU)
model is discontinued
model is discontinued
ROCKET.PRS ECO LED 30 Ex 5000K (RU)
32 Wluminaire power
3950 lmlight flow
123 lm/Wenergy efficiency
code1404000170
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
3950 lmcolor rendition index (CRI)
>80flickering factor
<5%energy efficiency
123 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
3950 lm
color rendition index (CRI)
>80
flickering factor
<5%
energy efficiency
123 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1
length
953 mm
width
96 mm
height
105 mm
material
Алюминий
housing color
Белый
weight
2.5 kg
common
code
1404000170
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A+
service life
50 000 h
temperature range
от -60 до +55 C
model files
model files
сертификаты
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
