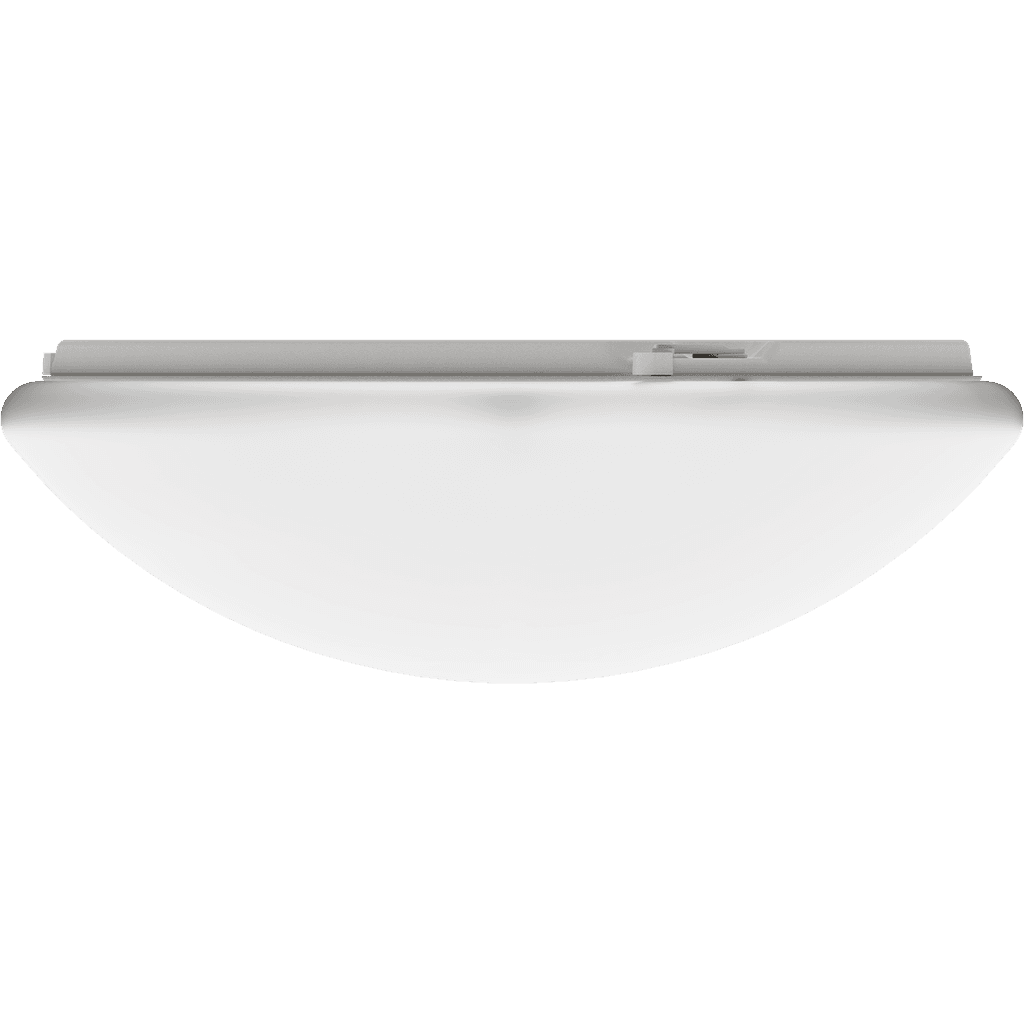

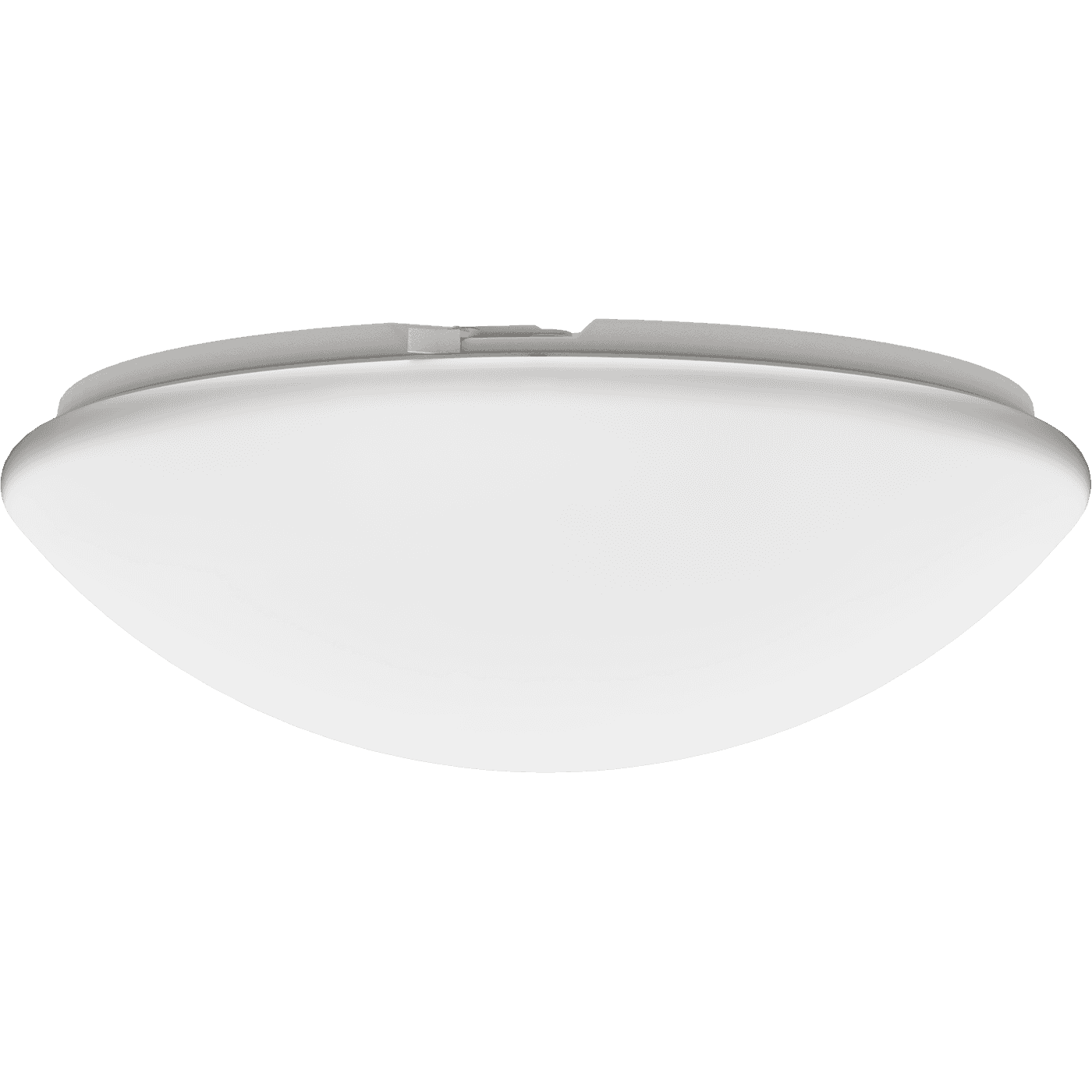

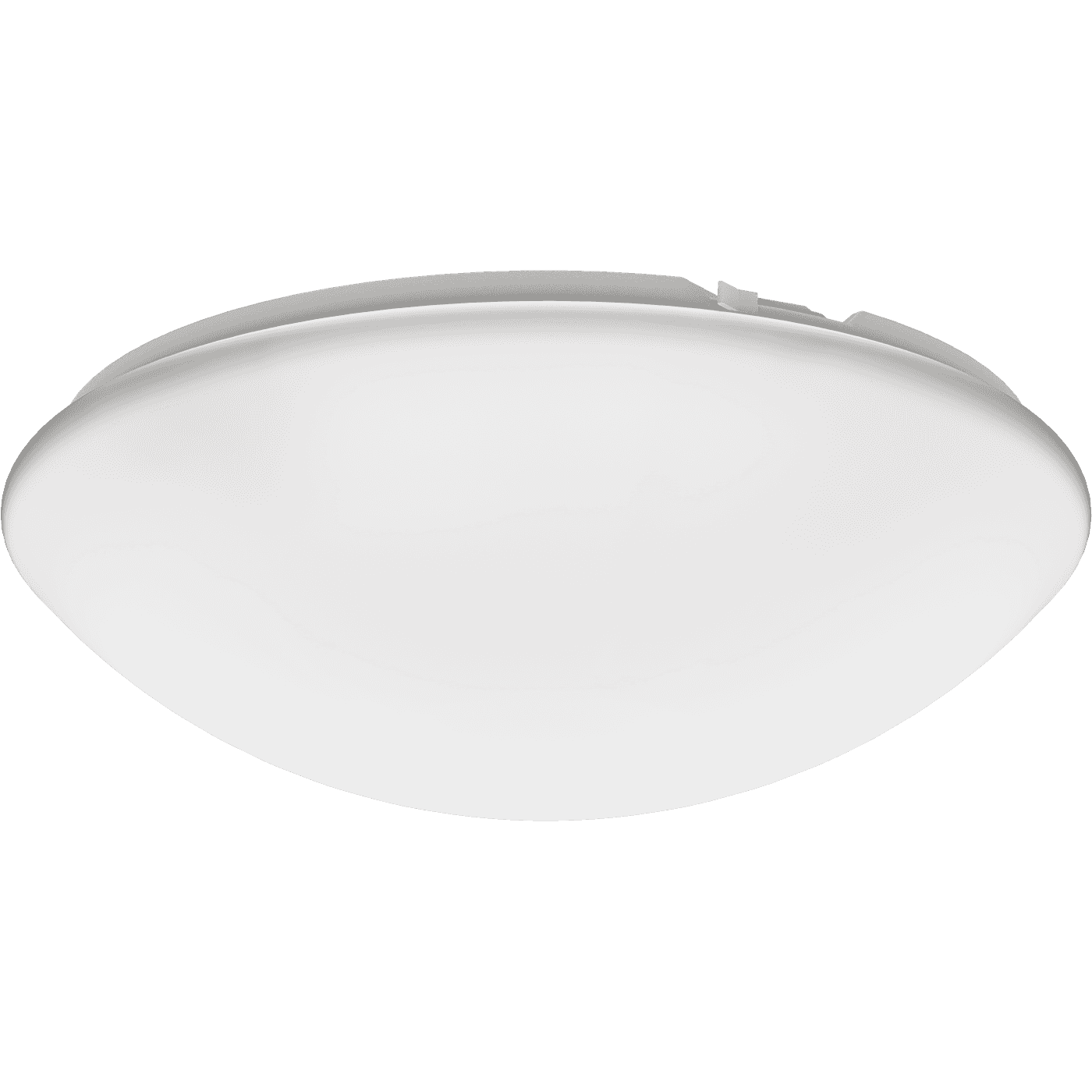

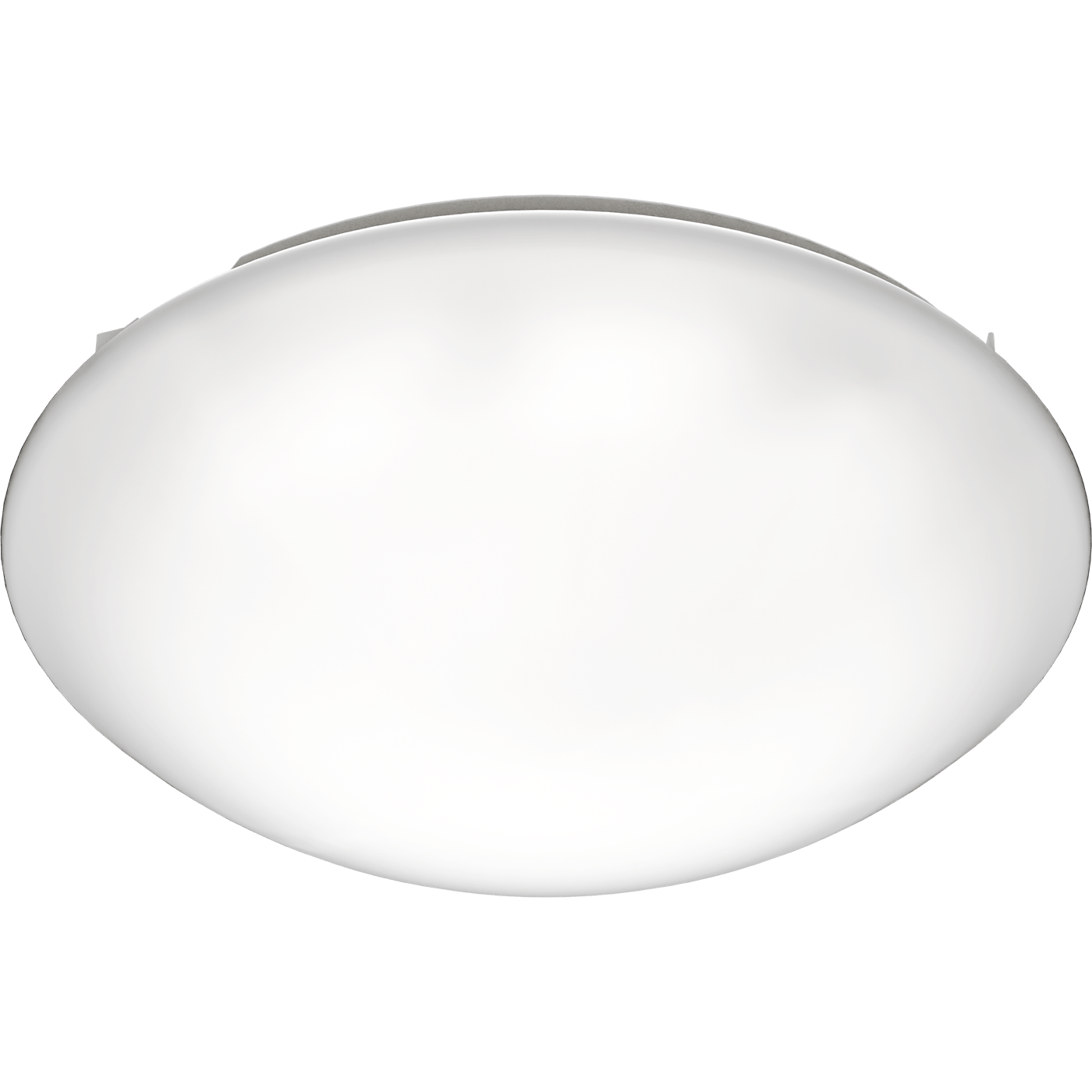

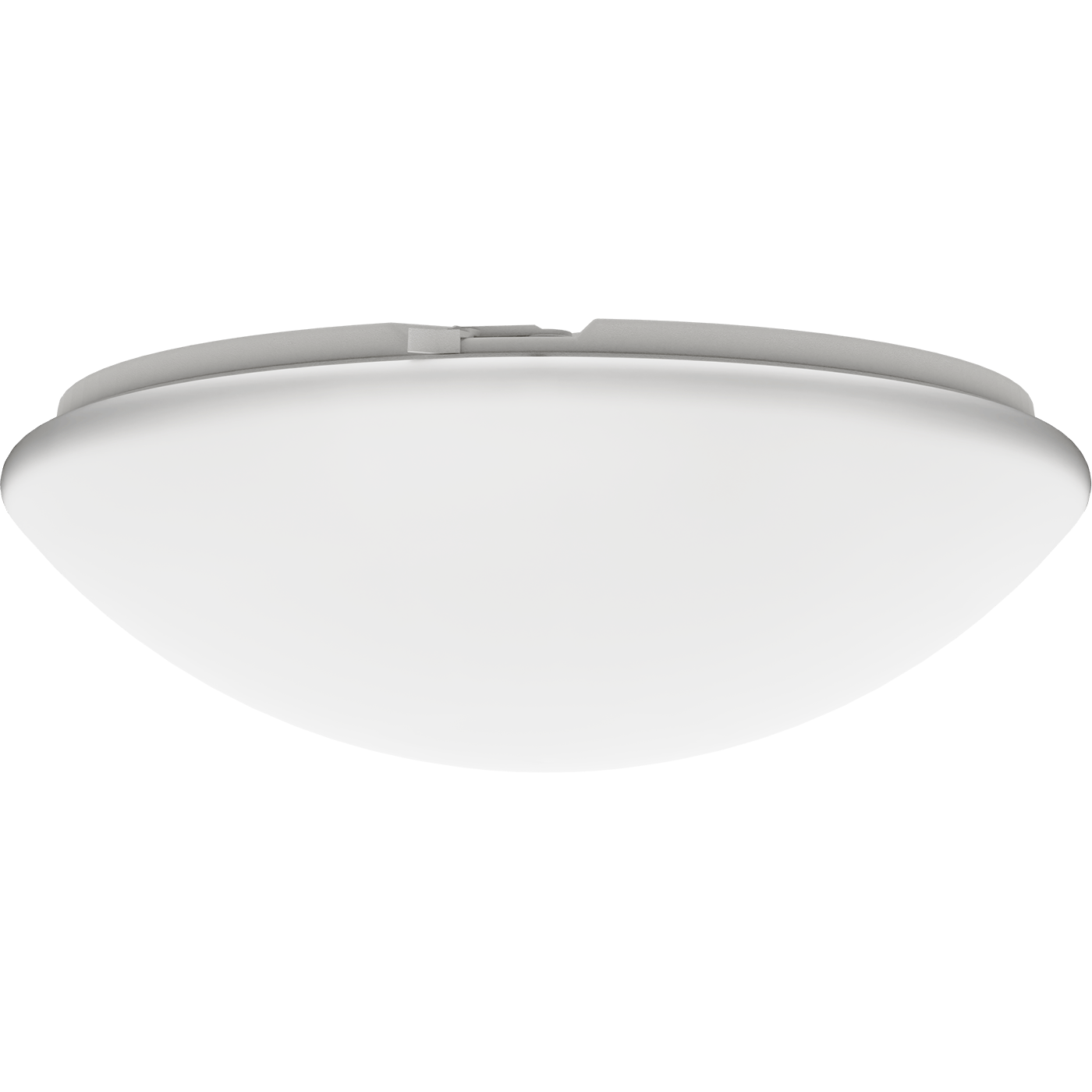

RKL LED 29 4000K
RKL LED 29 4000K
21 Wluminaire power
2400 lmlight flow
114 lm/Wenergy efficiency
code
1144000020
color temperature
4000 K
beam angle
D120
performance factor
100
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
114 lm/Wcolor rendition index (CRI)
>80light flow
2400 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
114 lm/W
color rendition index (CRI)
>80
light flow
2400 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
power factor
> 0,96
luminaire power
21 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
diameter
476 mm
height
140 mm
installation diameter
360 mm
weight
2 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1144000020
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
CAD/BIM files

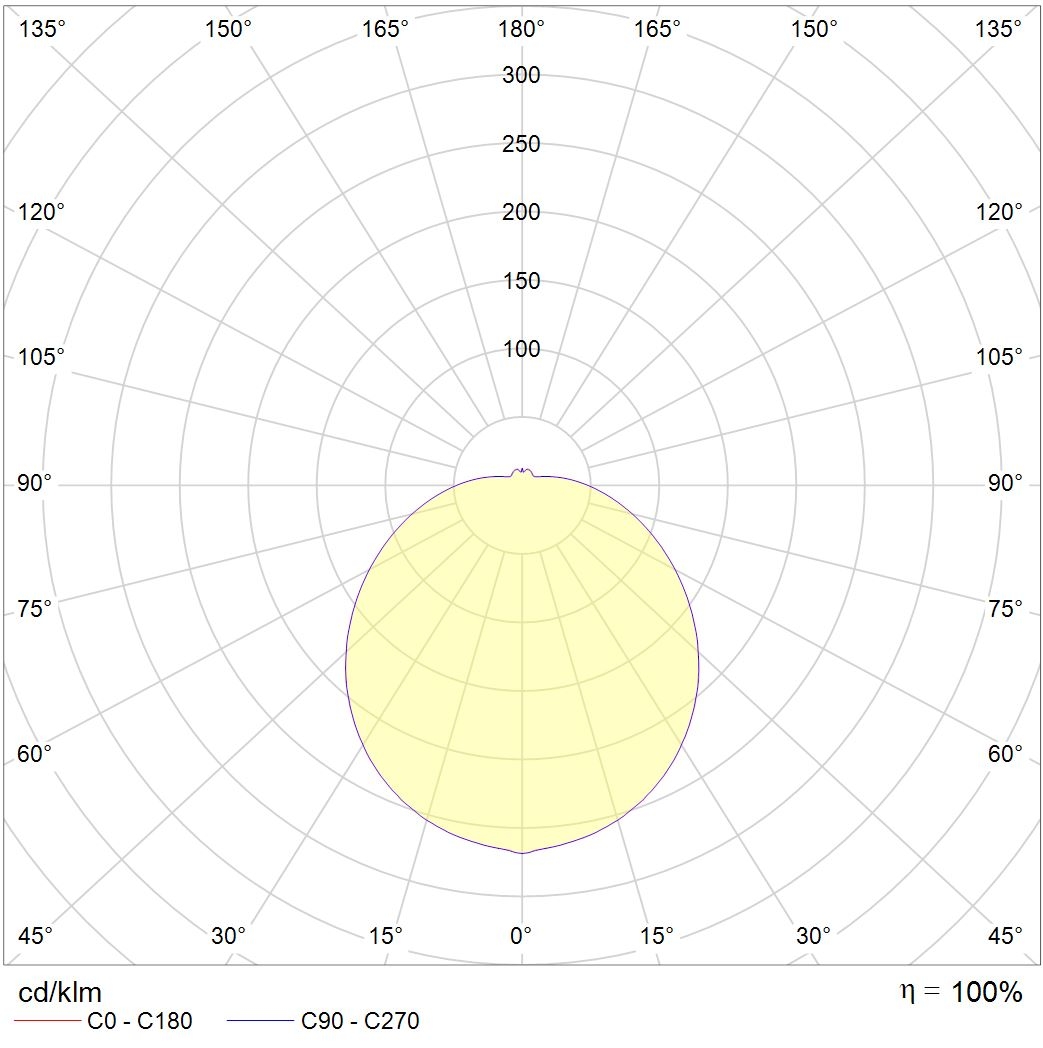

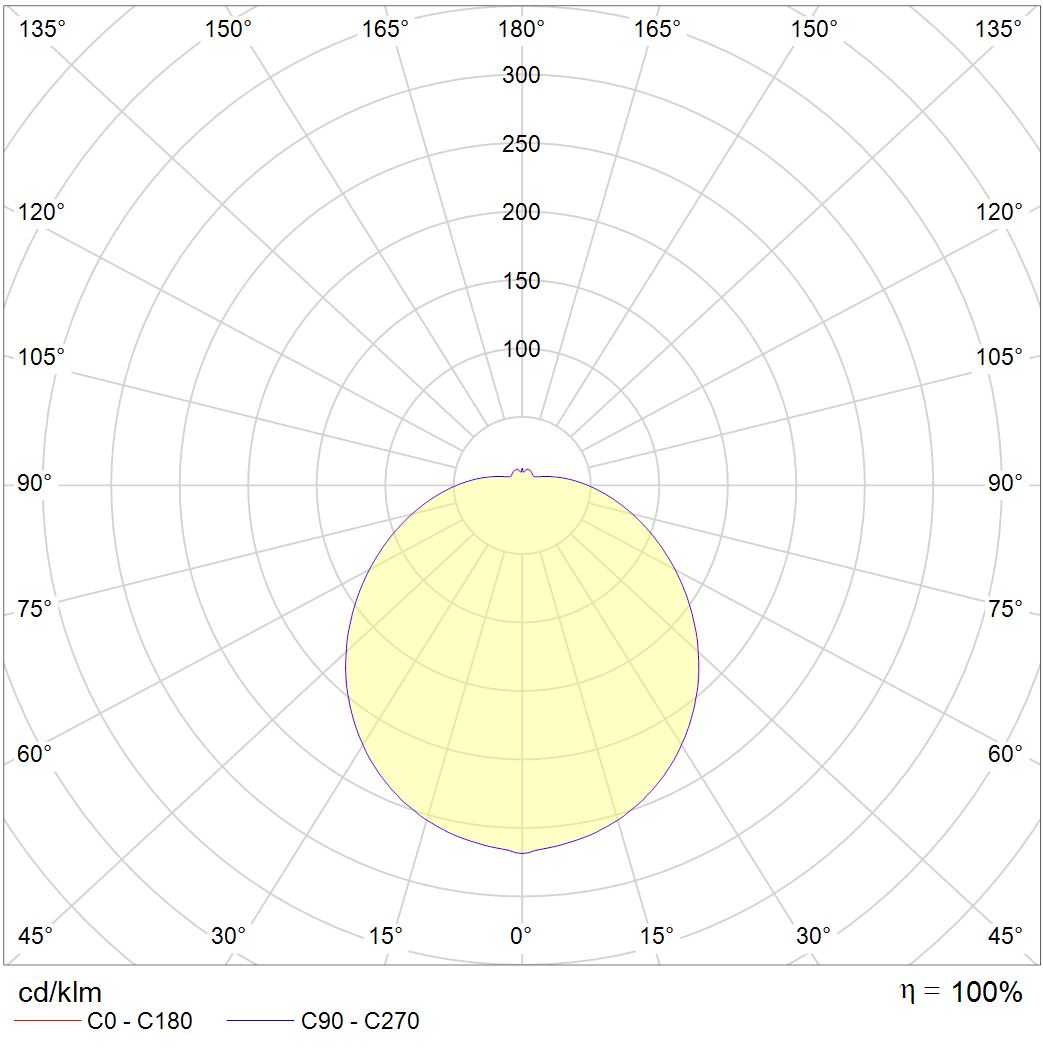

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax588 kB
photometric files
ies134.1 kB
jpg102.3 kB
ldt121.7 kB
csv413 B
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
accessories
Mounting kit X40.013kgarticle: 2995000040
