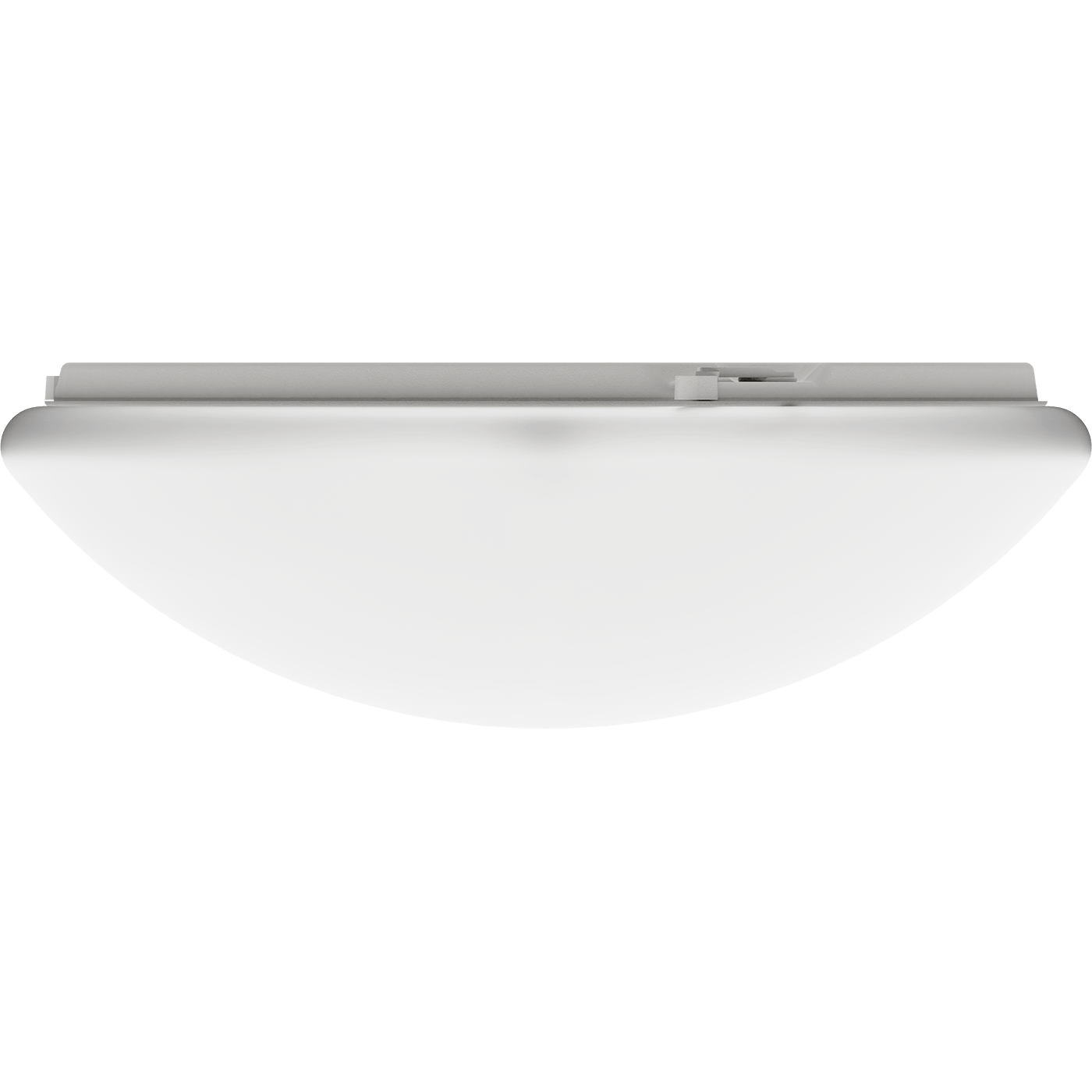

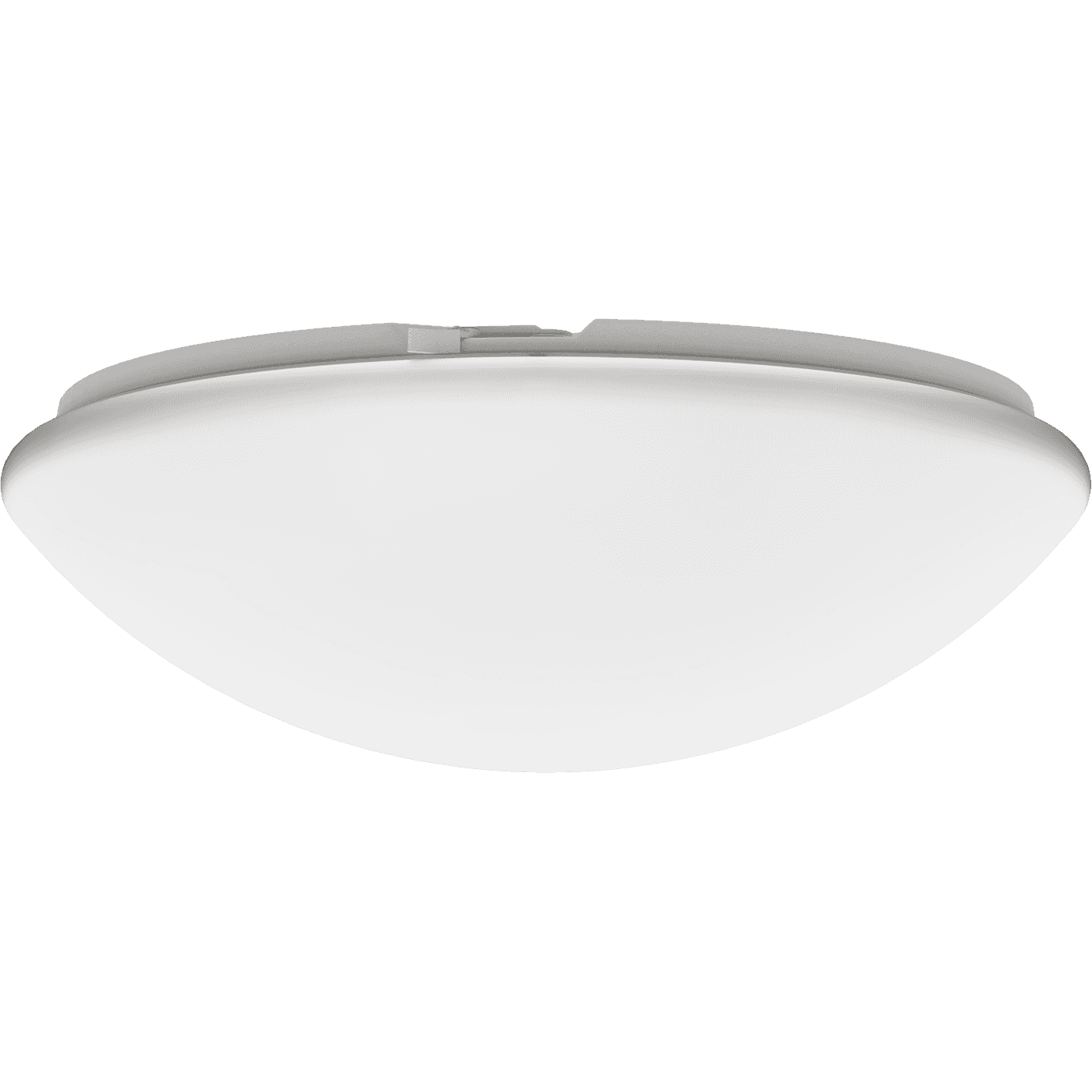

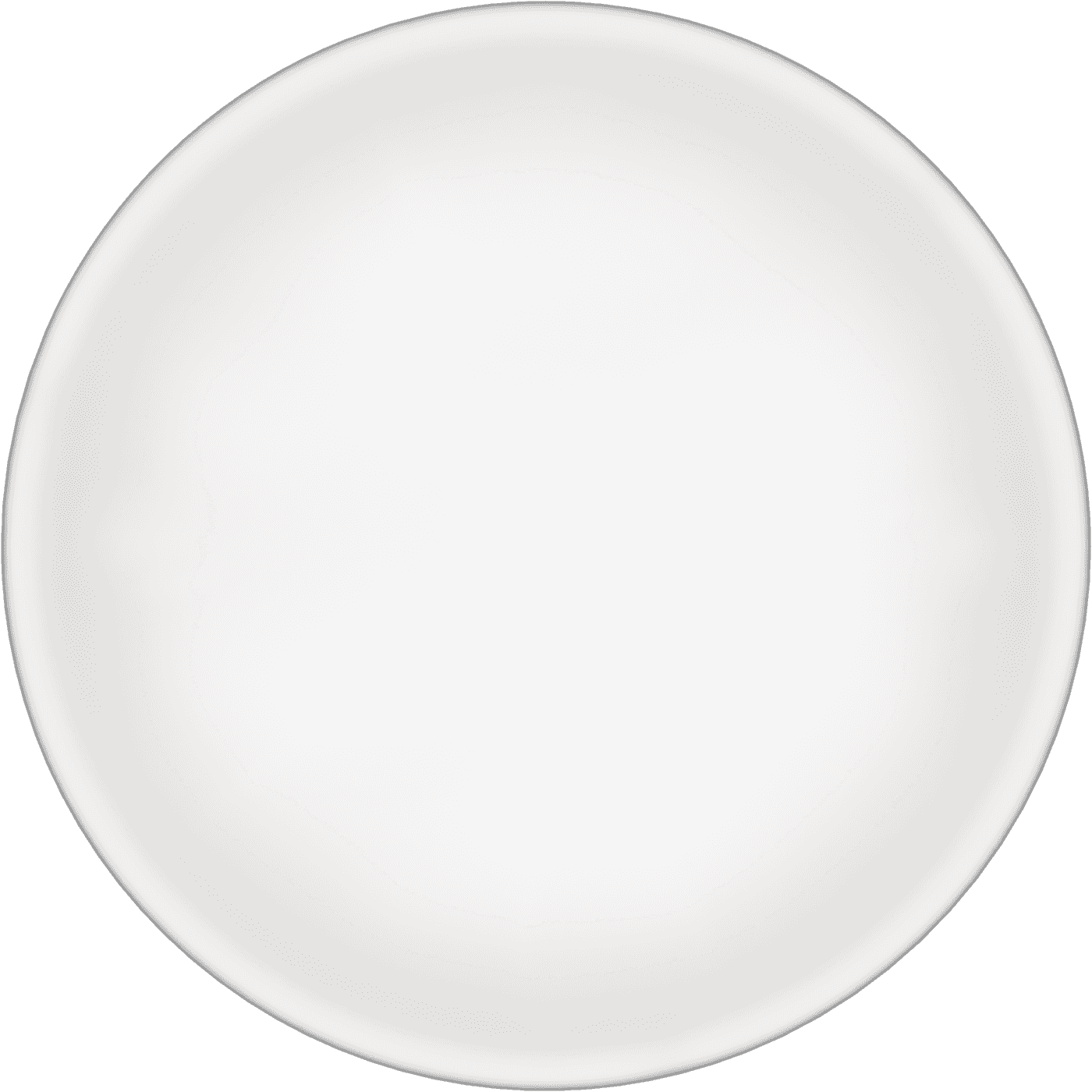

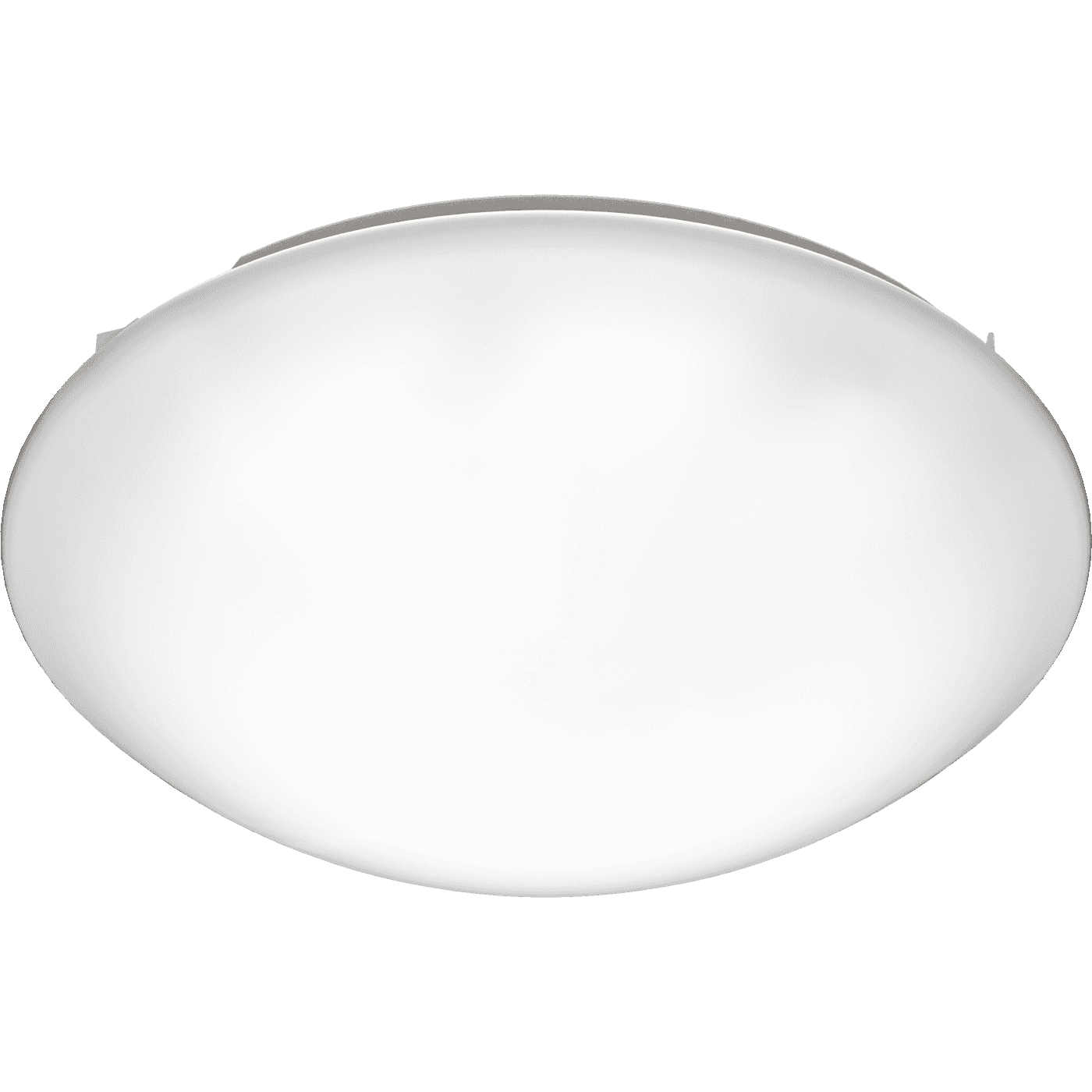

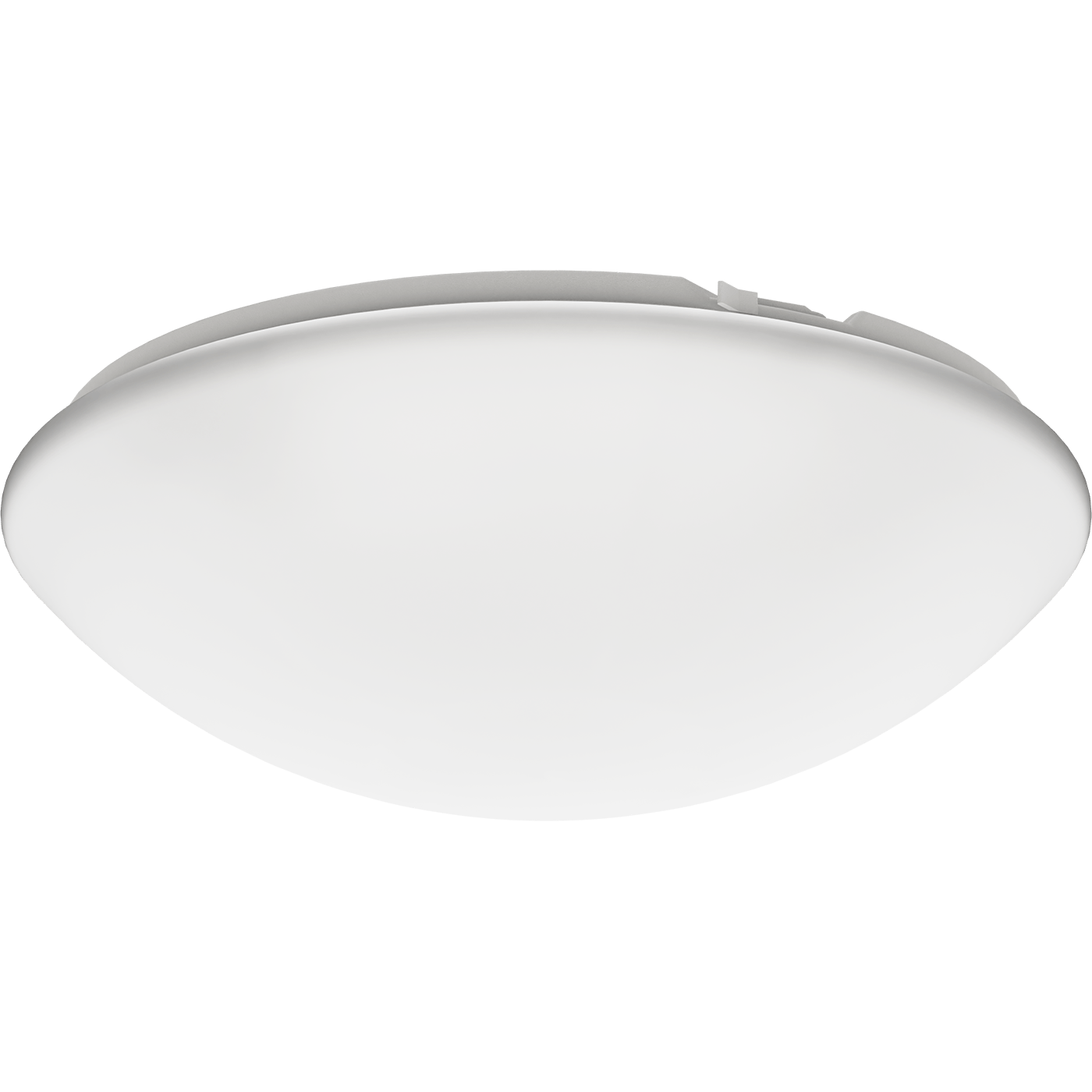

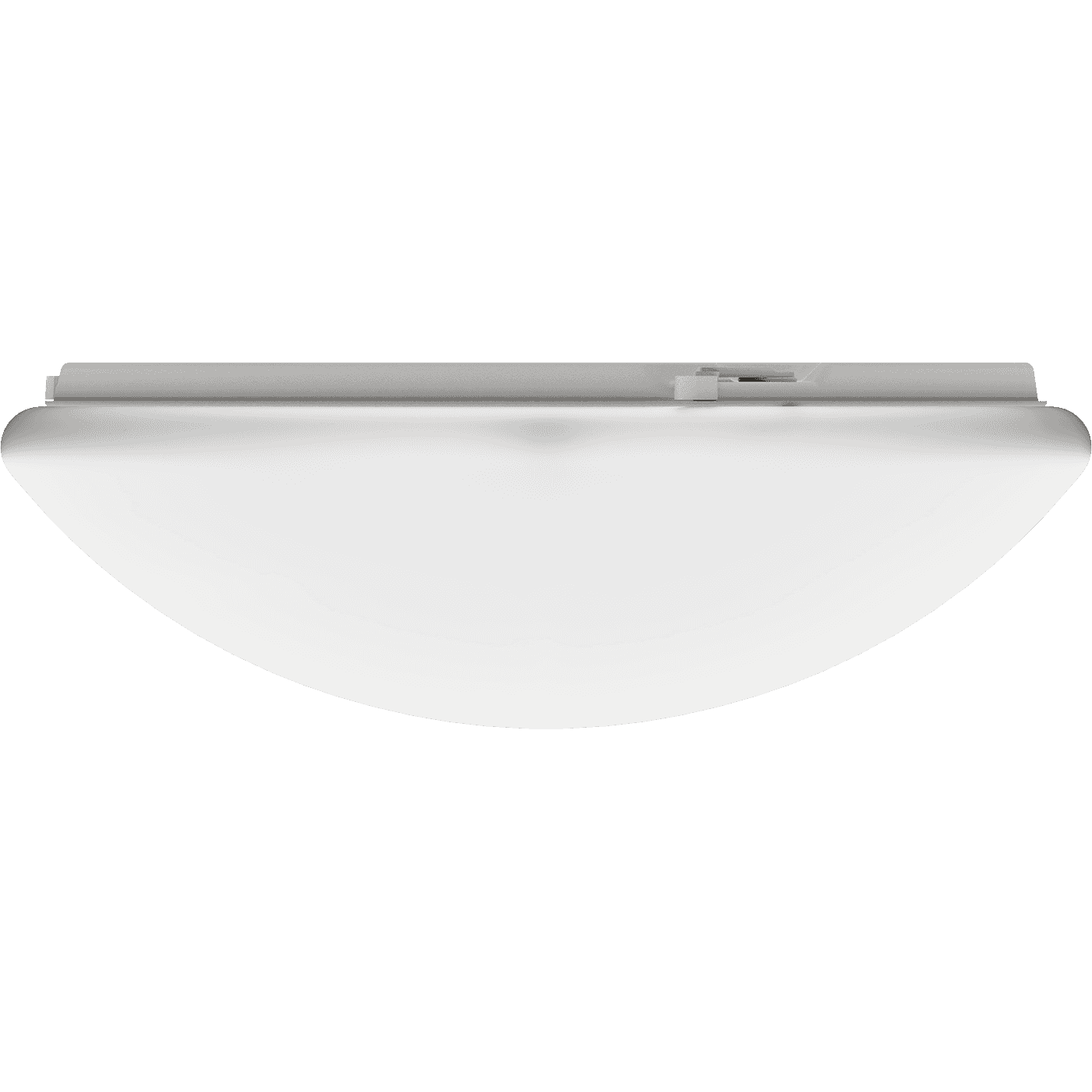

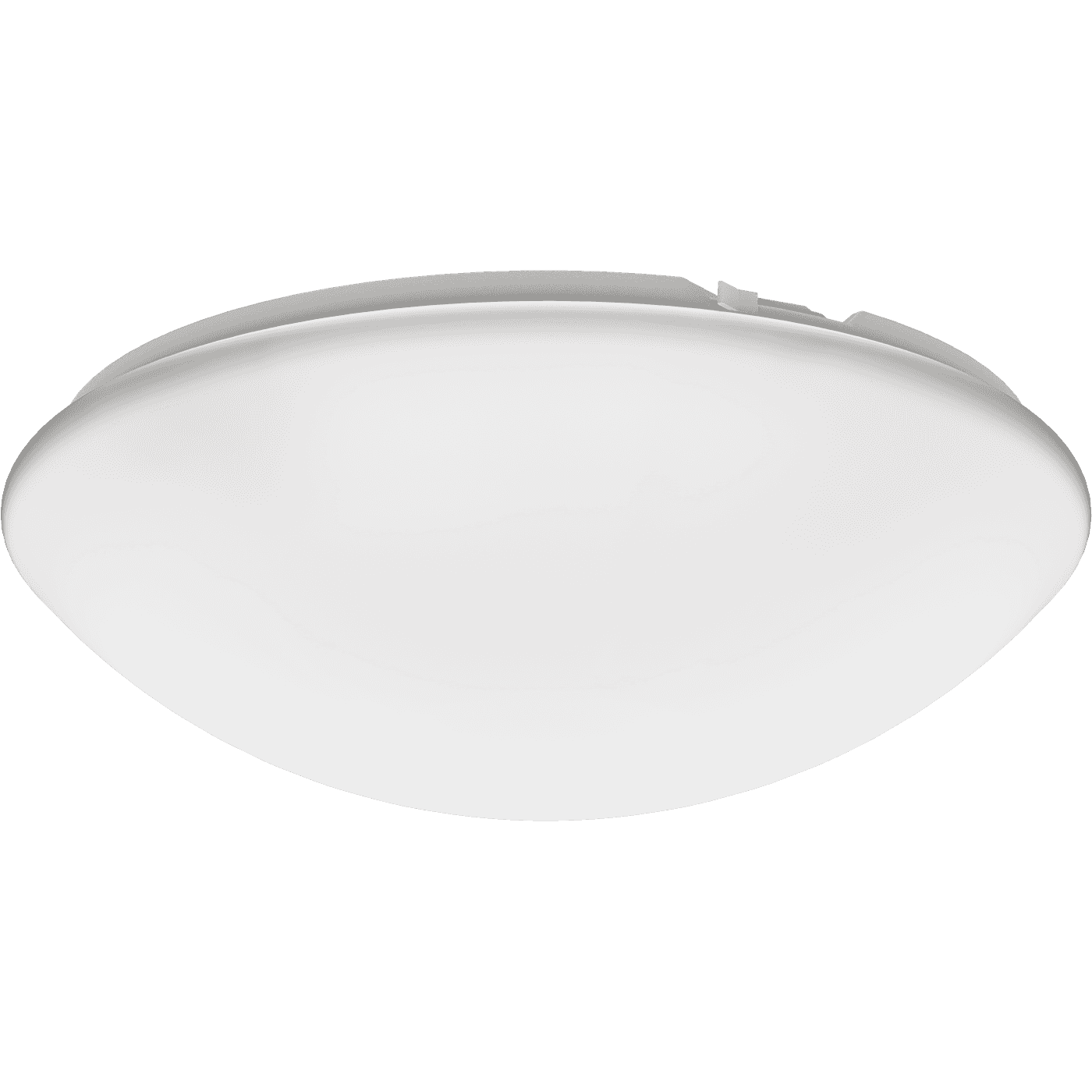

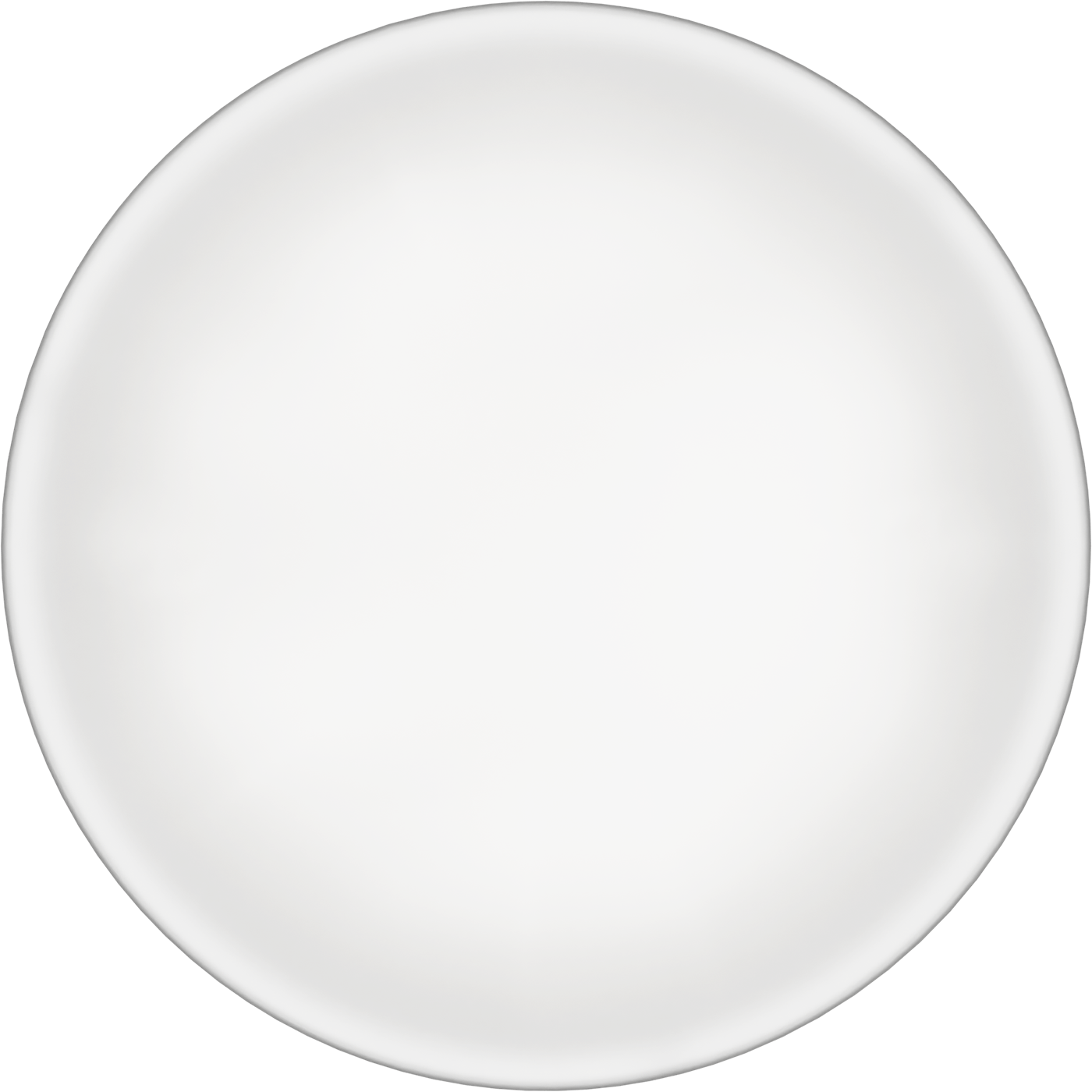

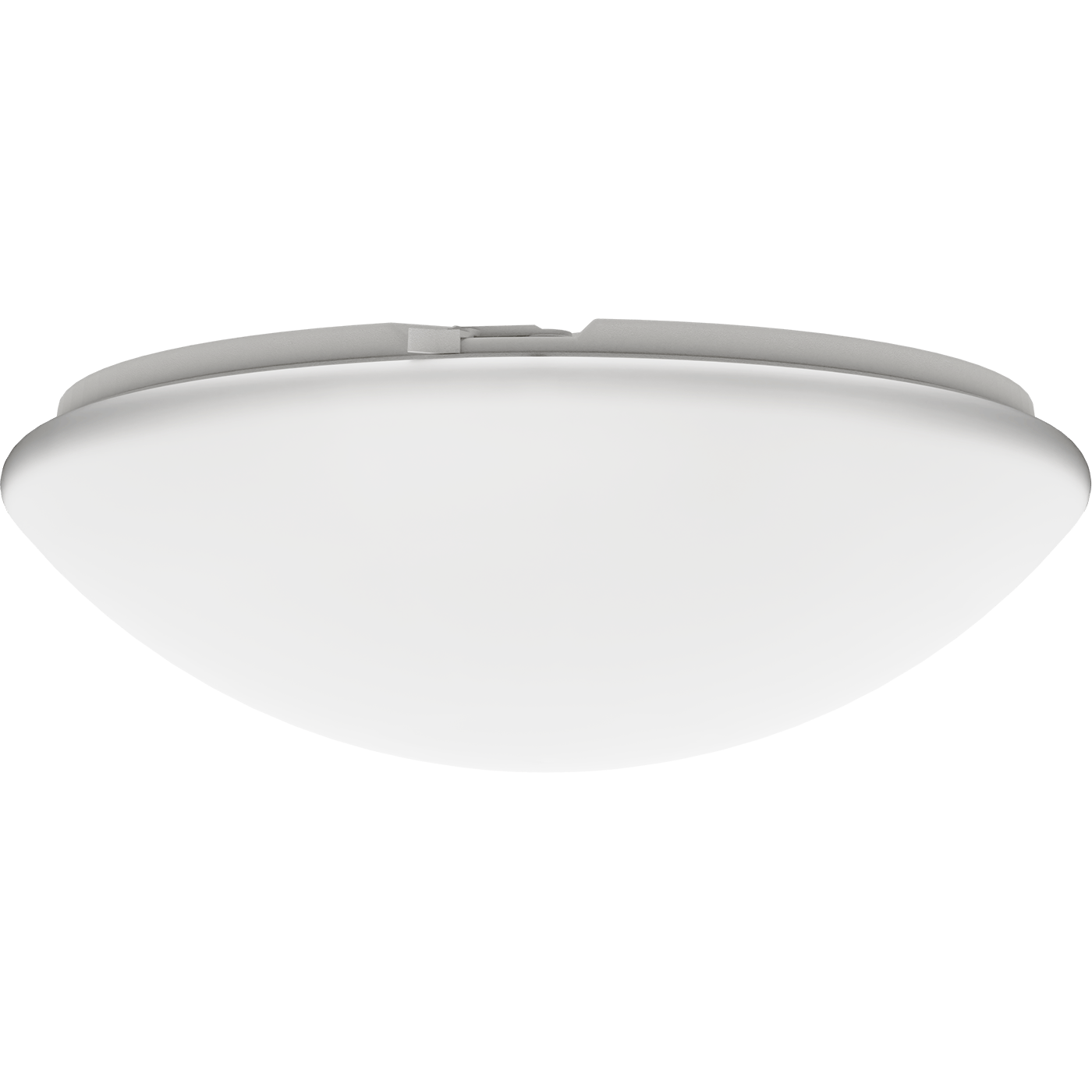

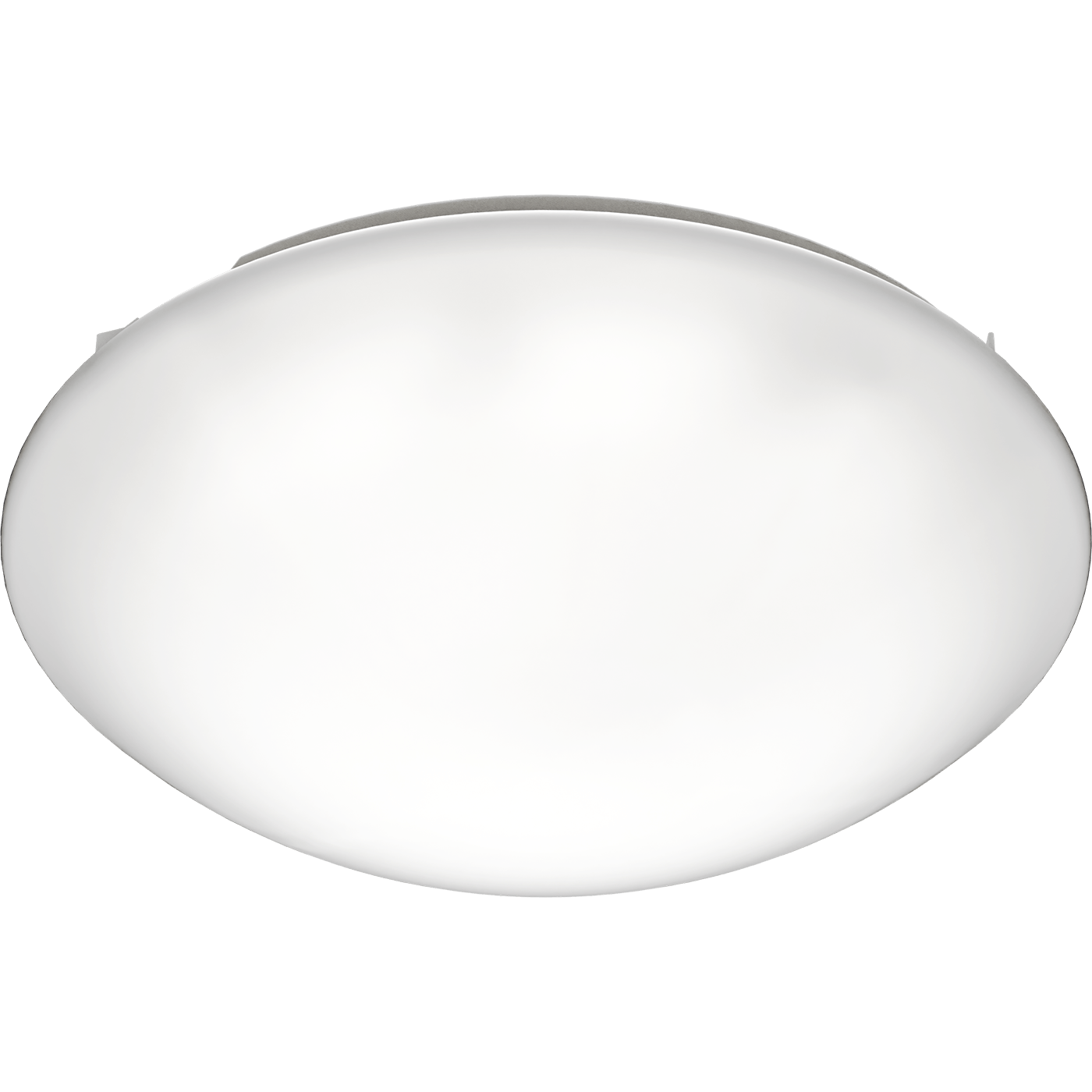

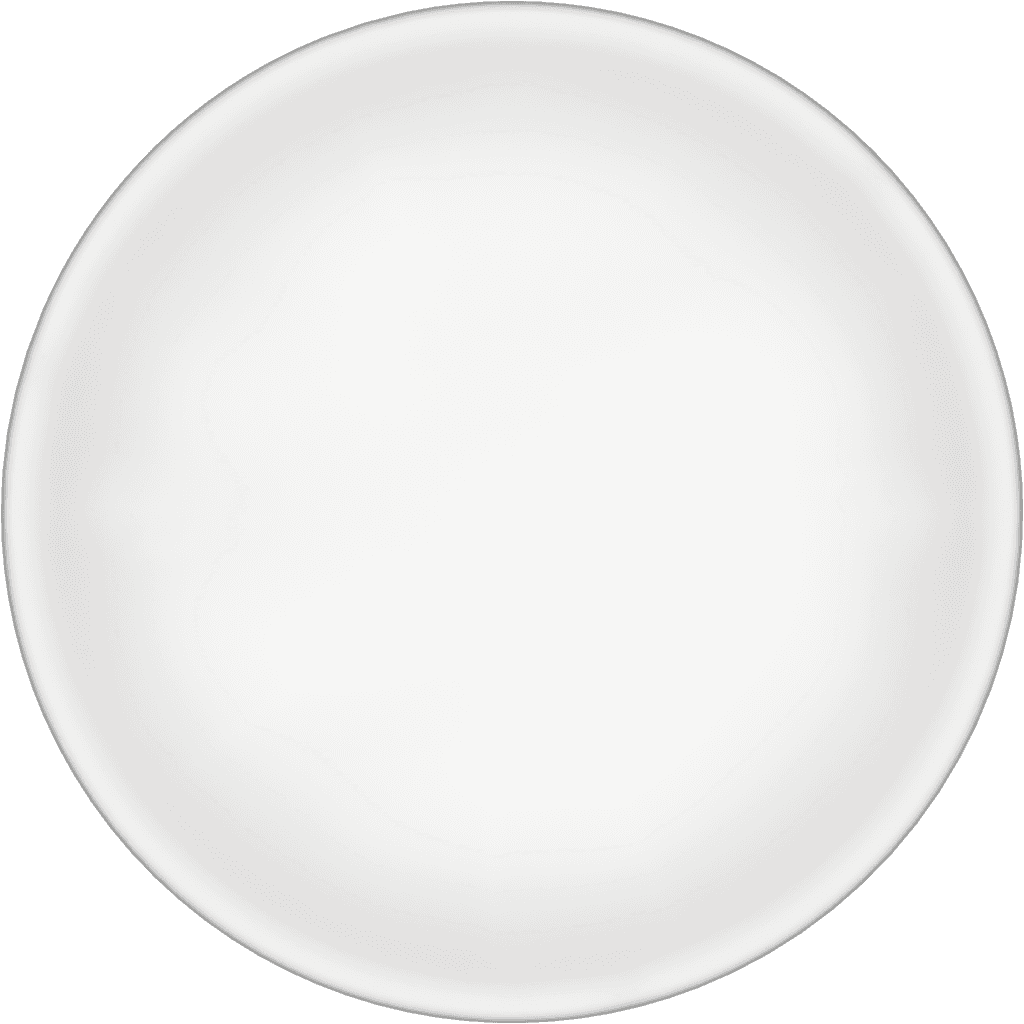

RAKE LED 13 MS 4000K

RAKE LED 13 MS 4000K
14 Wluminaire power
1600 lmlight flow
114 lm/Wenergy efficiency
code1752000020
color temperature4000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
emission color
Белый
light source type
LED
light flow
1600 lm
color rendition index (CRI)
>80
flickering factor
<5%
energy efficiency
114 lm/W
beam angle
D120
color temperature
4000 K
illuminating
emission color
Белый
light source type
LED
light flow
1600 lm
color rendition index (CRI)
>80
flickering factor
<5%
energy efficiency
114 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
14 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
starting current
43 A
supply voltage
230 V
starting current pulse time
2.28 µs
constructional
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
diameter
367 mm
height
125 mm
material
Сталь
housing color
Белый
weight
1.5 kg
LMS options
dimming
Microwave motion sensor / light sensor
common
code
1752000020
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от +5 до +35 C
model files
model files

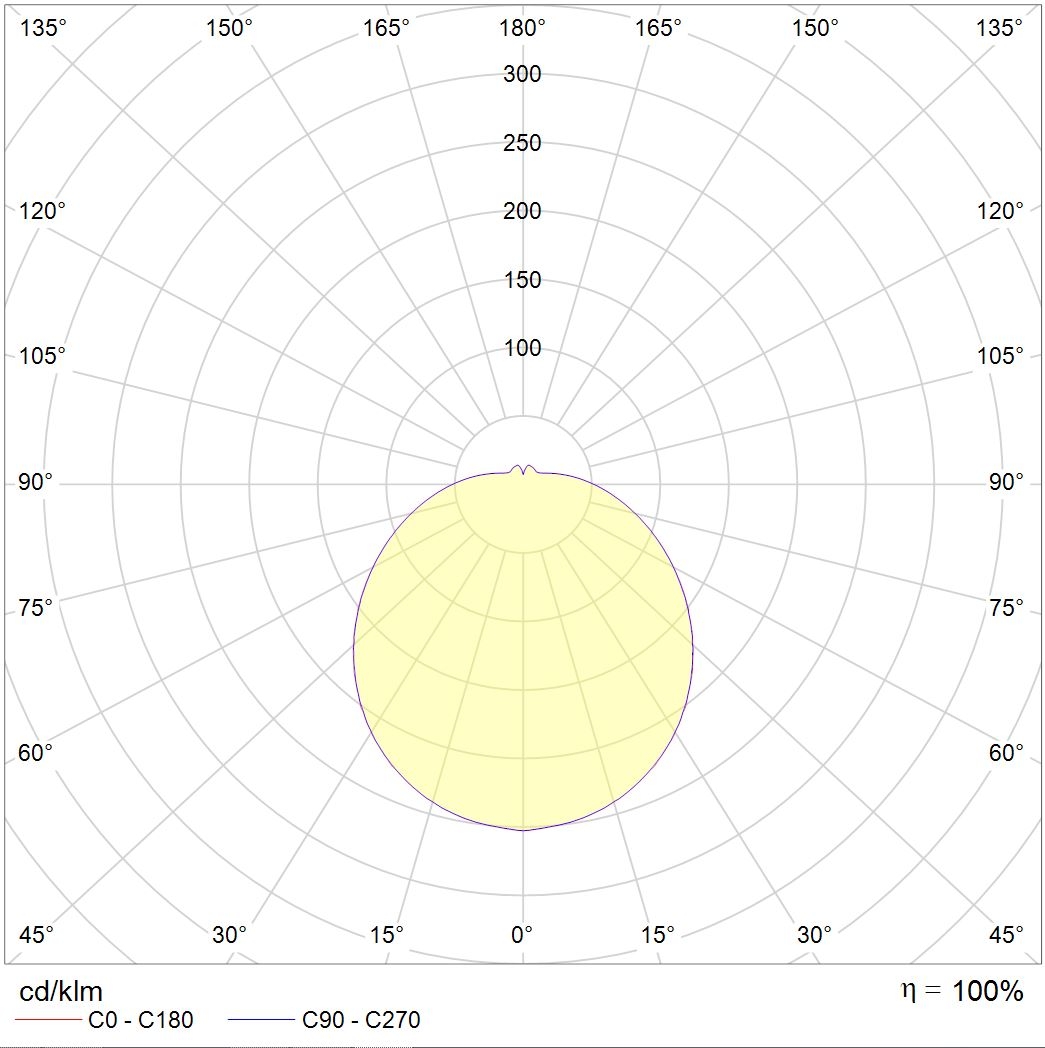

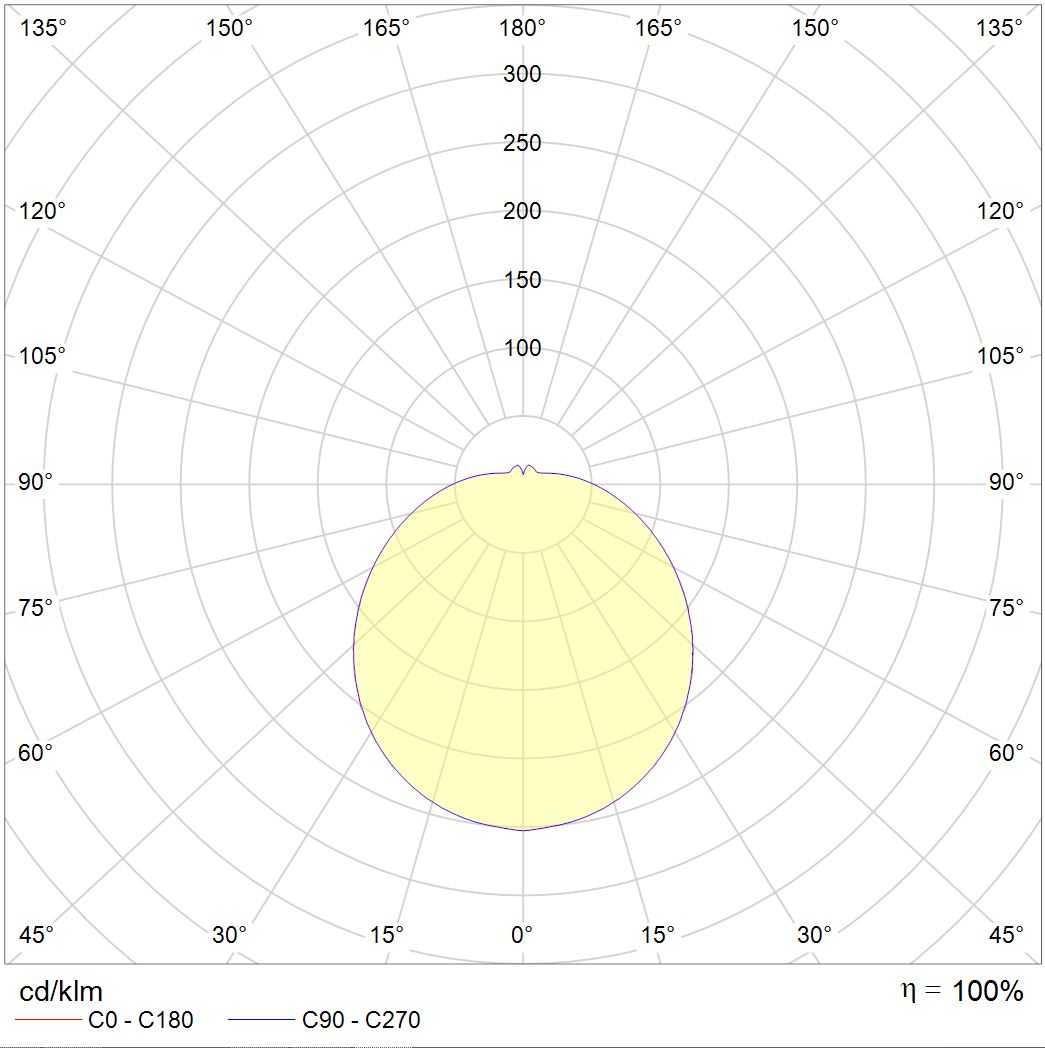

photometric files
ies134.1 kB
jpg104.3 kB
ldt121.1 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
