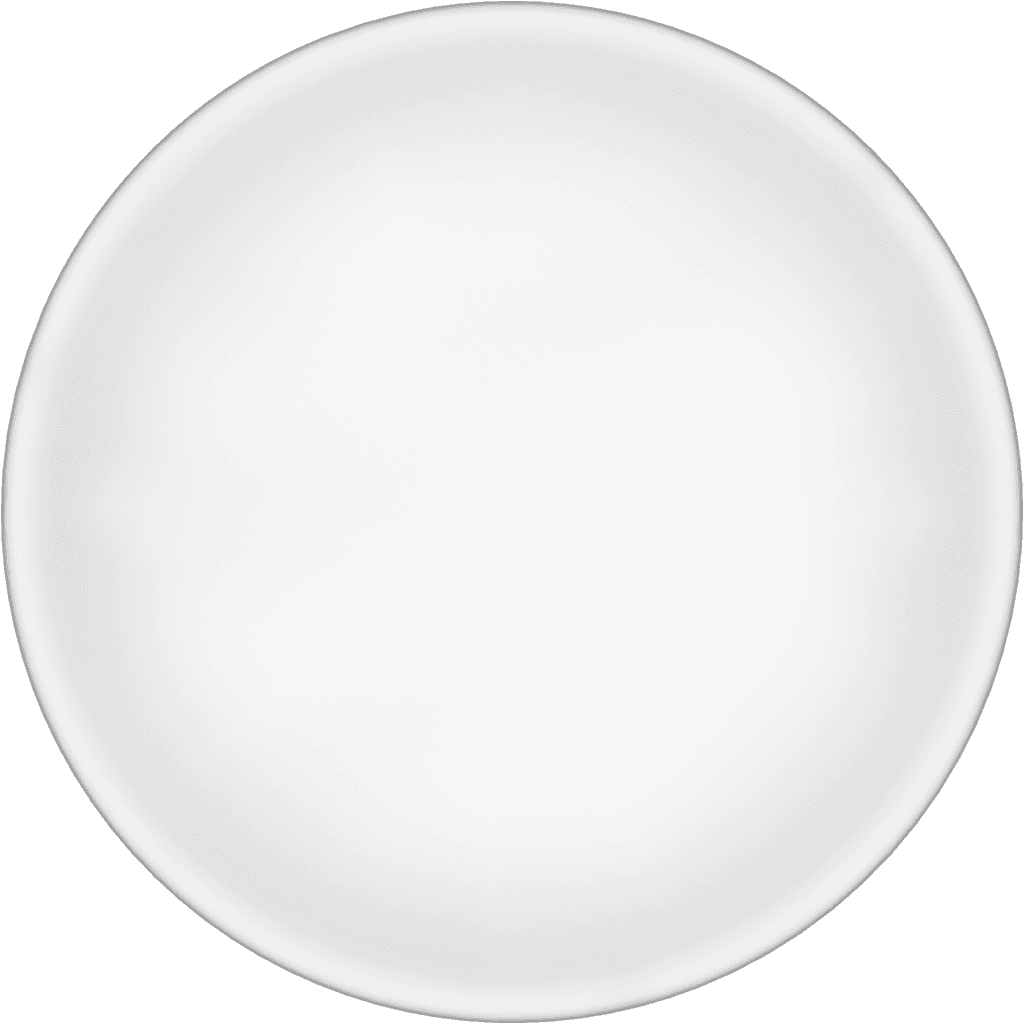

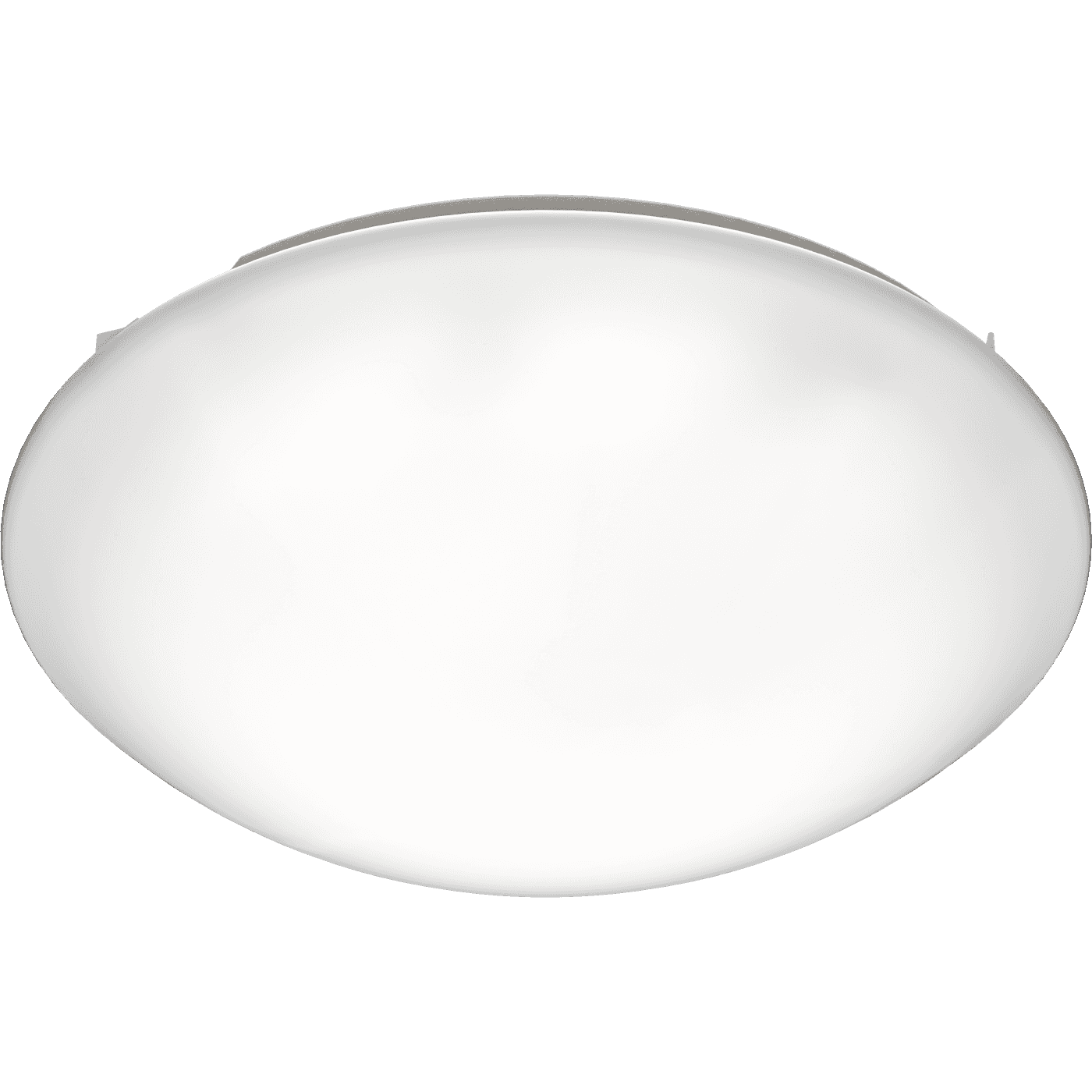

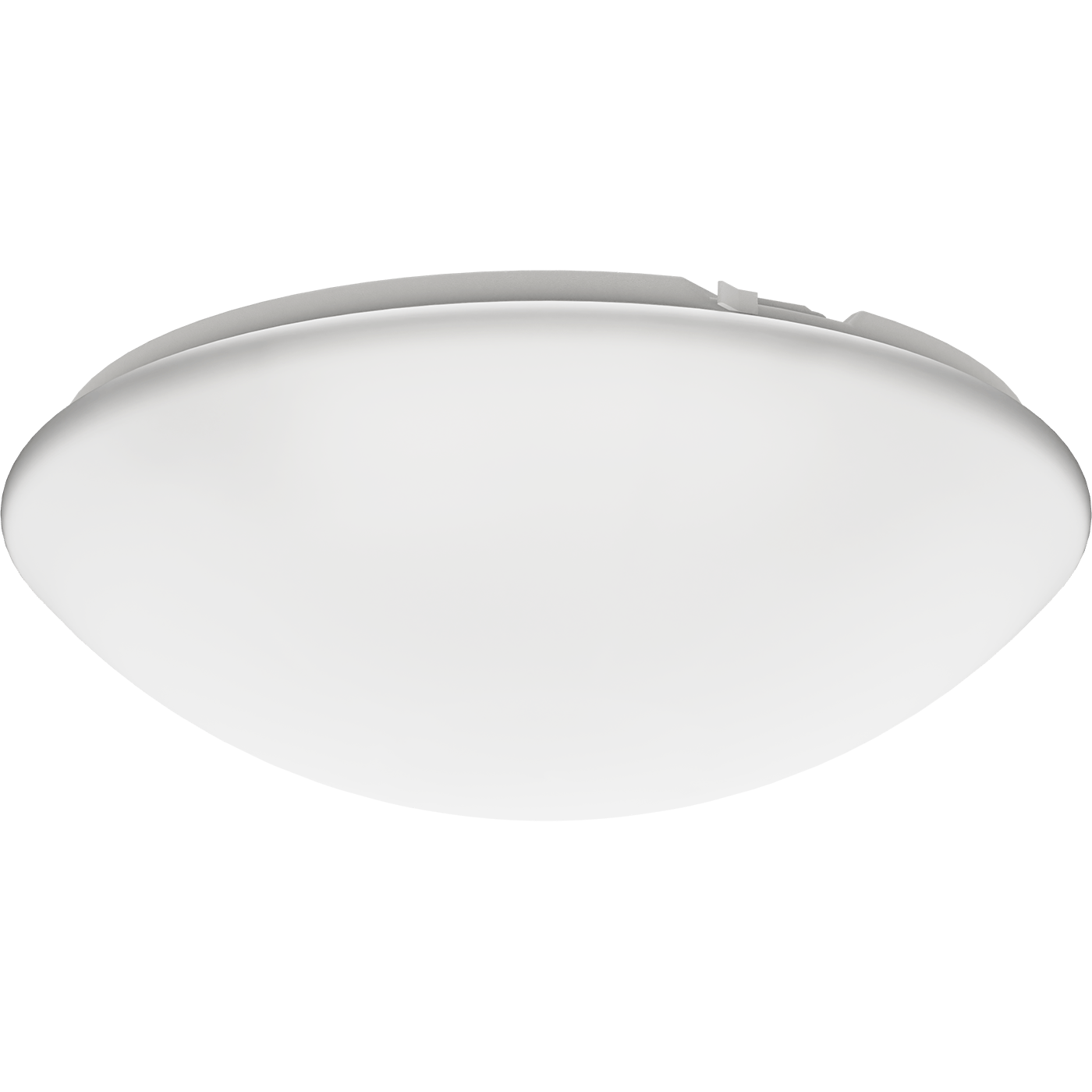

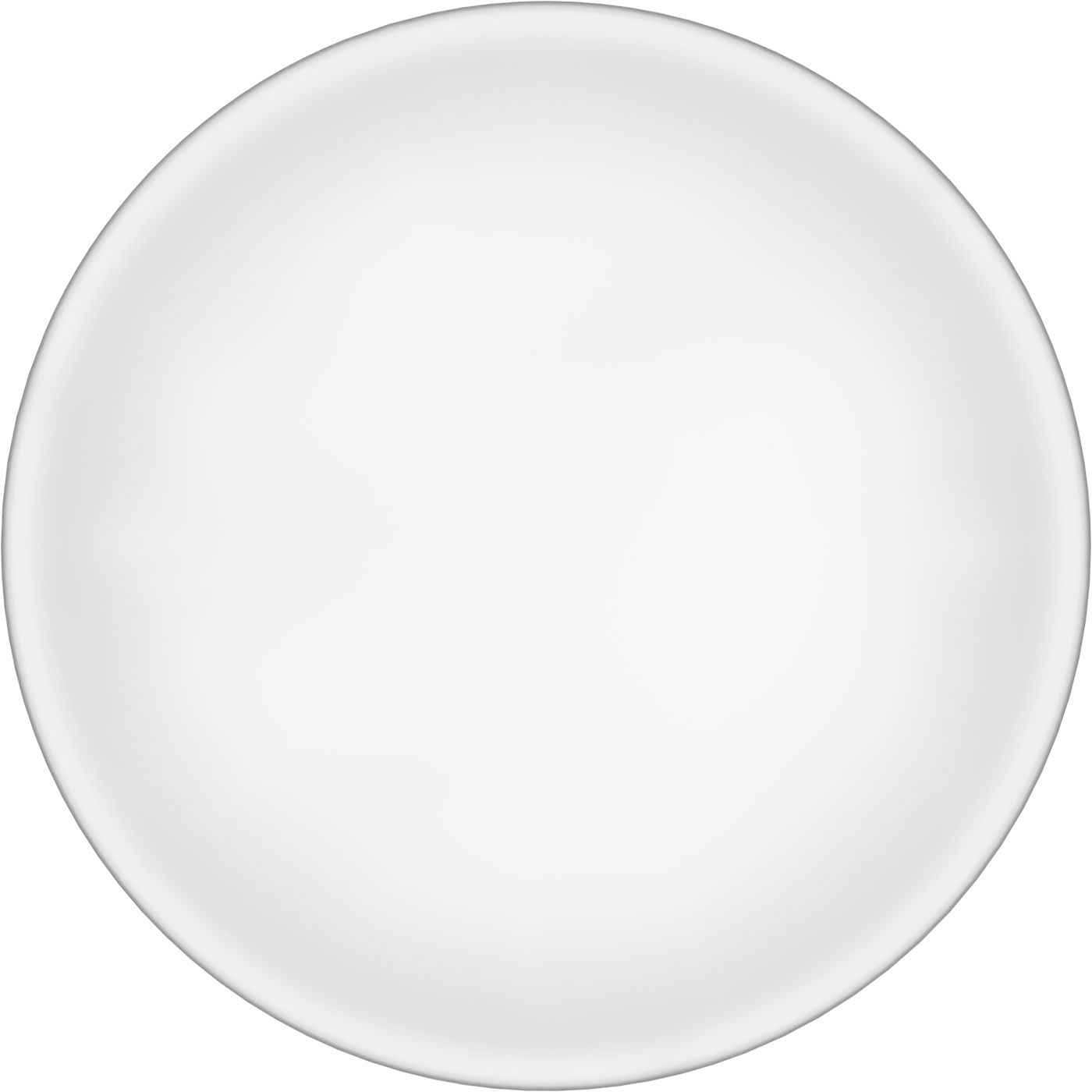

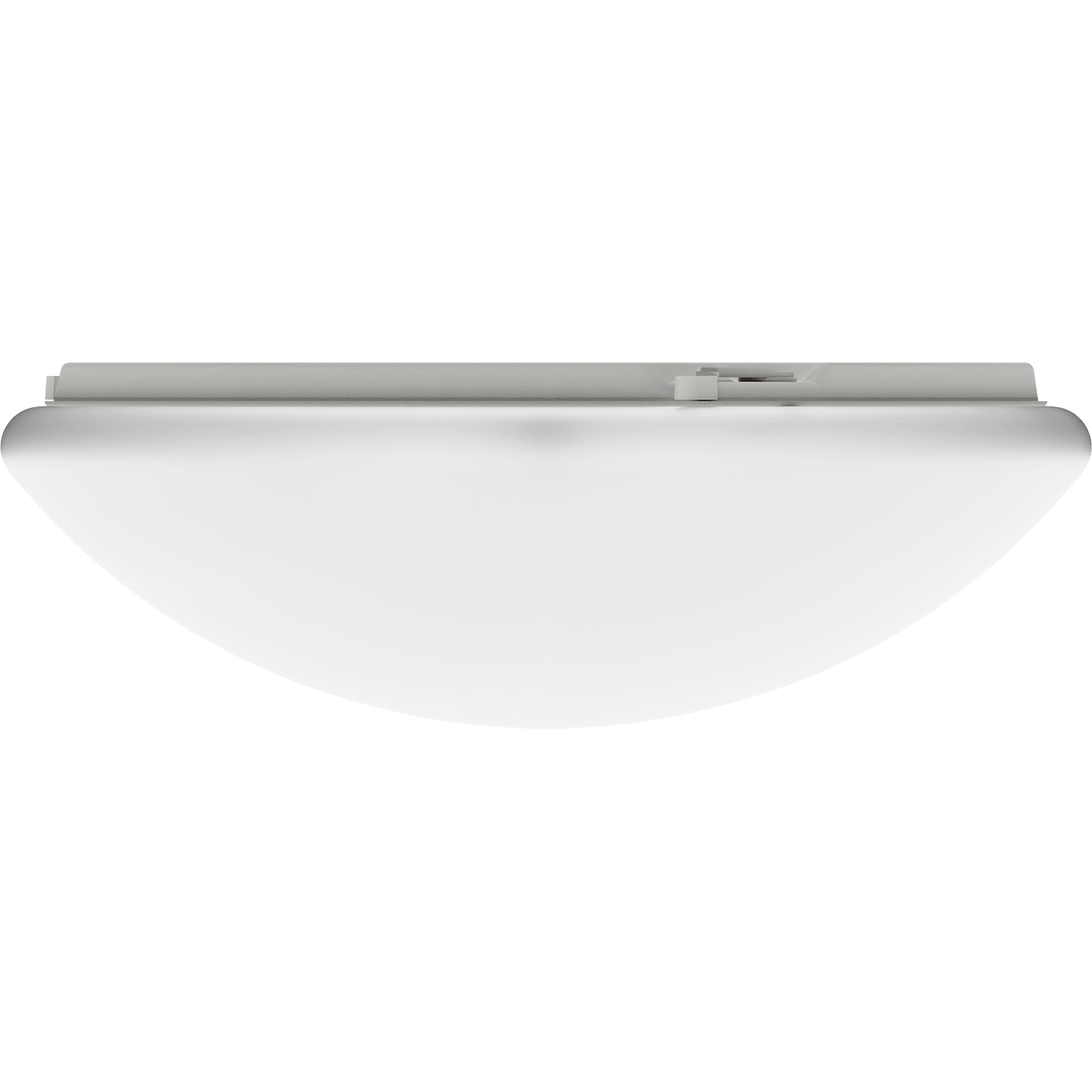

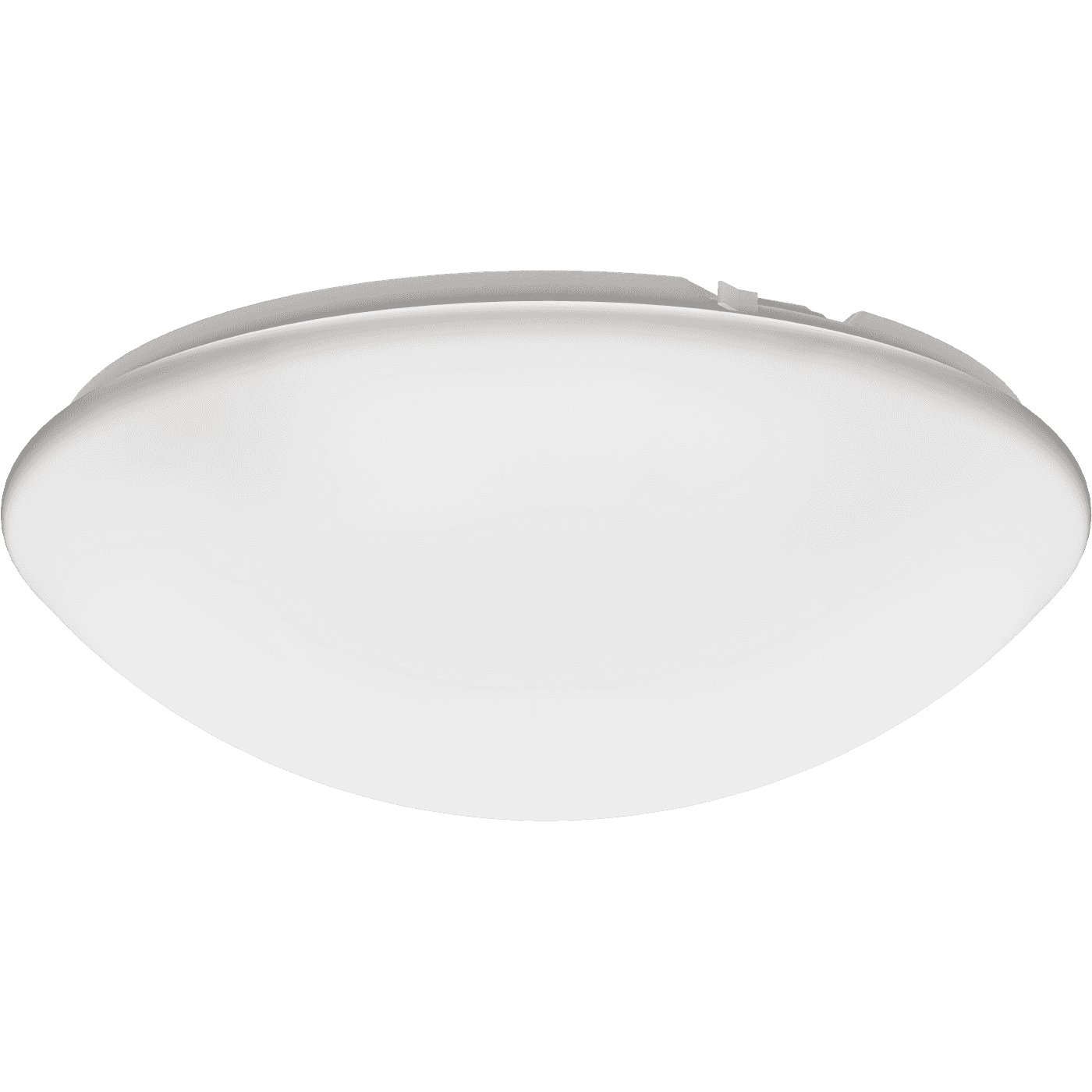

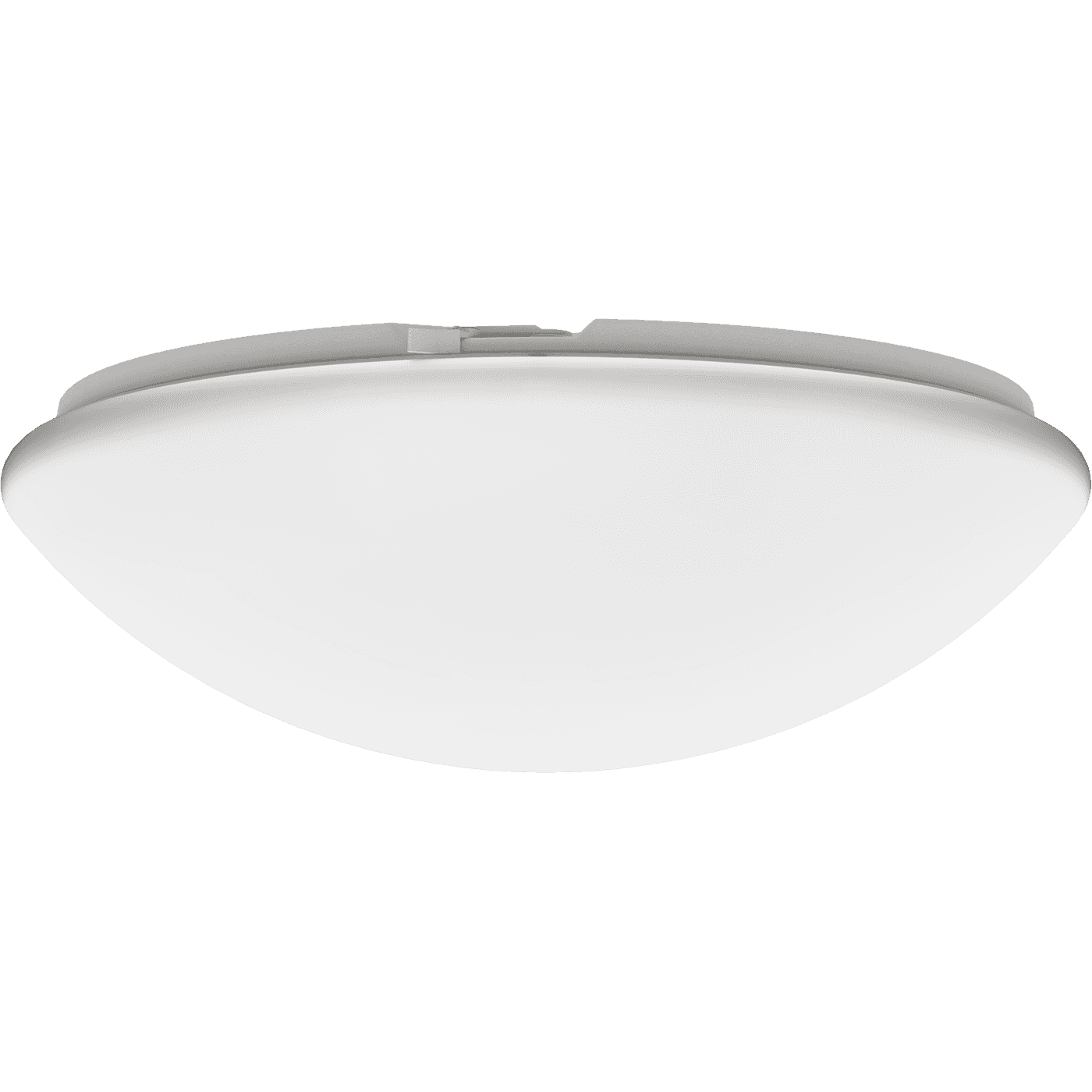

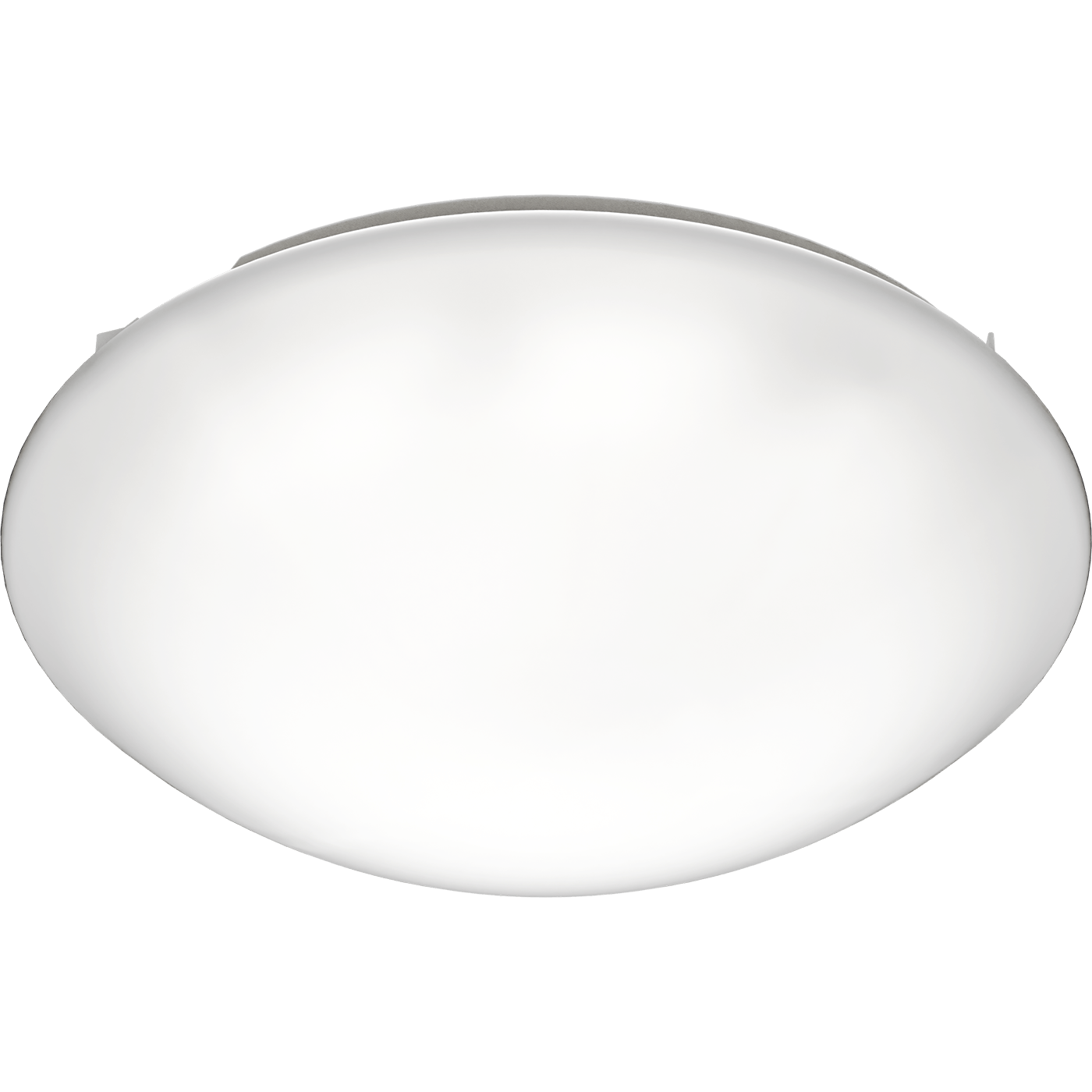

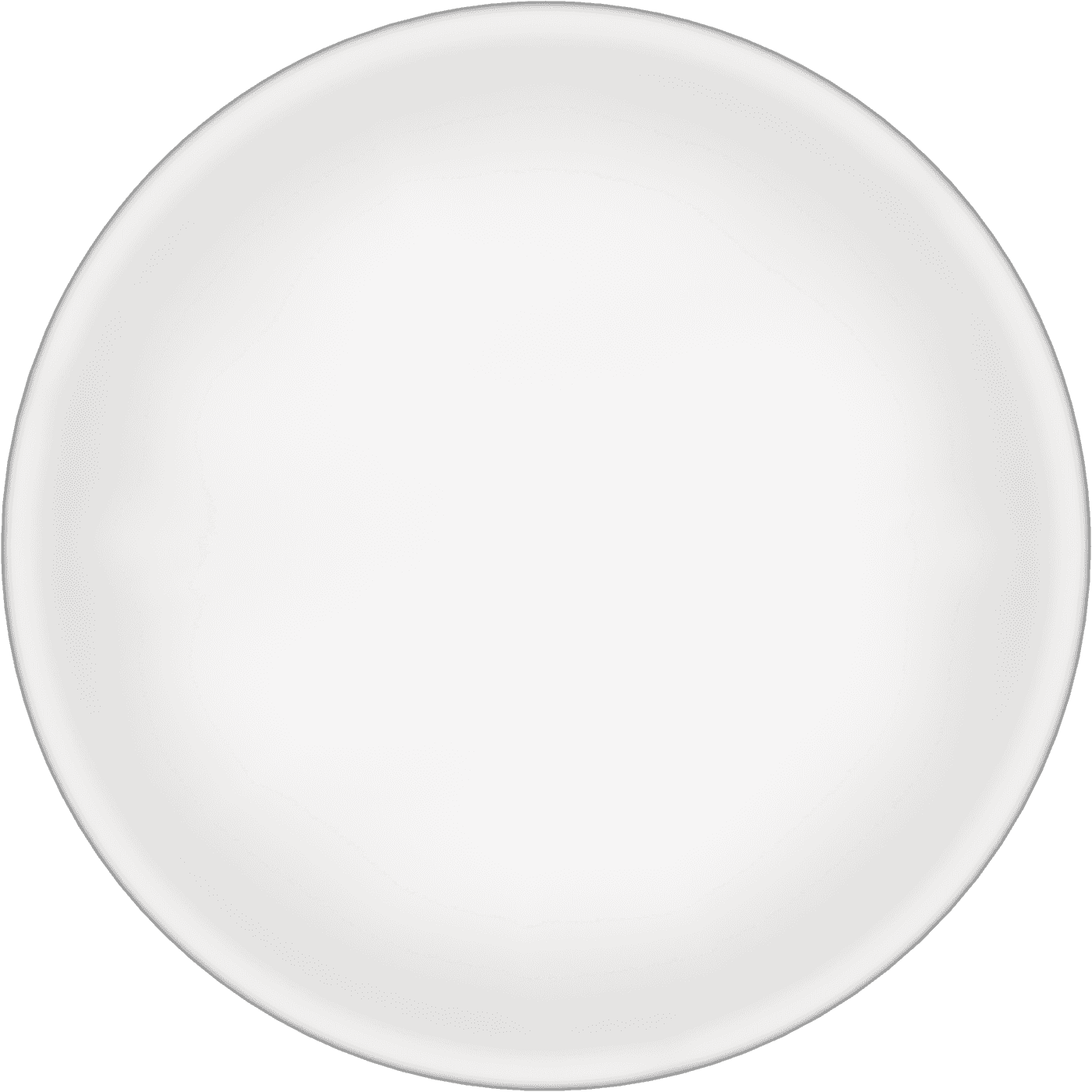

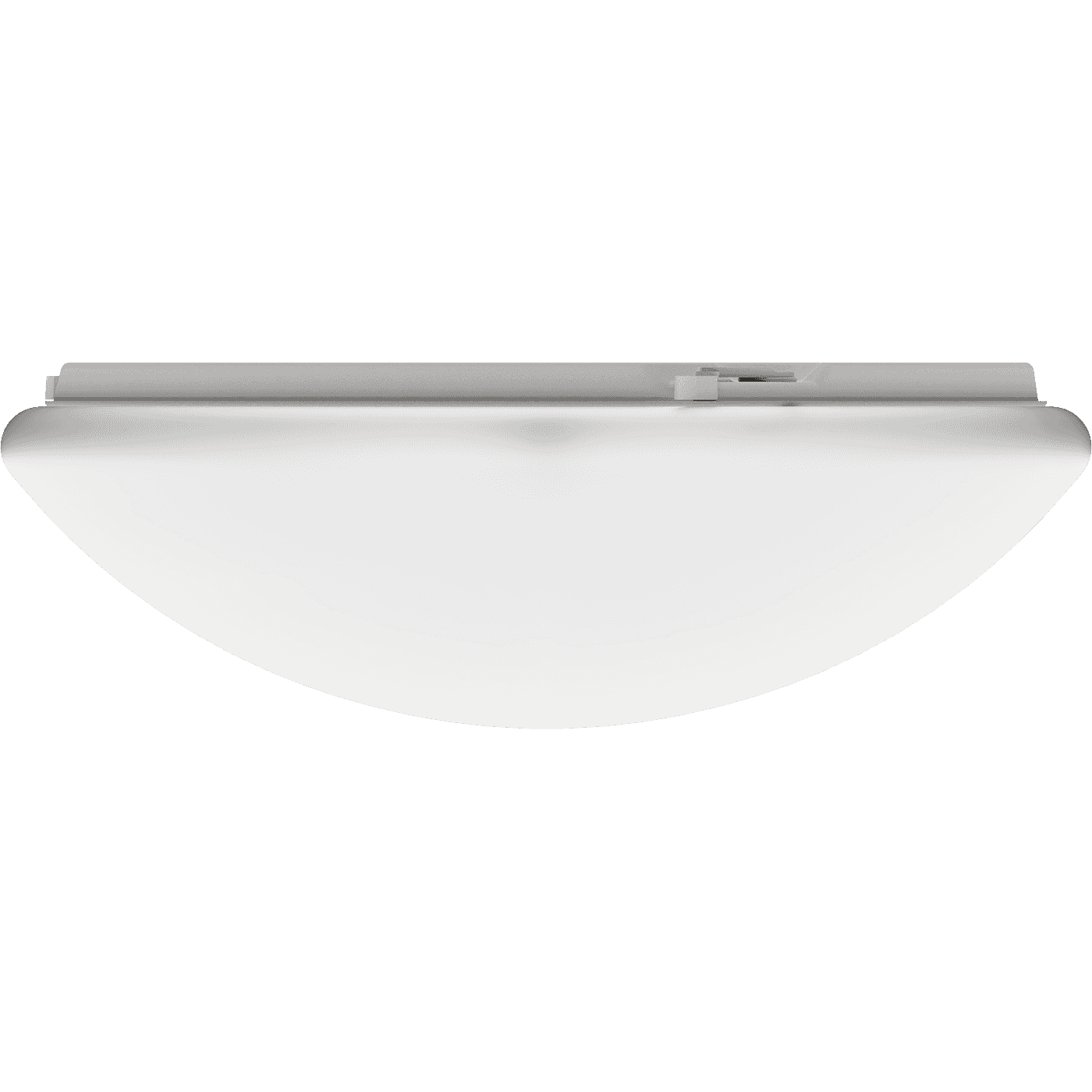

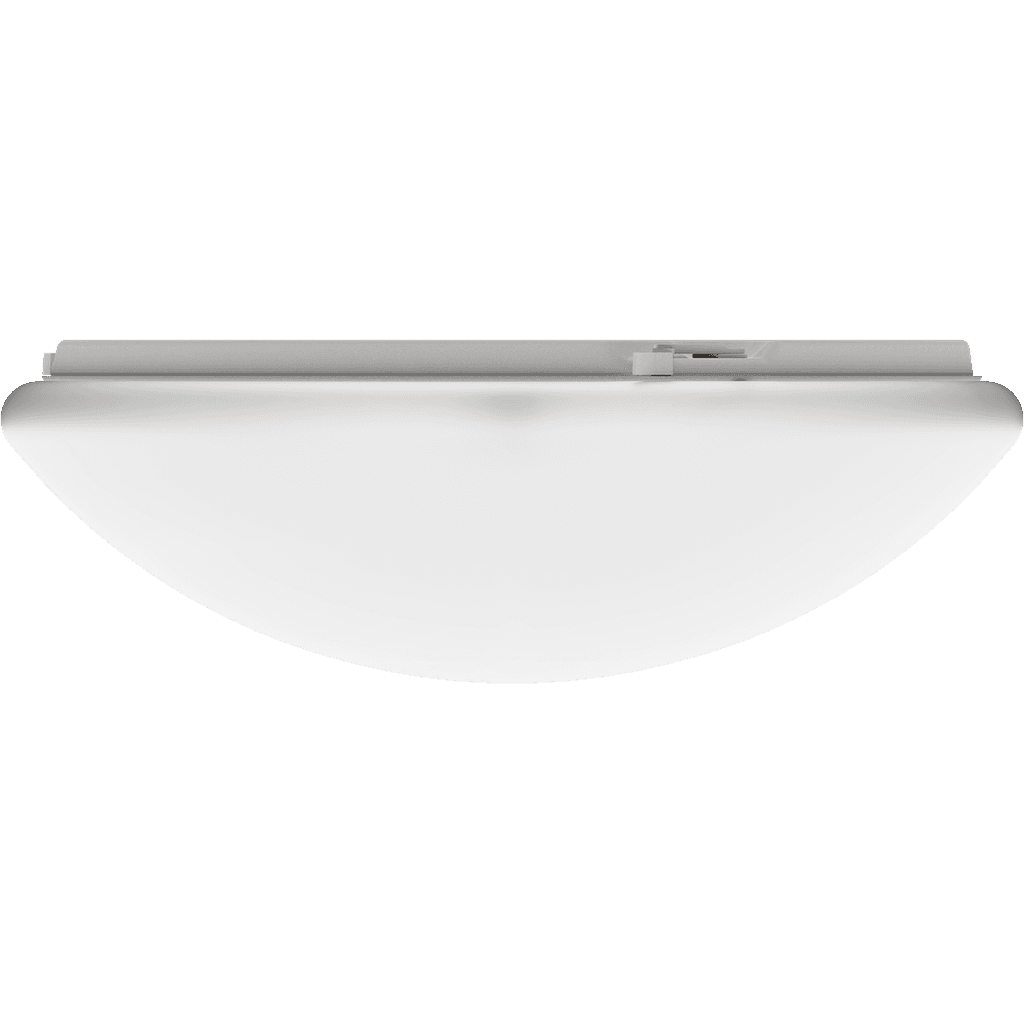

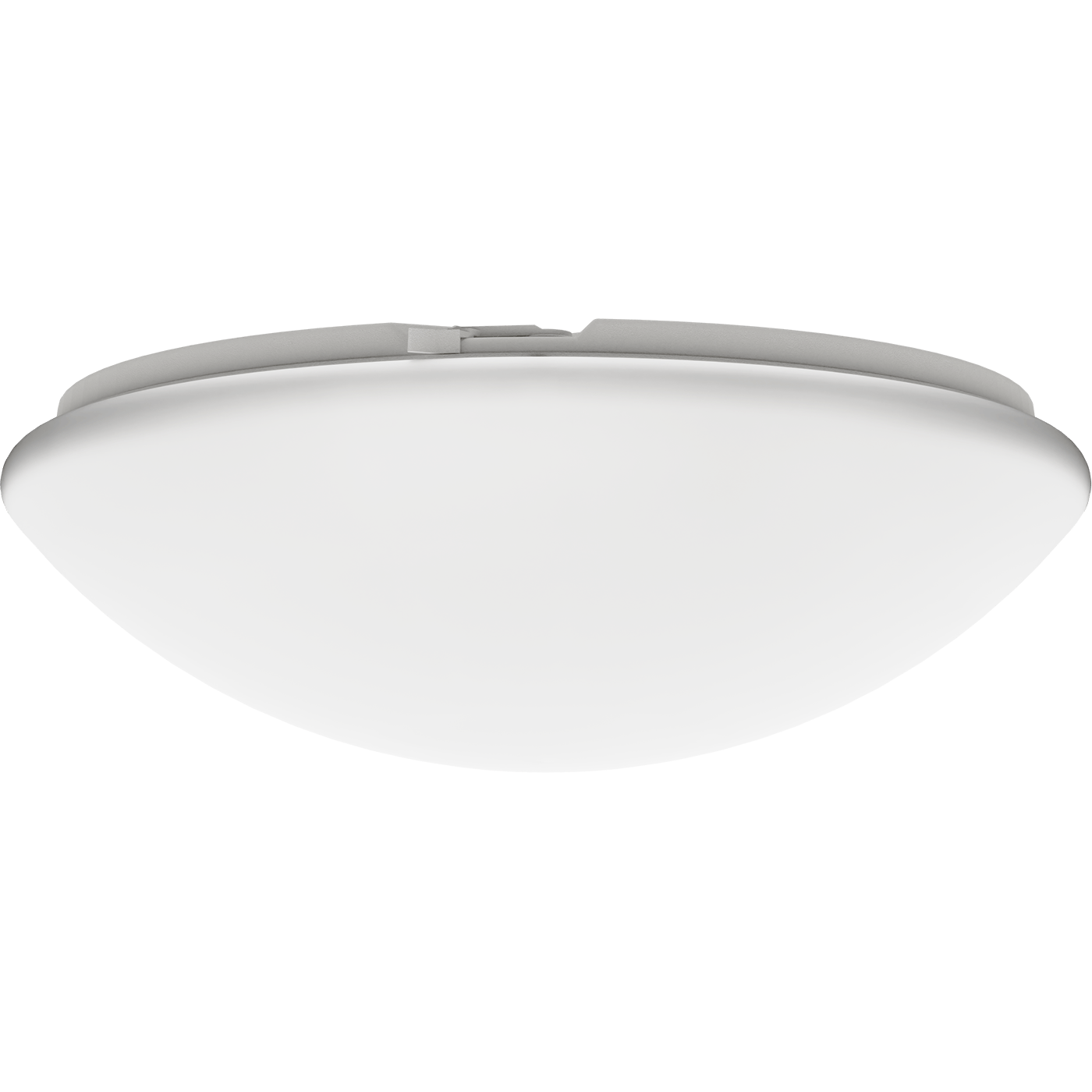

RAKE LED 13 4000K
RAKE LED 13 4000K
14 Wluminaire power
1600 lmlight flow
114 lm/Wenergy efficiency
code1752000010
color temperature4000
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белыйlight source type
LEDlight flow
1600 lmcolor rendition index (CRI)
>80flickering factor
<5%energy efficiency
114 lm/Wbeam angle
D120color temperature
4000illuminating
emission color
Белый
light source type
LED
light flow
1600 lm
color rendition index (CRI)
>80
flickering factor
<5%
energy efficiency
114 lm/W
beam angle
D120
color temperature
4000
electrical
luminaire power
14 W
electric shock protection
I
power factor
> 0,96
starting current
5 A
supply voltage
230 V
constructional
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ

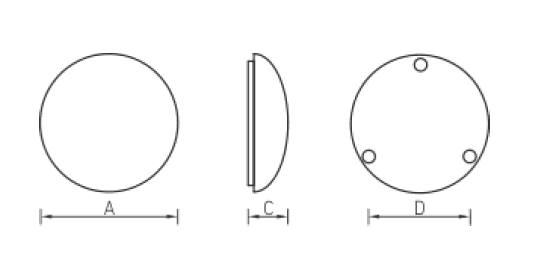

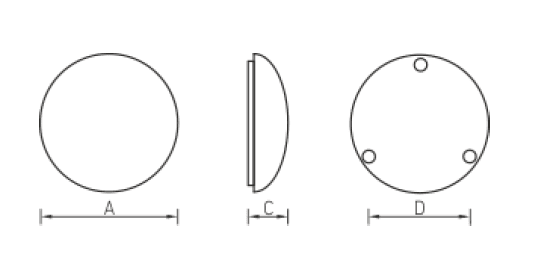

diameter
388 mm
height, mm
125 mm
material
Сталь
housing color
Белый
weight
1.5 kg
common
code
1752000010
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от +5 до +35 C
model files
model files

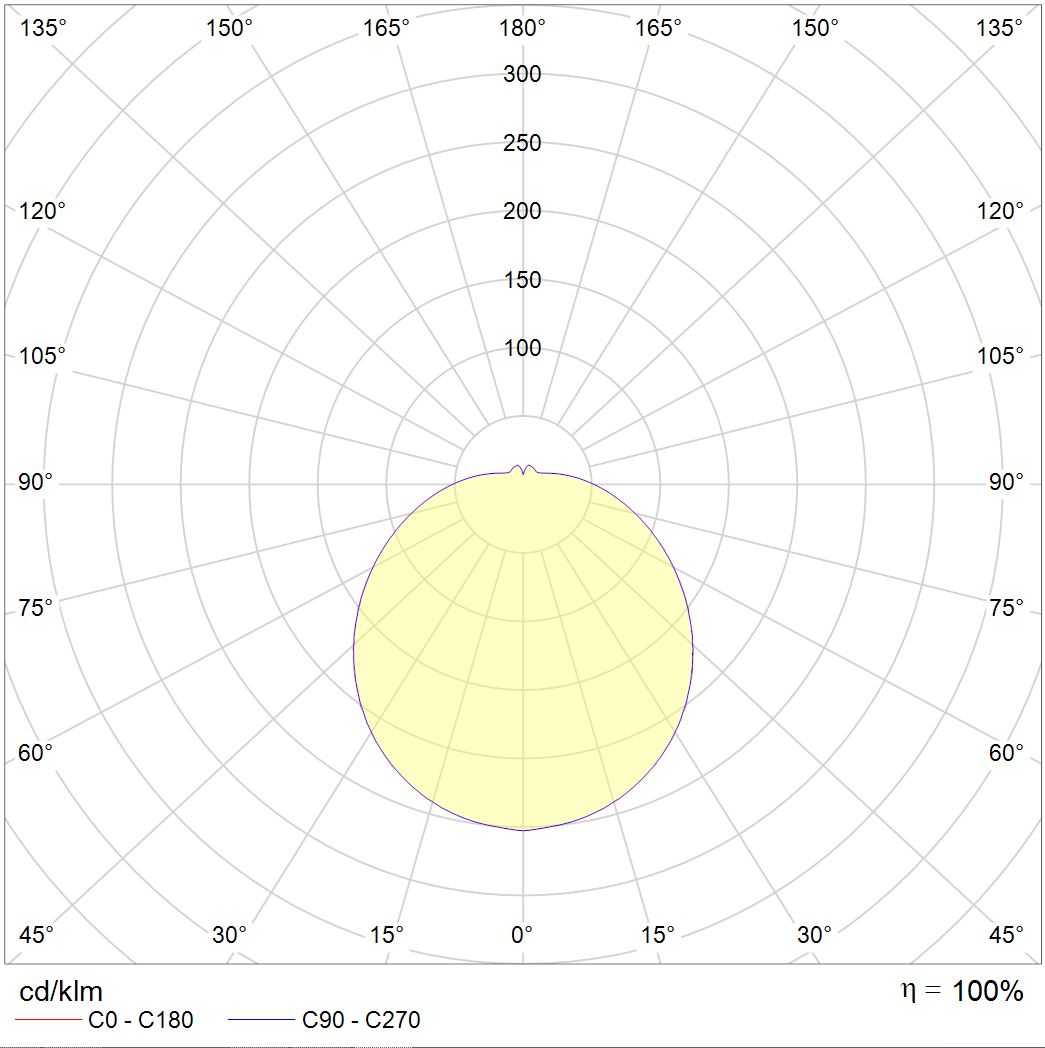

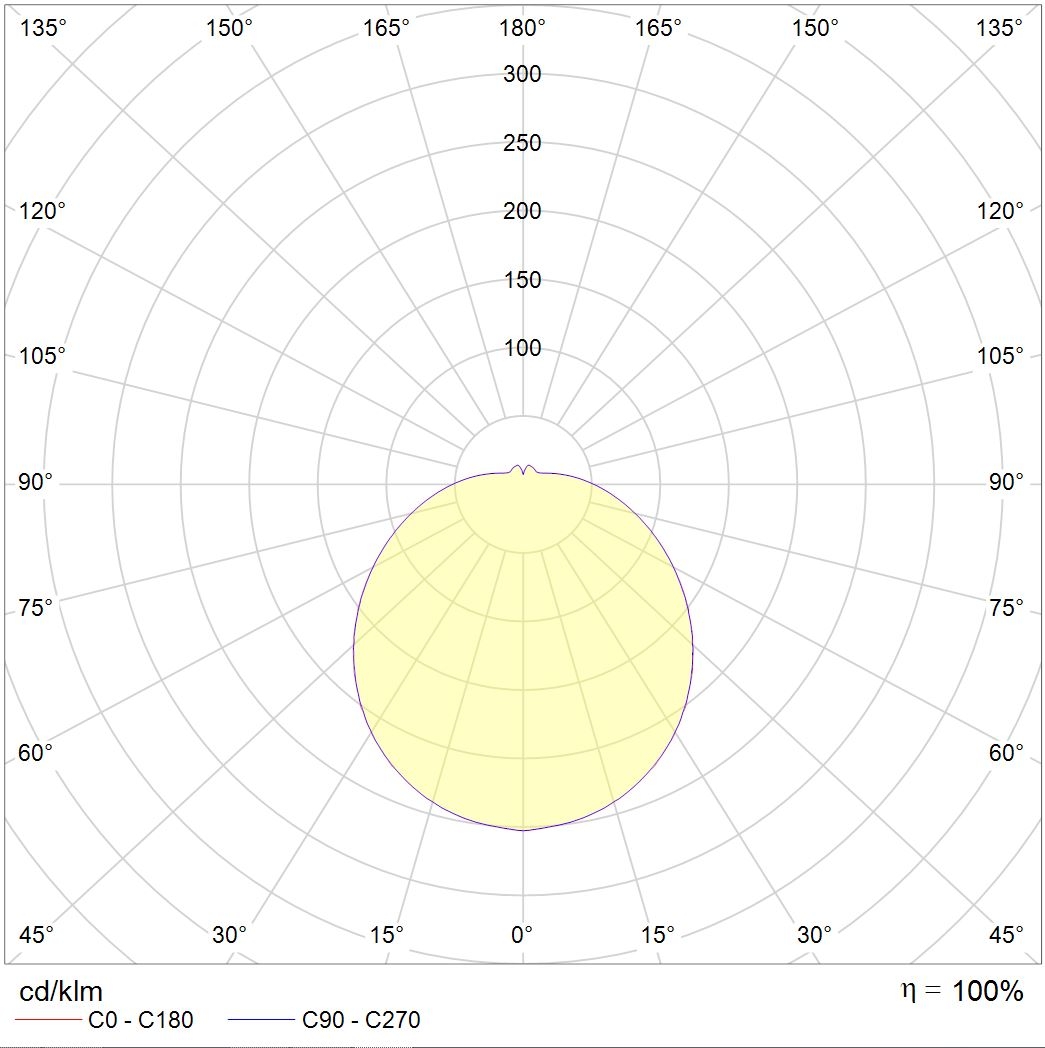

photometric files
сертификаты
photometric files
ies134.1 kB
jpg104.3 kB
ldt121.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
