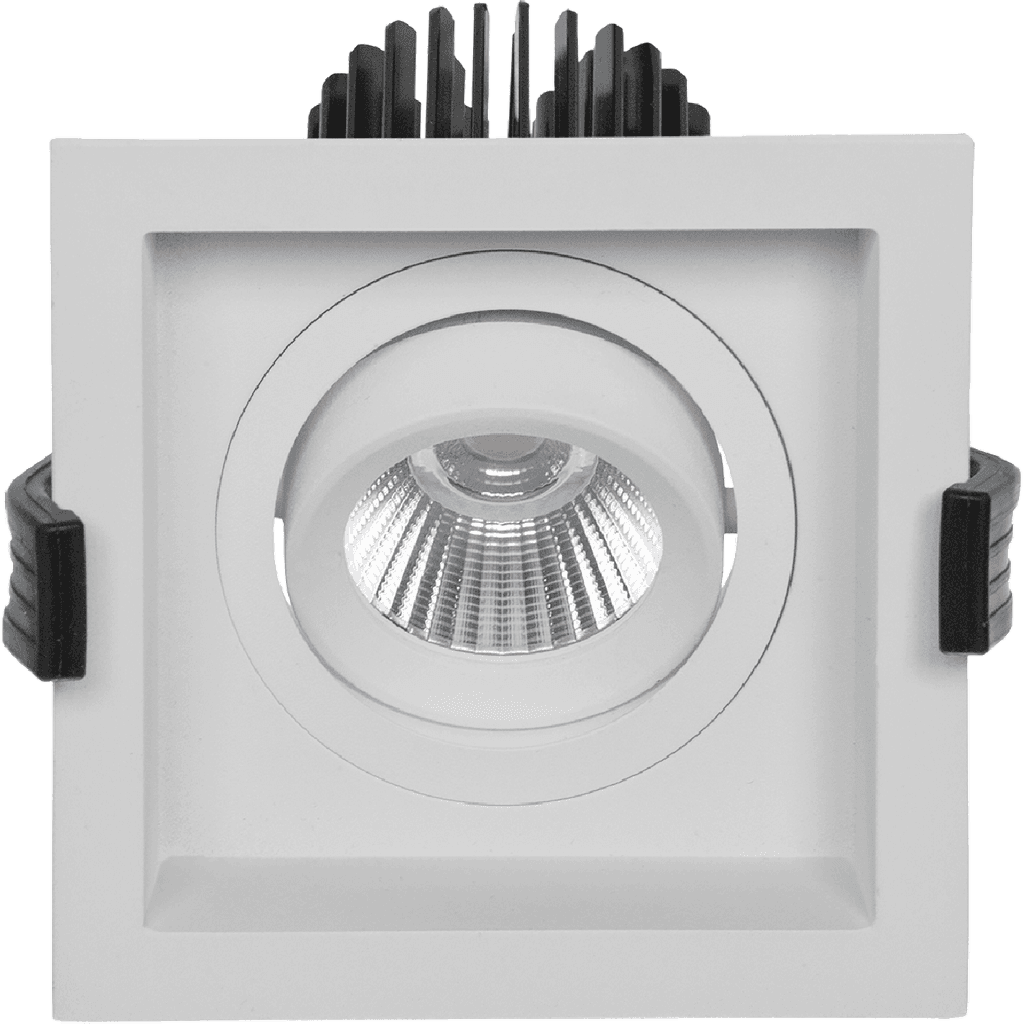

RADO 2x18 WH D45 4000K (with driver)

RADO 2x18 WH D45 4000K (with driver)
add to favorites
40 Wluminaire power
4400 lmlight flow
110 lm/Wenergy efficiency
code1278000370
color temperature4000 K
beam angleD45
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. downlights
  6. RADO
  7. RADO 2x18 WH D45 4000K (with driver)
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
110 lm/W
color rendition index (CRI)
>80
light flow
4400 lm
flickering factor
<5%
beam angle
D45
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
110 lm/W
color rendition index (CRI)
>80
light flow
4400 lm
flickering factor
<5%
beam angle
D45
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
2.28 µs
electric shock protection
II
luminaire power
40 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
43 A

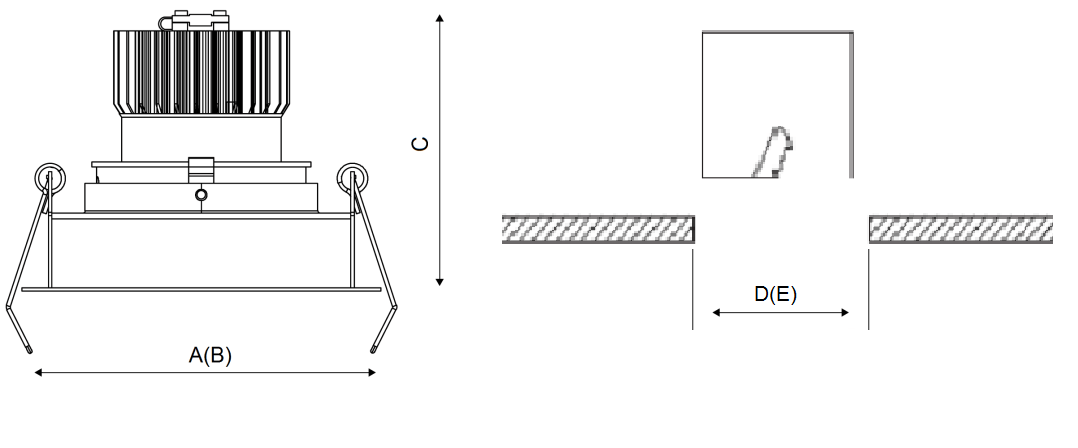

constructional
length
203 mm
width
110 mm
height
145 mm
installation length
185 mm
installation width
100 mm
weight
0.99 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1278000370
model files
model files
CAD/BIM files
model 3dMax1.4 mB

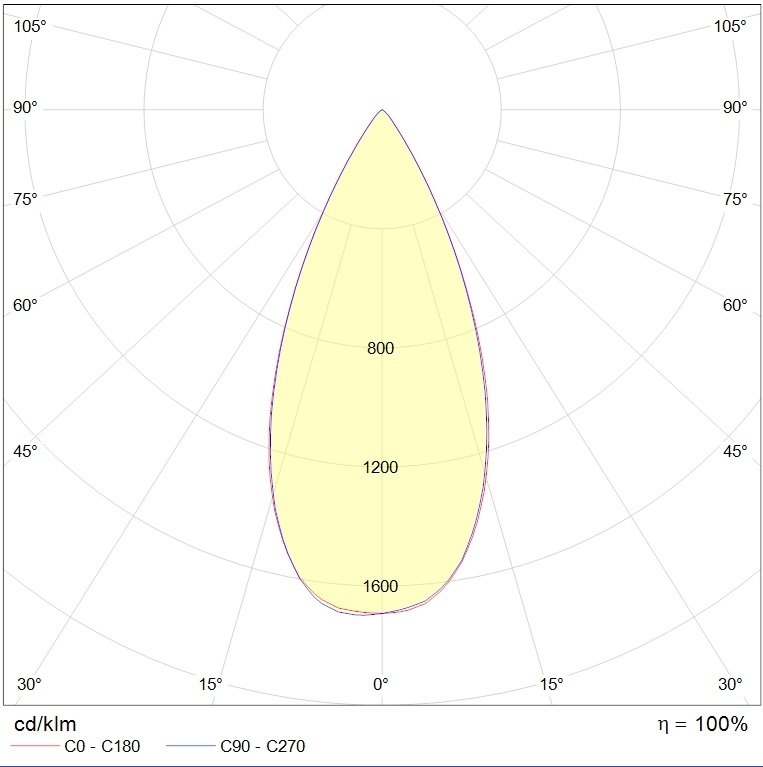

photometric files
ies107.1 kB
jpg76.7 kB
ldt50.5 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
model 3dMax1.4 mB
photometric files
ies107.1 kB
jpg76.7 kB
ldt50.5 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
accessories
LINE PRISM SPOTLIGHT 06-18W0.05kgarticle: 2701002170
SQ PRISM SPOTLIGHT 06-18W0.005kgarticle: 2701002140
HONEYCOMB Spotlight 07-18W0.05kgarticle: 2701002060
