RADO 2x07 WH D45 3000K (with driver)

RADO 2x07 WH D45 3000K (with driver)
add to favorites
16 Wluminaire power
1400 lmlight flow
88 lm/Wenergy efficiency
code1278000450
color temperature3000
beam angleD45
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. downlights
  6. RADO
  7. RADO 2x07 WH D45 3000K (with driver)
options
свернуть все
electricalconstructionalcommonilluminating
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
16 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
electrical
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
16 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
0.53 kg
length, mm
203 mm
width, mm
110 mm
height, mm
85 mm
housing color
Белый
installation length, mm
185 mm
installation width, mm
100 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A
service life, hour
50 000 h
code
1278000450
illuminating
color rendition index (CRI)
>80
light flow
1400 lm
flickering factor
<5%
energy efficiency
88 lm/W
beam angle
D45
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS242 kB
model 3dMax1.7 mB

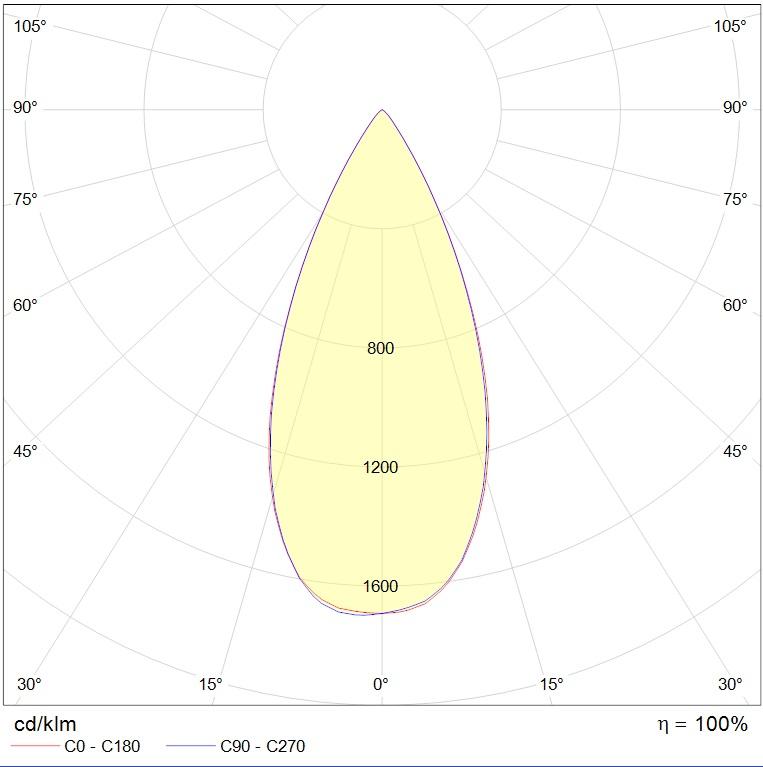

photometric files
ies107.1 kB
jpg76.7 kB
ldt50.5 kB
documents
passport1.5 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS242 kB
model 3dMax1.7 mB
photometric files
ies107.1 kB
jpg76.7 kB
ldt50.5 kB
documents
passport1.5 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
accessories
LINE PRISM SPOTLIGHT 06-18W0.05kgarticle: 2701002170
SQ PRISM SPOTLIGHT 06-18W0.005kgarticle: 2701002140
HONEYCOMB Spotlight 07-18W0.05kgarticle: 2701002060
