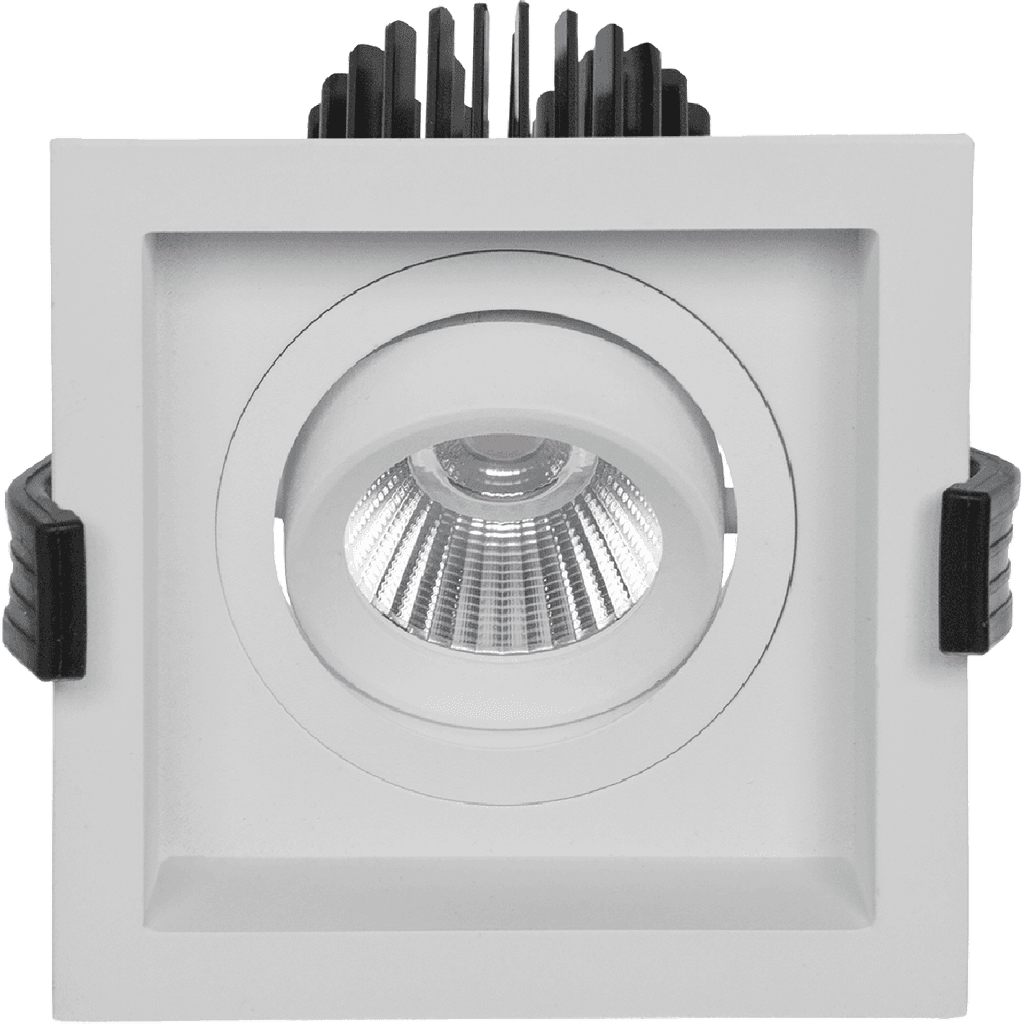

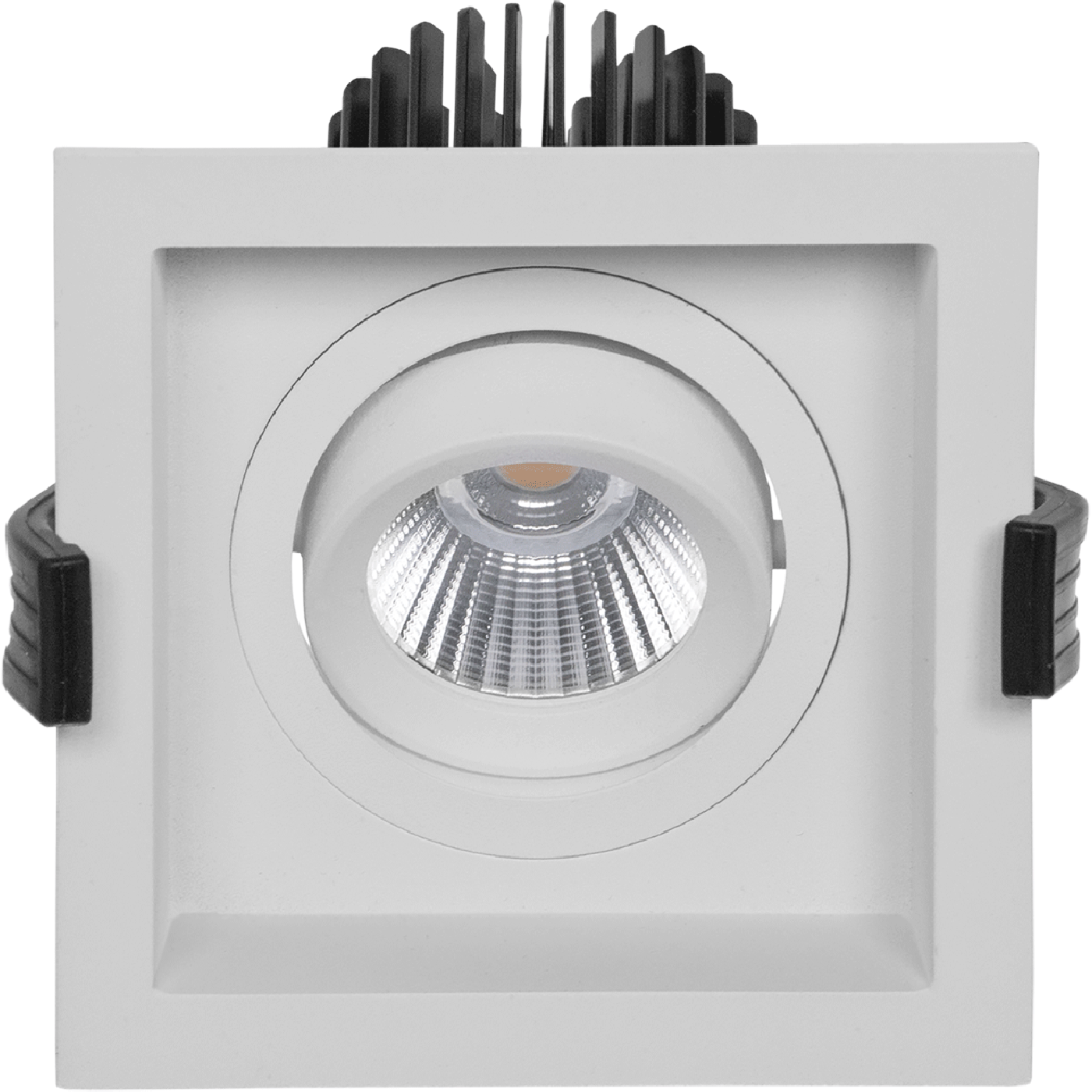

RADO 26 WH D45 4000K (with driver)
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
RADO 26 WH D45 4000K (with driver)
30 Wluminaire power
2800 lmlight flow
93 lm/Wenergy efficiency
code1278000200
color temperature4000
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
93 lm/Wcolor rendition index (CRI)
>80light flow
2800 lmflickering factor
<15%beam angle
D45color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
93 lm/W
color rendition index (CRI)
>80
light flow
2800 lm
flickering factor
<15%
beam angle
D45
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
400 mks
electric shock protection
II
luminaire power
30 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
1.5
rated supply voltage, alternating current
230 V
starting current
60 A
constructional
length, mm
160 mm
width, mm
160 mm
height, mm
167 mm
installation length, mm
154 mm
weight
1 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Прожектор / Светильник направленного света
code
1278000200
model files
model files
CAD/BIM files

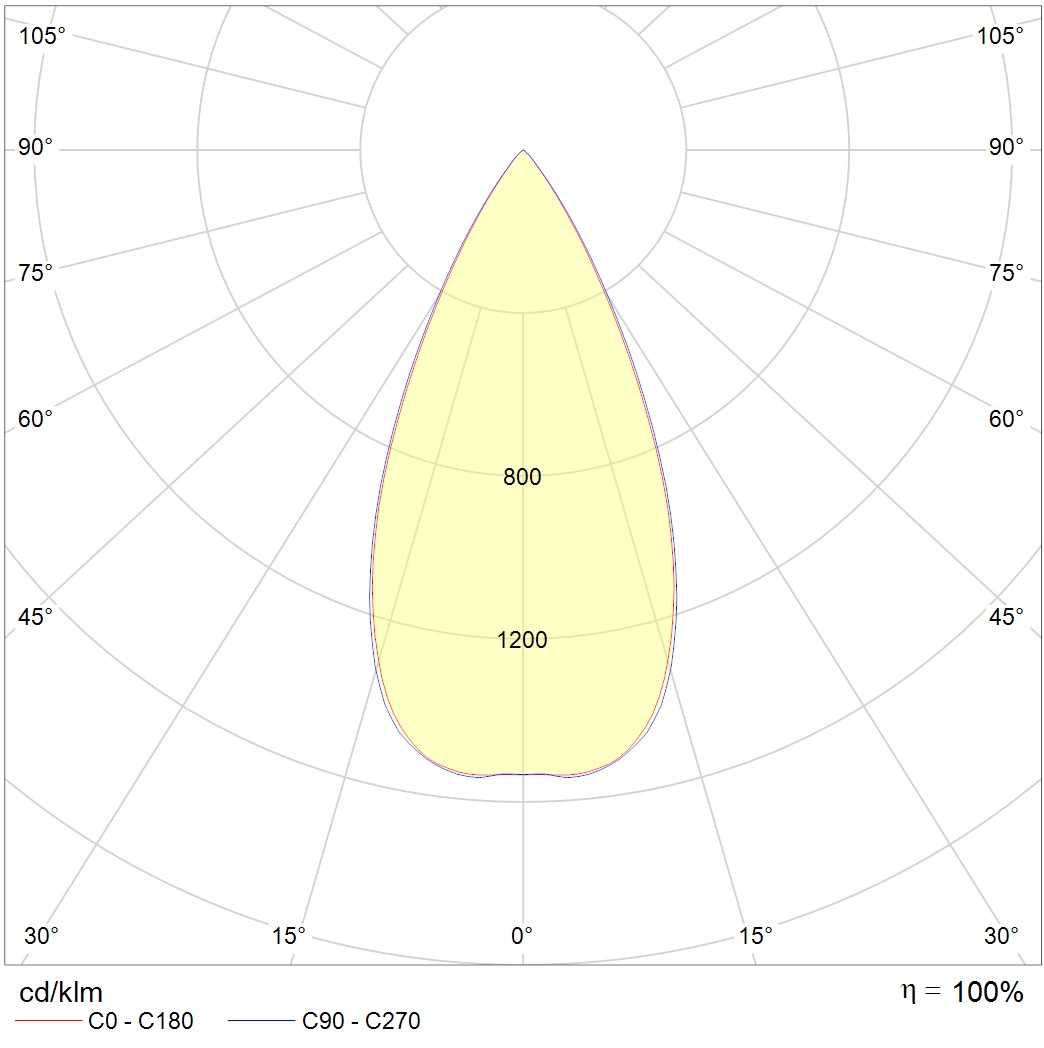

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.3 mB
photometric files
ies68.6 kB
jpg112.9 kB
ldt42.7 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
