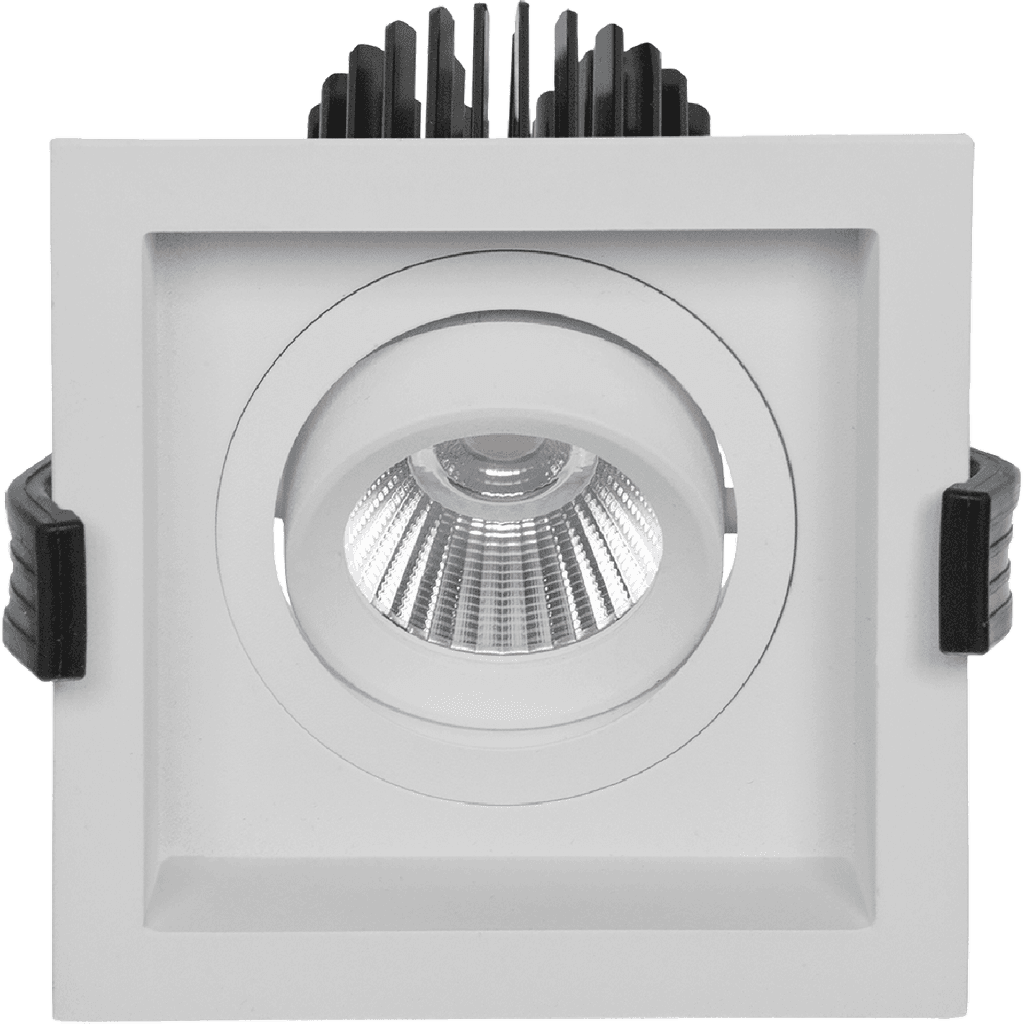

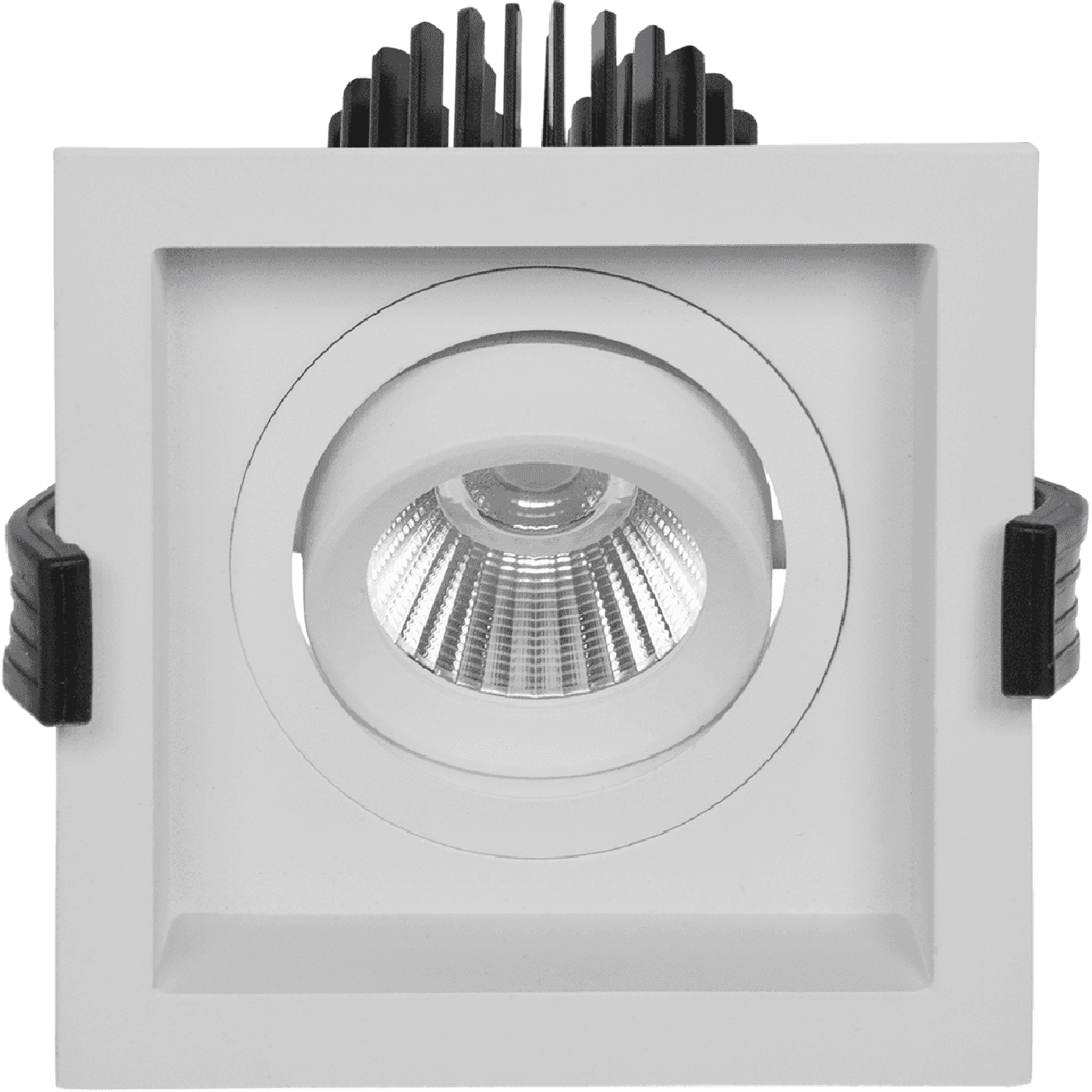

RADO 07 WH D45 3000K (with driver)
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
RADO 07 WH D45 3000K (with driver)
9 Wluminaire power
700 lmlight flow
78 lm/Wenergy efficiency
code1278000010
color temperature3000
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
78 lm/Wcolor rendition index (CRI)
>80light flow
700 lmflickering factor
<5%beam angle
D45color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
78 lm/W
color rendition index (CRI)
>80
light flow
700 lm
flickering factor
<5%
beam angle
D45
color temperature
3000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
2.28 mks
electric shock protection
II
luminaire power
9 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
starting current
43 A
constructional
length, mm
108 mm
width, mm
108 mm
height, mm
88 mm
installation length, mm
96 mm
installation width, mm
96 mm
weight
0.45 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1278000010
model files
model files
CAD/BIM files

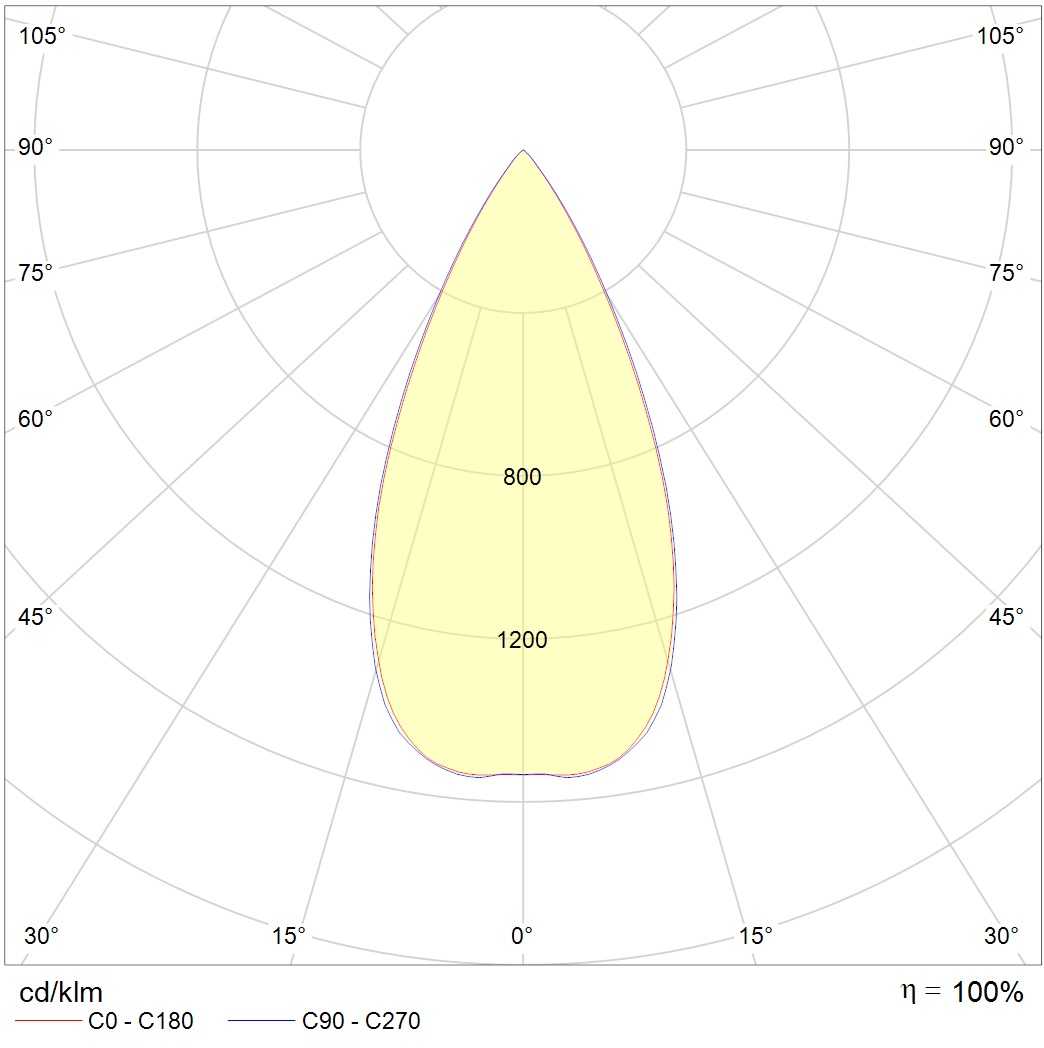

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.7 mB
photometric files
ies68.7 kB
jpg112.9 kB
ldt42.7 kB
documents
passport1.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
accessories
LINE PRISM SPOTLIGHT 06-18W0.05kgarticle: 2701002170
SQ PRISM SPOTLIGHT 06-18W0.005kgarticle: 2701002140
HONEYCOMB Spotlight 07-18W0.05kgarticle: 2701002060
