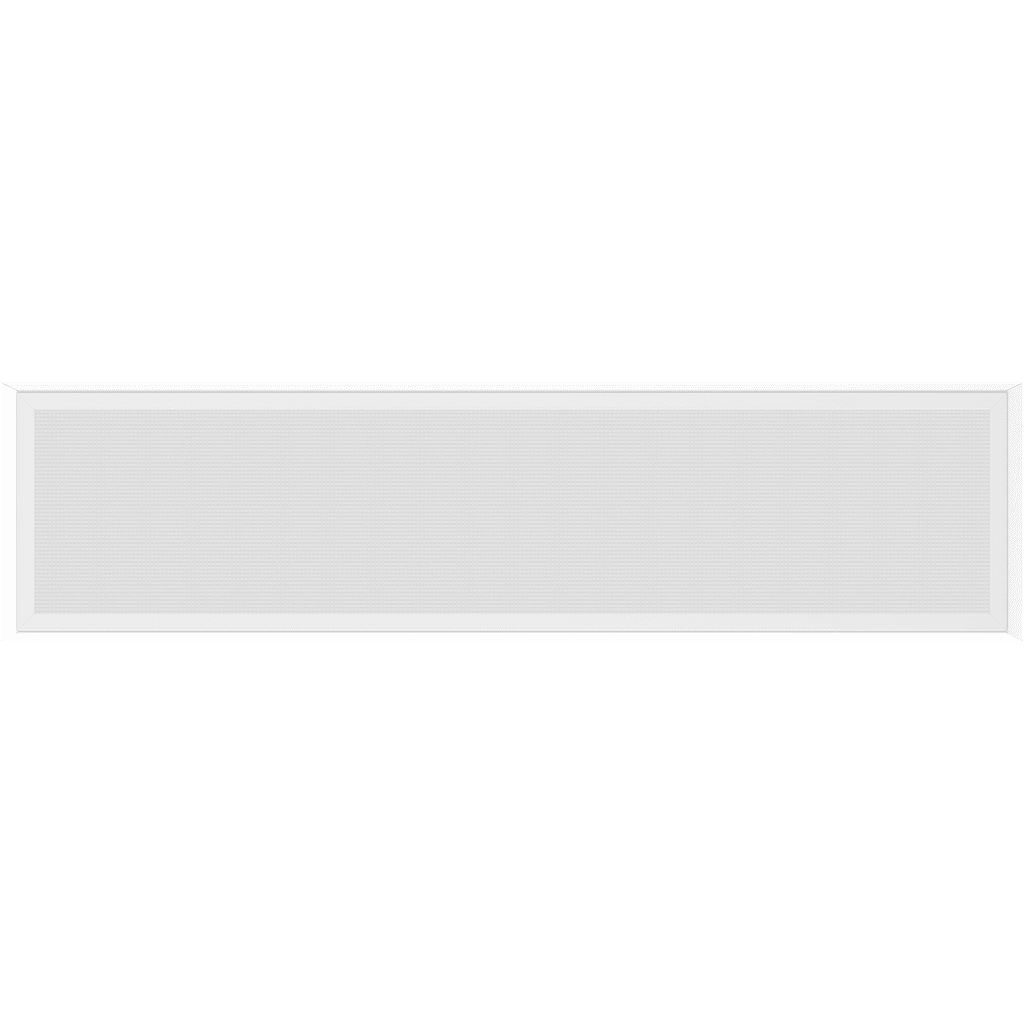

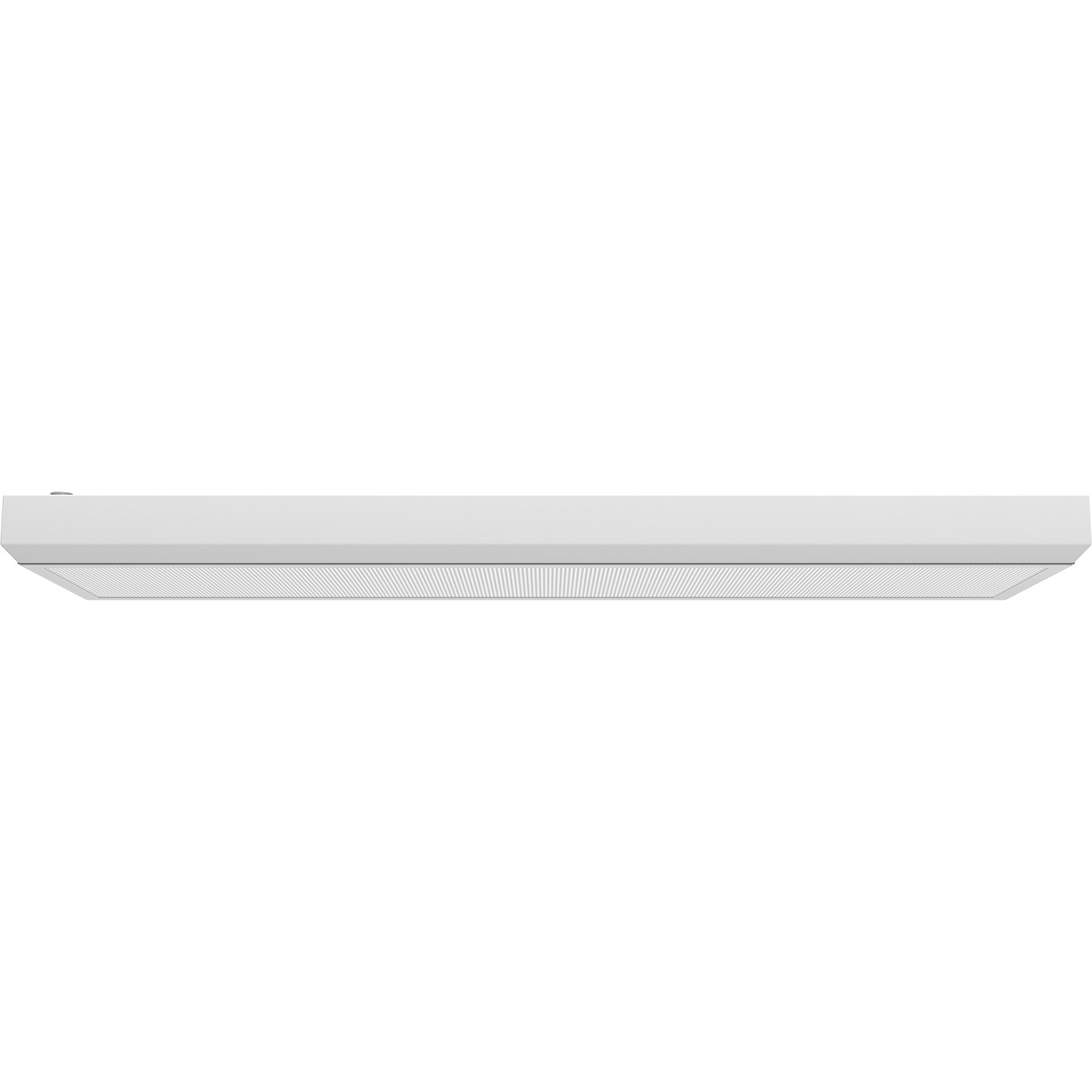

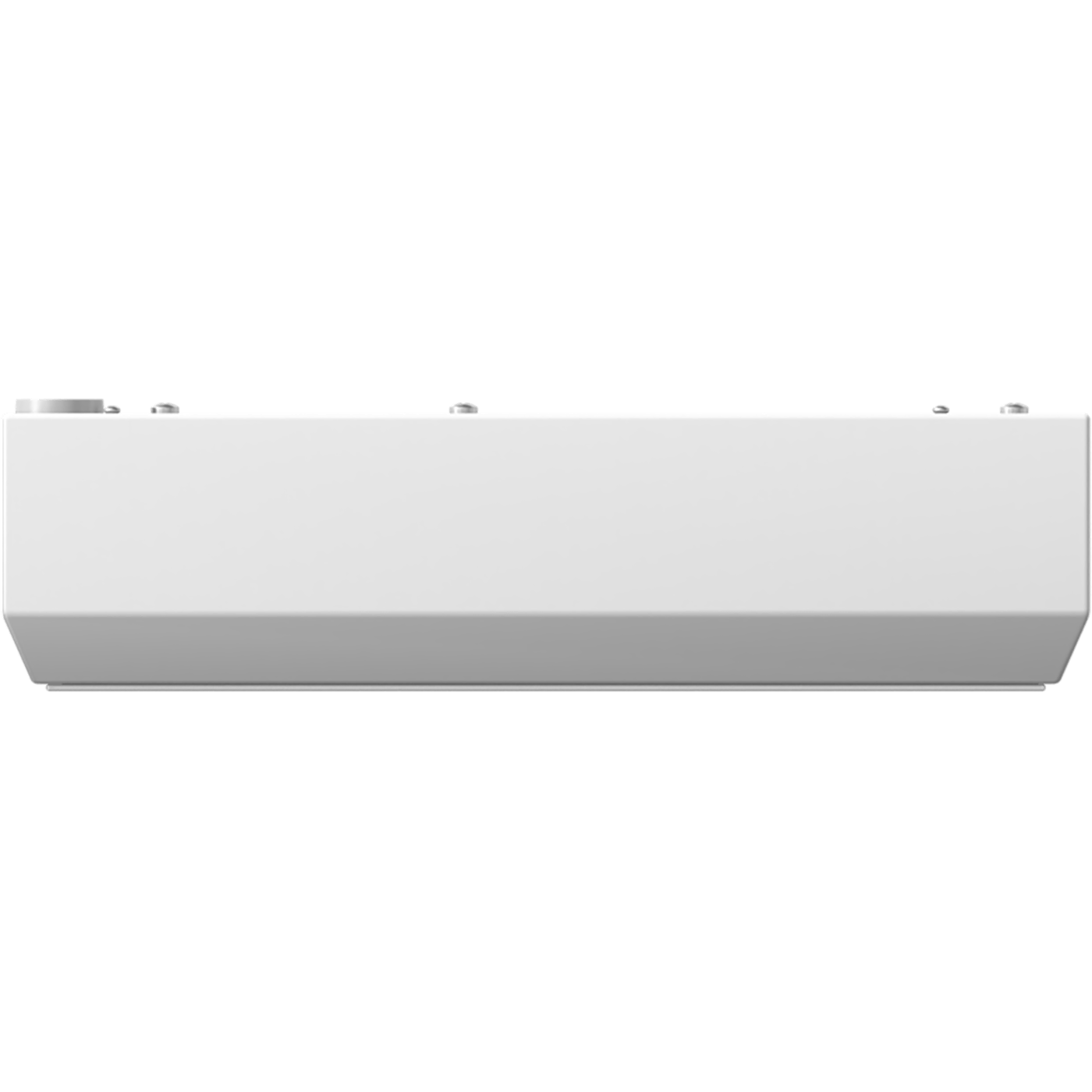

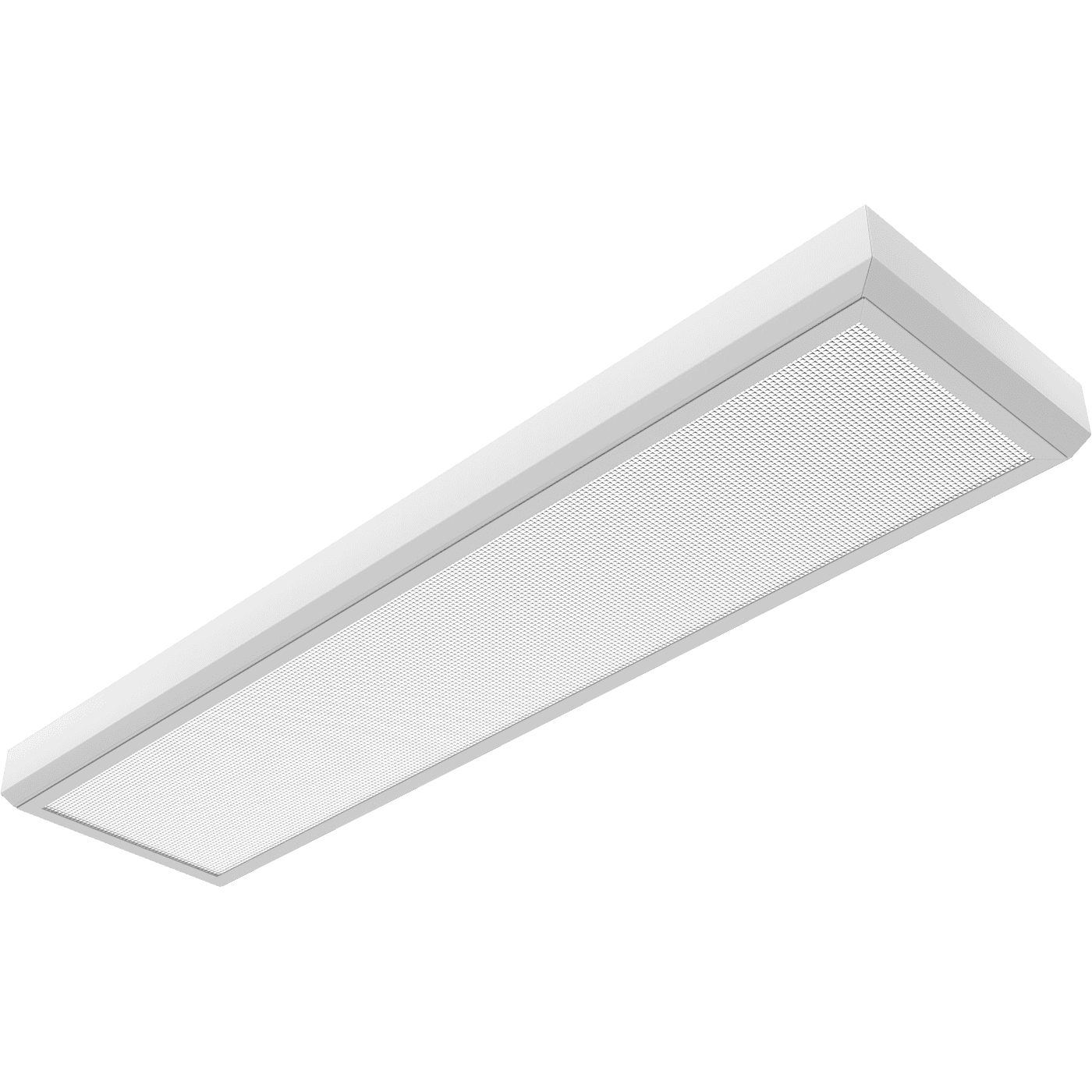

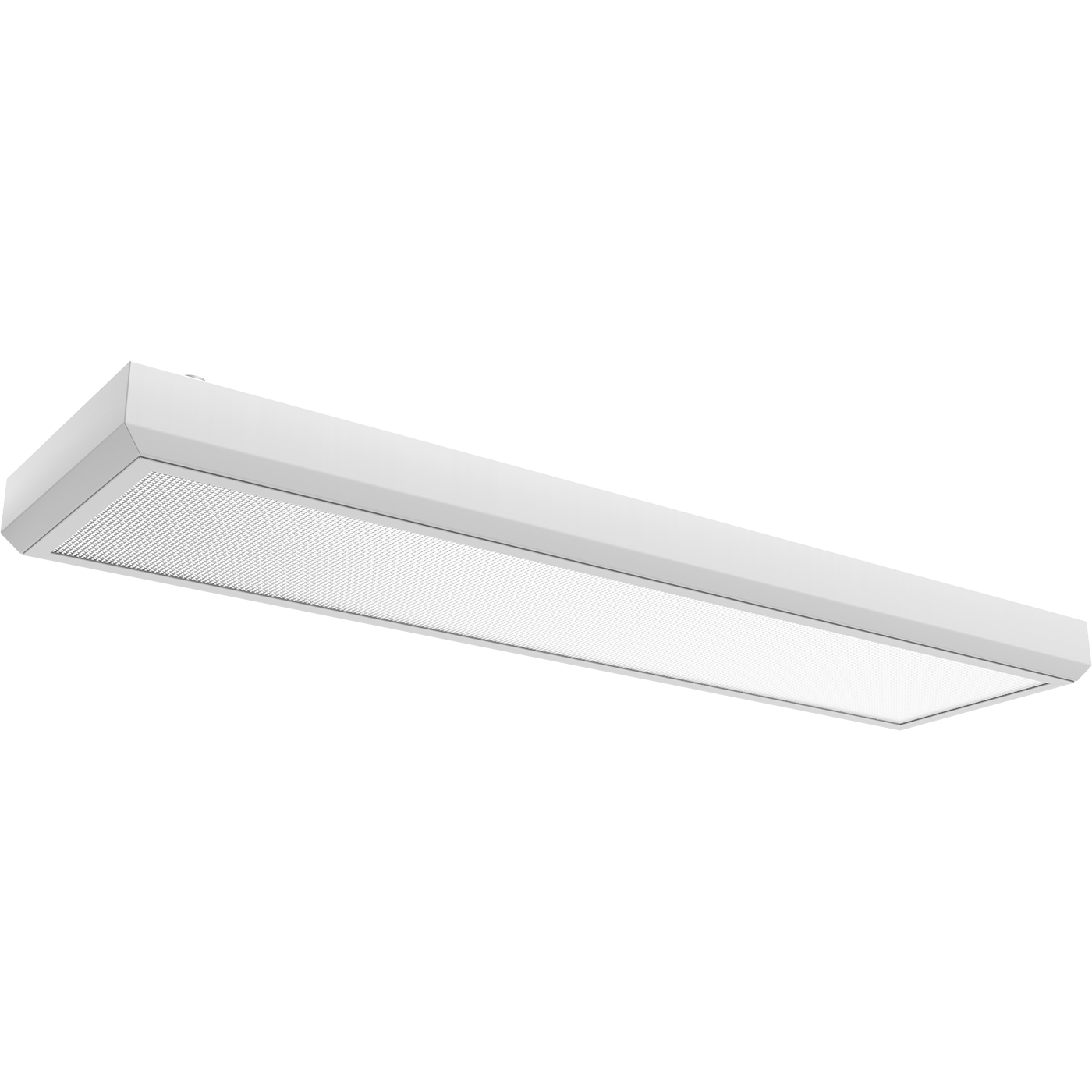

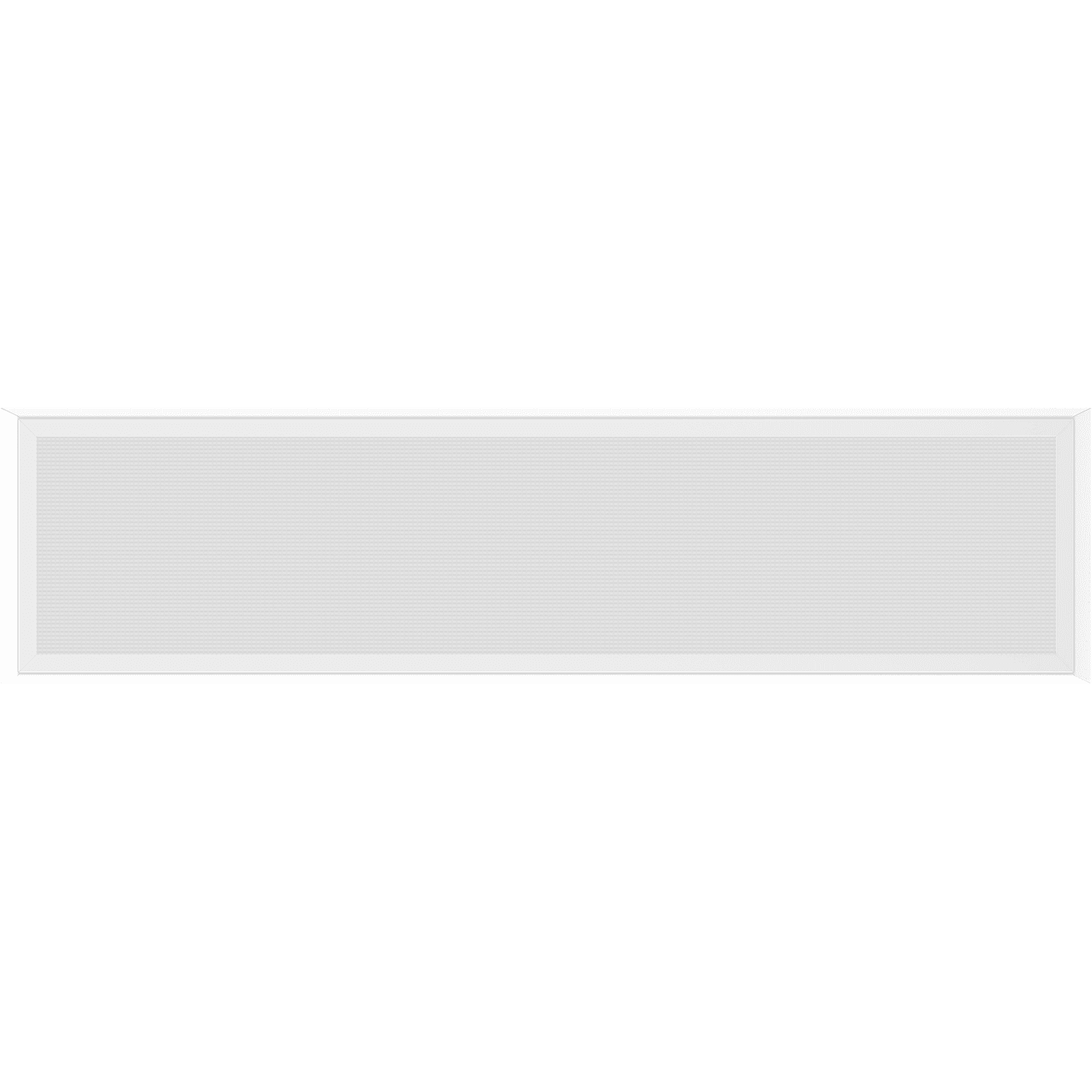

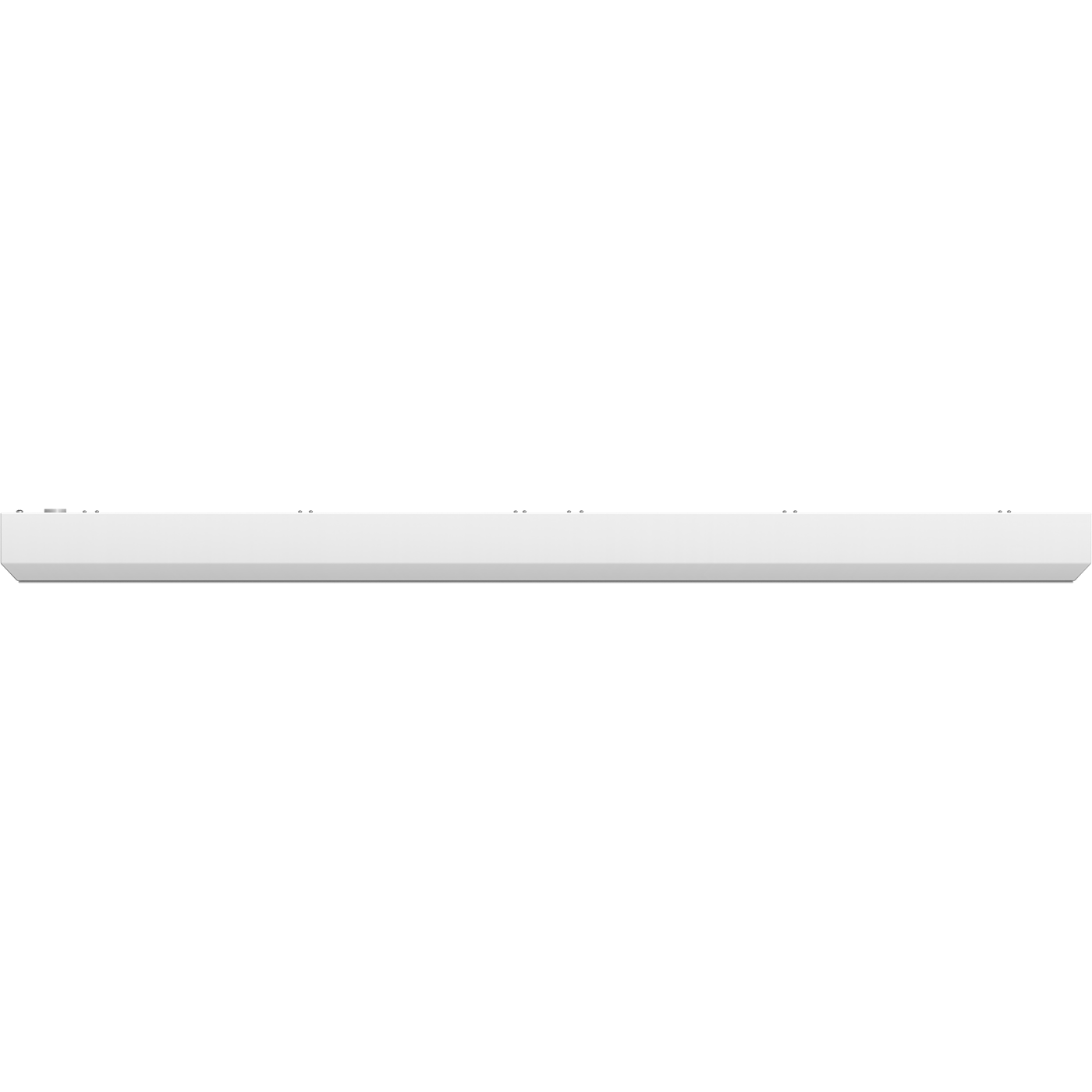

PRS/S ECO LED 1200 EM 4000K CRI90
PRS/S ECO LED 1200 EM 4000K CRI90
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1060000470
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingemergency
luminaire power
32 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
6 kg
length, mm
1225 mm
width, mm
310 mm
height, mm
82 mm
housing color
Белый
installation length, mm
960 mm
installation width, mm
160 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1060000470
illuminating
color rendition index (CRI)
>90
light flow
3200 lm
flickering factor
<1%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
10% lm
model files
model files

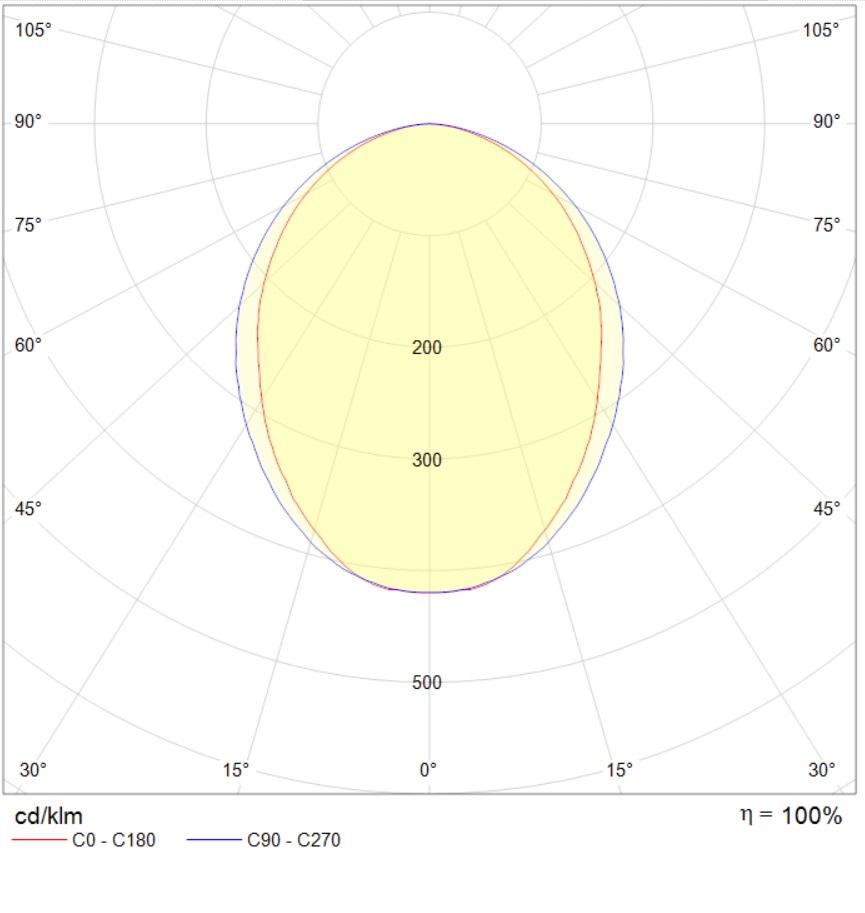

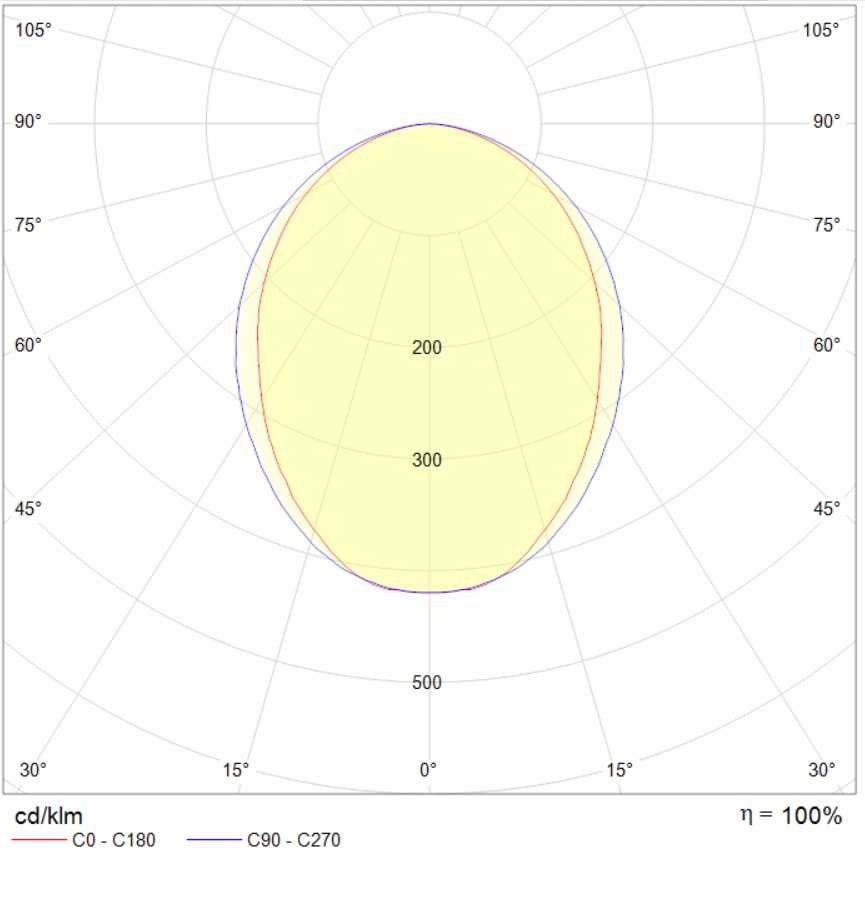

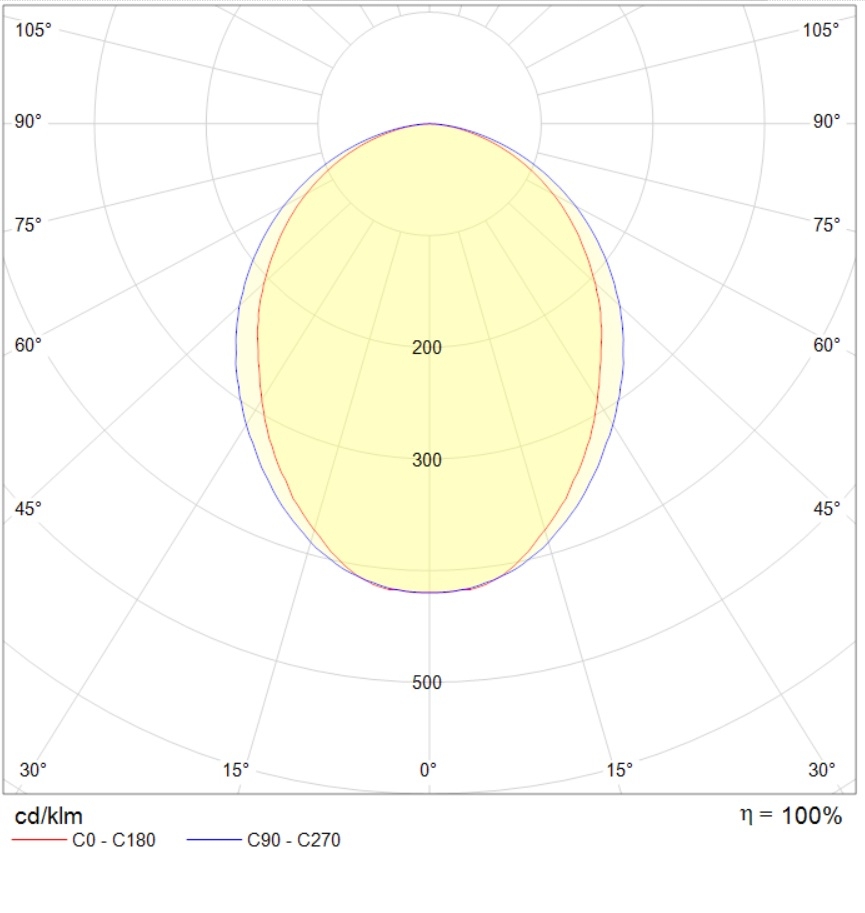

photometric files
сертификаты
photometric files
ies134.1 kB
jpg83.9 kB
ldt84.5 kB
сертификаты
Russian origin620 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
