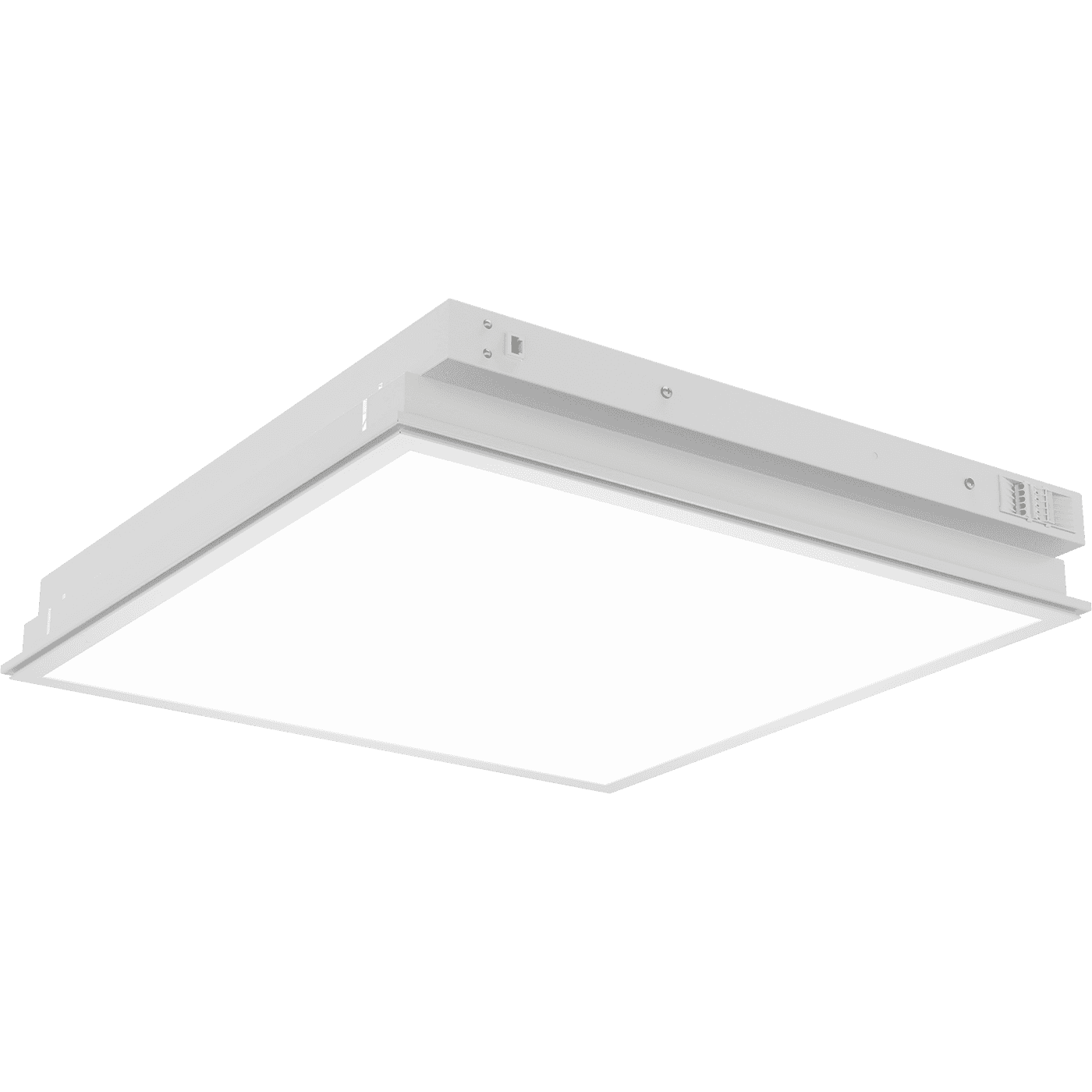

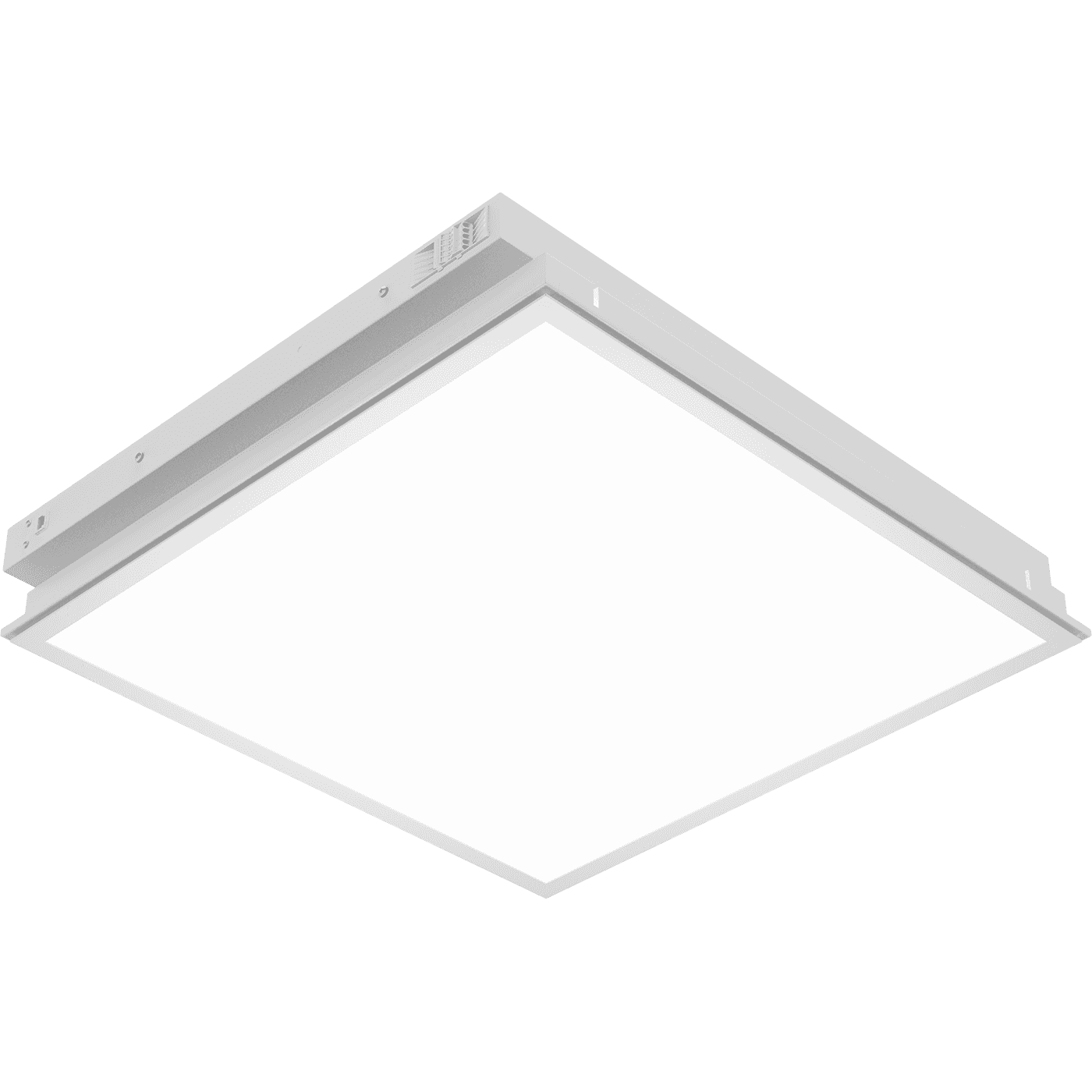

PRS/R ECO LED 595 EM 4000K CRI90
PRS/R ECO LED 595 EM 4000K CRI90
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1032000790
color temperature4000
beam angleD120
number of lamps1
performance factor100
weight4.5 kg
options
свернуть все
commonelectricalconstructionalilluminatingemergency
code
1032000790ETIM class
Настенно-потолочный светильникwarranty
36 monthtemperature range
от +5 до +35 Cenergy efficiency class
A+service life, hour
50 000 hcommon
code
1032000790
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
electrical
supply voltage
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
luminaire power
32 W
power factor
> 0,98
constructional
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
4.5 kg
length, mm
595 mm
width, mm
595 mm
height, mm
85 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
illuminating
color rendition index (CRI)
>90
light flow
3200 lm
flickering factor
<1%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
10% lm
model files
model files

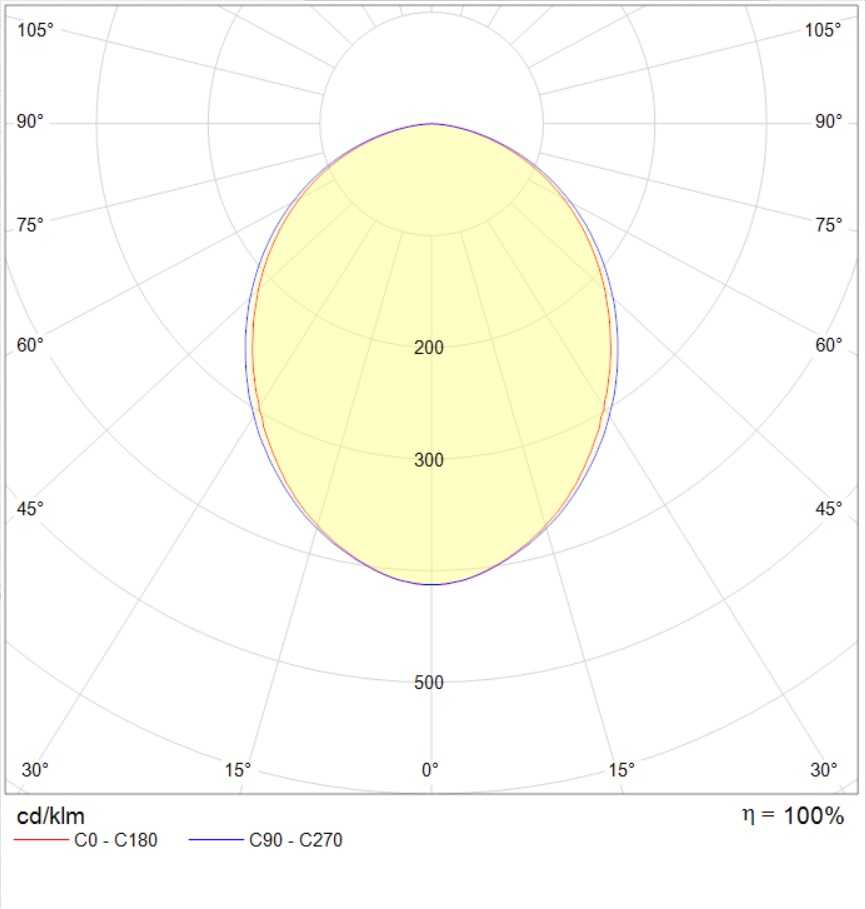

photometric files
сертификаты
photometric files
ies134.1 kB
jpg82.1 kB
ldt85.6 kB
сертификаты
Russian origin551.2 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
