PROTON LED Exd-W030 НЕ ВХОДИ Б/З
PROTON LED Exd-W030 НЕ ВХОДИ Б/З
4 Wluminaire power
30 lmlight flow
8 lm/Wenergy efficiency
code1389000400
color temperature10350 K
old namePROTON LED Exd-W030
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
30 lmcolor rendition index (CRI)
>75flickering factor
<5%energy efficiency
8 lm/Wcolor temperature
10350 Killuminating
emission color
Белый
light source type
LED
light flow
30 lm
color rendition index (CRI)
>75
flickering factor
<5%
energy efficiency
8 lm/W
color temperature
10350 K
electrical
luminaire power
4 W
electric shock protection
I
power factor
> 0,50
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІа
length
410 mm
width
320 mm
height
110 mm
installation width
200 mm
material
Сплав алюминиевый
housing color
Серый
weight
5.15 kg
emergency
operating time in emergency mode
3 h
luminous flux in emergency mode
30 lm
common
code
1389000400
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
C
temperature range
от 0 до +55 C
model files
model files

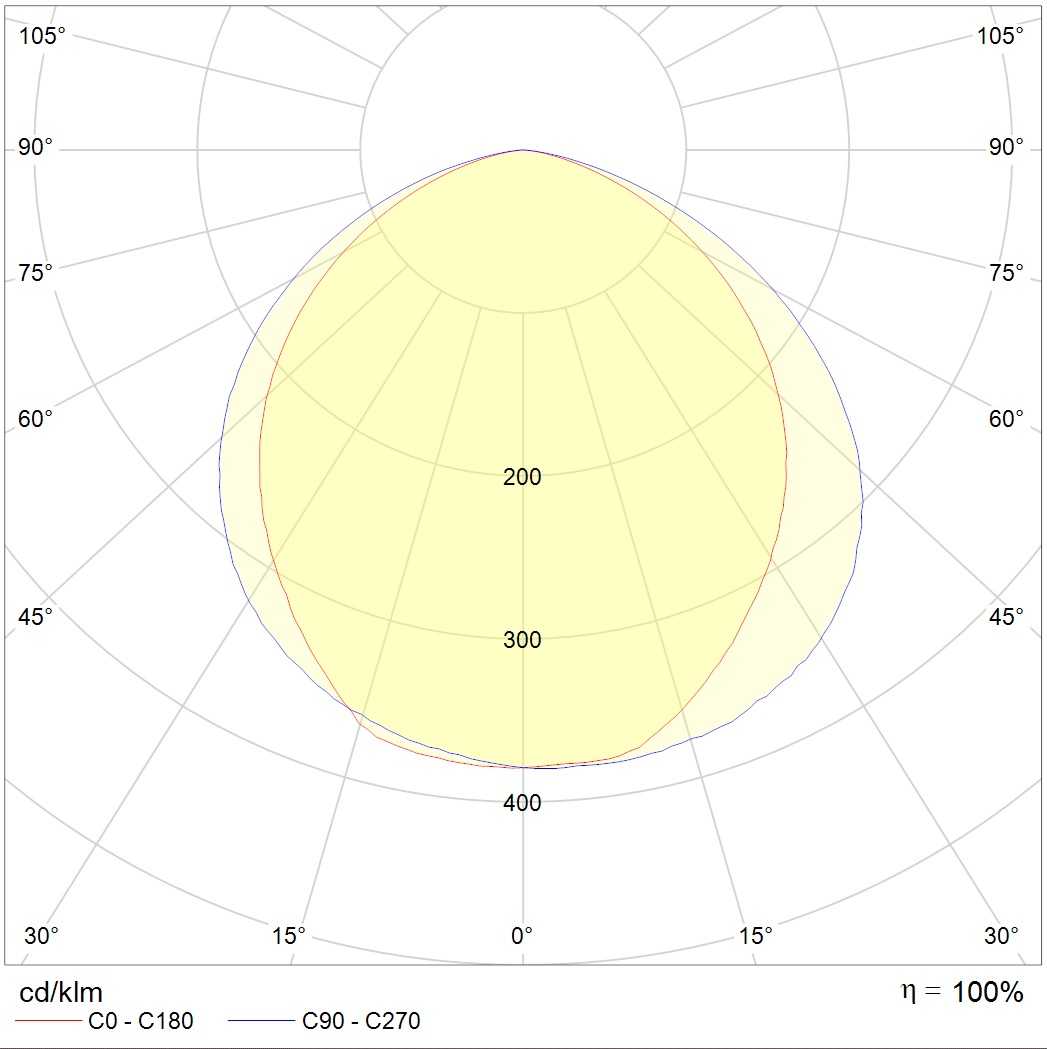

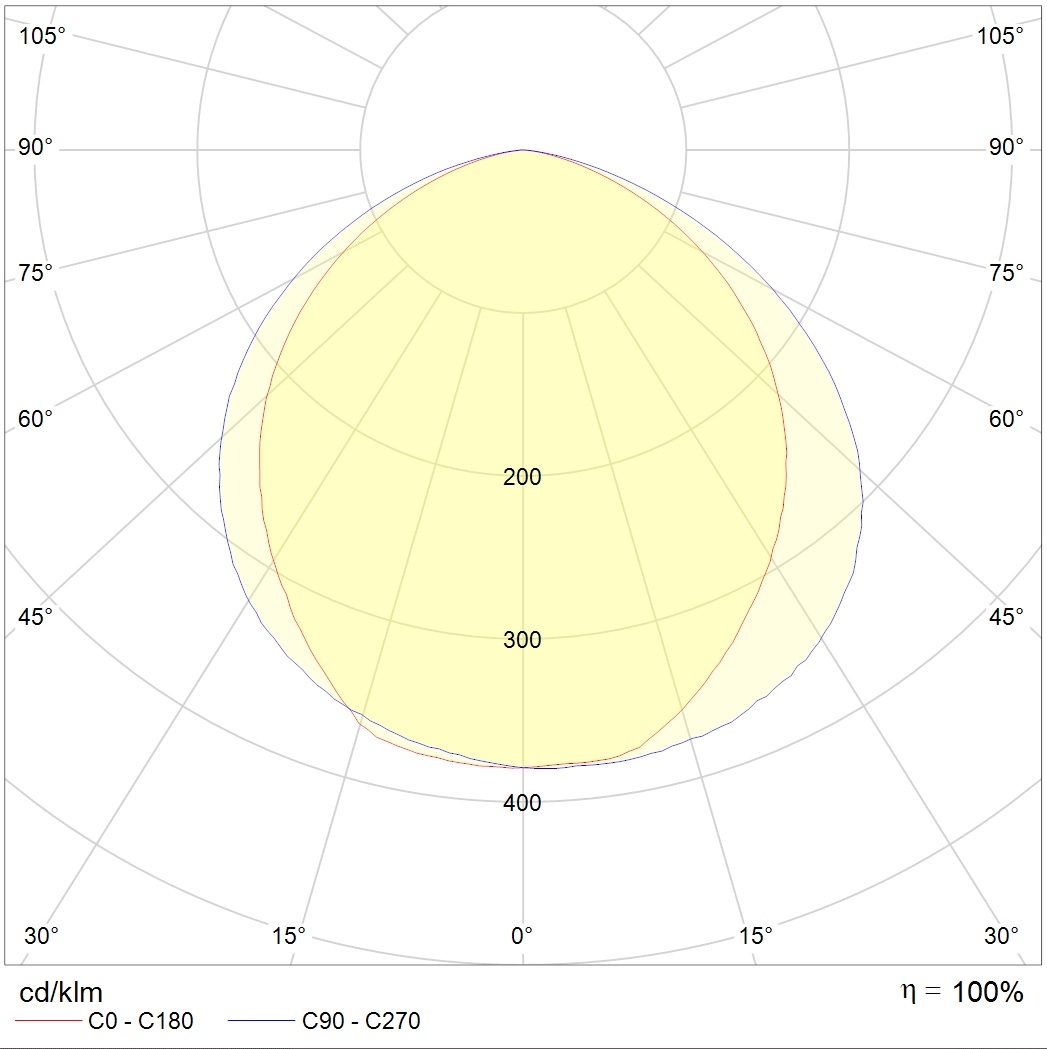

photometric files
сертификаты
photometric files
ies263.2 kB
jpg123.5 kB
ldt161.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories

Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5

Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9

Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
