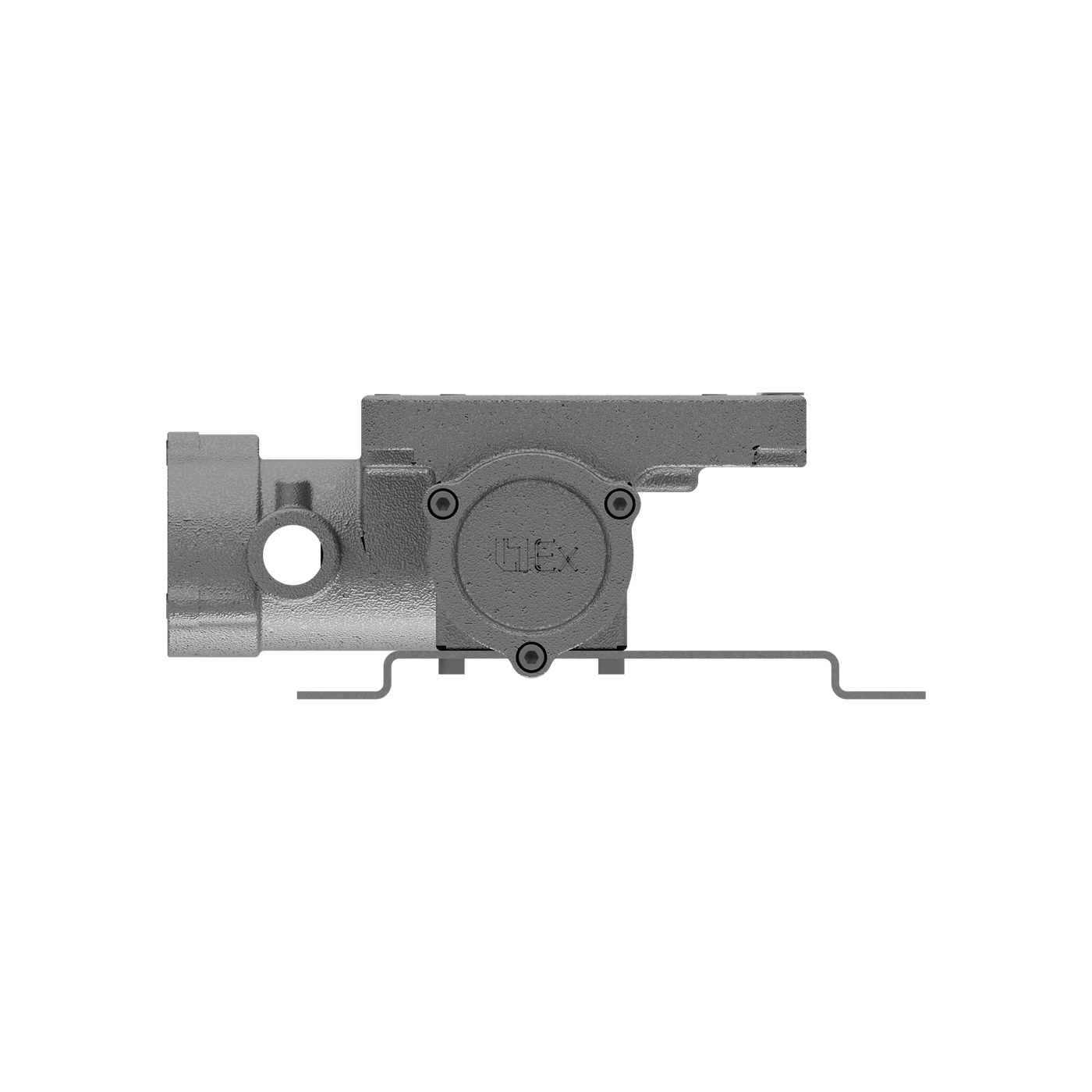

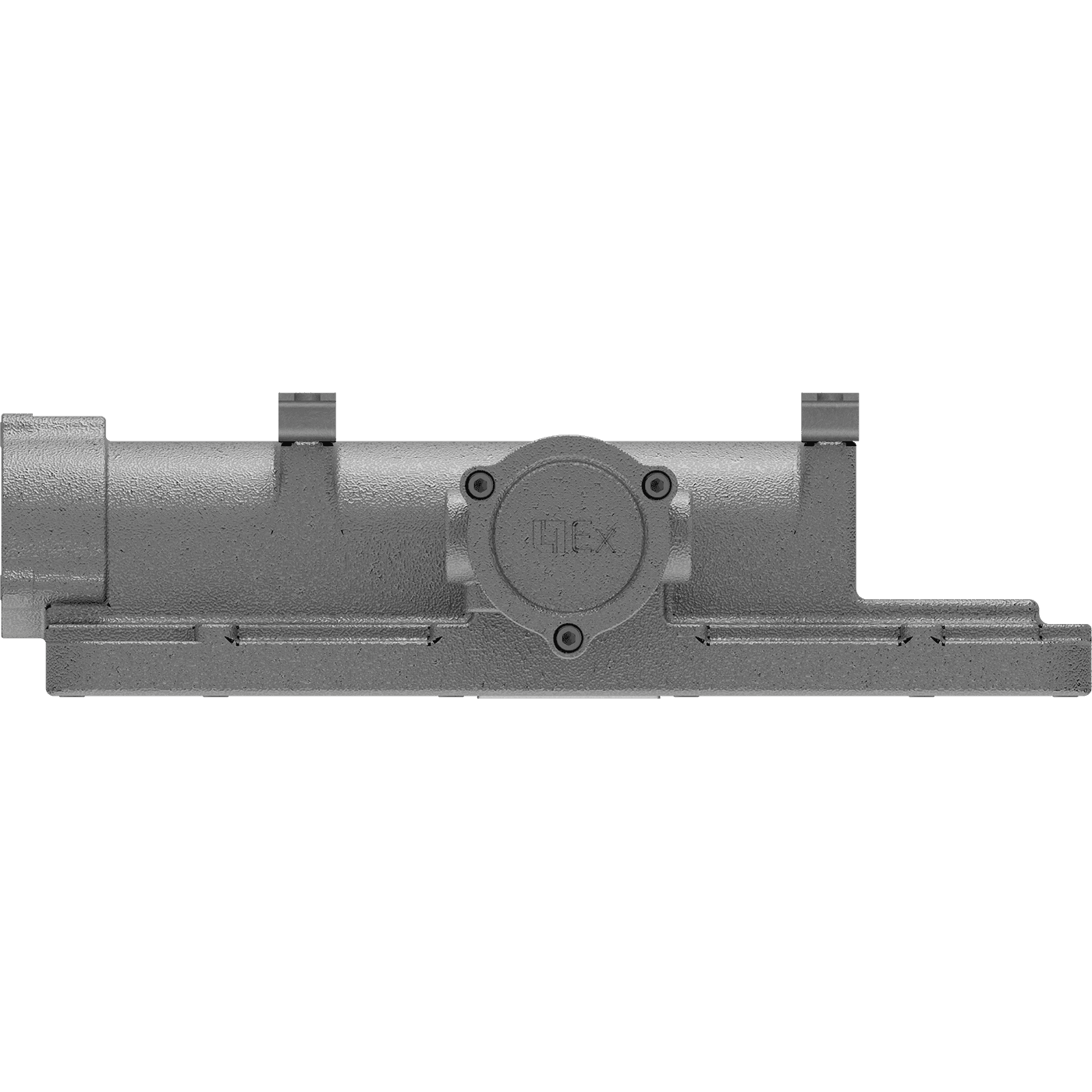

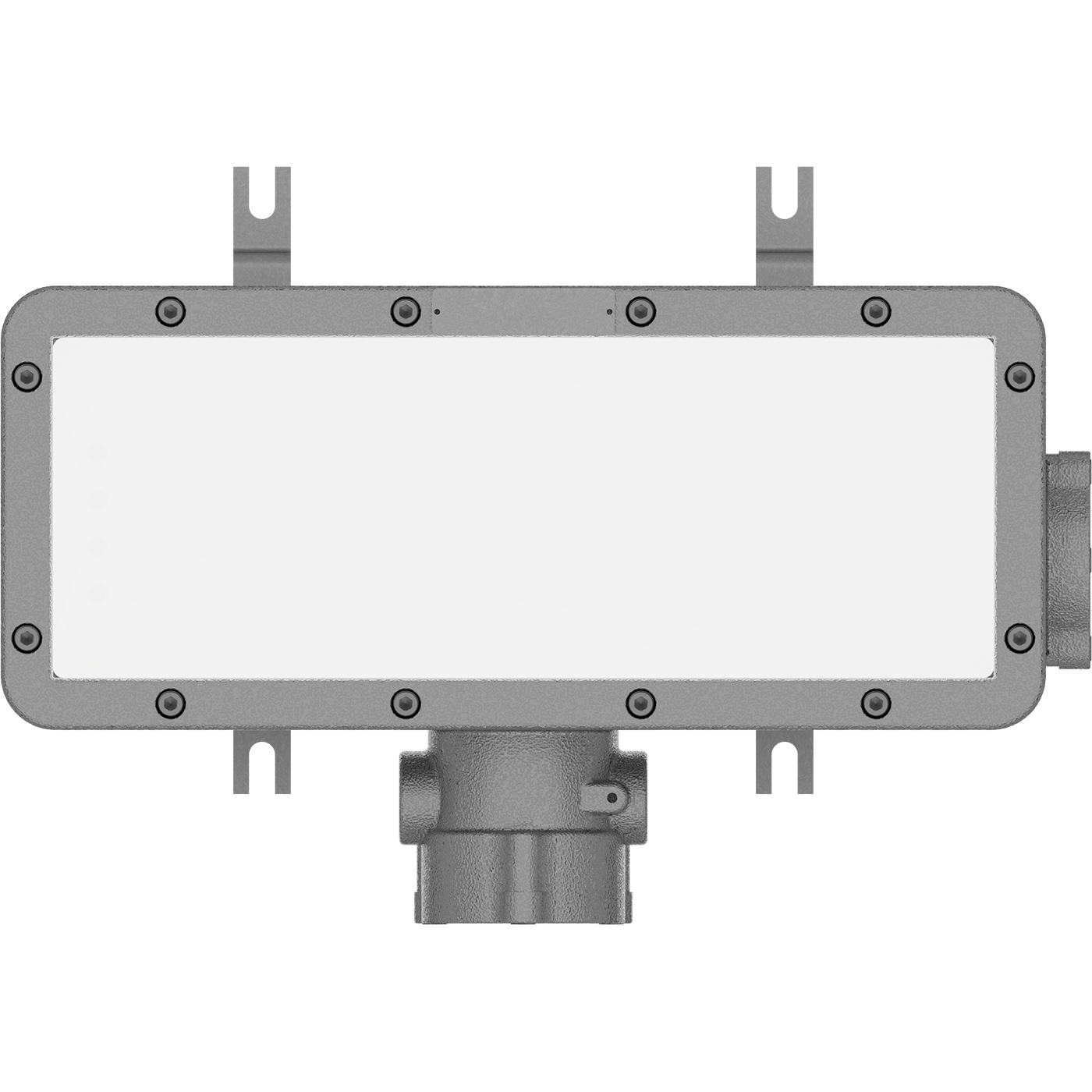

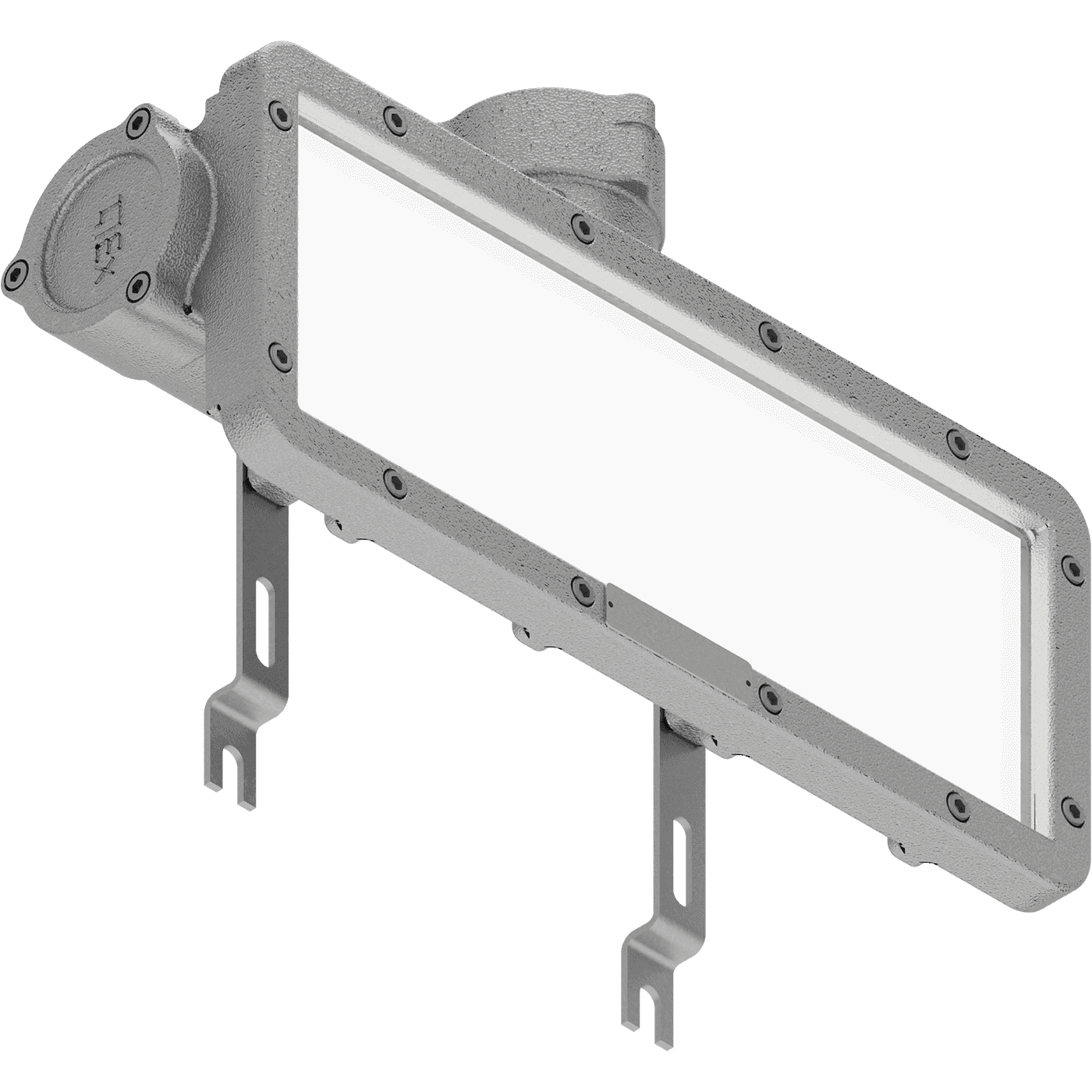

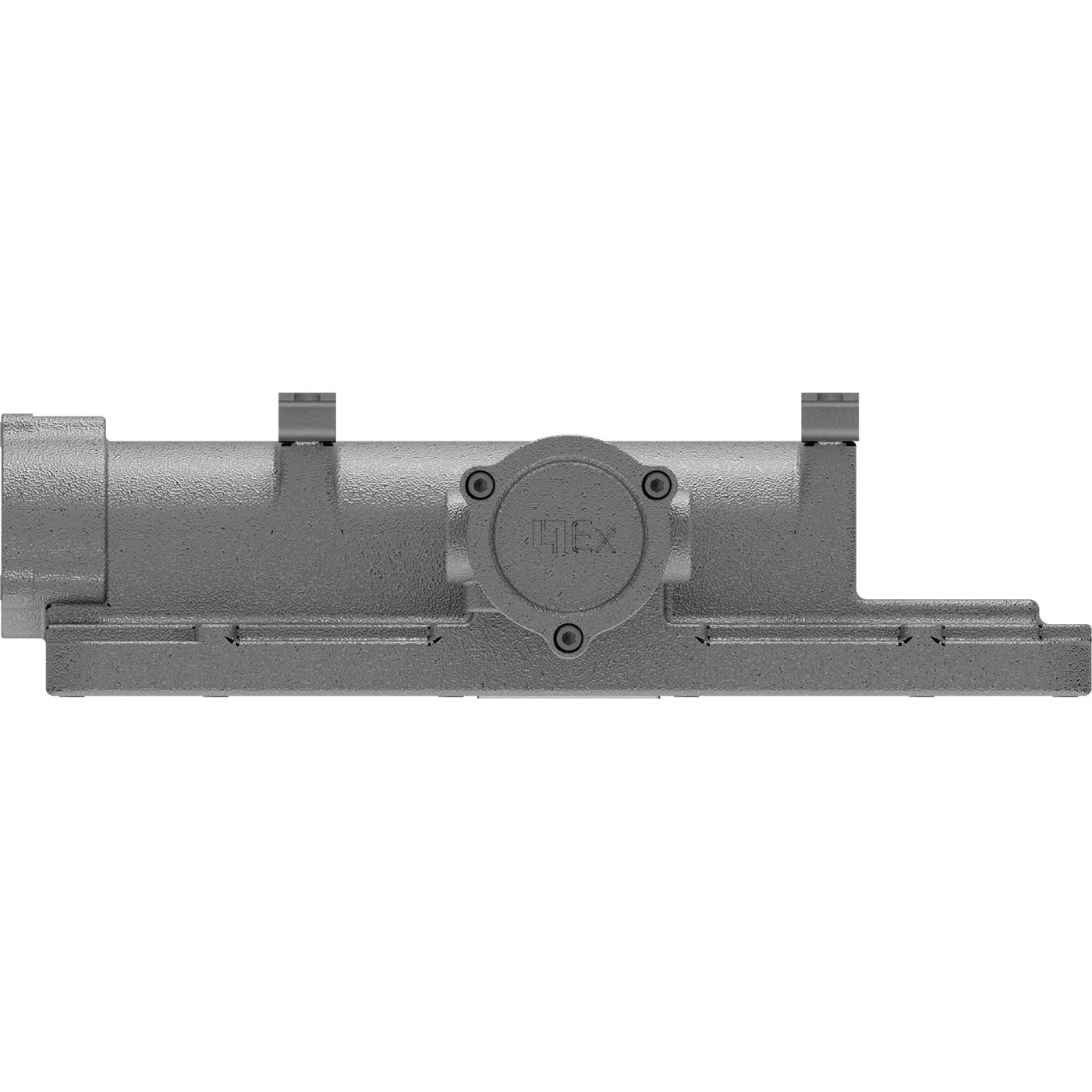

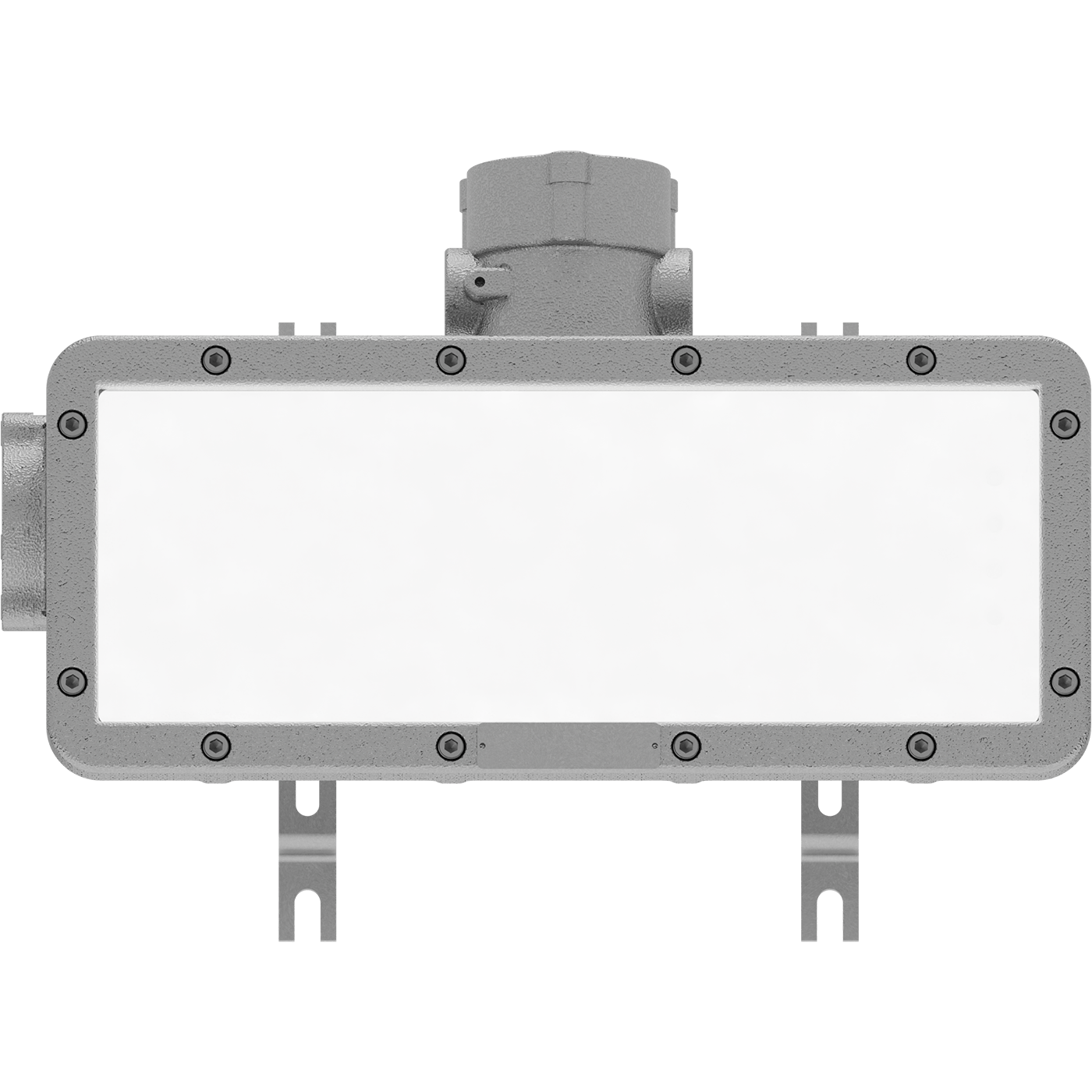

PROTON LED Exd-C028 УЗЕЛ УПРАВЛЕНИЯ АУП Б/К

PROTON LED Exd-C028 УЗЕЛ УПРАВЛЕНИЯ АУП Б/К
add to favorites
4 Wluminaire power
30 lmlight flow
8 lm/Wenergy efficiency
code1389000790
color temperature10350
old namePROTON LED Exd-C028
  1. main page
  2. catalog
  3. by product type
  4. special application
  5. intergazcert
  6. explosion-proof luminaires
  7. PROTON LED Exd
  8. PROTON LED Exd-C028 УЗЕЛ УПРАВЛЕНИЯ АУП Б/К
options
свернуть все
commonilluminatingelectricalconstructionalemergency
warranty
36 month
code
1389000790
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
temperature range
от 0 до +55 C
energy efficiency class
C
common
warranty
36 month
code
1389000790
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
temperature range
от 0 до +55 C
energy efficiency class
C
illuminating
light flow
30 lm
color rendition index (CRI)
>75
flickering factor
<5%
energy efficiency
8 lm/W
color temperature
10350
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
4 W
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,50
supply voltage
230 V
constructional
ingress protection (IP)
IP66
material
Сплав алюминиевый
housing color
Серый
length, mm
410 mm
width, mm
320 mm
height, mm
110 mm
weight
5.15 kg
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
installation width, mm
200 mm
emergency
operating time in emergency mode, hours
3 h
luminous flux in emergency mode
30 lm
model files
model files

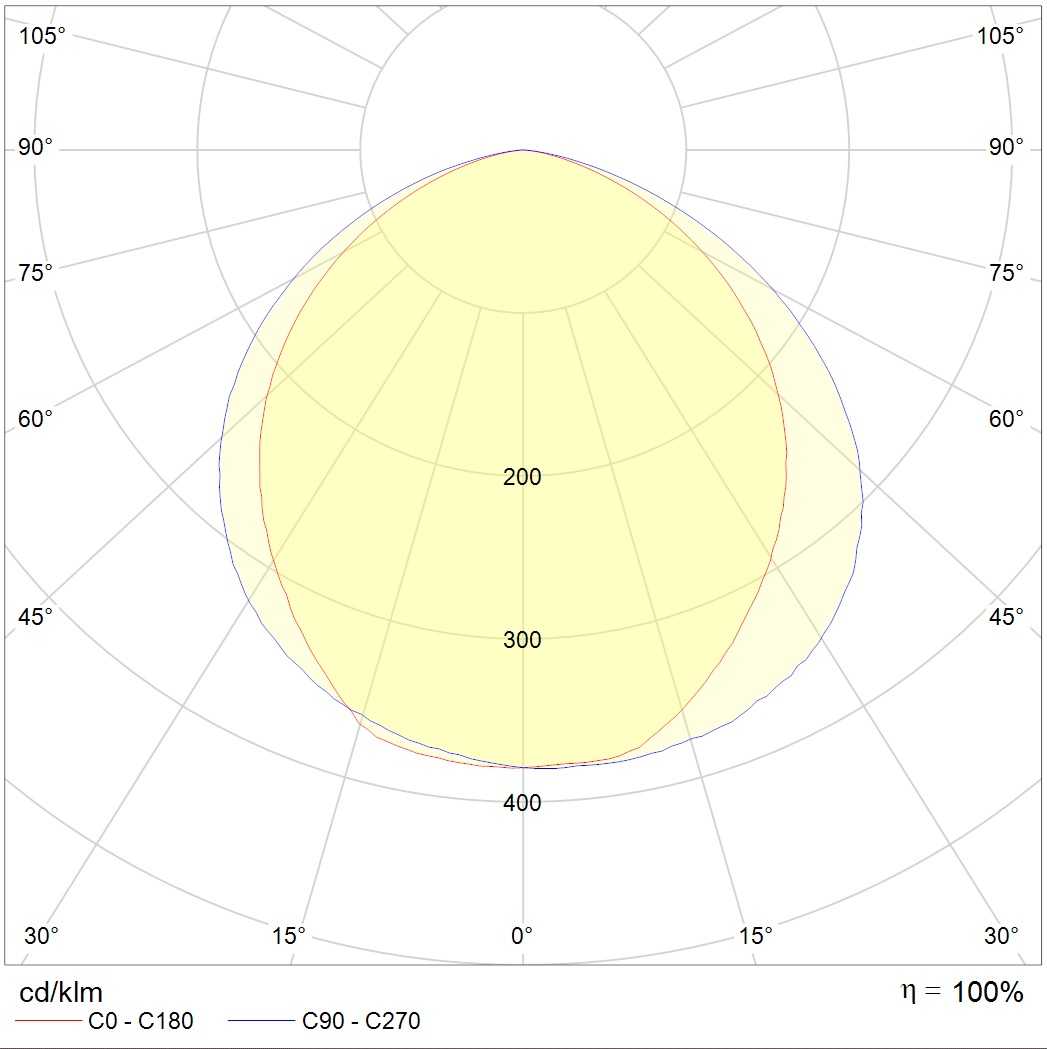

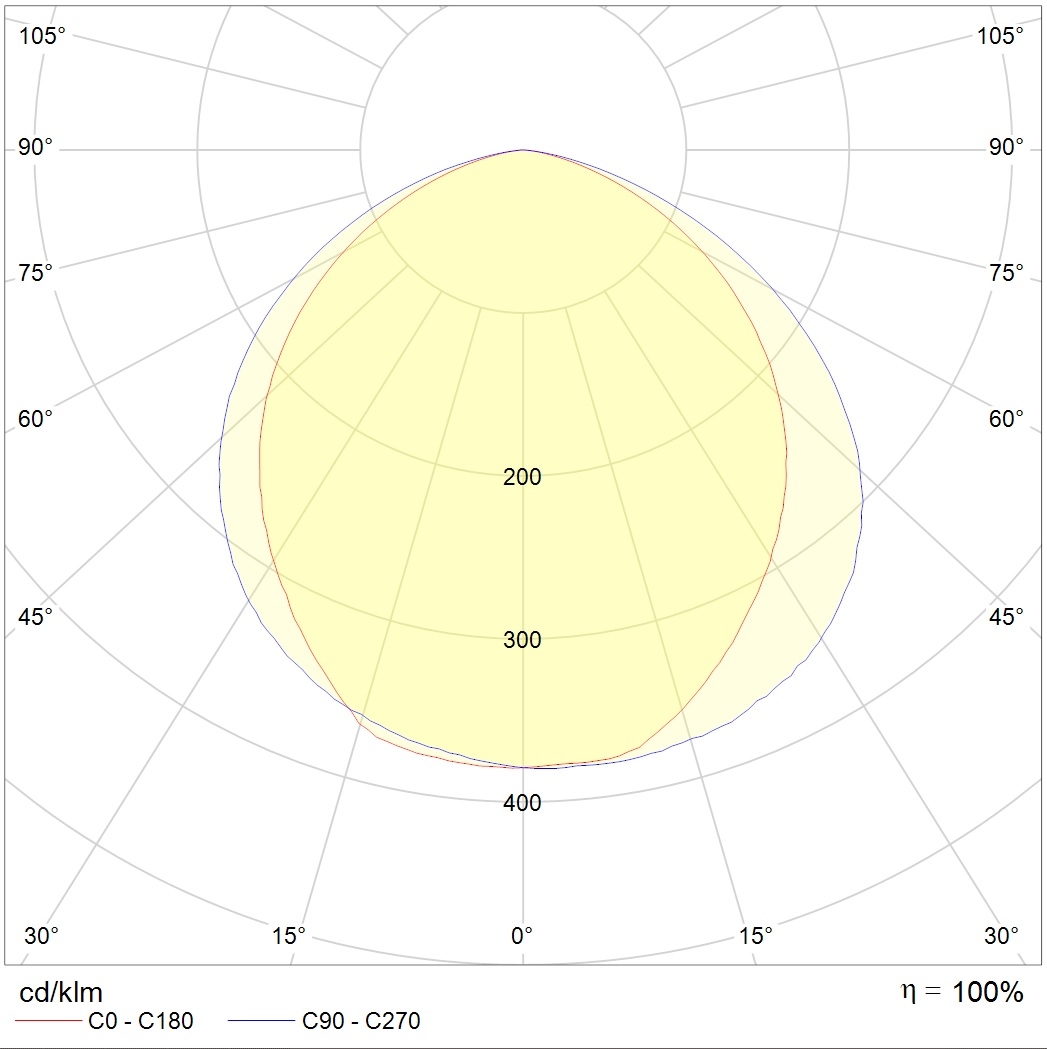

photometric files
ies263.3 kB
jpg123.5 kB
ldt161.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
photometric files
ies263.3 kB
jpg123.5 kB
ldt161.5 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2SMBNS0.19kgarticle: 2327017400color: Неокрашенныйø cable internal: 10,0-14,5ø cable external: 12,5-20,5
Cable entry explosion-proof М25х1,5 NA2MBNS0.05kgarticle: 2327009380color: Неокрашенныйø cable internal: 11,3-19,9
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
