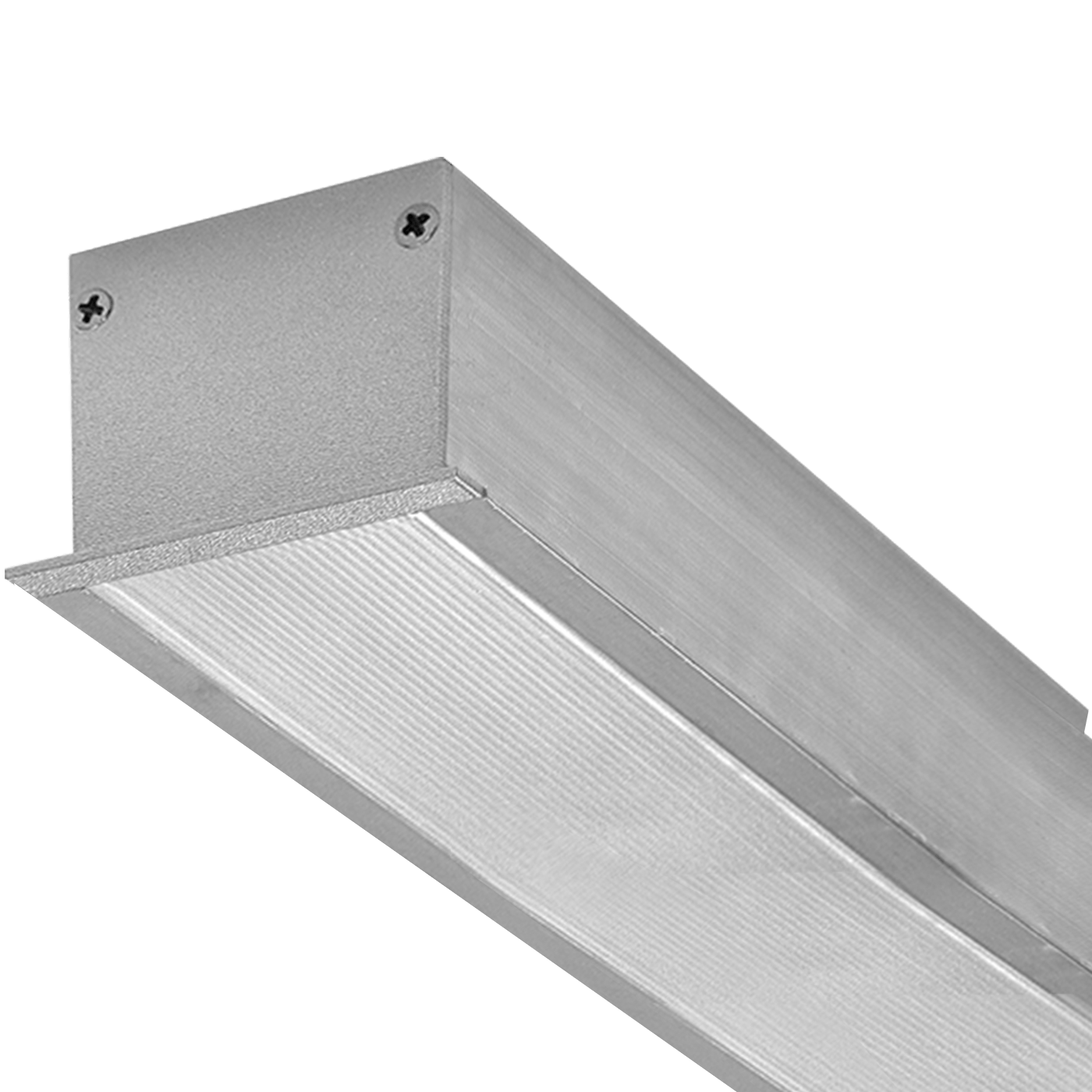

PROFILE 60H WH 1000 2.0x10.0W 3000K

model is discontinued
model is discontinued
PROFILE 60H WH 1000 2.0x10.0W 3000K
add to favorites
60 Wluminaire power
1000 lmlight flow
17 lm/Wenergy efficiency
code1248001380
color temperature3000 K
beam angleD120
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. LED strips and profiles
  6. PROFILE
  7. PROFILE 60H WH 1000 2.0x10.0W 3000K
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
17 lm/W
color rendition index (CRI)
>80
light flow
1000 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
illuminating
energy efficiency
17 lm/W
color rendition index (CRI)
>80
light flow
1000 lm
flickering factor
<5%
beam angle
D120
color temperature
3000 K
light source type
LED
electrical
electric shock protection
I
luminaire power
60 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
1.5 mm2
constructional
length
1000 mm
width
60 mm
height
120 mm
installation length
2487 mm
installation width
60 mm
weight
2.4 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4
fire safety class
П-ІІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
D
ETIM class
Настенно-потолочный светильник
code
1248001380
