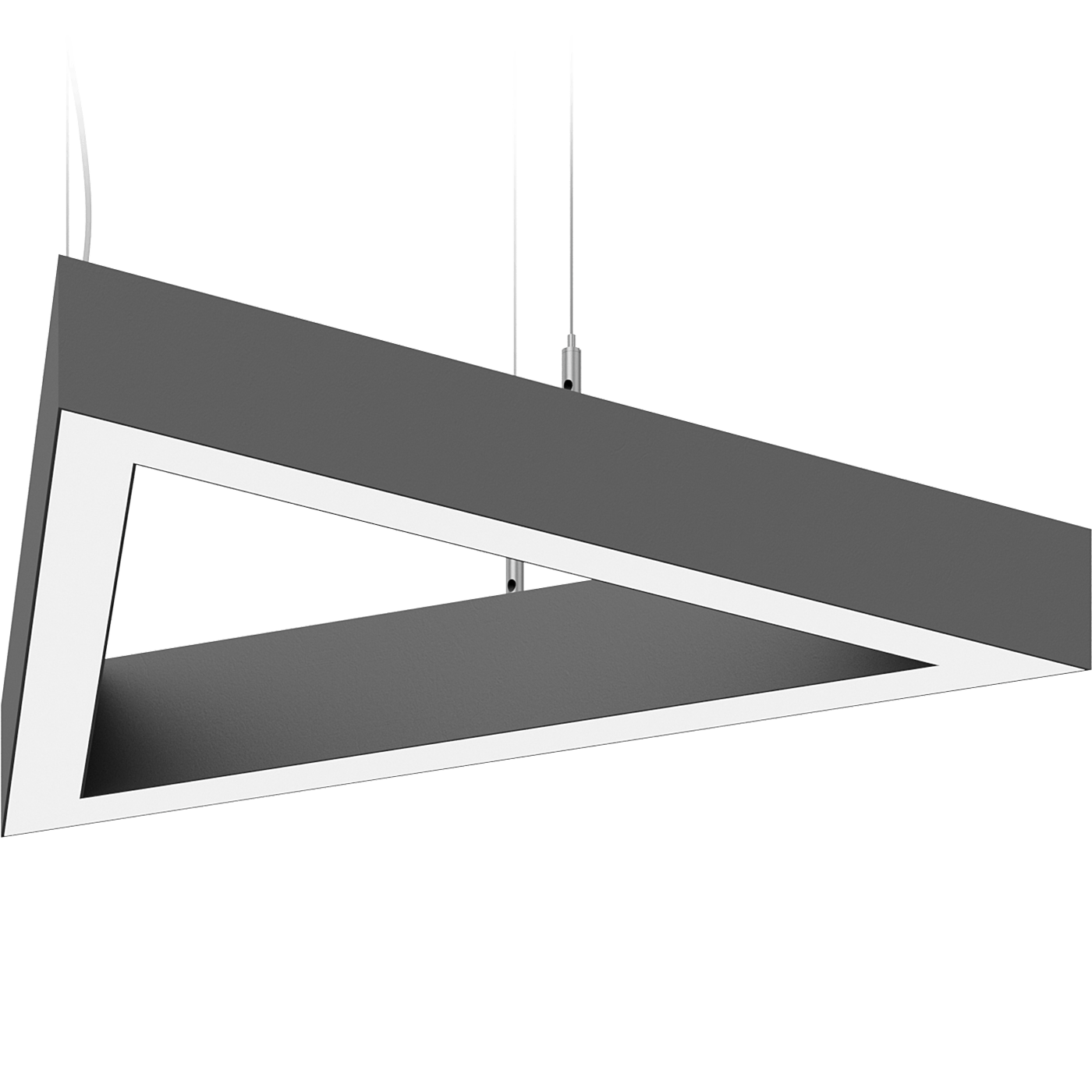

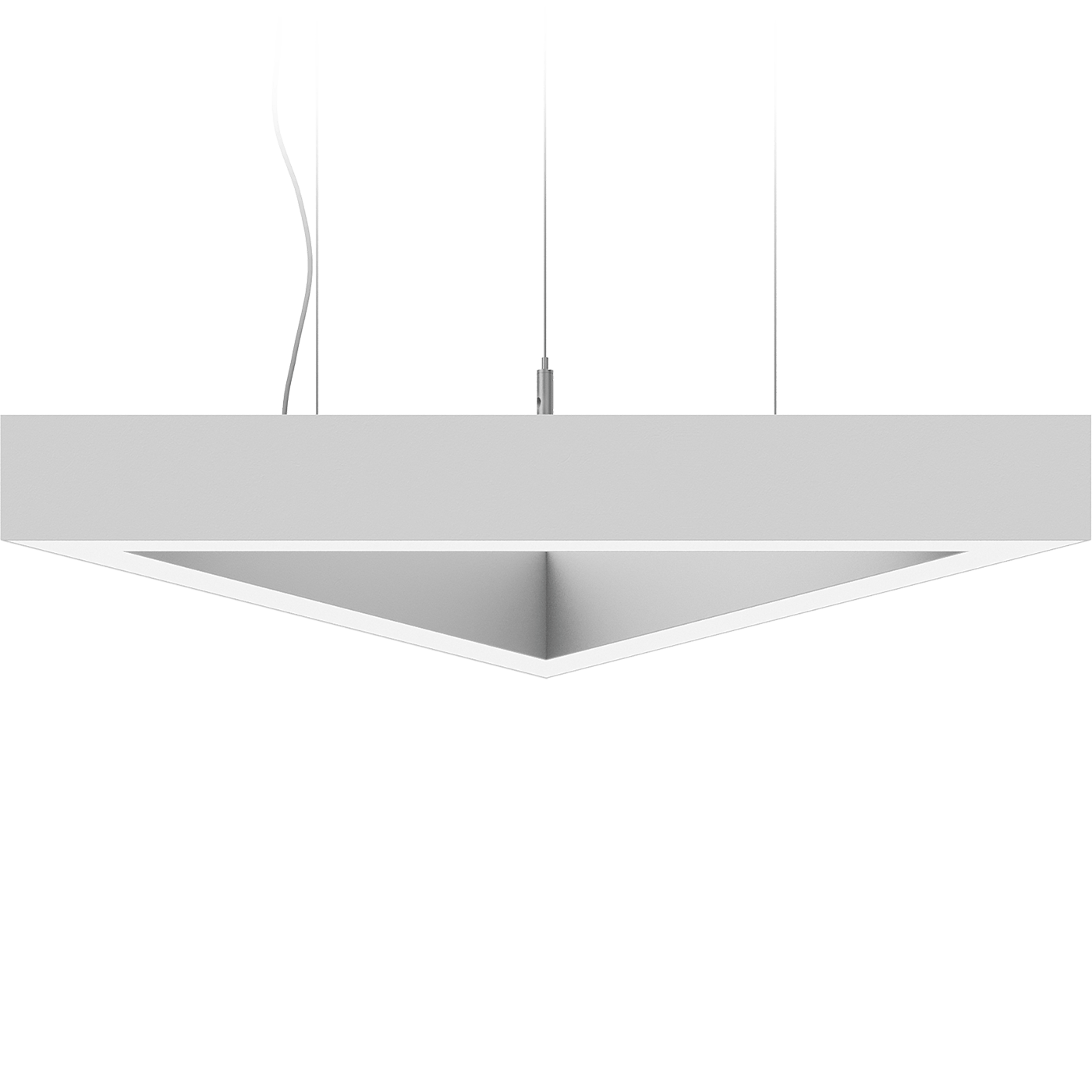

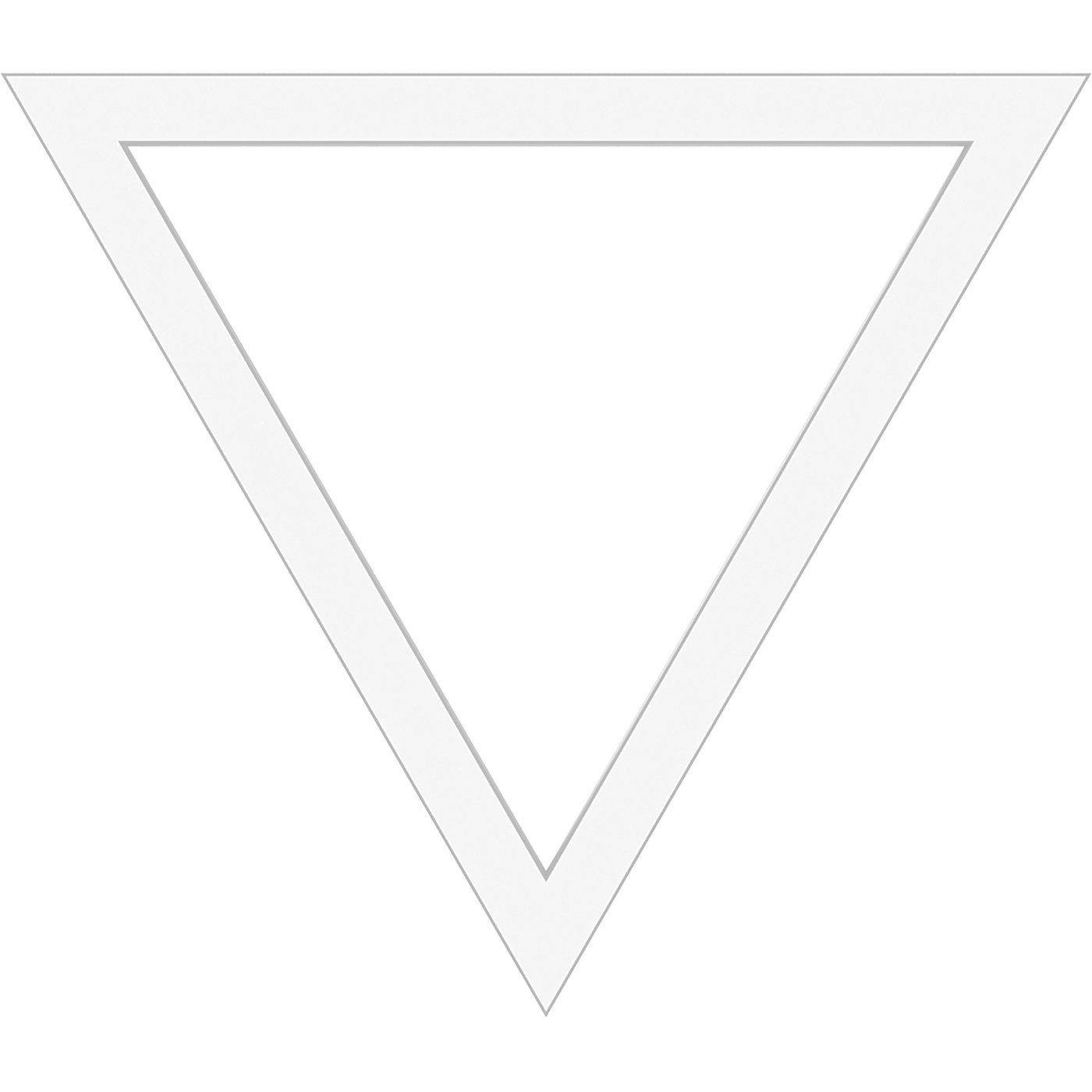

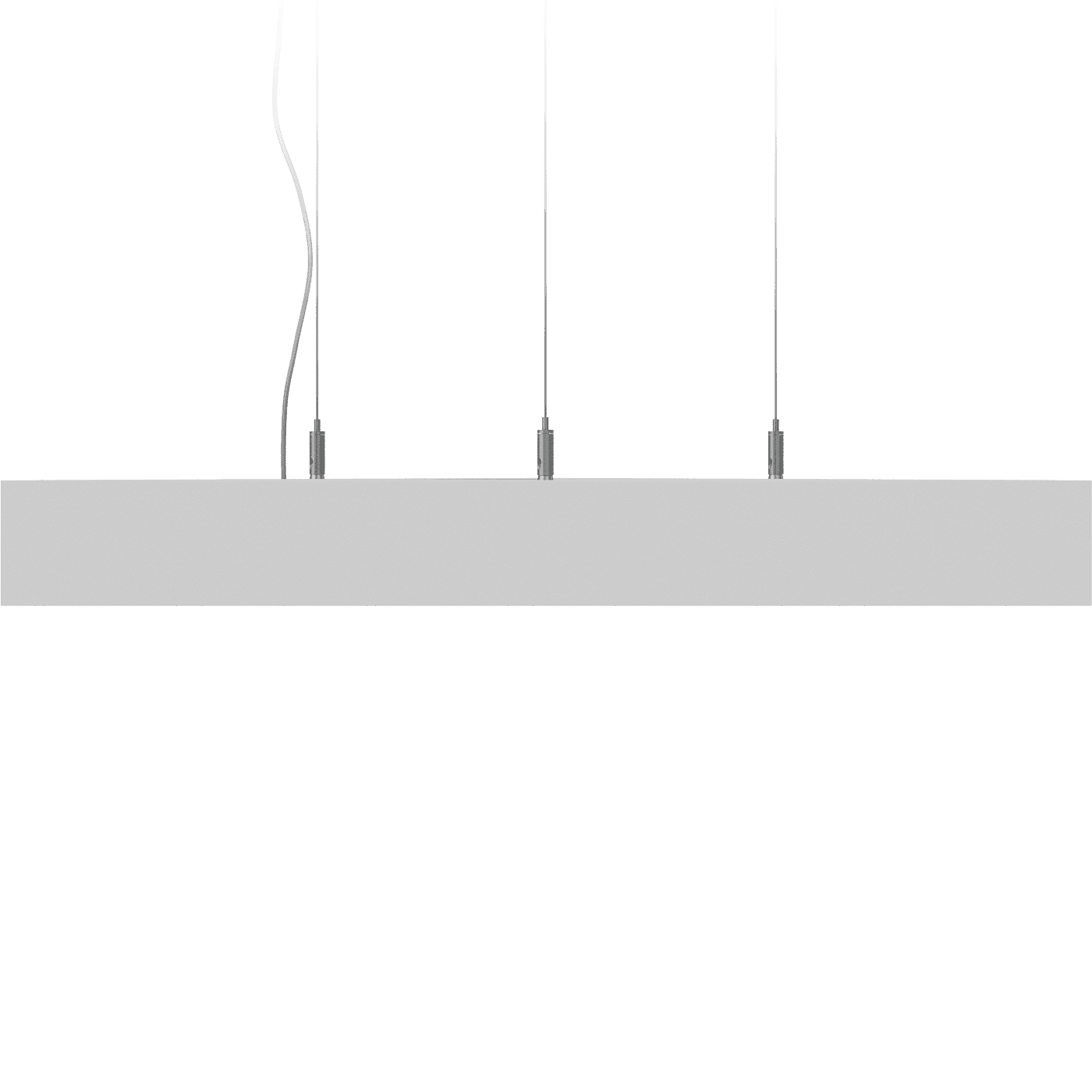

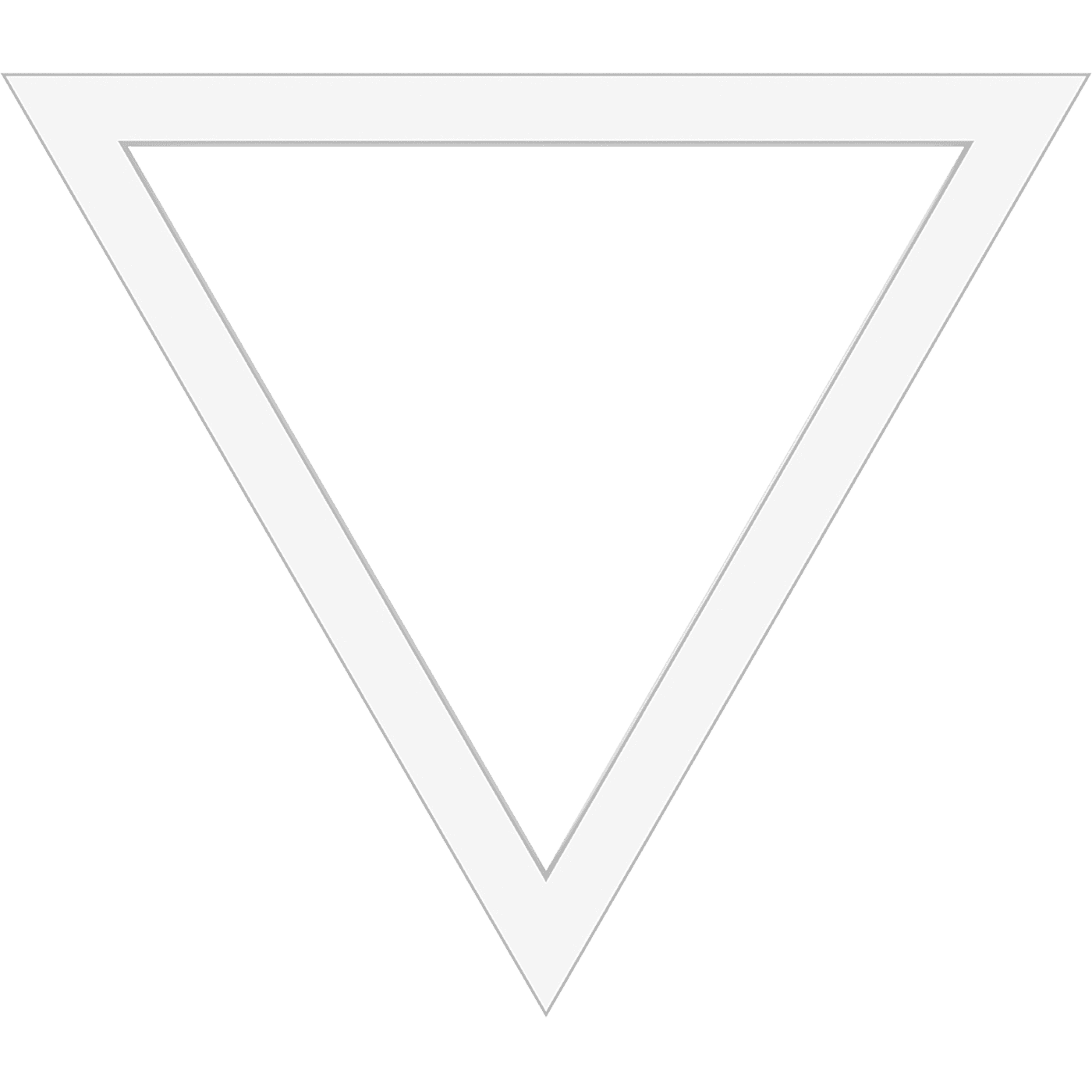

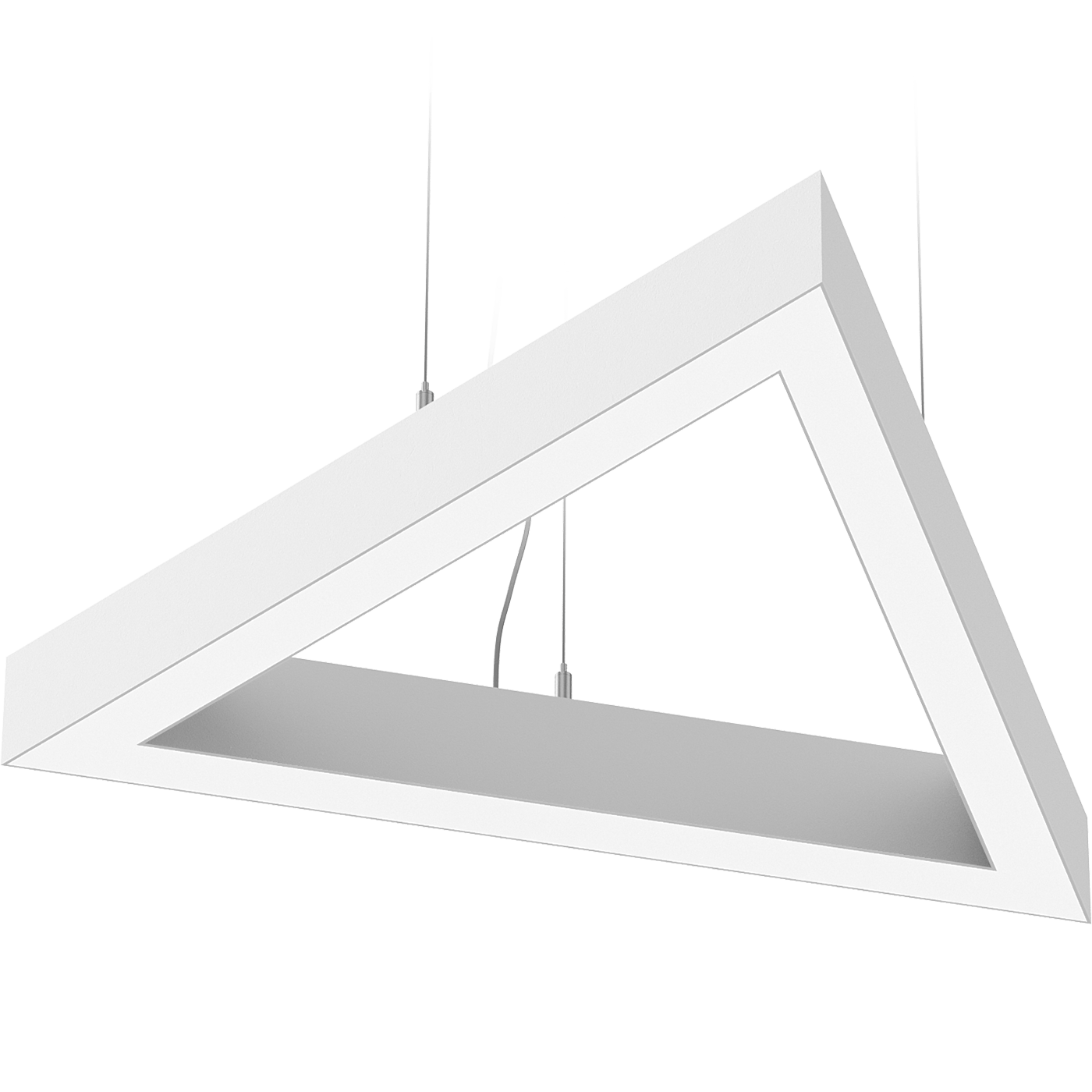

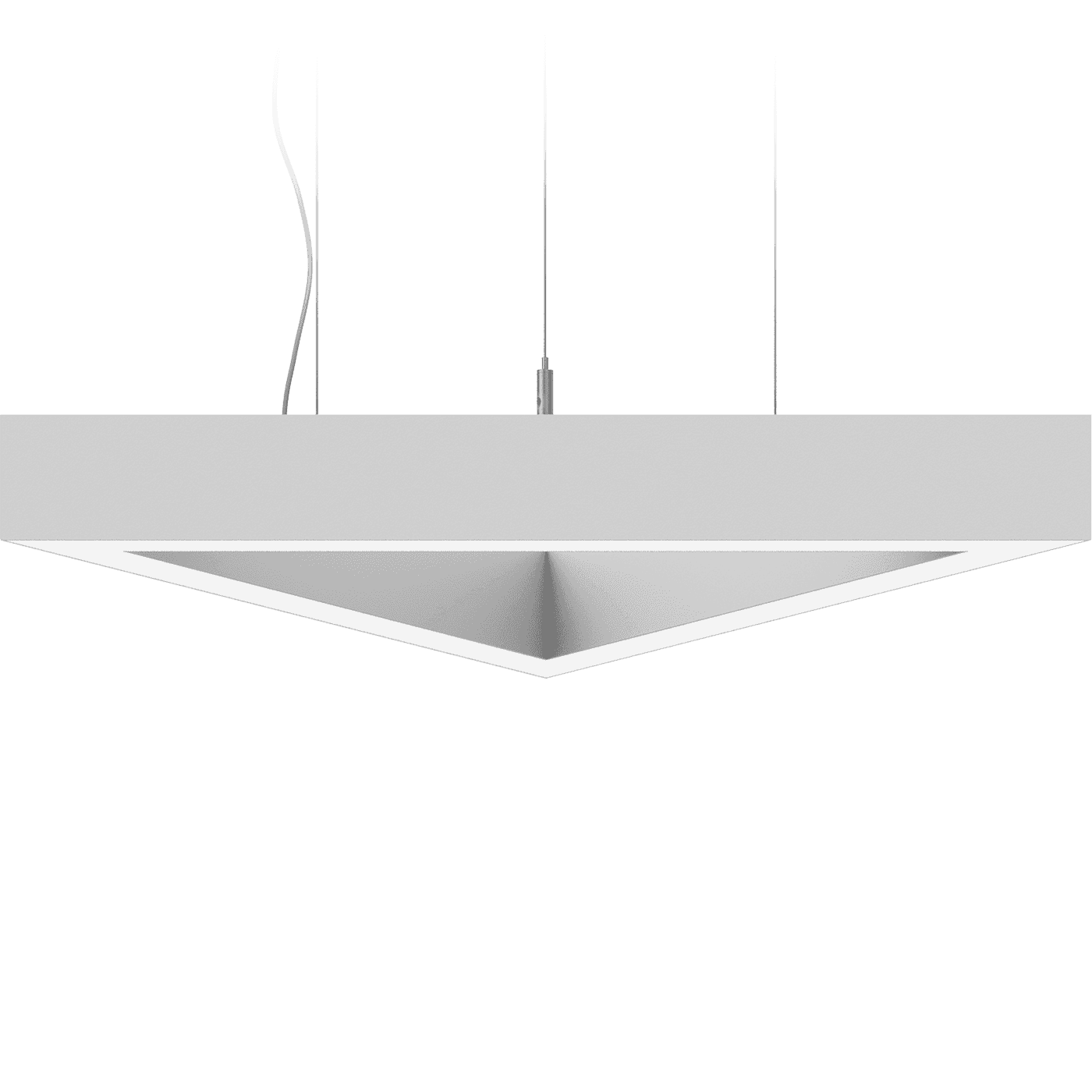

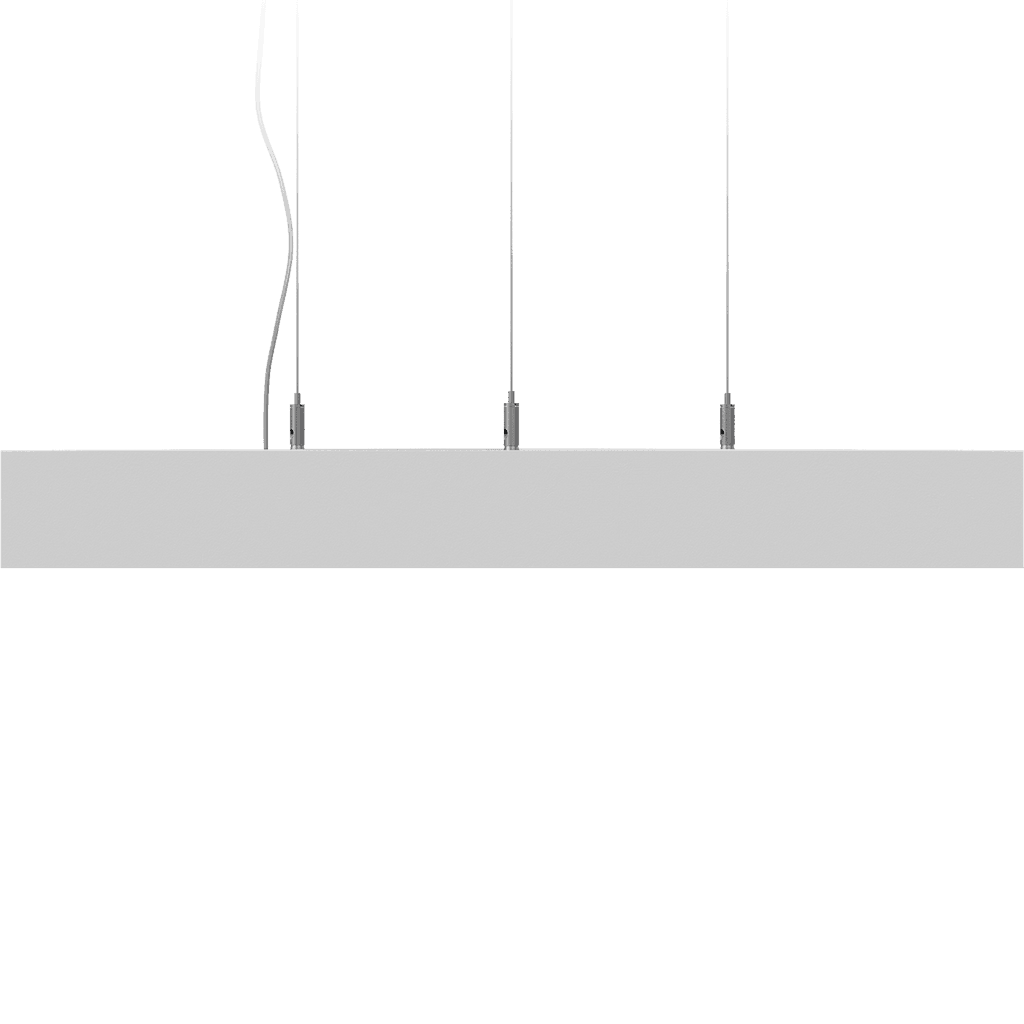

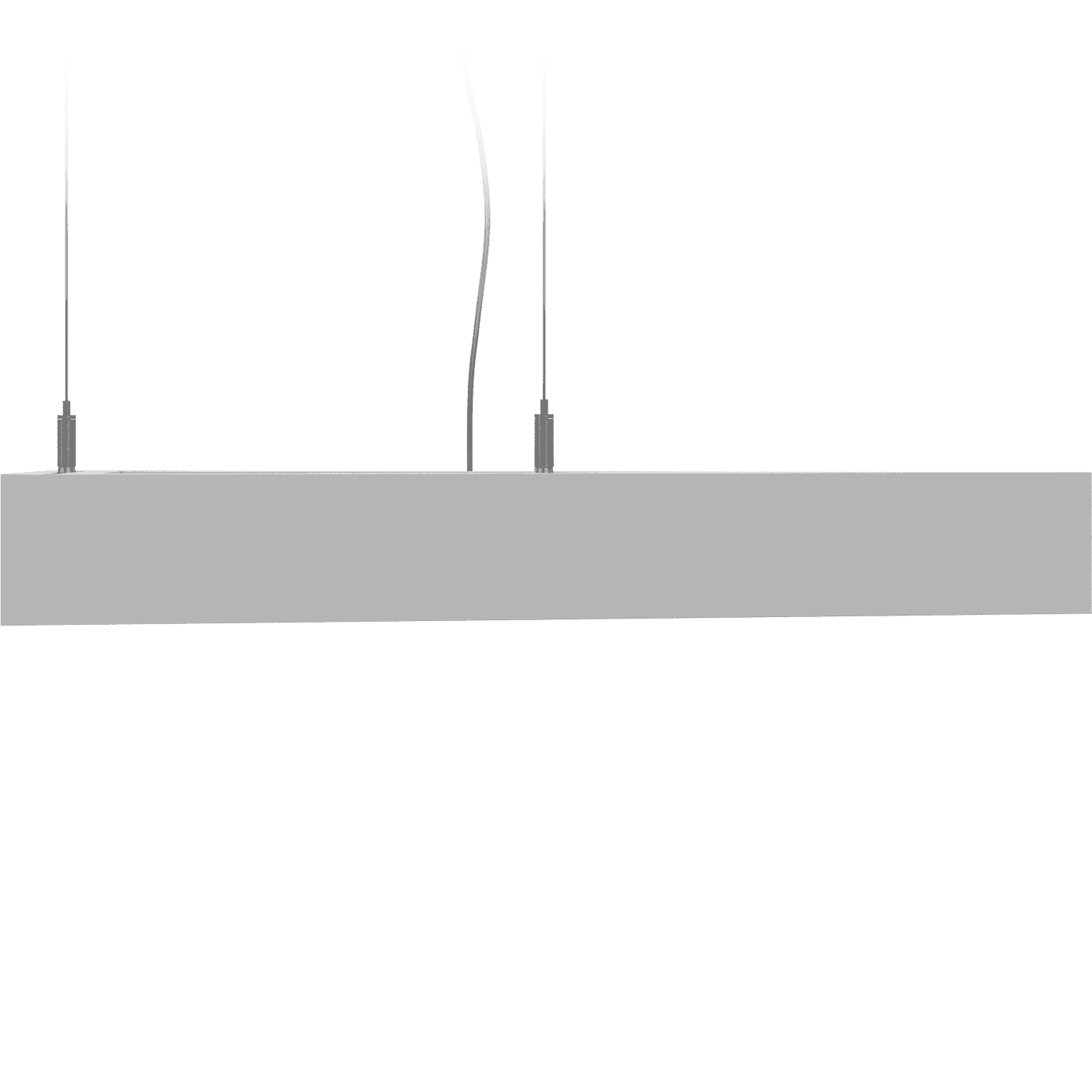

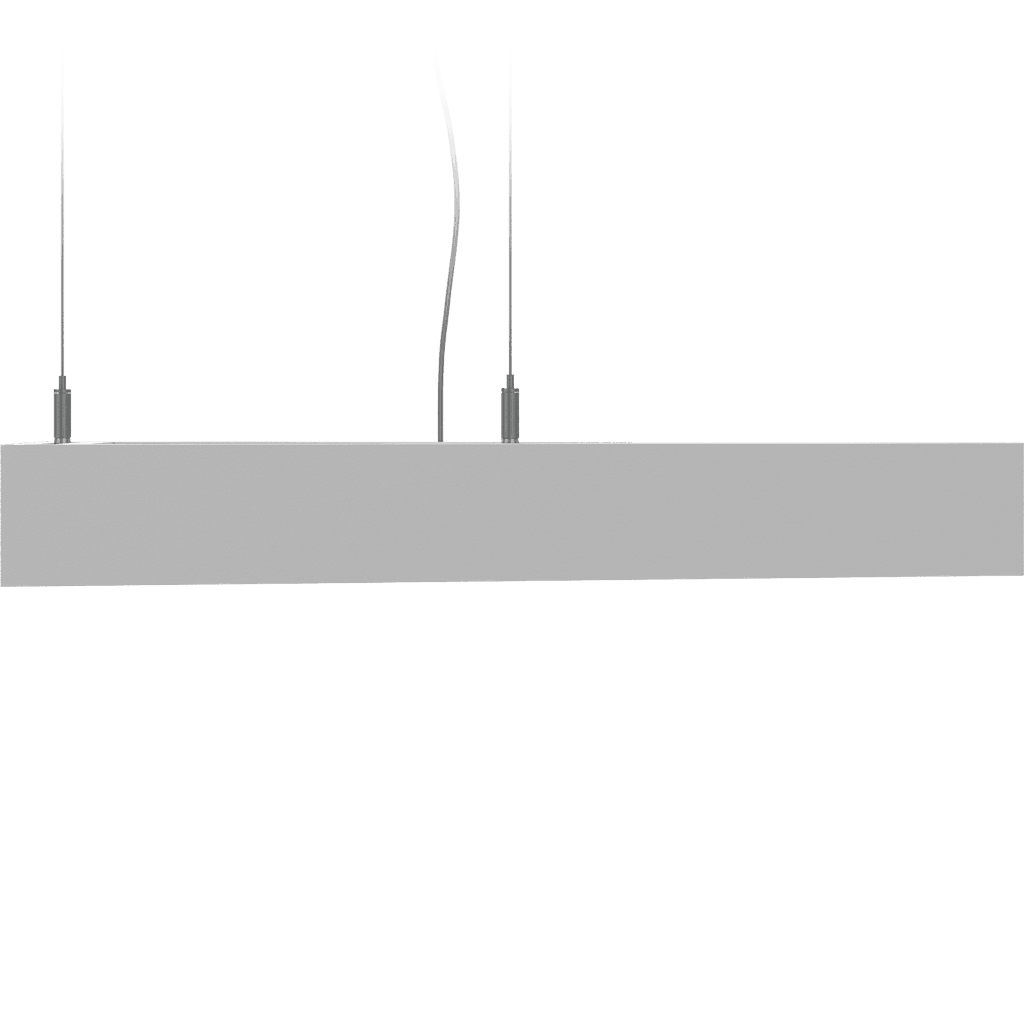

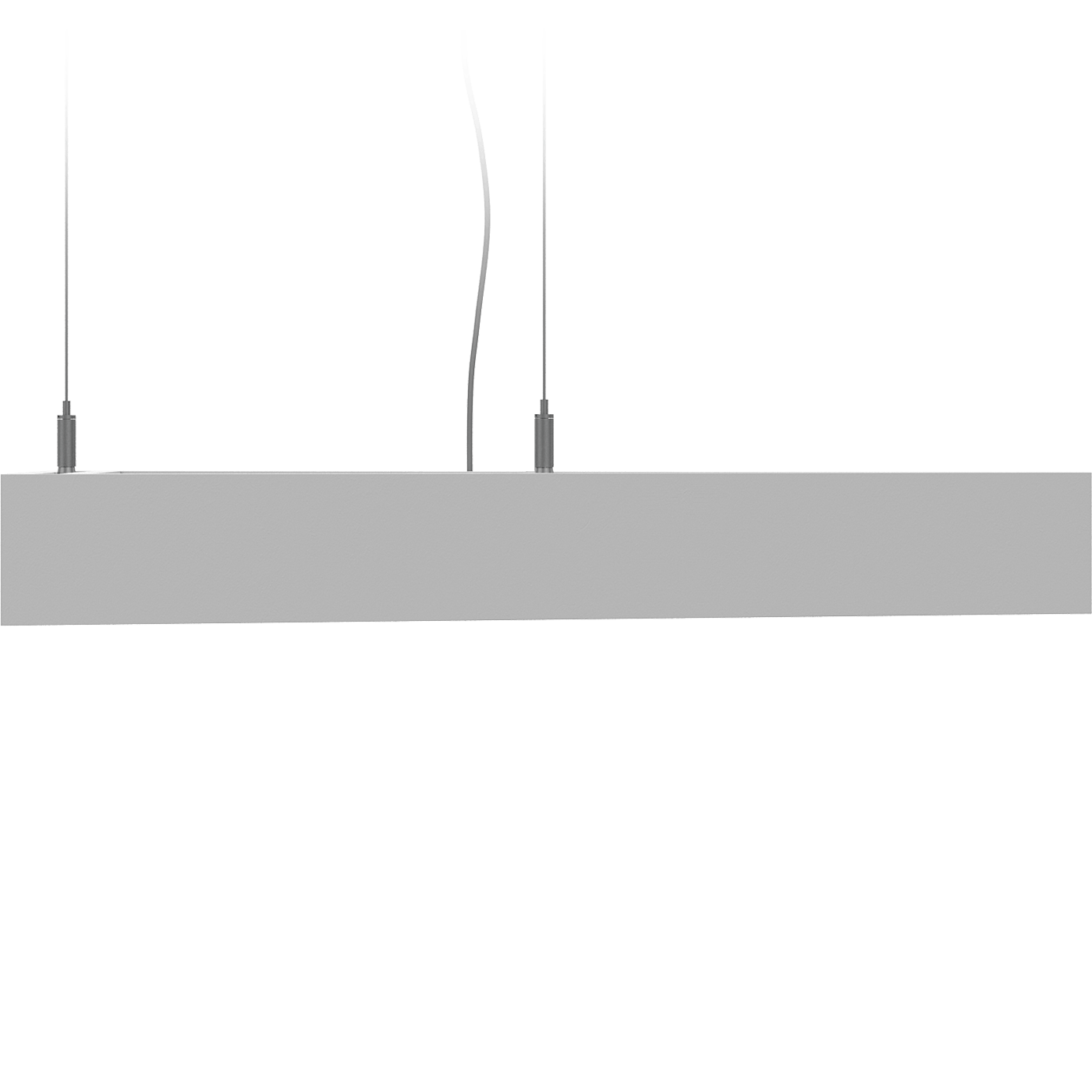

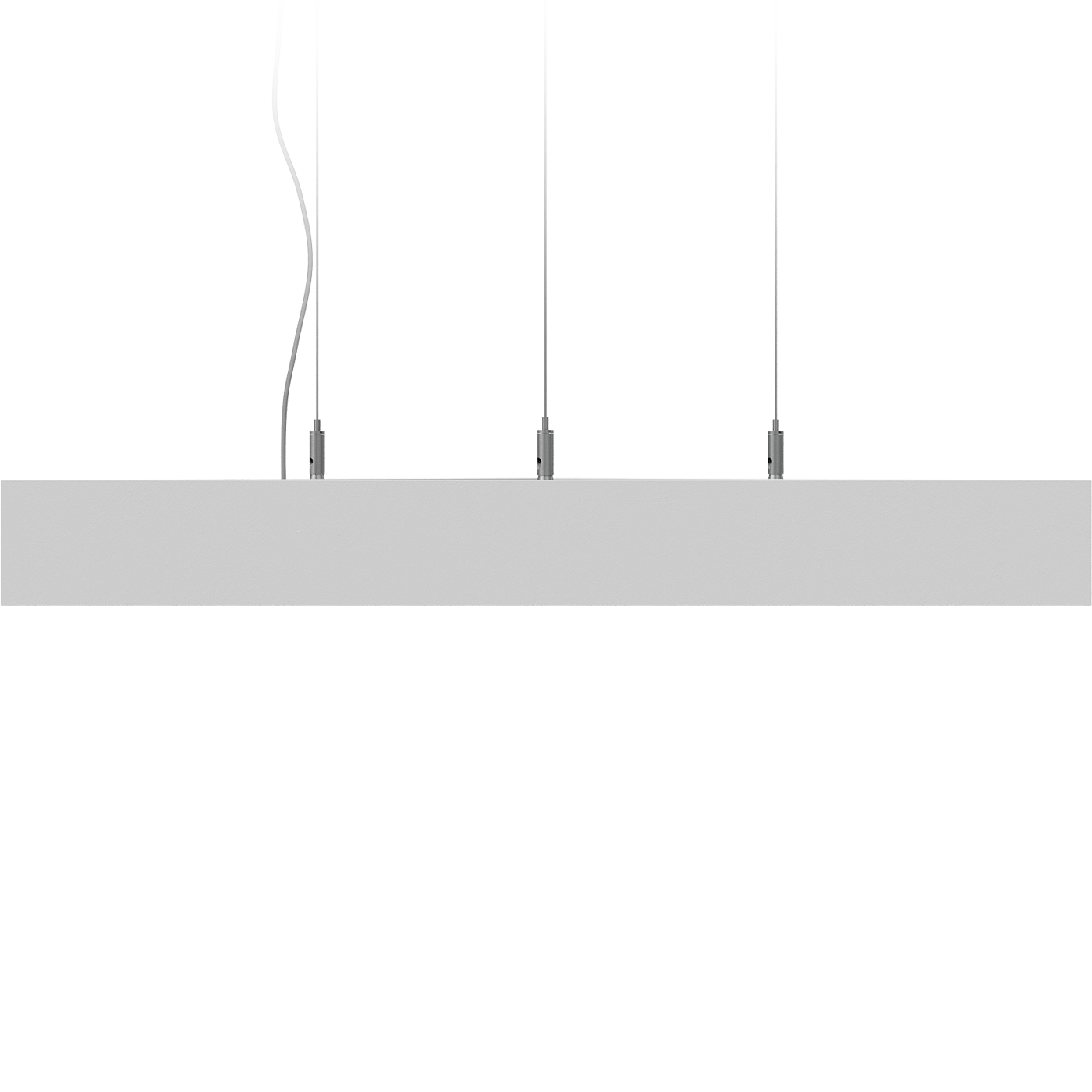

PROFILE 30L TRIGON/P (1500) 840 WH
PROFILE 30L TRIGON/P (1500) 840 WH
100 Wluminaire power
6300 lmlight flow
63 lm/Wenergy efficiency
code1248003340
color temperature4000 K
beam angleD120
old namePROFILE 30L P LED TRIGON 1500 WH 4000K
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
63 lm/Wcolor rendition index (CRI)
>80light flow
6300 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
63 lm/W
color rendition index (CRI)
>80
light flow
6300 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
100 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
1216 mm
width
38 mm
height
68 mm
weight
9.6 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
A
ETIM class
Светильник подвесной
code
1248003340
