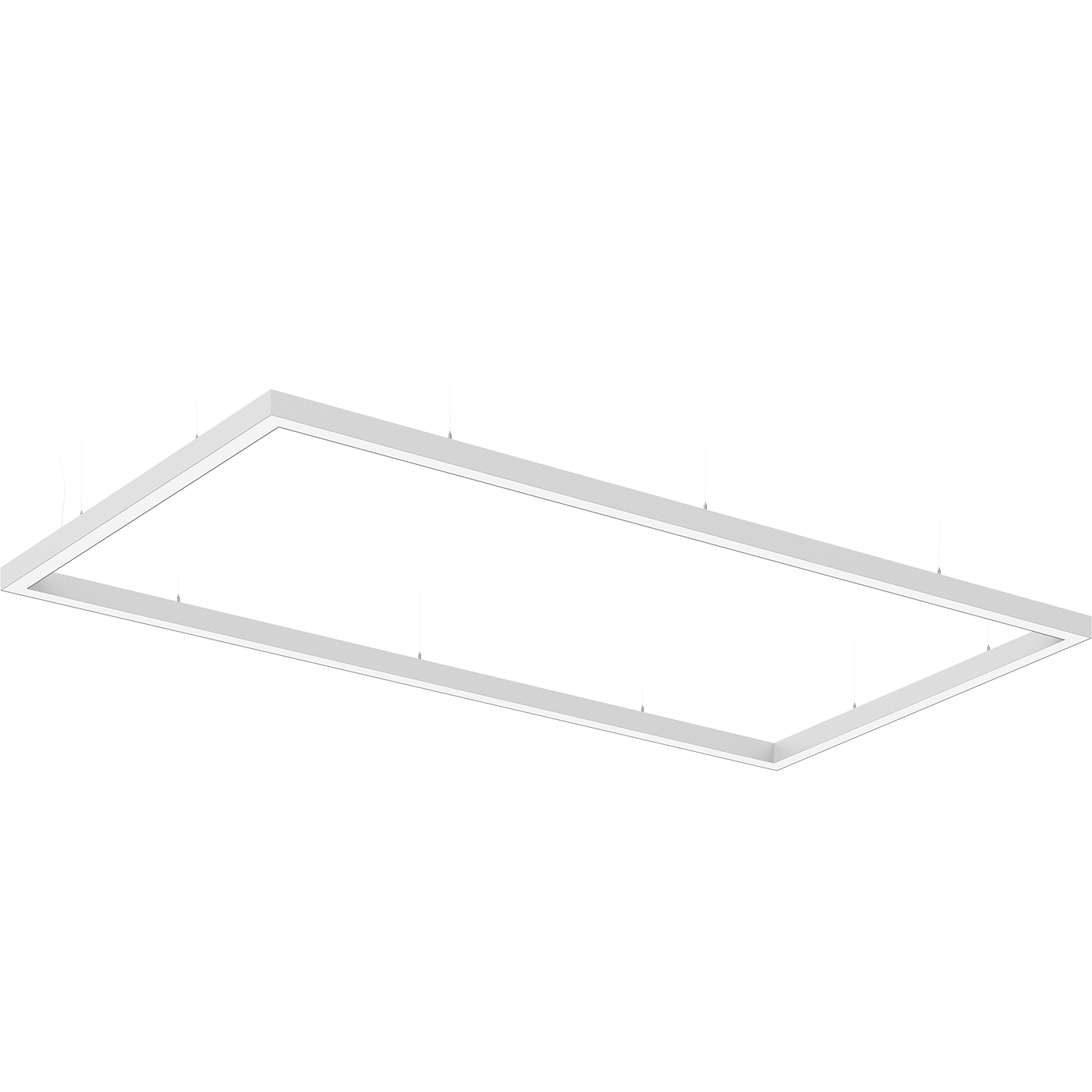

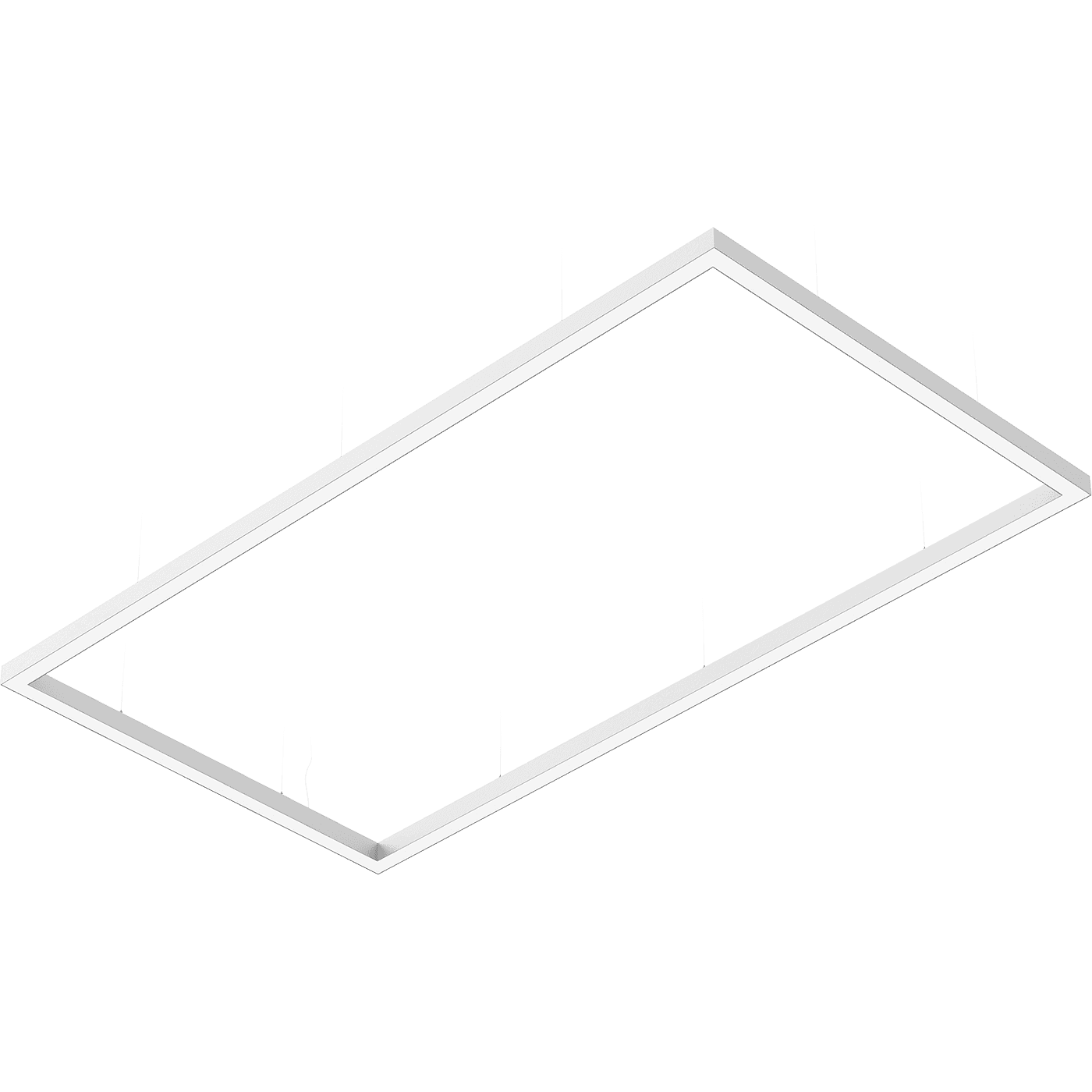

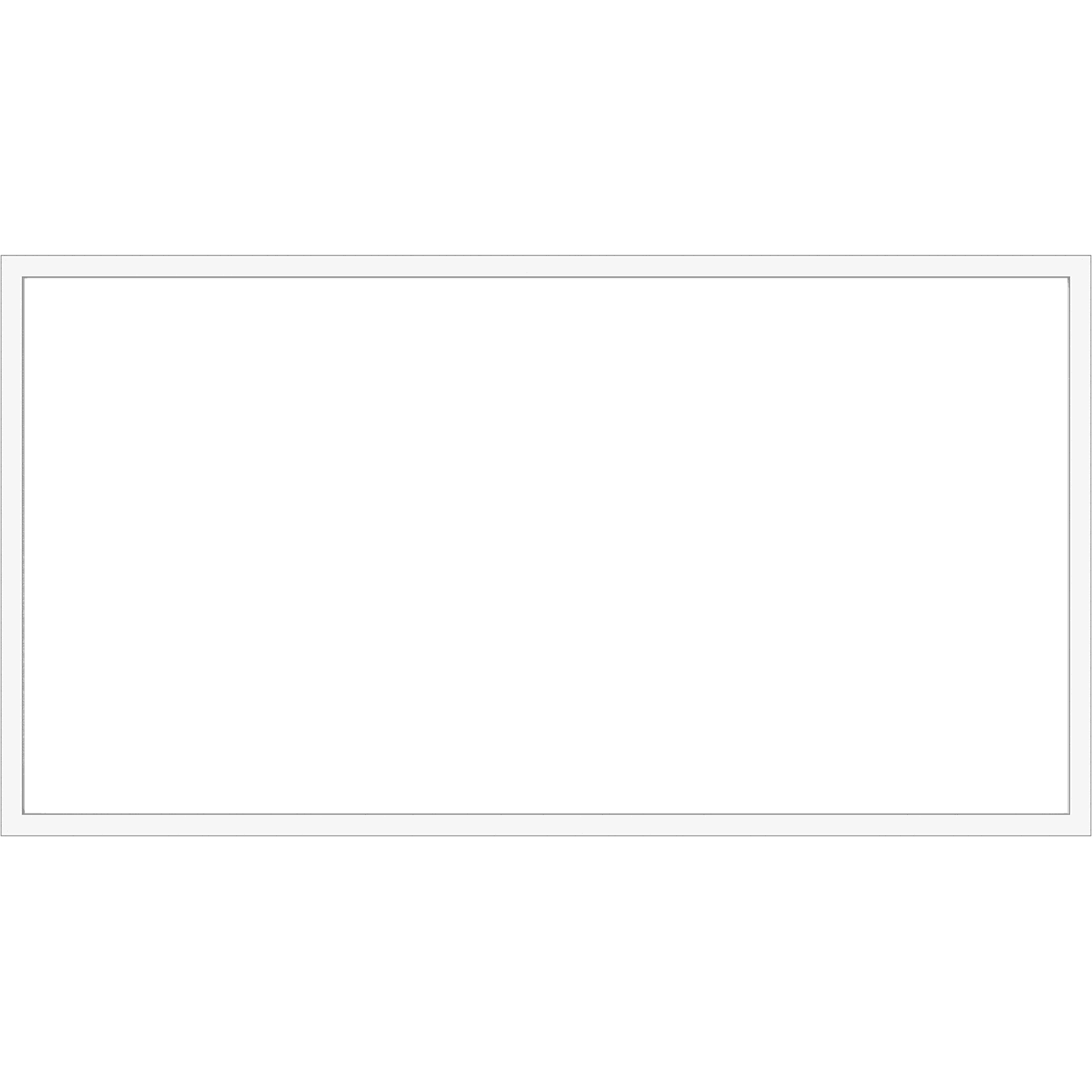

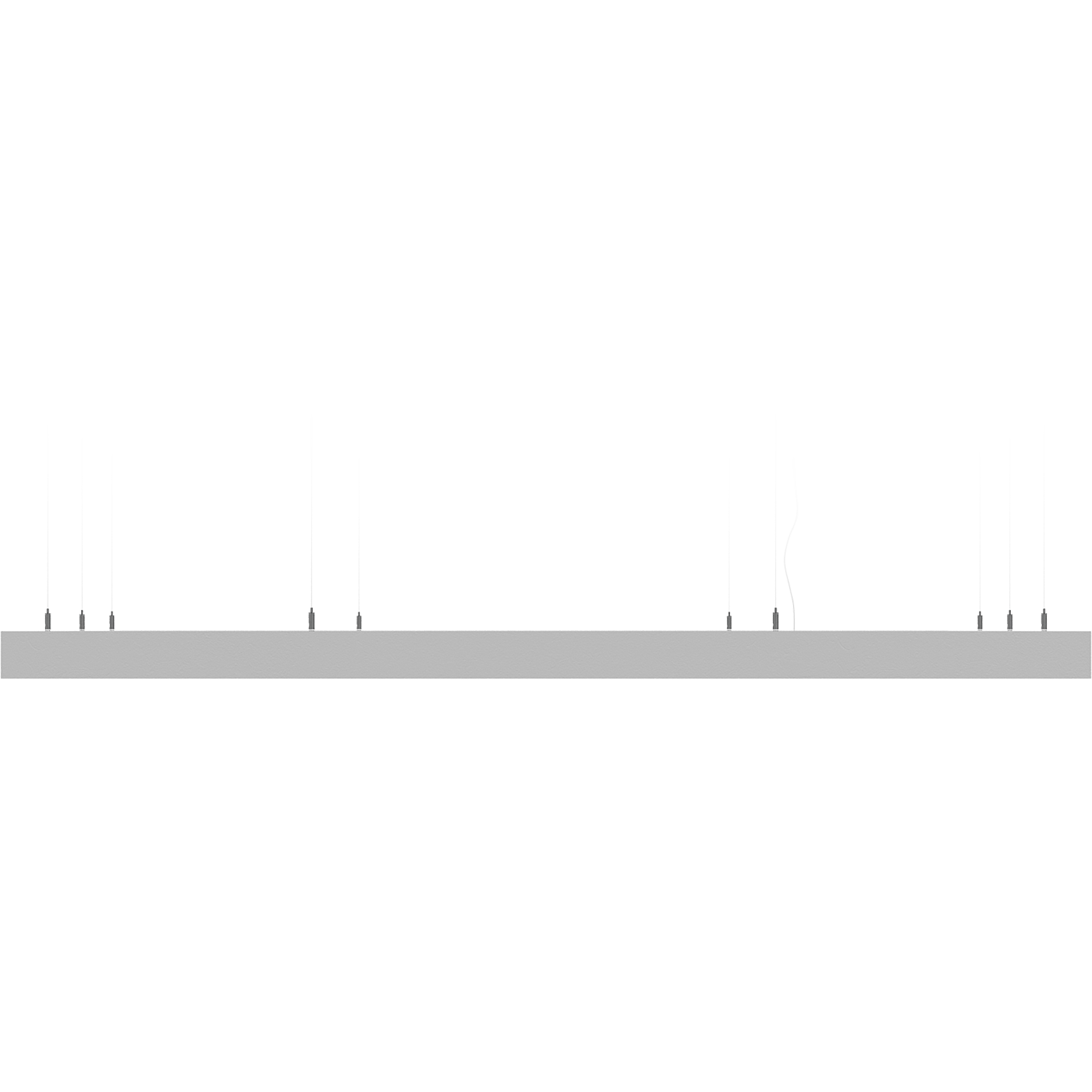

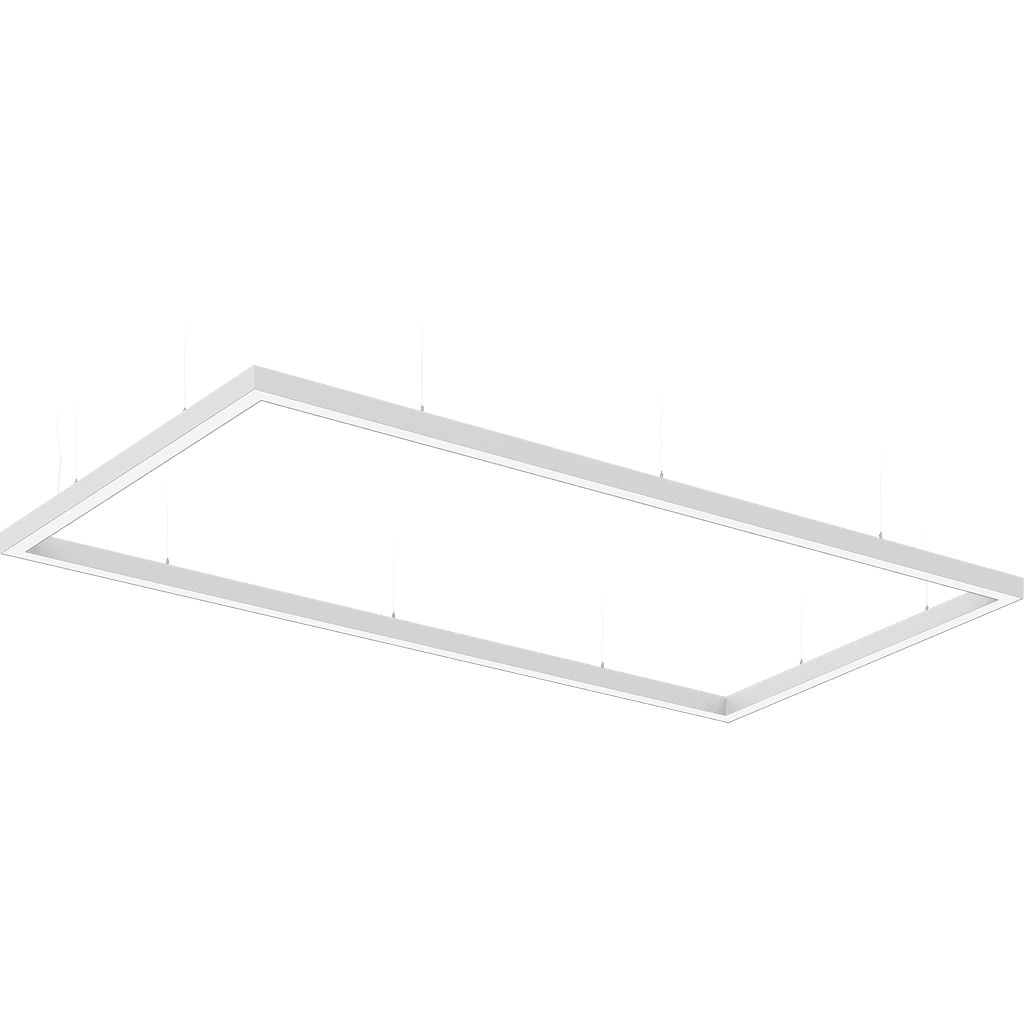

PROFILE 30L RECTANGLE/P (2000x2000) 840 WH
PROFILE 30L RECTANGLE/P (2000x2000) 840 WH
140 Wluminaire power
14000 lmlight flow
100 lm/Wenergy efficiency
code1248007230
color temperature4000
beam angleD120
old namePROFILE 30L P LED L2000/2000 WH 4000K
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Istarting current
30 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
198-264 Vsupply voltage, direct current
198-264 Vluminaire power
140 Wpower factor
> 0,90supply voltage
230 Velectrical
electric shock protection
I
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
198-264 V
luminaire power
140 W
power factor
> 0,90
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
material
Алюминий
housing color
Белый
length, mm
1530 mm
width, mm
570 mm
height, mm
68 mm
weight
2.5 kg
fire safety class
П-ІІІ
climatic performance
УХЛ4*
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
36 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1248007230
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
14000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
100 lm/W
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
