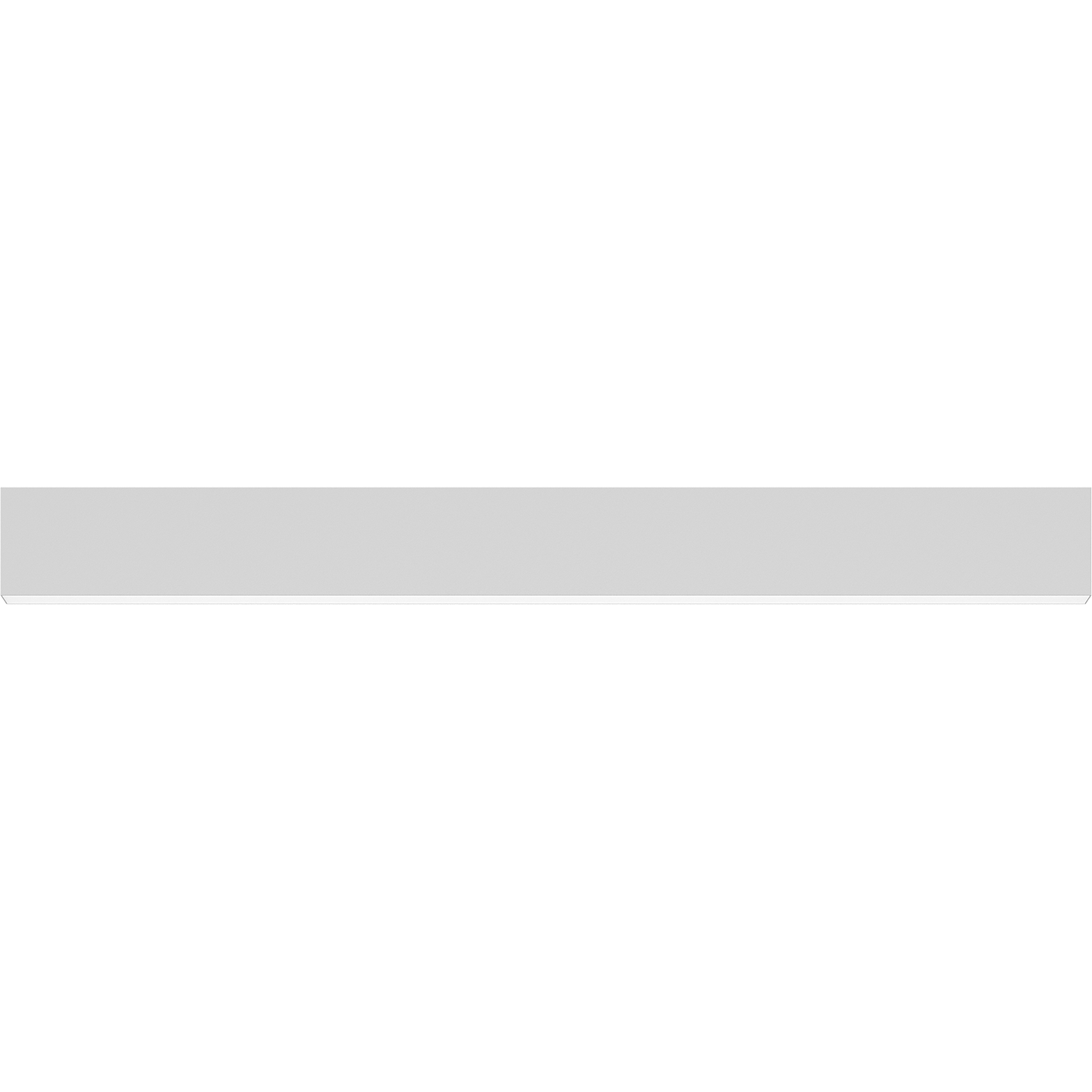

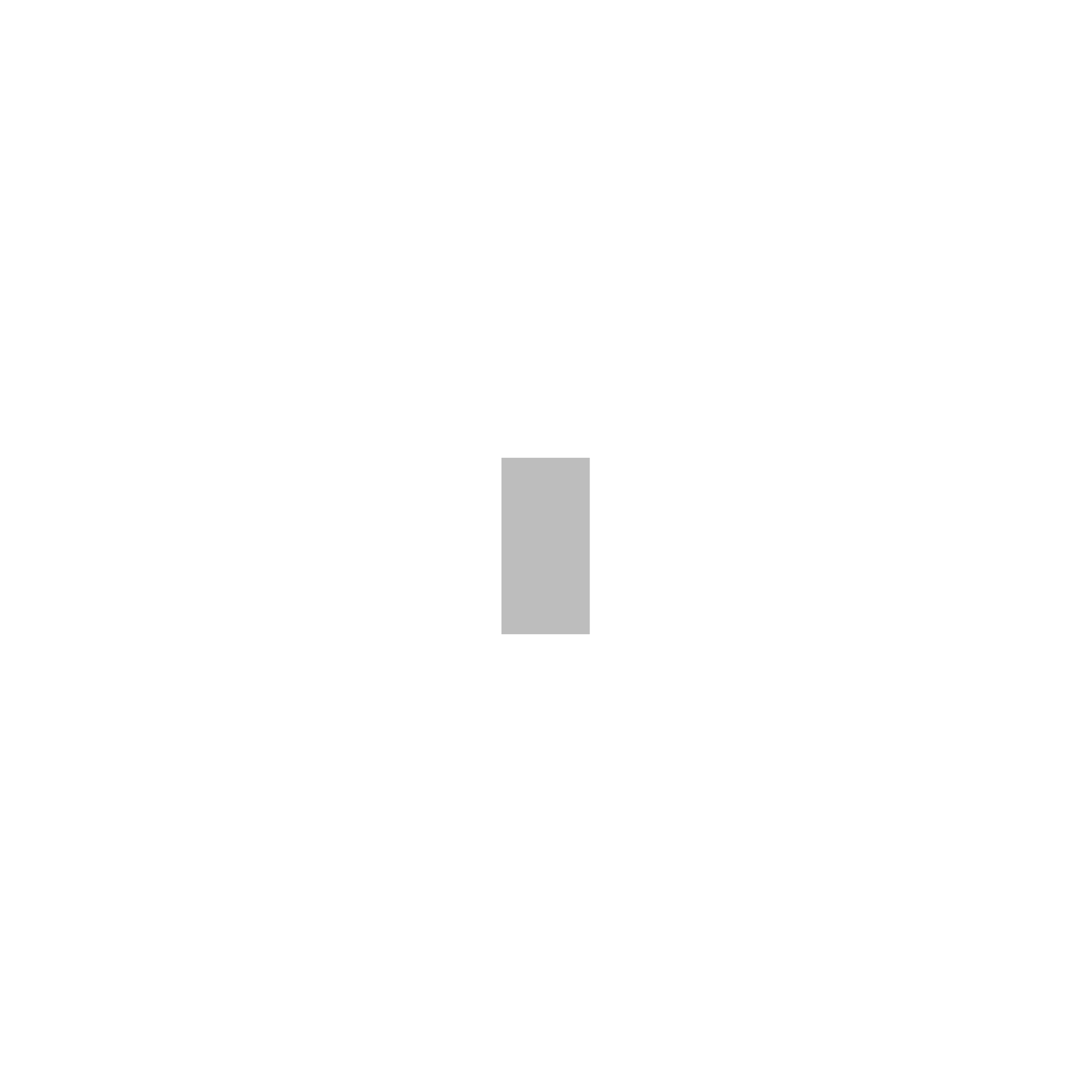

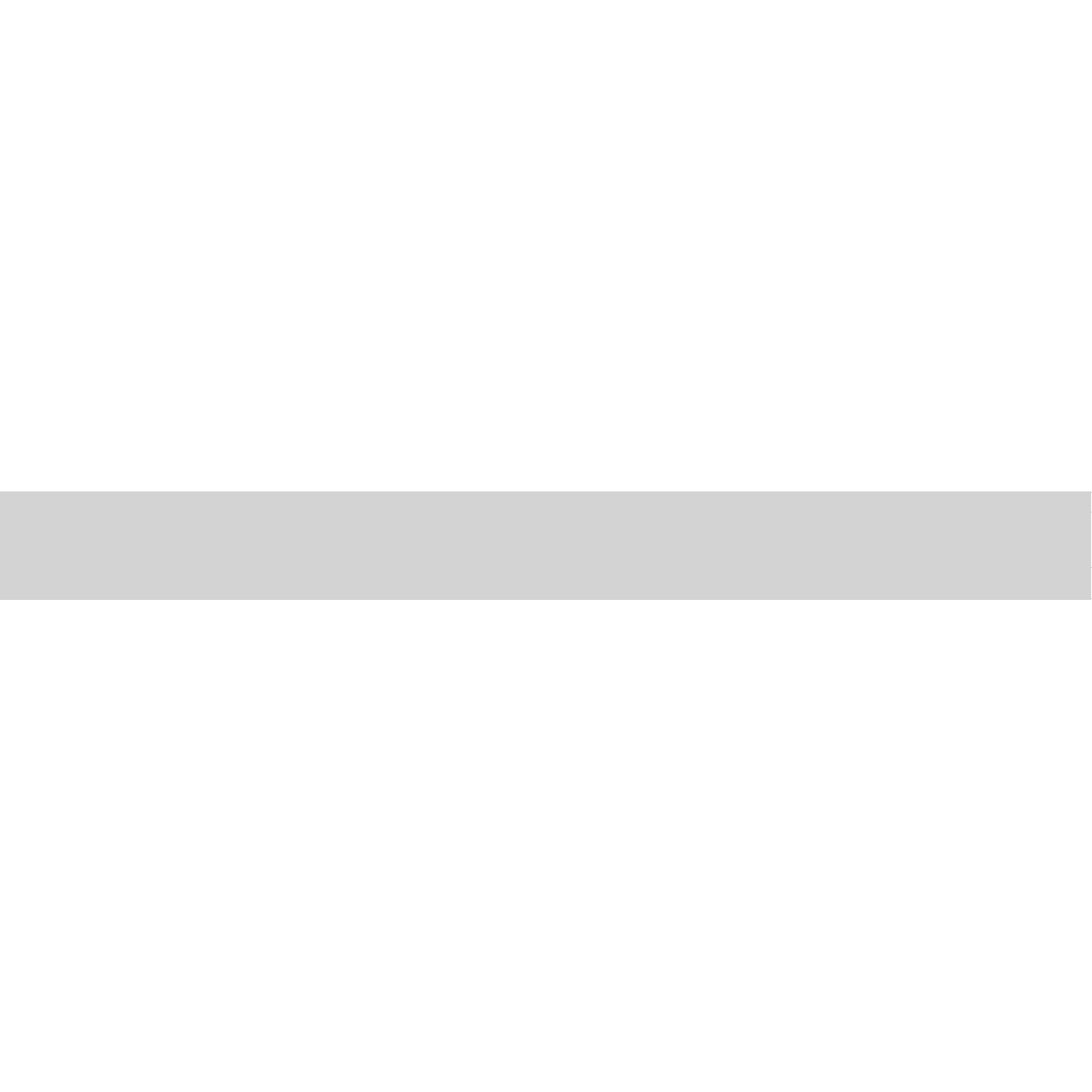

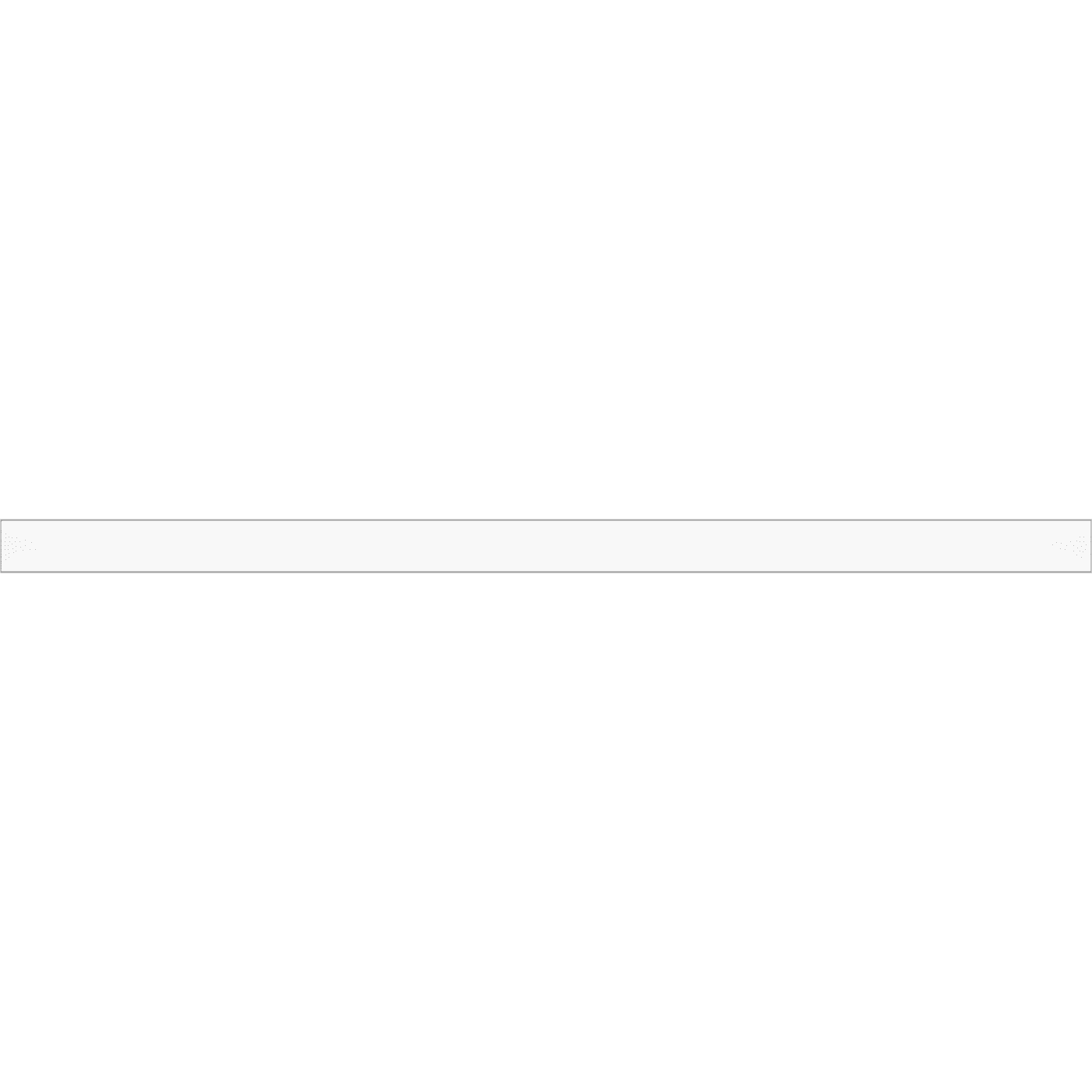

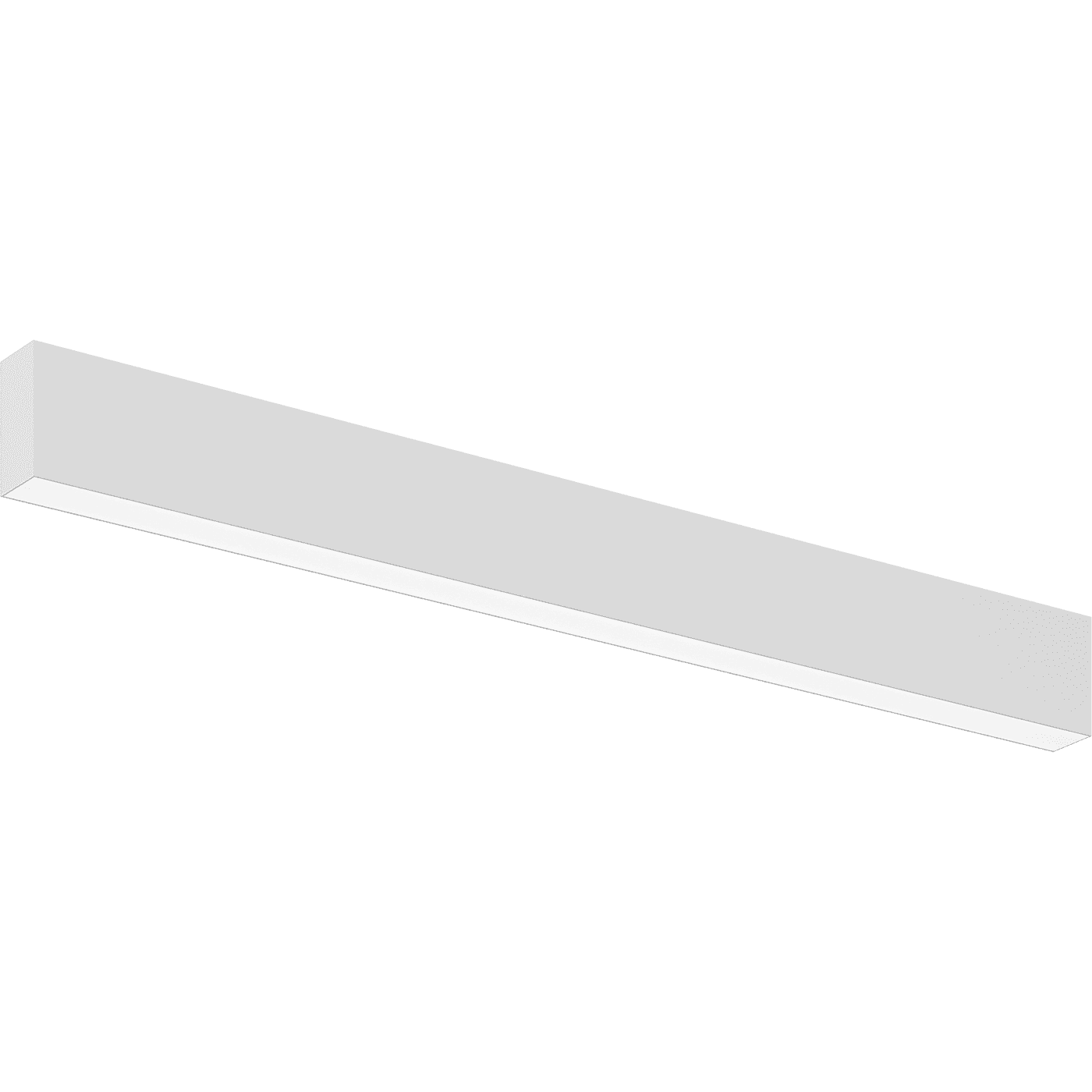

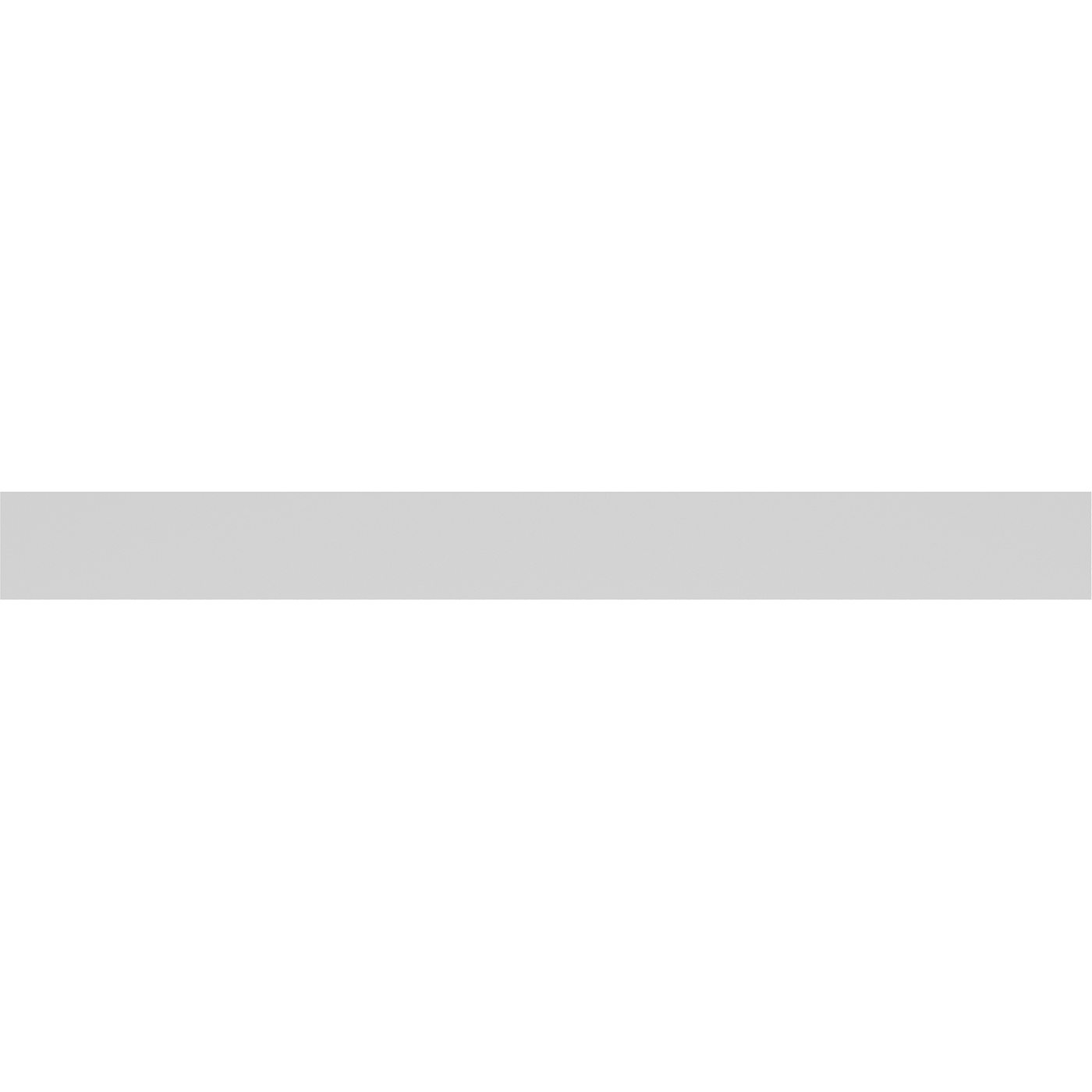

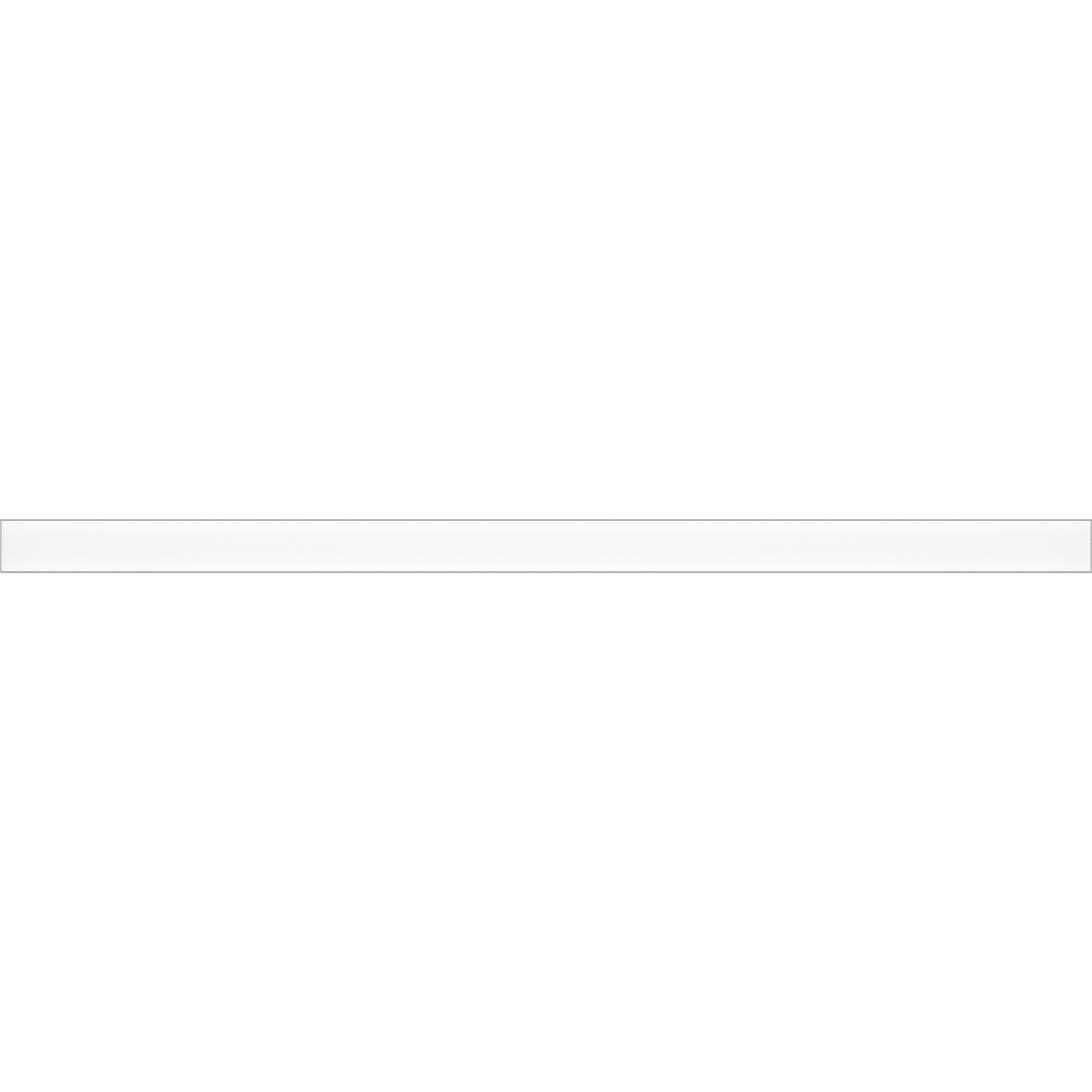

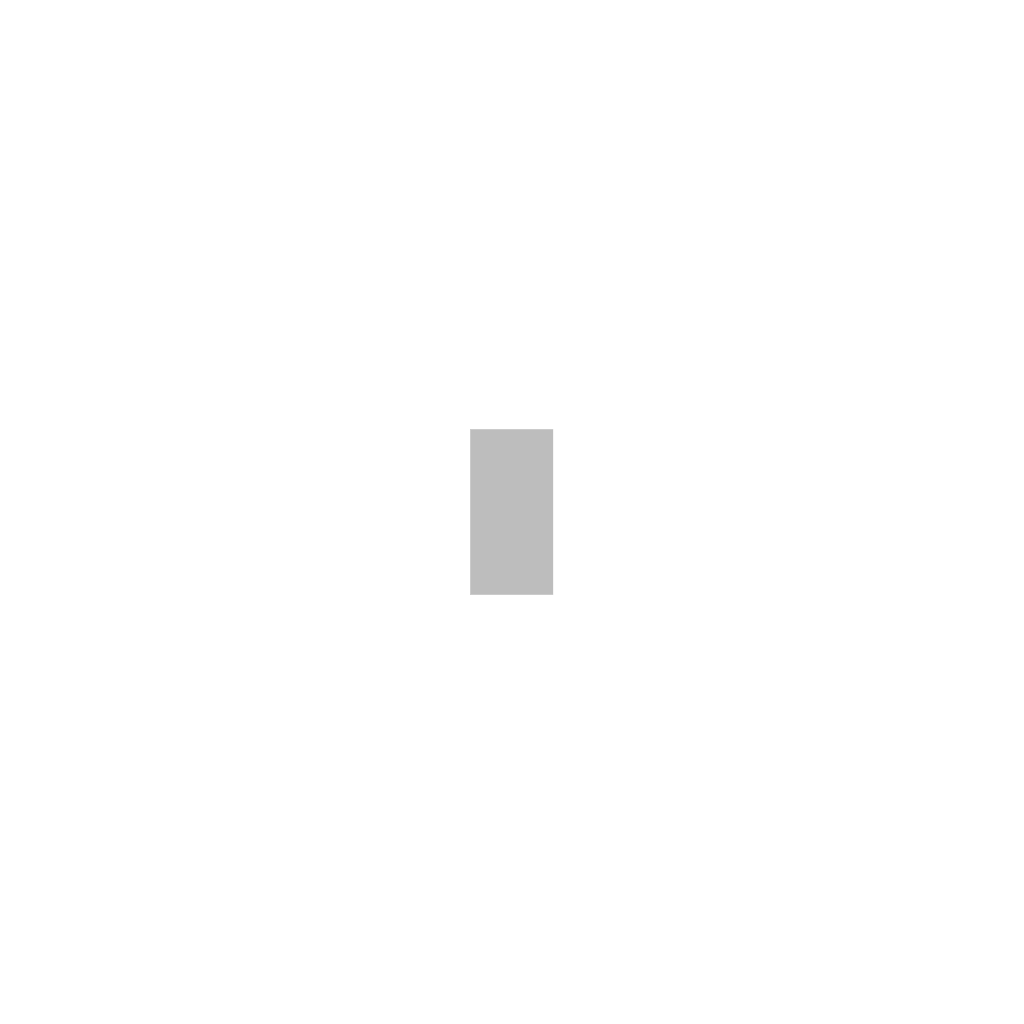

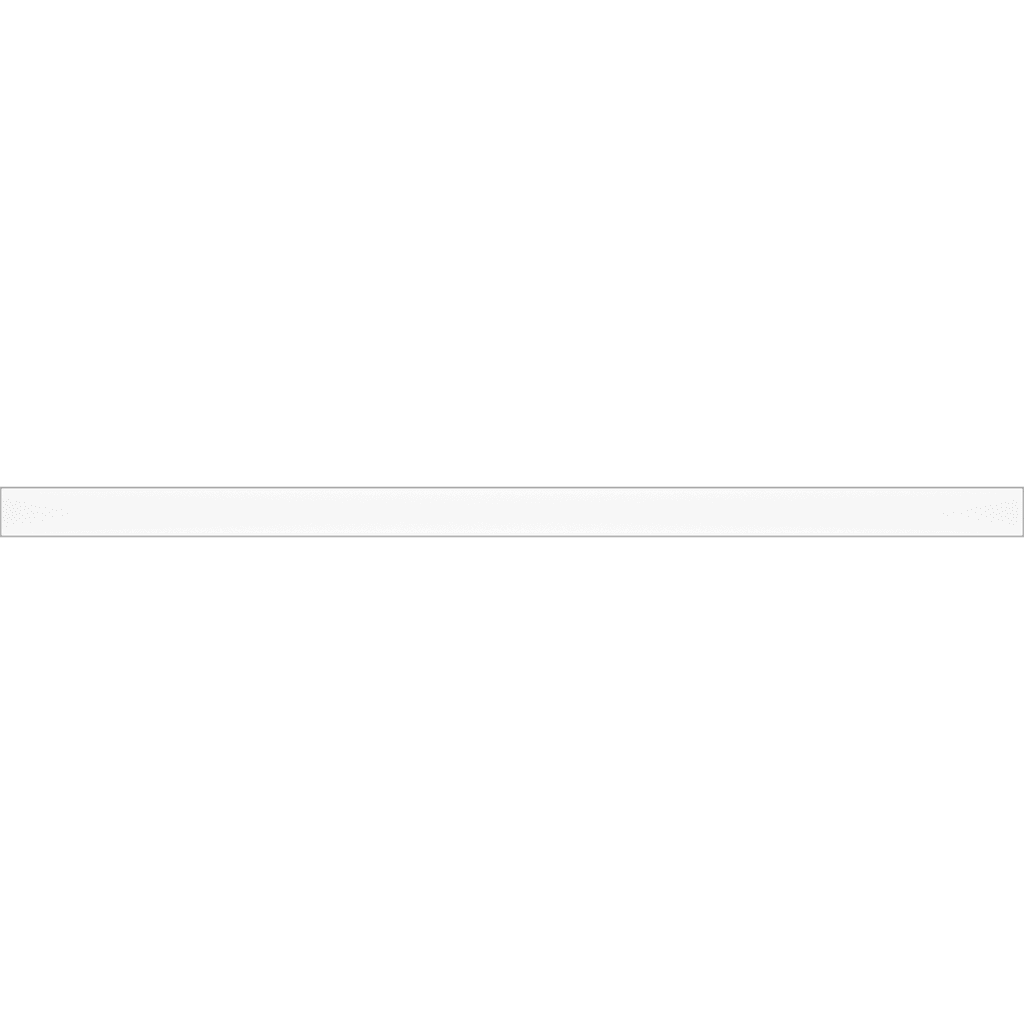

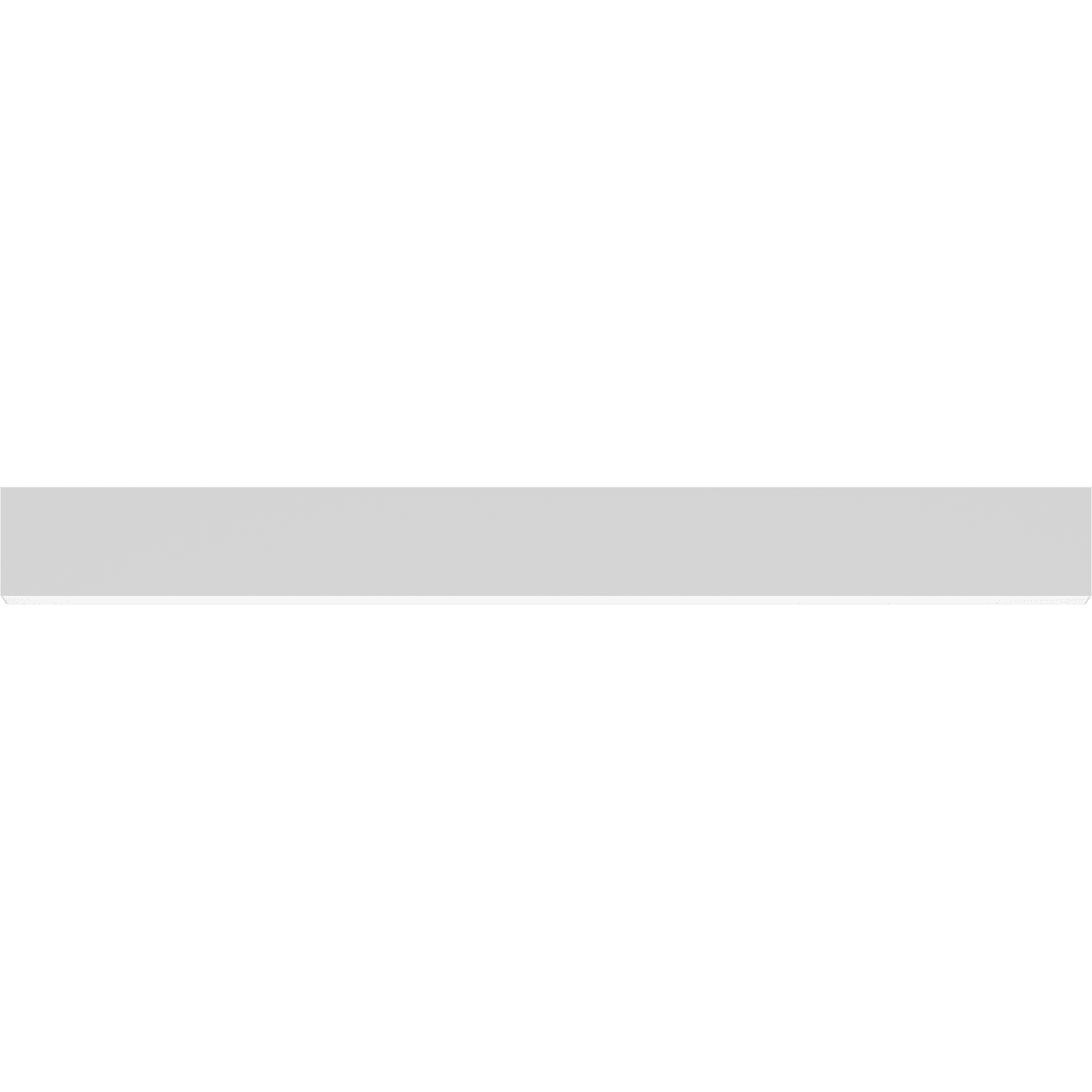

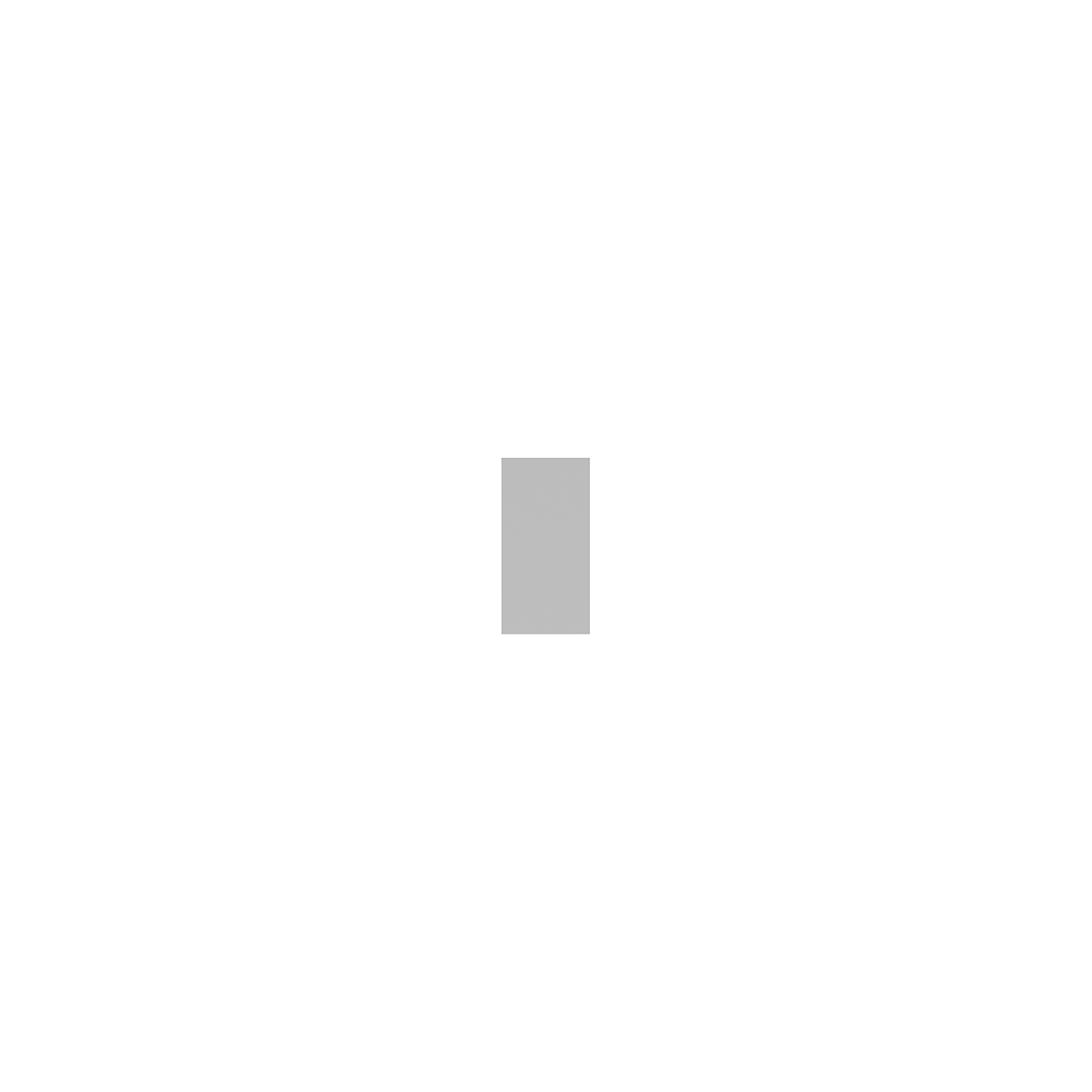

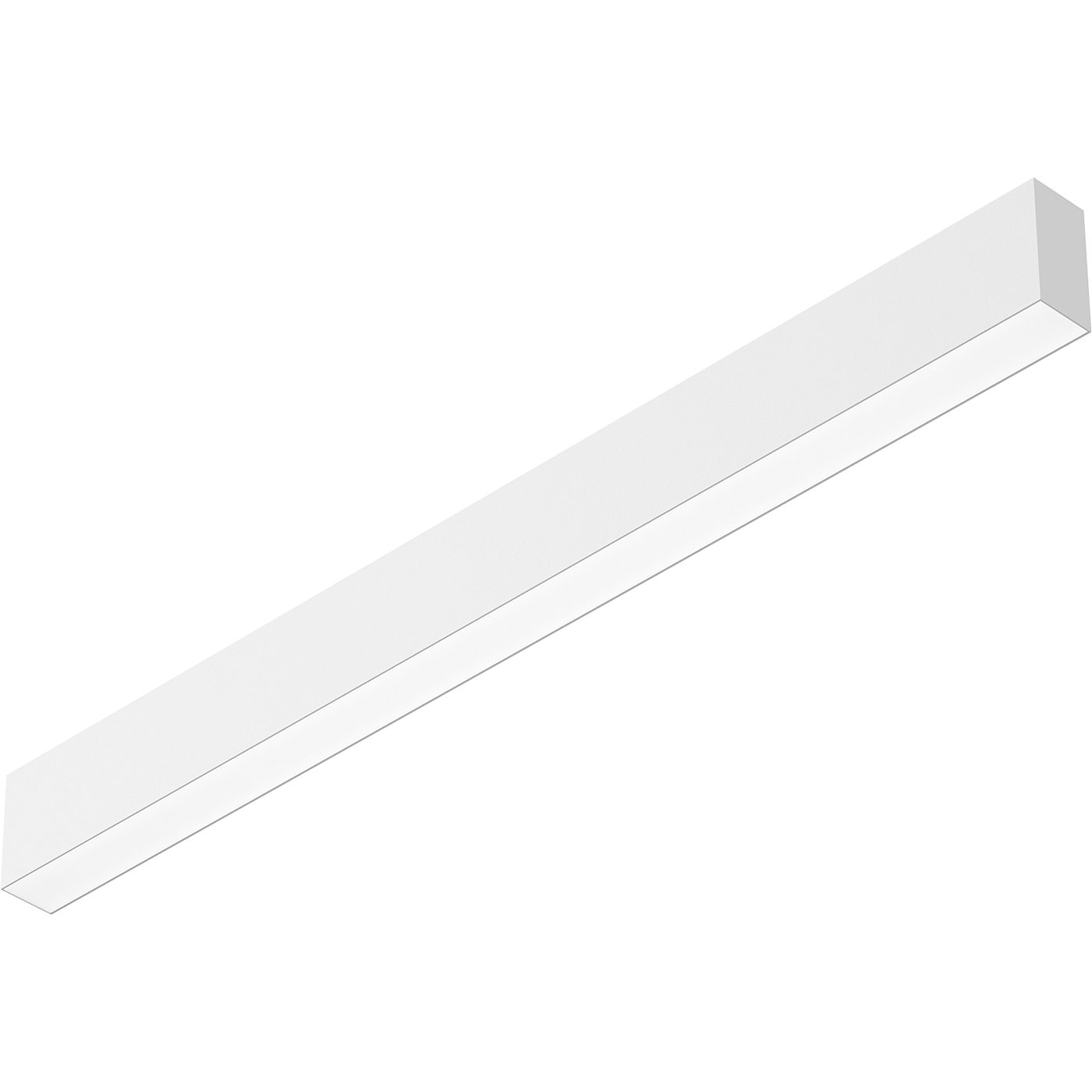

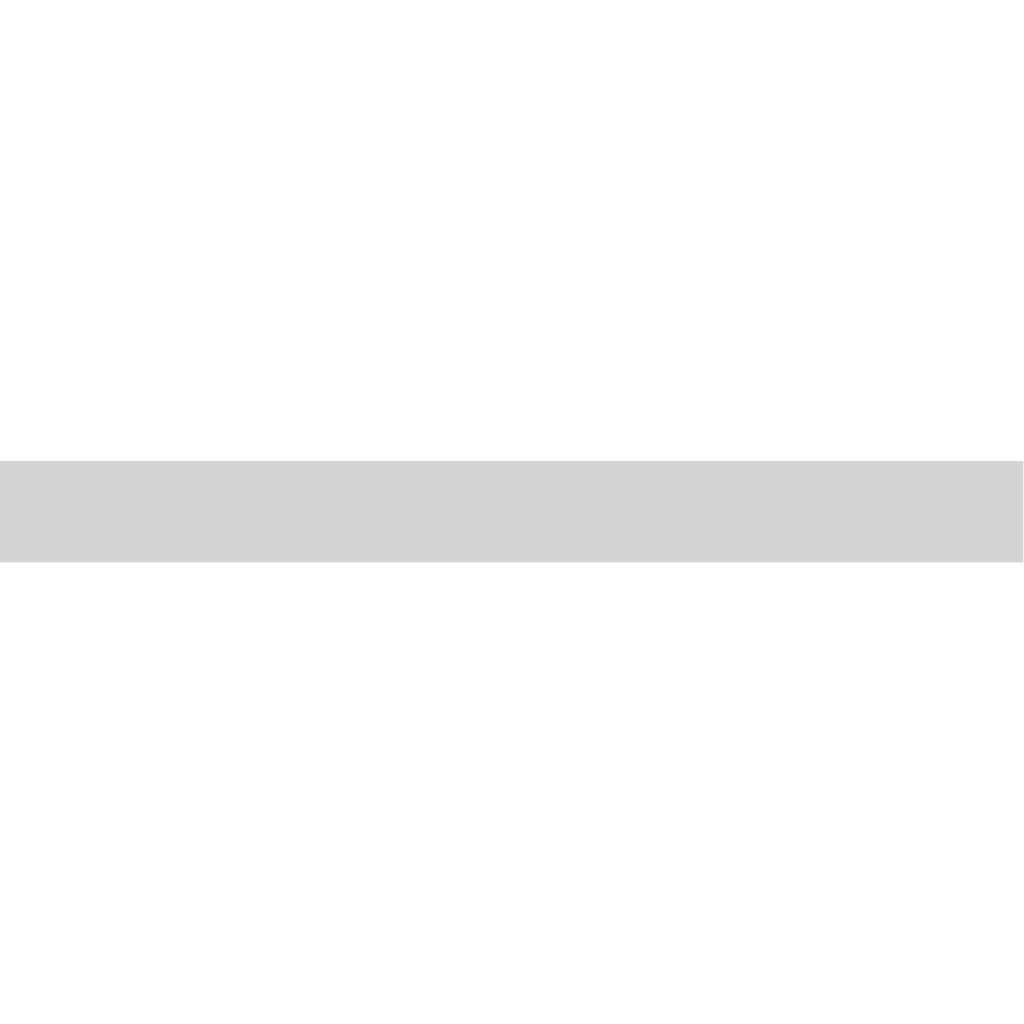

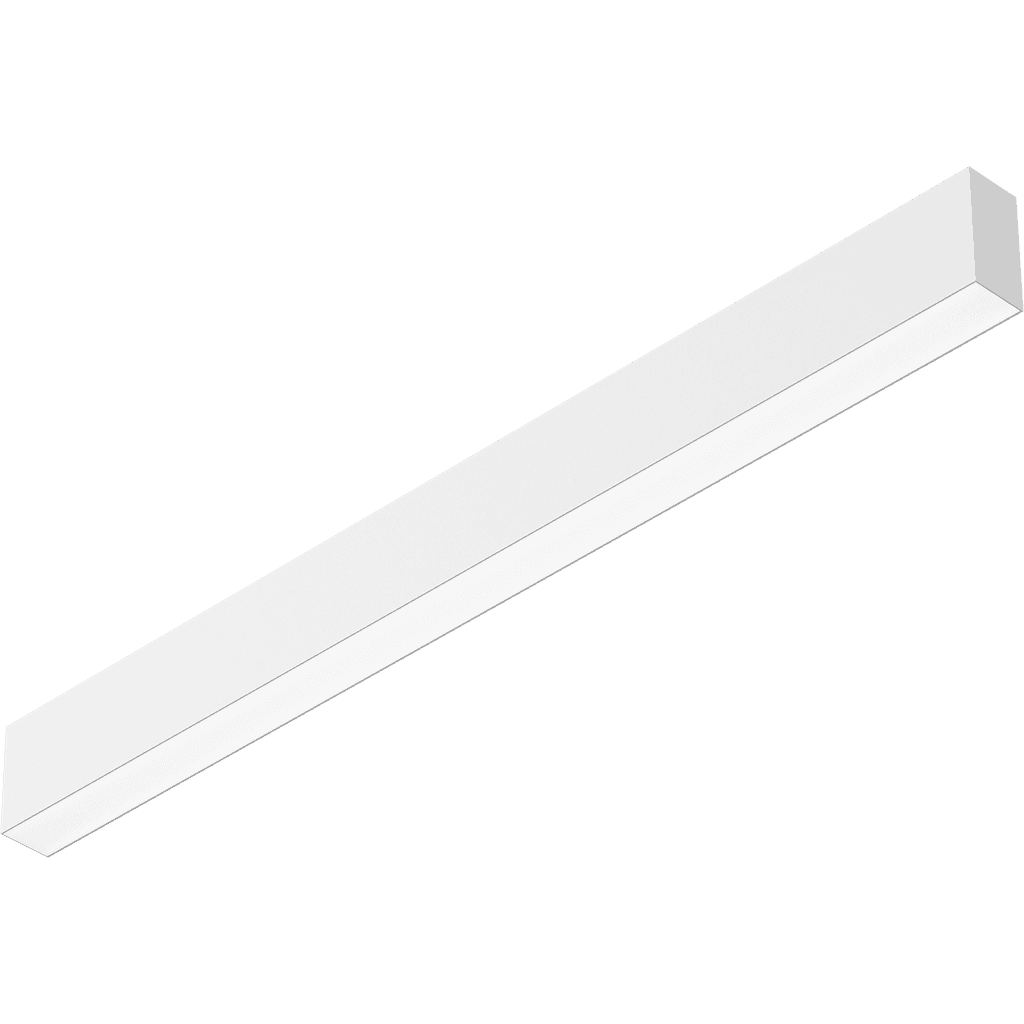

PROFILE 60H WH 1250 2.0x10.0W 4000K

model is discontinued
model is discontinued
PROFILE 60H WH 1250 2.0x10.0W 4000K
add to favorites
85 Wluminaire power
1250 lmlight flow
15 lm/Wenergy efficiency
code1248000500
color temperature4000
beam angleD120
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. LED strips and profiles
  6. PROFILE H
  7. PROFILE 60H WH 1250 2.0x10.0W 4000K
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
15 lm/W
color rendition index (CRI)
>80
light flow
1250 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
illuminating
energy efficiency
15 lm/W
color rendition index (CRI)
>80
light flow
1250 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
electrical
electric shock protection
I
luminaire power
85 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable, sq. mm
1.5
constructional
length, mm
1250 mm
width, mm
60 mm
height, mm
120 mm
installation length, mm
2487 mm
installation width, mm
60 mm
weight
2.4 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
energy efficiency class
Е
ETIM class
Светильник подвесной
code
1248000500
model files
model files
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
