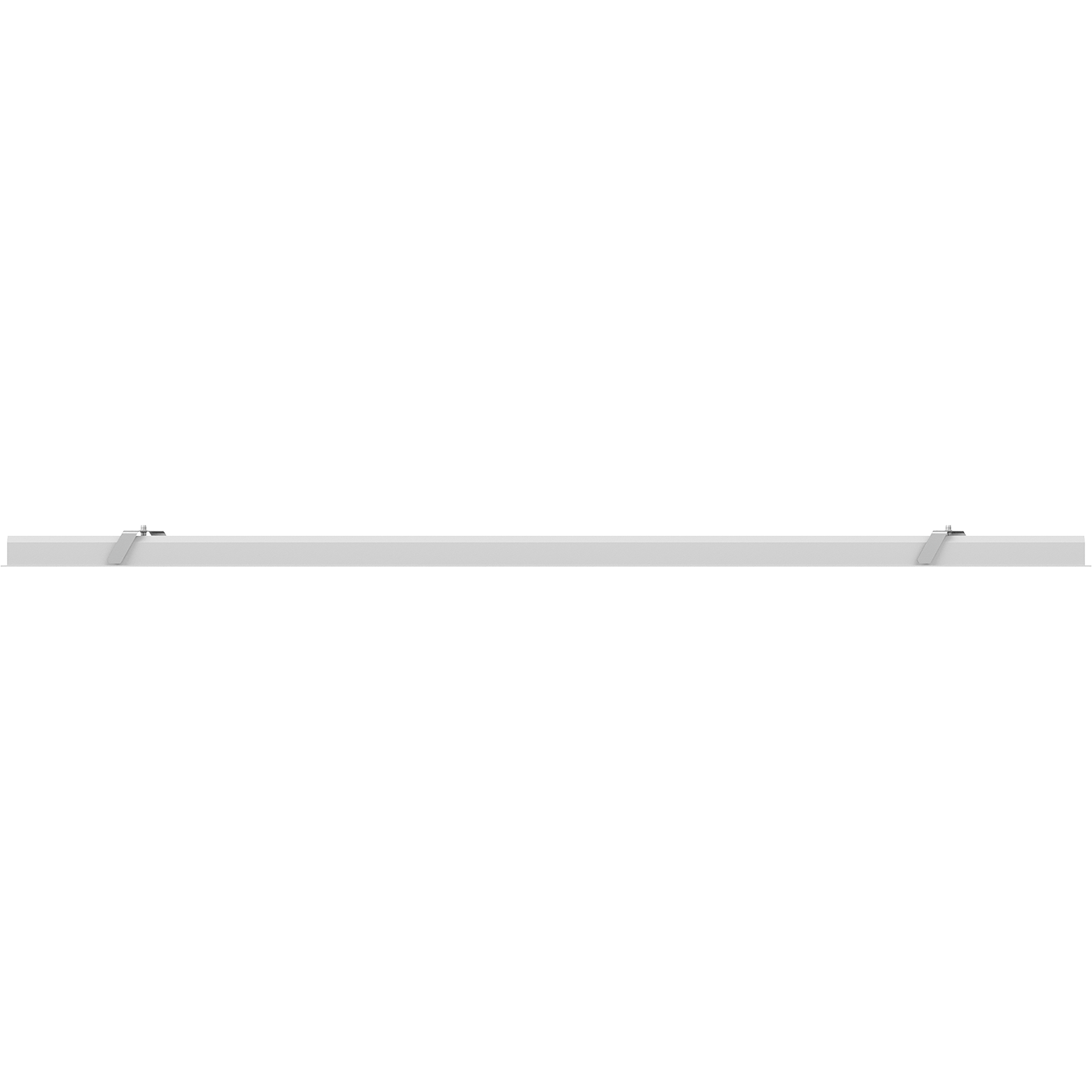

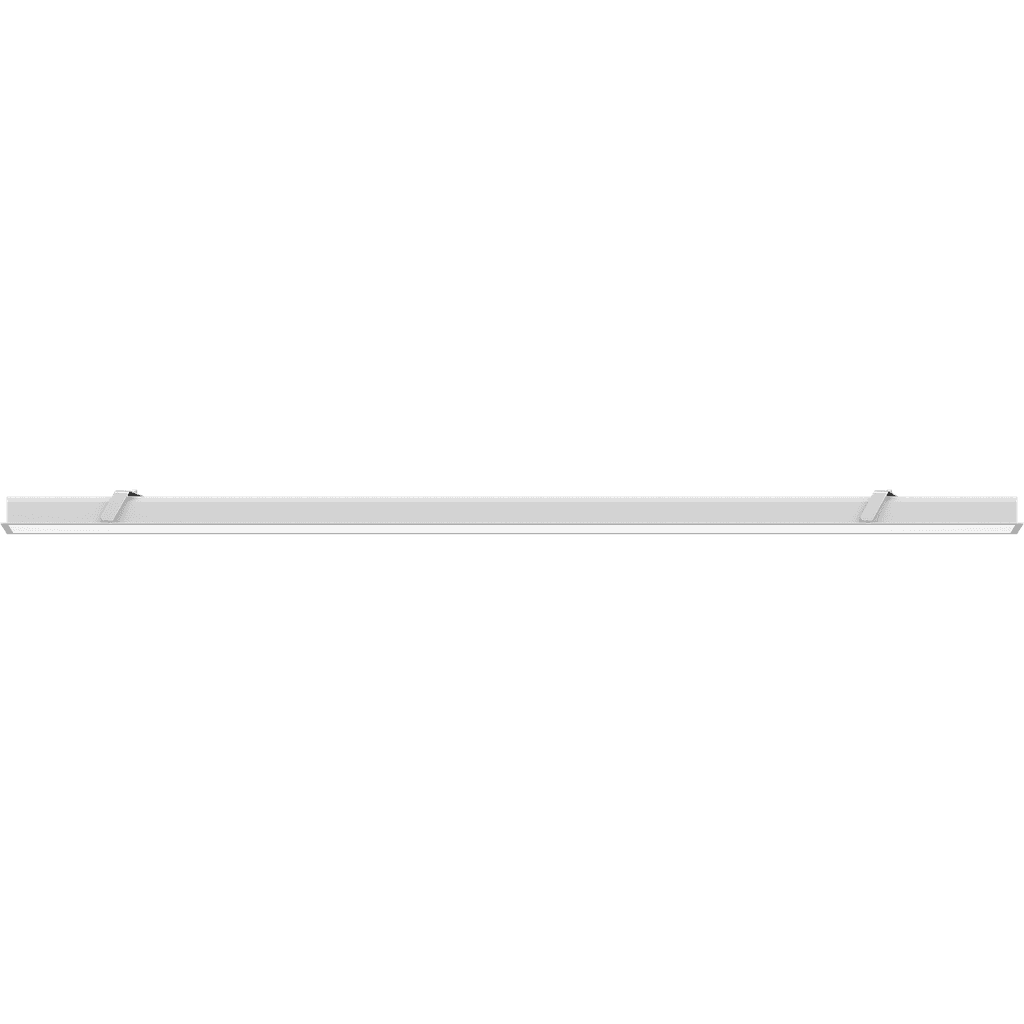

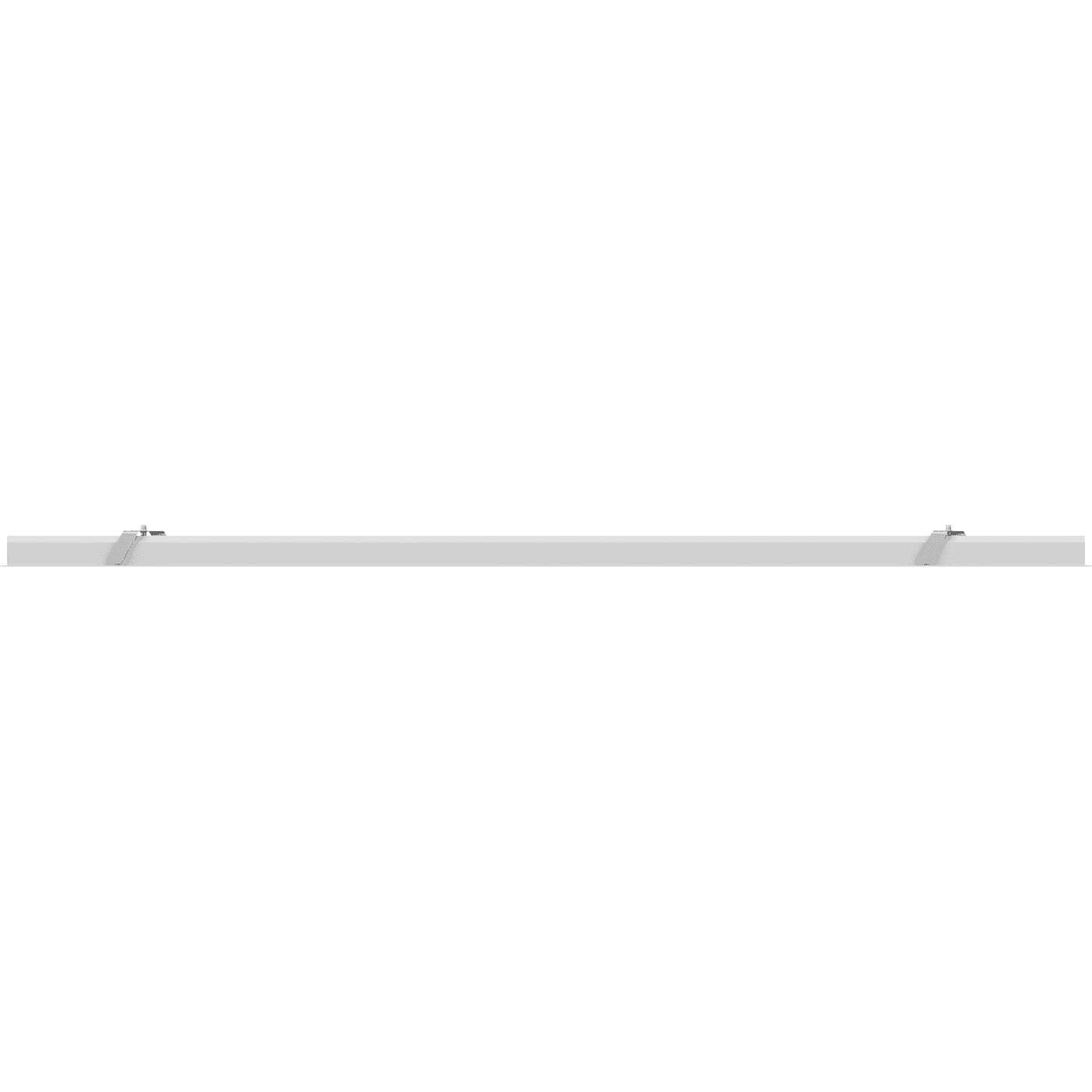

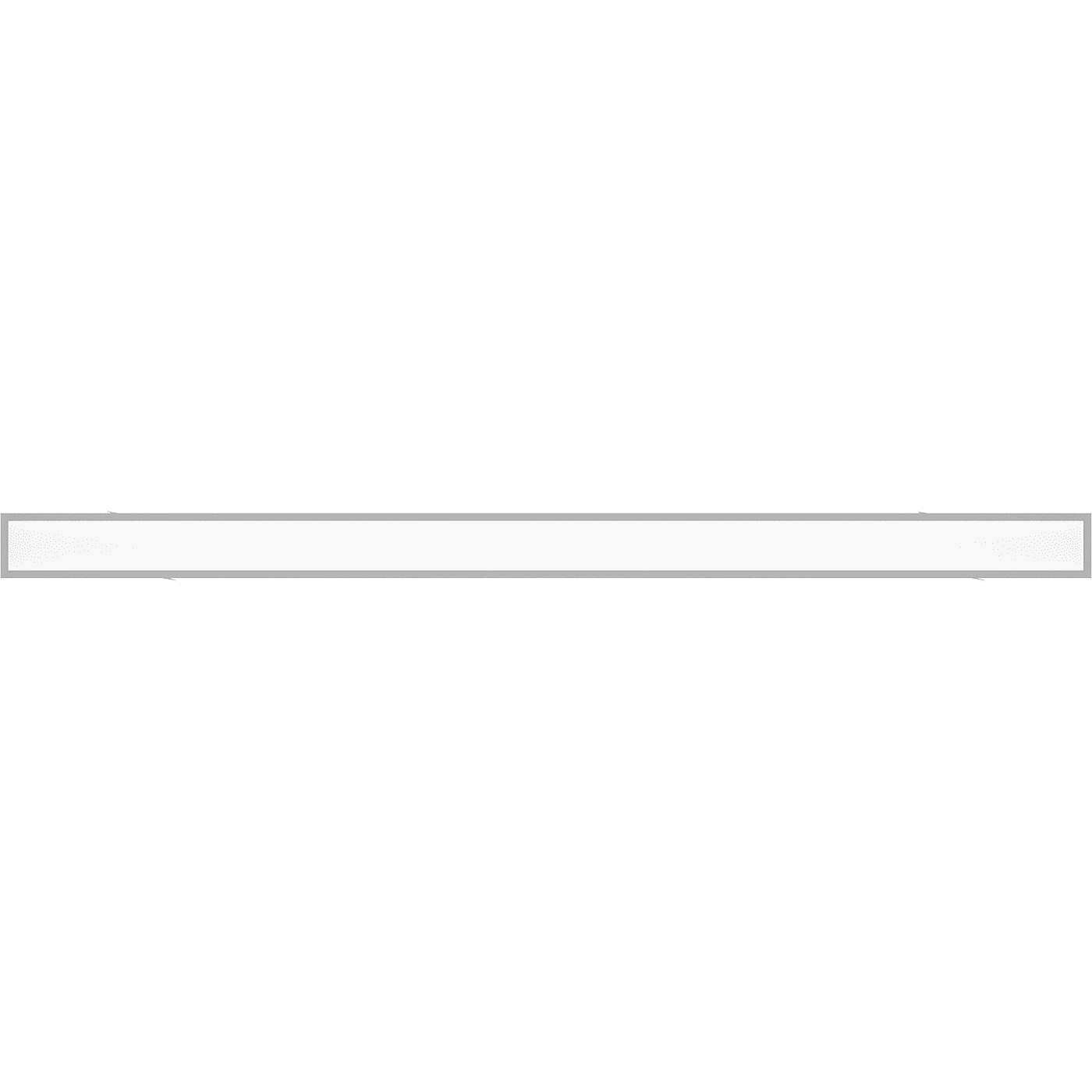

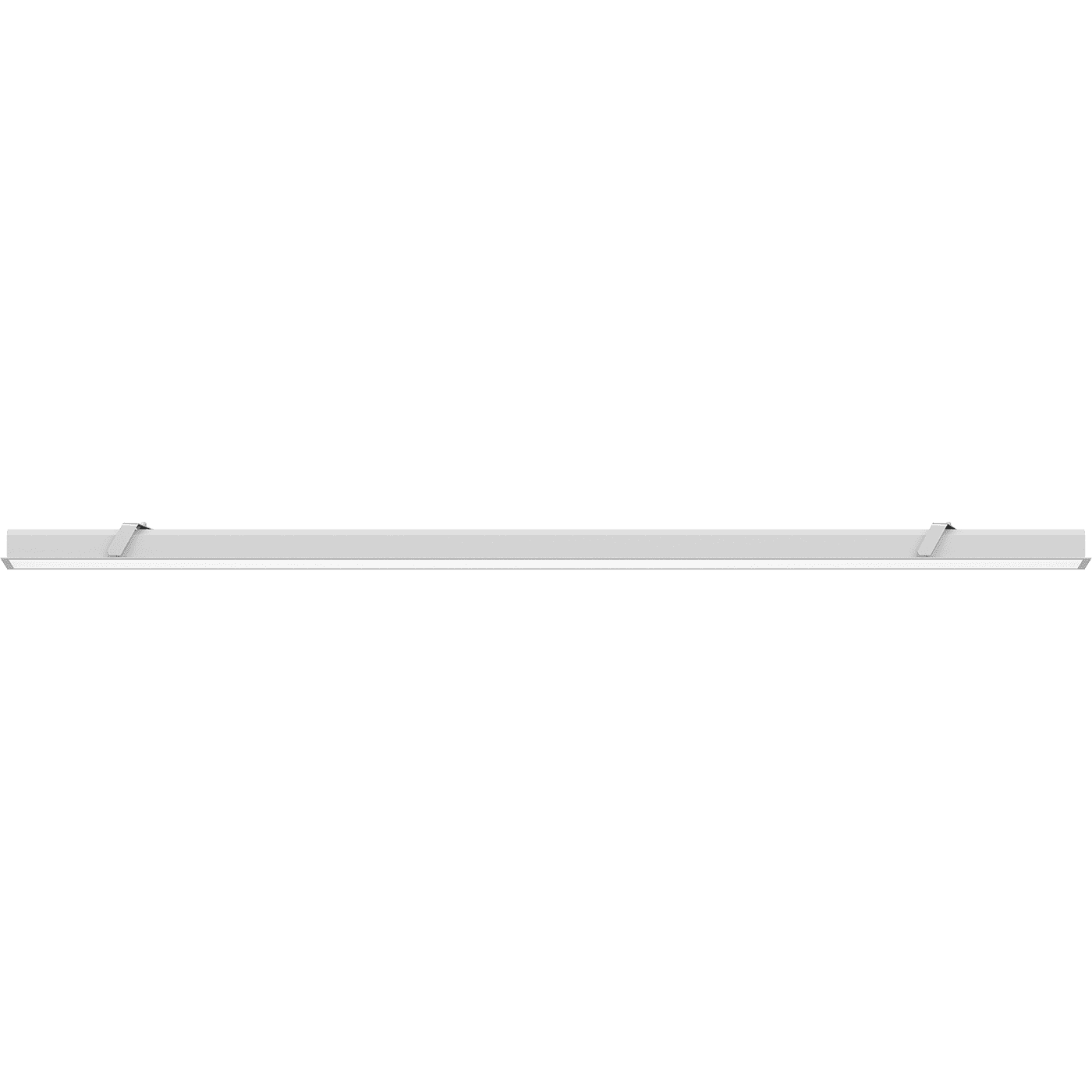

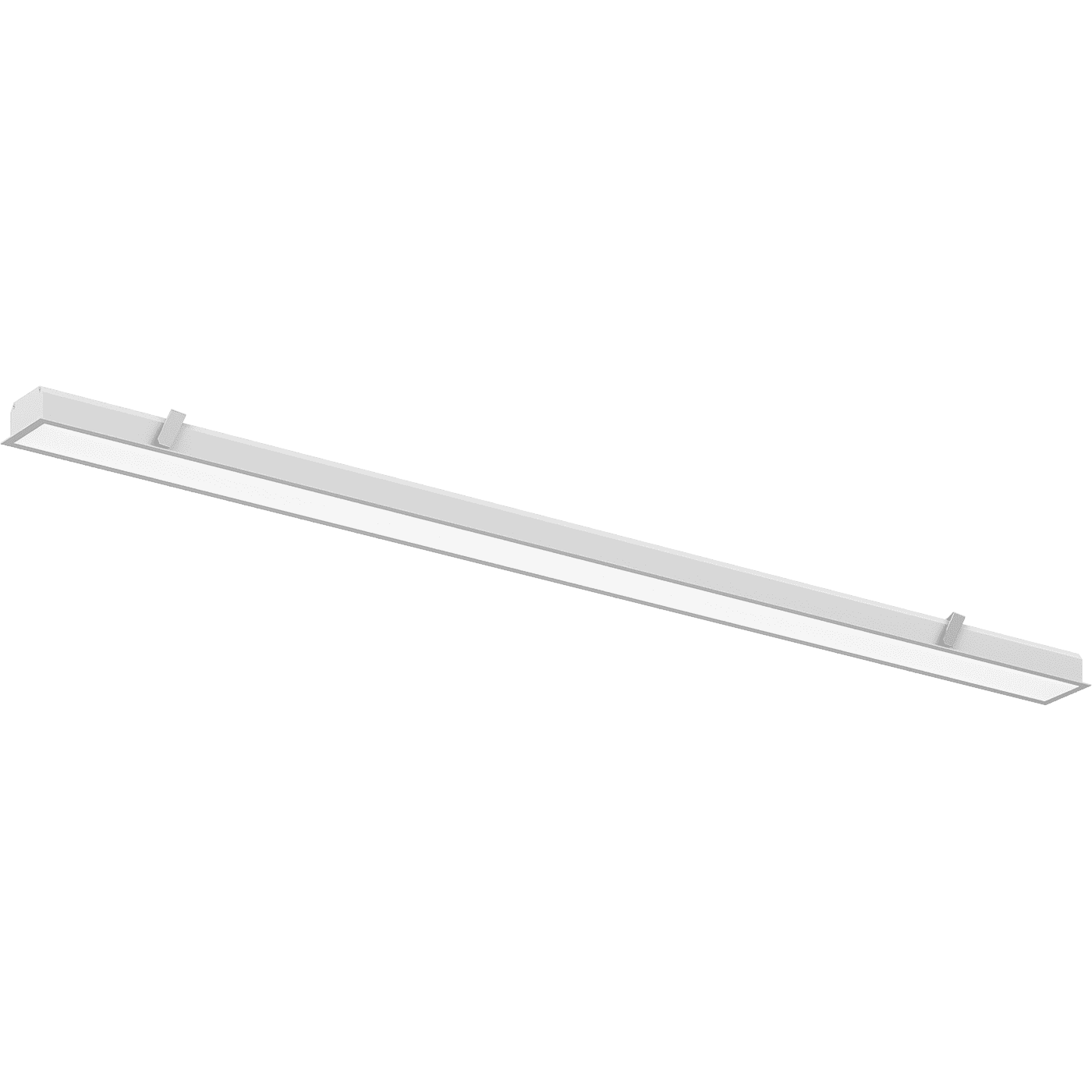

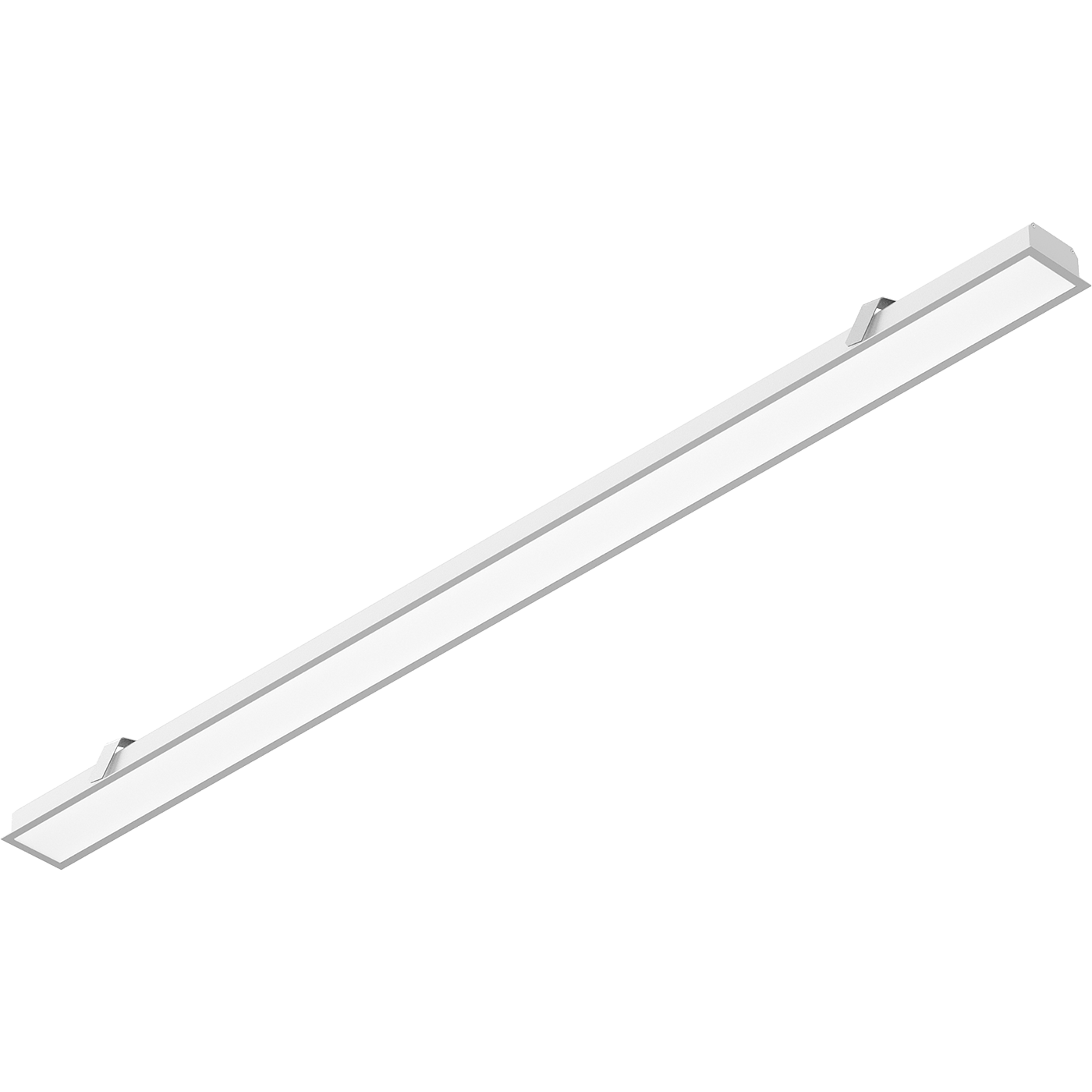

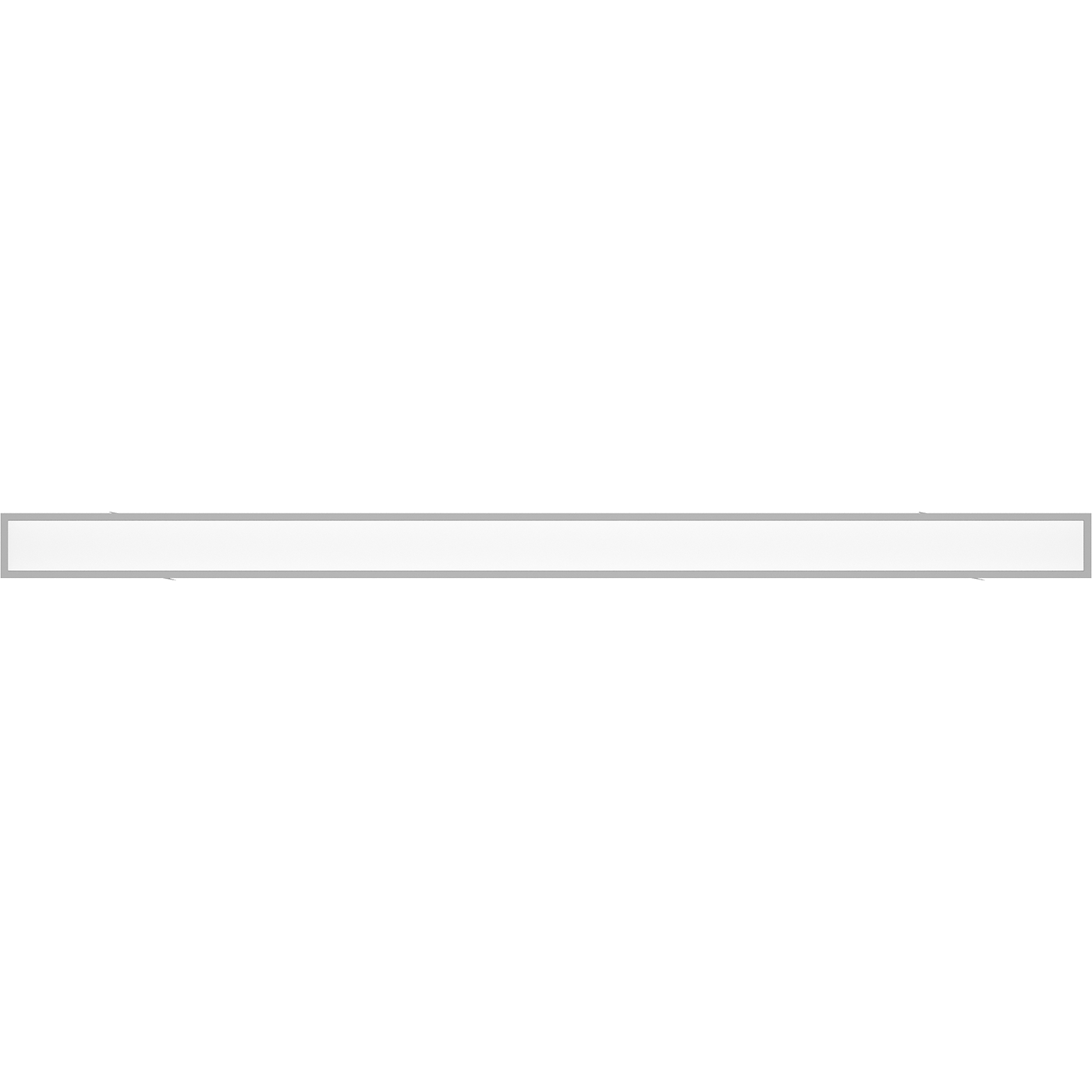

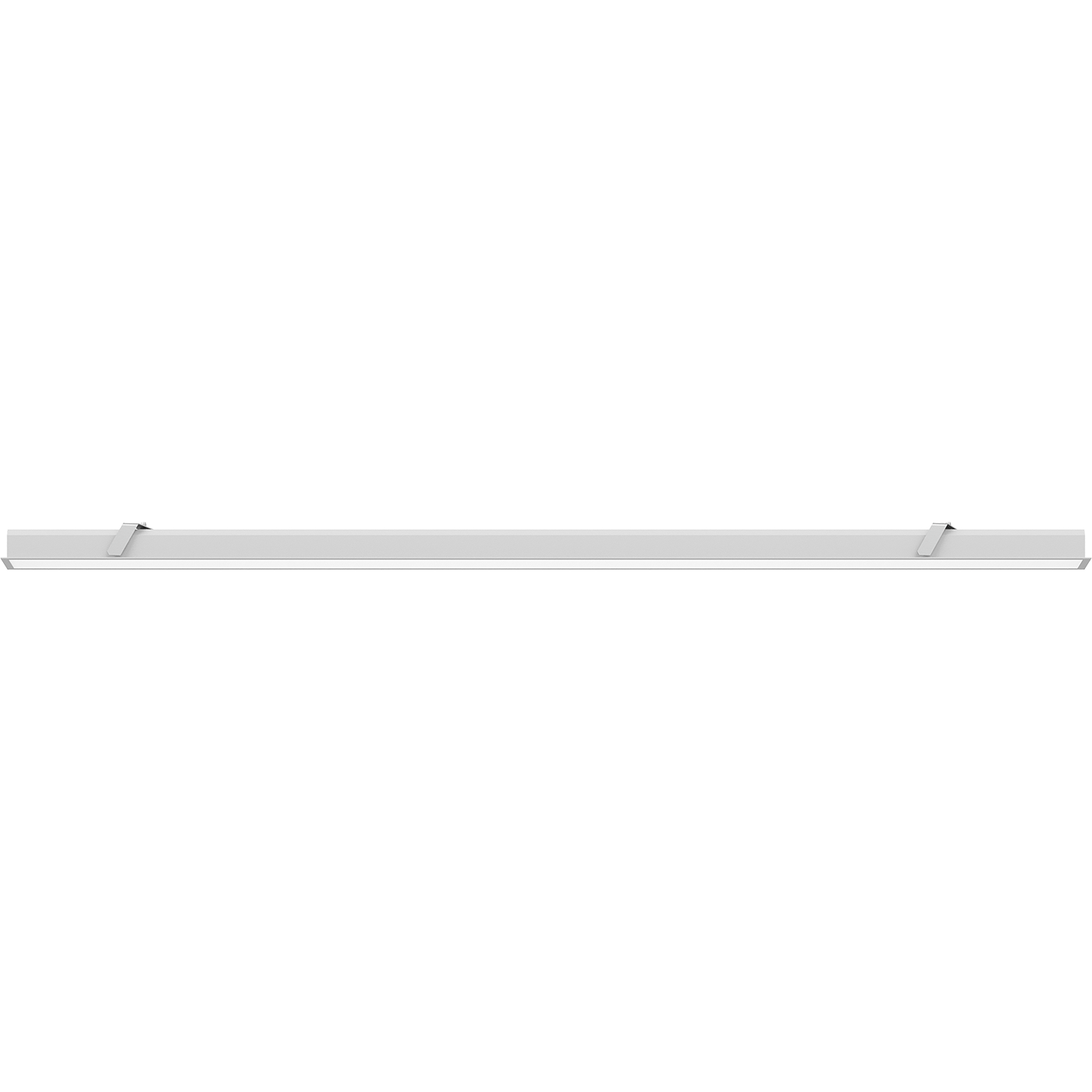

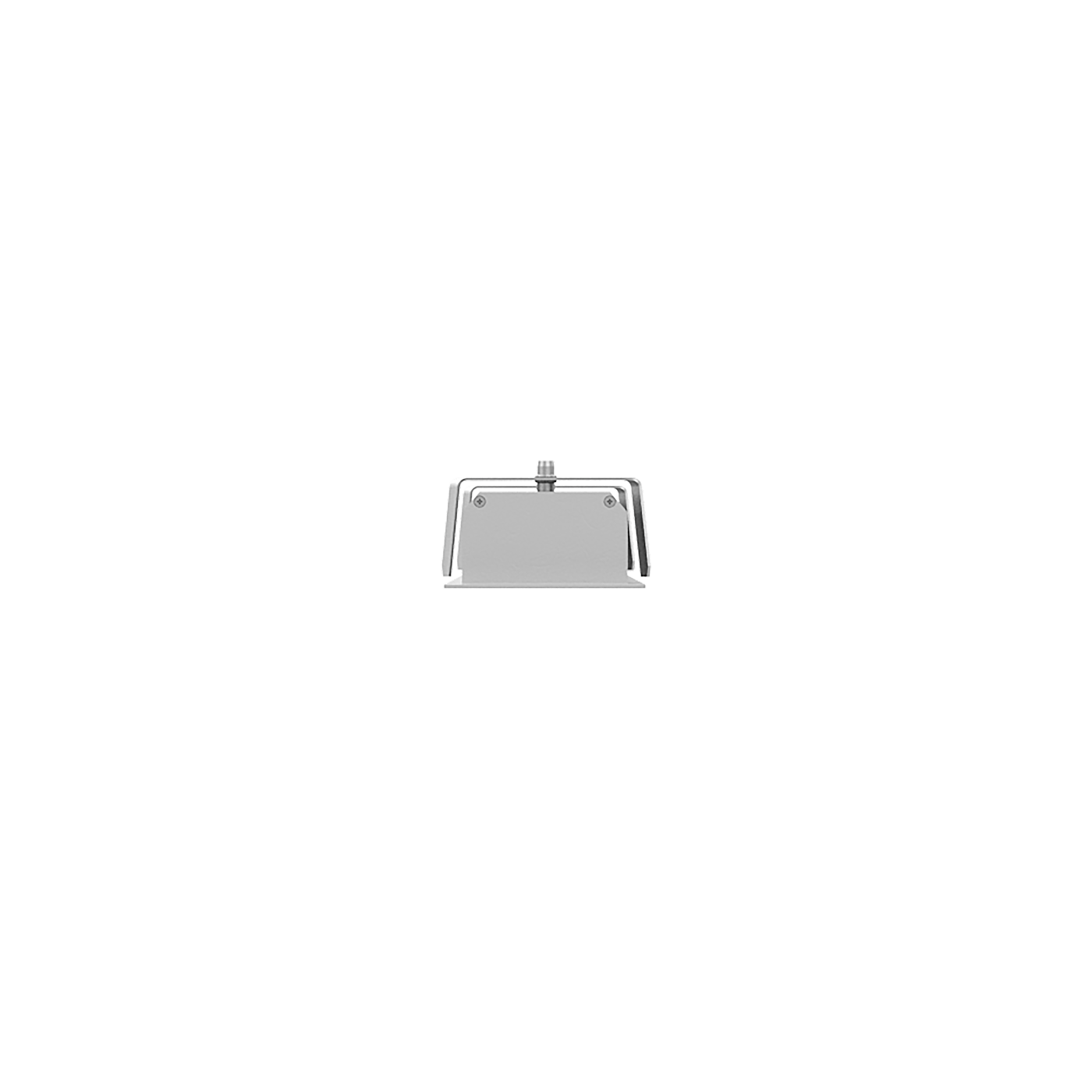

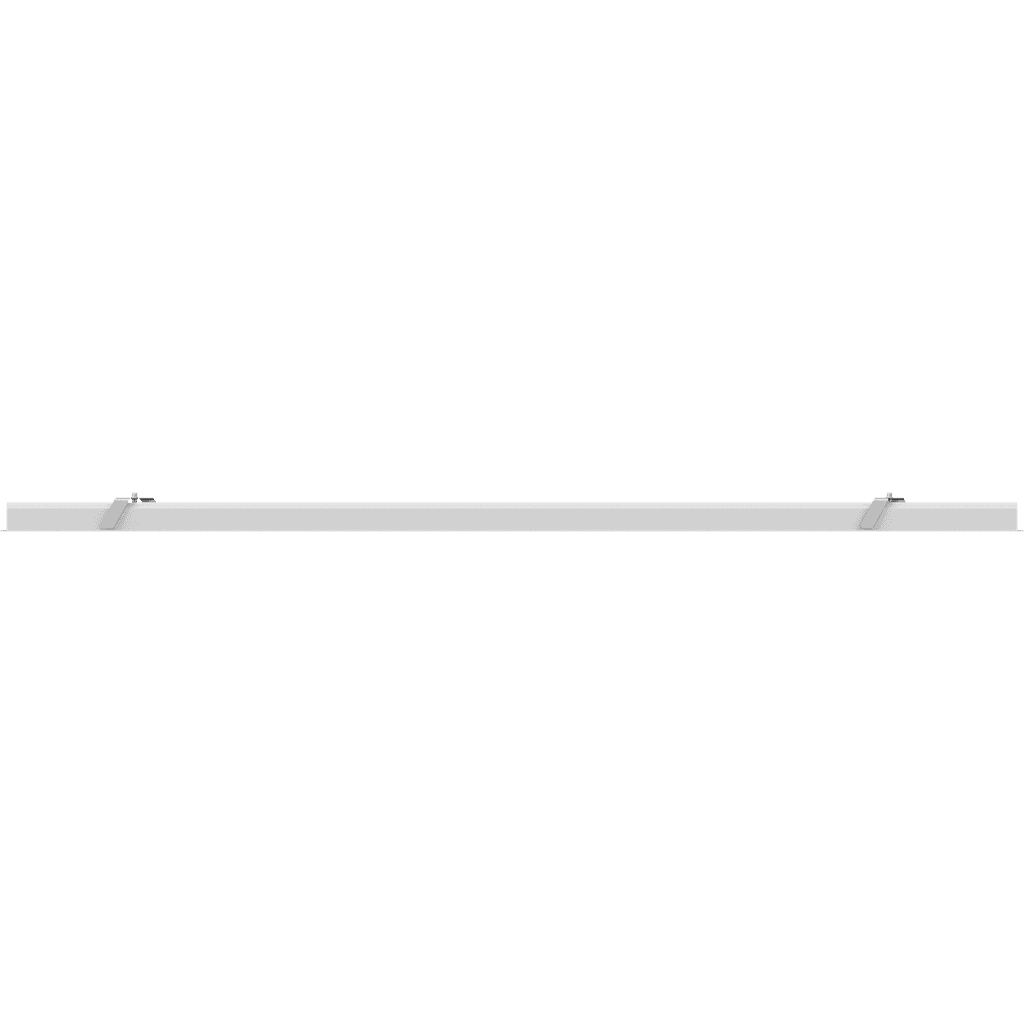

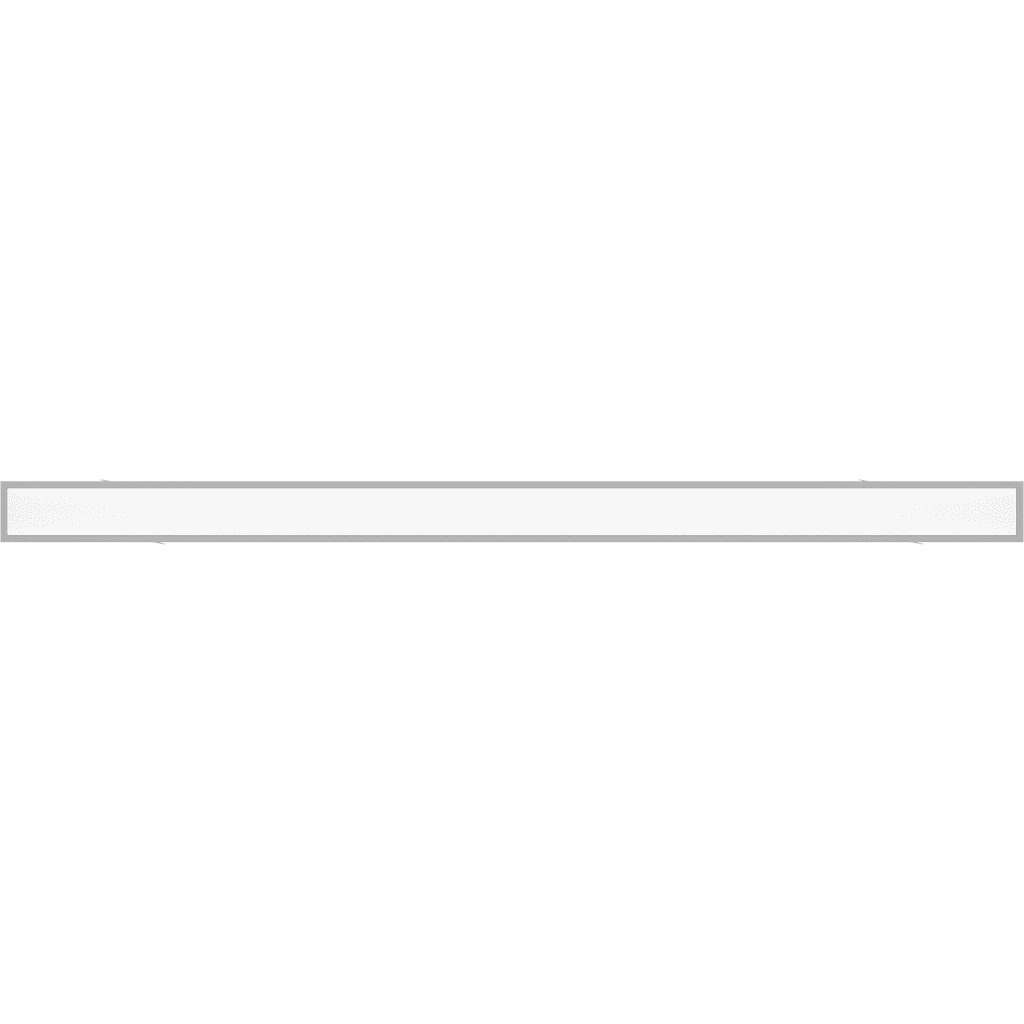

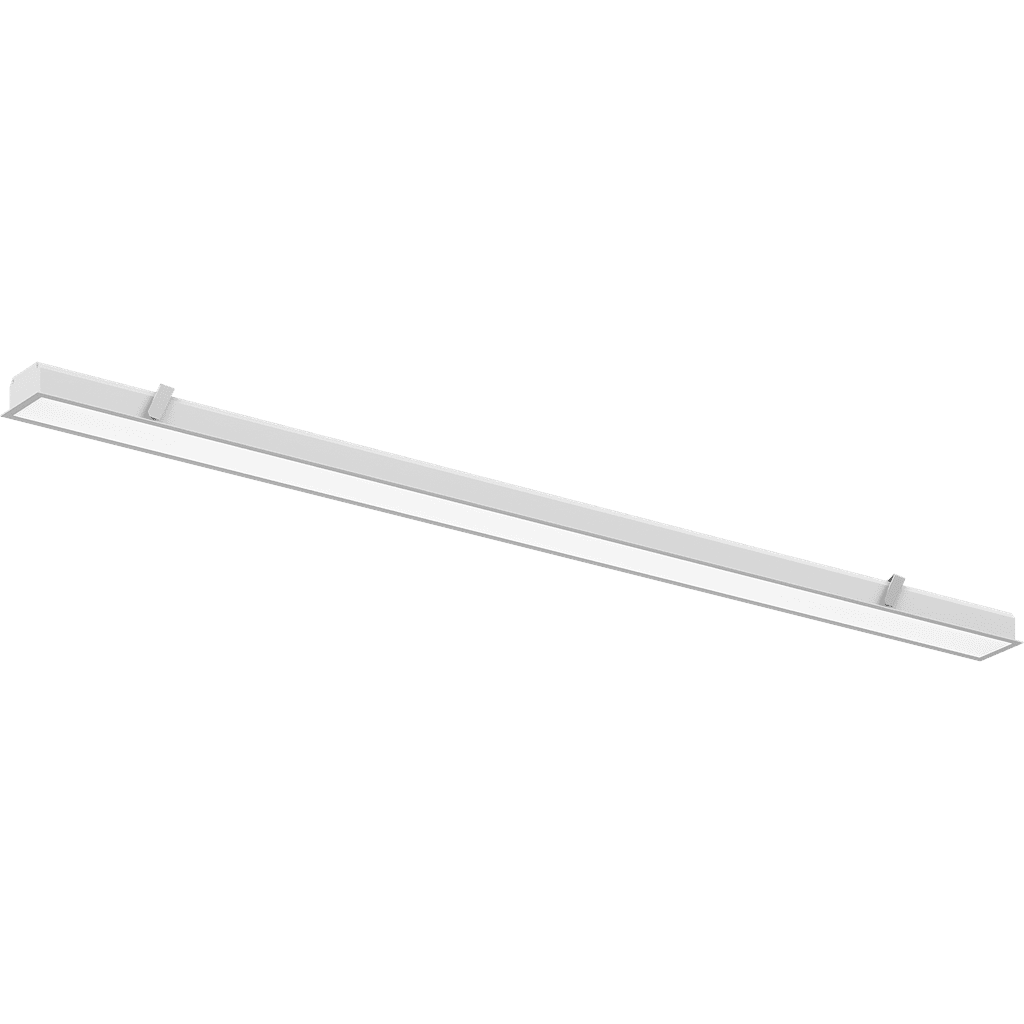

PROFILE 60R LED 1800 WH 4000K

PROFILE 60R LED 1800 WH 4000K
add to favorites
40 Wluminaire power
3800 lmlight flow
95 lm/Wenergy efficiency
code1248002600
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. PROFILE 60R LED
  7. PROFILE 60R LED 1800 WH 4000K
options
свернуть все
electricalconstructionalcommonilluminating
starting current
20 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
99-264 V
supply voltage, direct current
170-280 V
luminaire power
40 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
electrical
starting current
20 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
99-264 V
supply voltage, direct current
170-280 V
luminaire power
40 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
2.5 kg
length, mm
1812 mm
width, mm
73 mm
height, mm
35 mm
housing color
Белый
installation length, mm
1816 mm
installation width, mm
64 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1248002600
illuminating
color rendition index (CRI)
>80
light flow
3800 lm
flickering factor
<5%
energy efficiency
95 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
