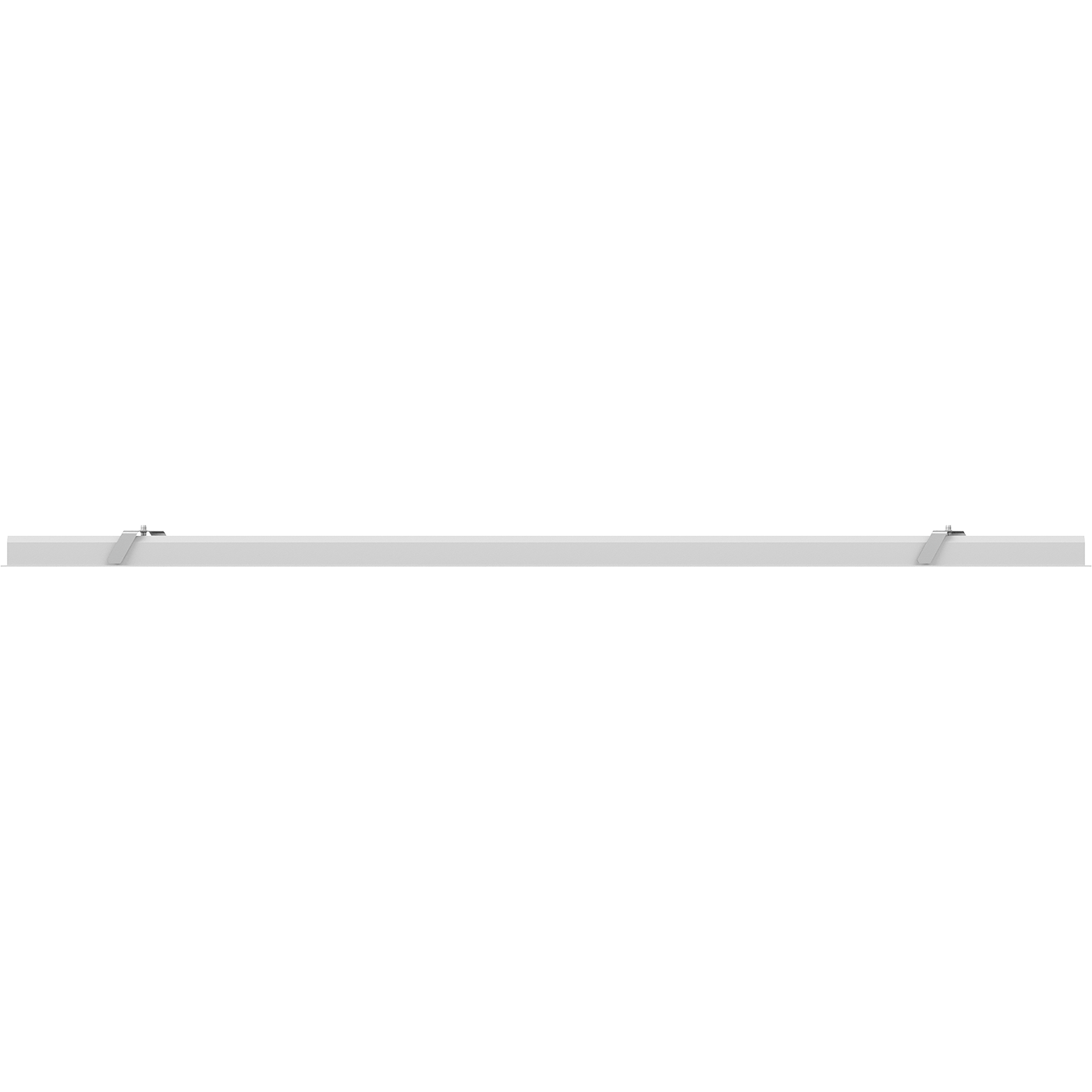

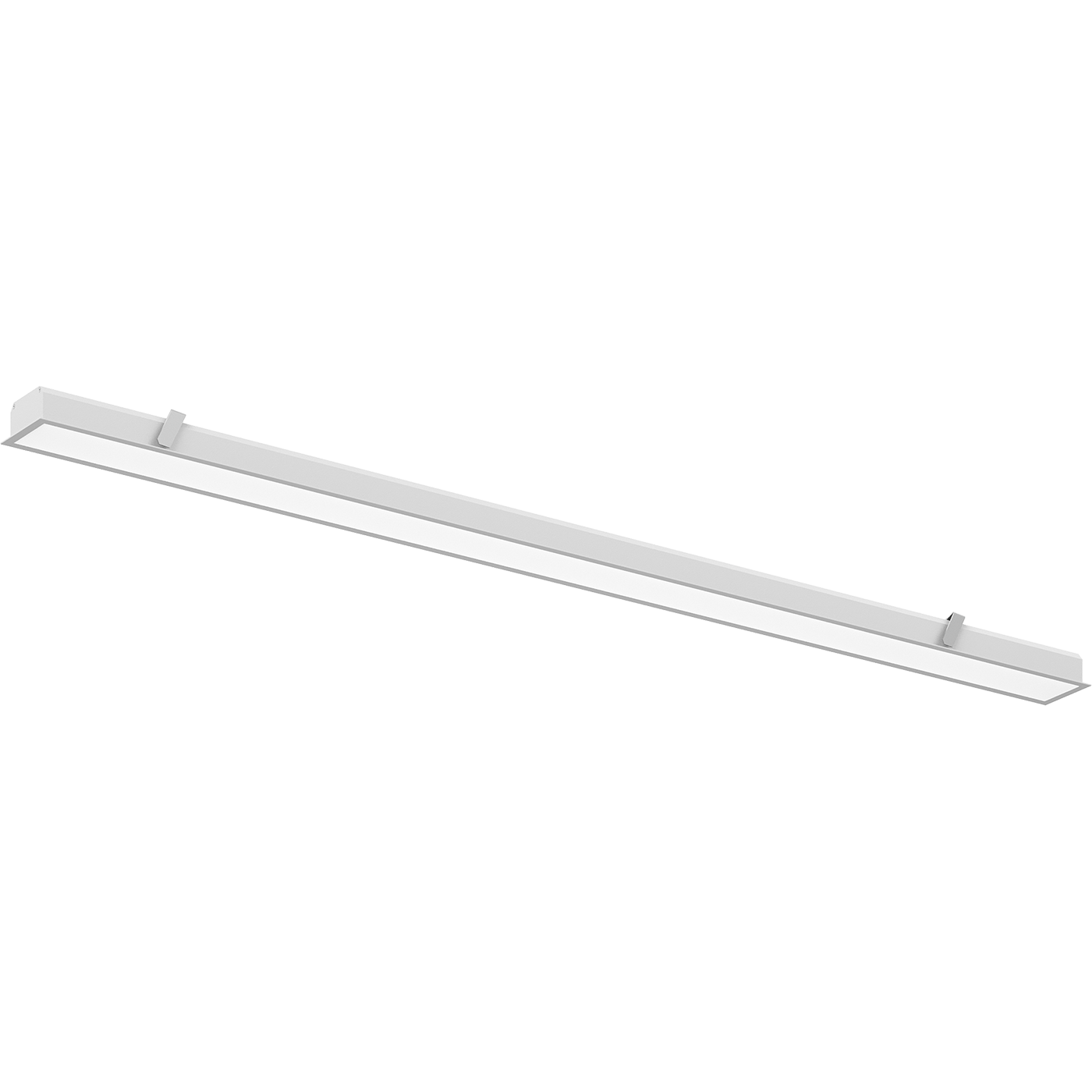

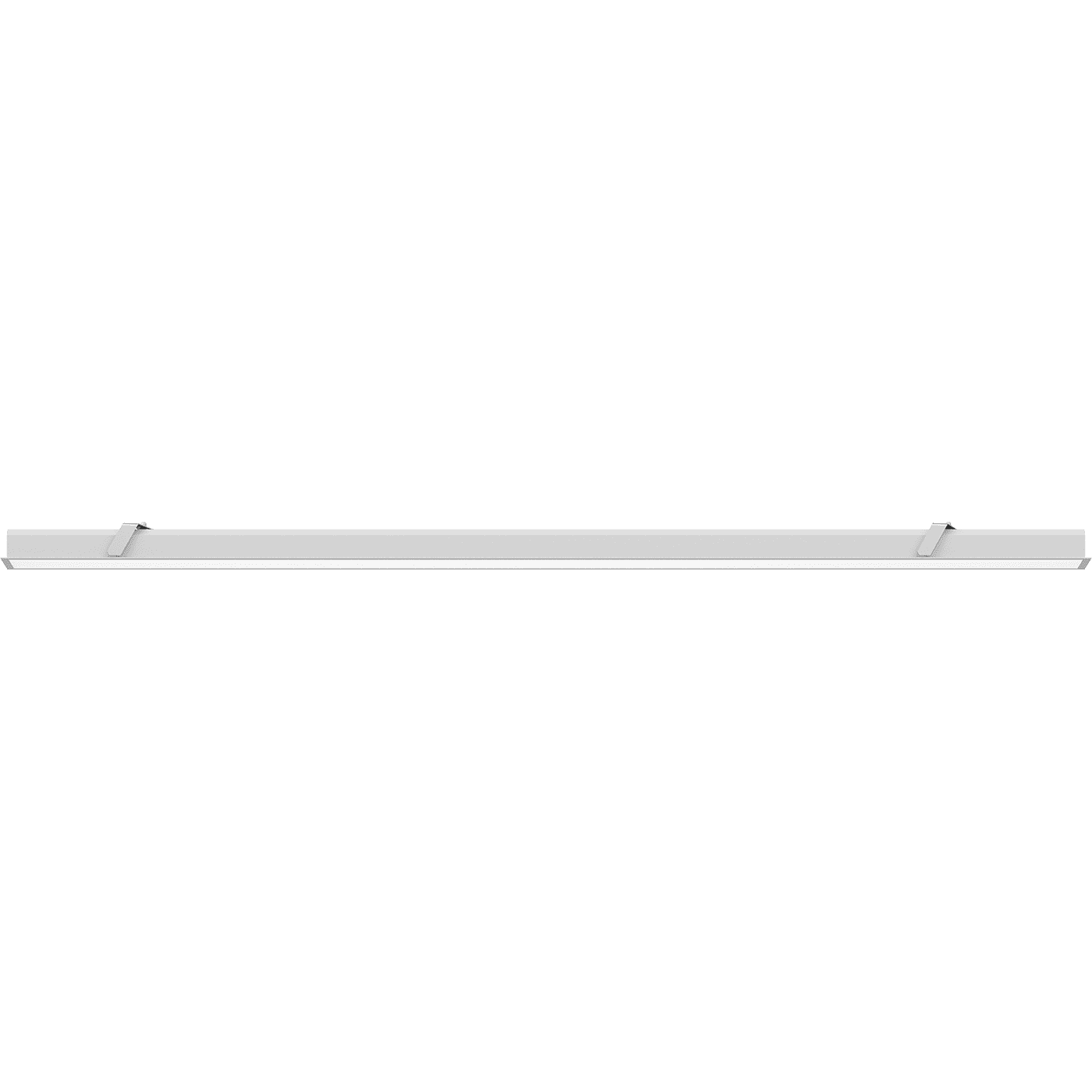

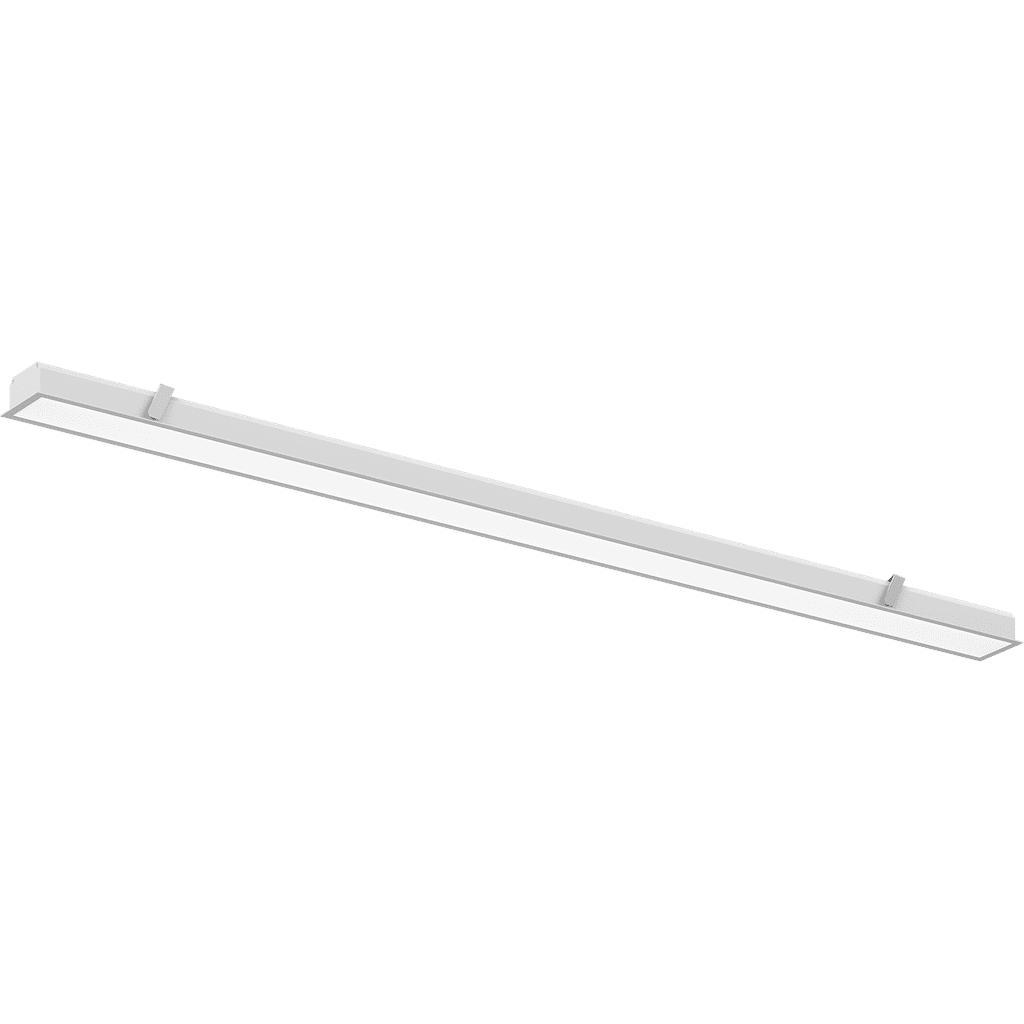

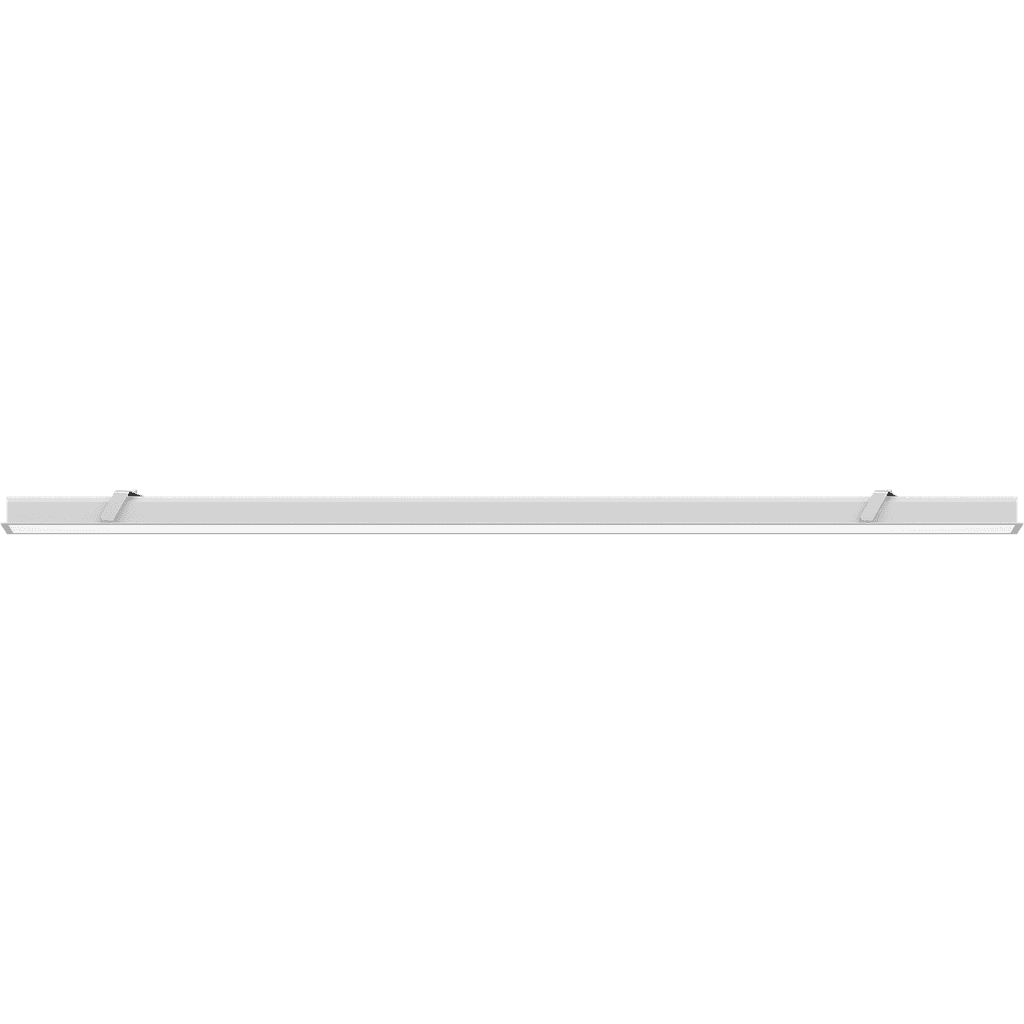

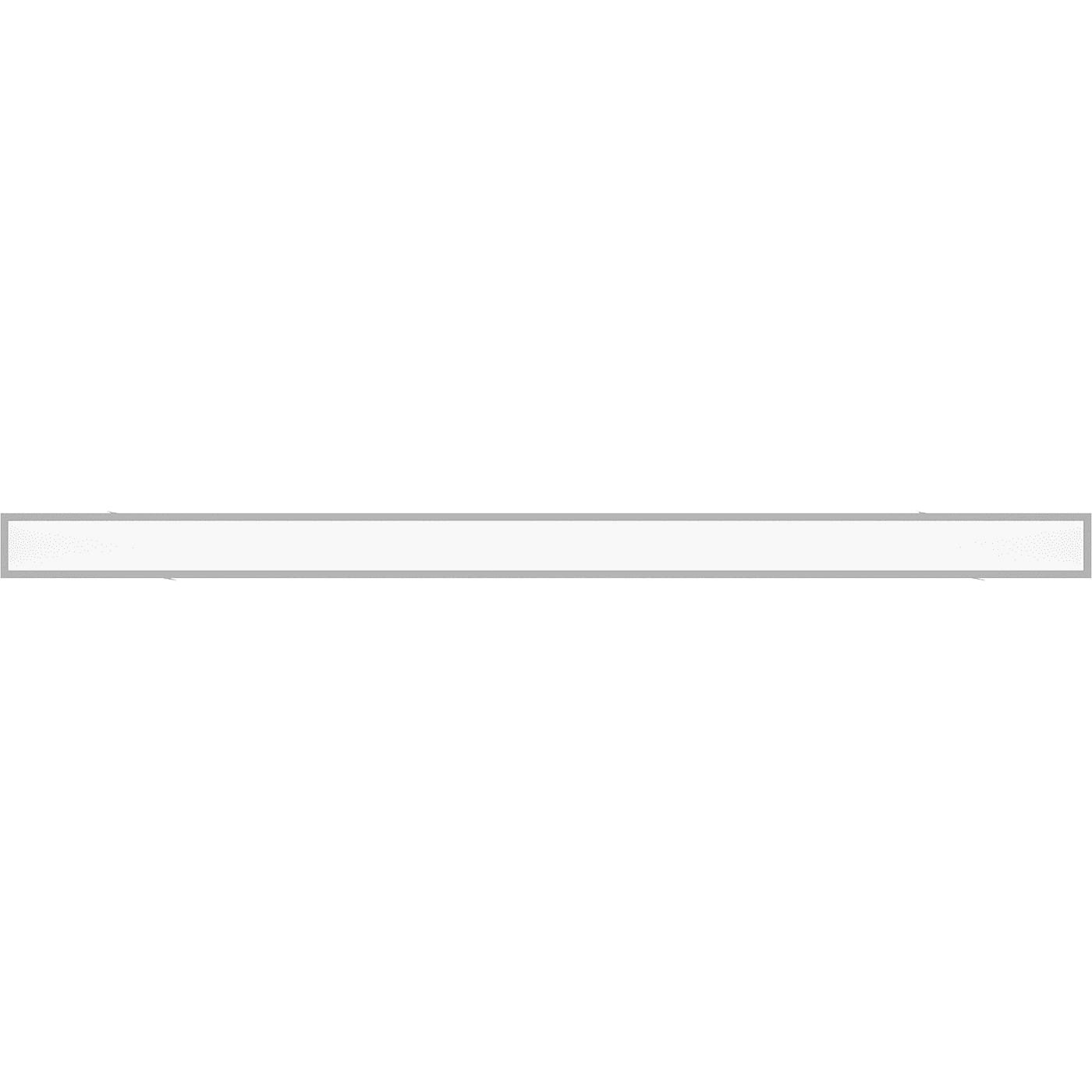

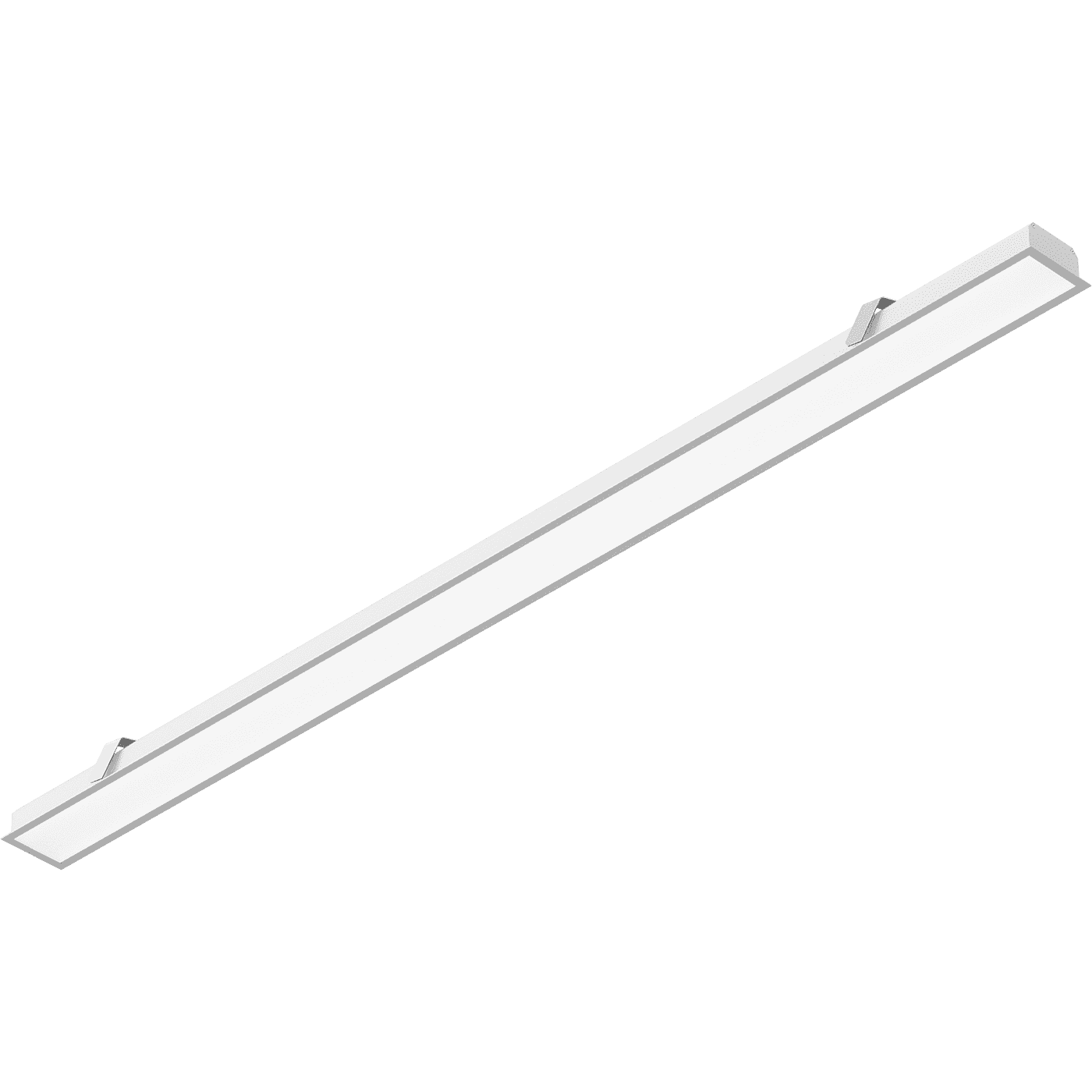

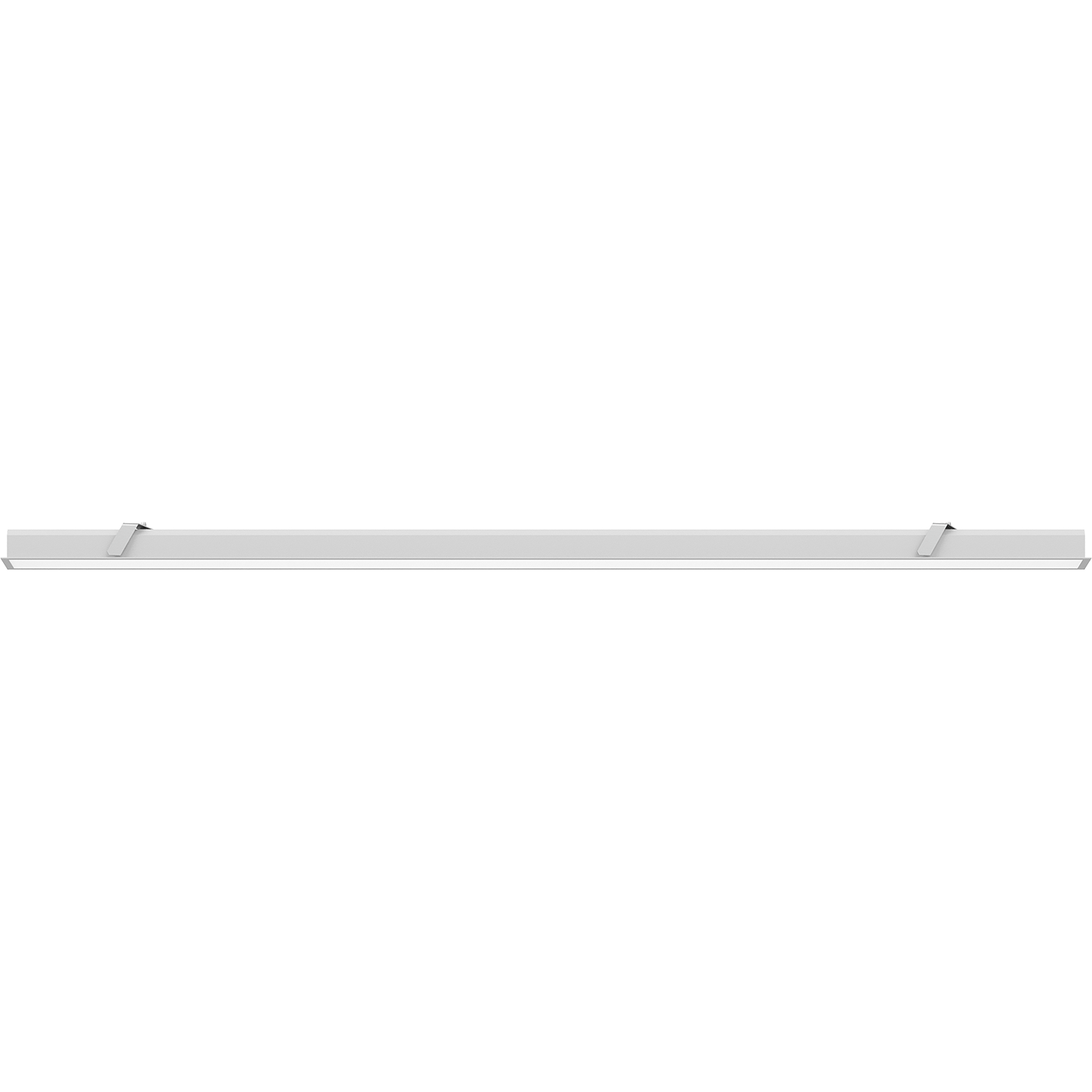

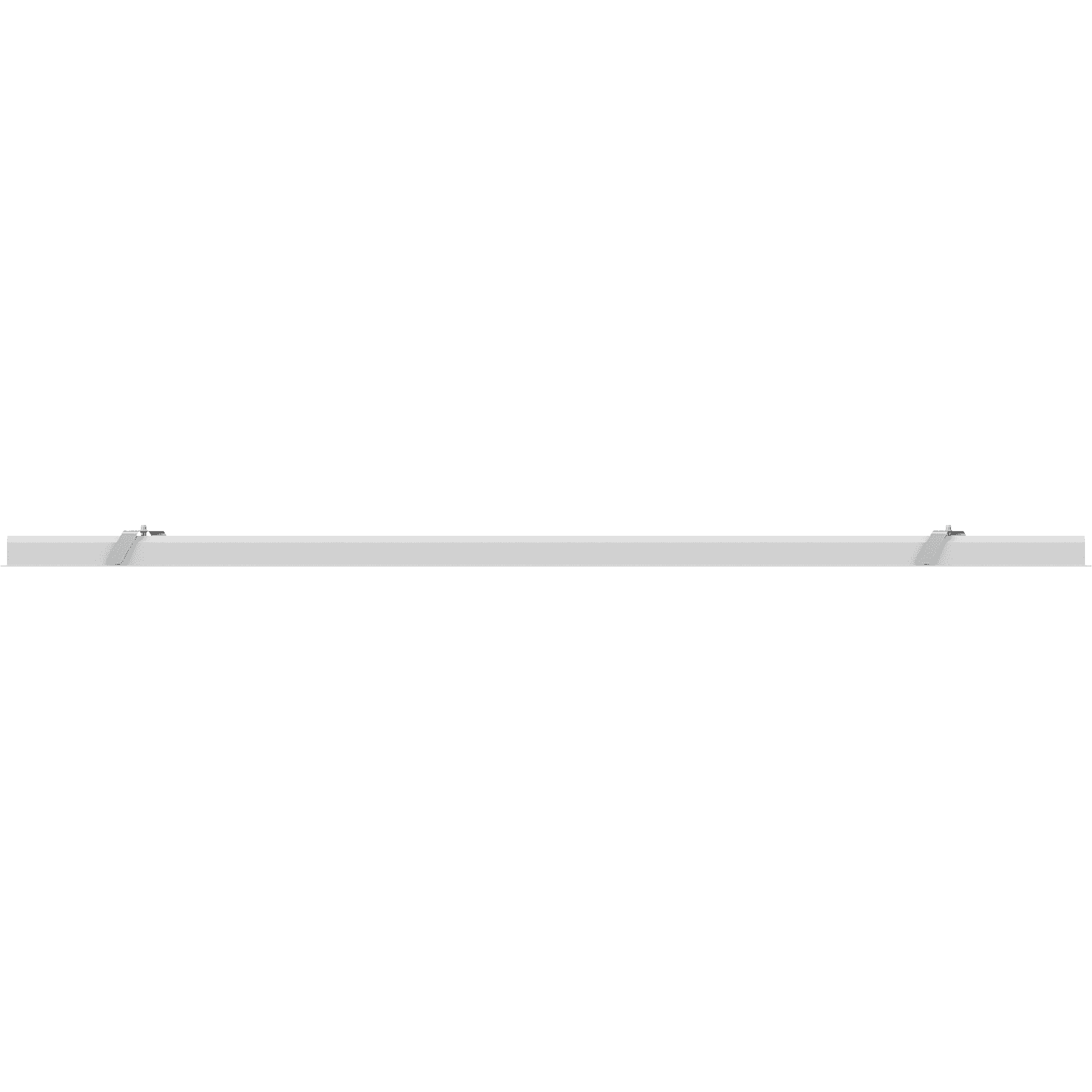

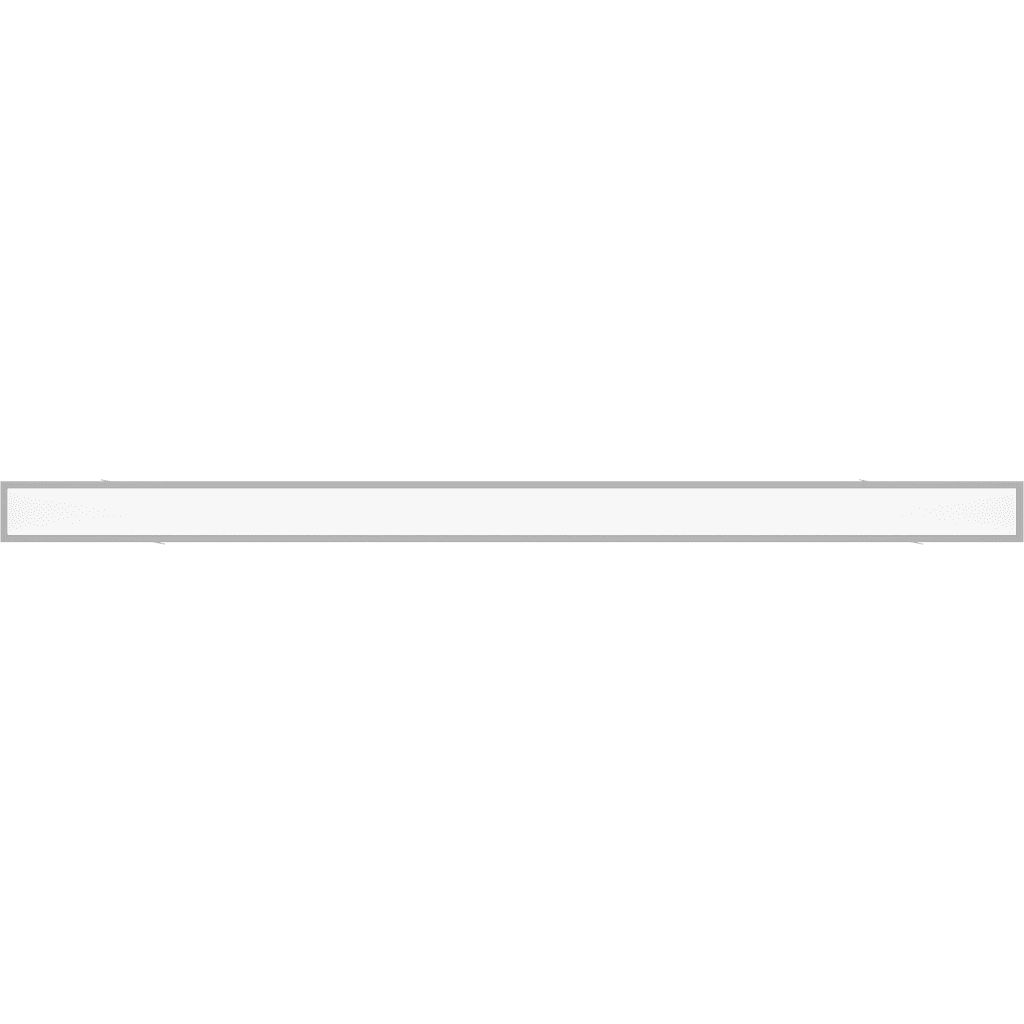

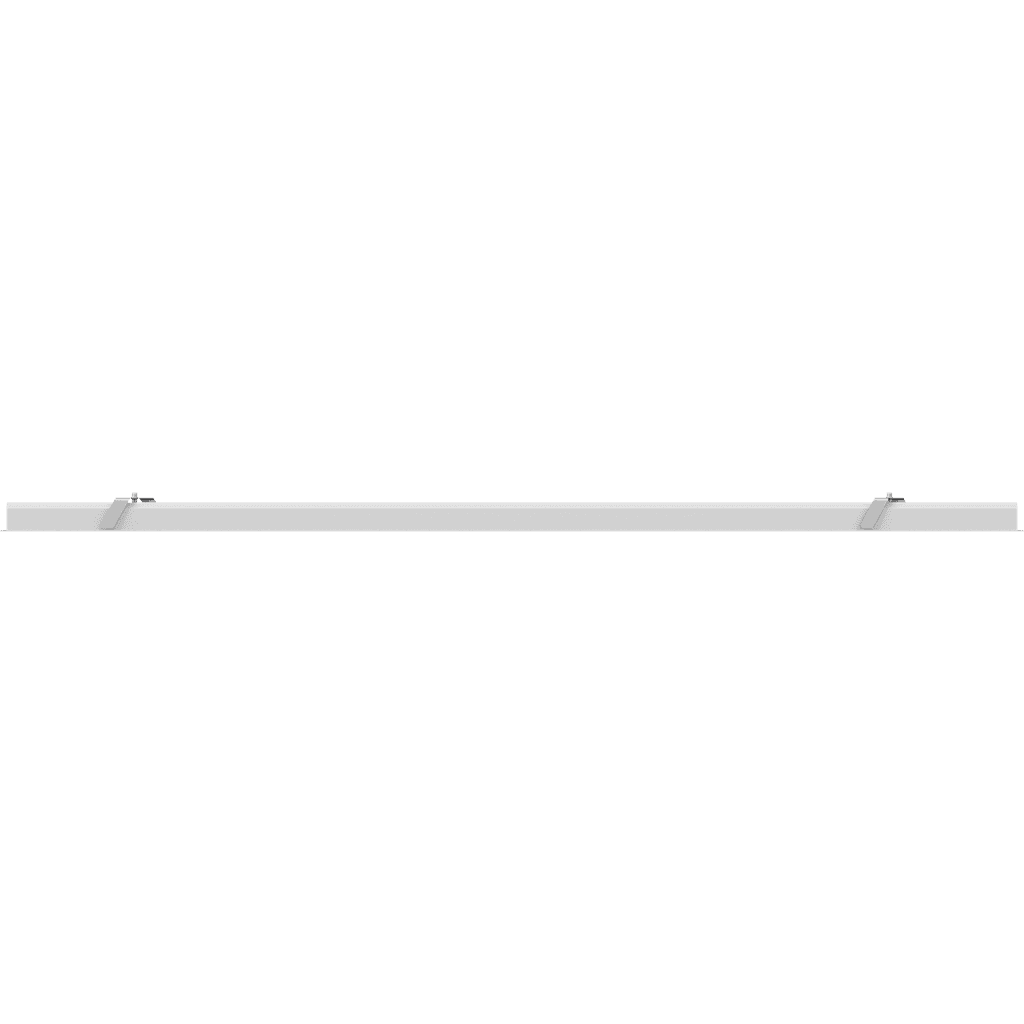

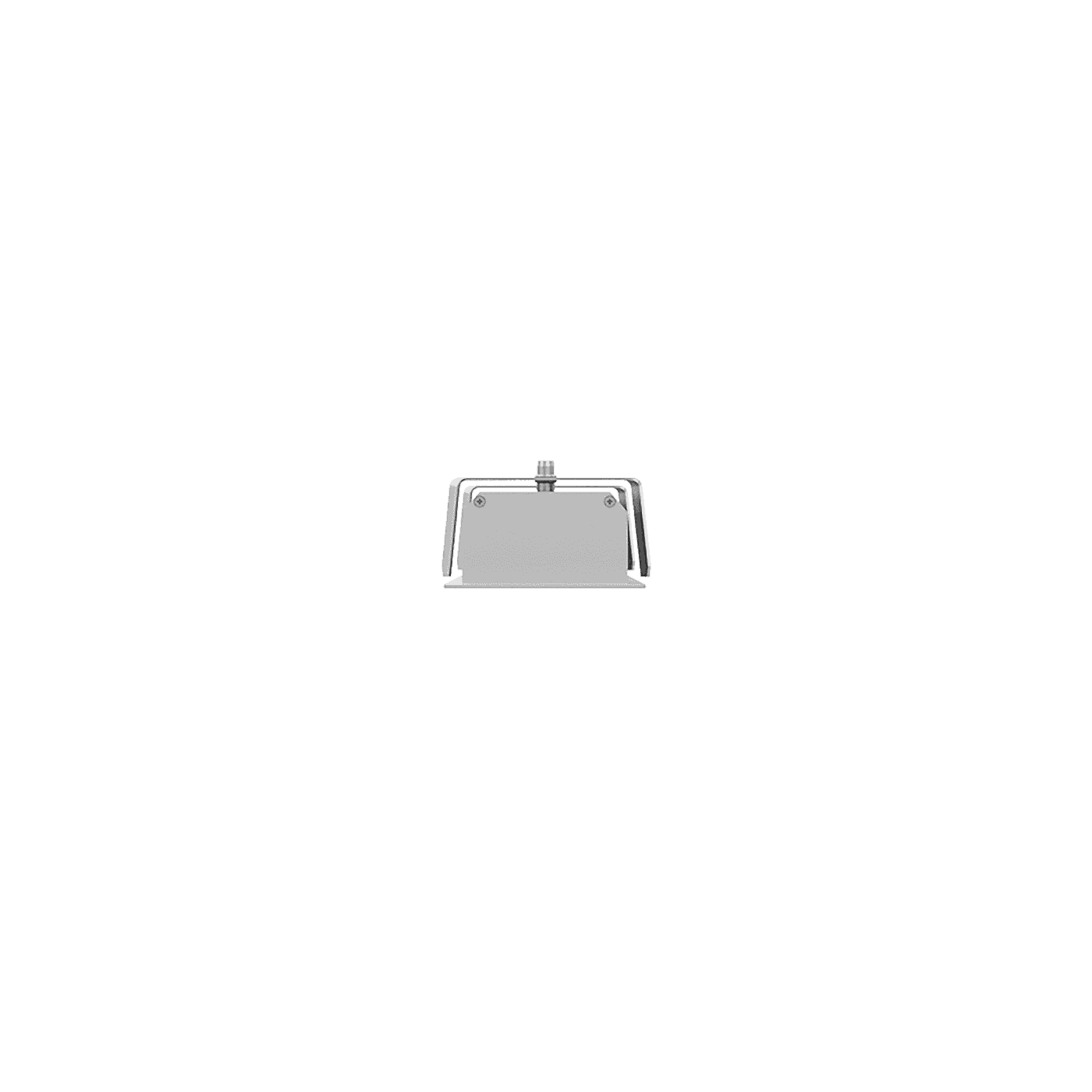

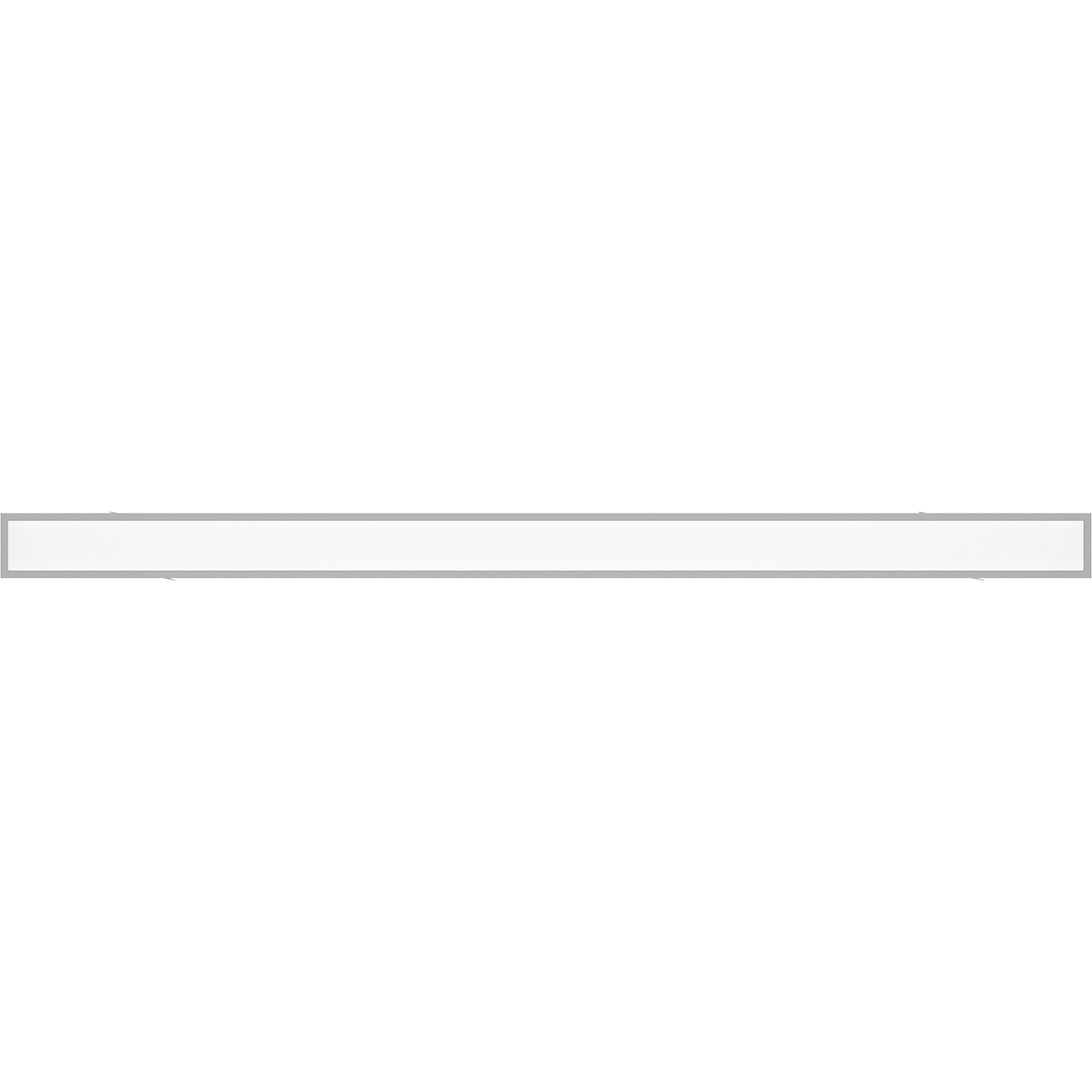

PROFILE 60R LED 1200 4000K
PROFILE 60R LED 1200 4000K
30 Wluminaire power
2400 lmlight flow
80 lm/Wenergy efficiency
code1248000690
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
60 Astarting current pulse time, µs
400 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
30 Welectric shock protection
IIpower factor
> 0,96supply voltage
230 Velectrical
starting current
60 A
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
30 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
1.7 kg
length, mm
1210 mm
width, mm
73 mm
height, mm
35 mm
housing color
Металлик
installation length, mm
1214 mm
installation width, mm
64 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
50 000 h
code
1248000690
illuminating
color rendition index (CRI)
>80
light flow
2400 lm
flickering factor
<5%
energy efficiency
80 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
