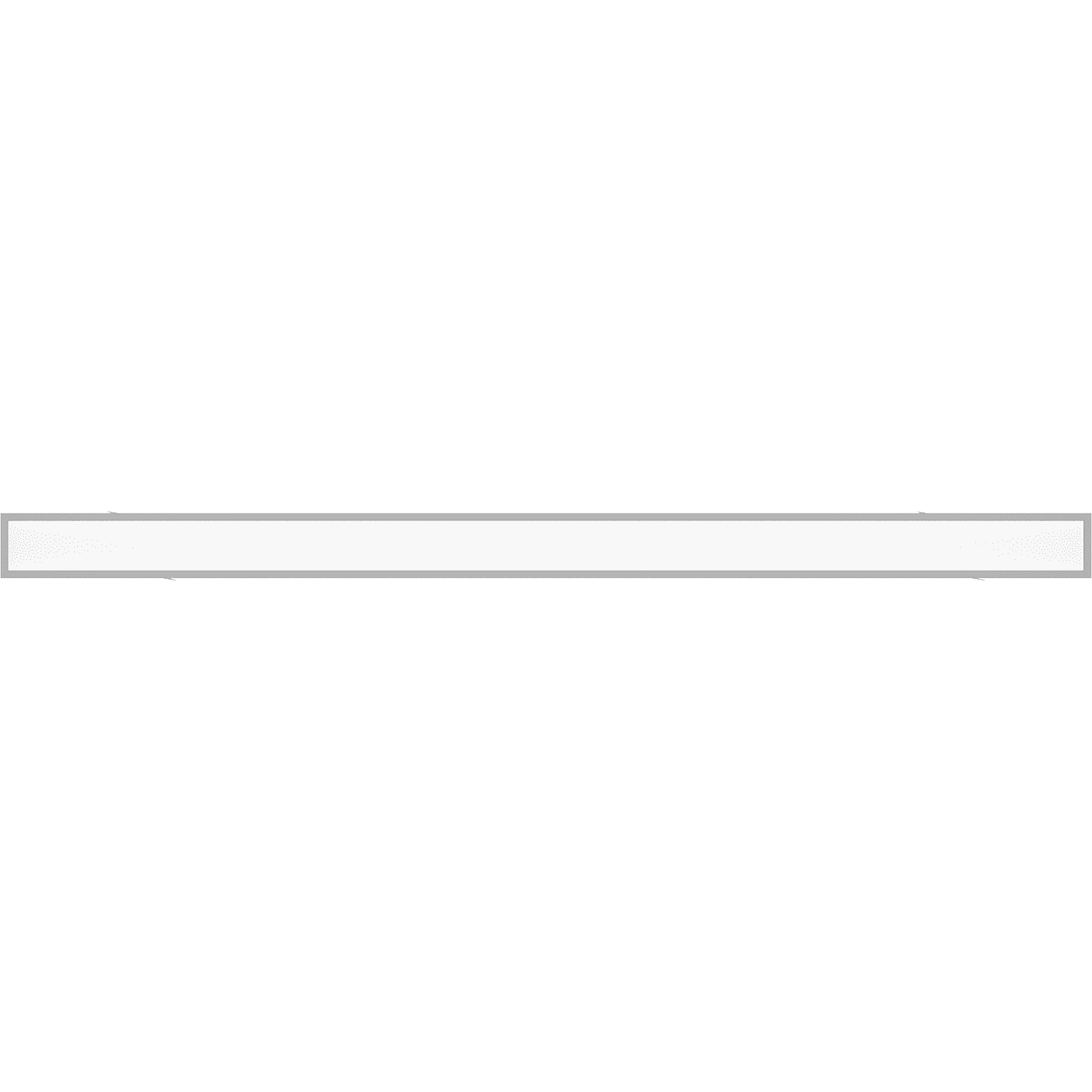

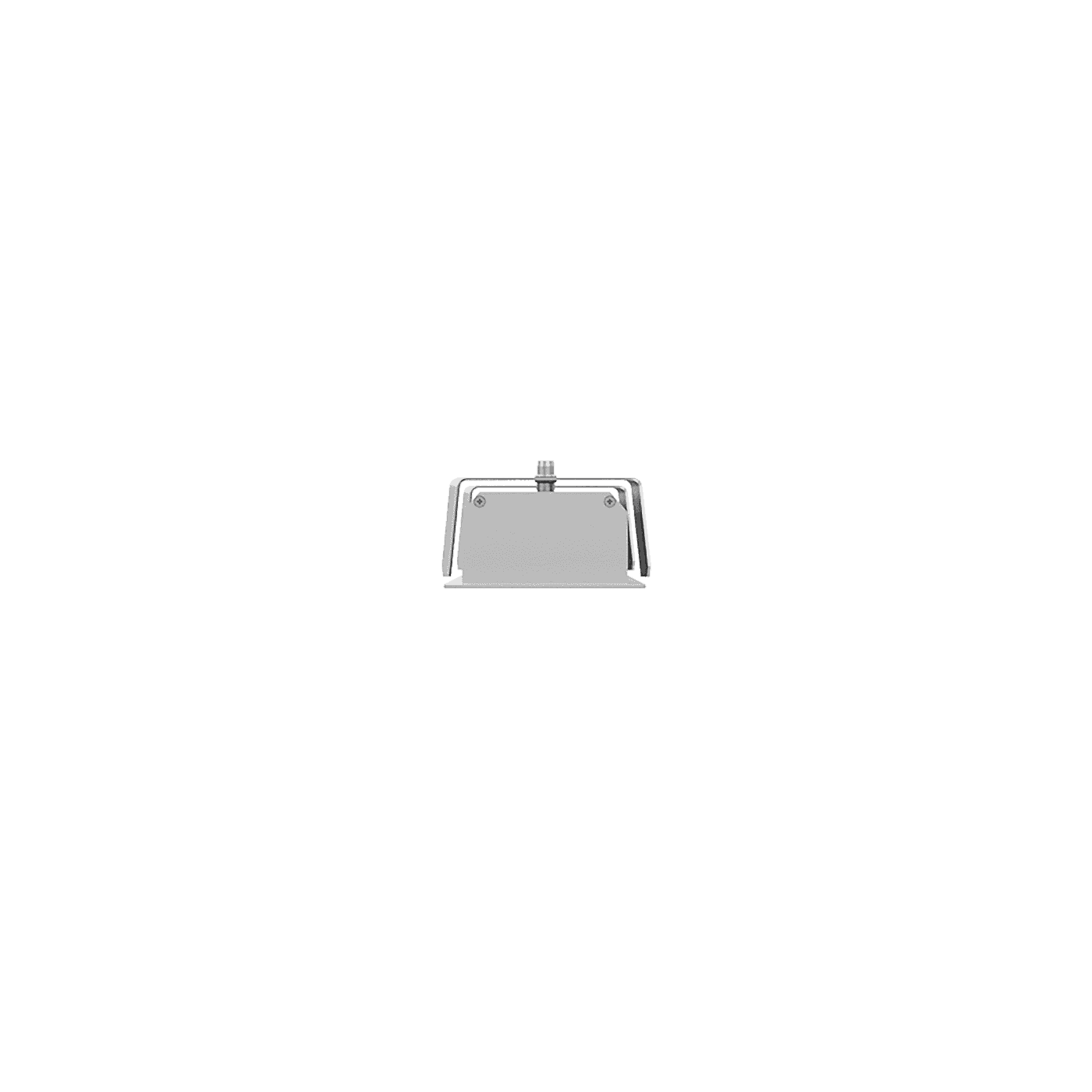

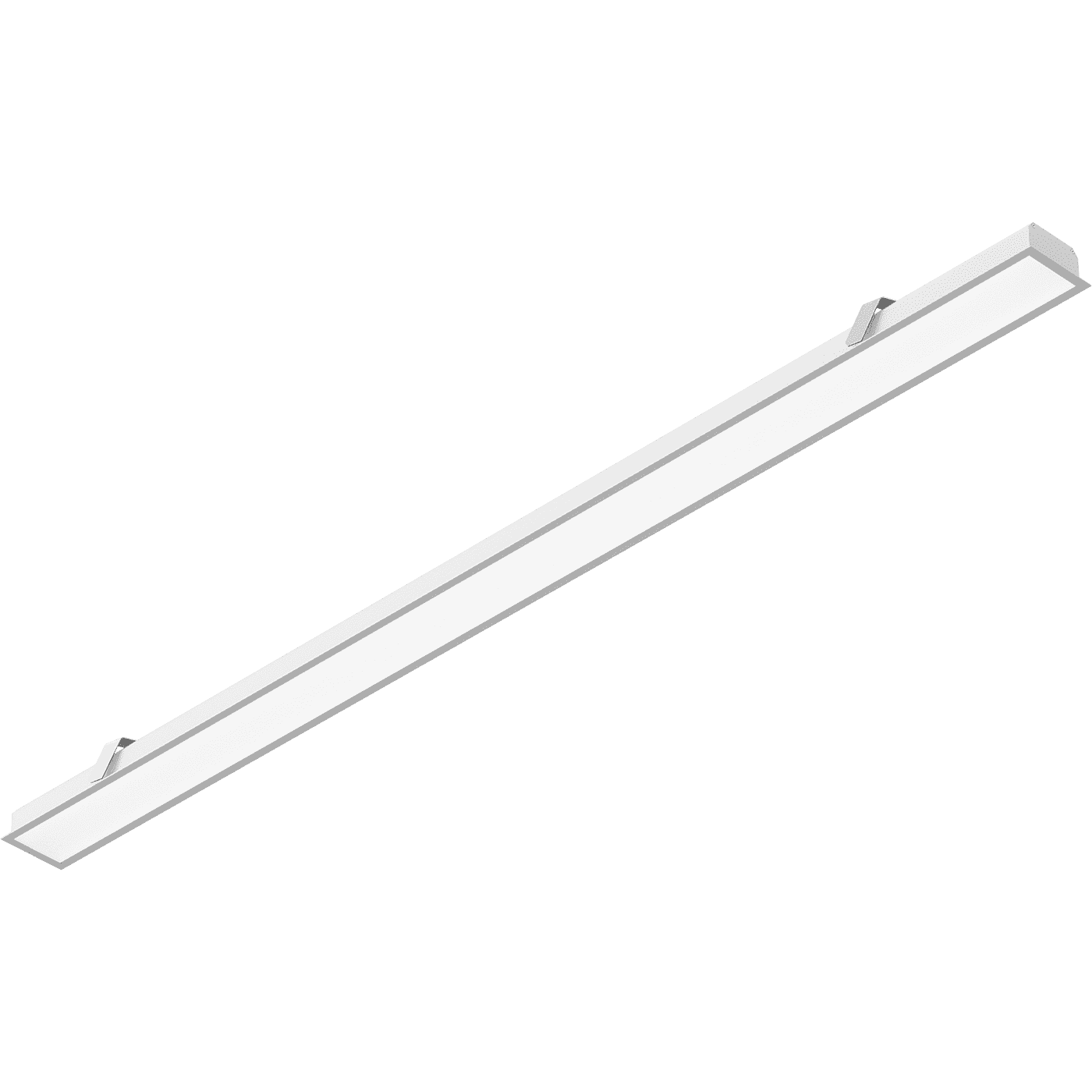

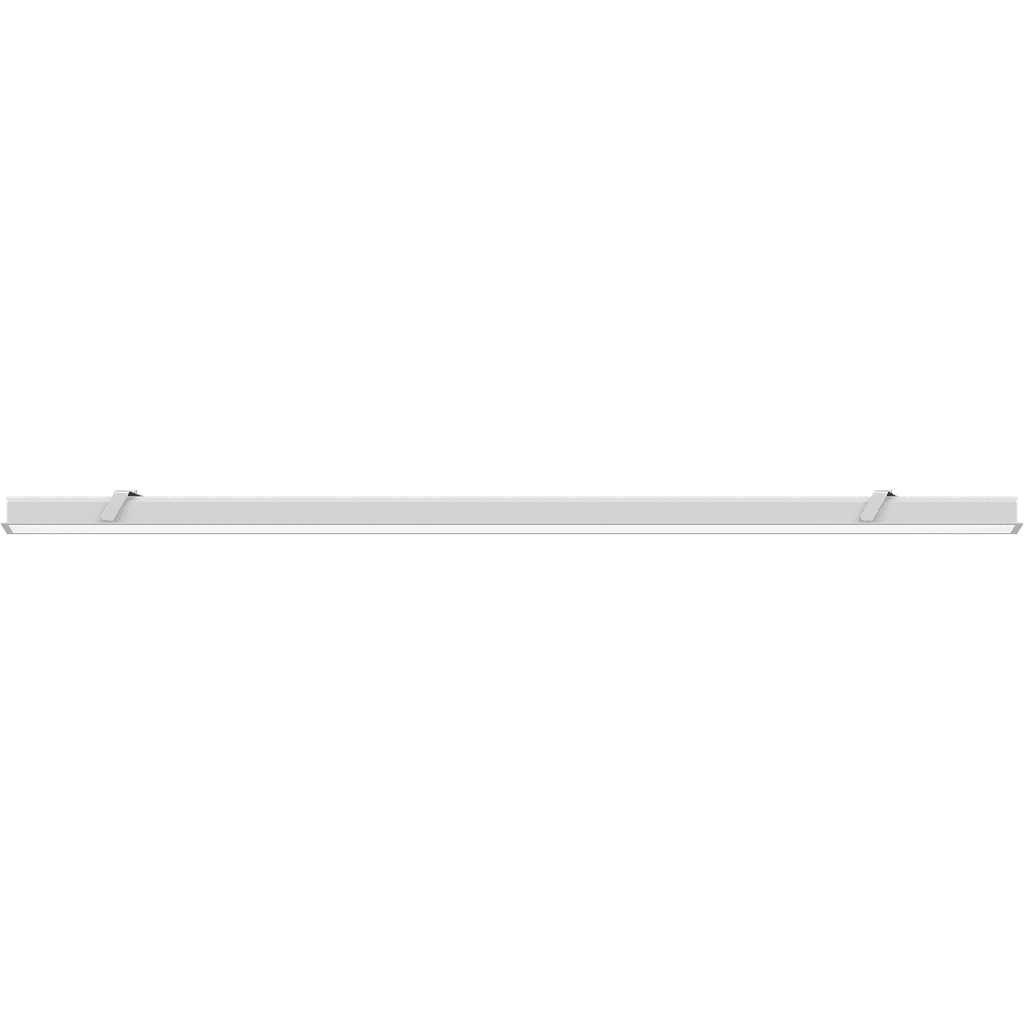

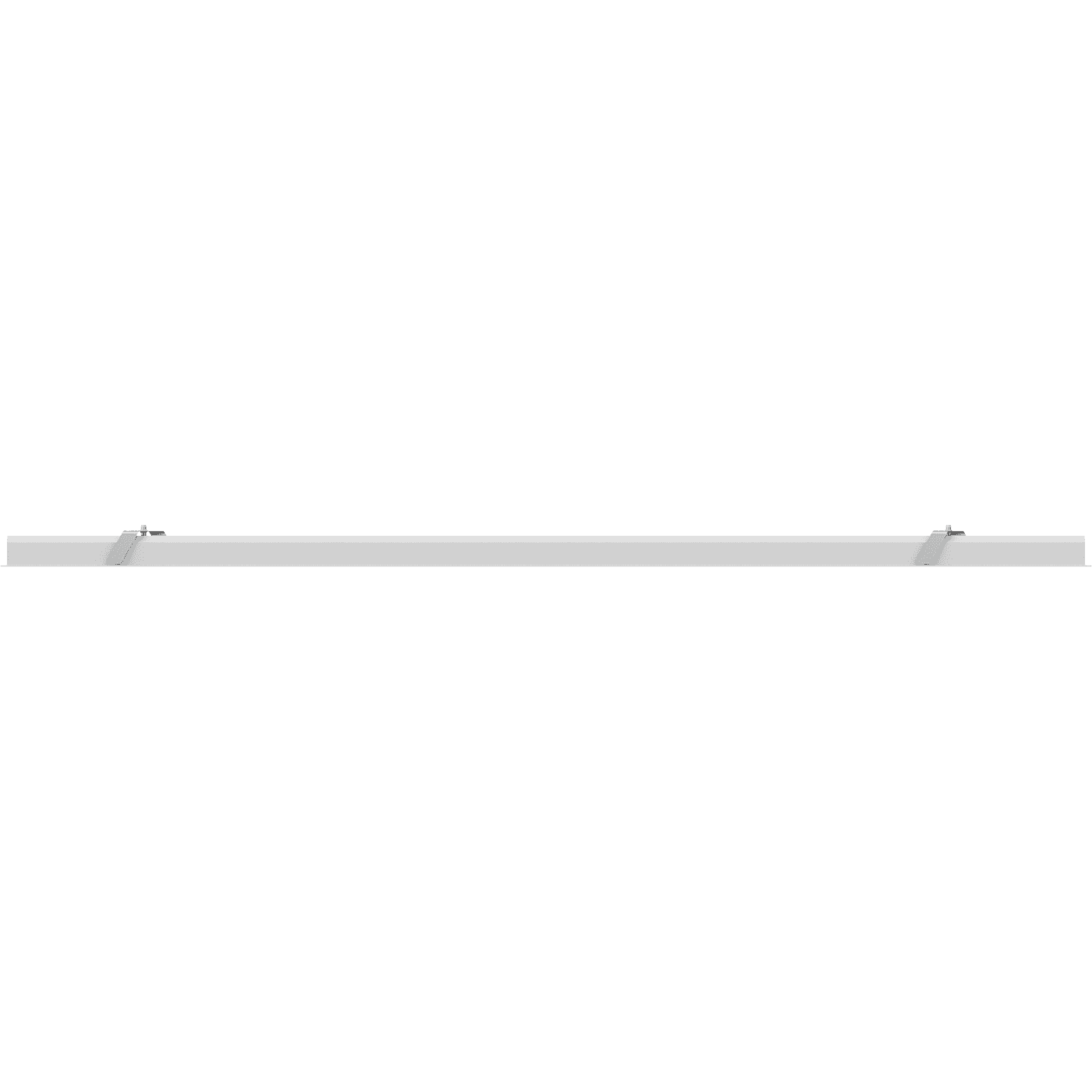

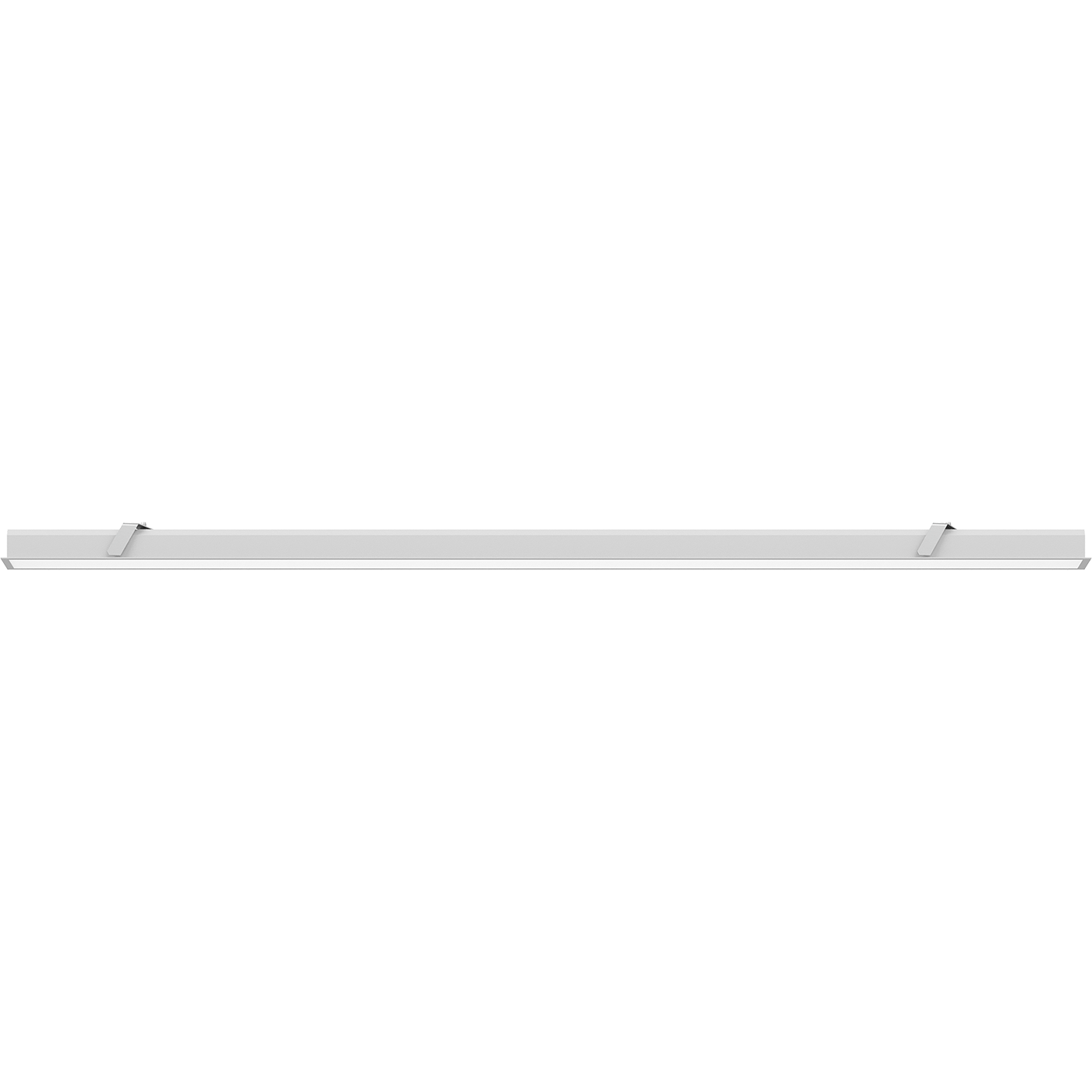

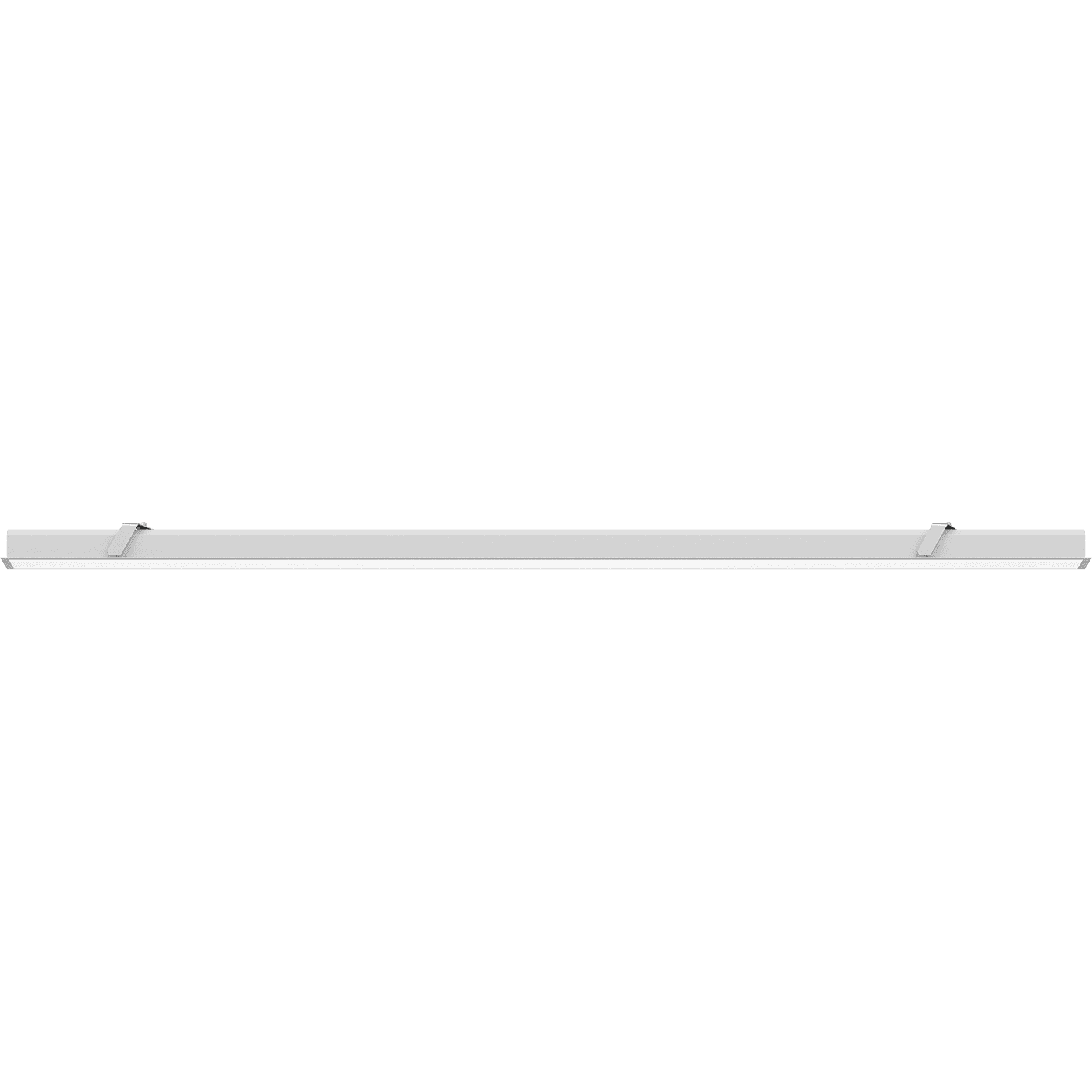

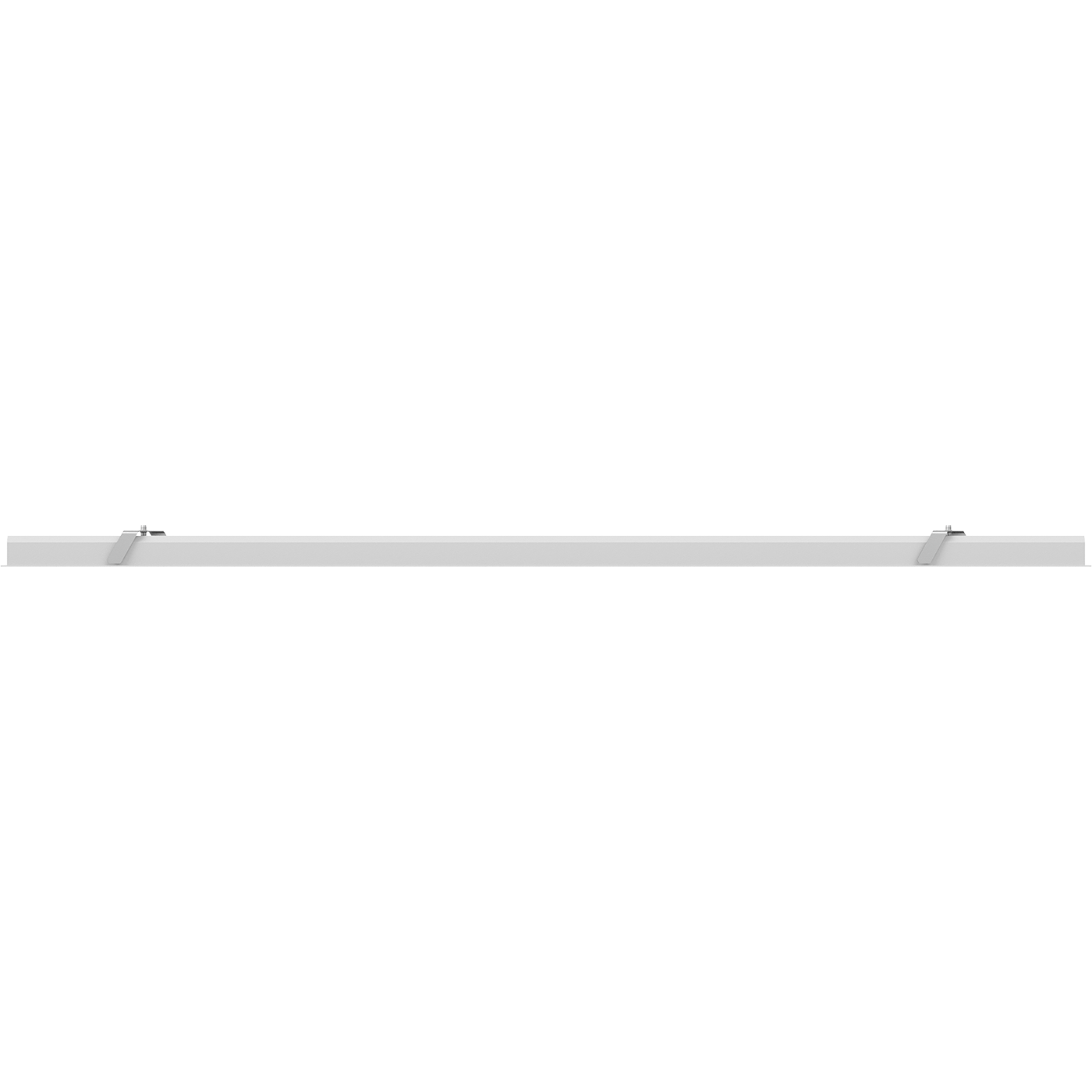

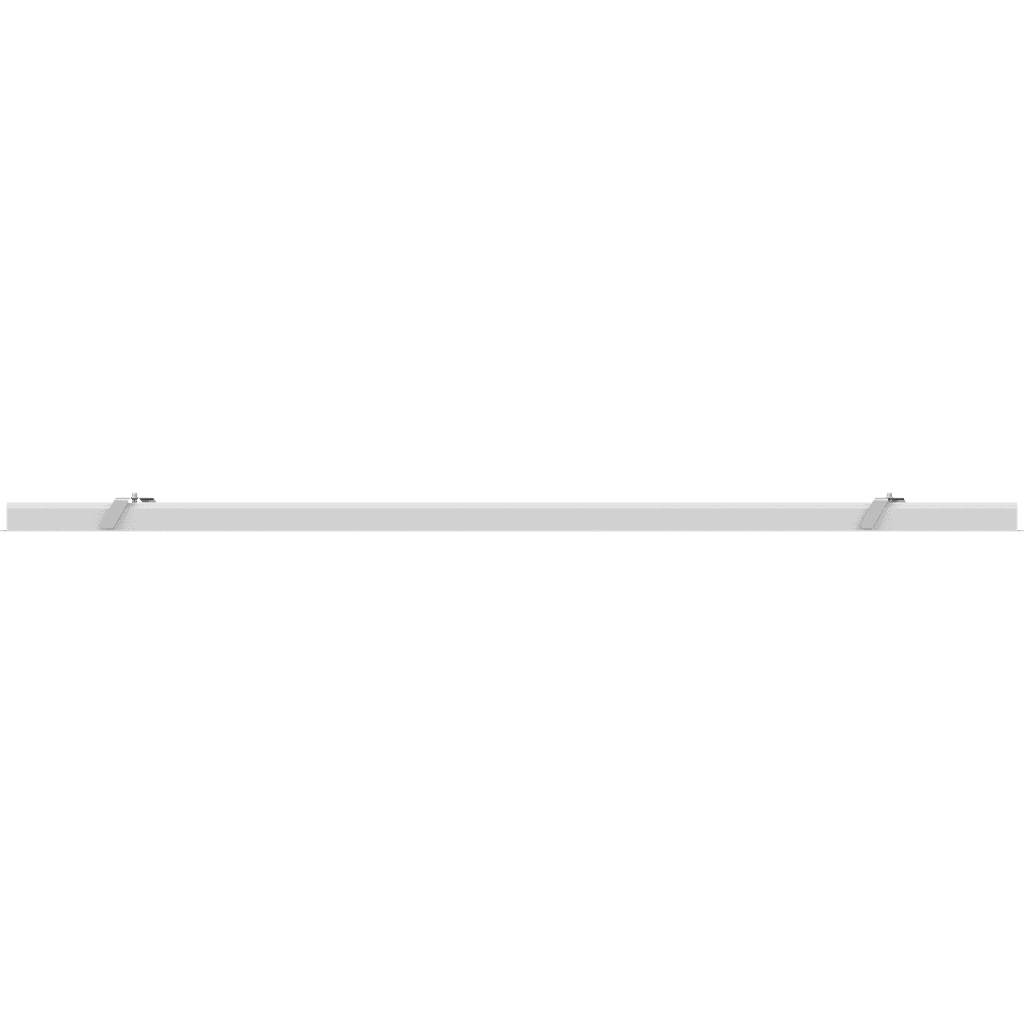

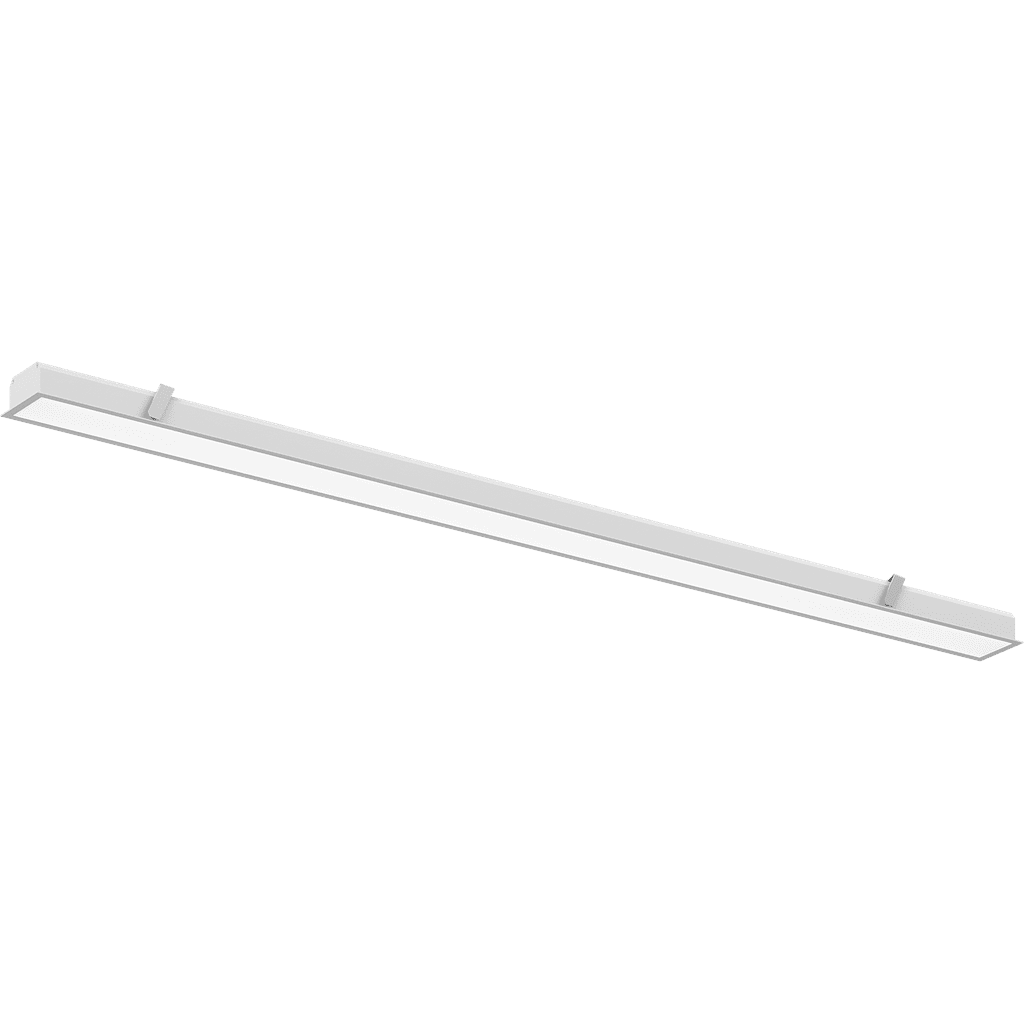

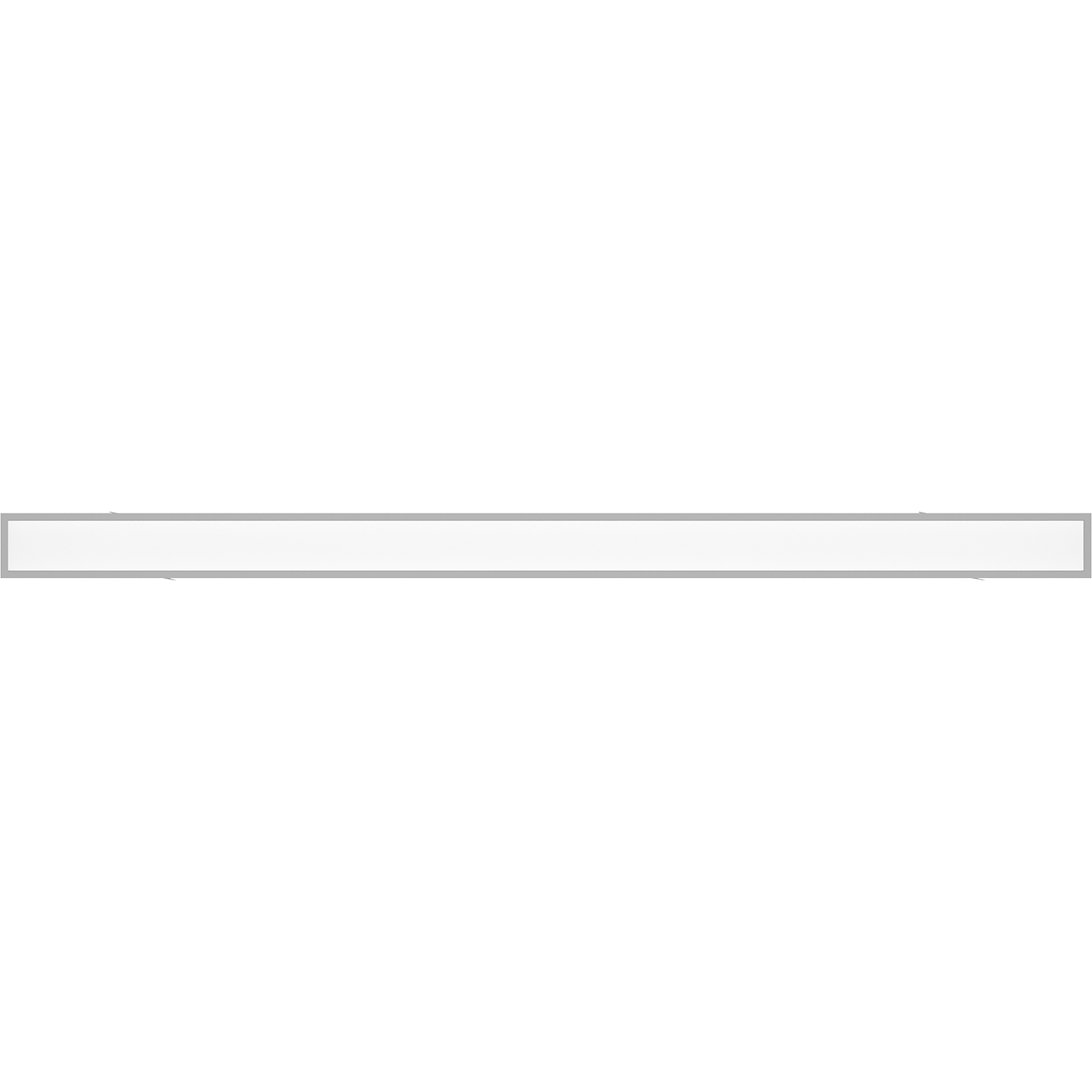

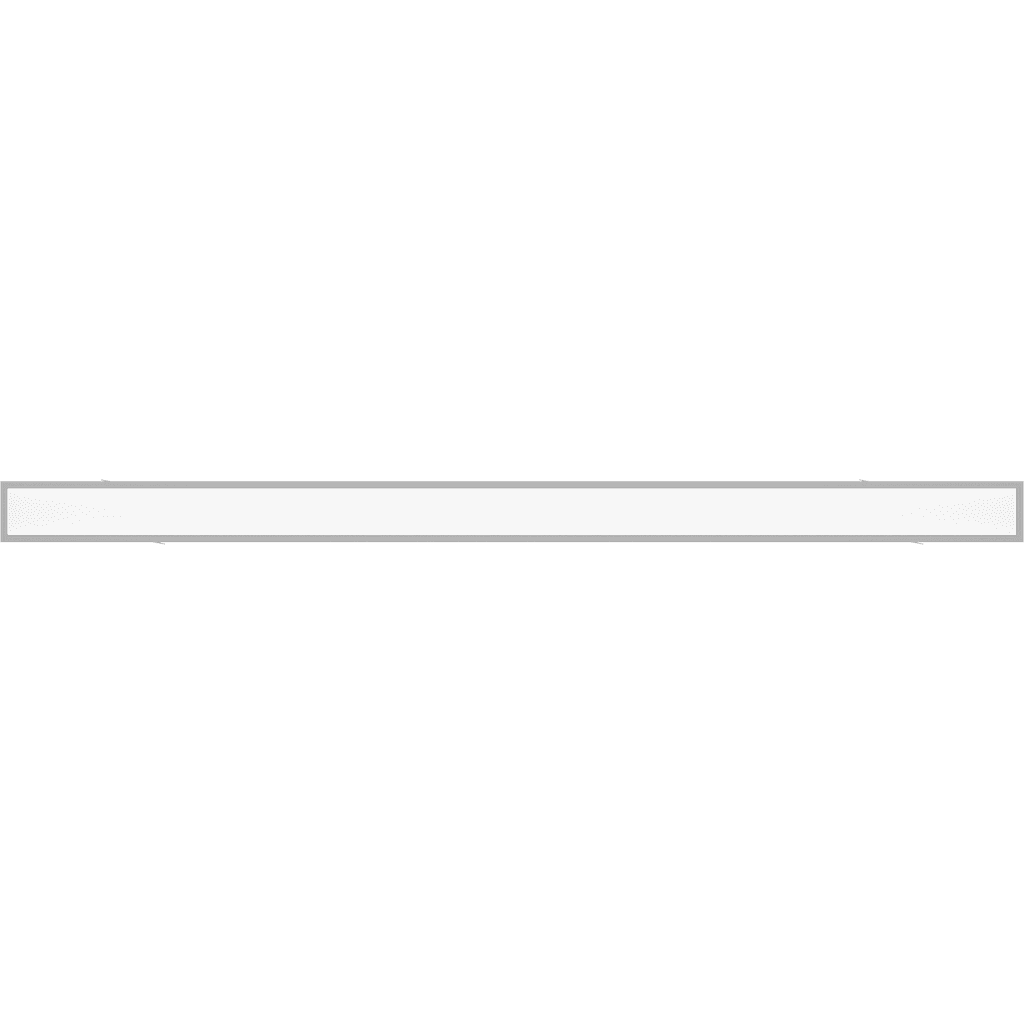

PROFILE 60R LED 1000 4000K
PROFILE 60R LED 1000 4000K
24 Wluminaire power
2000 lmlight flow
83 lm/Wenergy efficiency
code1248002500
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
170-250 Vsupply voltage, direct current
170-250 Vluminaire power
24 Welectric shock protection
IIpower factor
> 0,96supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
170-250 V
supply voltage, direct current
170-250 V
luminaire power
24 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
1.3 kg
length, mm
1010 mm
width, mm
73 mm
height, mm
35 mm
housing color
Металлик
installation length, mm
1010 mm
installation width, mm
64 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
50 000 h
code
1248002500
illuminating
color rendition index (CRI)
>80
light flow
2000 lm
flickering factor
<5%
energy efficiency
83 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg118.5 kB
ldt165.9 kB
documents
passport1.2 mB
сертификаты
Russian origin287.1 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
