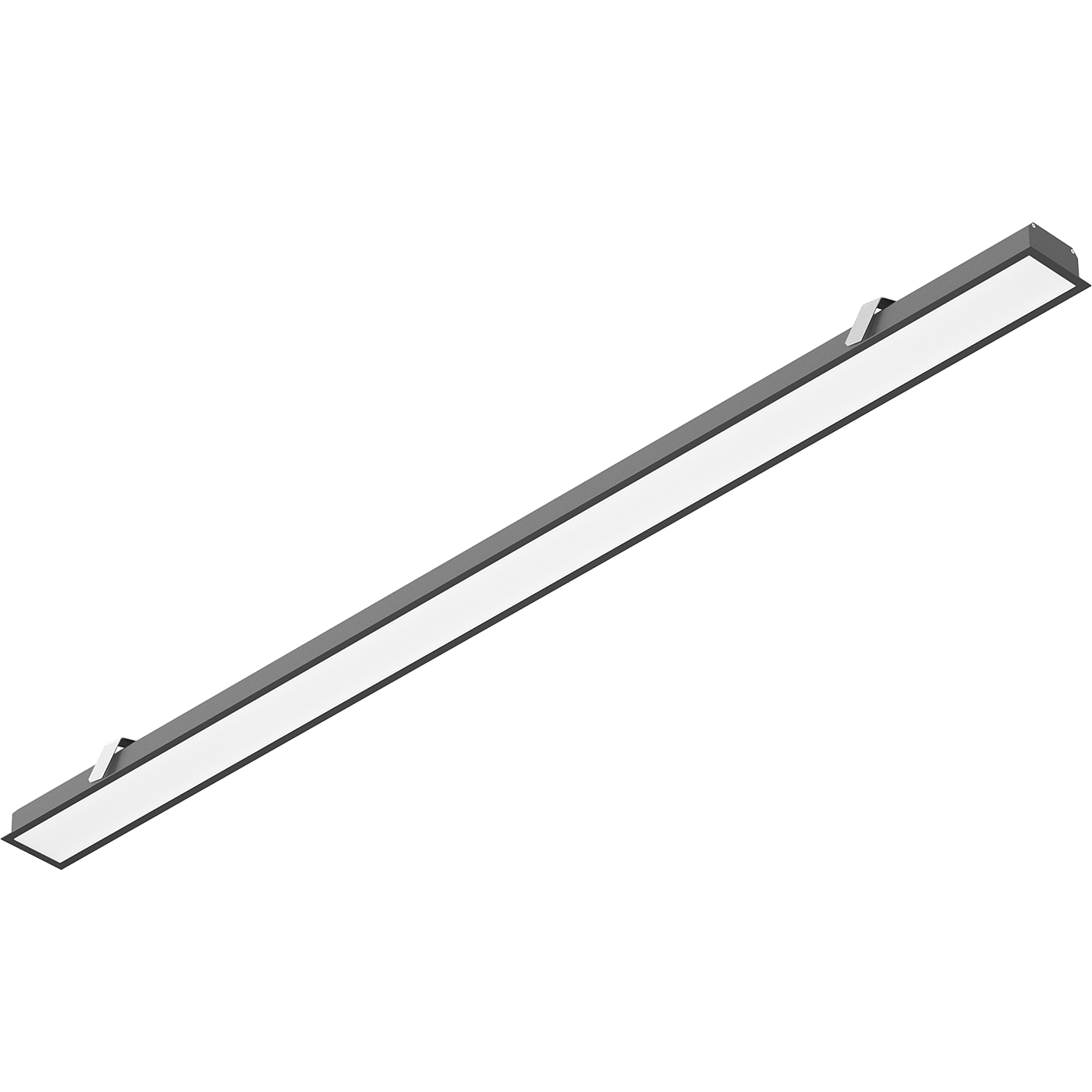

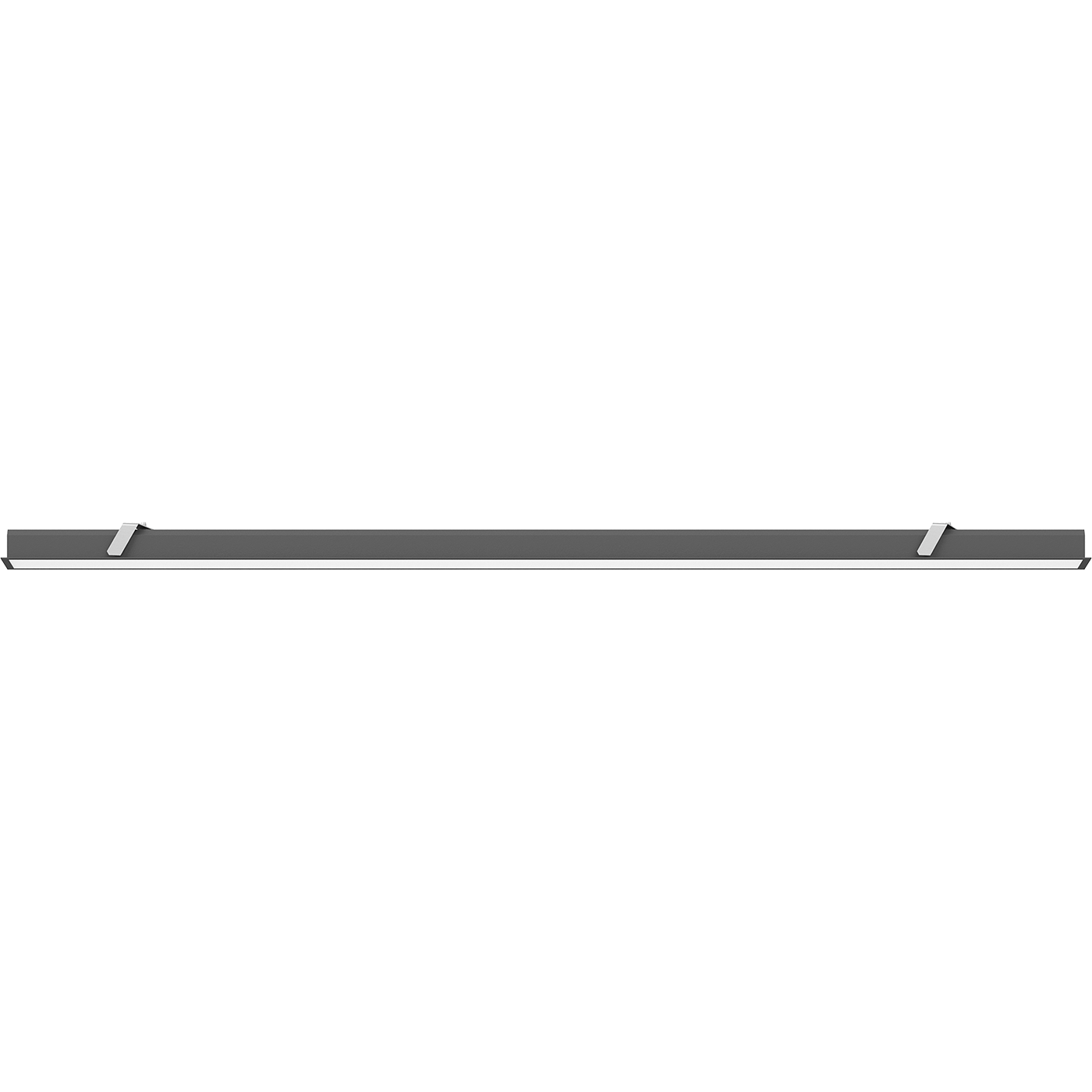

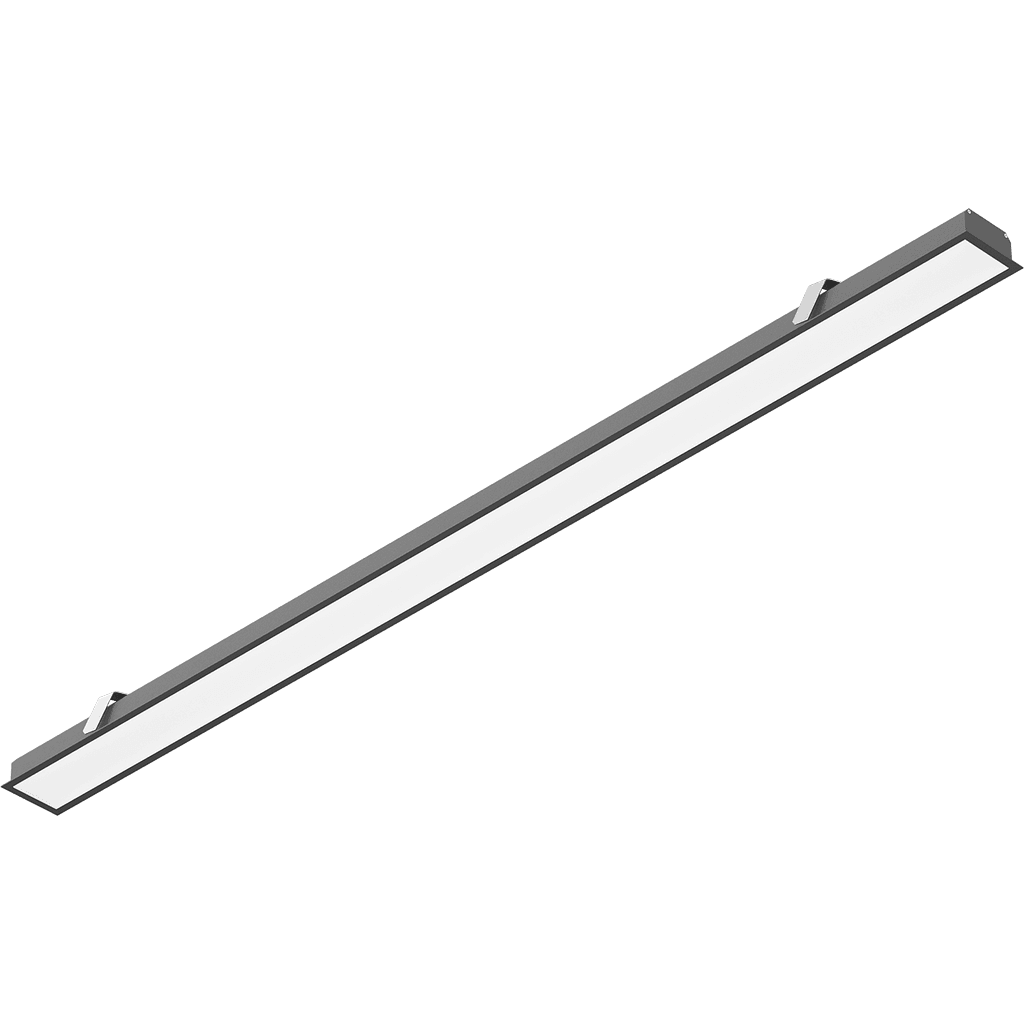

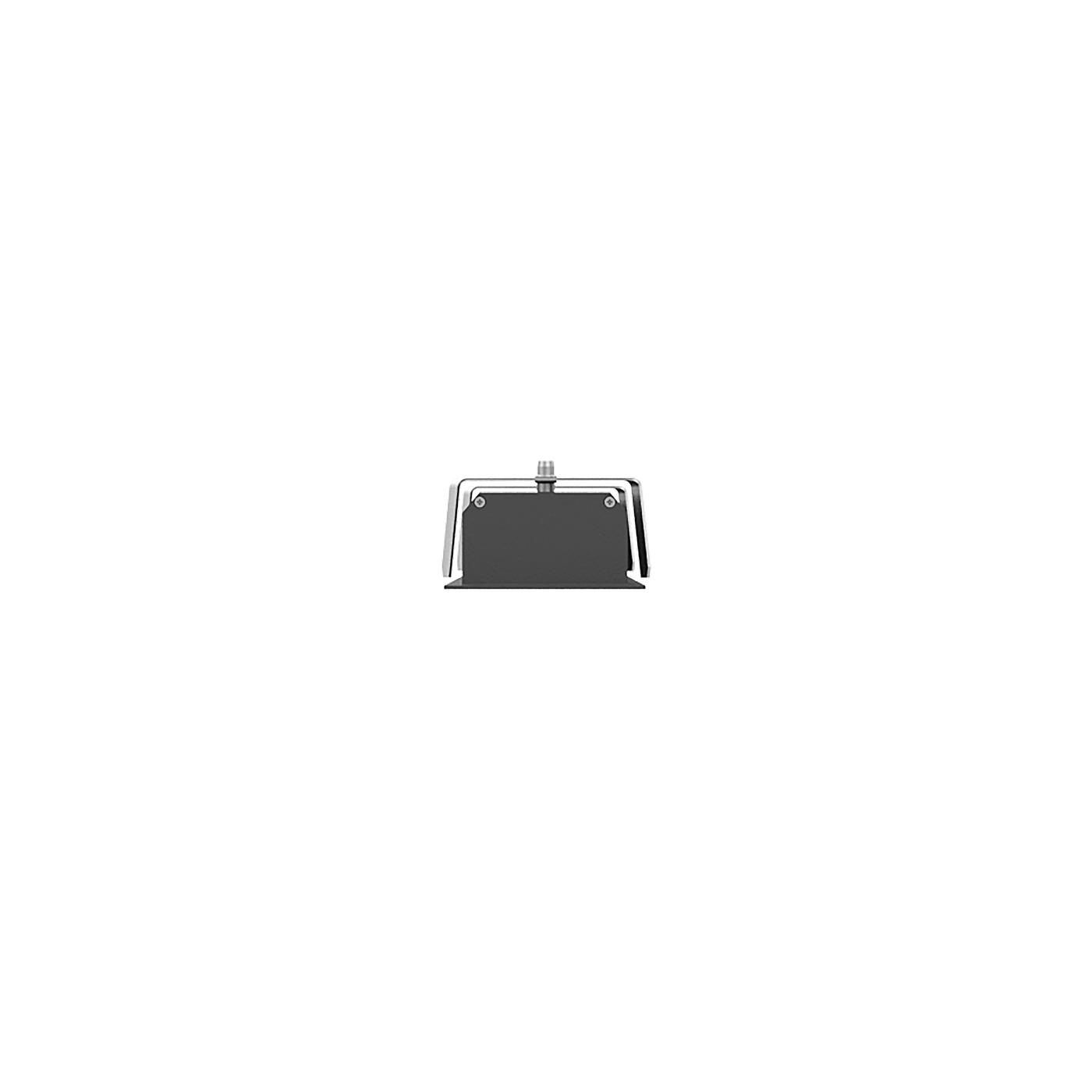

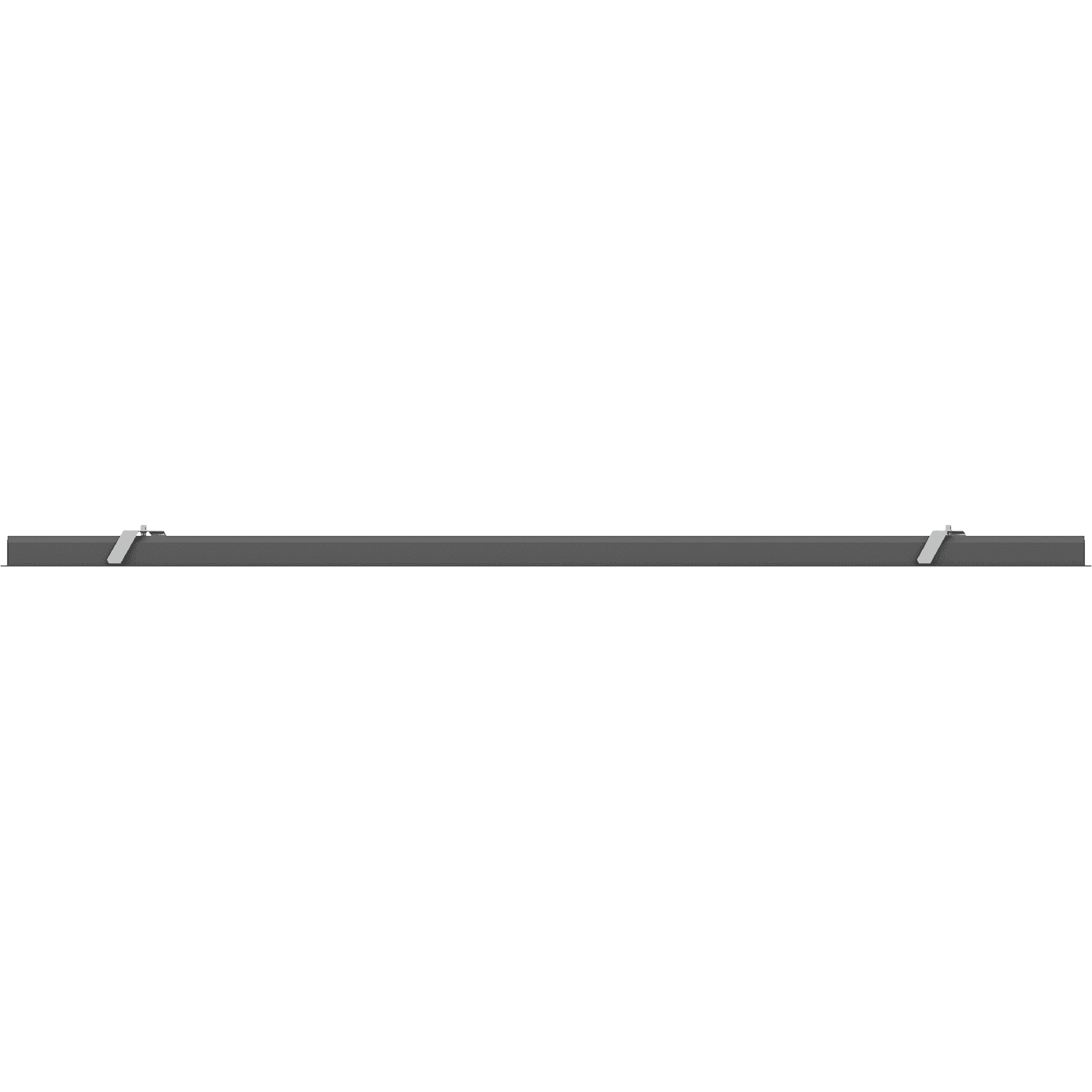

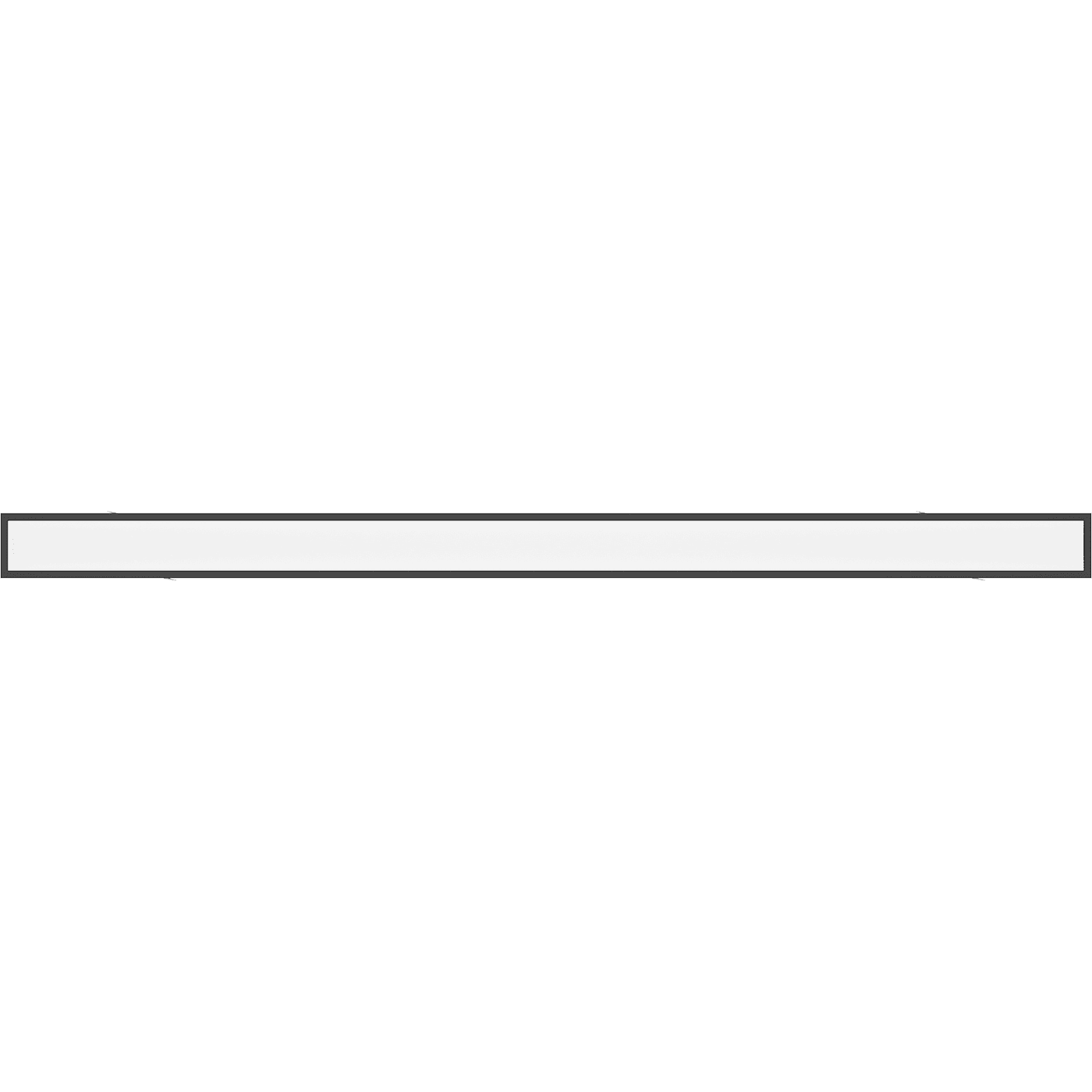

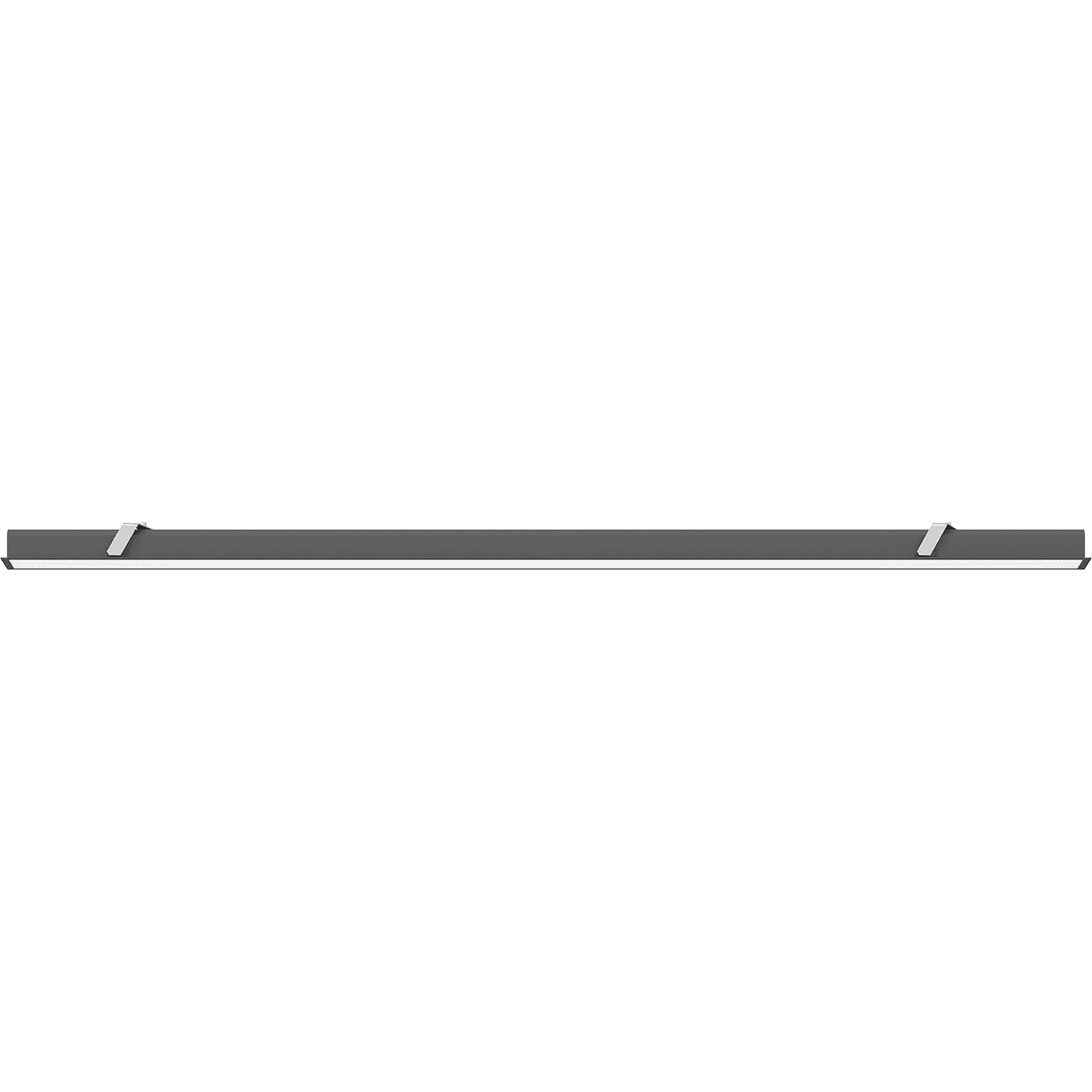

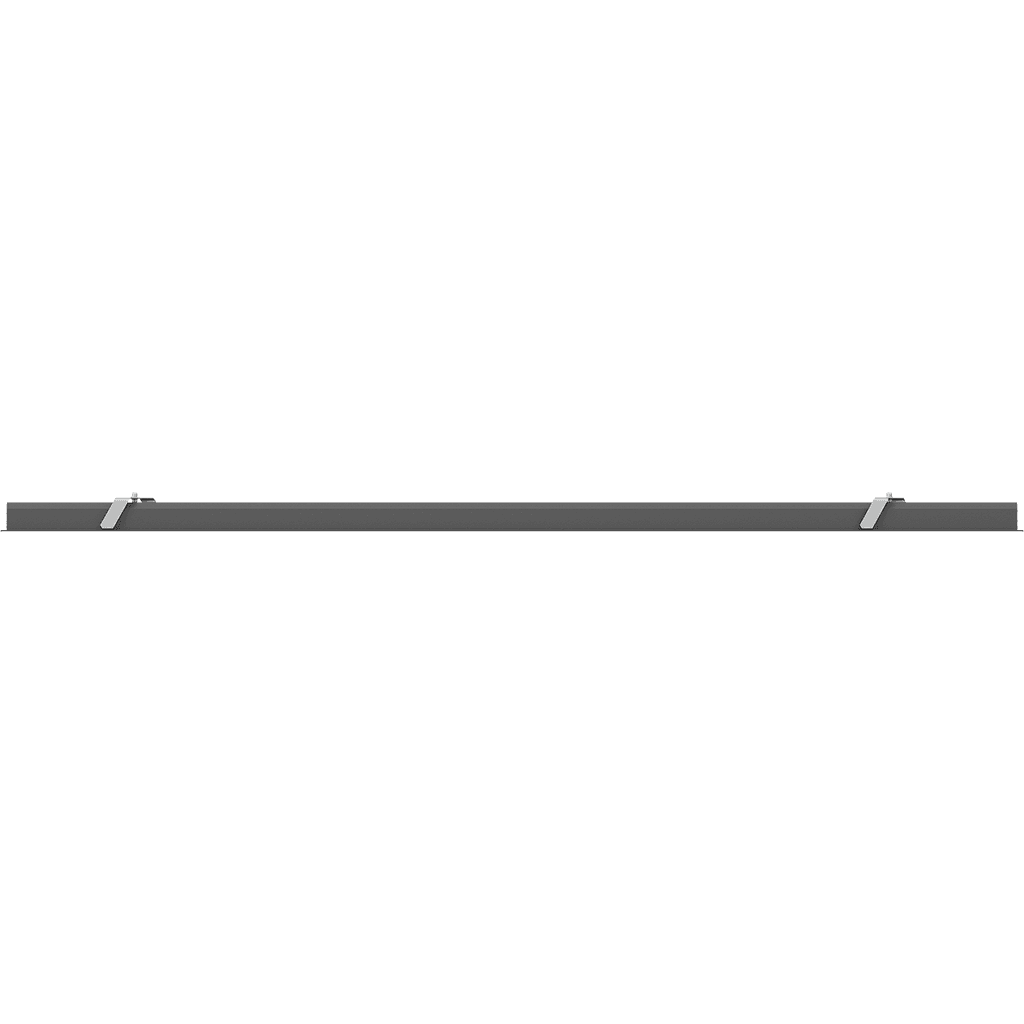

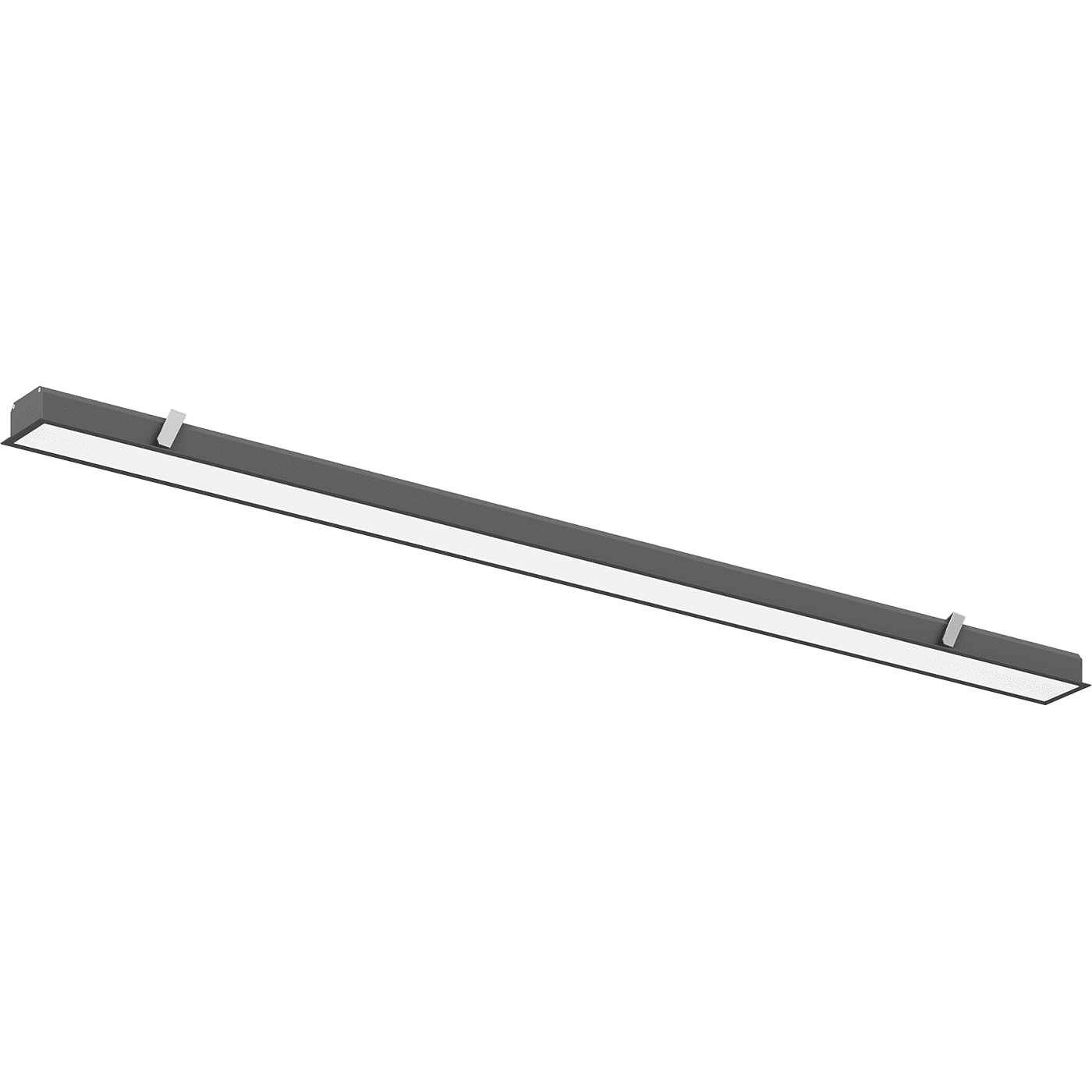

PROFILE 60R DR LED 2400 BL 4000K

model is discontinued
model is discontinued
PROFILE 60R DR LED 2400 BL 4000K
56 Wluminaire power
4500 lmlight flow
80 lm/Wenergy efficiency
code1248007270
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
4500 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
4500 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
II
luminaire power
56 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
2412 mm
width
73 mm
height
35 mm
installation length
2416 mm
installation width
64 mm
weight
5.9 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
A
ETIM class
Настенно-потолочный светильник
code
1248007270
model files
model files

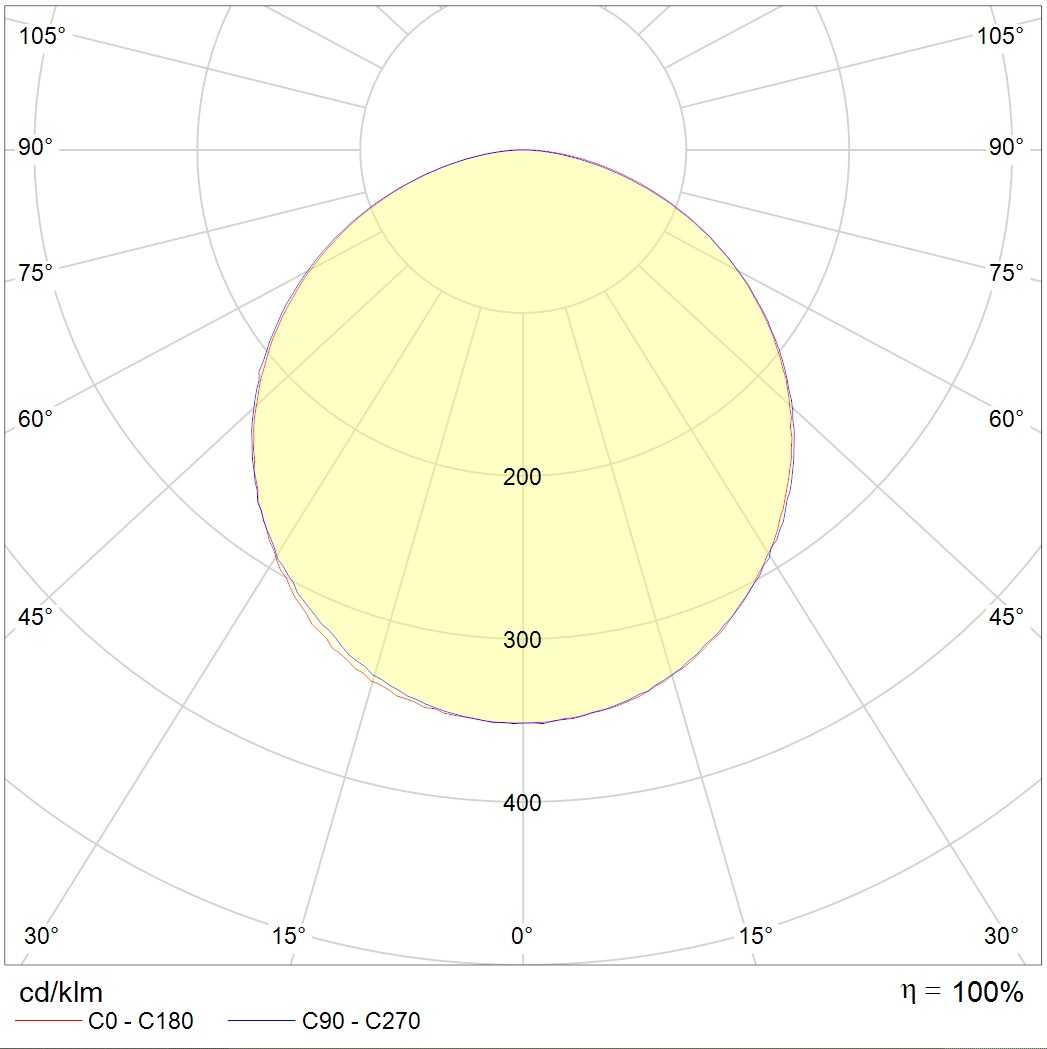

photometric files
