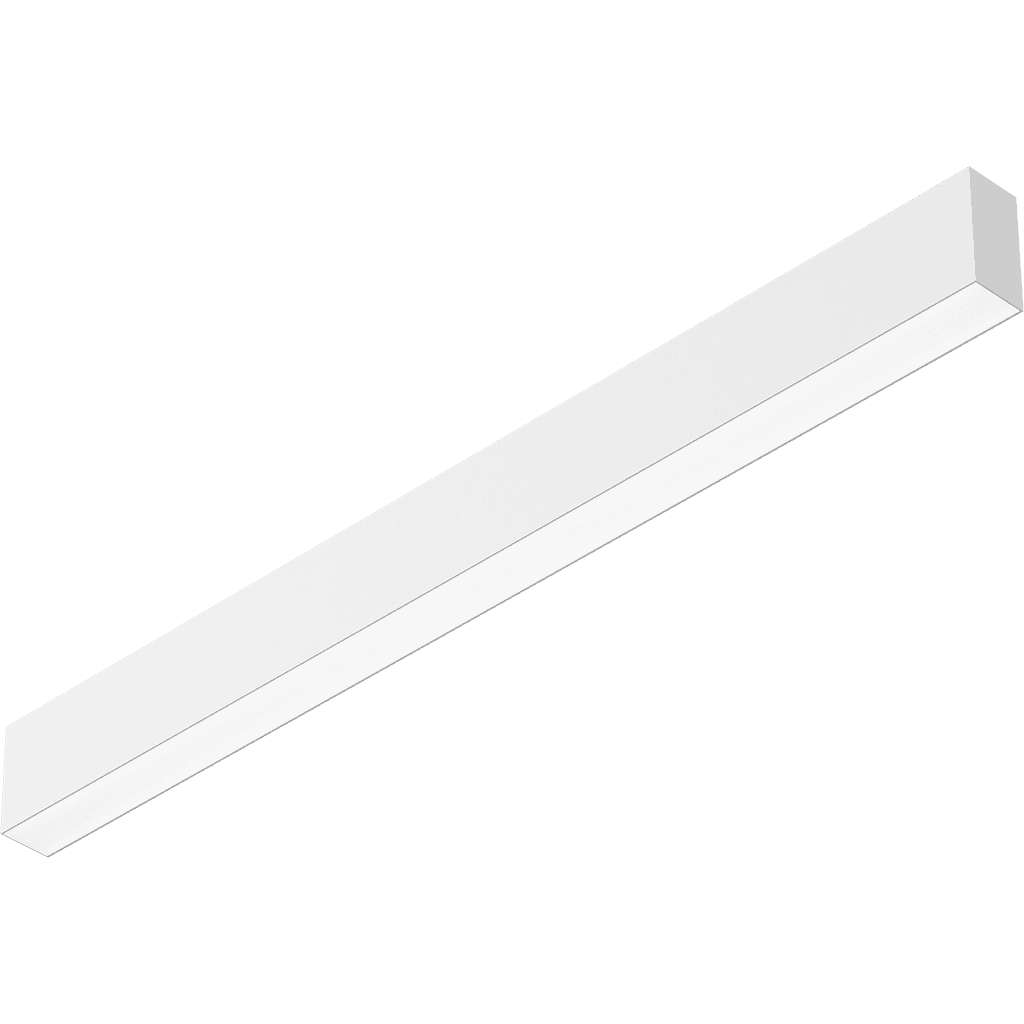

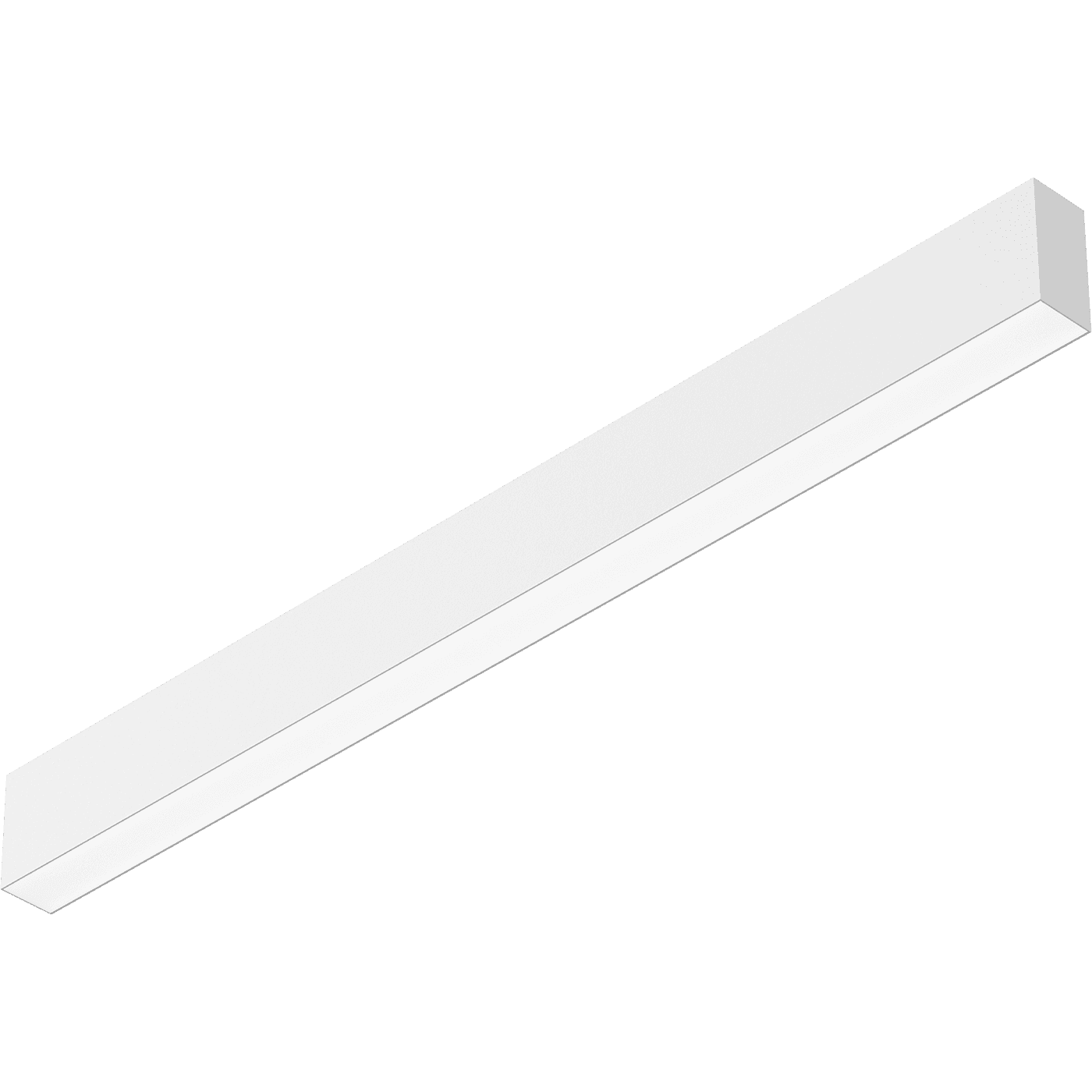

PROFILE 60L P CC LED (630/1250) WH 4000K MED (low lumen)
PROFILE 60L P CC LED (630/1250) WH 4000K MED (low lumen)
20 Wluminaire power
1850 lmlight flow
93 lm/Wenergy efficiency
code1248006890
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
93 lm/Wcolor rendition index (CRI)
>80light flow
1850 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
93 lm/W
color rendition index (CRI)
>80
light flow
1850 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
maximum number of luminaires in a line
20
luminaire power
20 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1248 mm
width
628 mm
height
85 mm
installation length
318 mm
installation width
348 mm
weight
5.3 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1248006890
model files
model files
documents
сертификаты
documents
passport1.2 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
