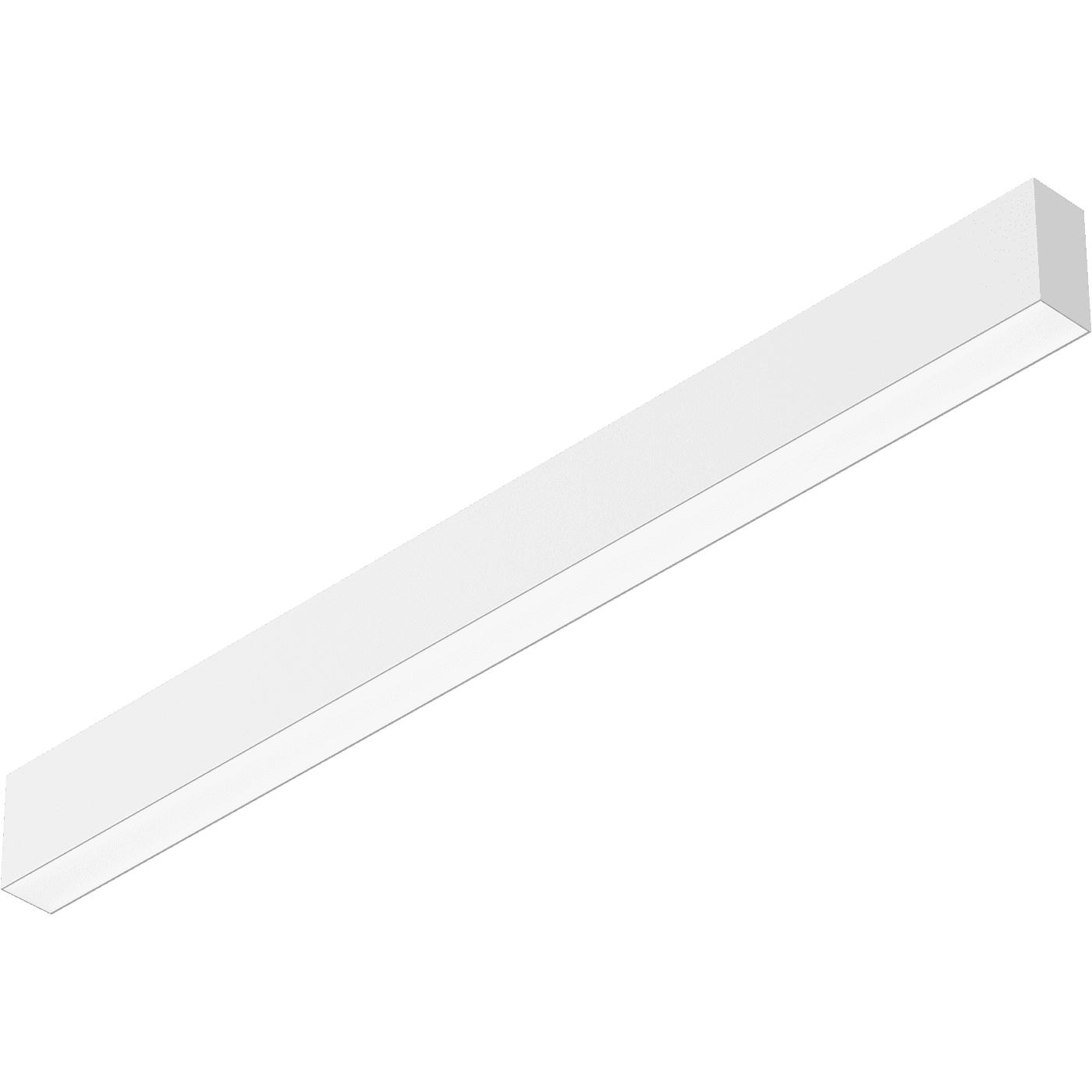

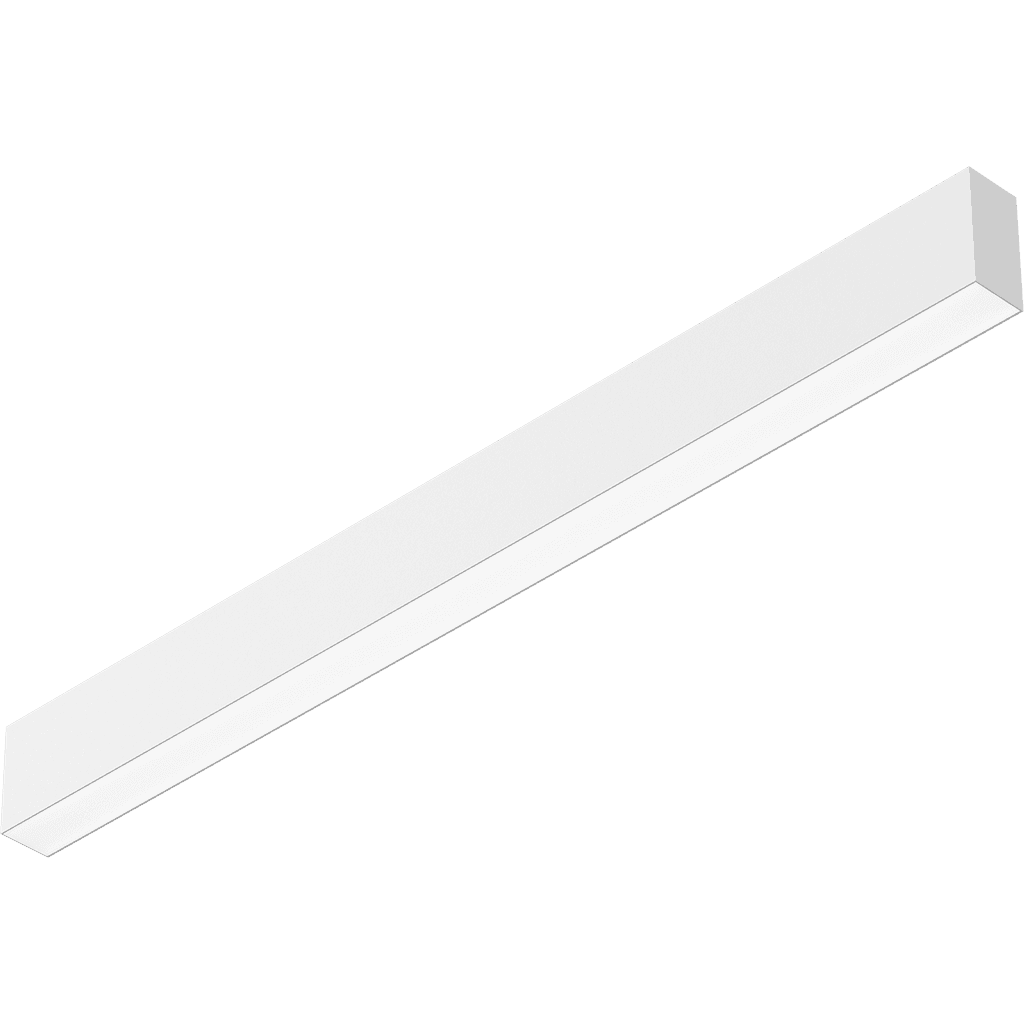

PROFILE 60L P CC LED (630/1250) WH 3500K MED (low lumen)

PROFILE 60L P CC LED (630/1250) WH 3500K MED (low lumen)
20 Wluminaire power
1850 lmlight flow
93 lm/Wenergy efficiency
code1248005650
color temperature3500
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
20 W
electric shock protection
I
maximum number of luminaires in a line
20
power factor
> 0,96
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
20 W
electric shock protection
I
maximum number of luminaires in a line
20
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
5.3 kg
length, mm
1248 mm
width, mm
628 mm
height, mm
85 mm
housing color
Белый
installation length, mm
318 mm
installation width, mm
348 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1248005650
illuminating
color rendition index (CRI)
>80
light flow
1850 lm
flickering factor
<1%
energy efficiency
93 lm/W
beam angle
D120
color temperature
3500
light source type
LED
emission color
Белый
