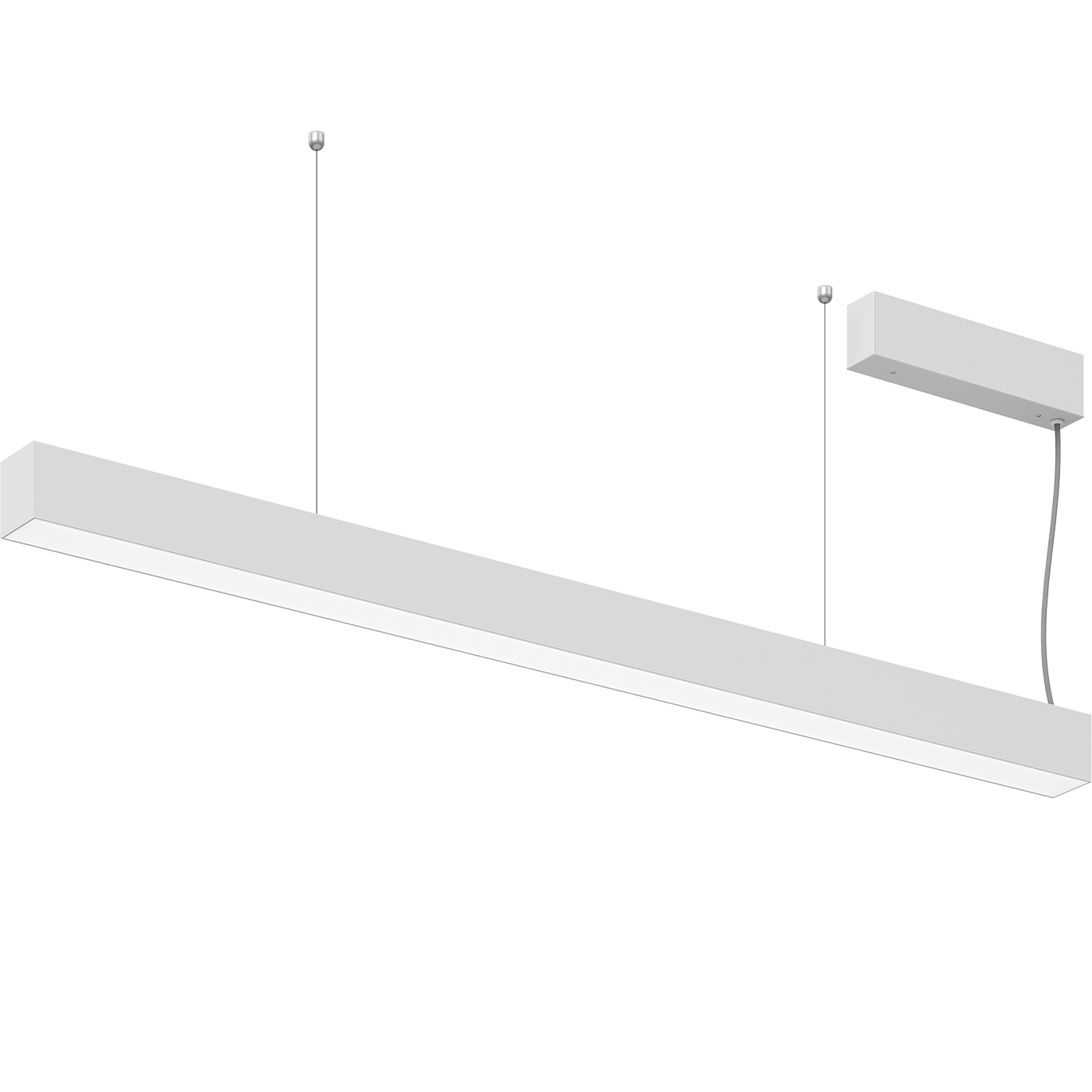

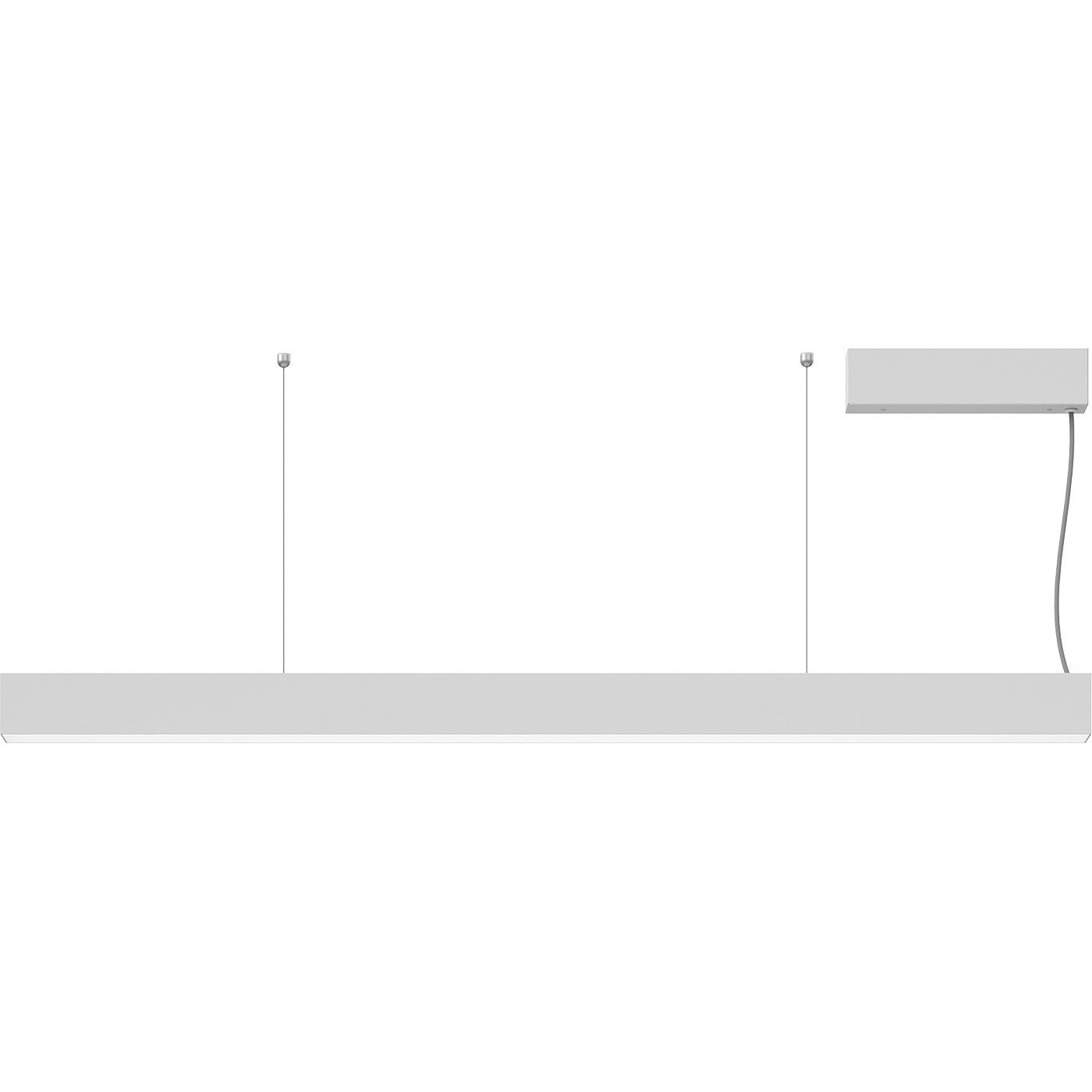

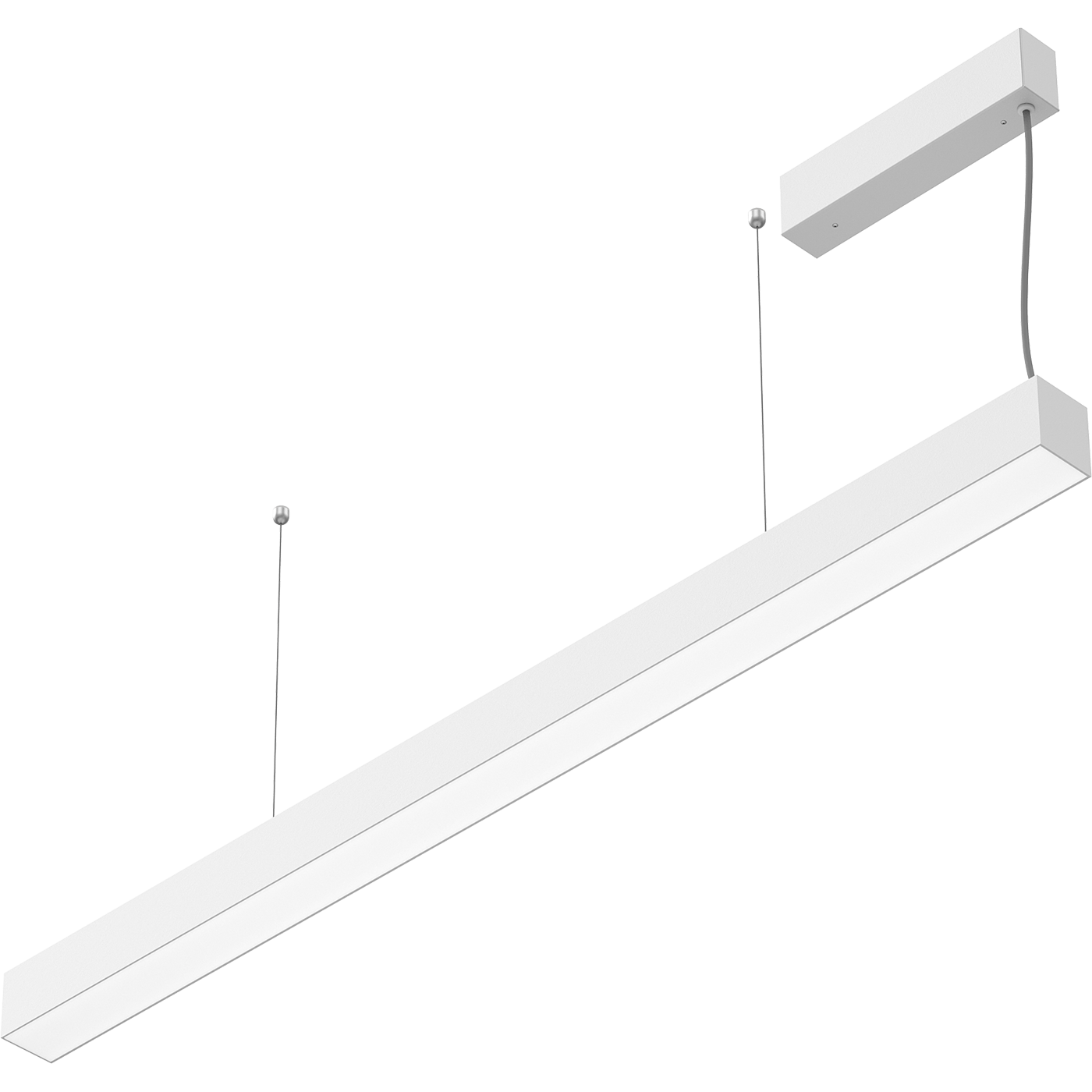

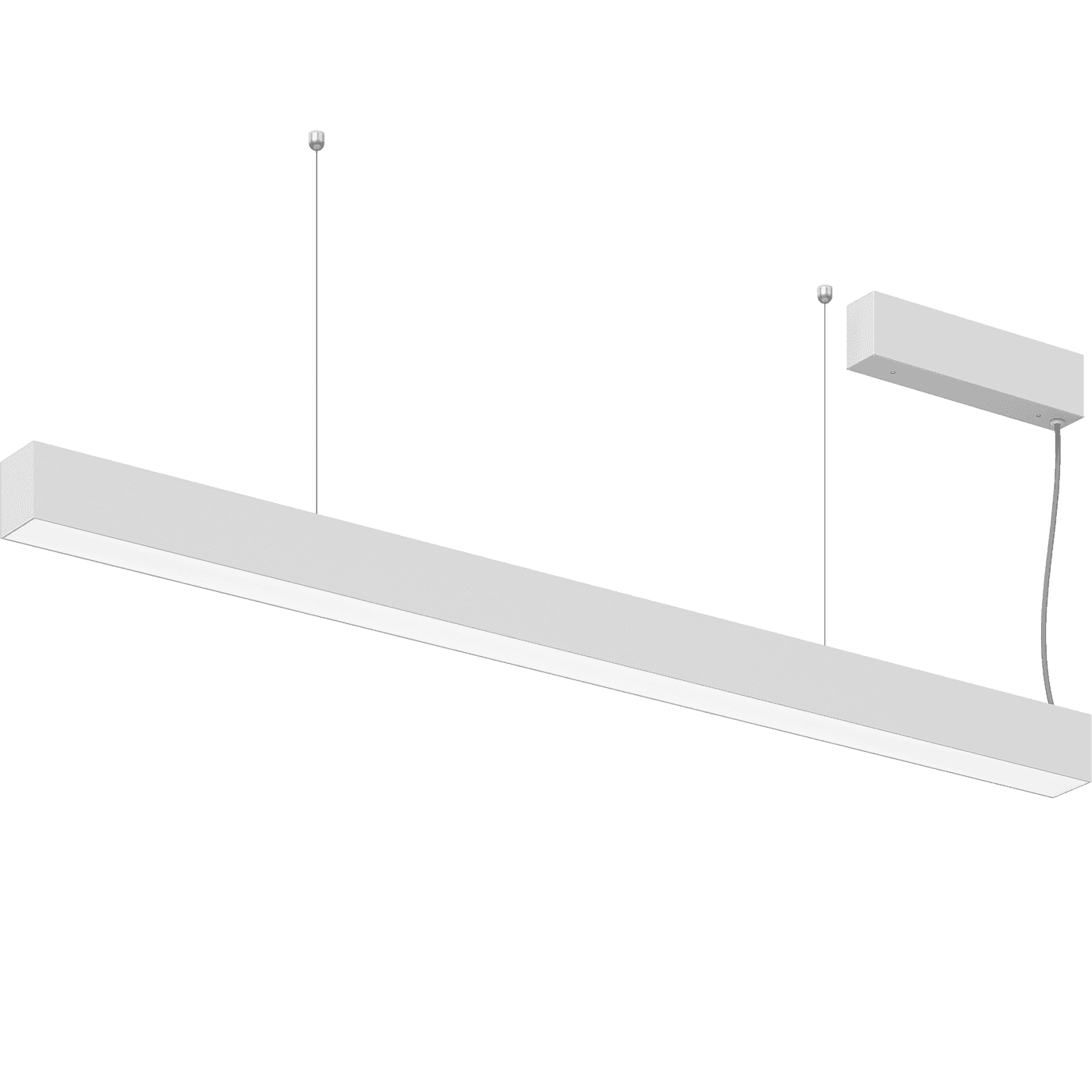

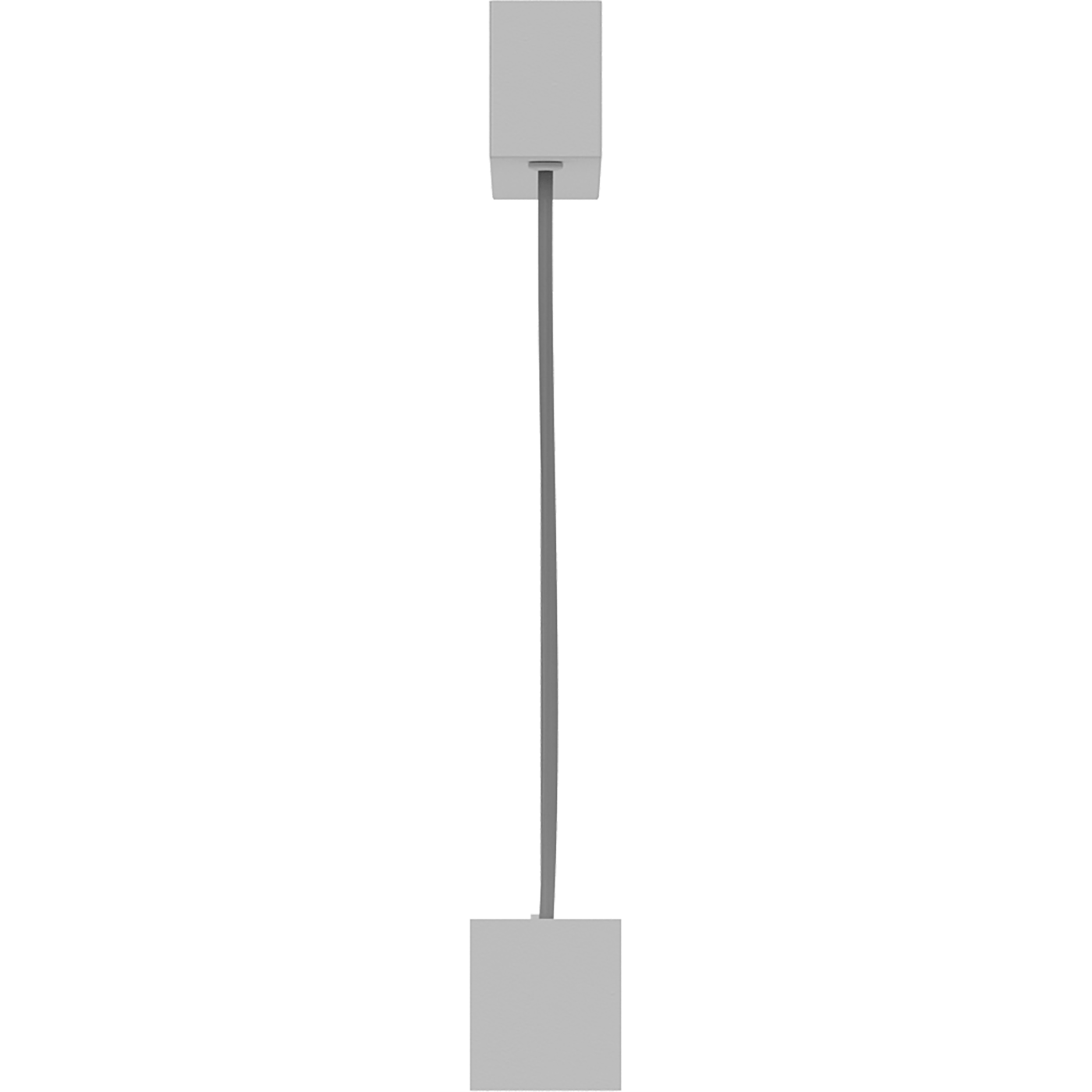

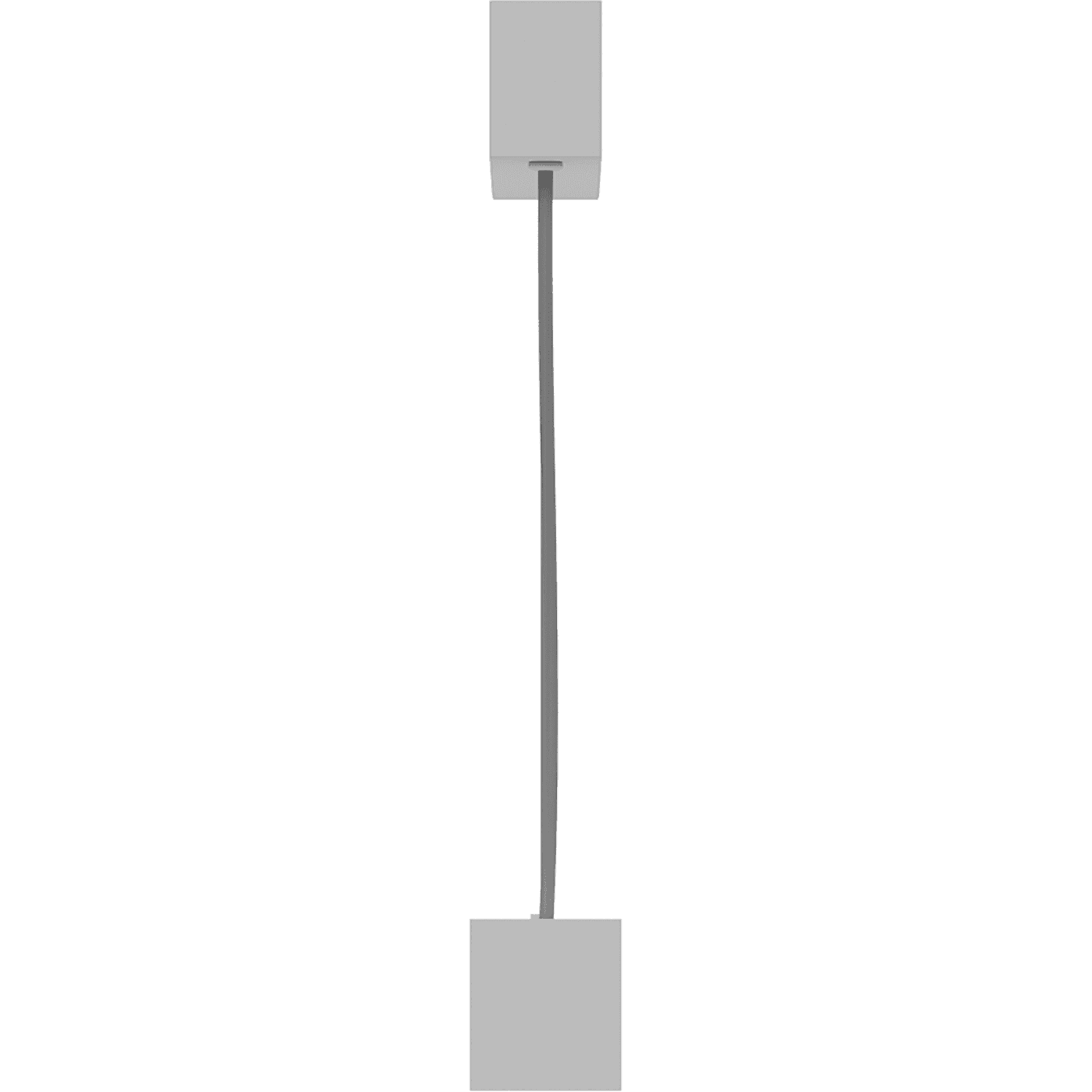

PROFILE 60L P LED 2400 BL 4000K
PROFILE 60L P LED 2400 BL 4000K
56 Wluminaire power
4900 lmlight flow
88 lm/Wenergy efficiency
code1248004380
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
30 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
56 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
5.7 kg
length, mm
2418 mm
width, mm
60 mm
height, mm
68 mm
housing color
Черный
installation length, mm
1050 mm
installation width, mm
413 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
50 000 h
code
1248004380
illuminating
color rendition index (CRI)
>80
light flow
4900 lm
flickering factor
<5%
energy efficiency
88 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

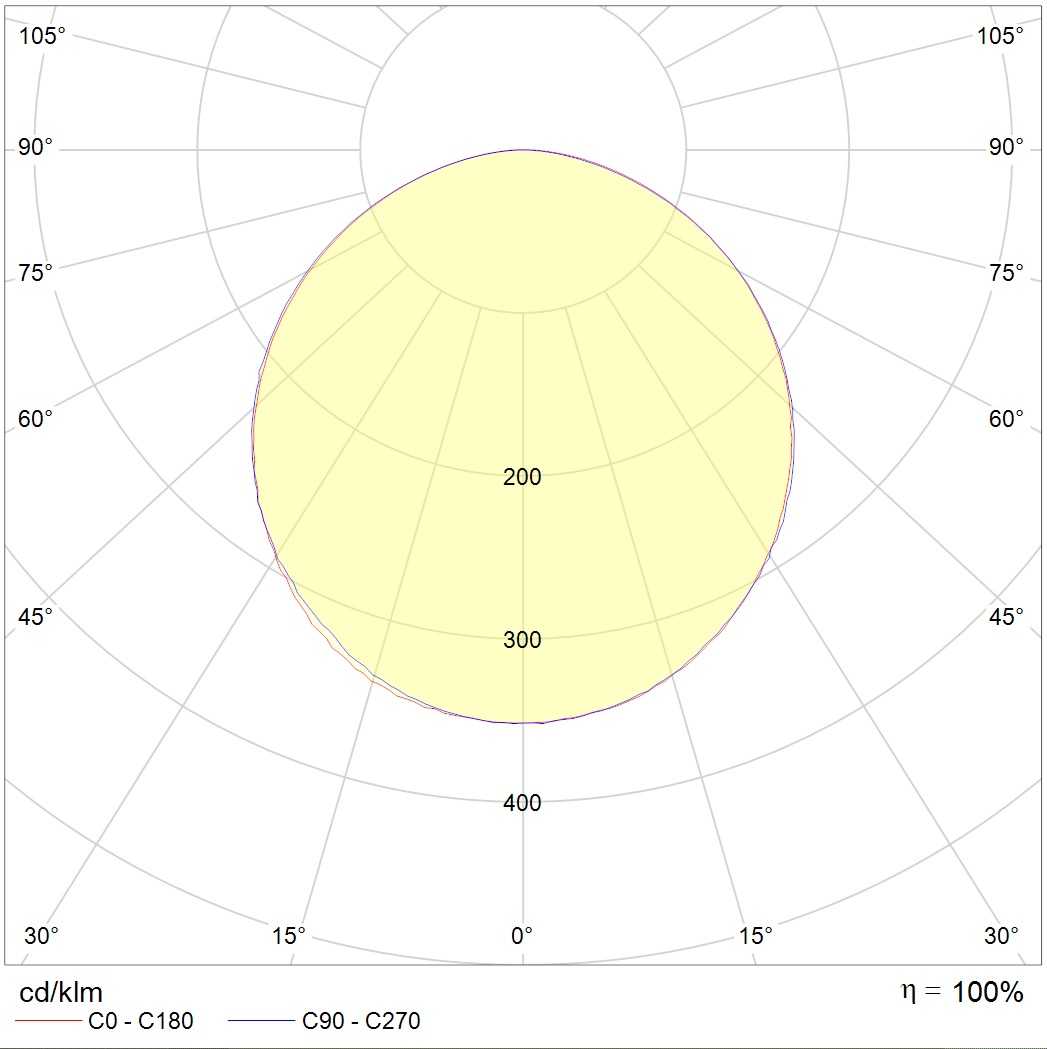

photometric files
ies263.2 kB
jpg116 kB
ldt165.9 kB
documents
passport1.3 mB
сертификаты
Russian origin287.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
