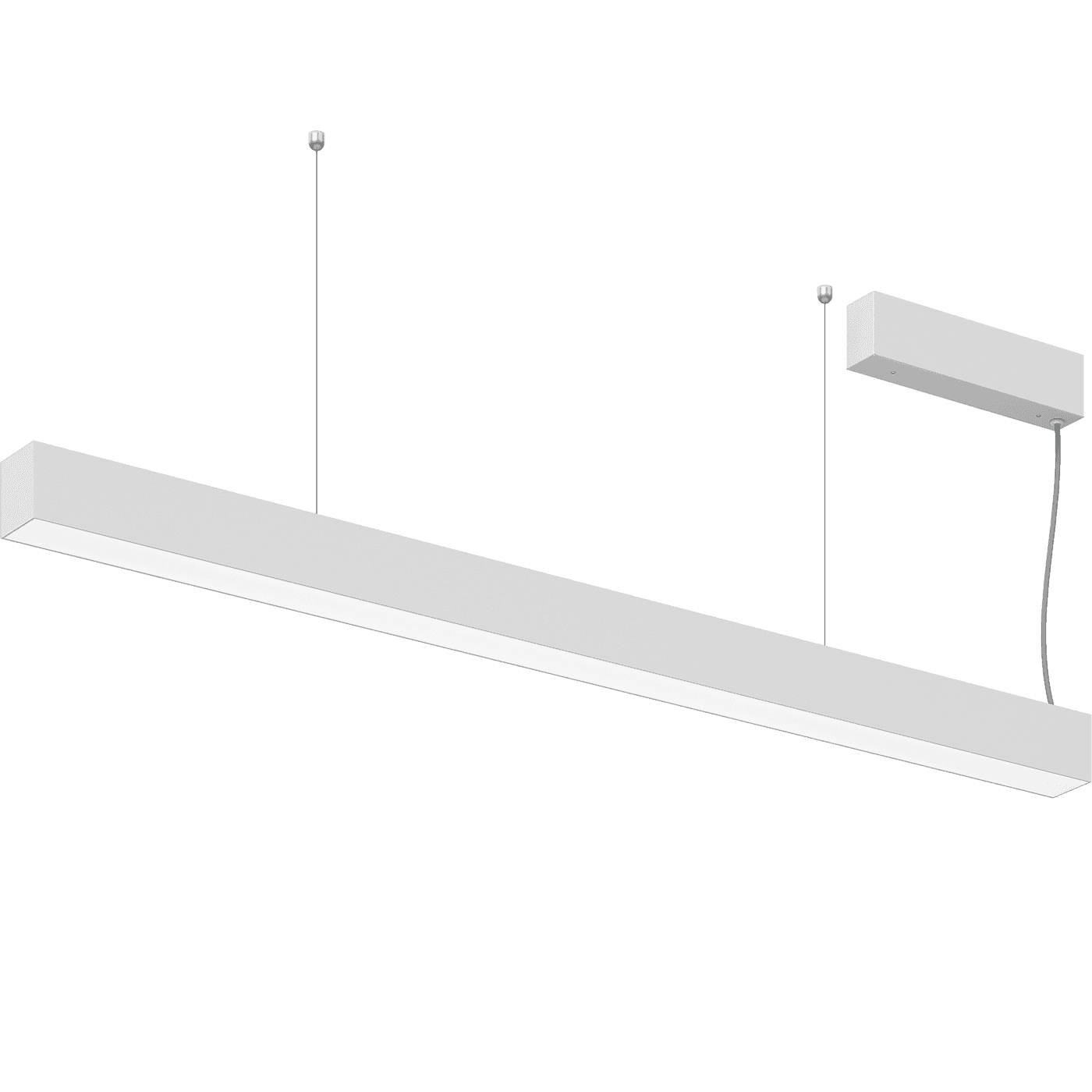

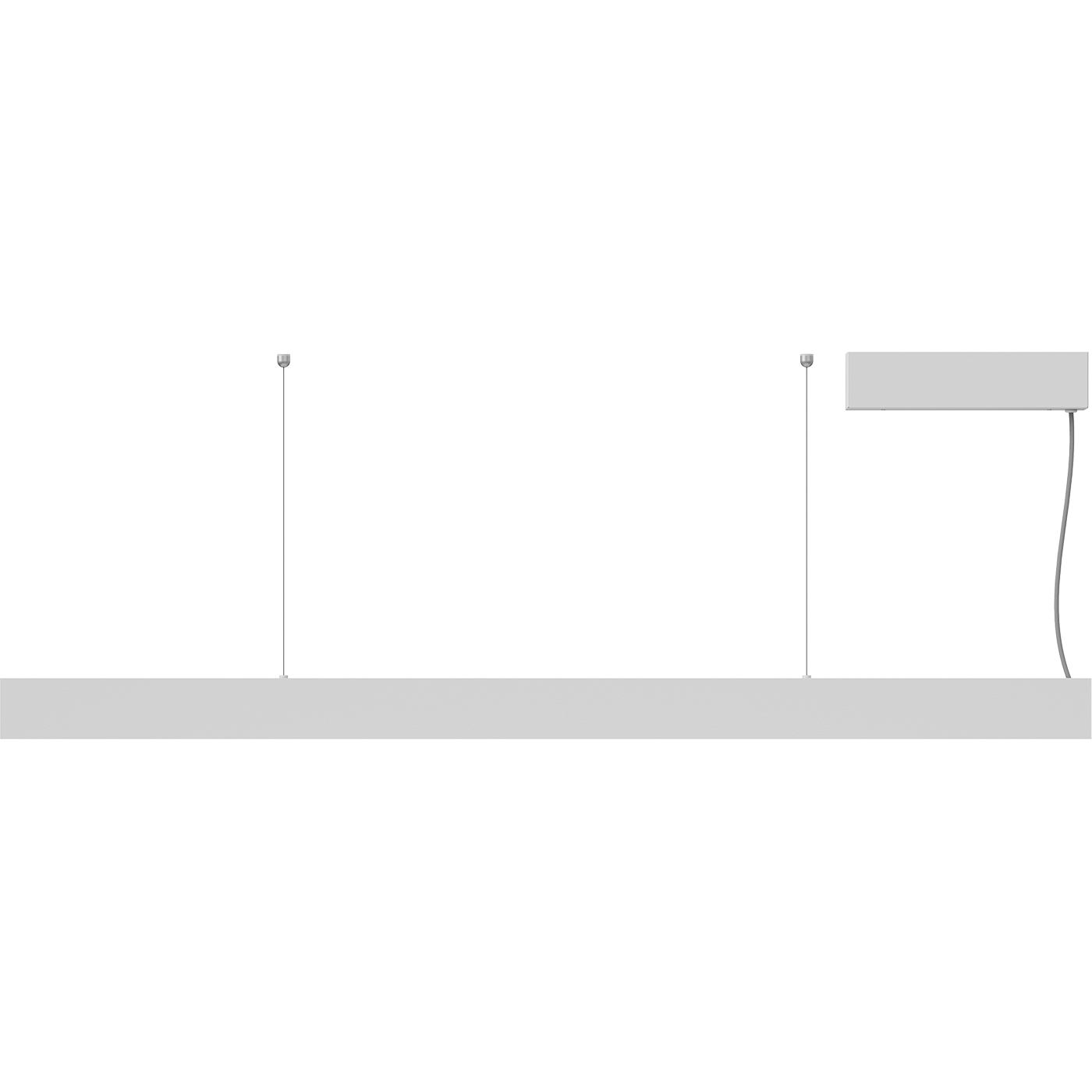

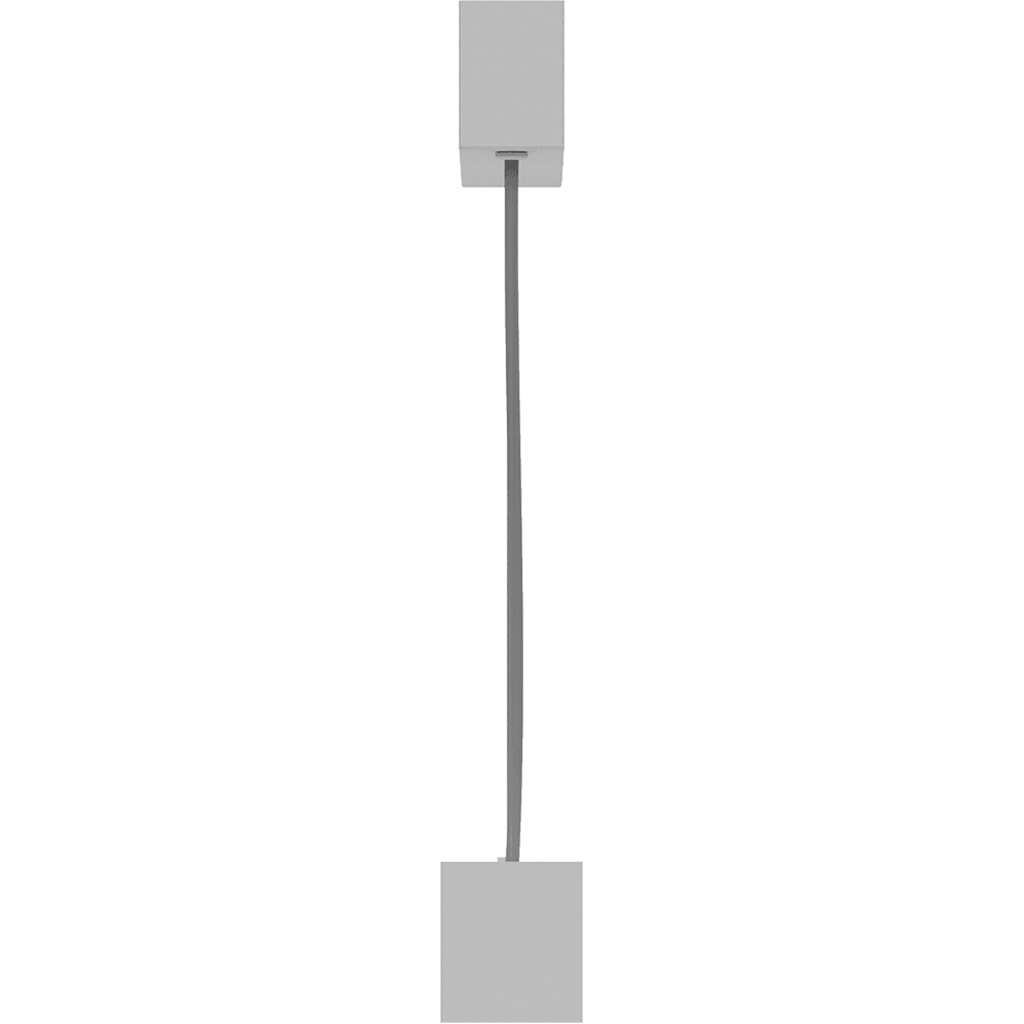

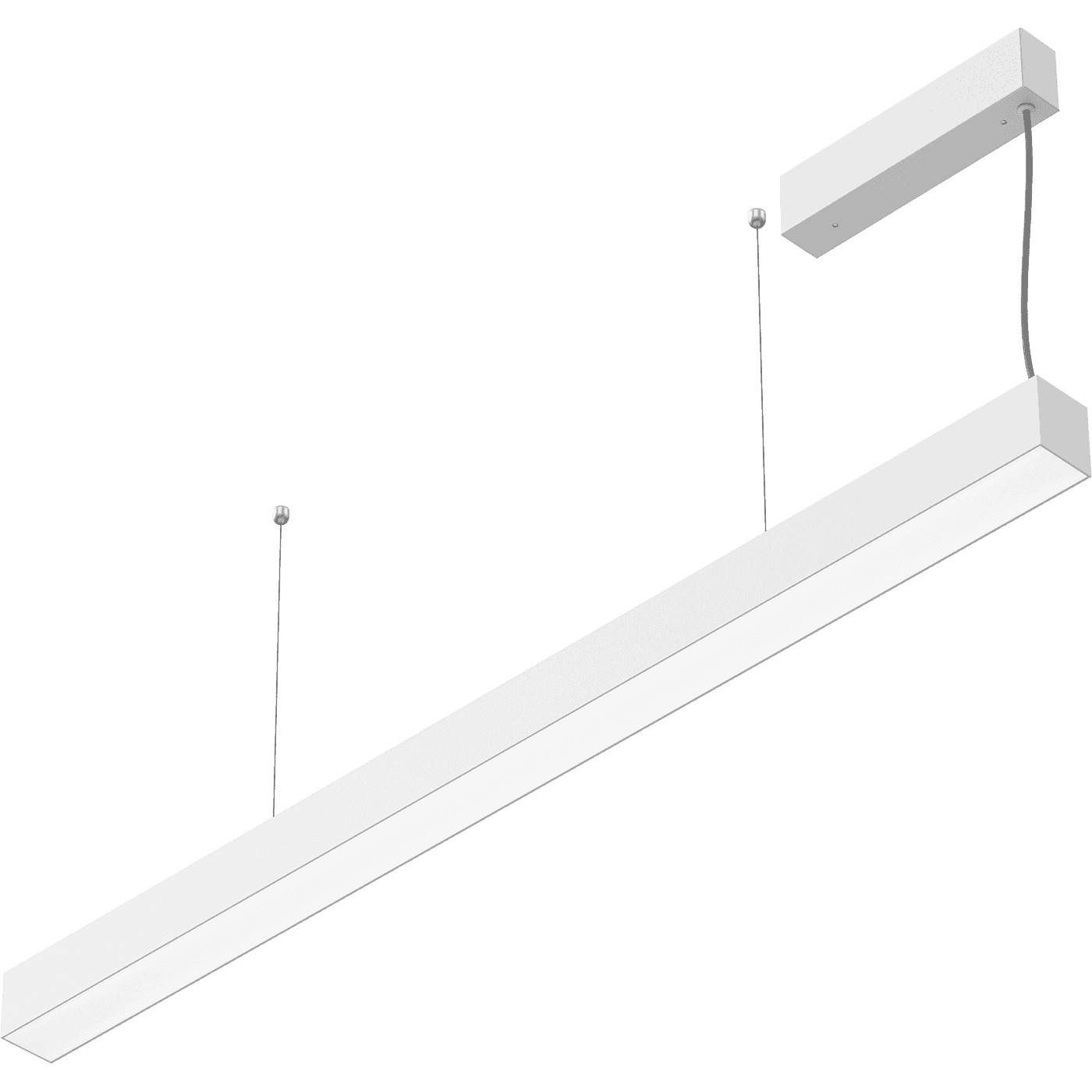

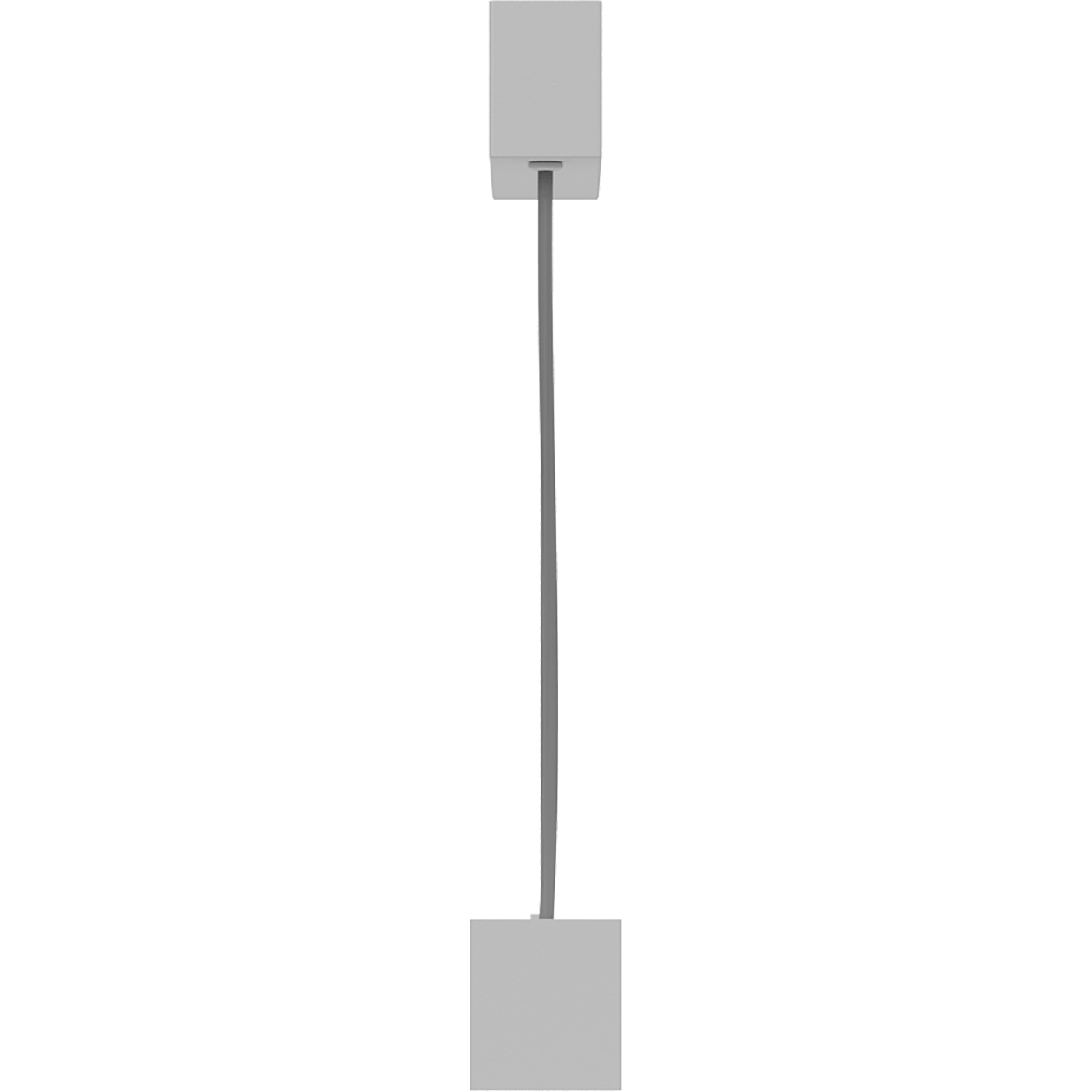

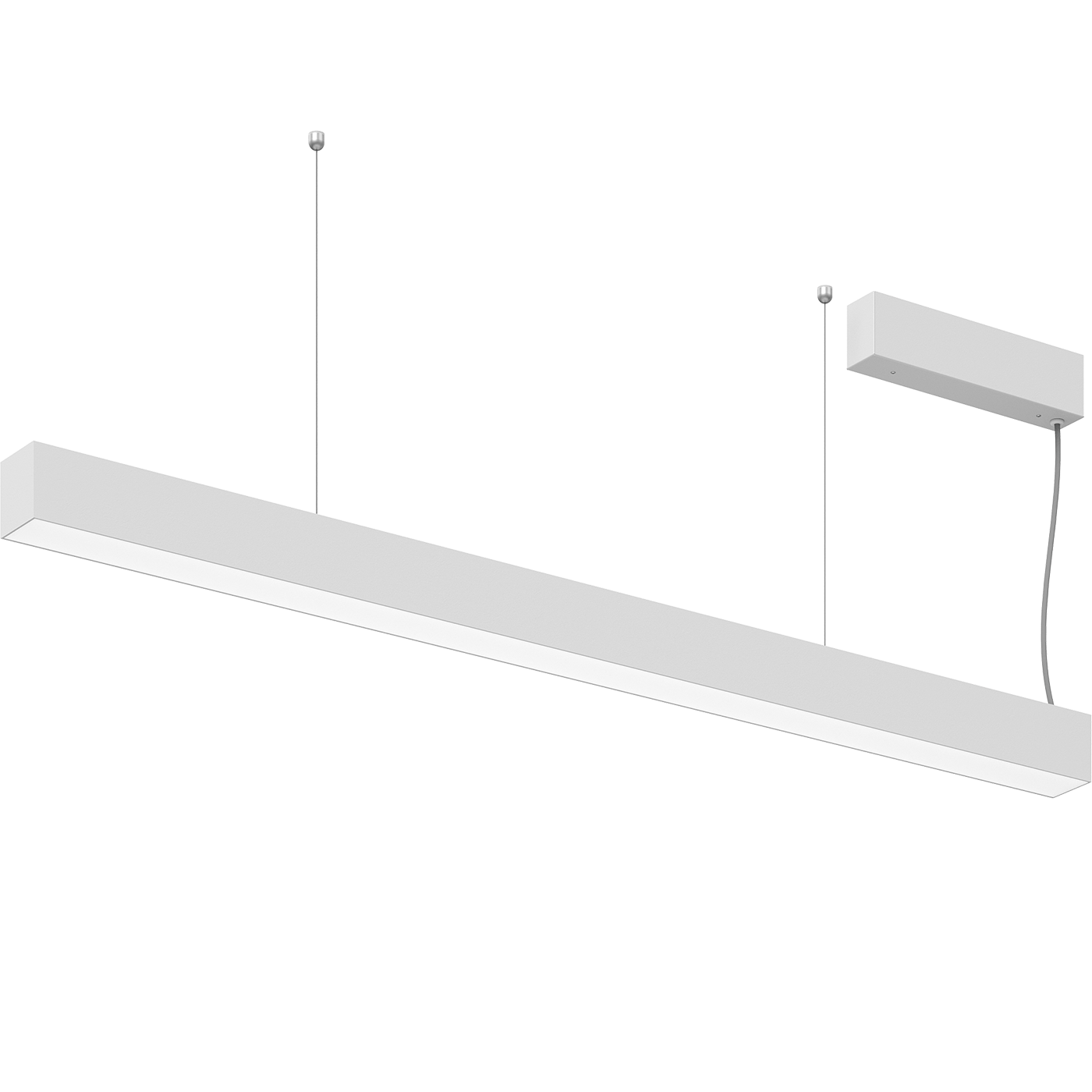

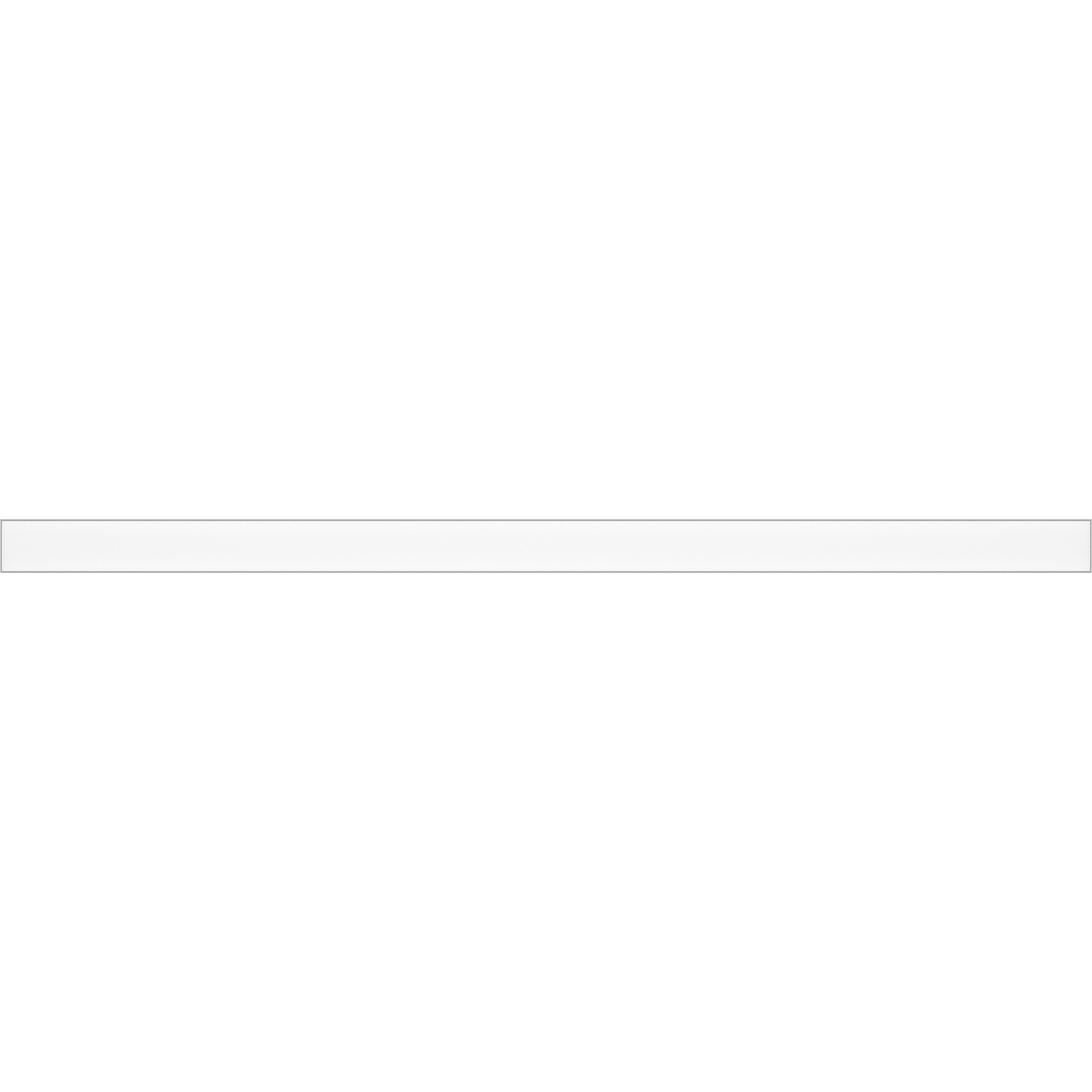

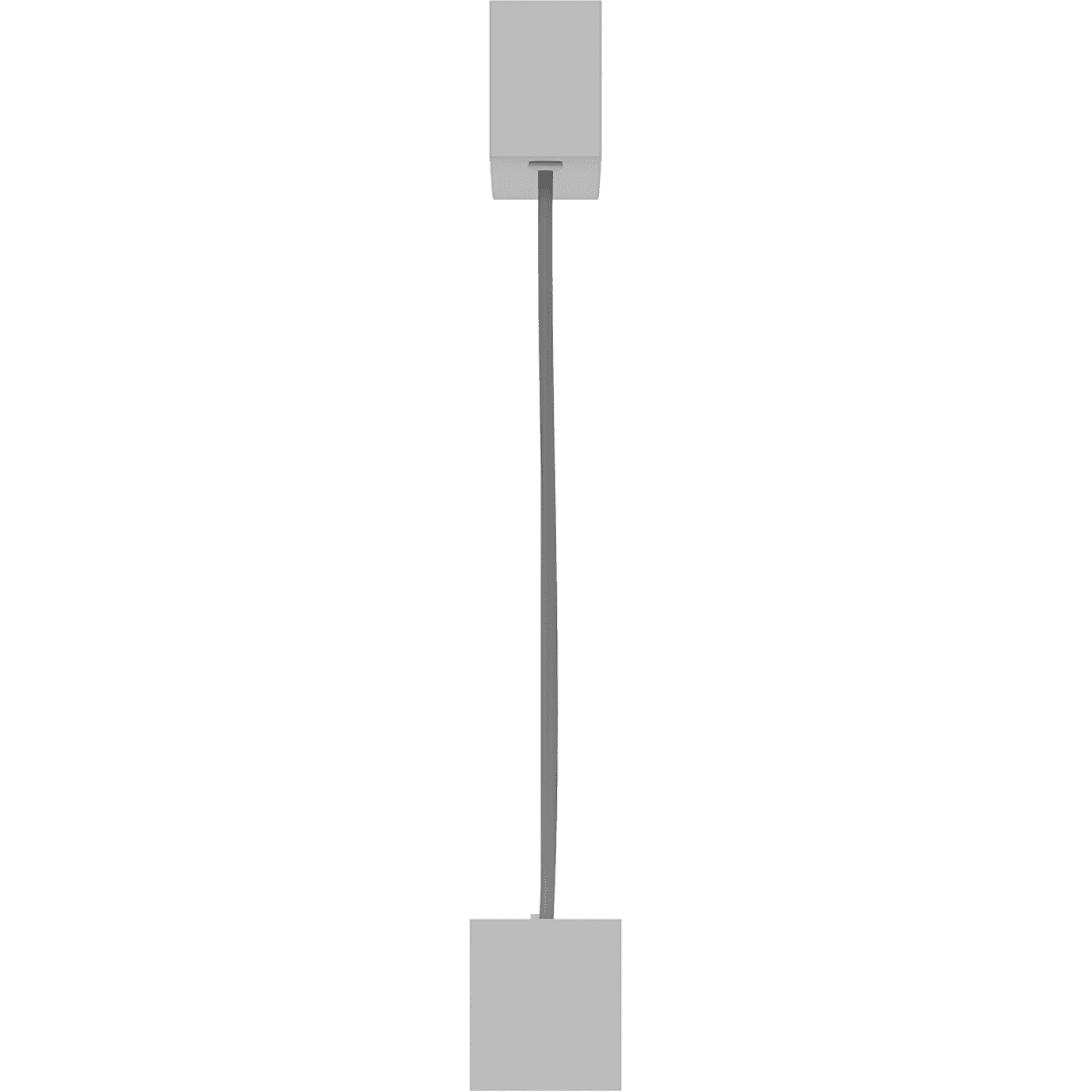

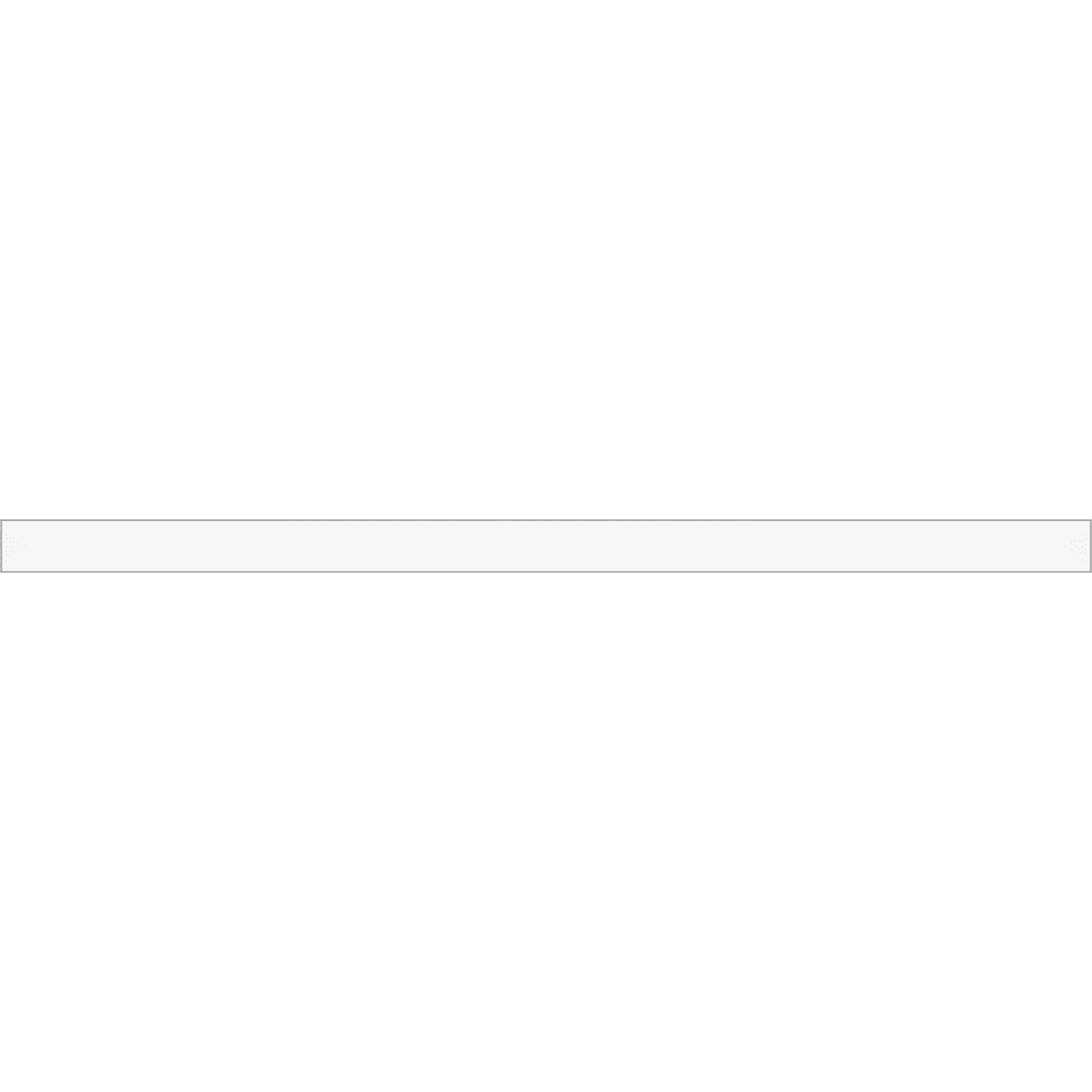

PROFILE 60L P DR LED 1500 4000K
archive
archive
PROFILE 60L P DR LED 1500 4000K
34 Wluminaire power
3100 lmlight flow
91 lm/Wenergy efficiency
code1248006480
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
34 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
34 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
3.6 kg
length, mm
1510 mm
width, mm
60 mm
height, mm
68 mm
housing color
Металлик
installation length, mm
1200 mm
installation width, mm
235 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от 0 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1248006480
illuminating
color rendition index (CRI)
>80
light flow
3100 lm
flickering factor
<5%
energy efficiency
91 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
