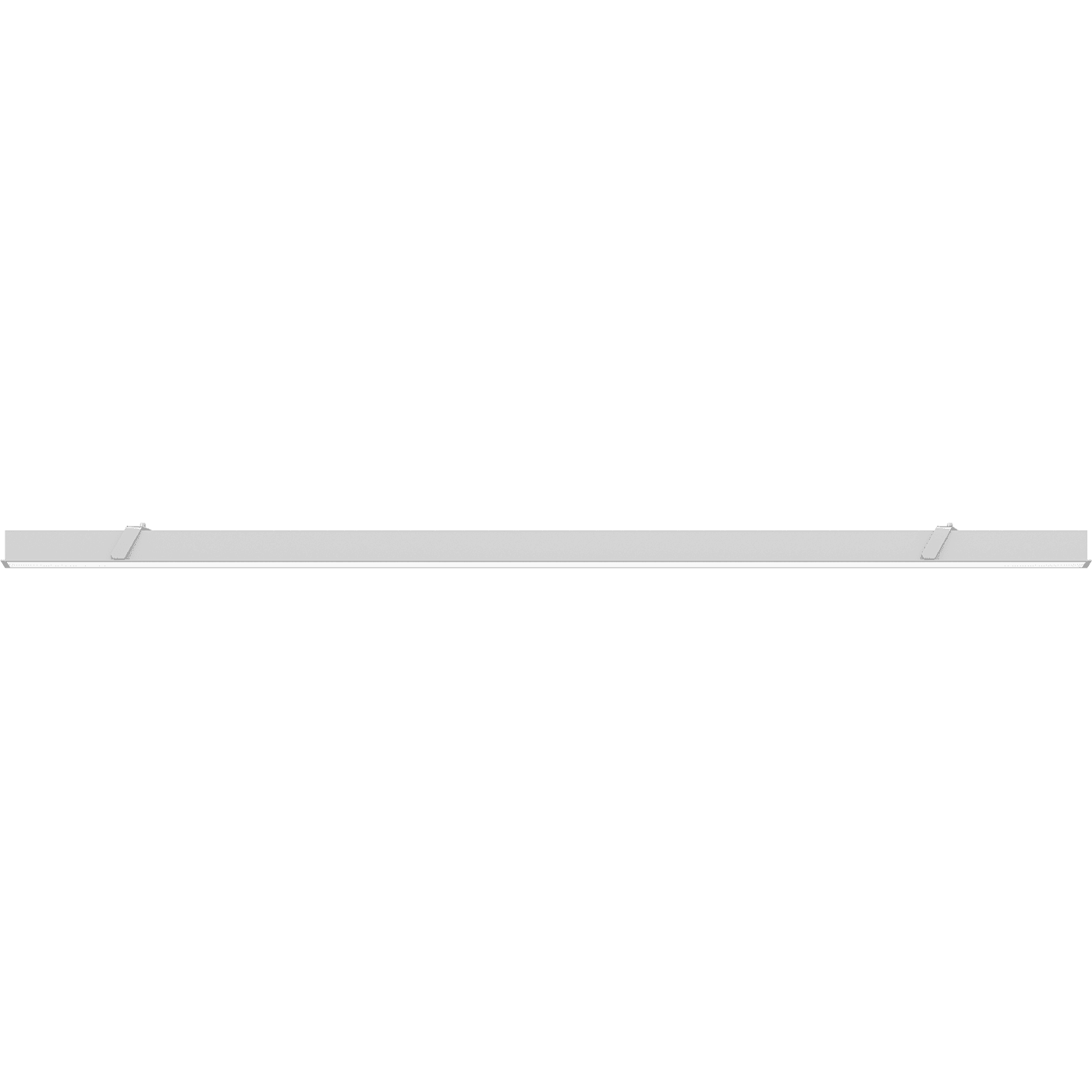

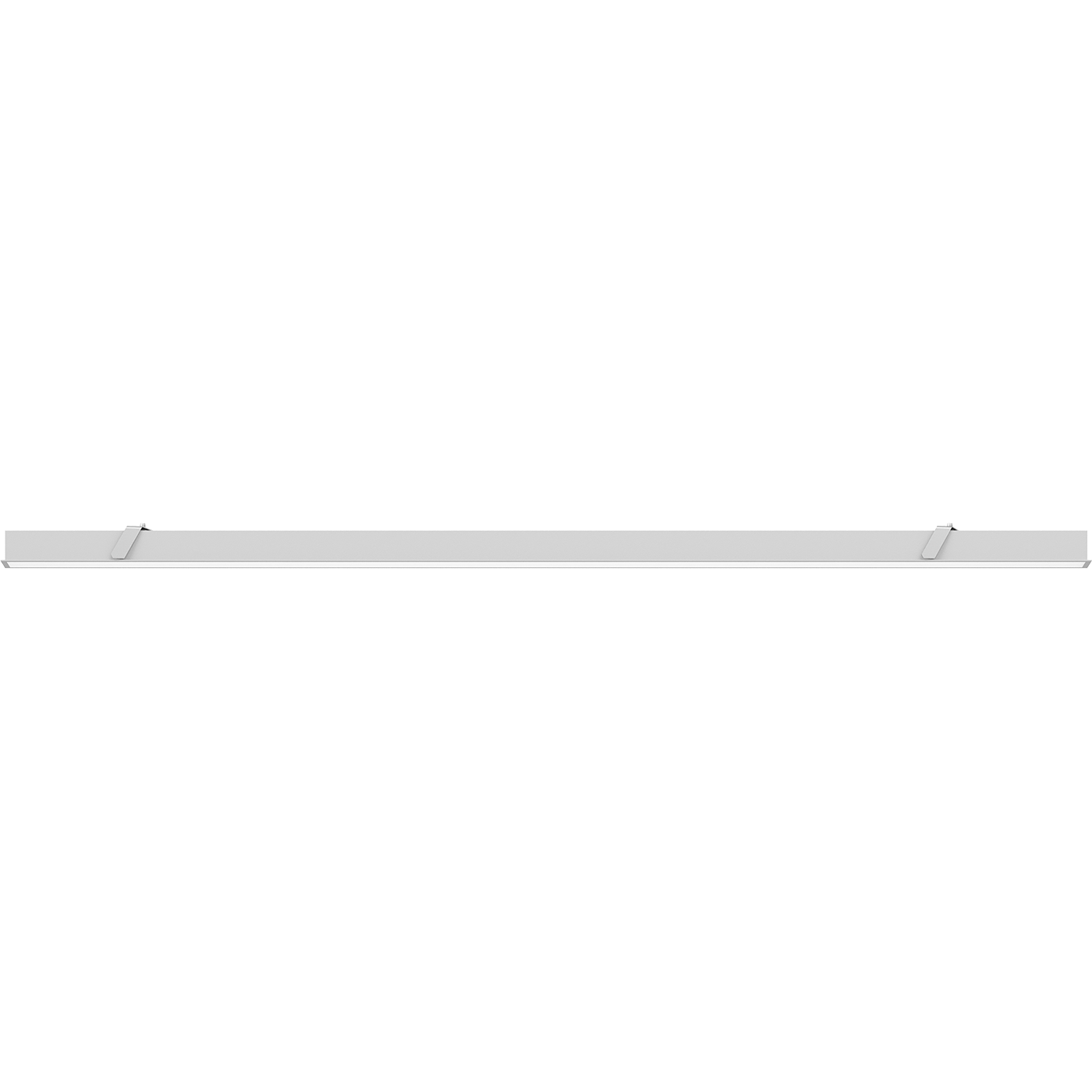

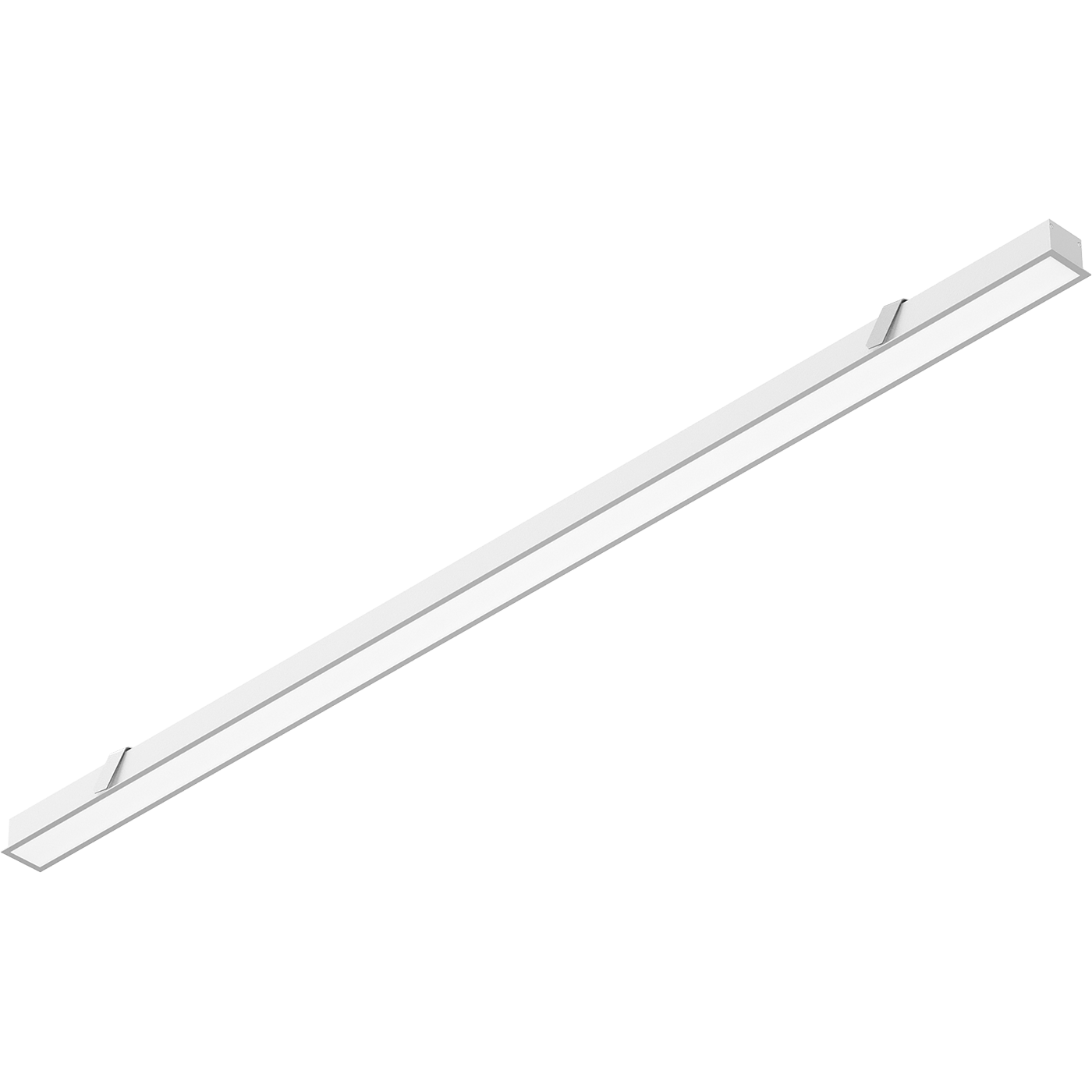

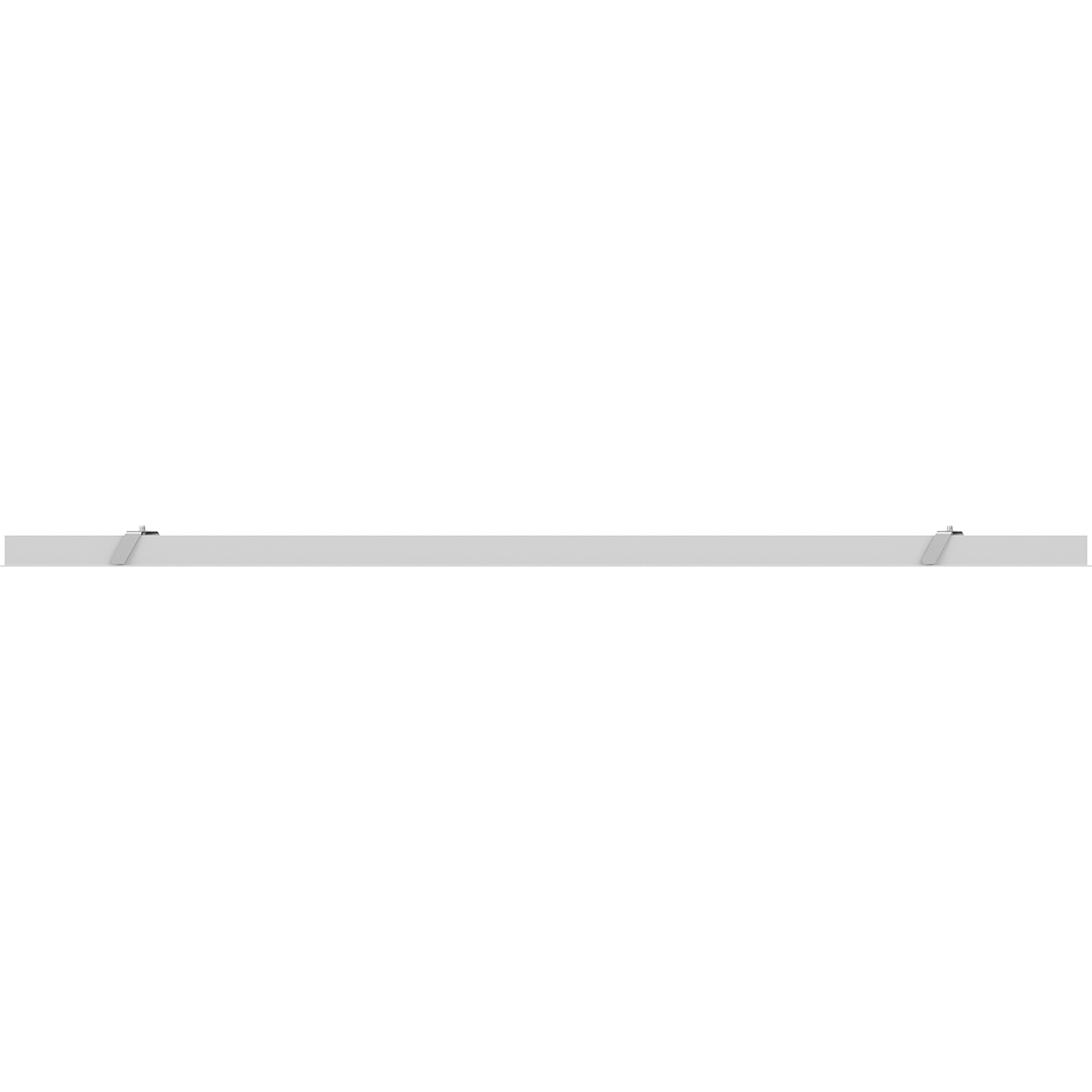

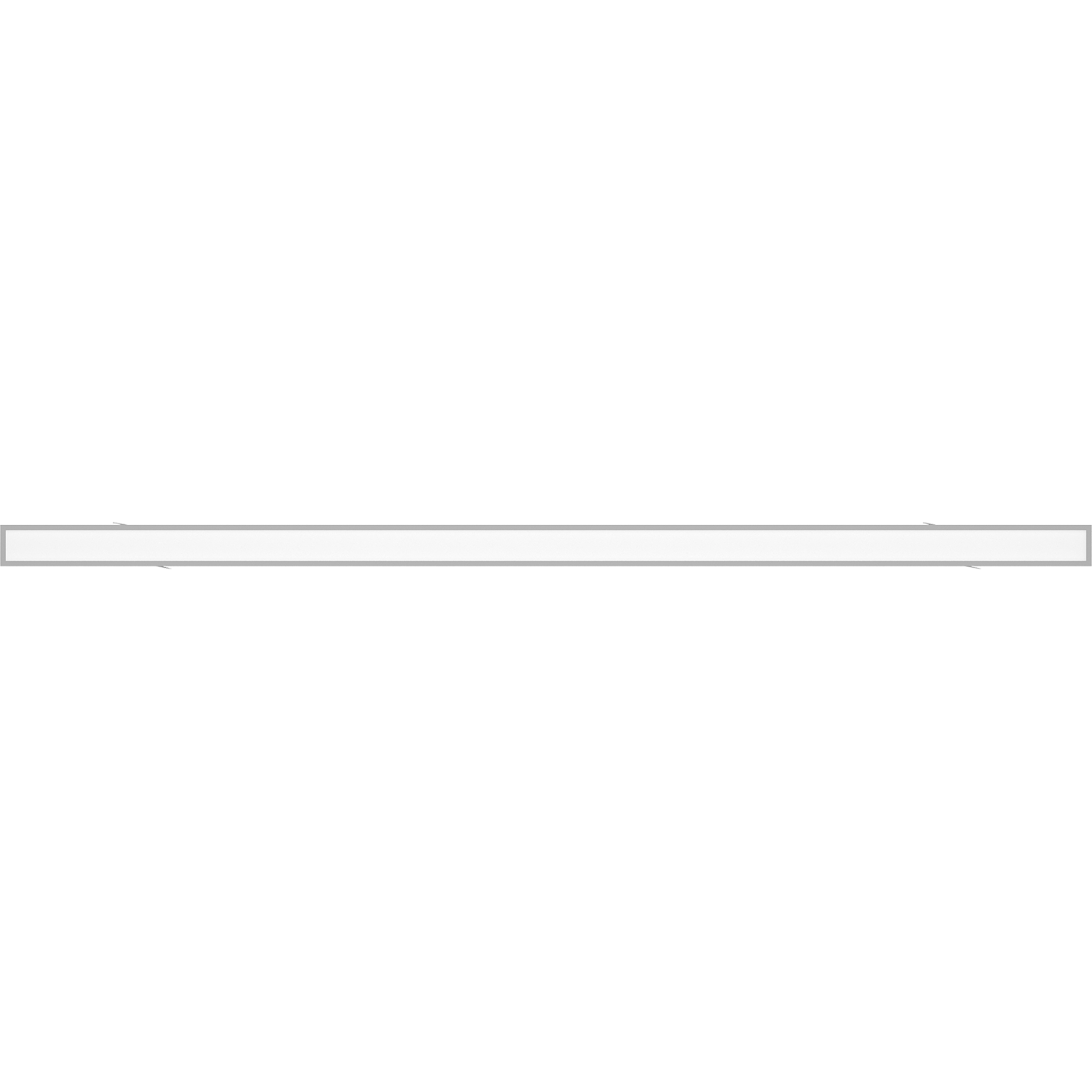

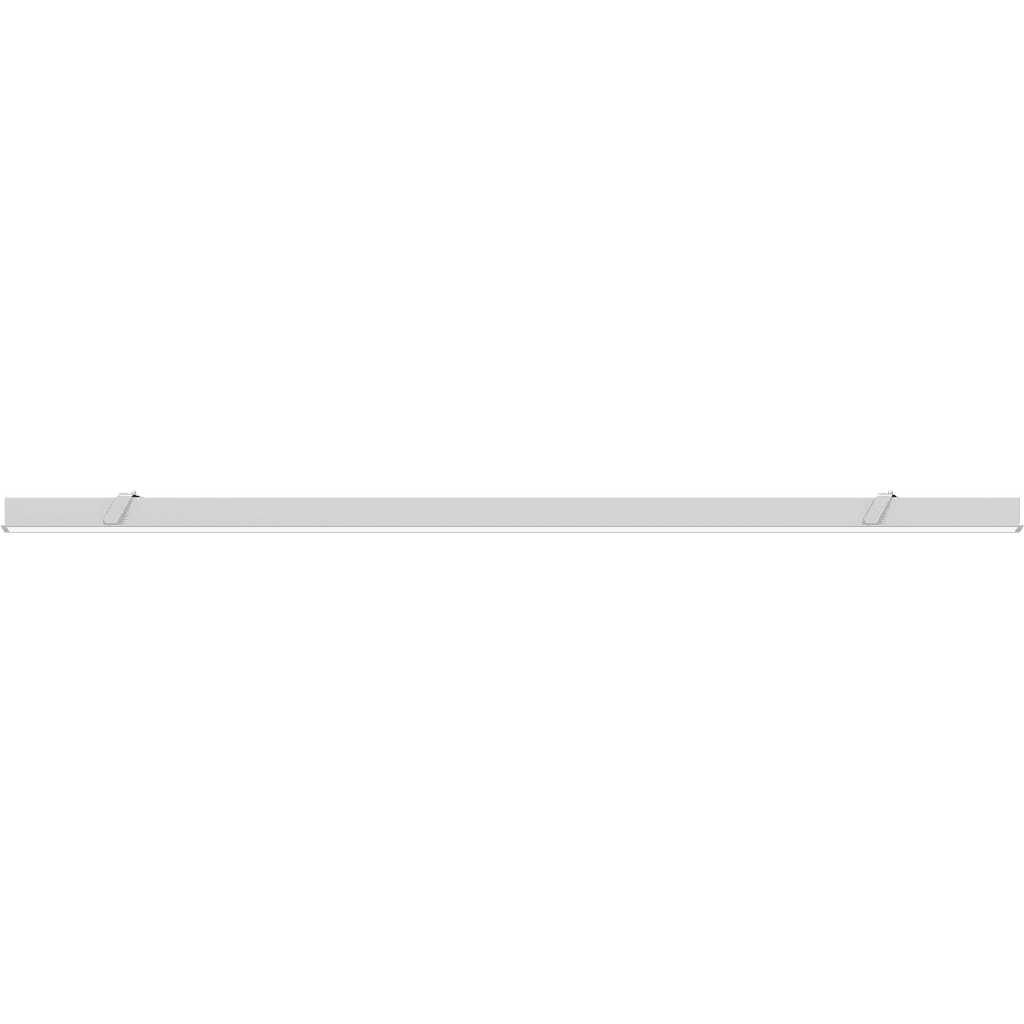

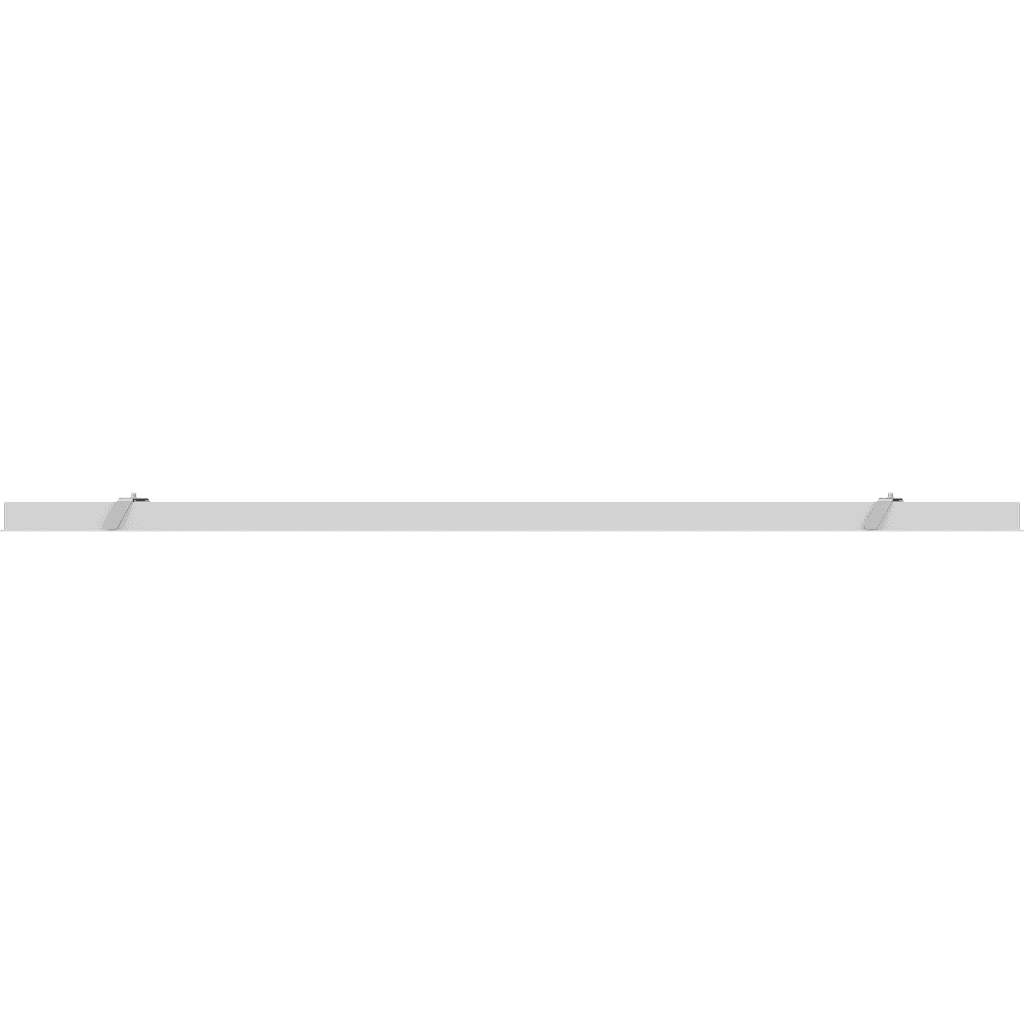

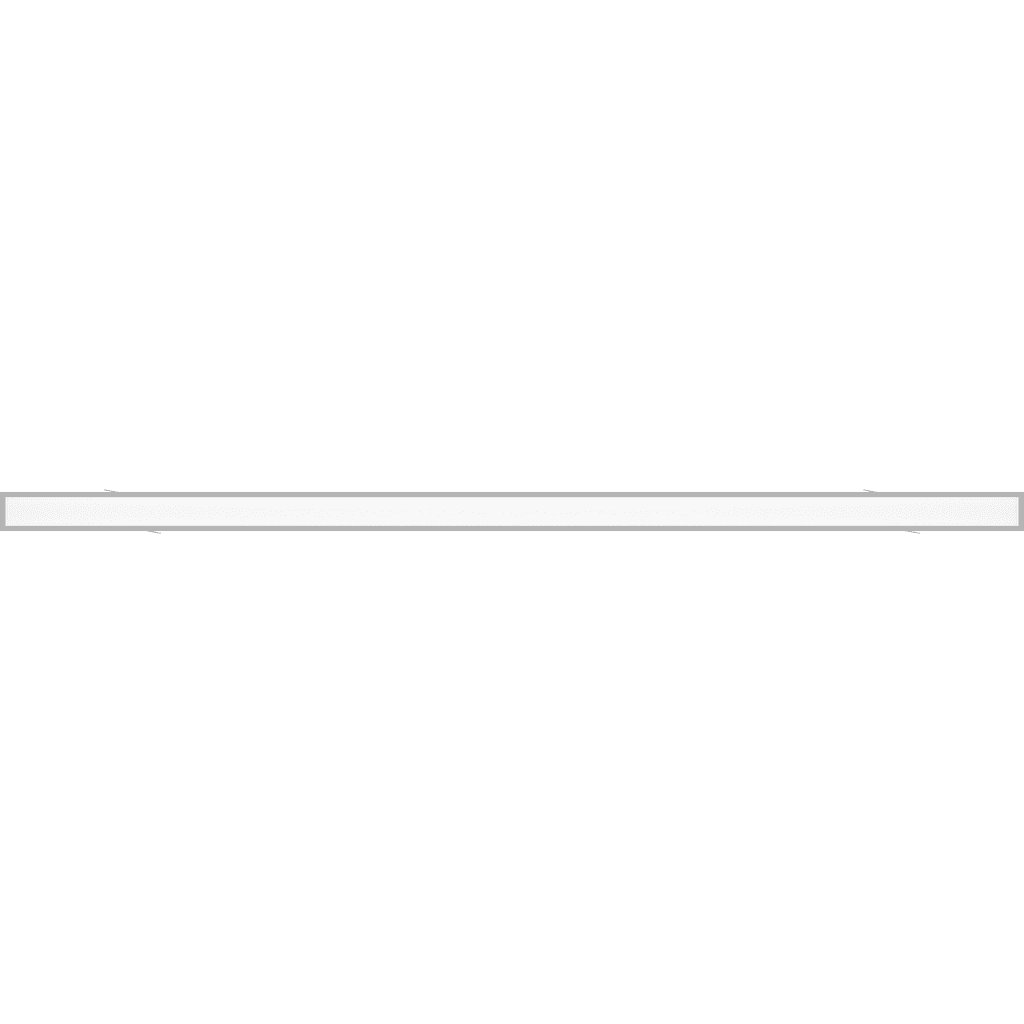

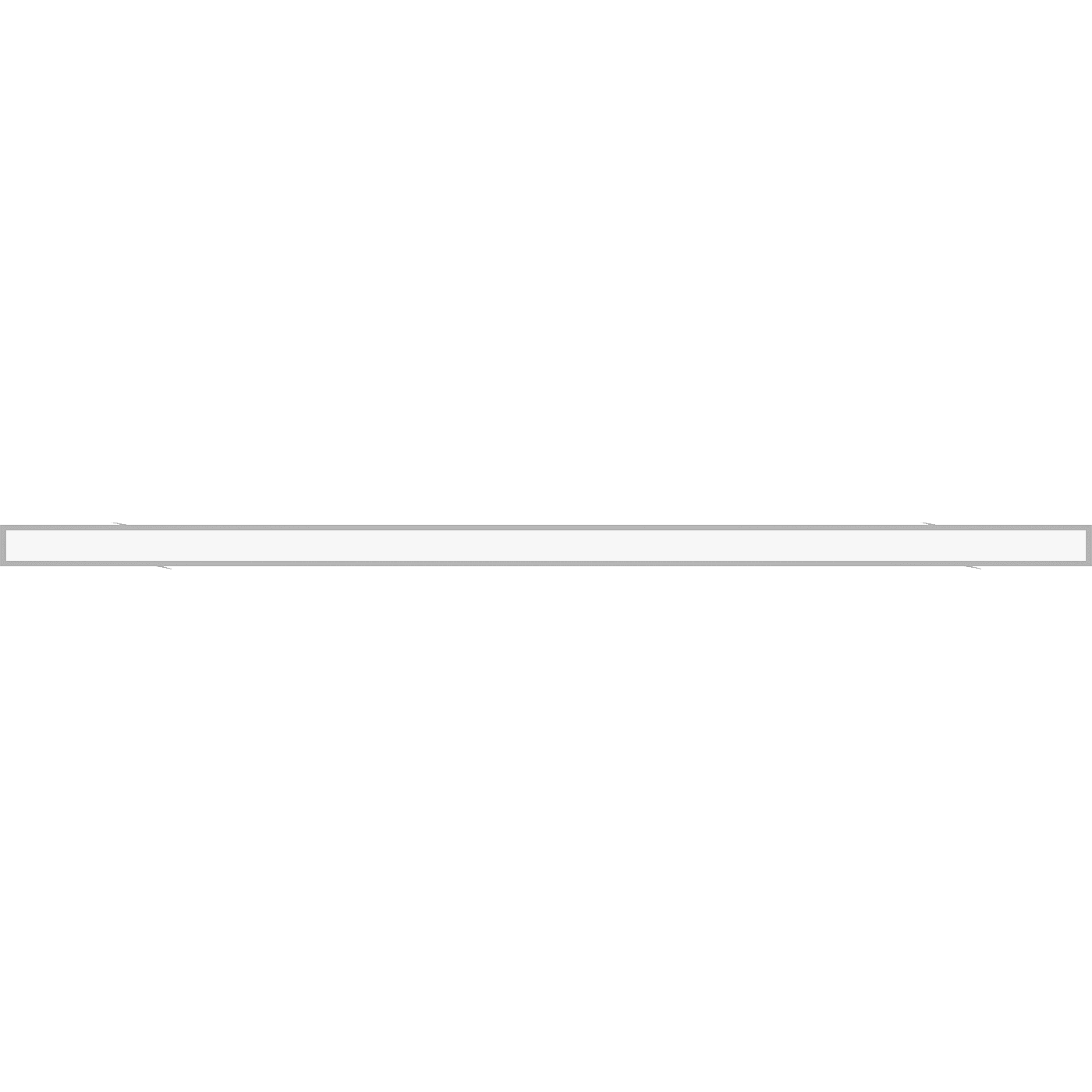

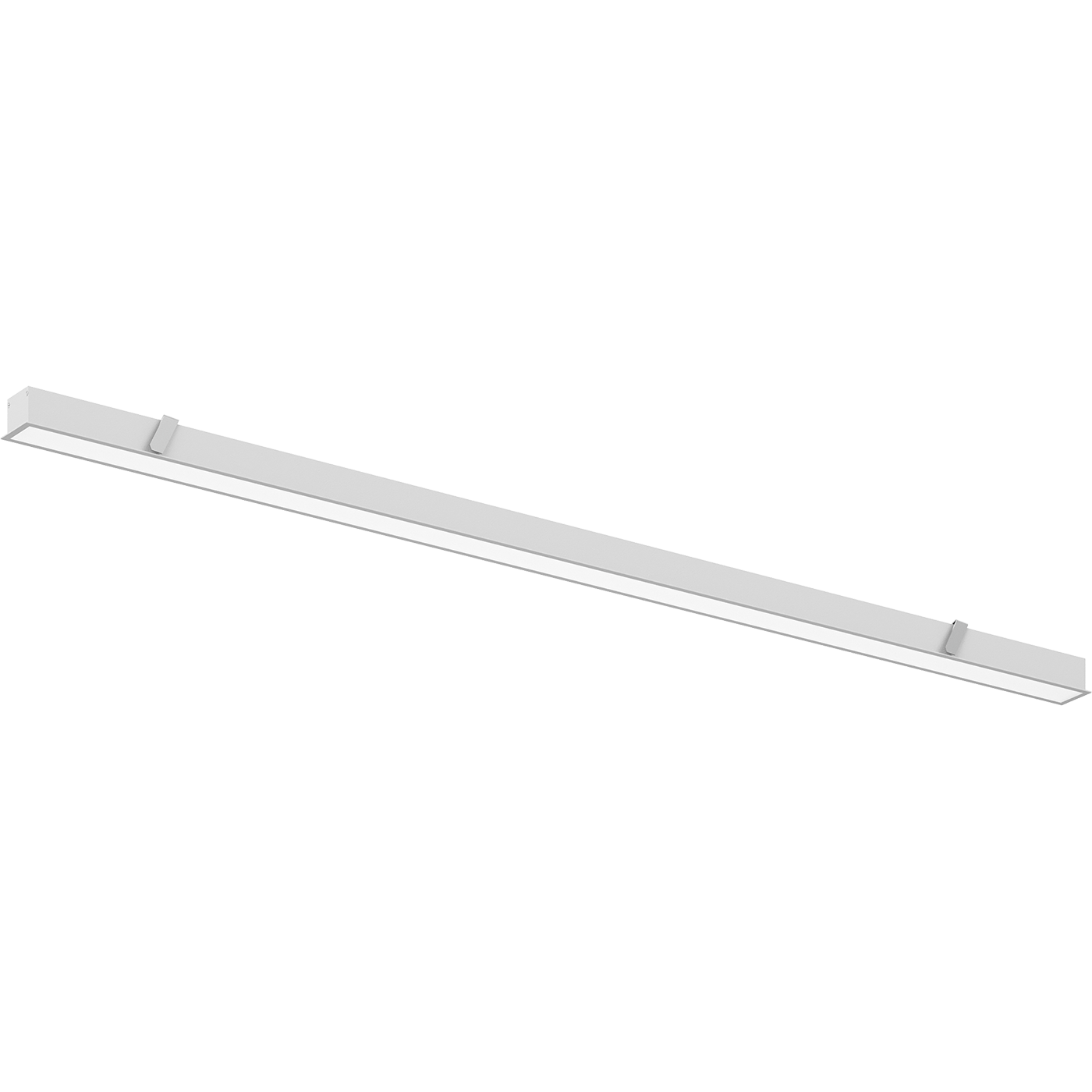

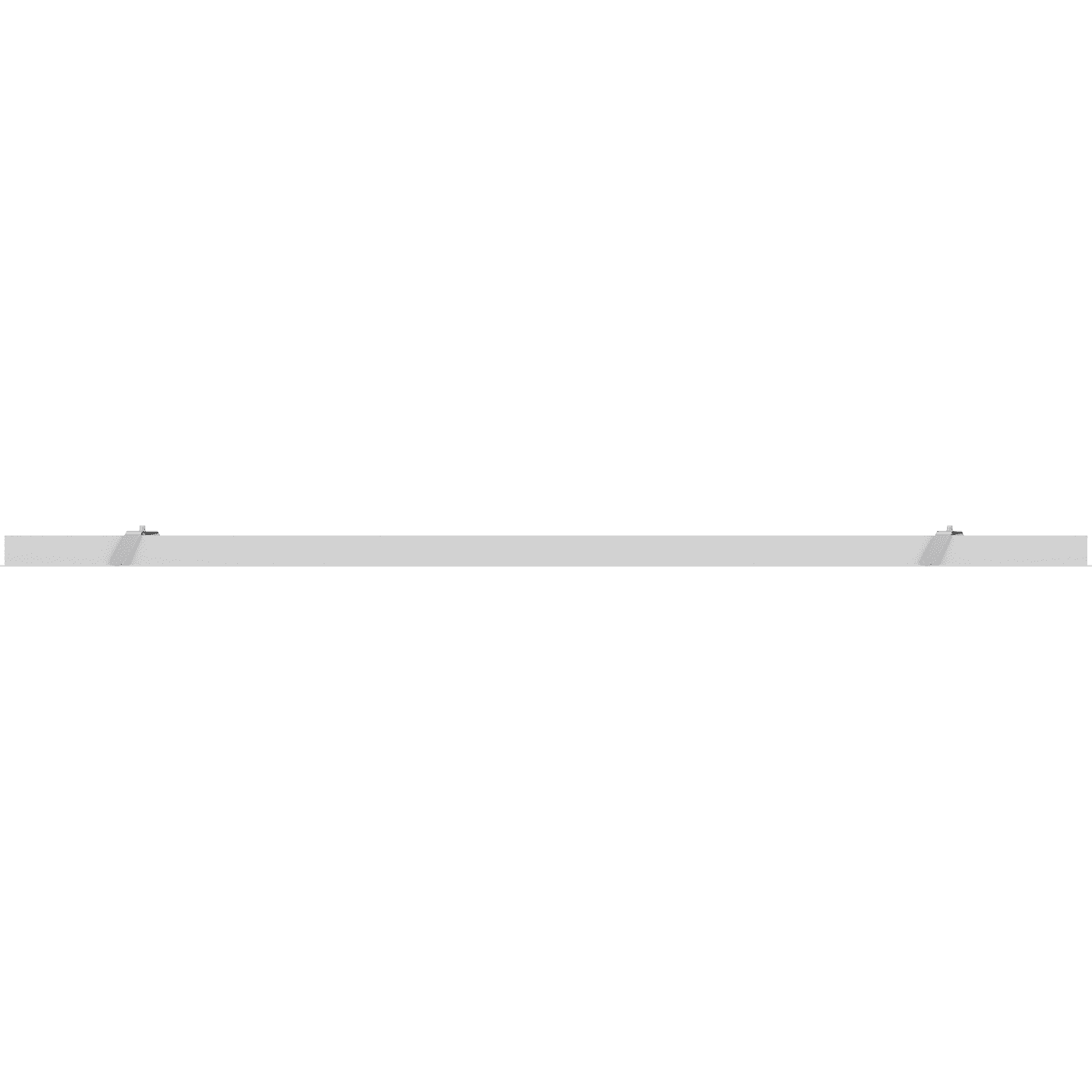

PROFILE 30R LED 900 4000K DALI (low lumen)
archive
archive
PROFILE 30R LED 900 4000K DALI (low lumen)
12 Wluminaire power
800 lmlight flow
67 lm/Wenergy efficiency
code1248007160
color temperature4000
beam angleD120
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
electric shock protection
Iluminaire power
12 Wpower factor
> 0,96supply voltage
230 Velectrical
electric shock protection
I
luminaire power
12 W
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
0.75
ingress protection (IP)
IP20
material
Алюминий
housing color
Металлик
length, mm
910 mm
width, mm
47 mm
height, mm
35 mm
weight
1 kg
fire safety class
П-ІІІ
climatic performance
УХЛ4*
installation length, mm
914 mm
installation width, mm
42 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
code
1248007160
energy efficiency class
A
illuminating
color rendition index (CRI)
>80
light flow
800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
67 lm/W
LMS options
dimming
DALI
model files
model files
photometric files
сертификаты
photometric files
ies263.2 kB
jpg116 kB
ldt165.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
