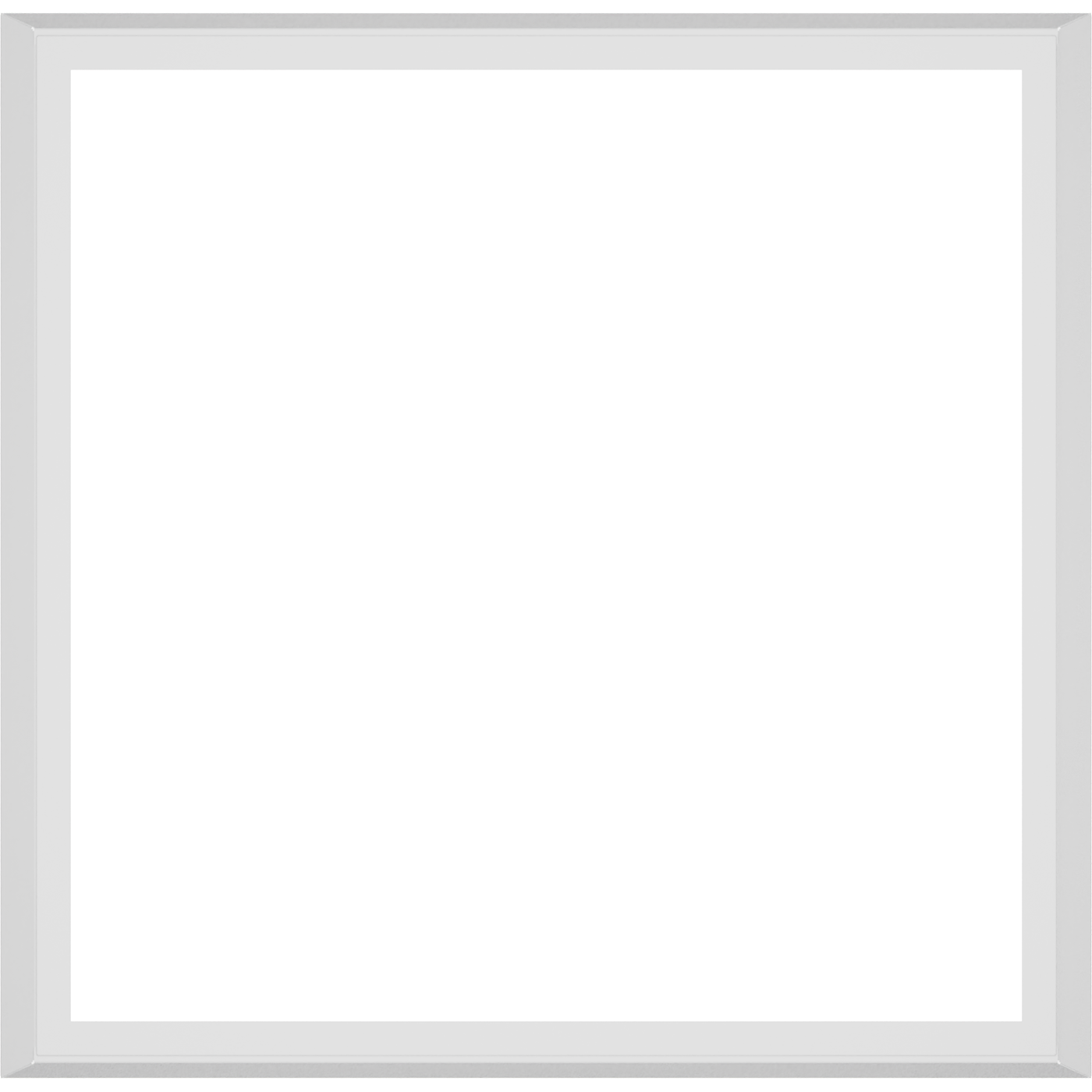

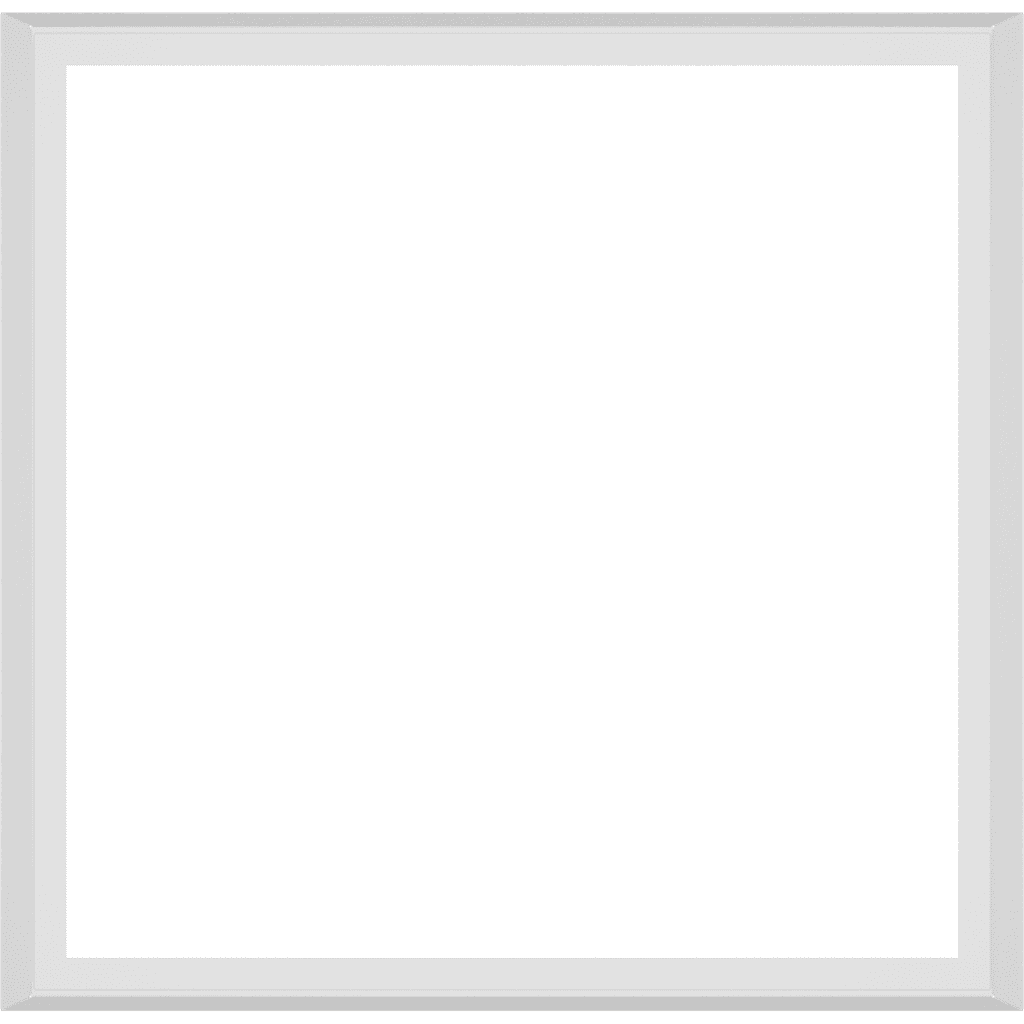

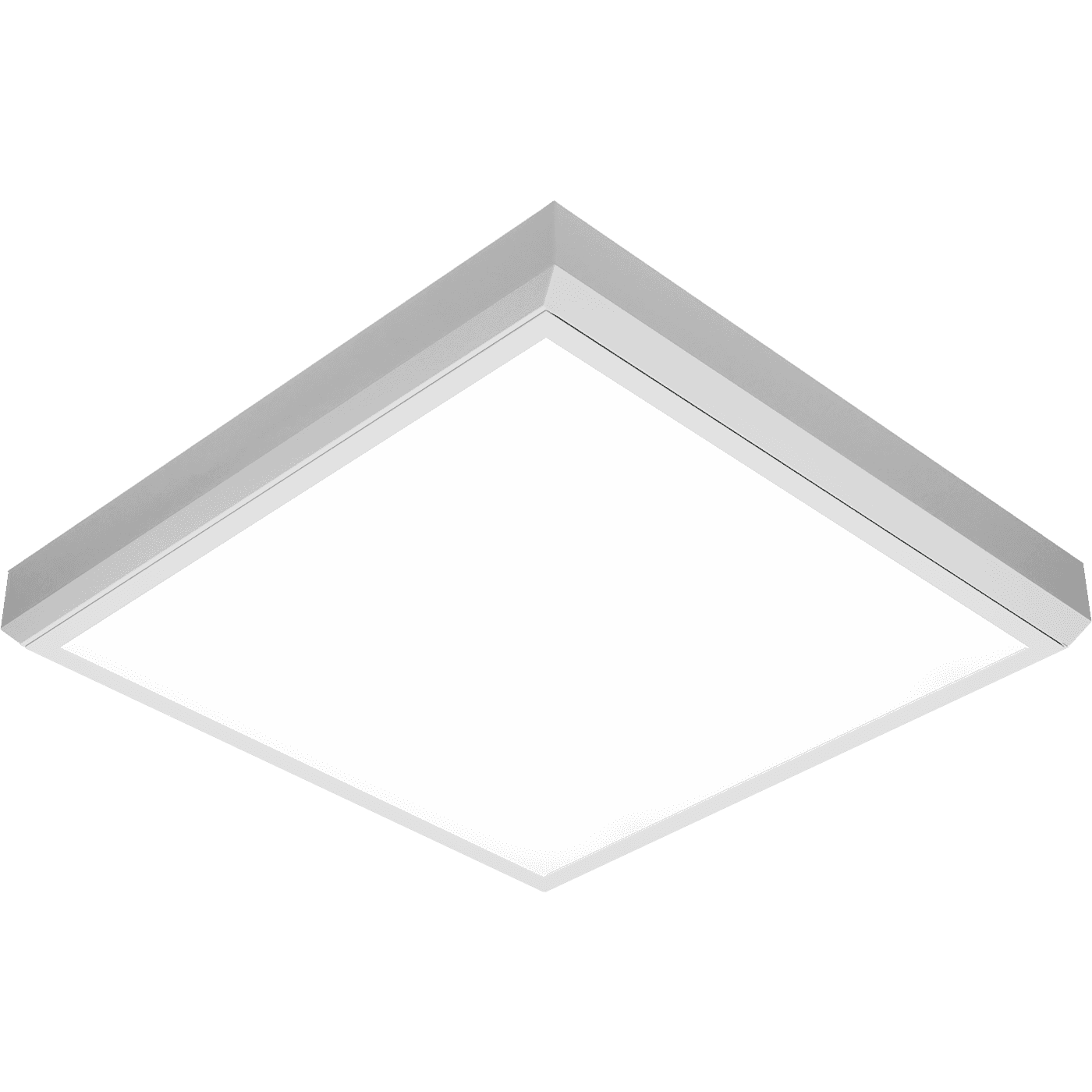

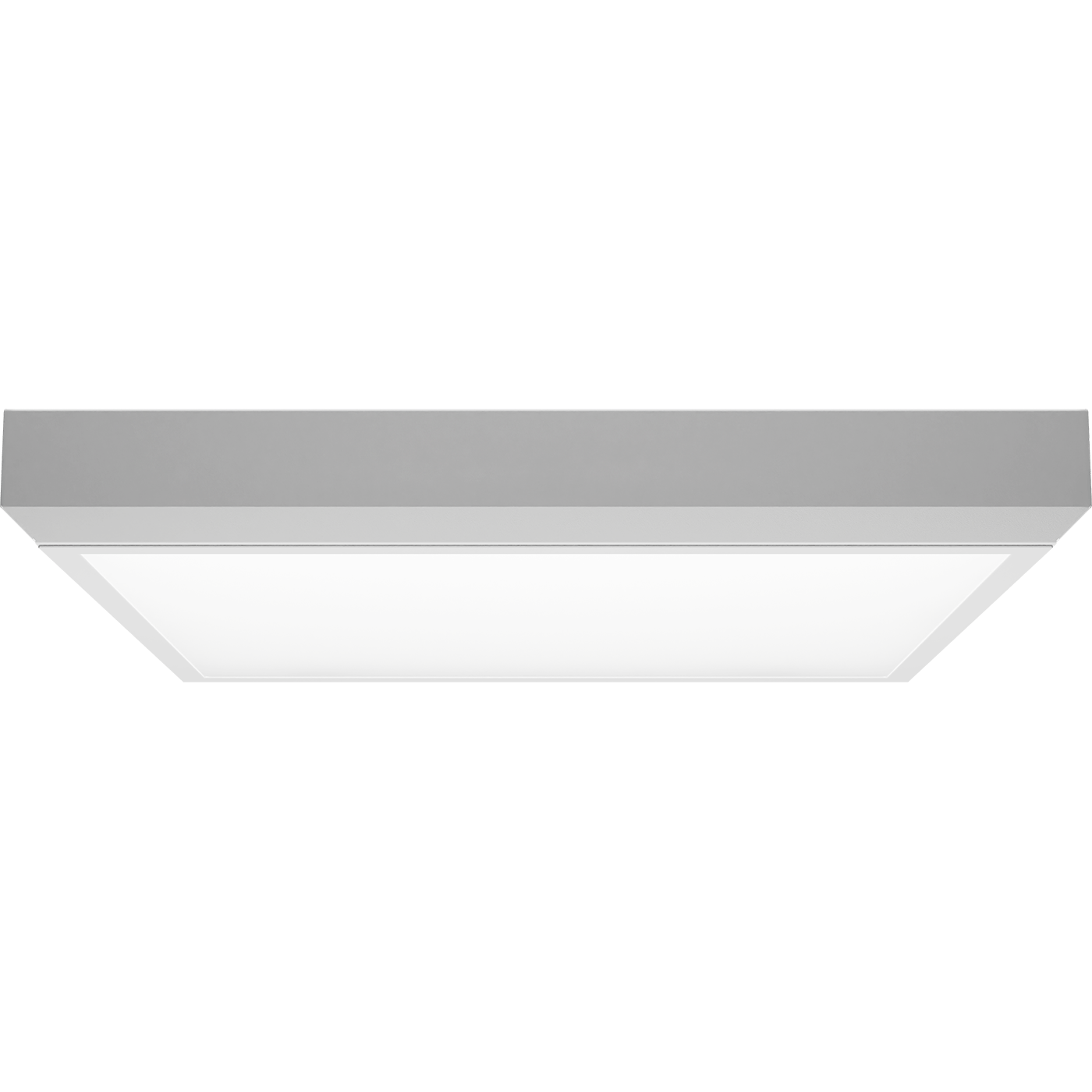

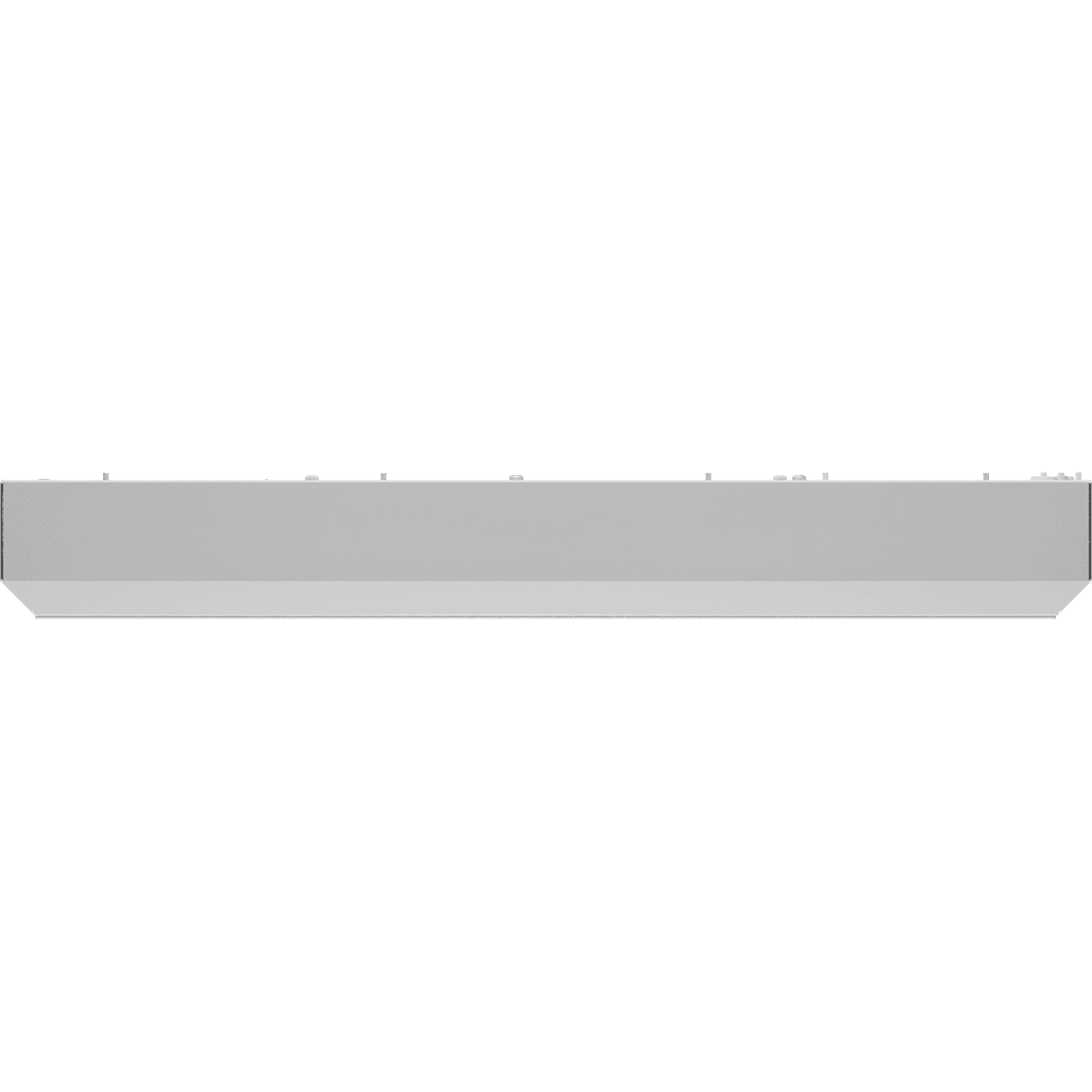

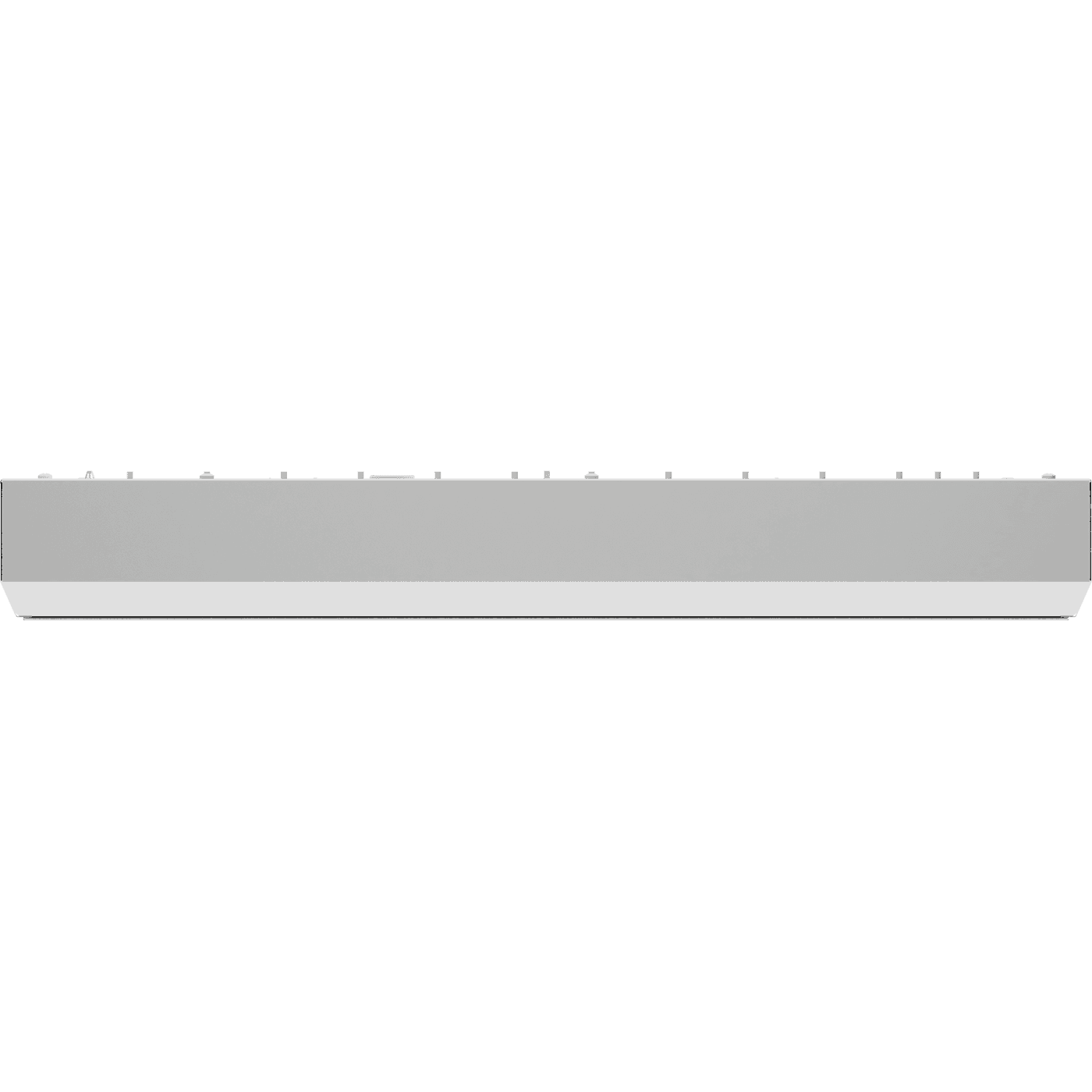

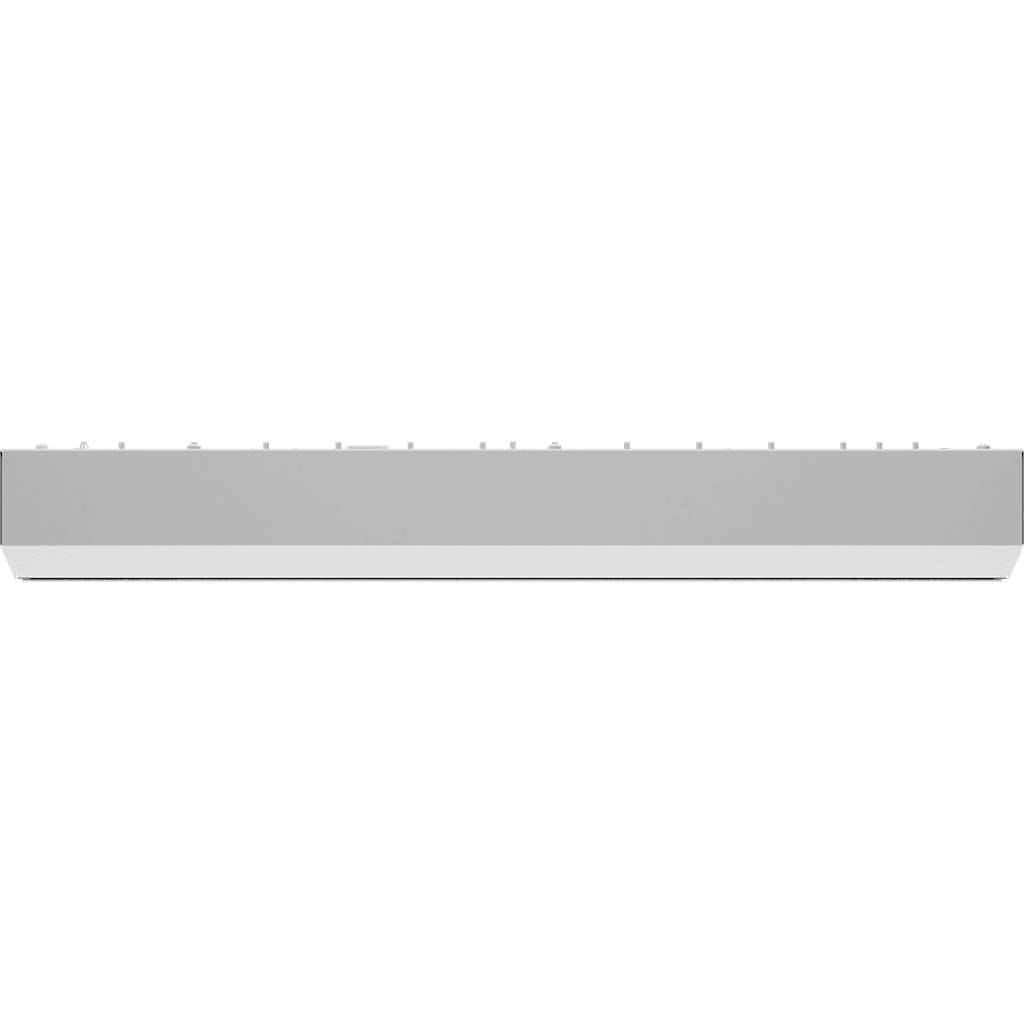

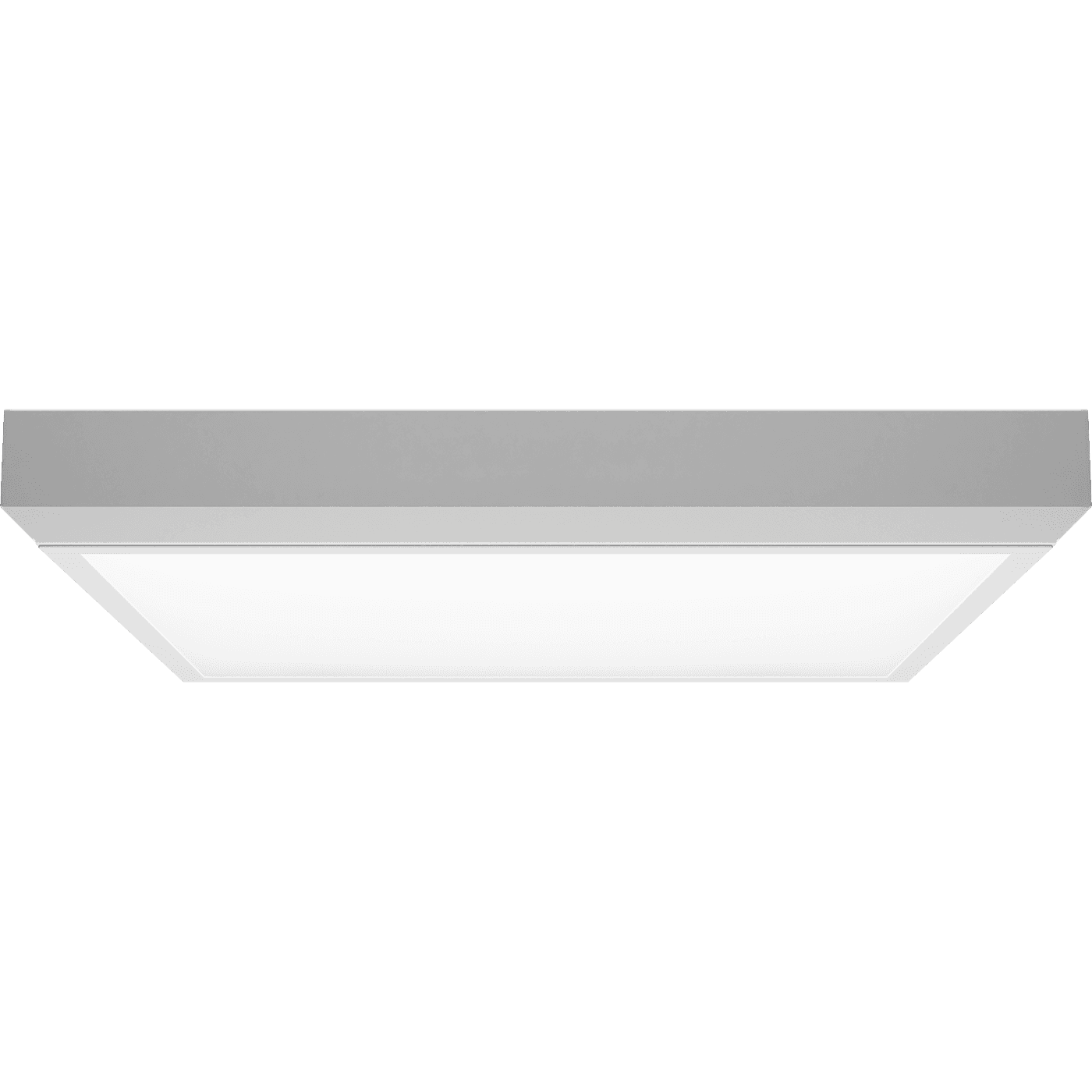

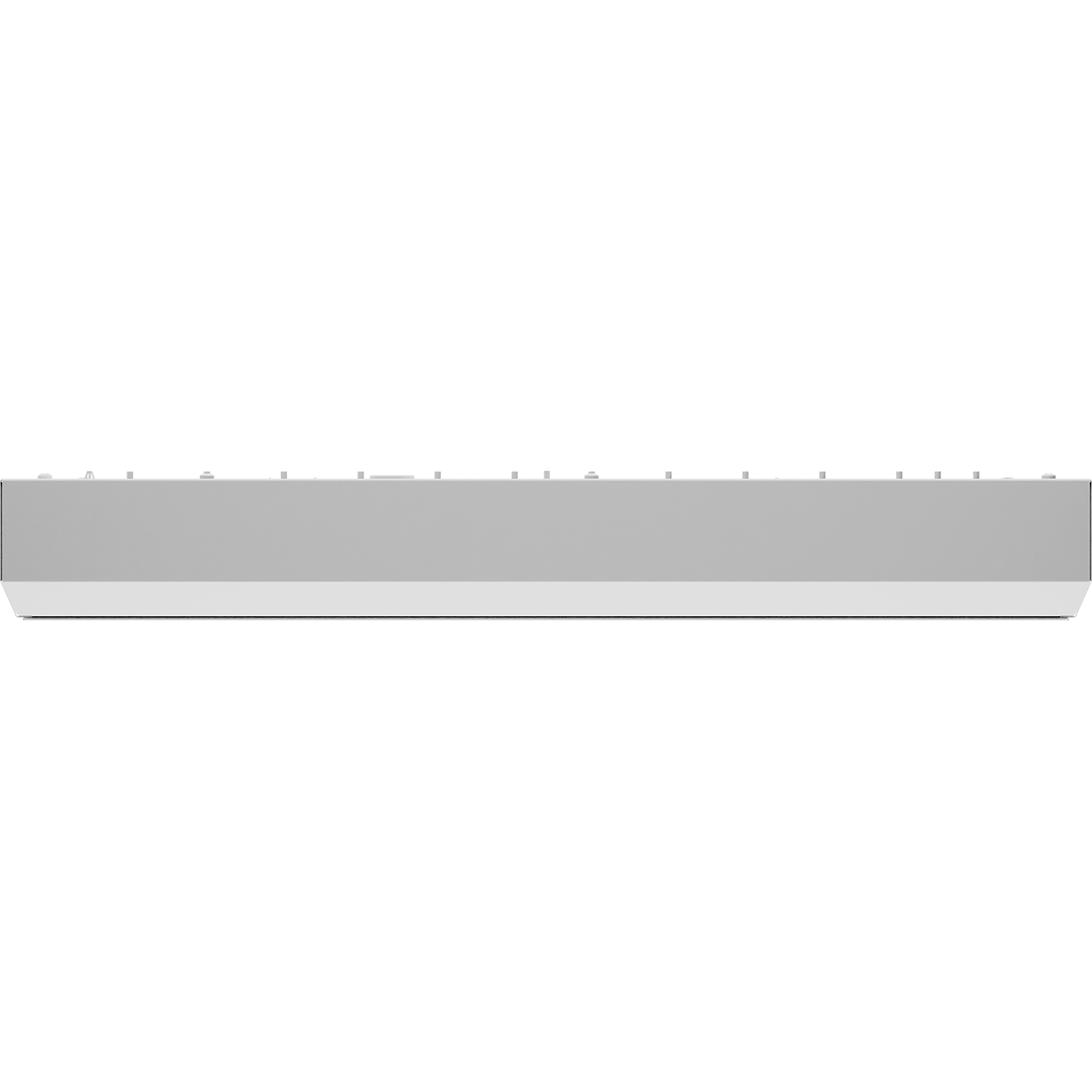

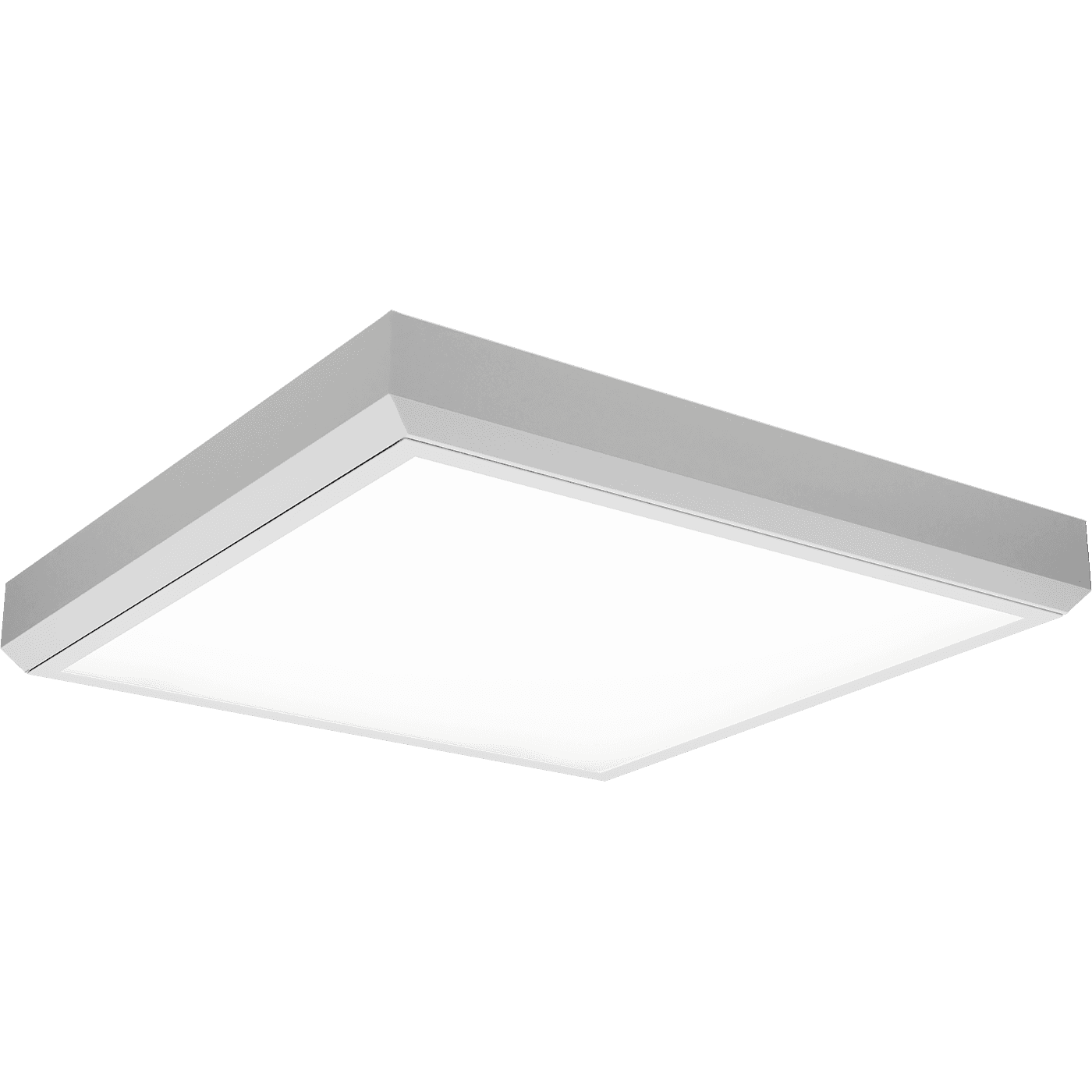

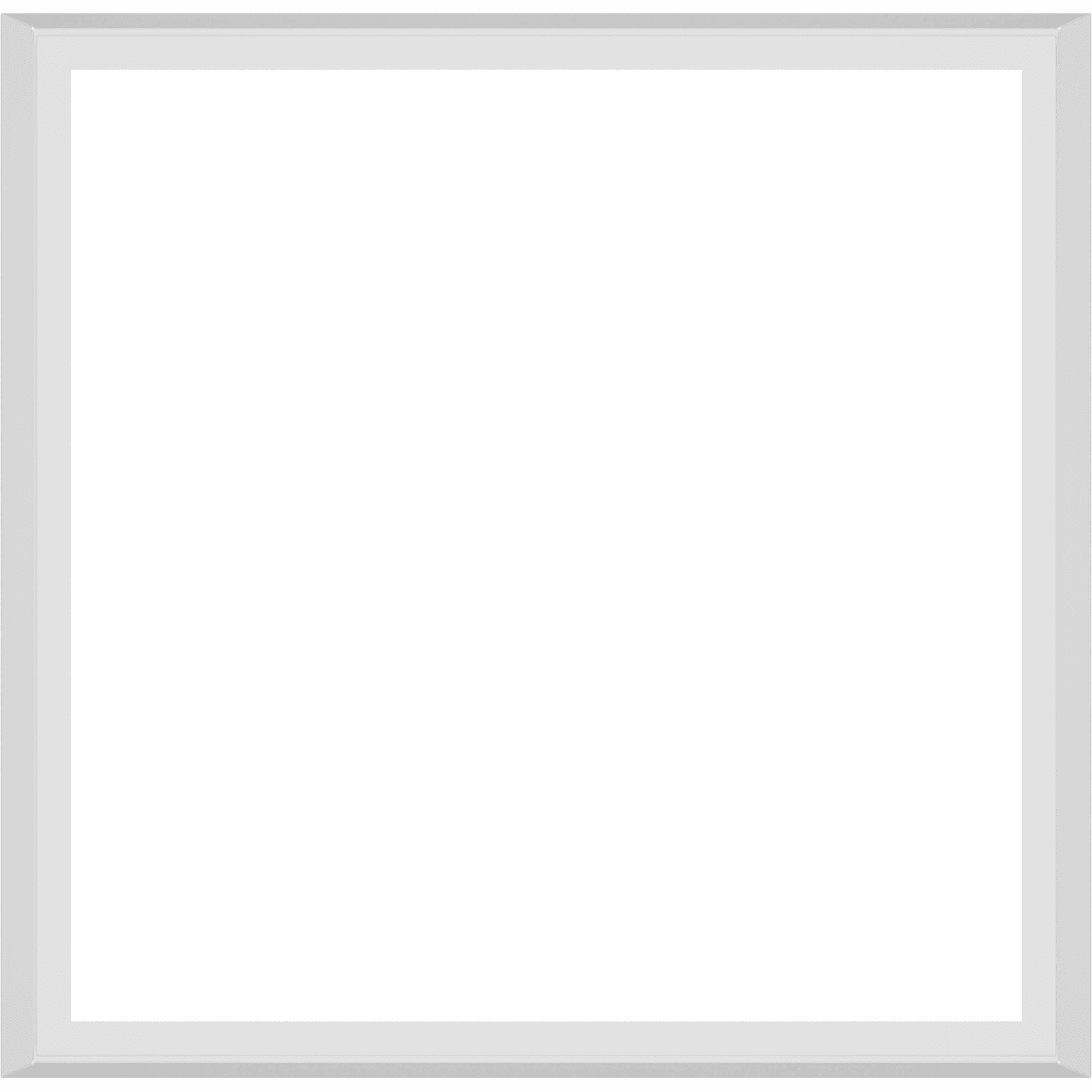

PRIZMA/S 595 4000K
PRIZMA/S 595 4000K
33 Wluminaire power
4000 lmlight flow
121 lm/Wenergy efficiency
code
1499000050
color temperature
4000 K
beam angle
D120
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
4000 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
121 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
4000 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
121 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
33 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
25 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
length
625 mm
width
595 mm
height
85 mm
installation width
480 mm
material
Сталь
housing color
Белый
mounting type
Накладной
weight
5 kg
emergency
emergency power supply
Нет
common
code
1499000050
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от +5 до +35 C
model files
model files
CAD/BIM files

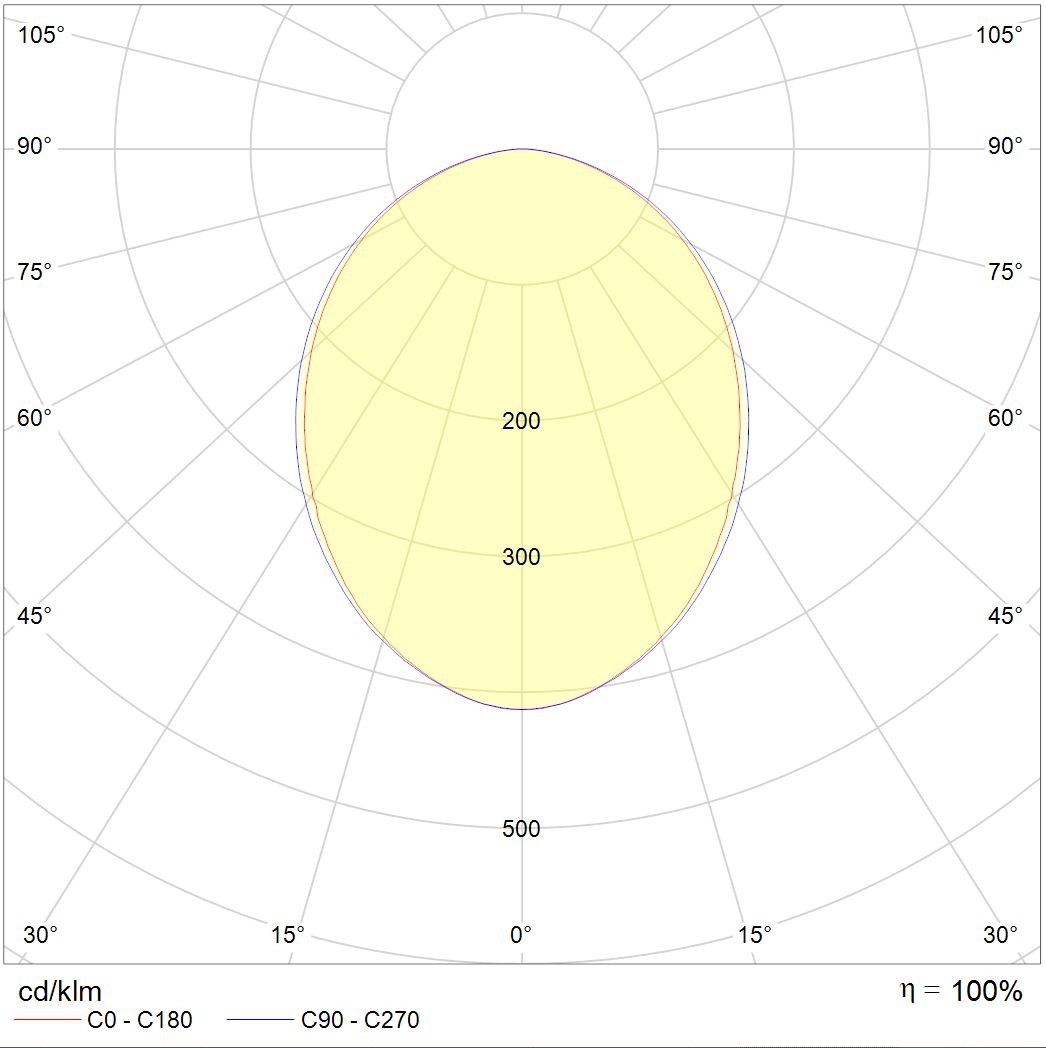

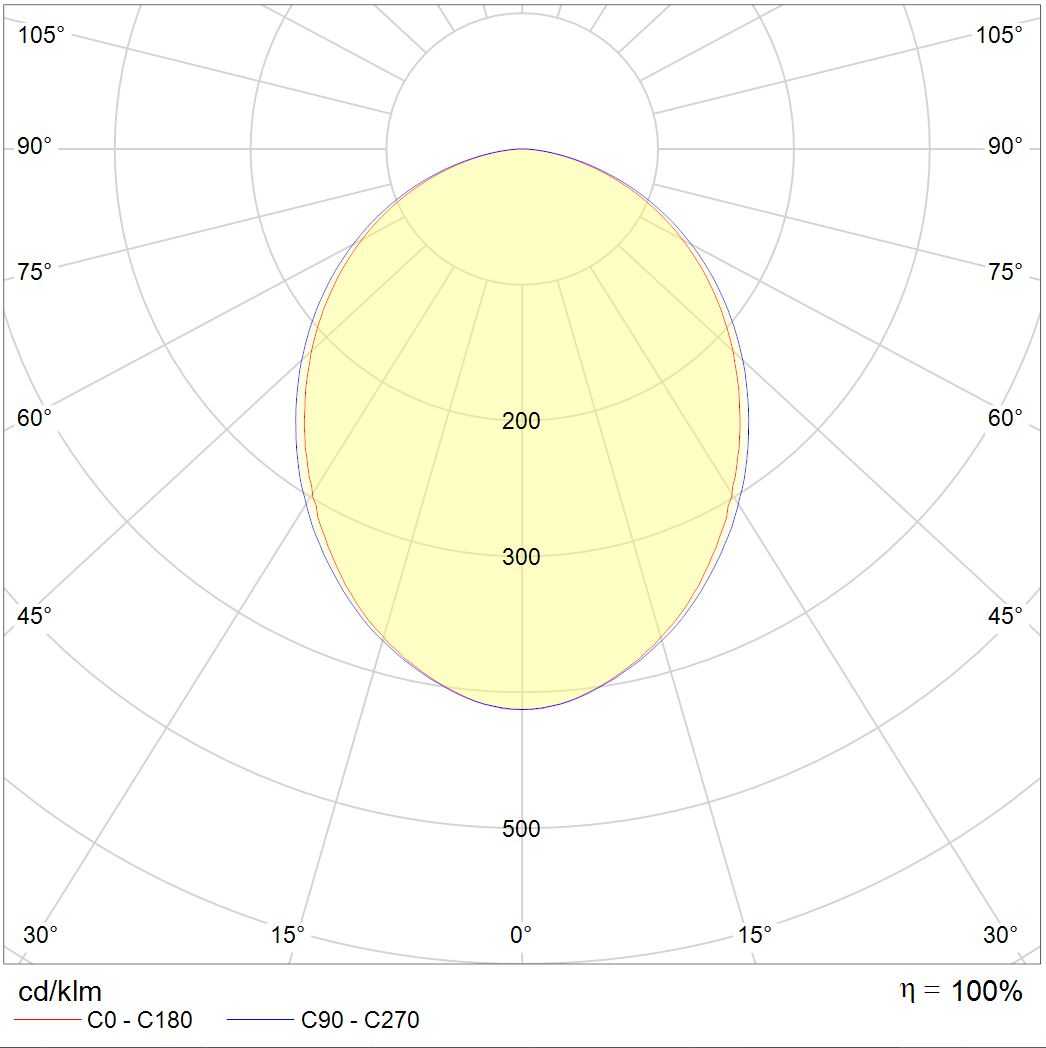

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax392 kB
photometric files
ies134.1 kB
jpg83.2 kB
ldt85.6 kB
documents
passport648 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
Fire Safety Certificate2.5 mB
