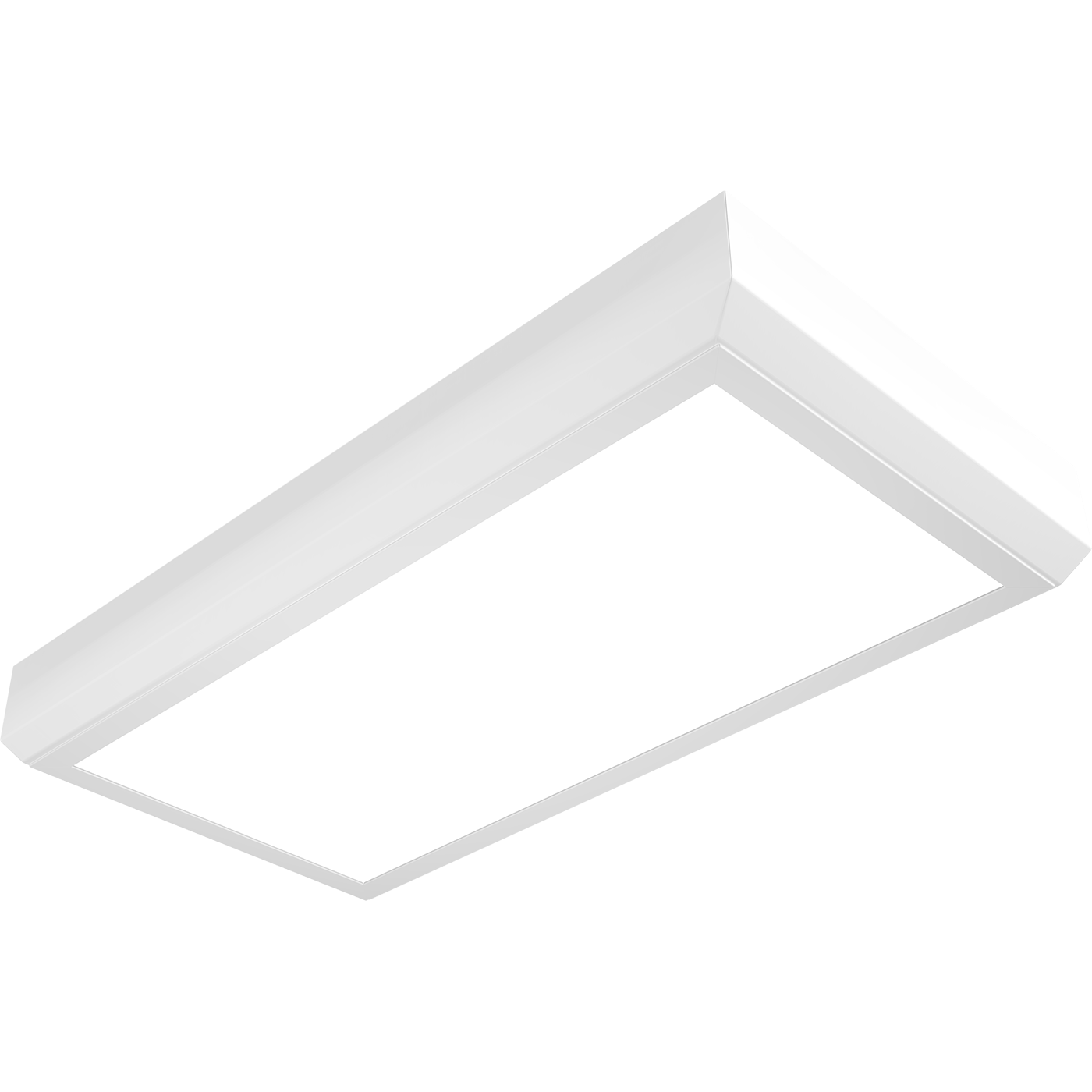

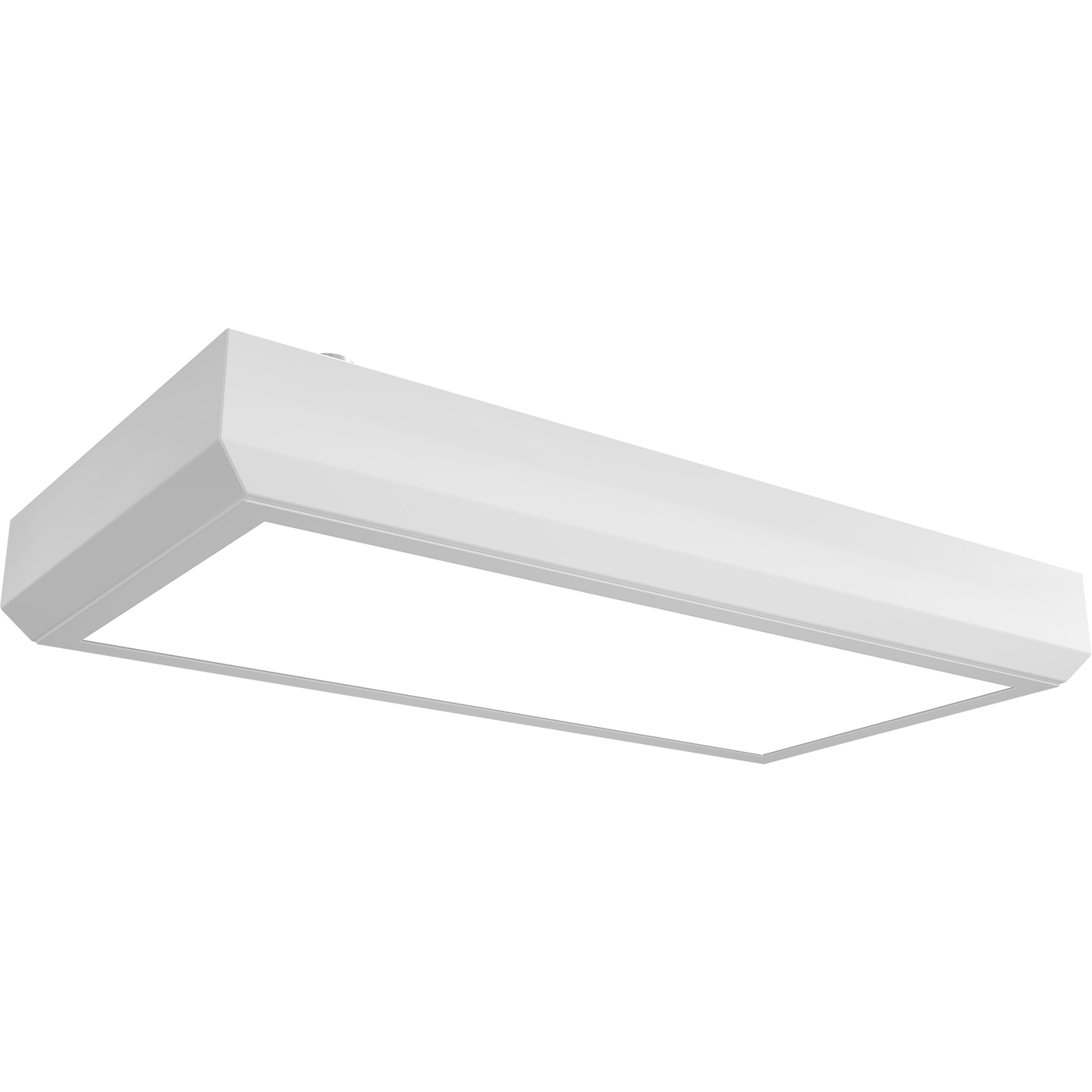

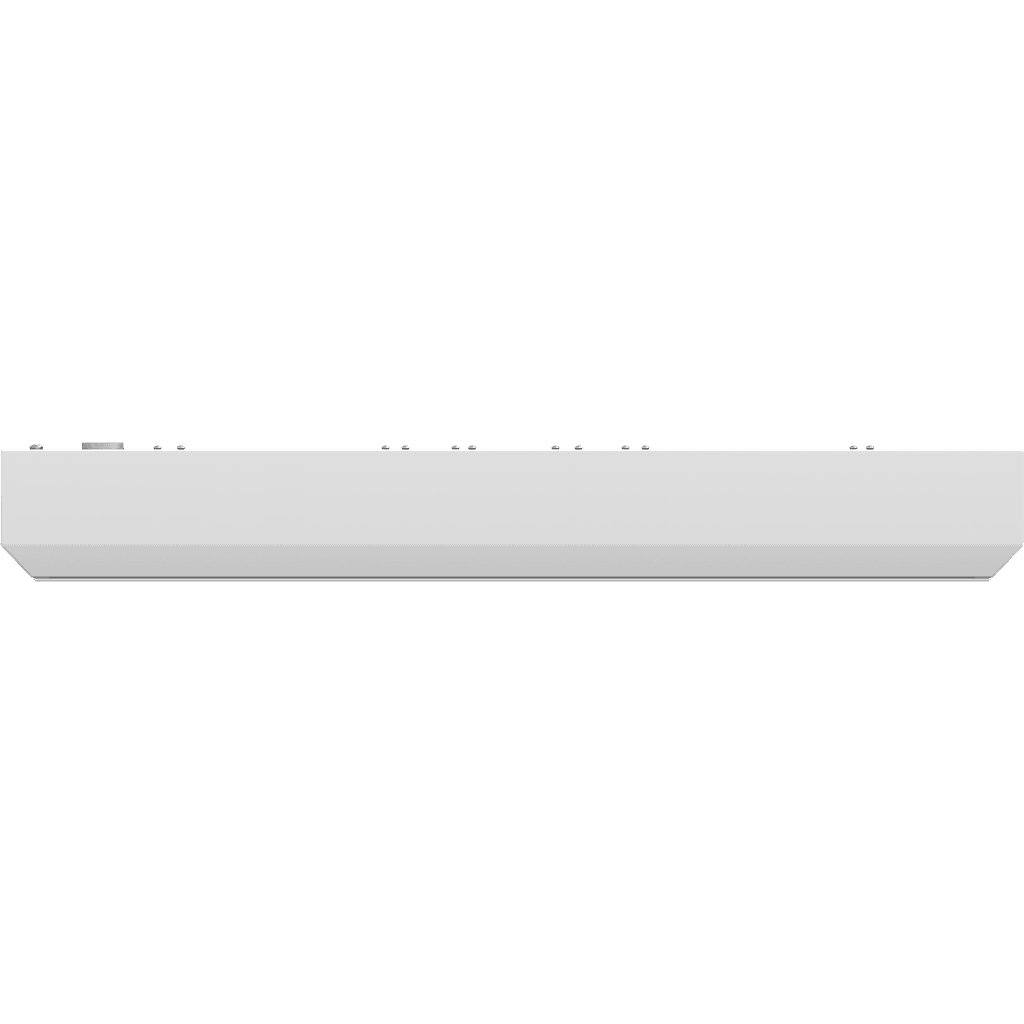

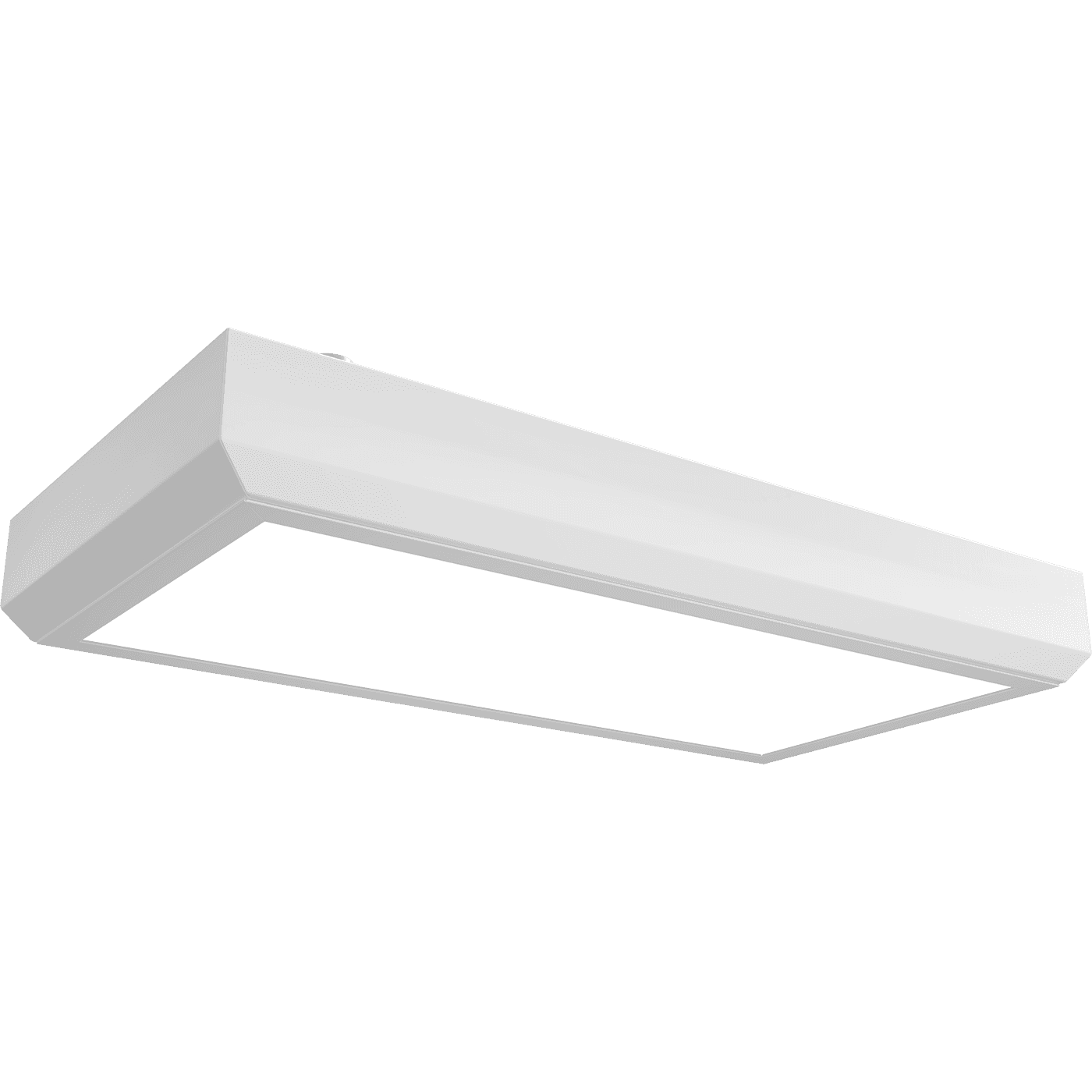

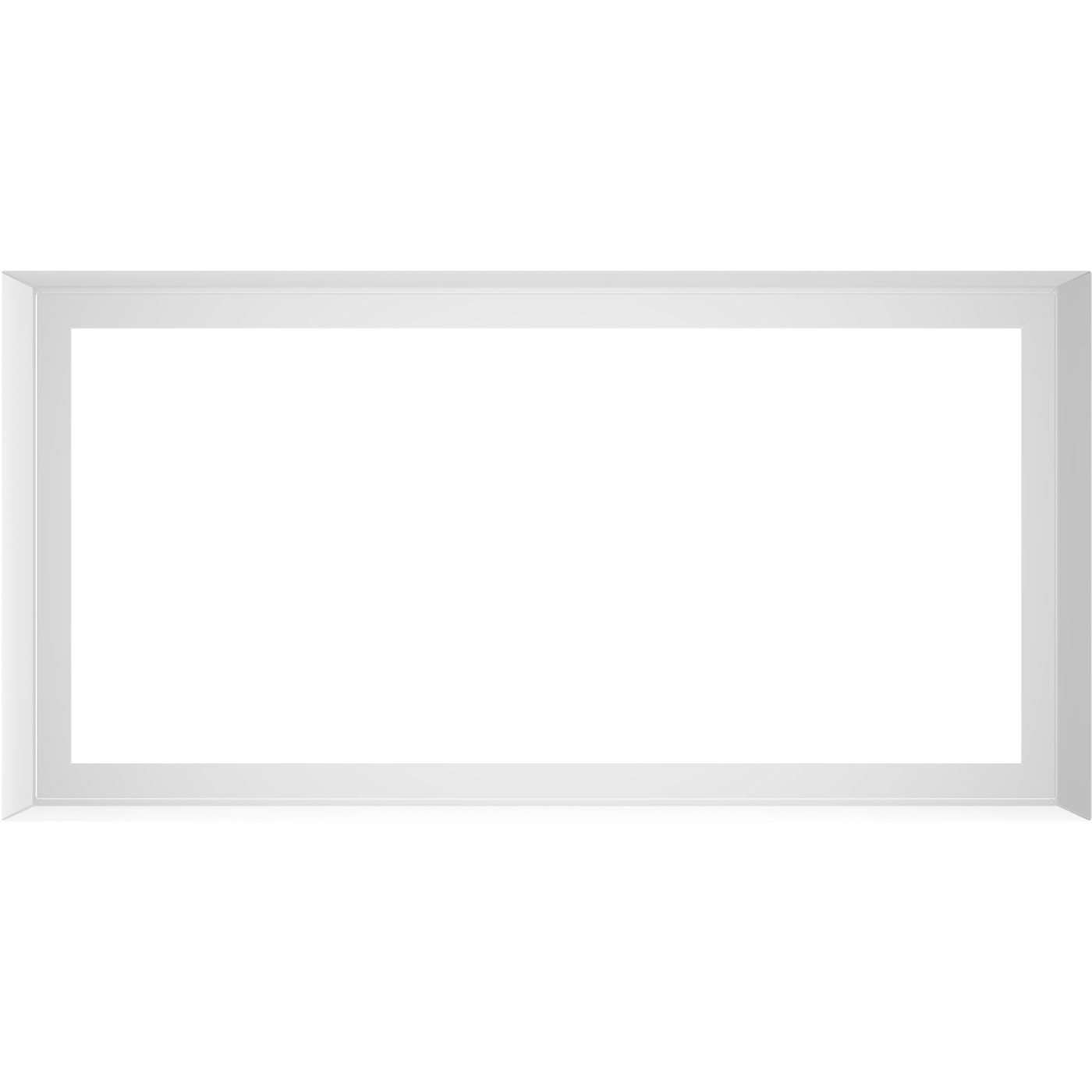

PRIZMA/S 300 EM 4000K
PRIZMA/S 300 EM 4000K
19 Wluminaire power
1600 lmlight flow
84 lm/Wenergy efficiency
code
1499000370
color temperature
4000 K
beam angle
D120
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
emission color
Белыйlight source type
LEDlight flow
1600 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
84 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
1600 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
84 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
19 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
25 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
length
625 mm
width
310 mm
height
85 mm
installation width
160 mm
material
Сталь
housing color
Белый
mounting type
weight
3.7 kg
emergency
operating time in emergency mode
1 h
emergency power supply
Нет
luminous flux in emergency mode
300 lm
common
code
1499000370
ETIM class
Настенно-потолочный светильник
energy efficiency class
A
service life
50 000 h
temperature range
от +5 до +35 C
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

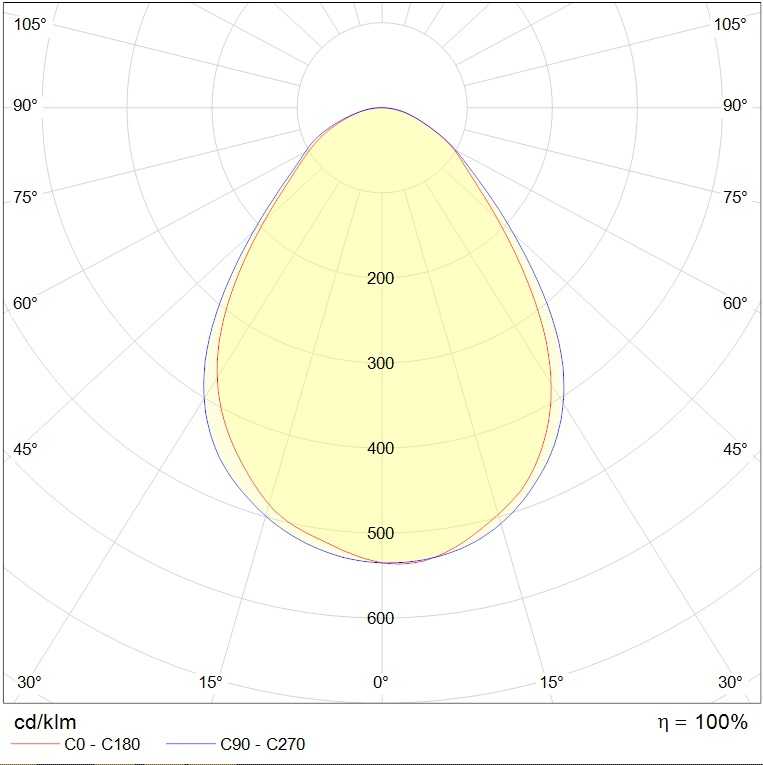

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg88.2 kB
ldt67.1 kB
csv436 B
documents
passport648 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016298.3 kB
