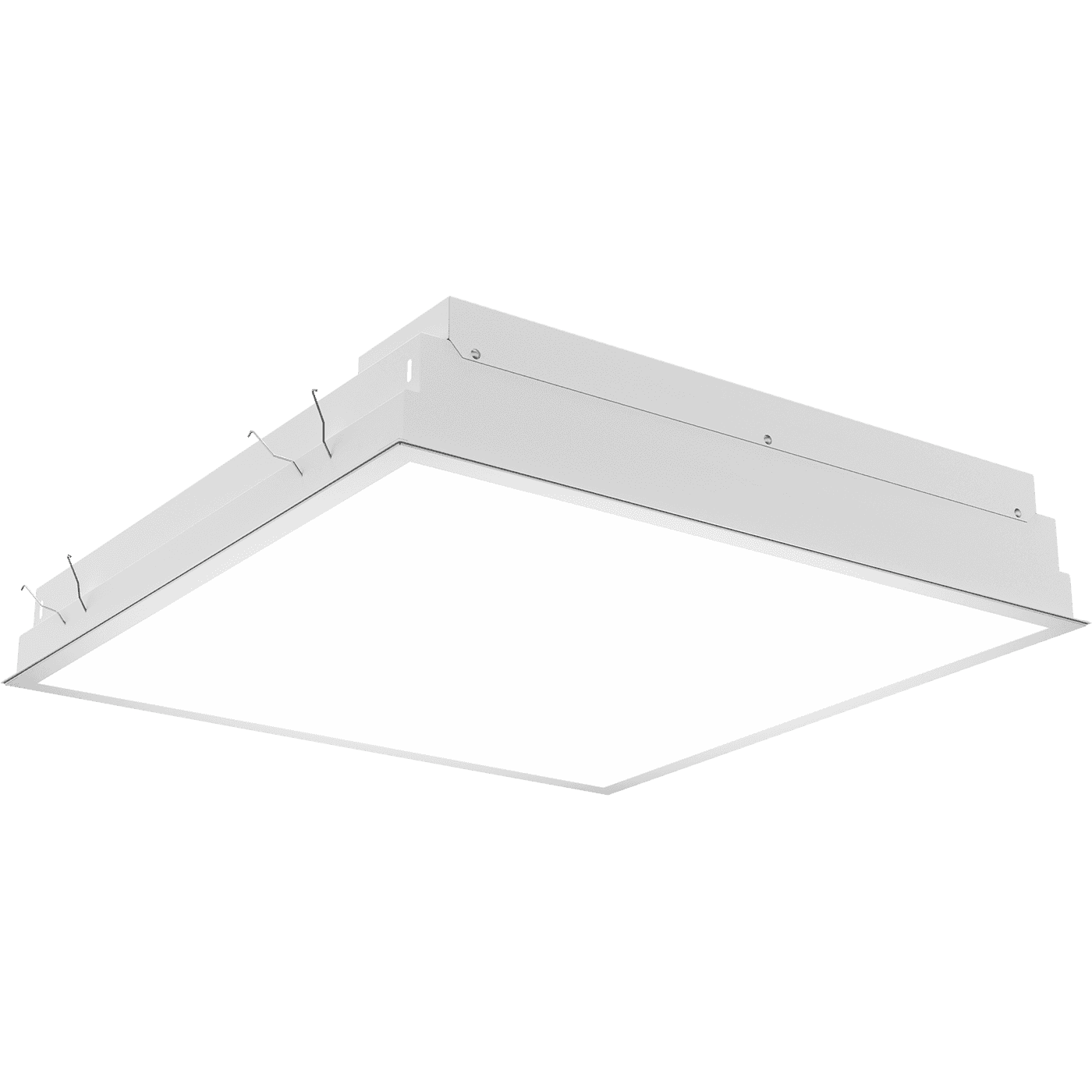

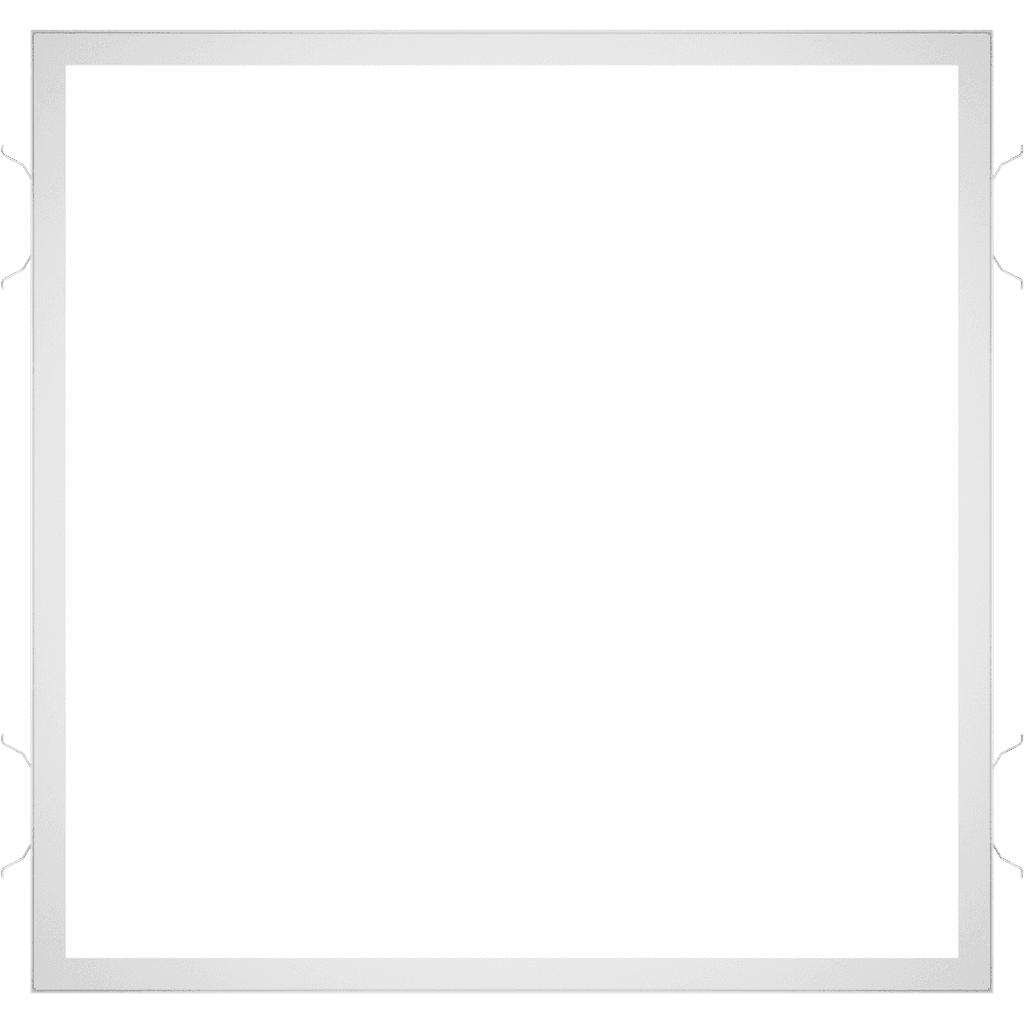

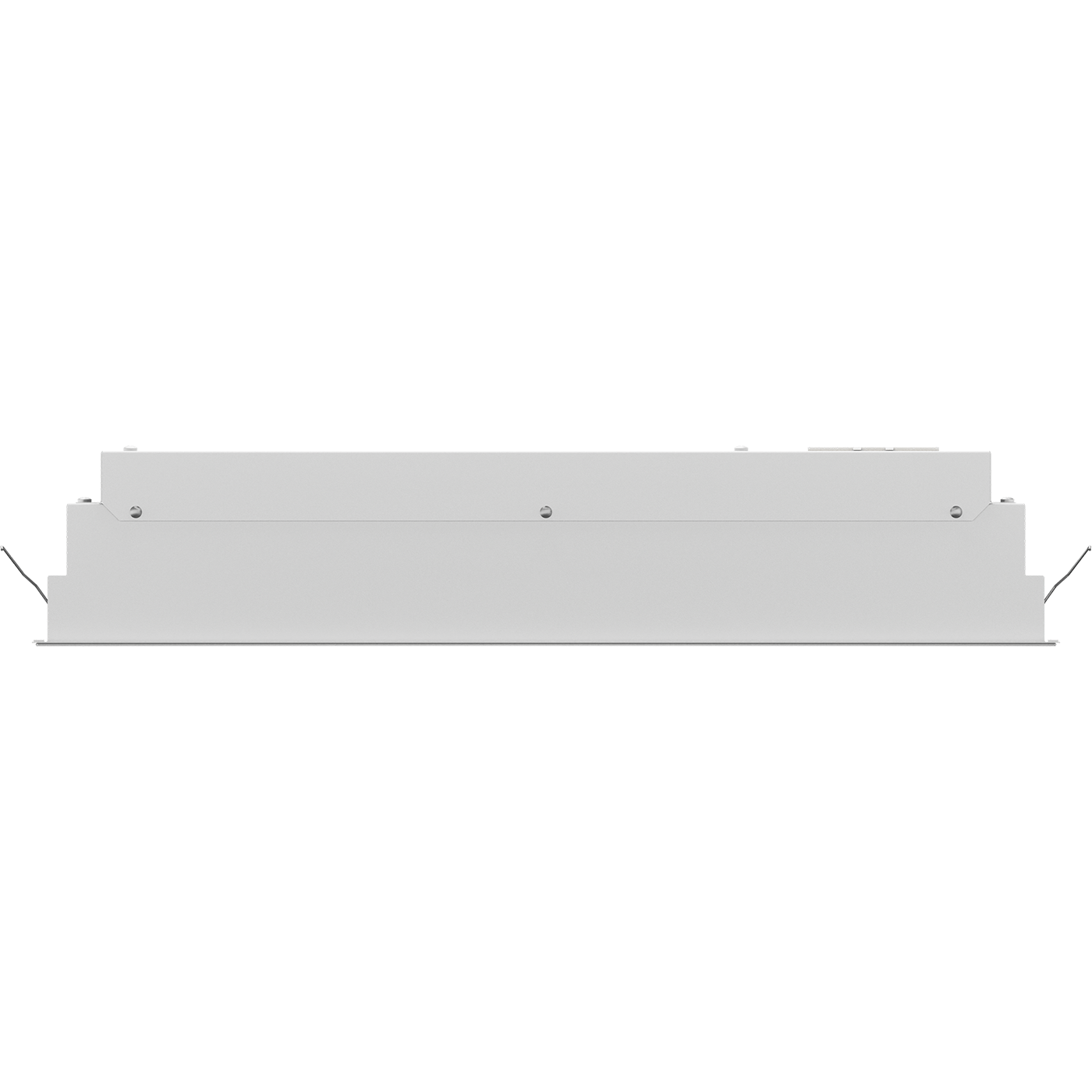

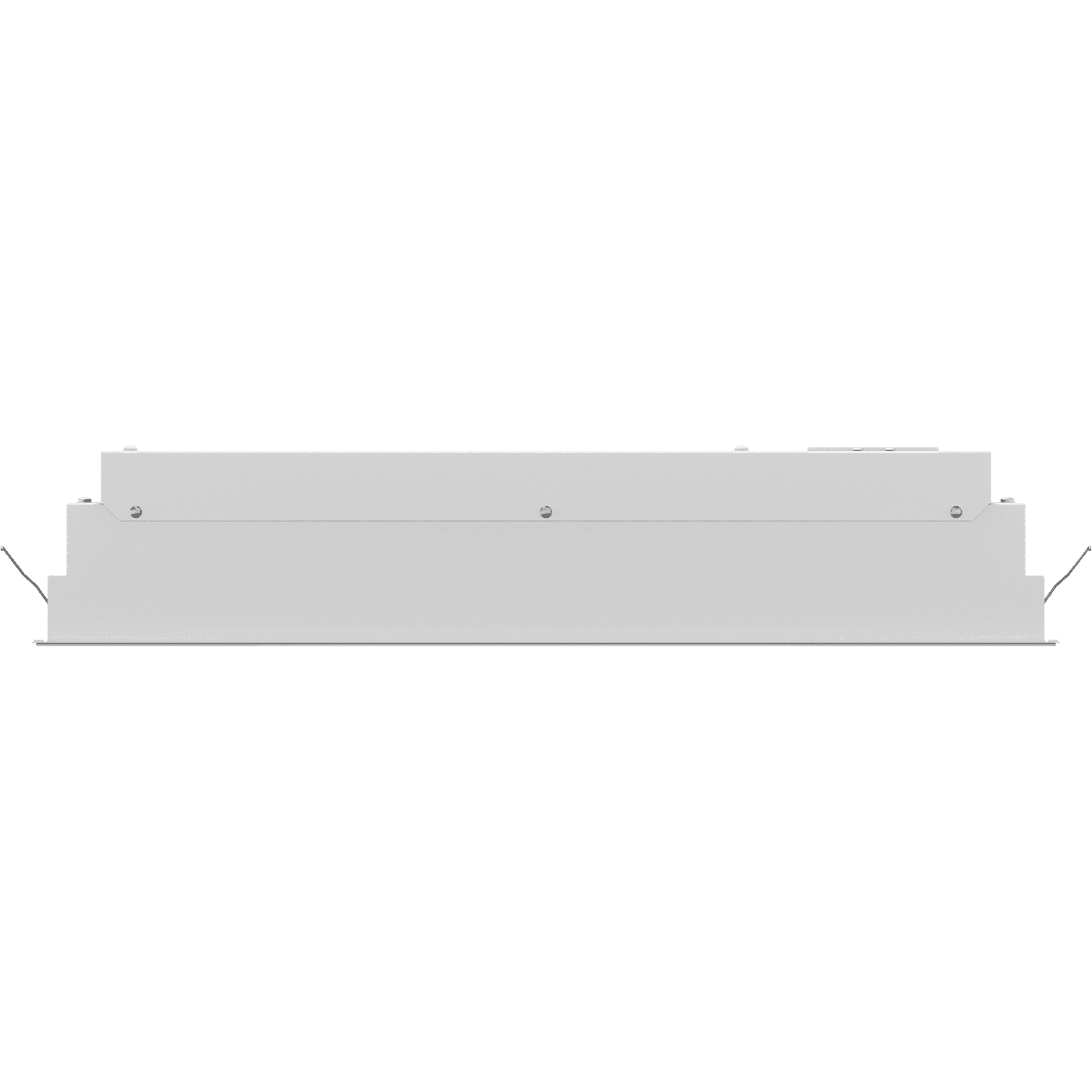

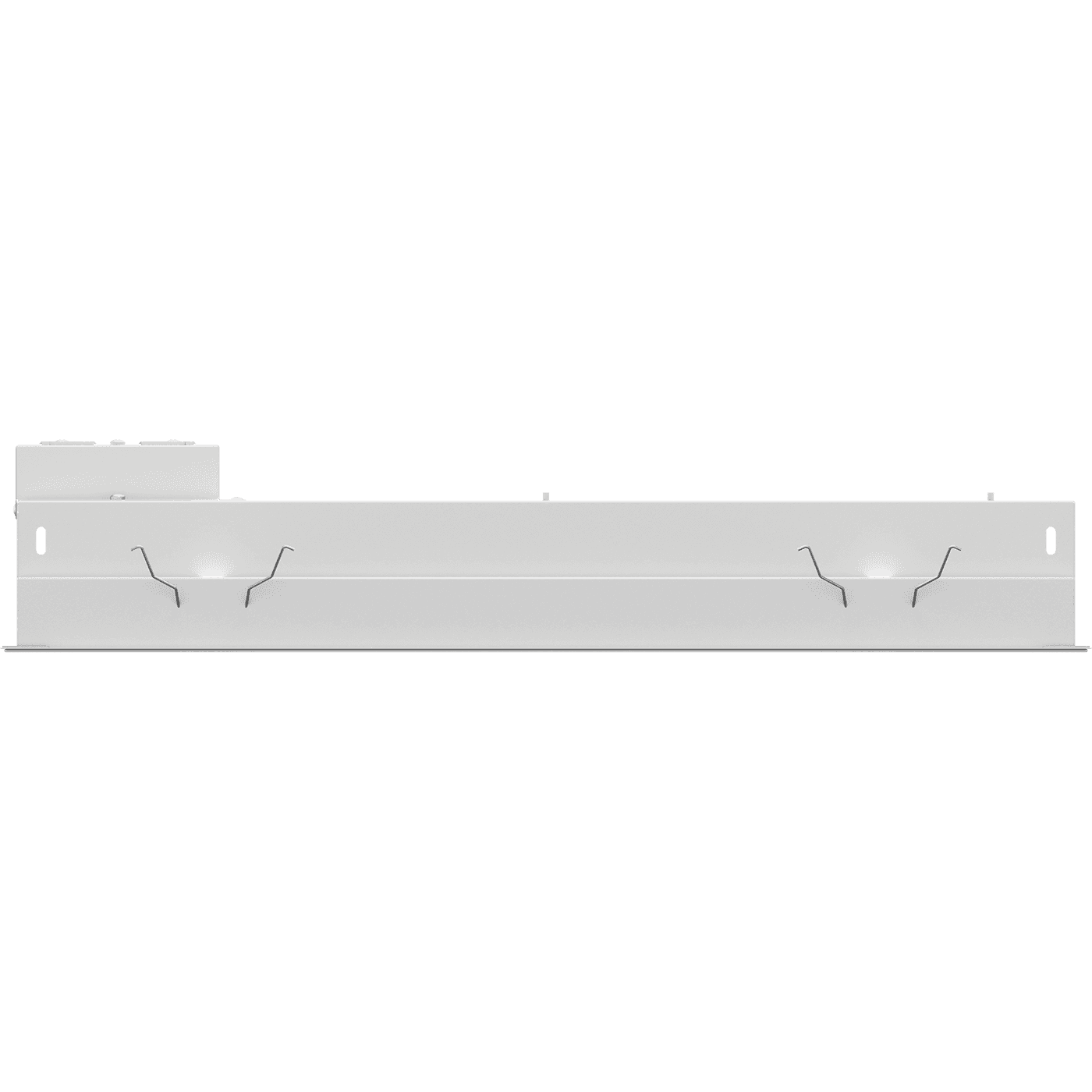

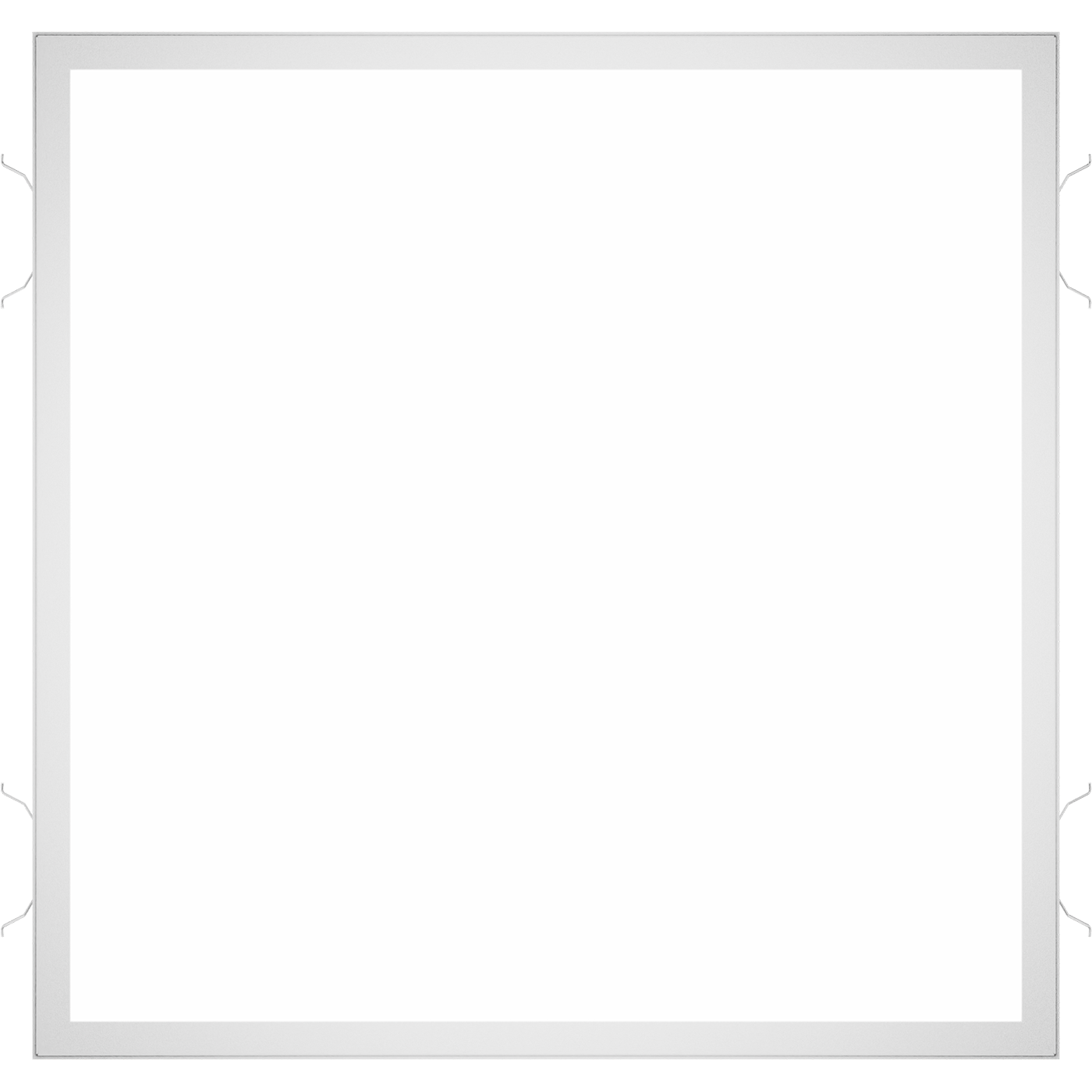

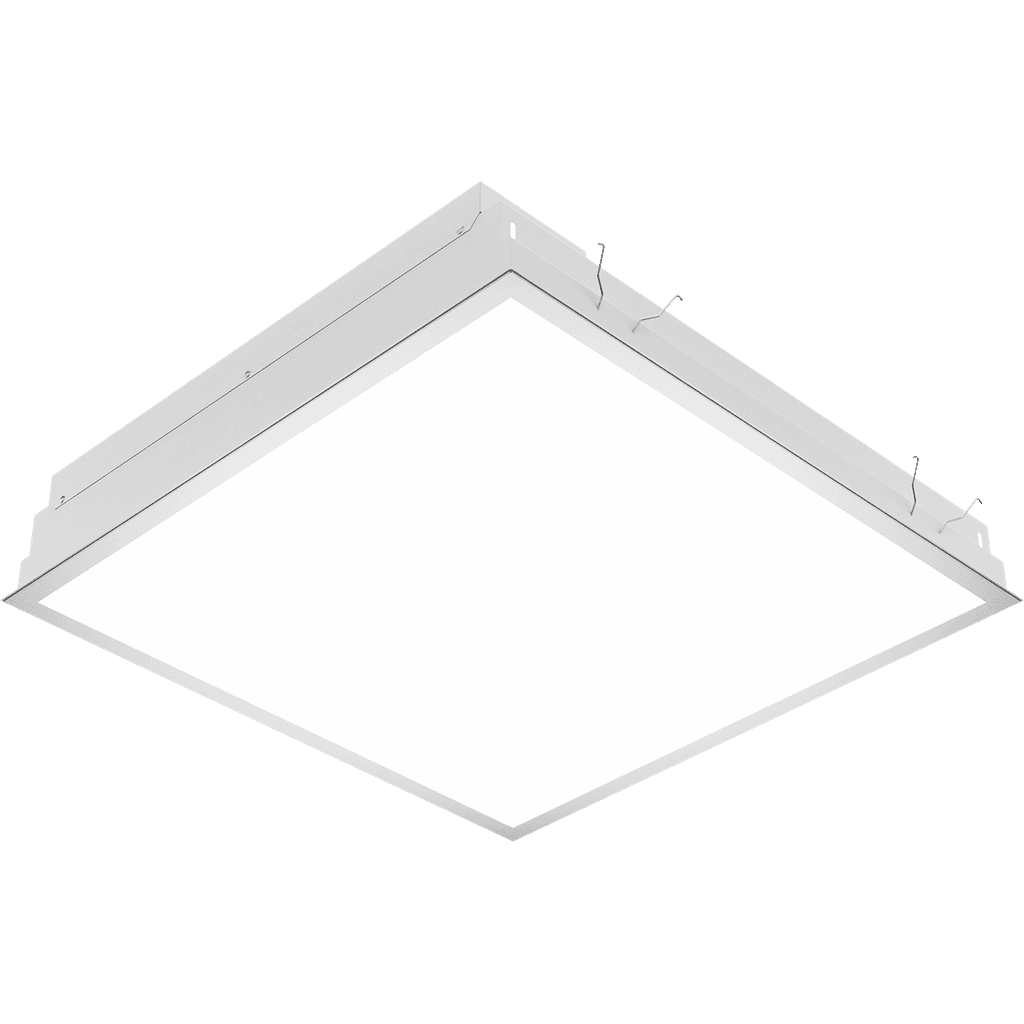

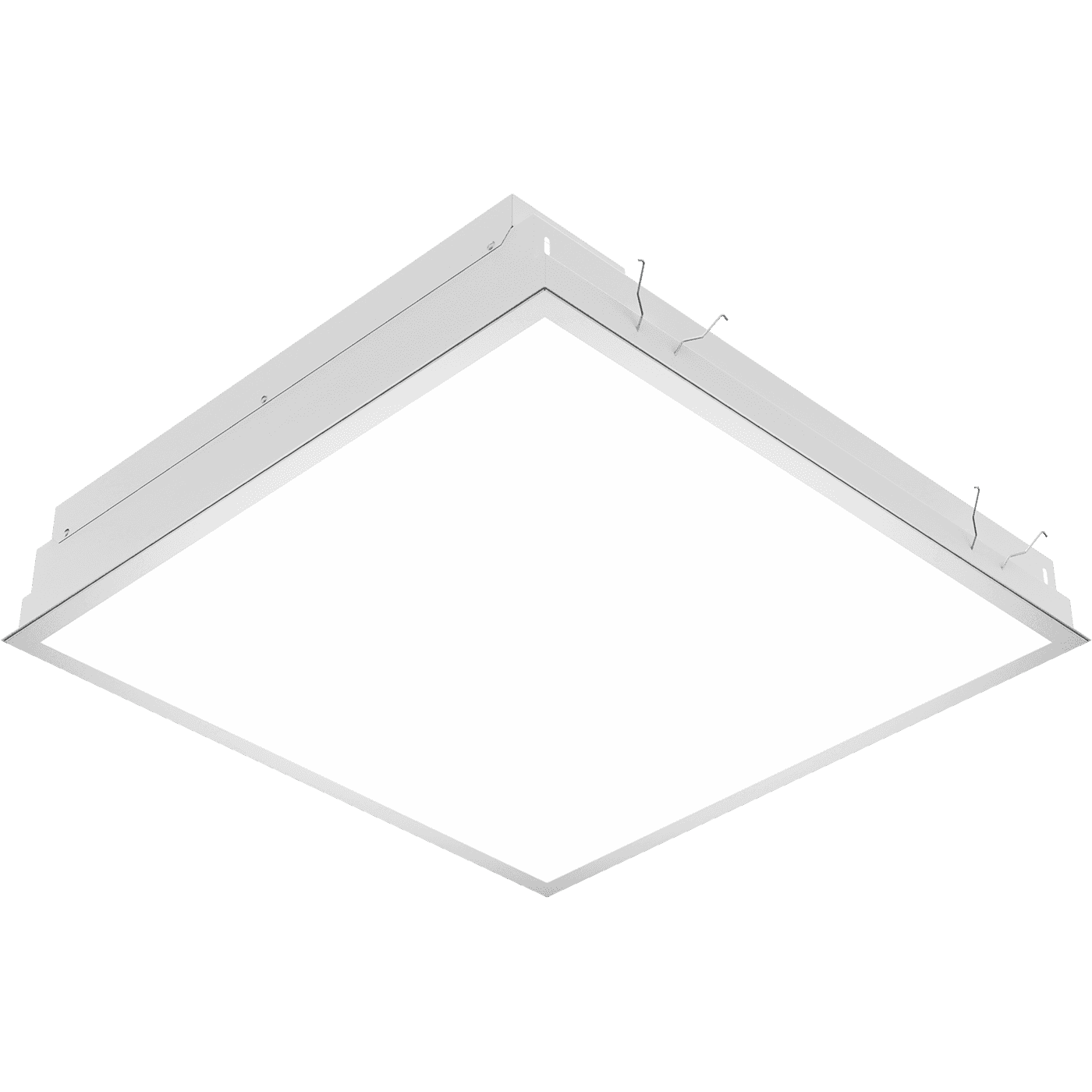

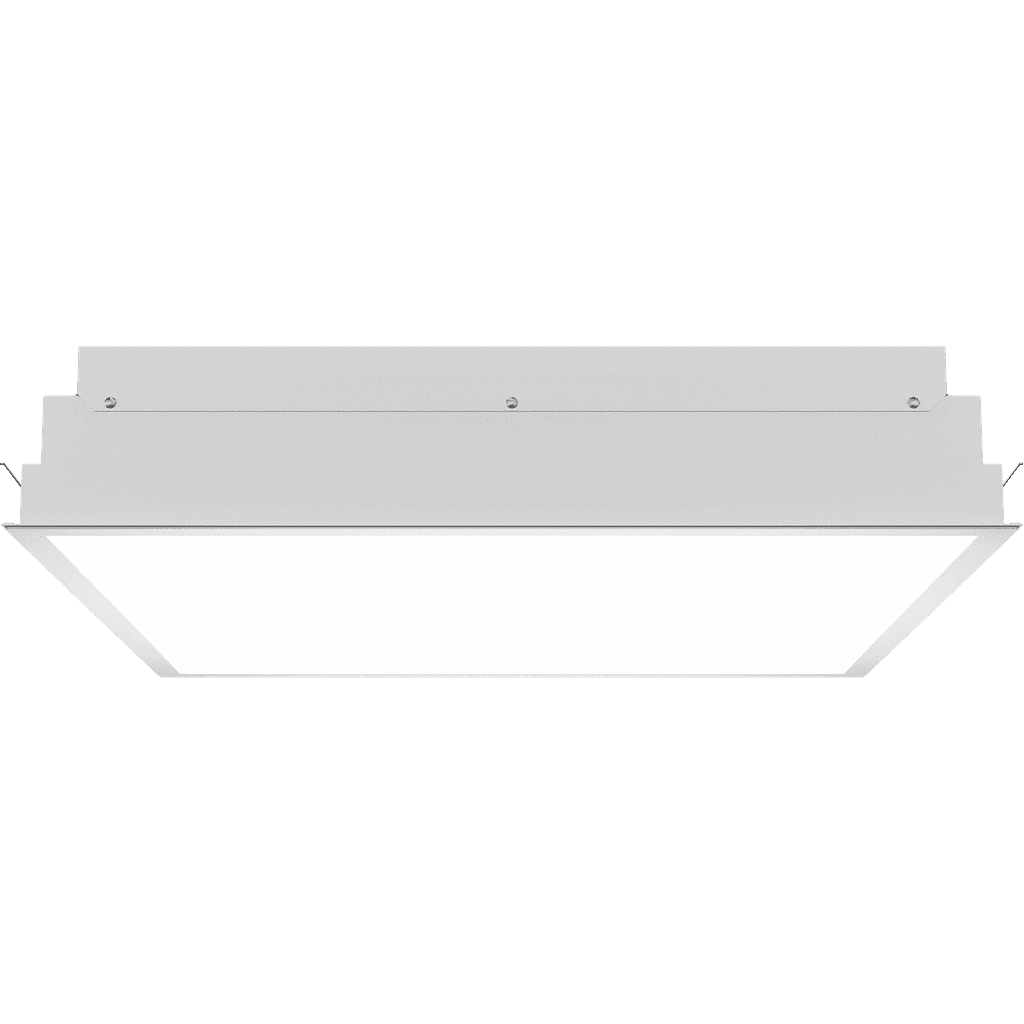

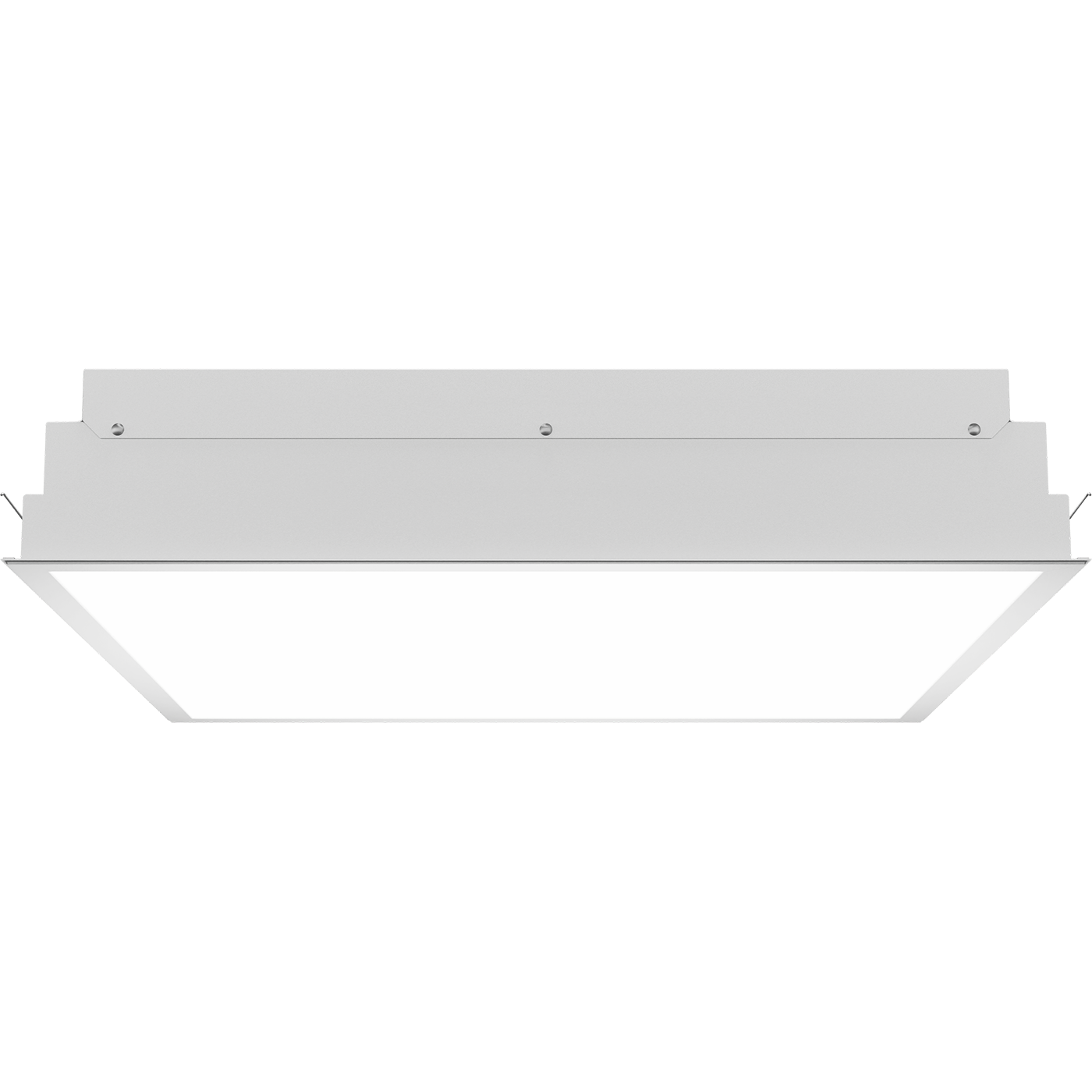

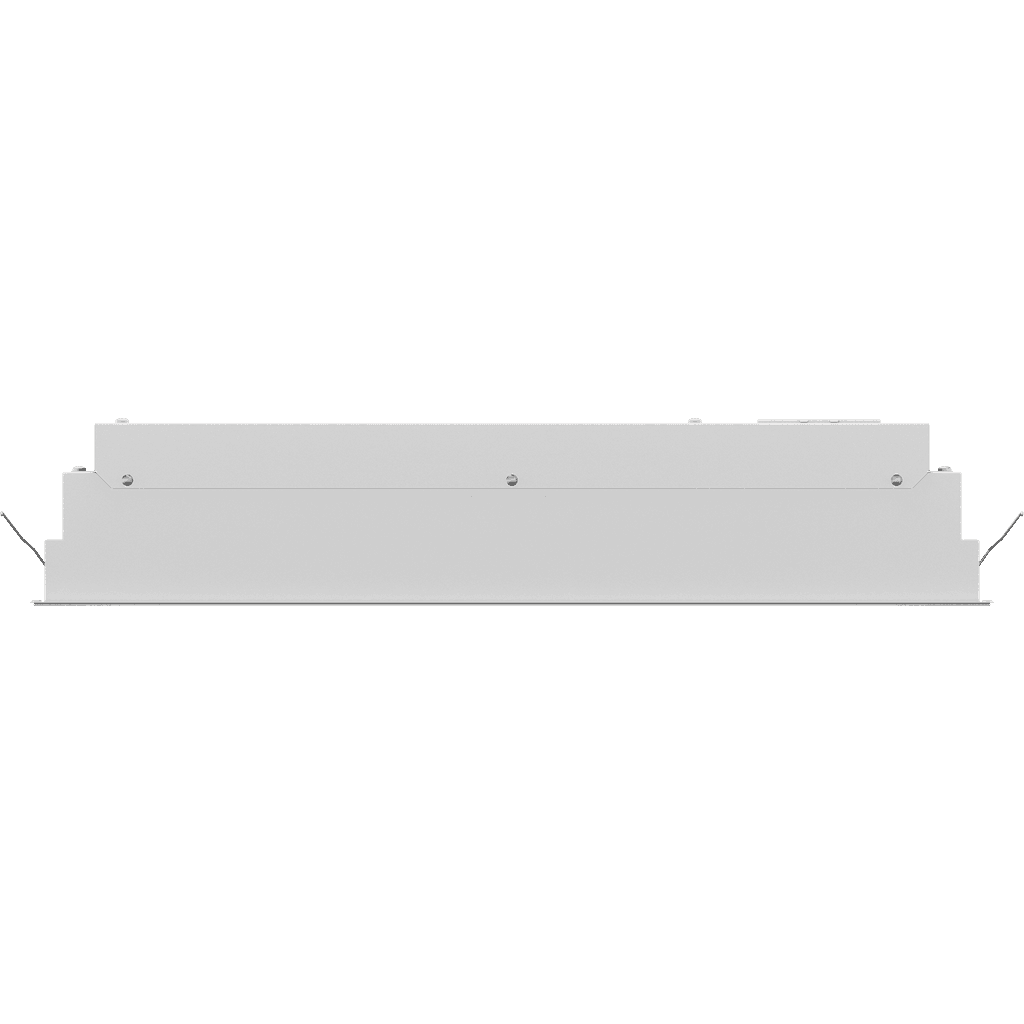

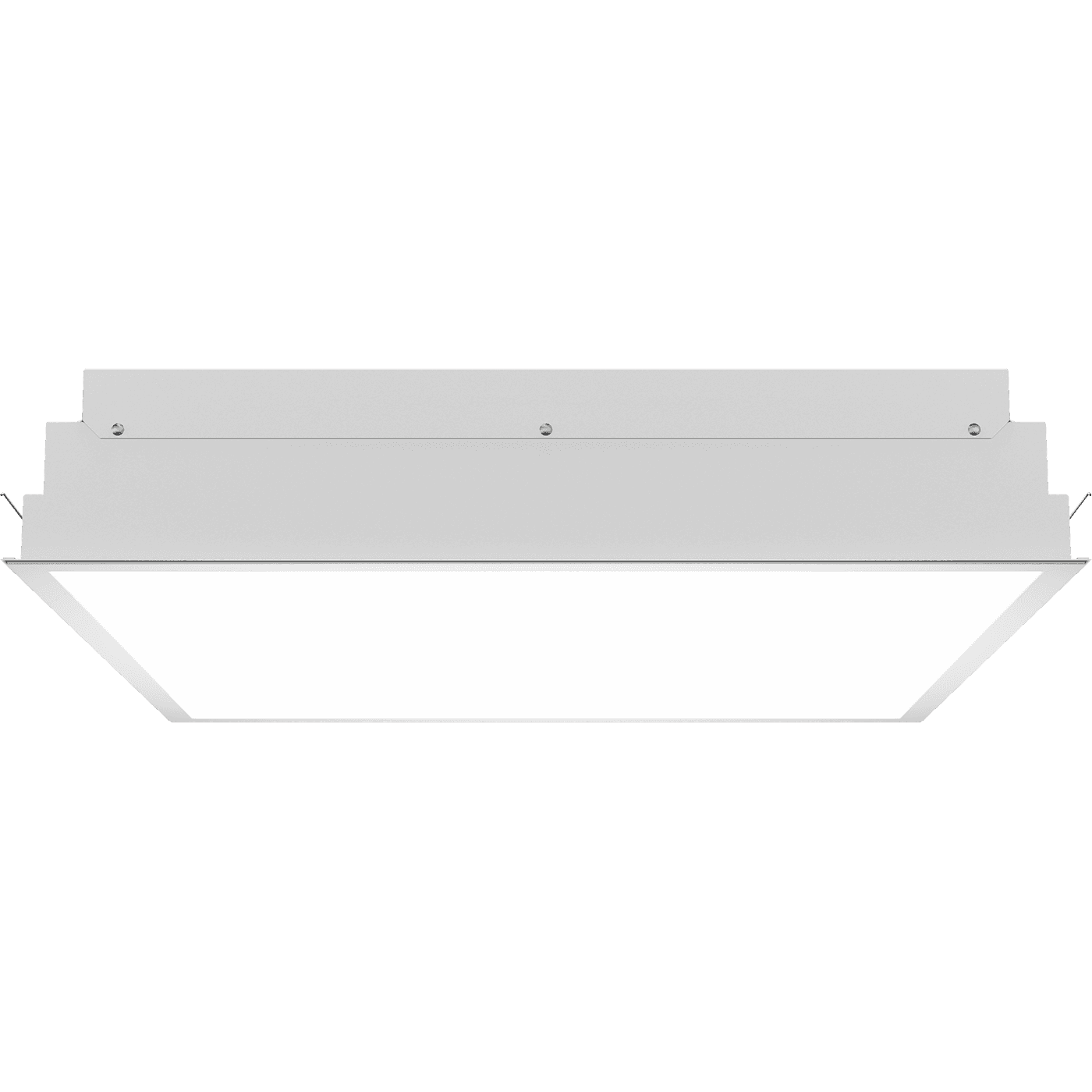

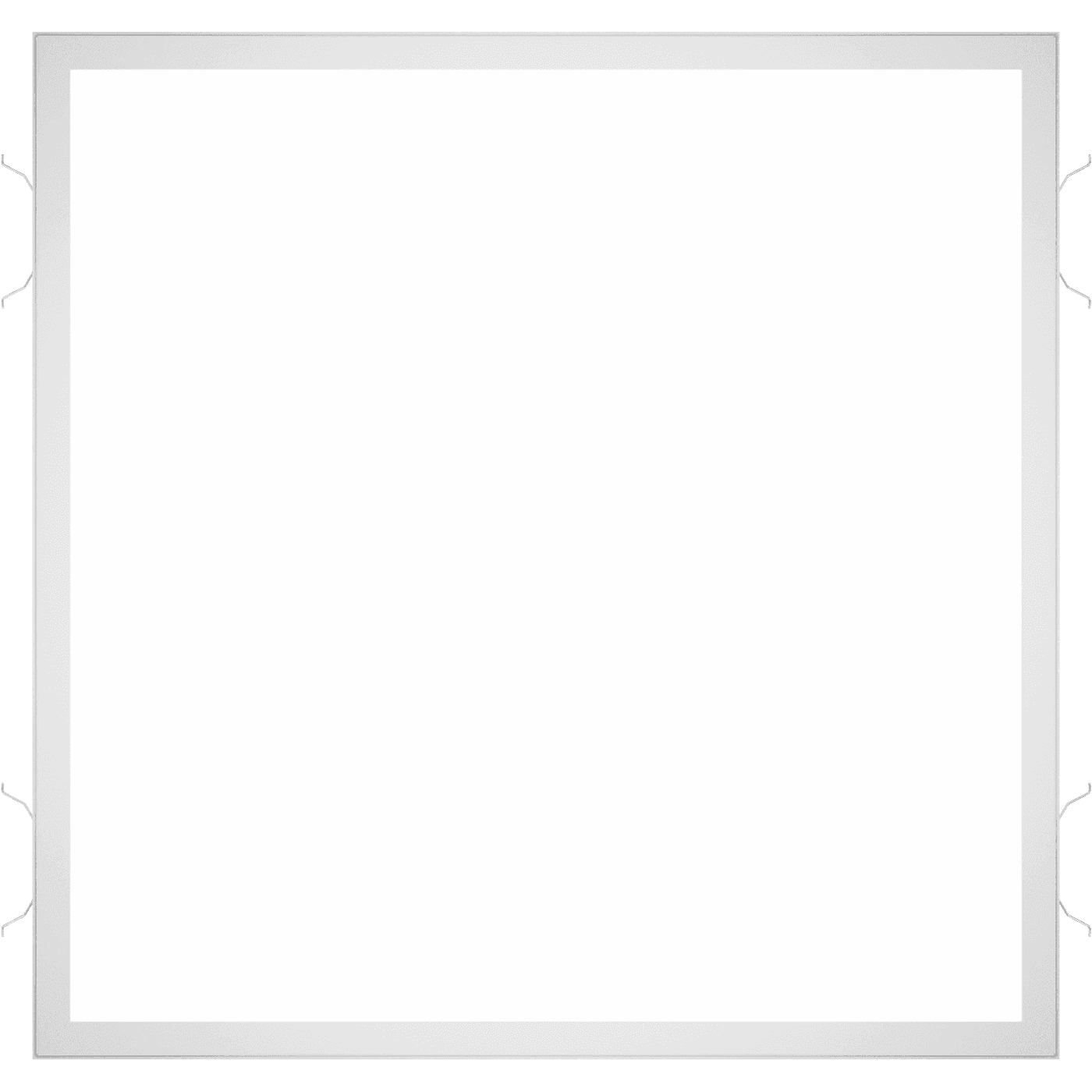

PRIZMA/R 595 HFD EM 4000K
model is discontinued
model is discontinued
PRIZMA/R 595 HFD EM 4000K
32 Wluminaire power
4000 lmlight flow
125 lm/Wenergy efficiency
code1499001010
color temperature4000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalemergencyLMS optionscommon
emission color
Белыйlight source type
LEDlight flow
4000 lmcolor rendition index (CRI)
>80flickering factor
<5%energy efficiency
125 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
4000 lm
color rendition index (CRI)
>80
flickering factor
<5%
energy efficiency
125 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
32 W
electric shock protection
I
power factor
> 0,98
maximum cross-section of the connected cable
2.5 mm2
starting current
35 A
supply voltage
230 V
constructional
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4
fire safety class
П-ІІ
length
595 mm
width
595 mm
height
85 mm
installation width
575 mm
material
Сталь
housing color
Белый
weight
5 kg
emergency
operating time in emergency mode
1 h
LMS options
dimming
DALI
common
code
1499001010
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от +5 до +35 C
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
