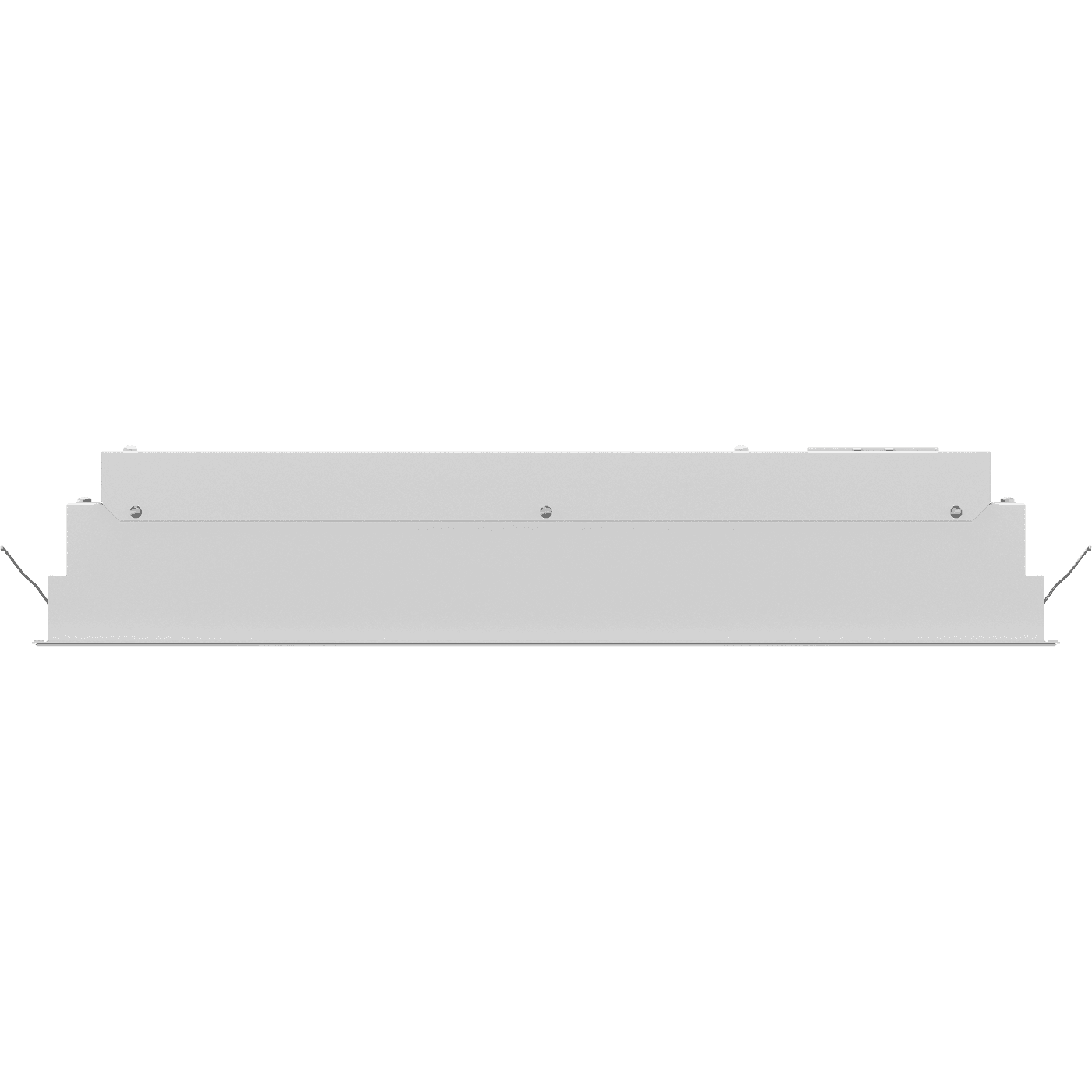

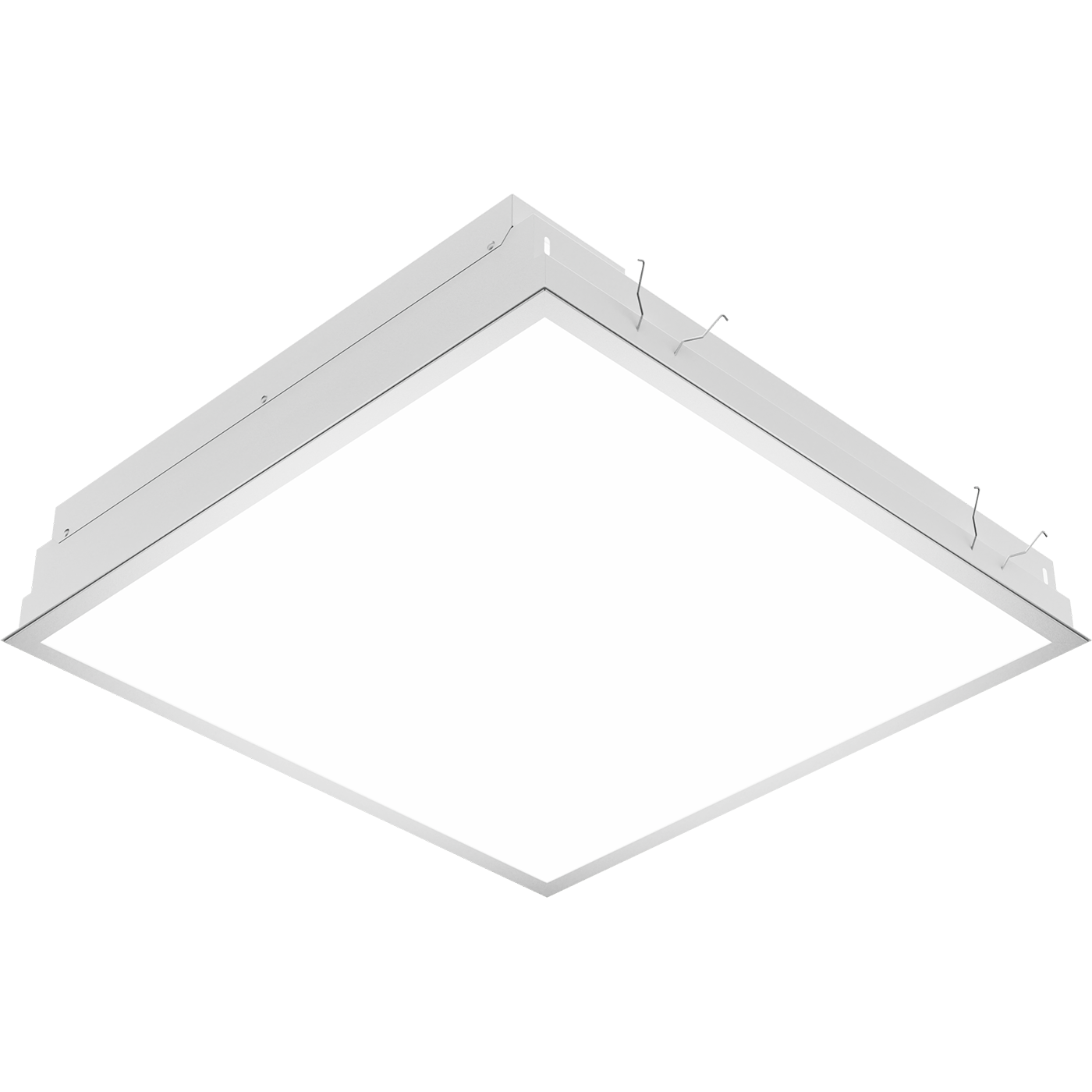

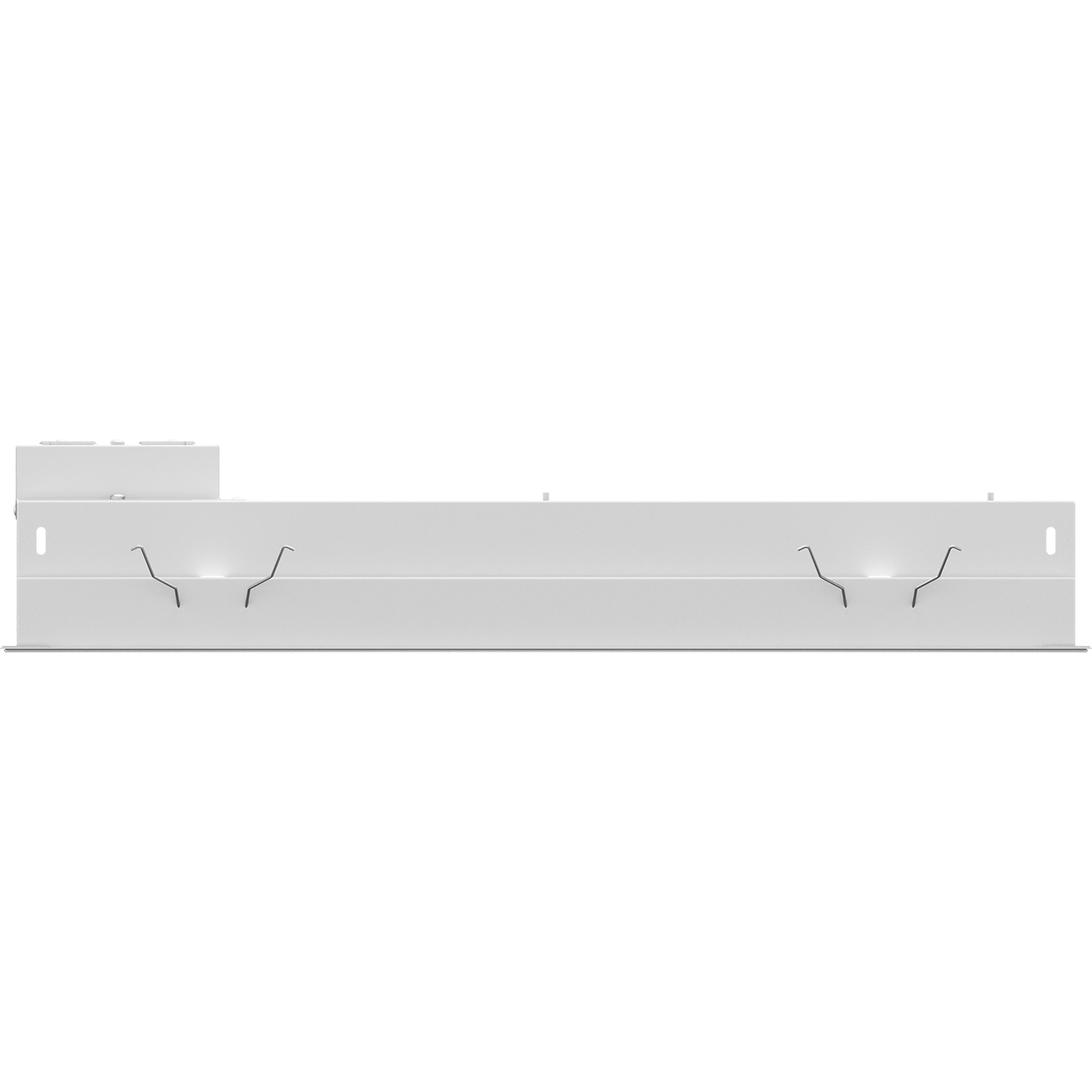

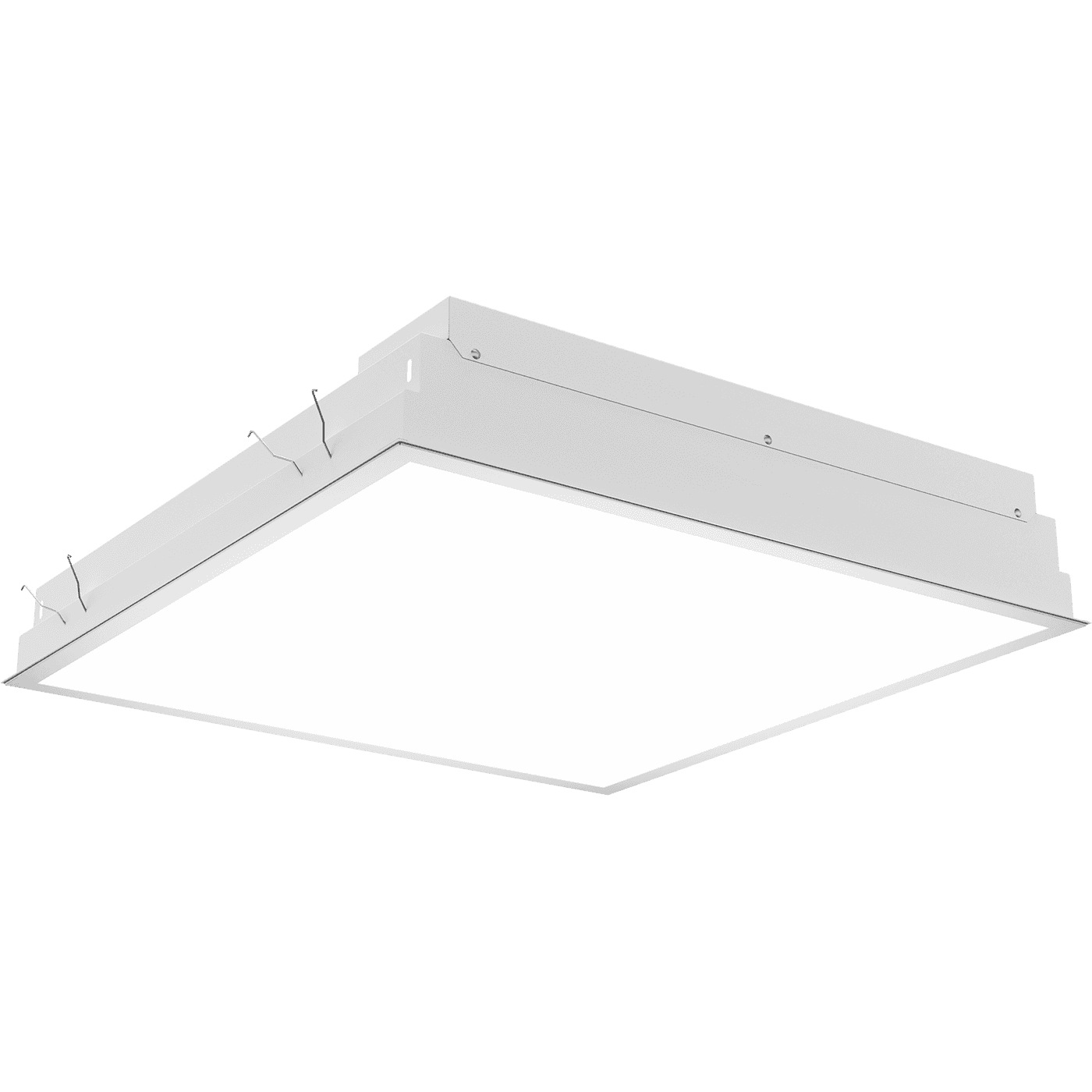

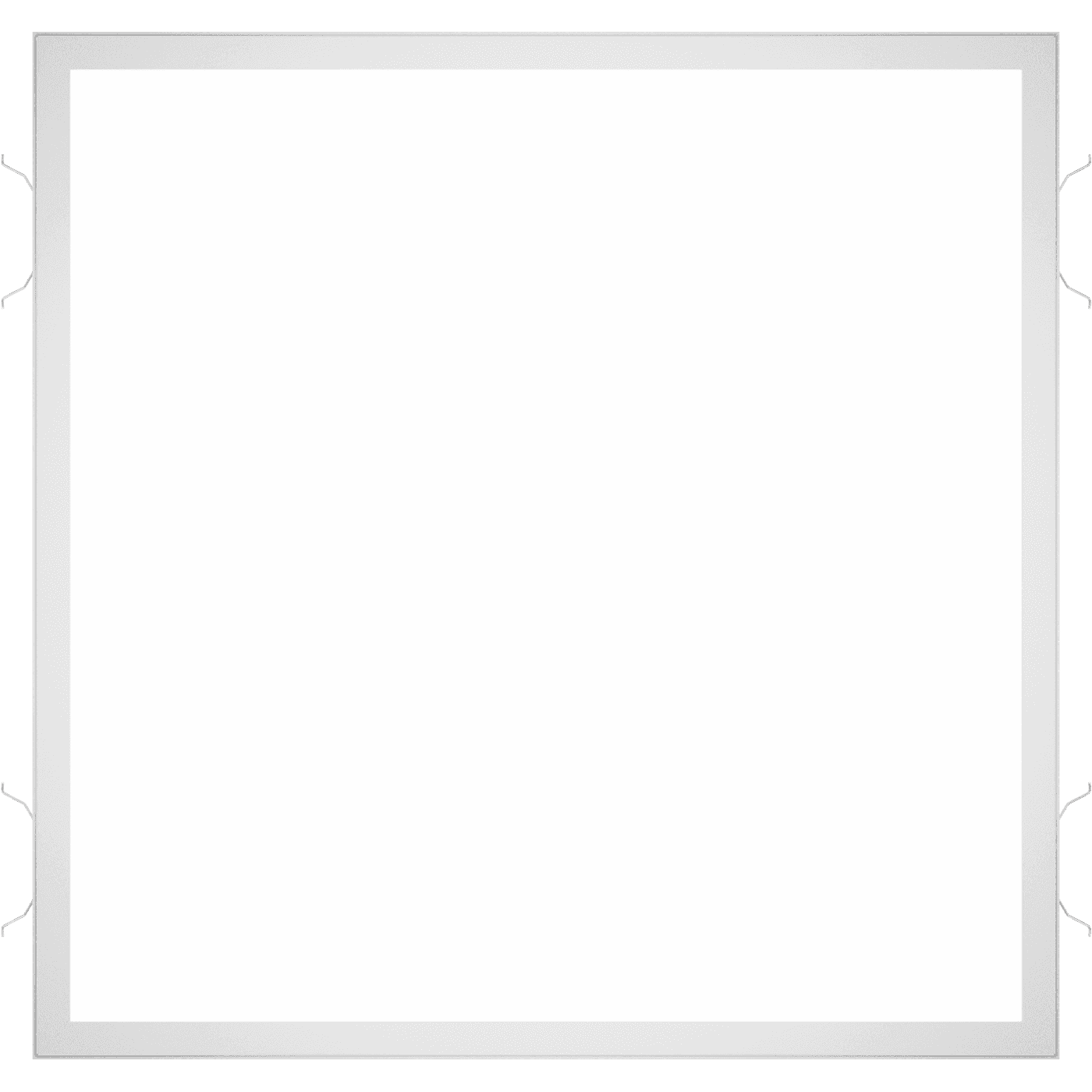

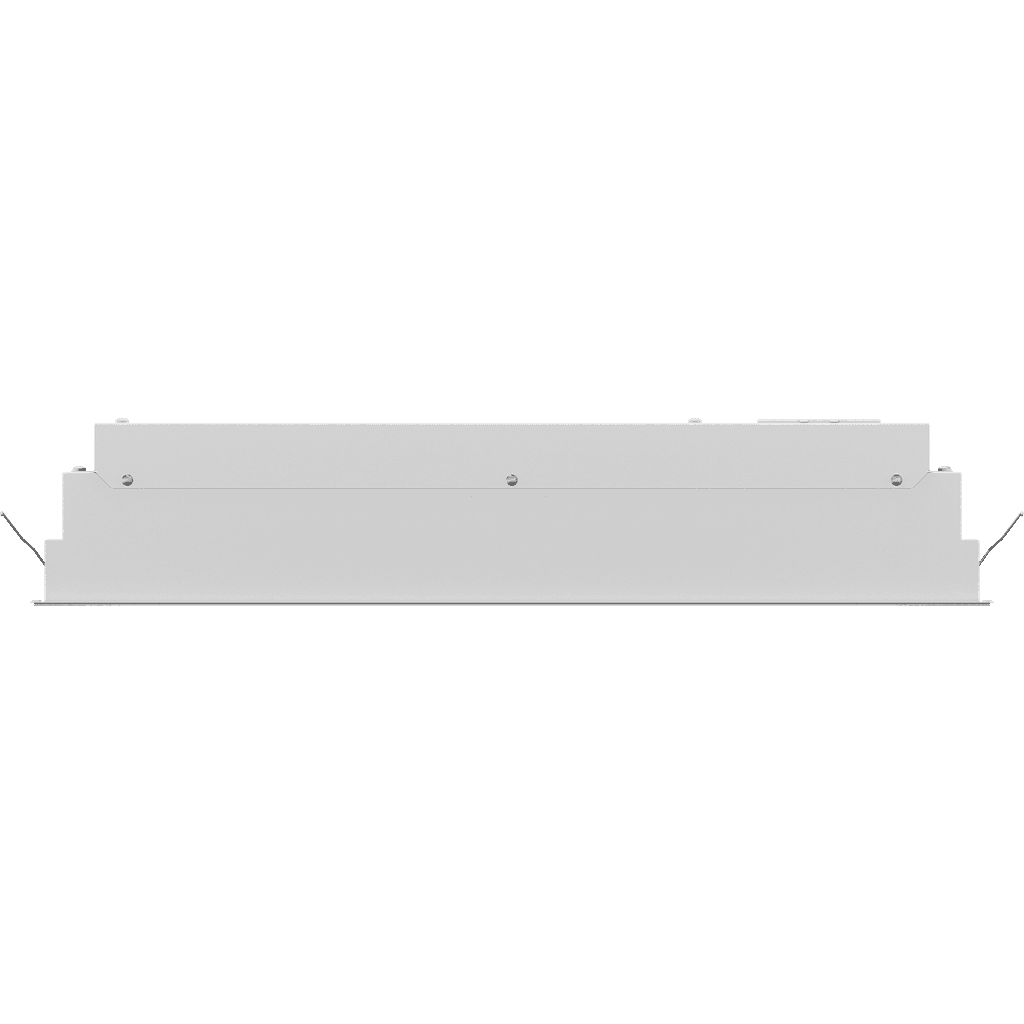

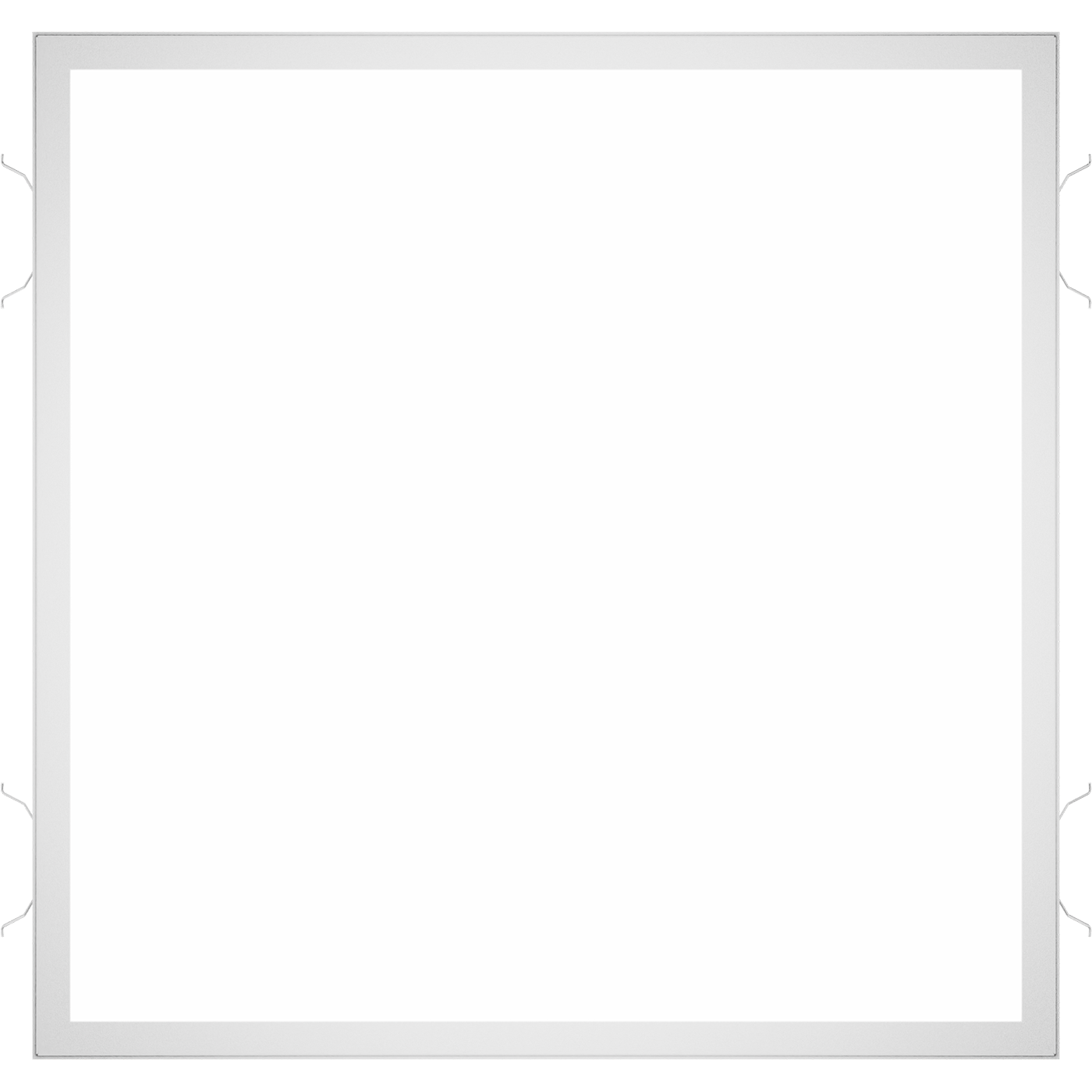

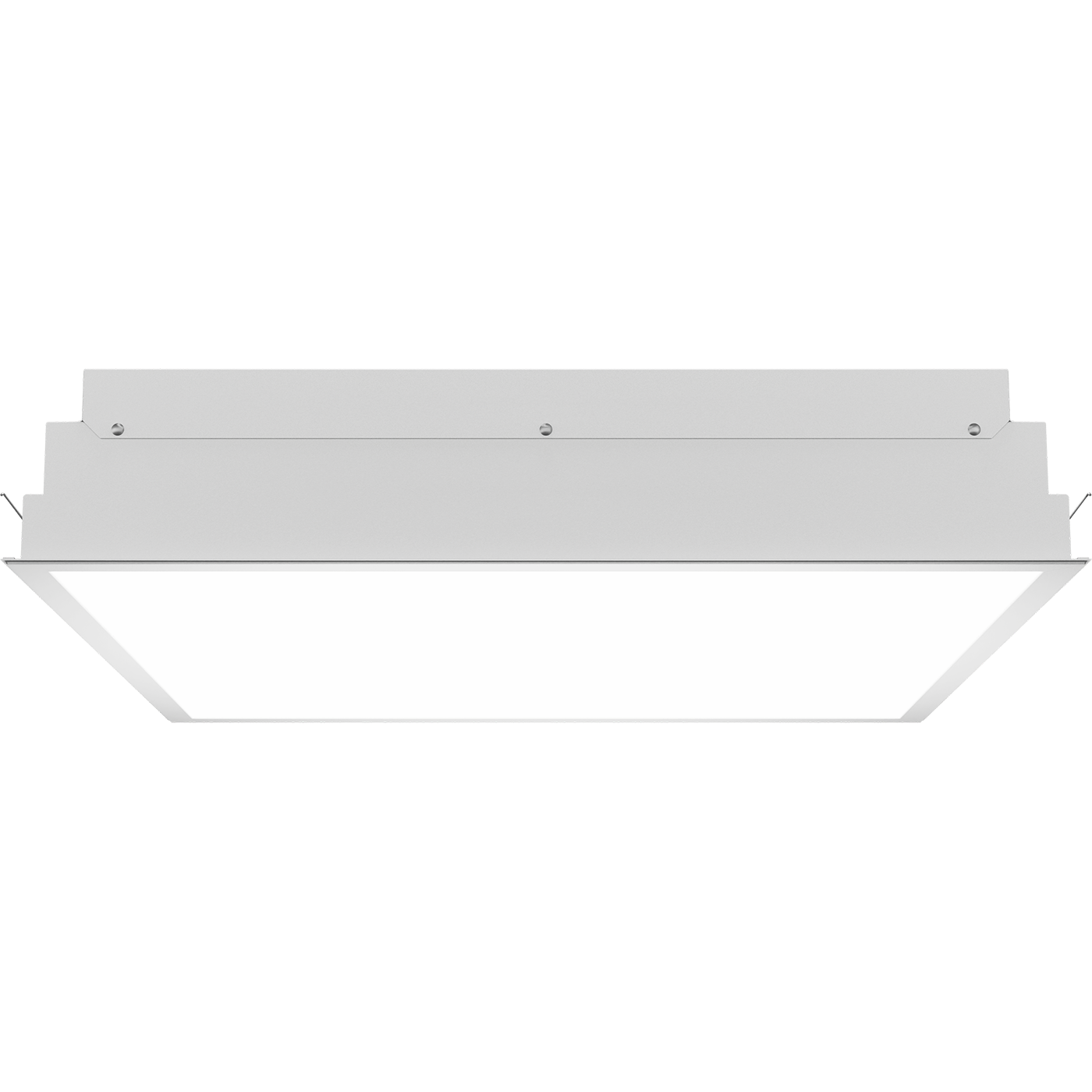

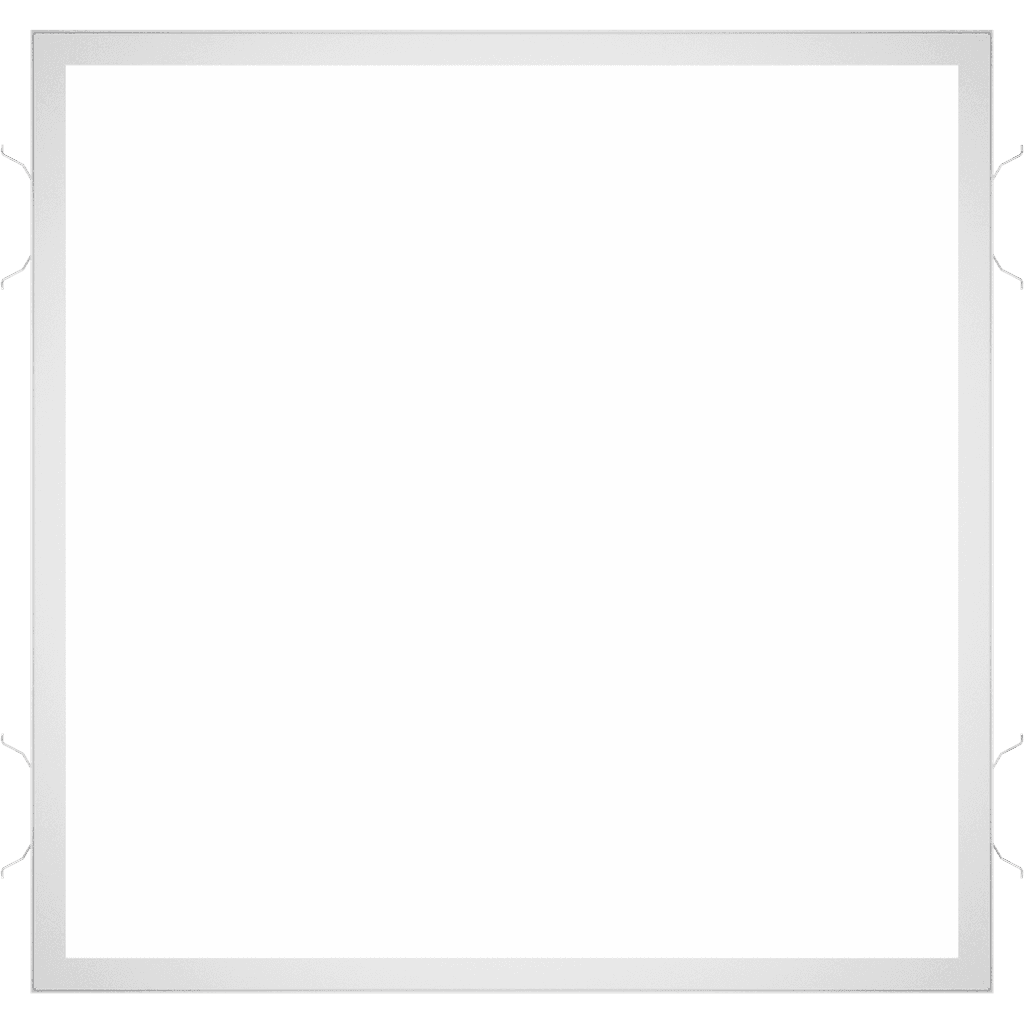

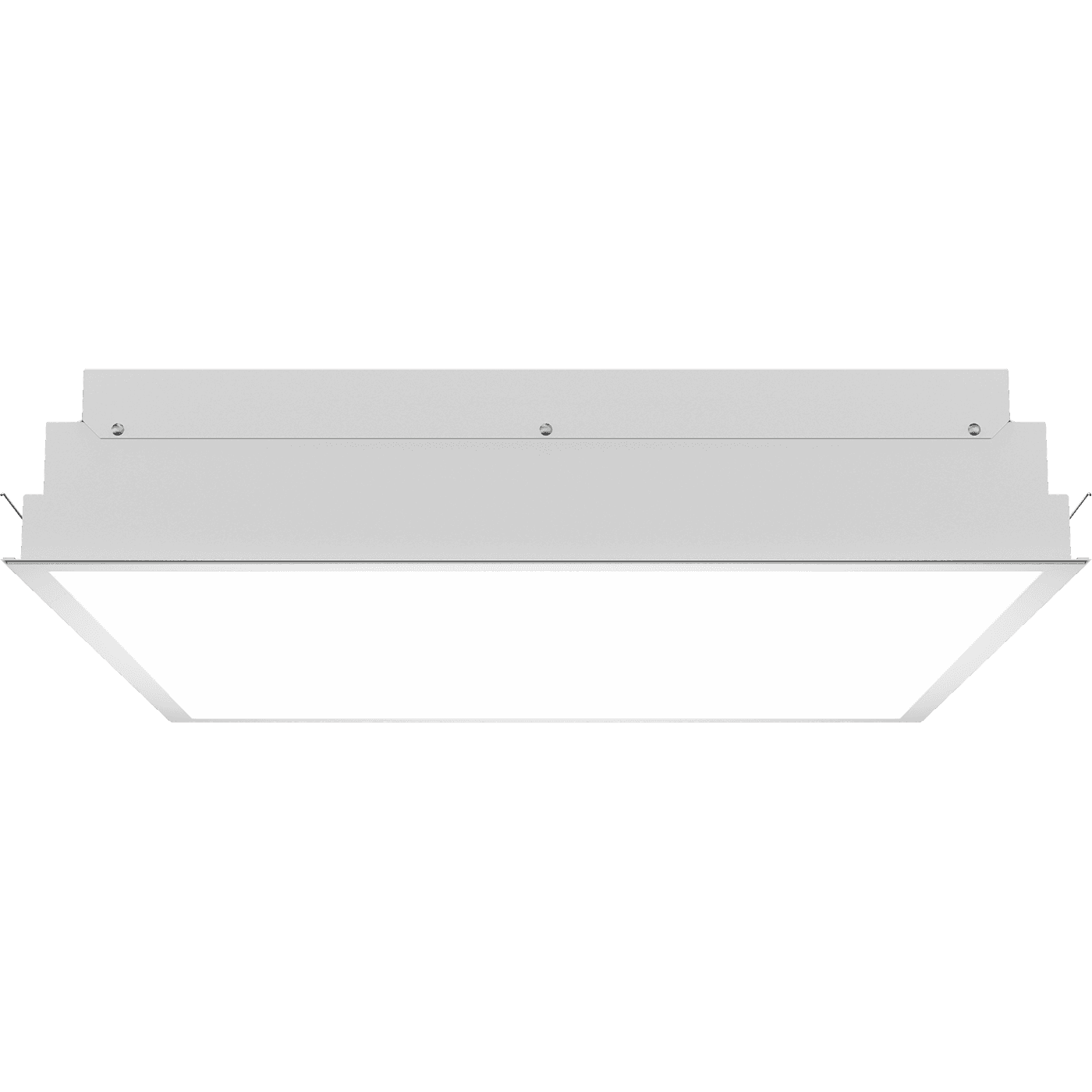

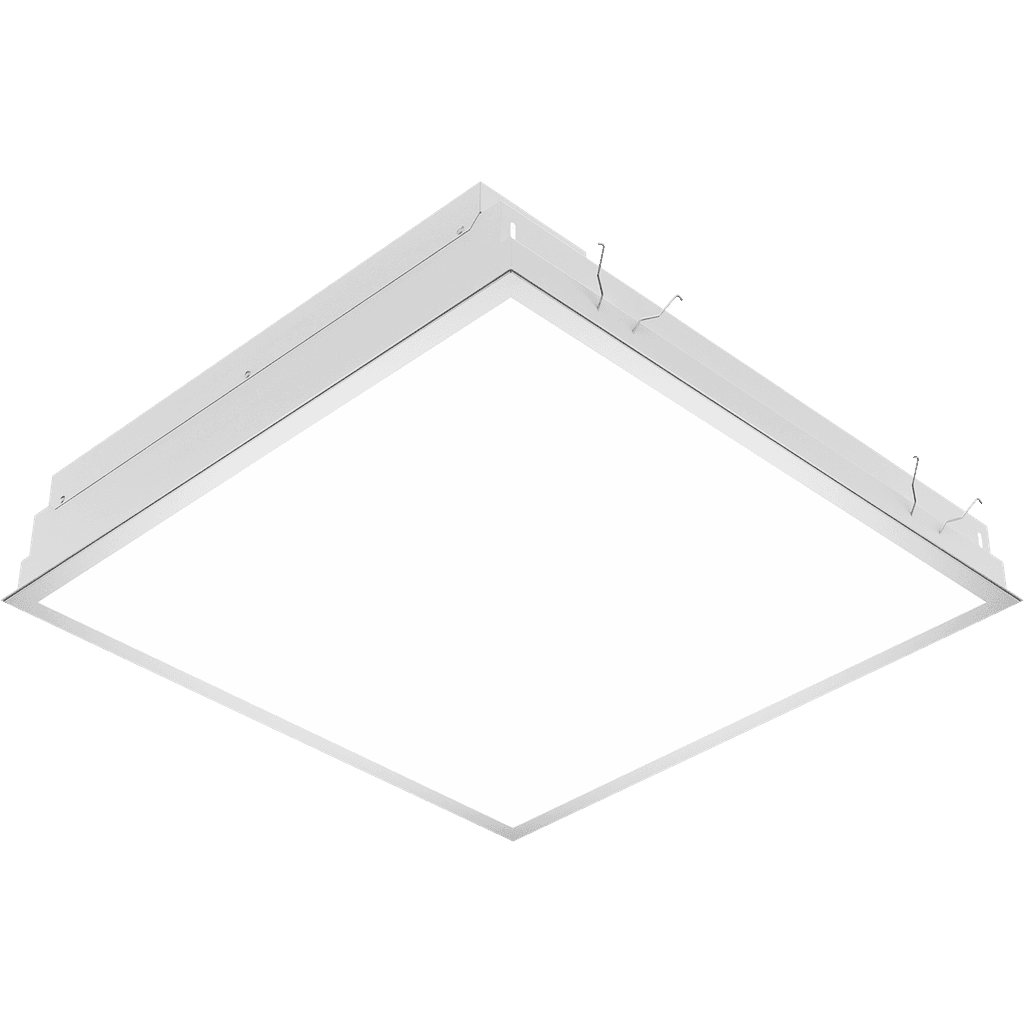

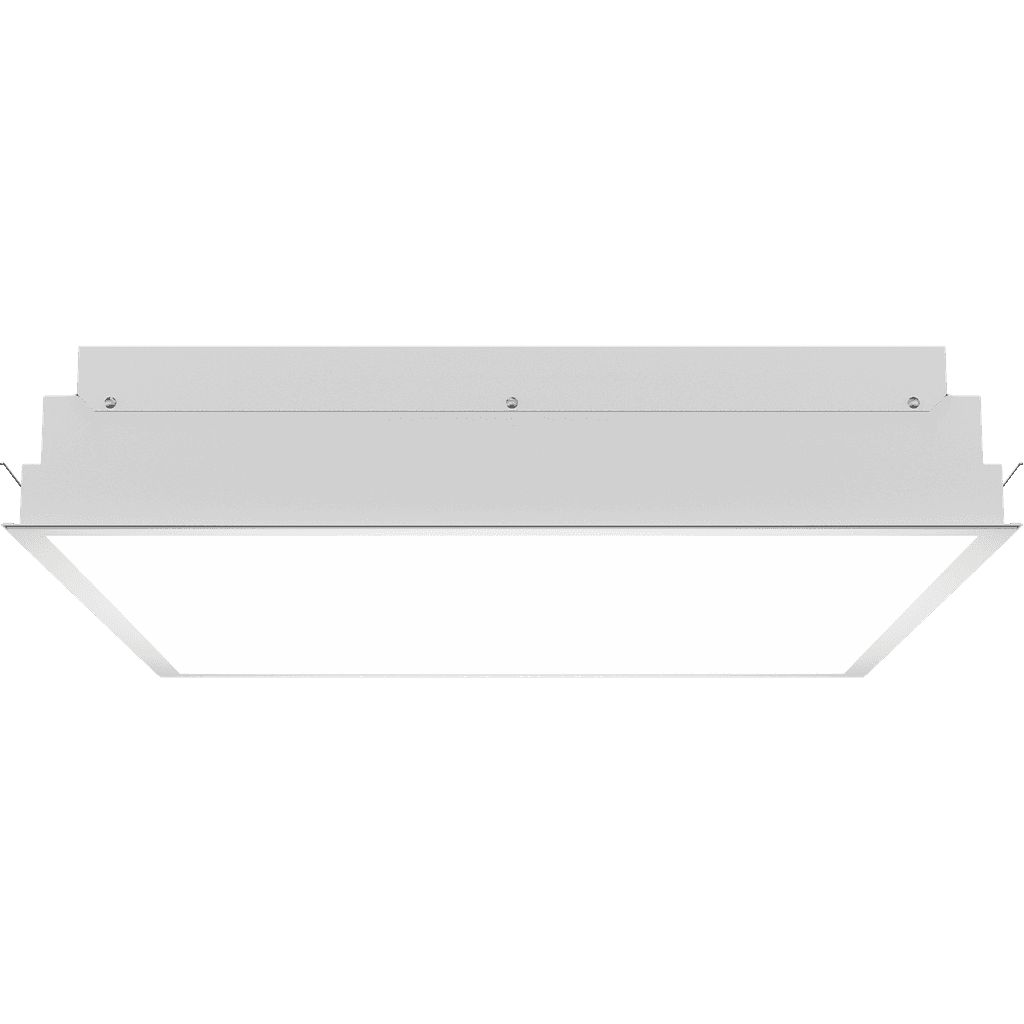

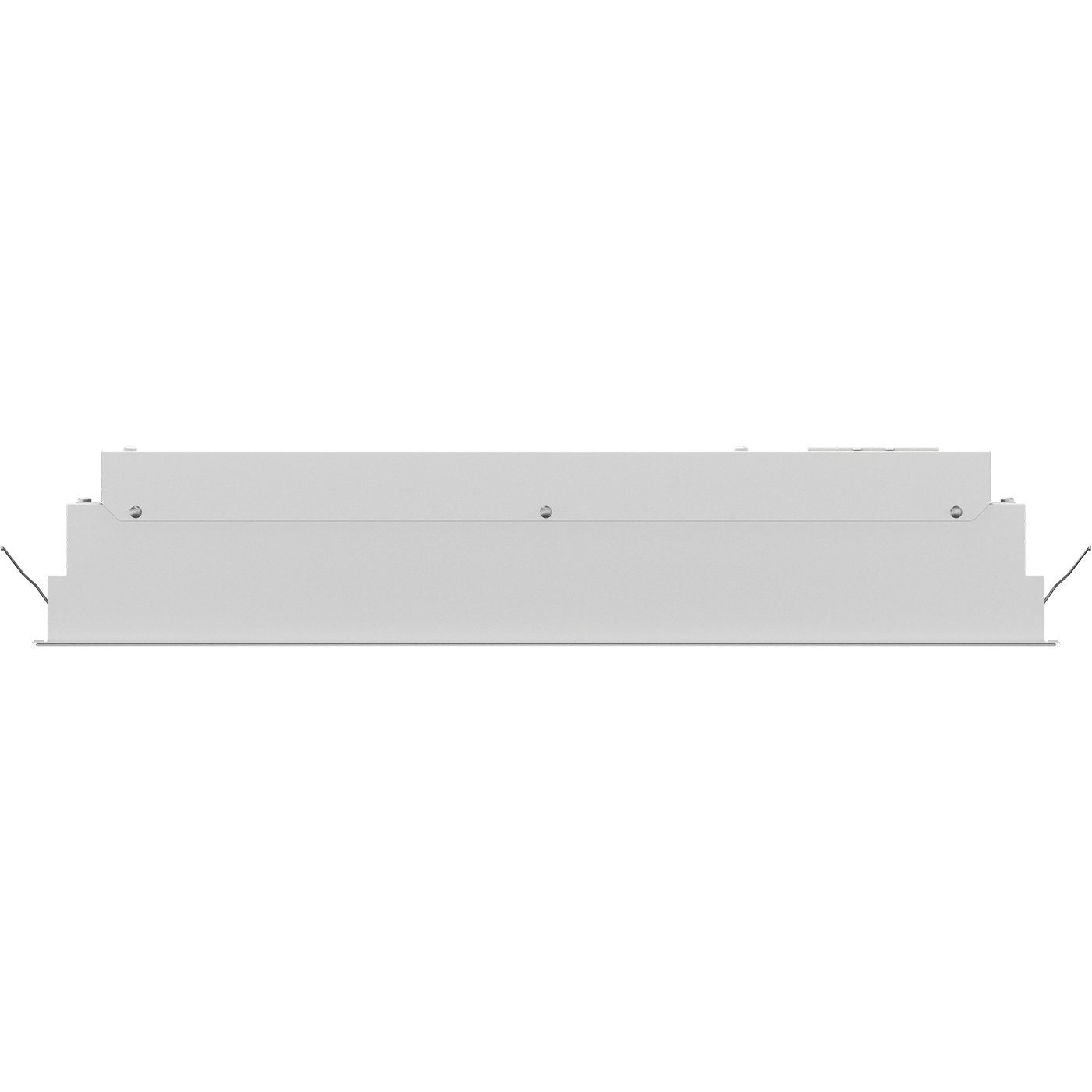

PRIZMA/R 595 EM 4000K
PRIZMA/R 595 EM 4000K
32 Wluminaire power
3700 lmlight flow
116 lm/Wenergy efficiency
code1499000350
color temperature4000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
emission color
Белыйlight source type
LEDlight flow
3700 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
116 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
3700 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
116 lm/W
beam angle
D120
color temperature
4000 K
electrical
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
25 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
length
595 mm
width
595 mm
height
85 mm
installation width
575 mm
material
Сталь
housing color
Белый
weight
5 kg
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
350 lm
common
code
1499000350
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от +5 до +35 C
model files
model files
CAD/BIM files

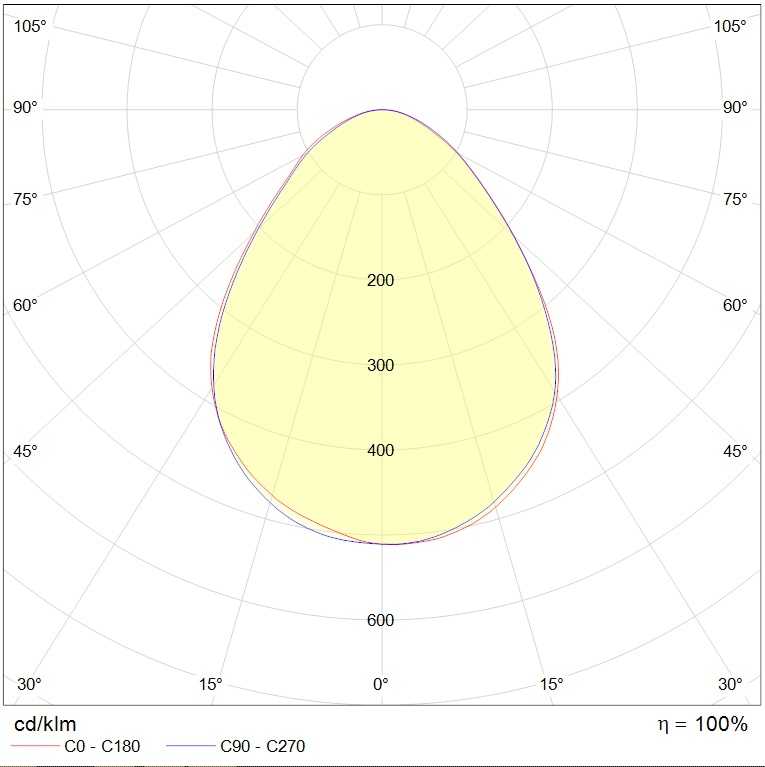

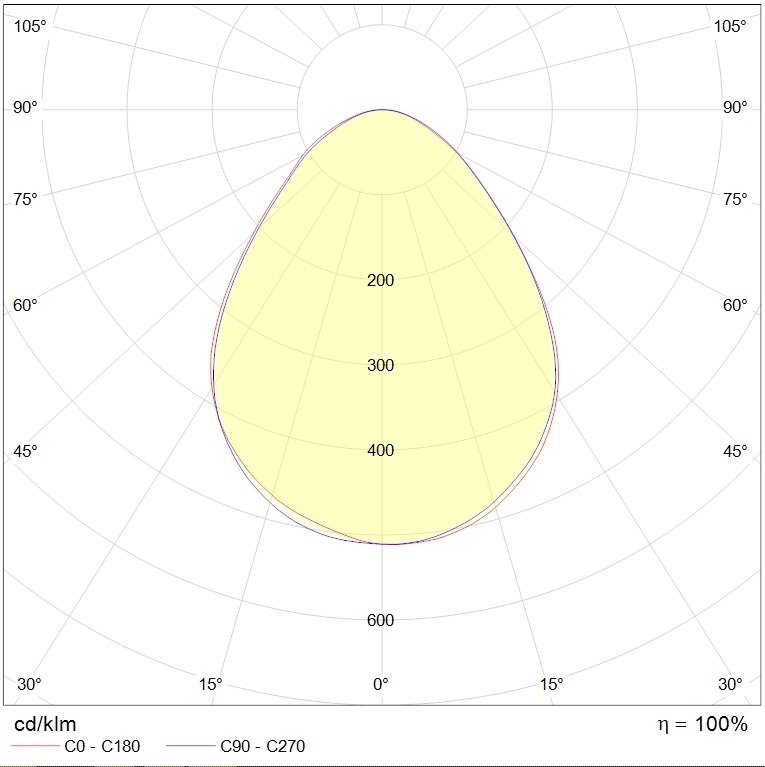

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax392 kB
photometric files
ies107 kB
jpg86 kB
ldt64.8 kB
documents
passport900.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016298.3 kB
