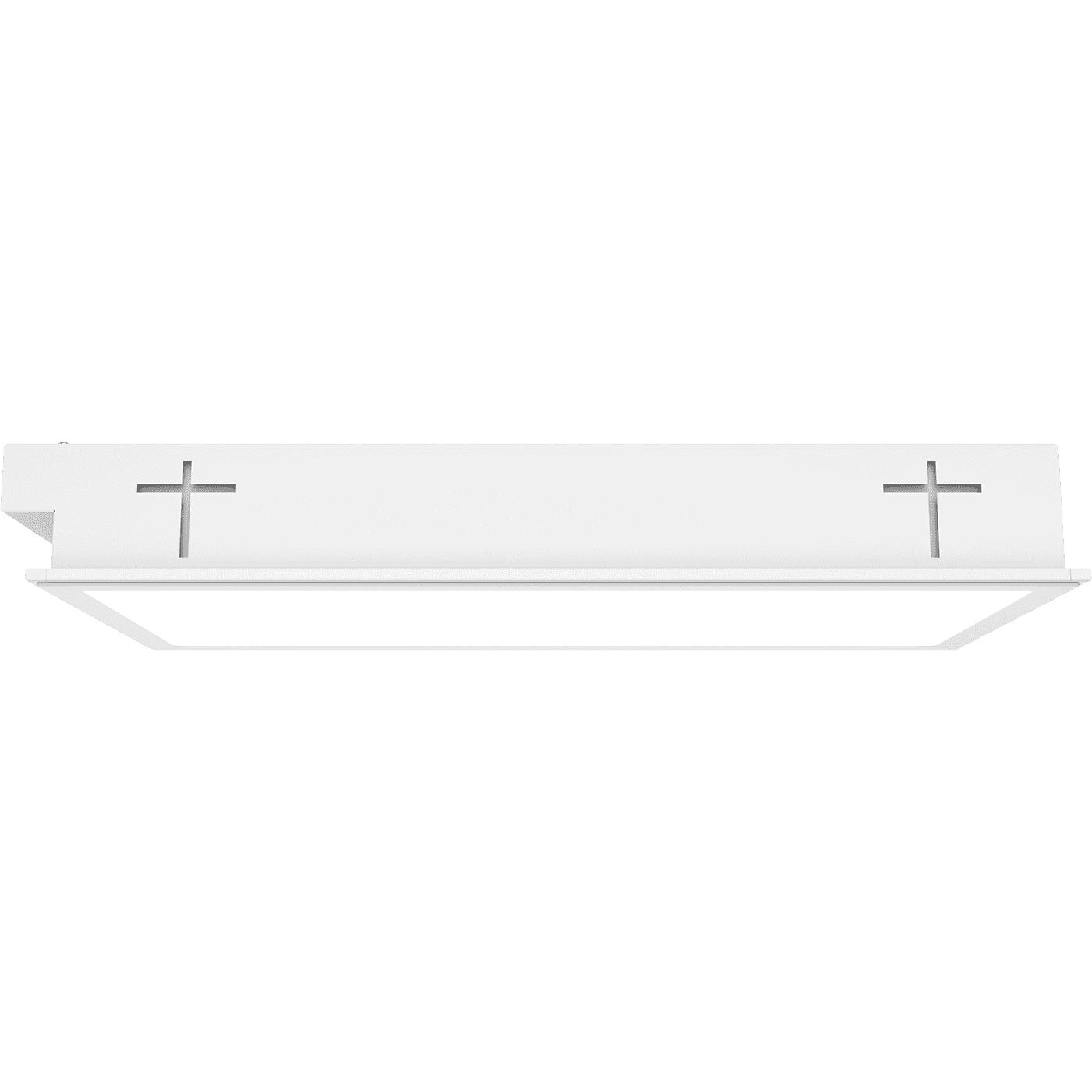

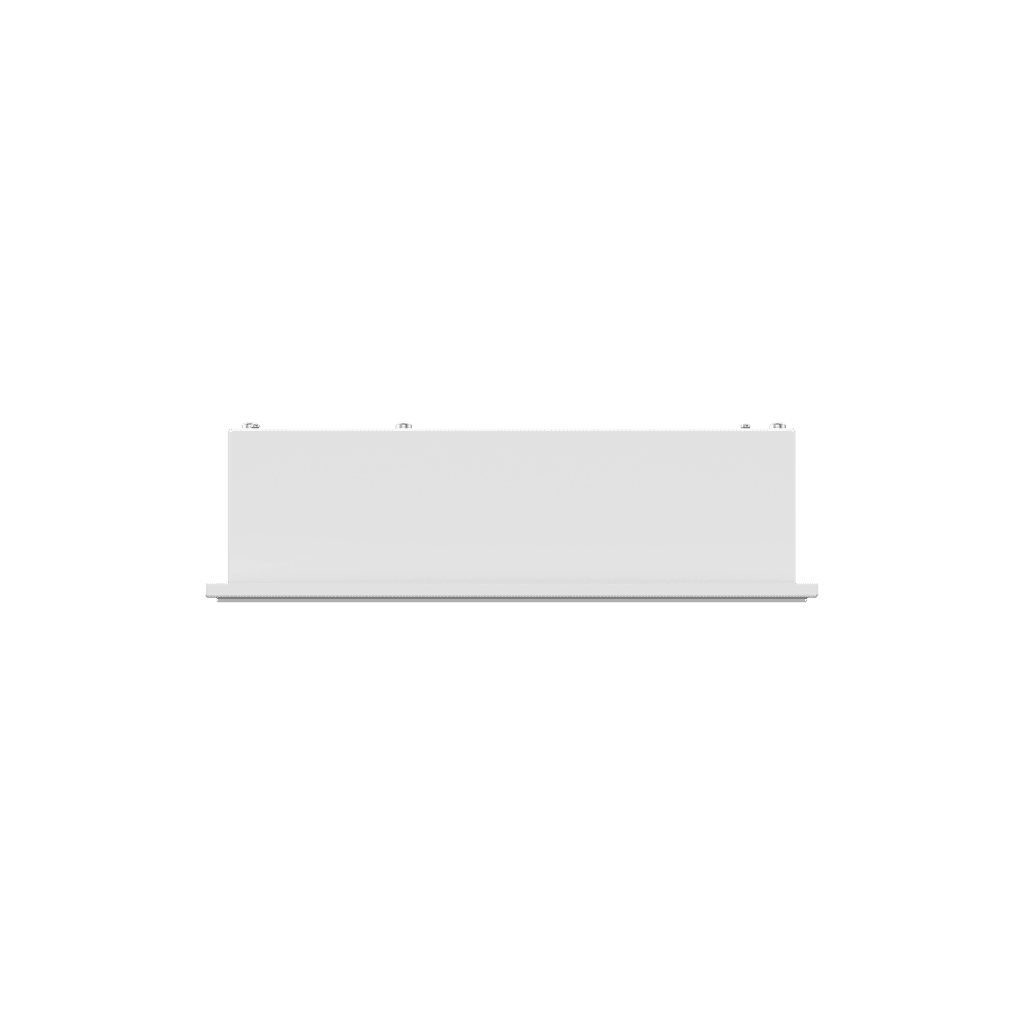

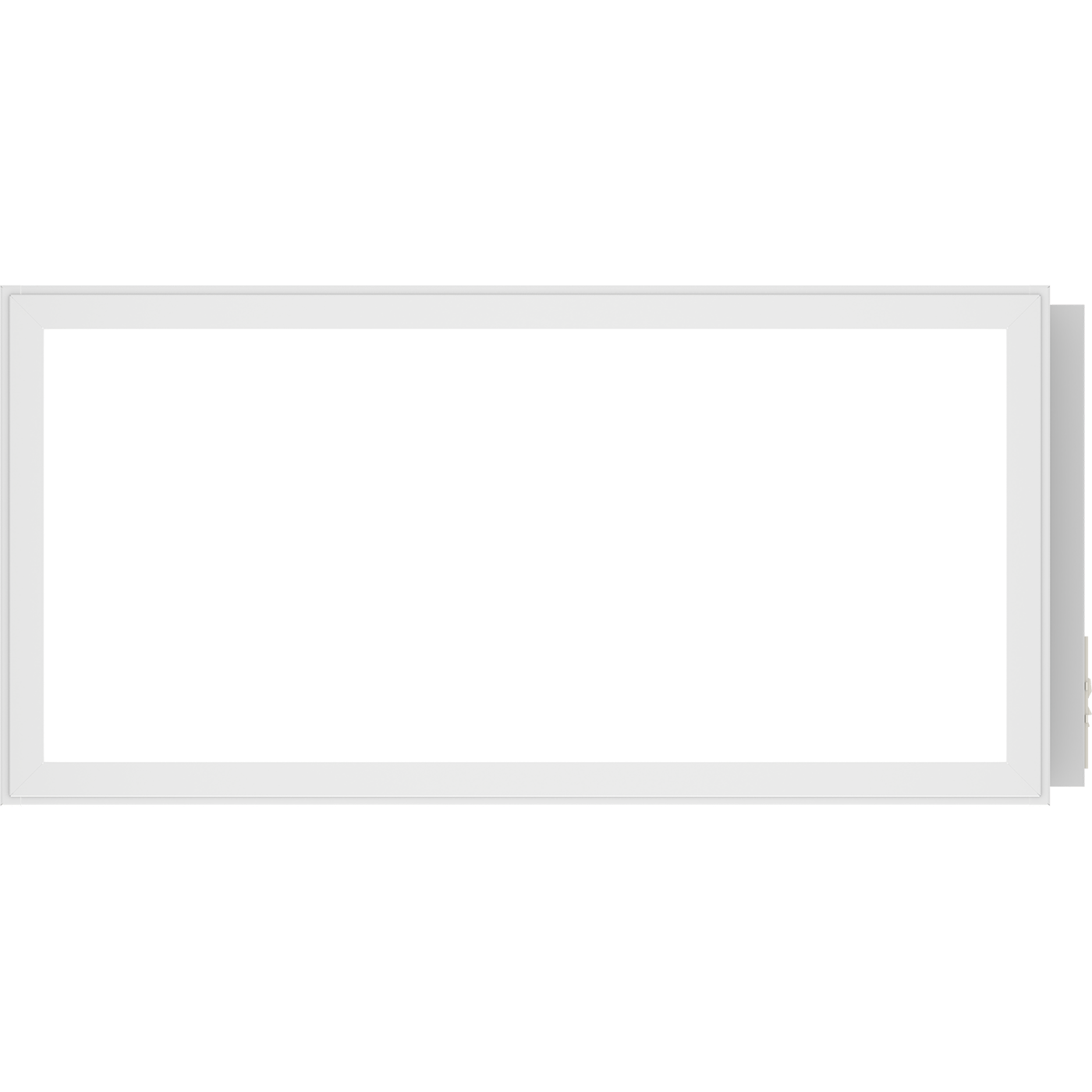

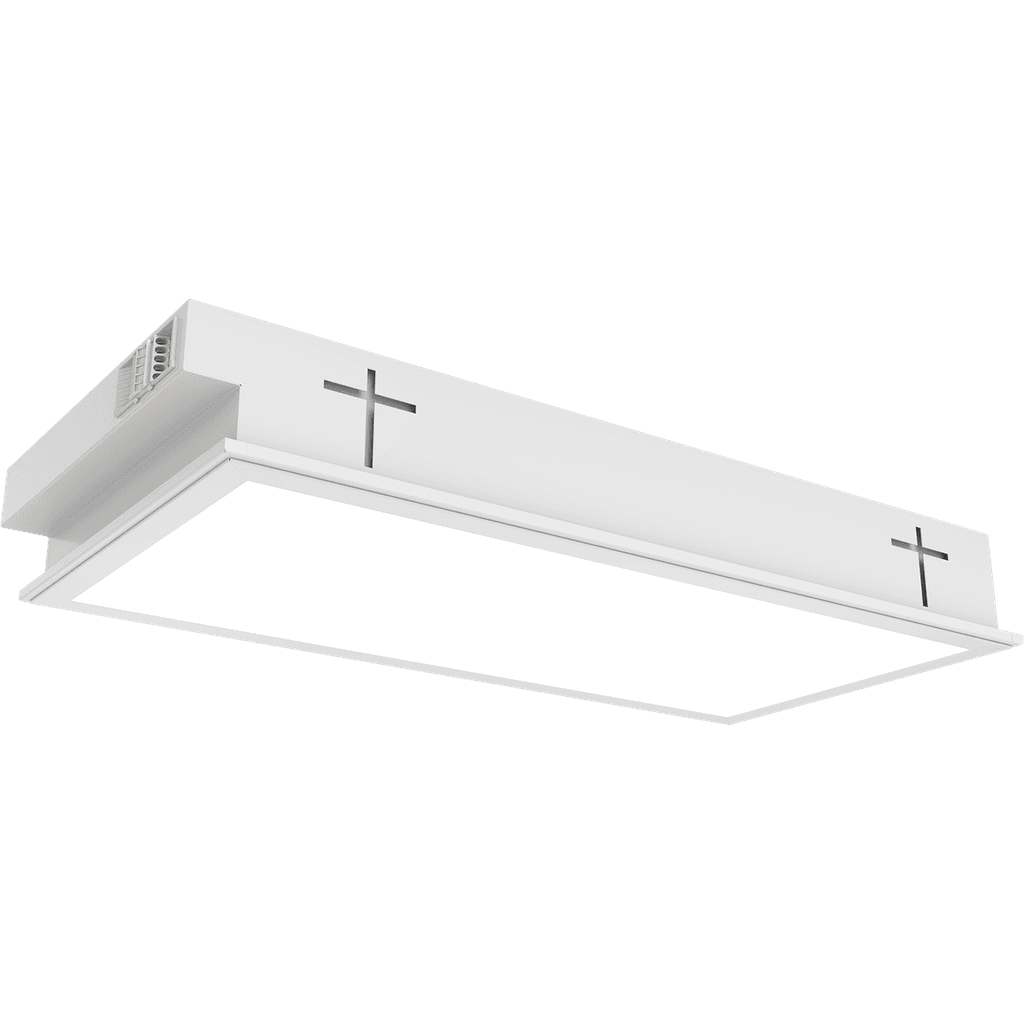

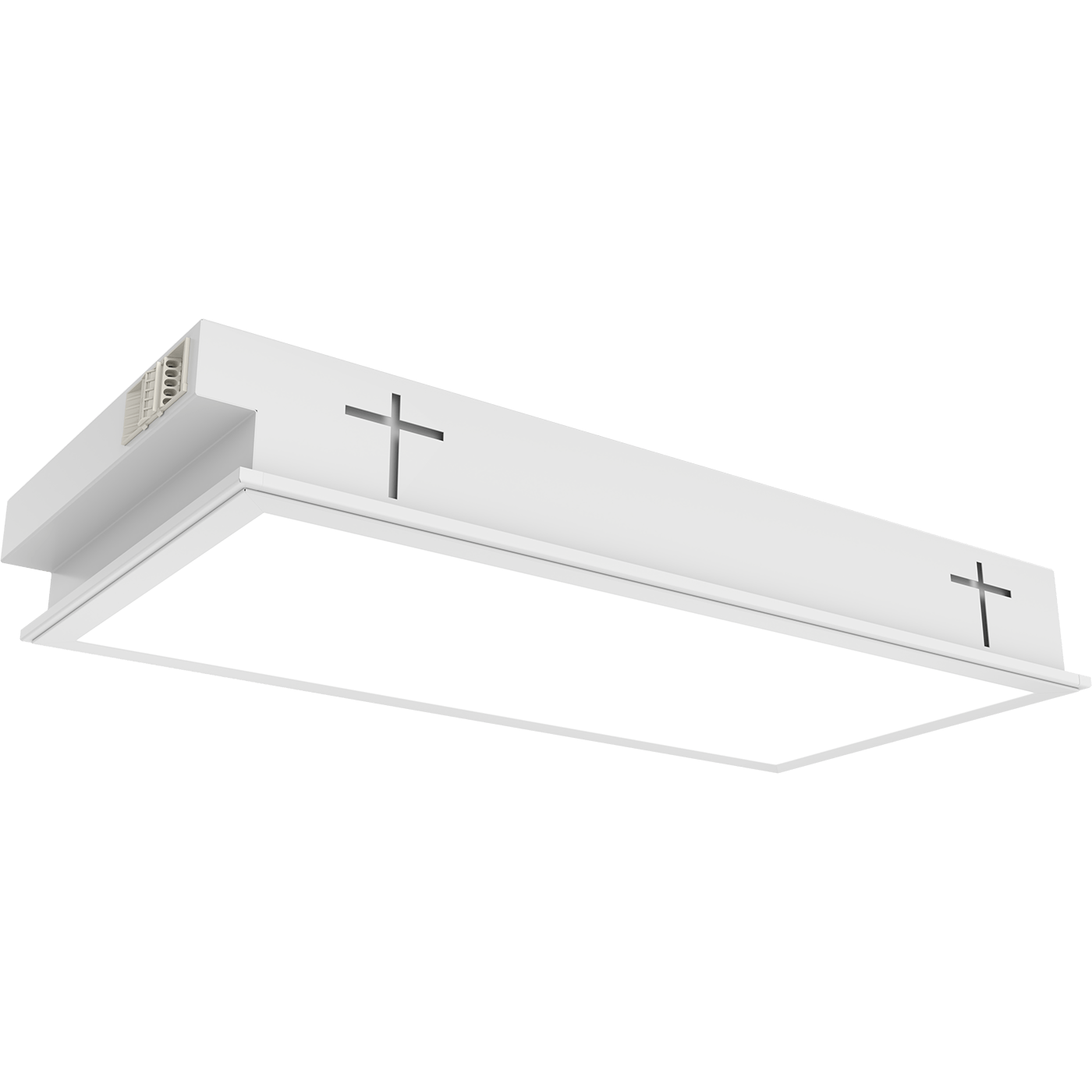

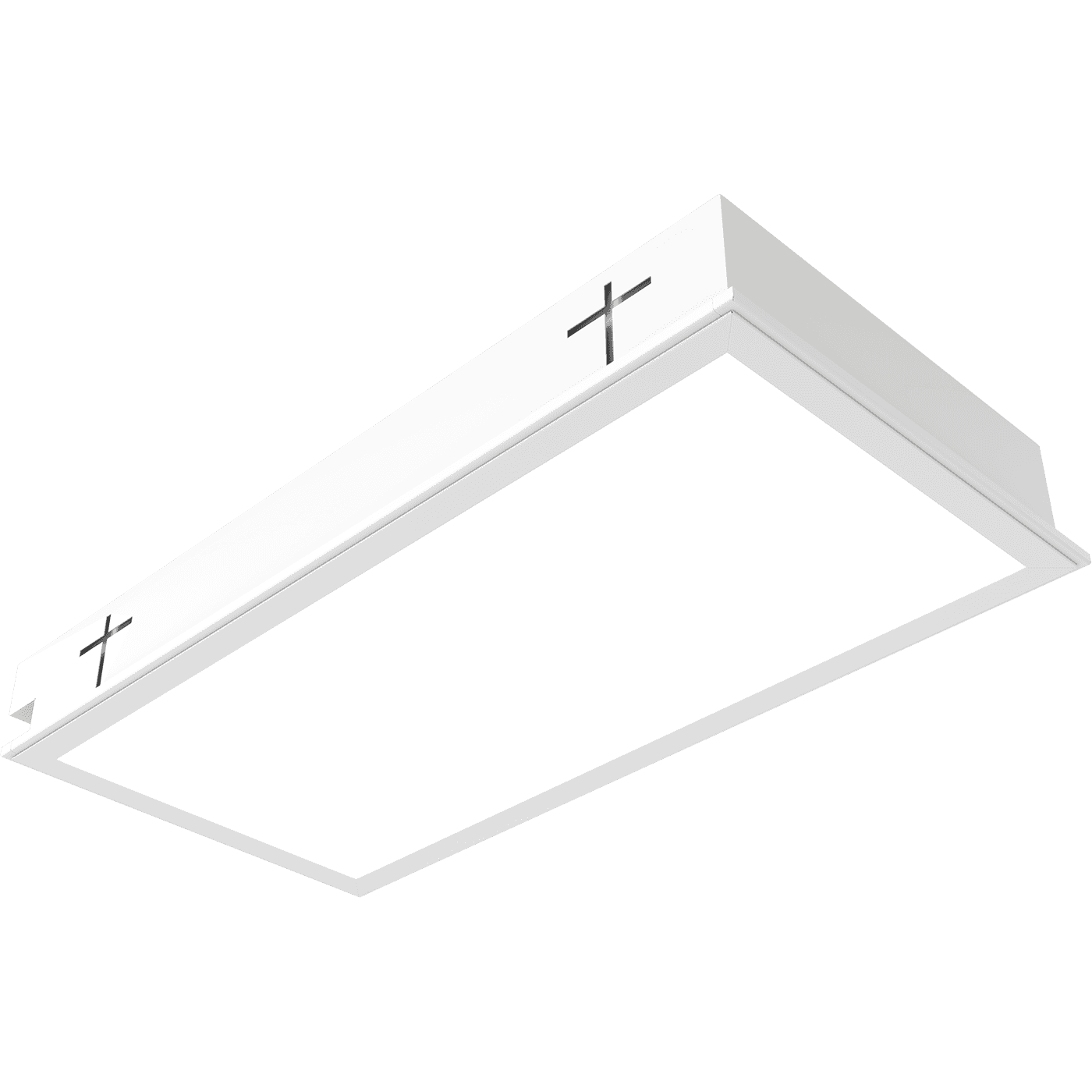

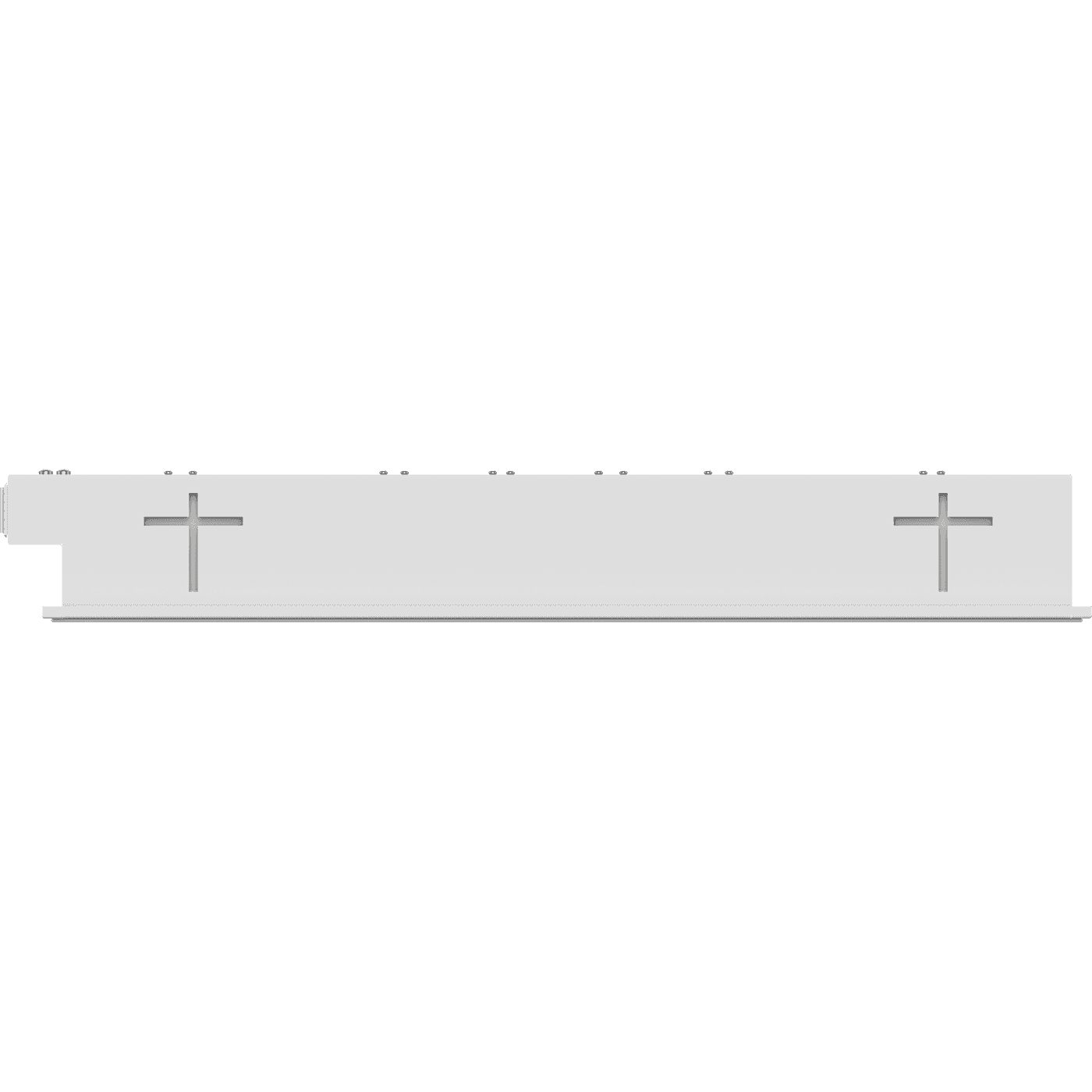

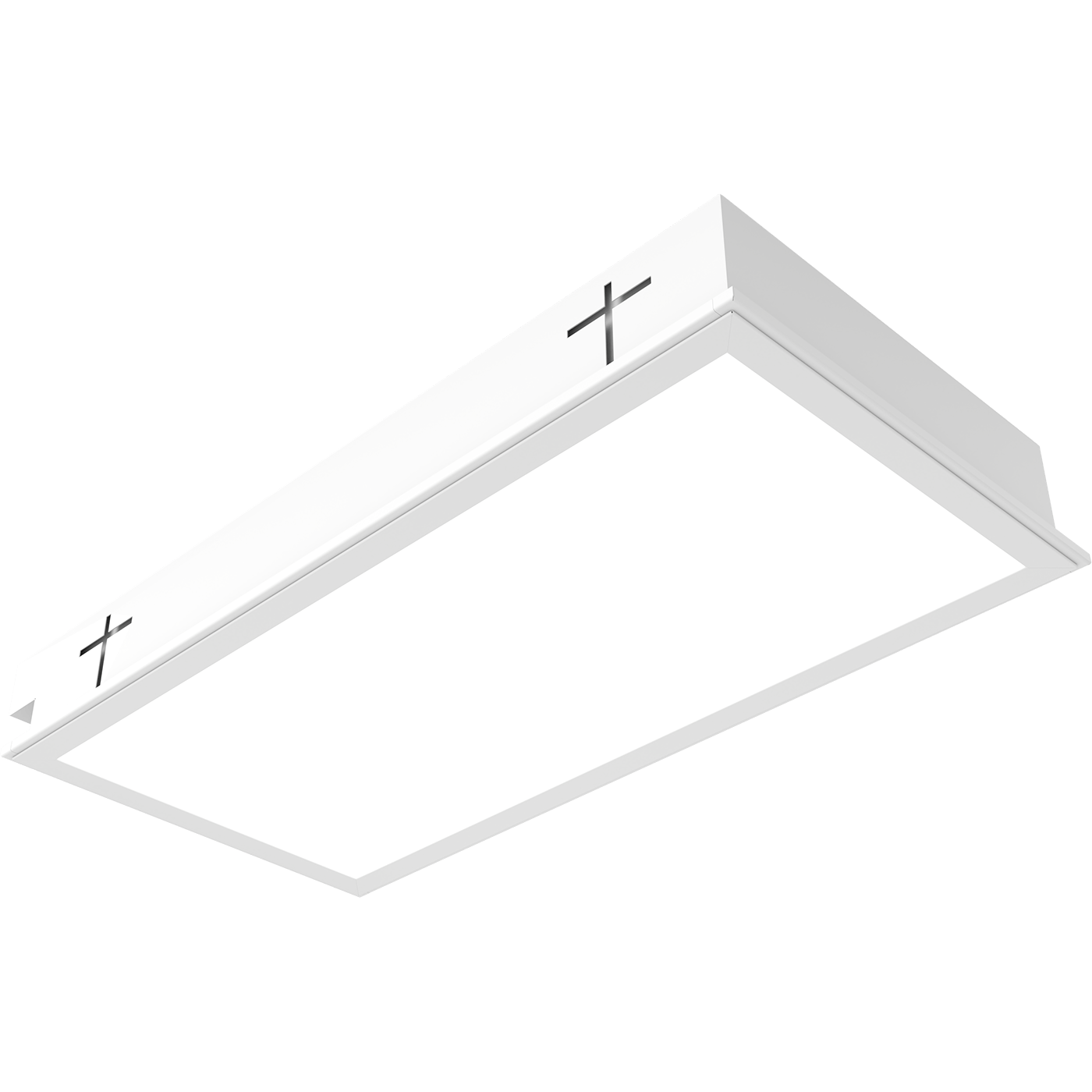

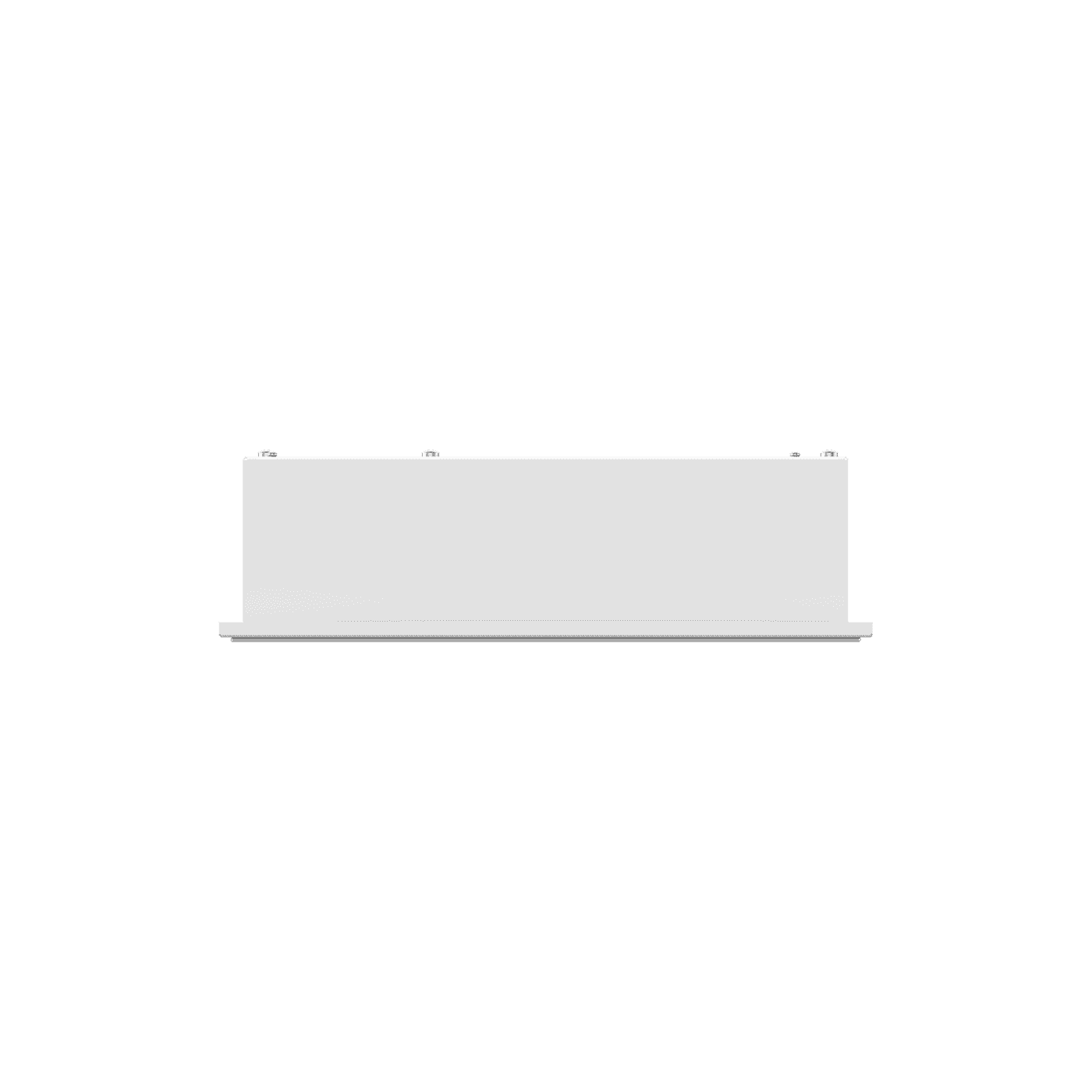

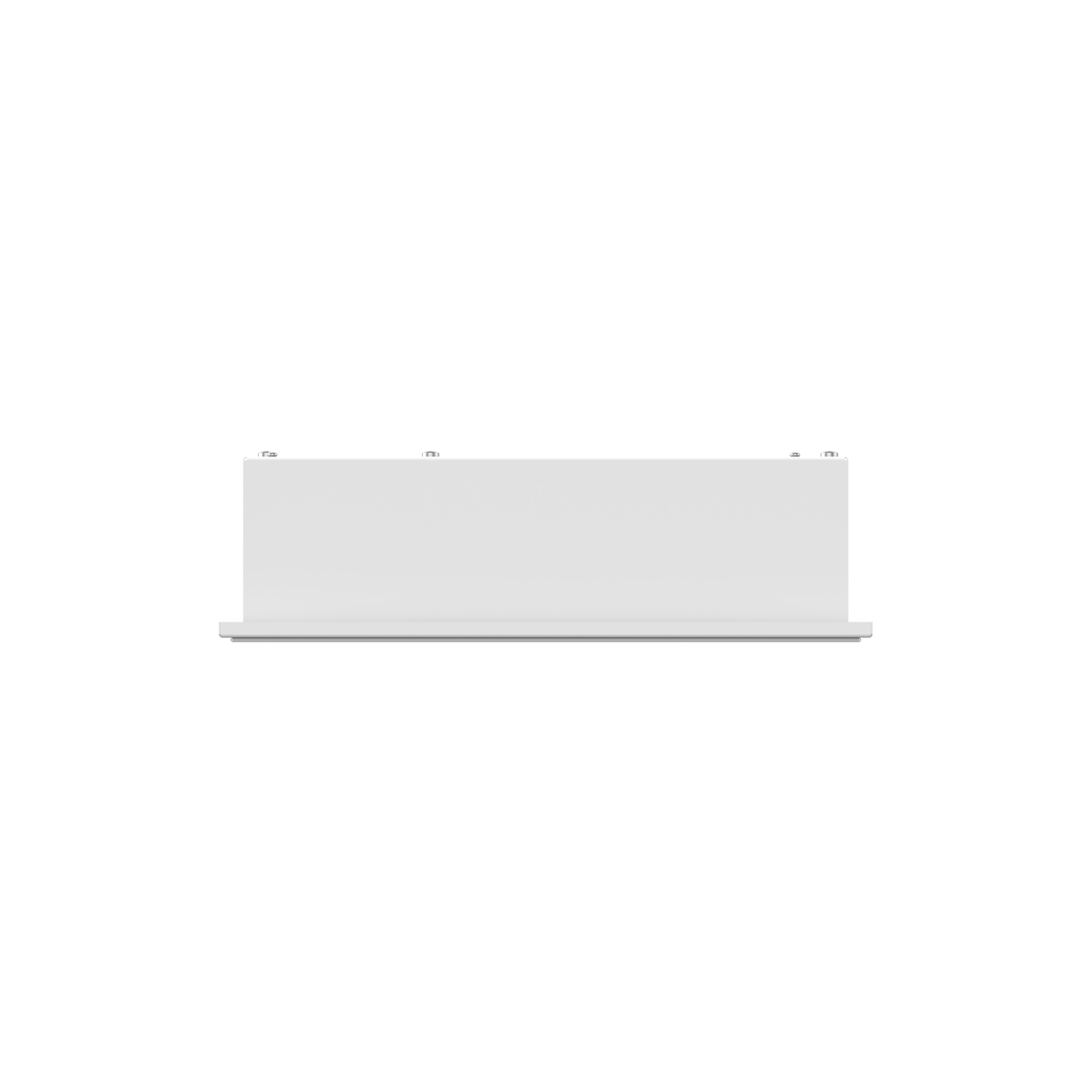

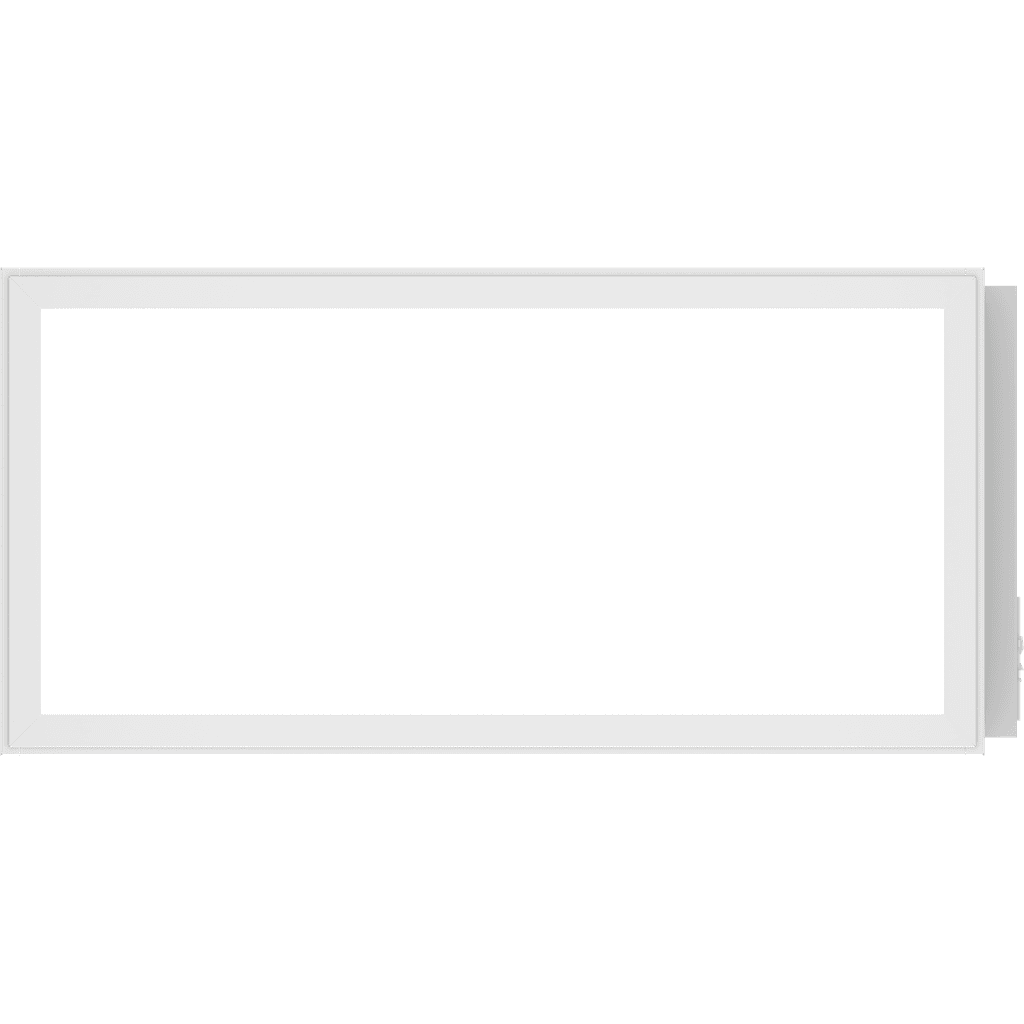

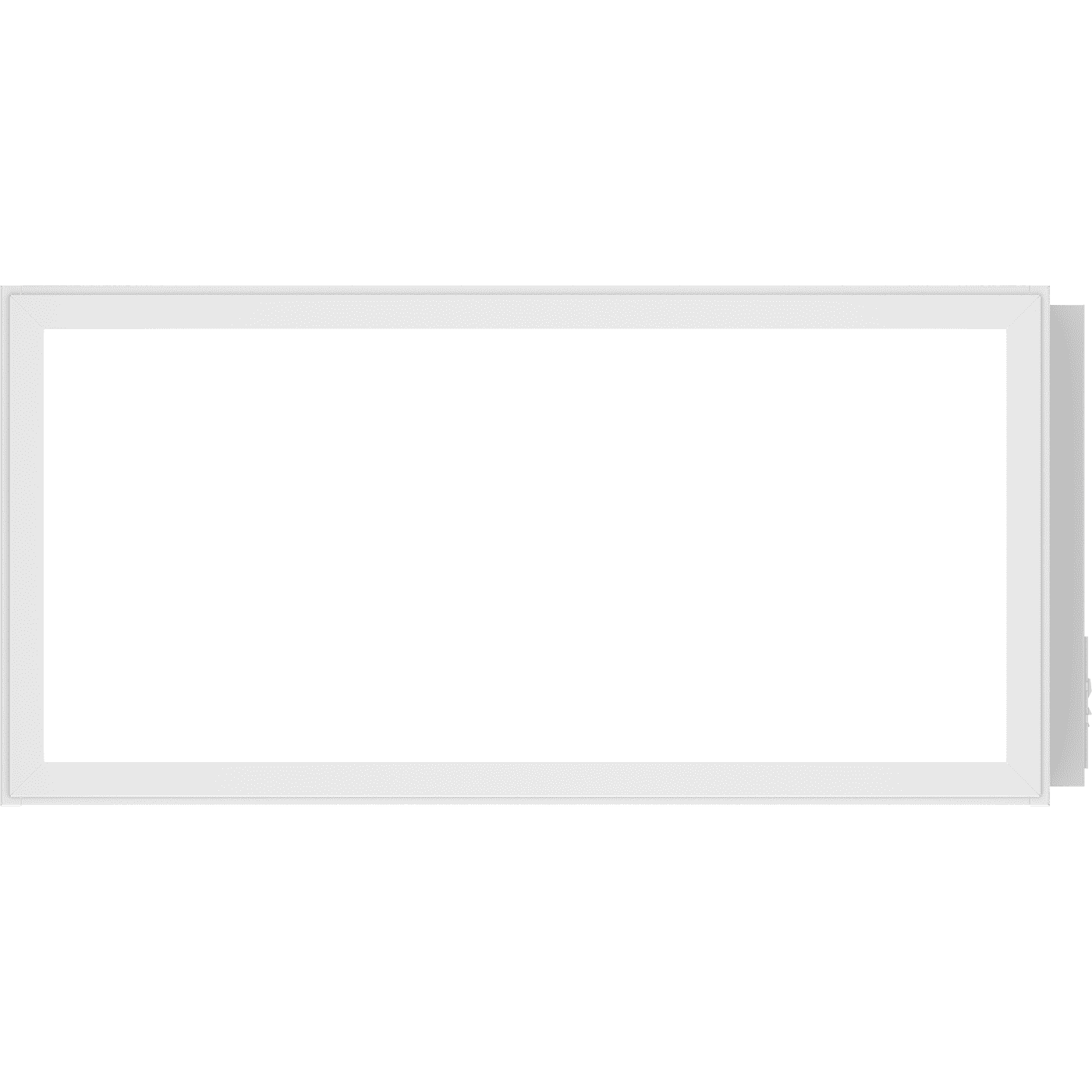

PRIZMA/R 300 4000K
PRIZMA/R 300 4000K
18 Wluminaire power
1800 lmlight flow
100 lm/Wenergy efficiency
code
1499000010
color temperature
4000 K
beam angle
D120
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
emission color
Белыйlight source type
LEDlight flow
1800 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
100 lm/Wbeam angle
D120color temperature
4000 Killuminating
emission color
Белый
light source type
LED
light flow
1800 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
100 lm/W

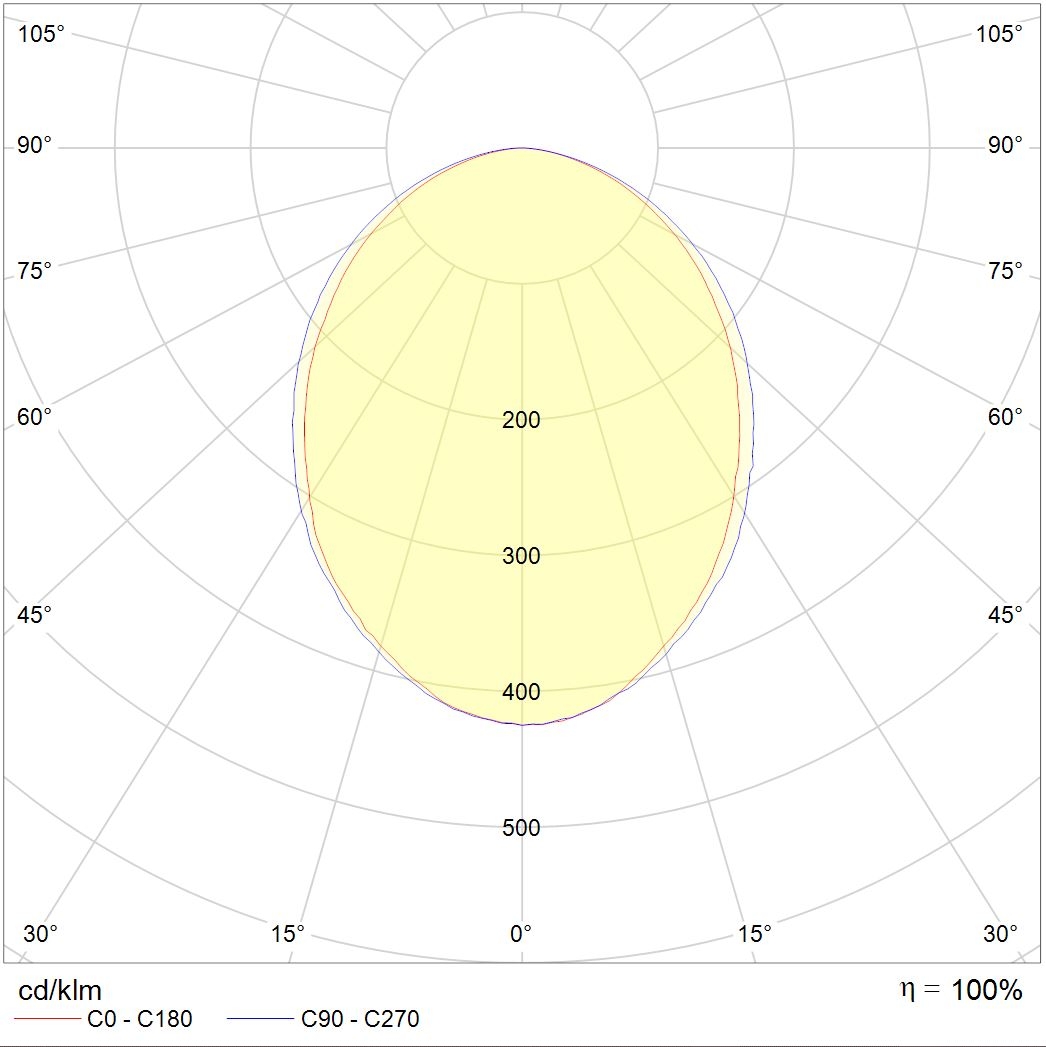

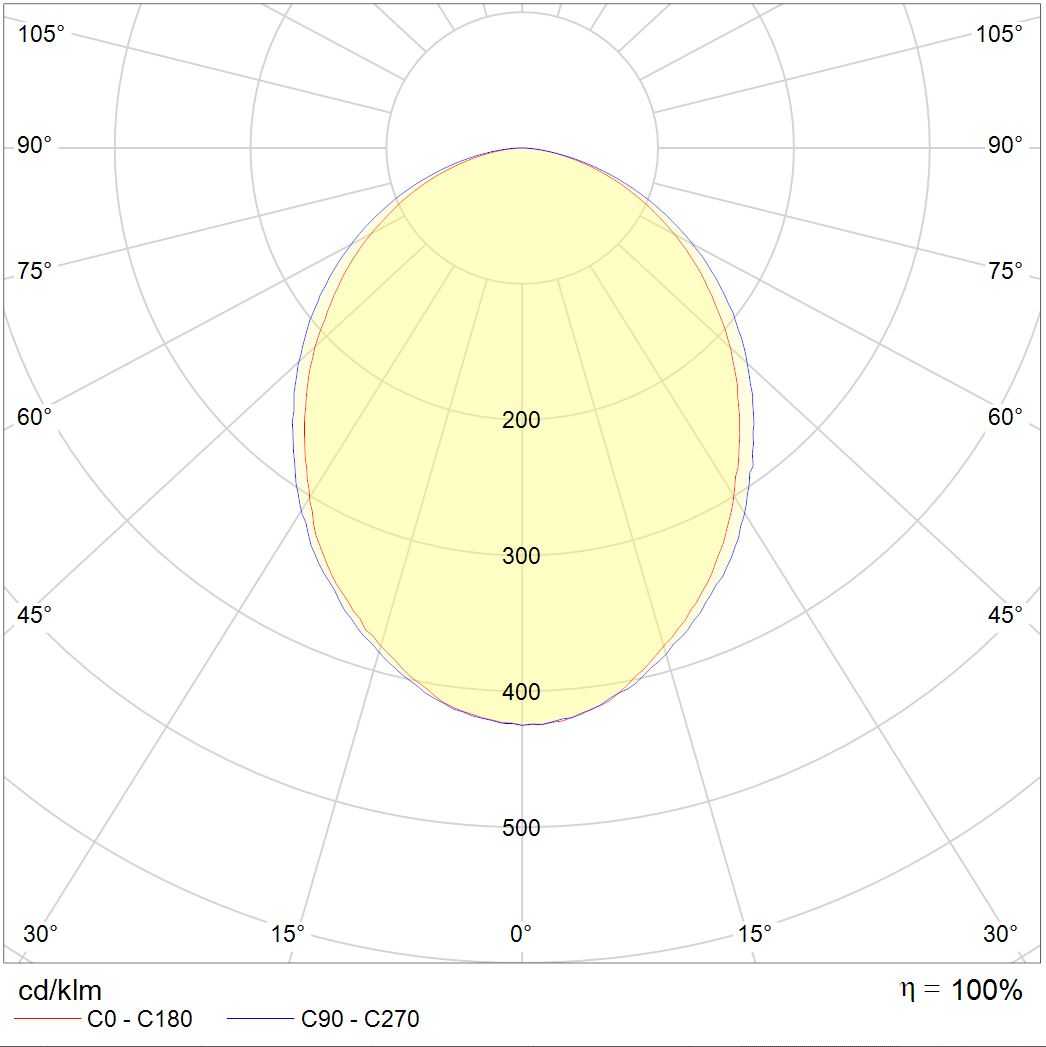

beam angle
D120
color temperature
4000 K
electrical
luminaire power
18 W
electric shock protection
I
power factor
> 0,90
maximum cross-section of the connected cable
2.5 mm2
starting current
25 A
supply voltage
230 V
starting current pulse time
150 µs
constructional
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
length
595 mm
width
295 mm
height
85 mm
installation width
160 mm
material
Сталь
housing color
Белый
mounting type
weight
2.8 kg
emergency
emergency power supply
Нет
common
code
1499000010
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от +5 до +35 C
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax392 kB
photometric files
ies523.9 kB
jpg84.1 kB
ldt322.4 kB
csv430 B
documents
passport834.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
