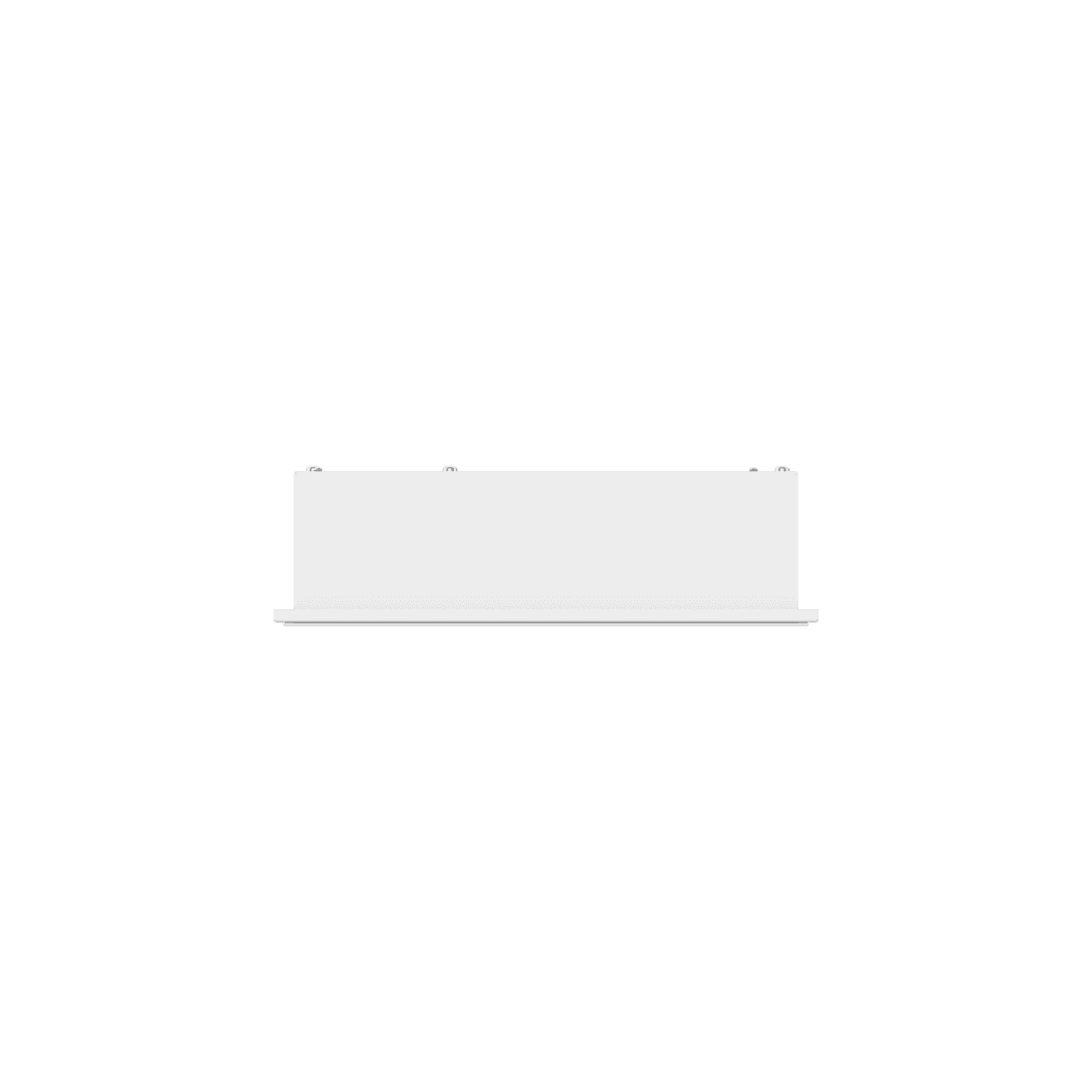

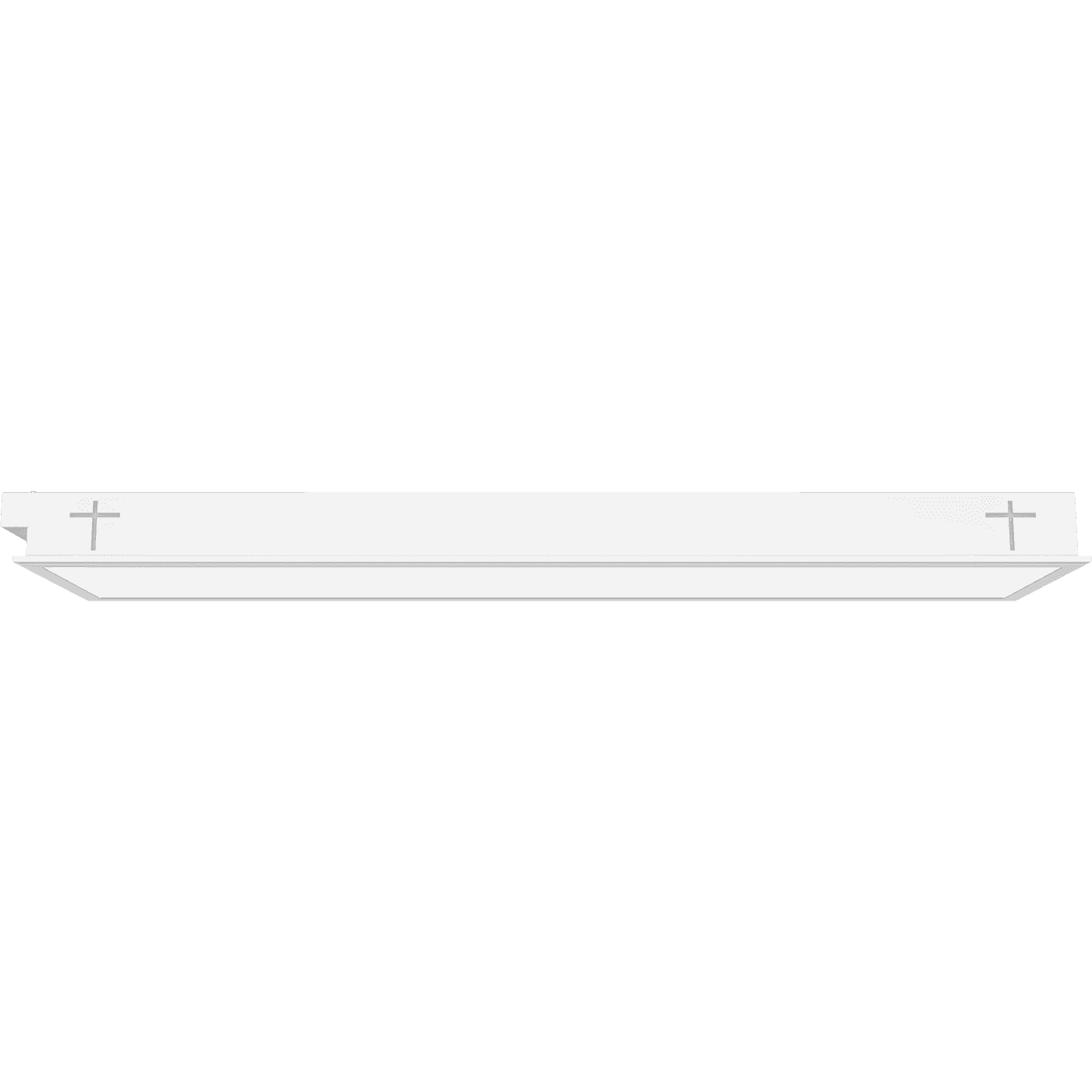

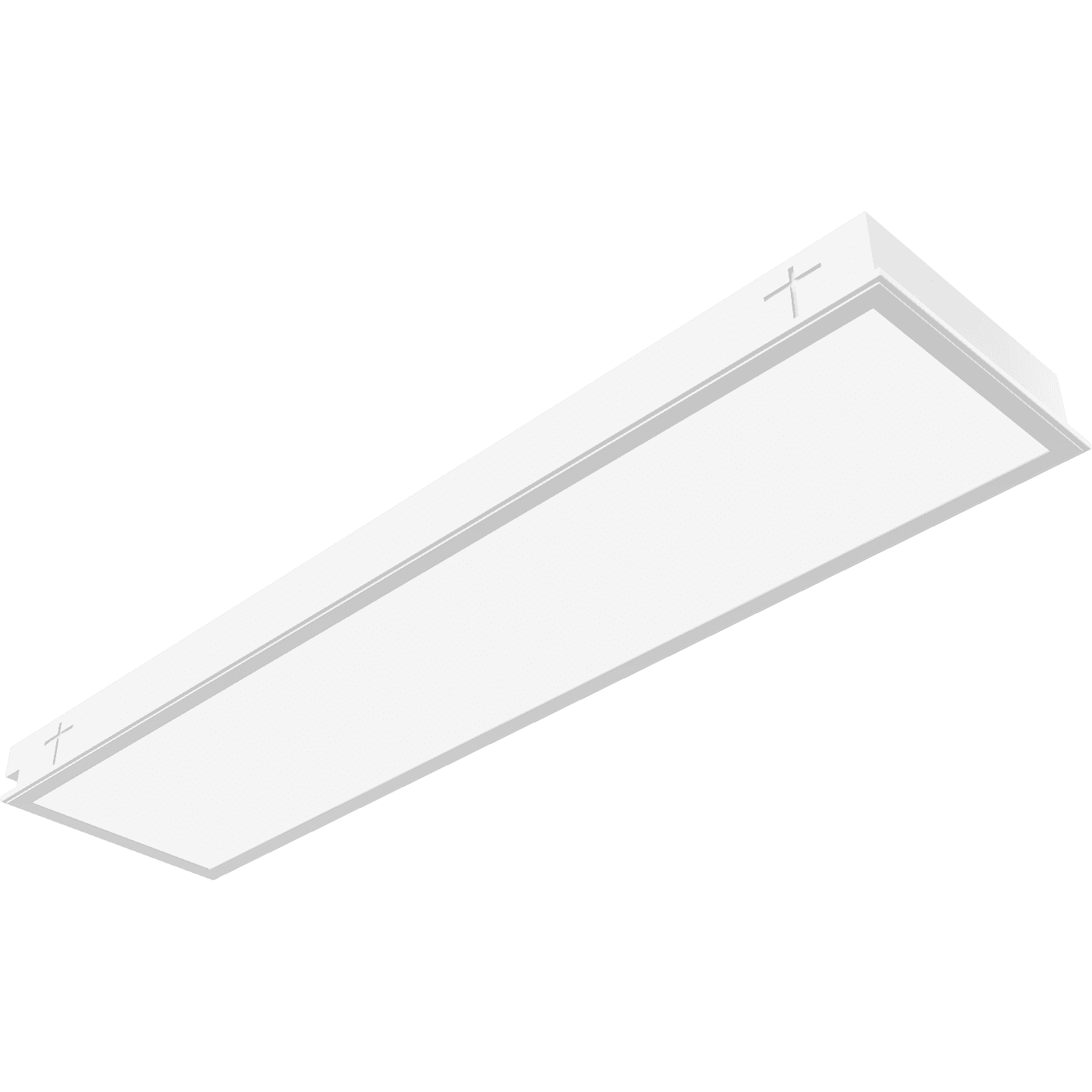

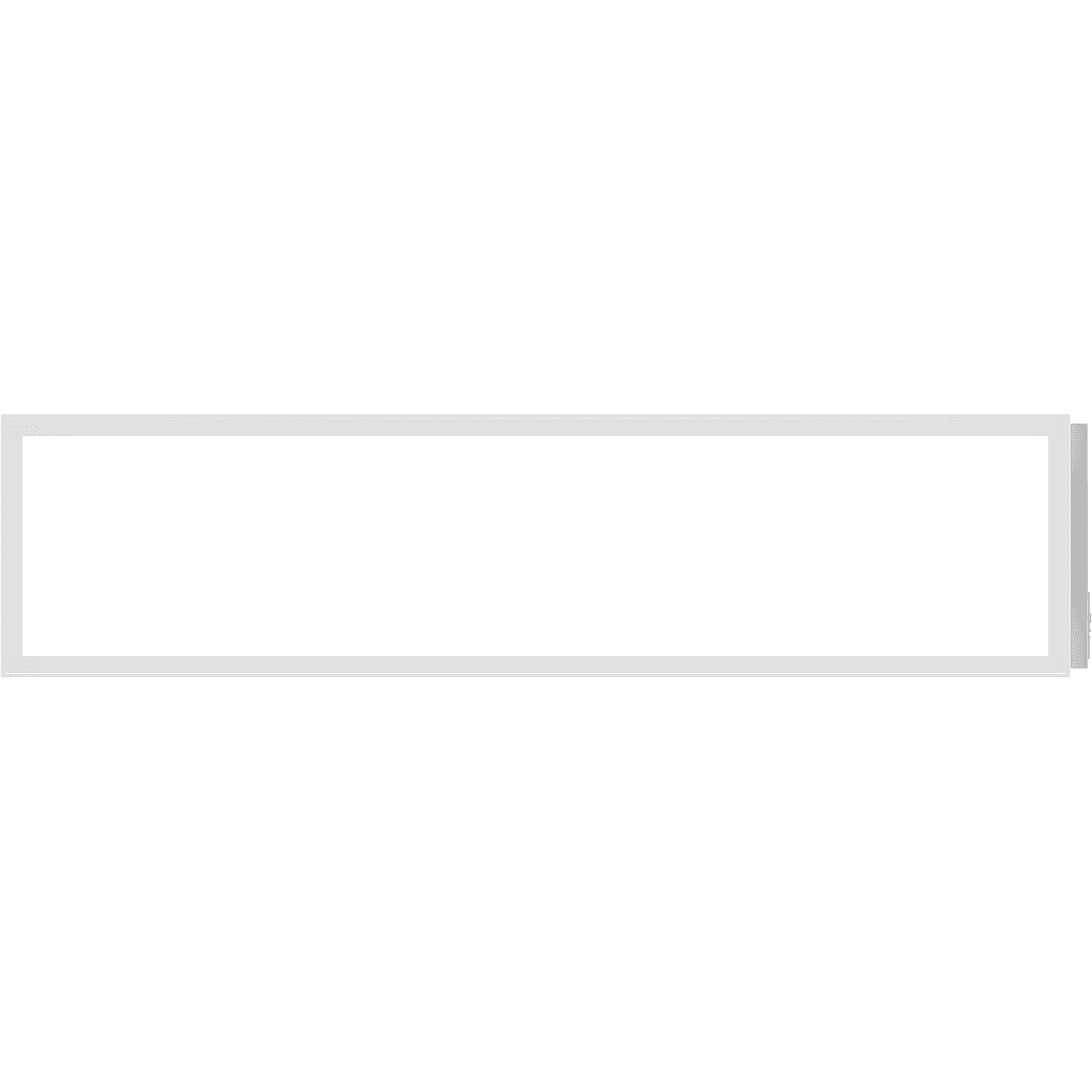

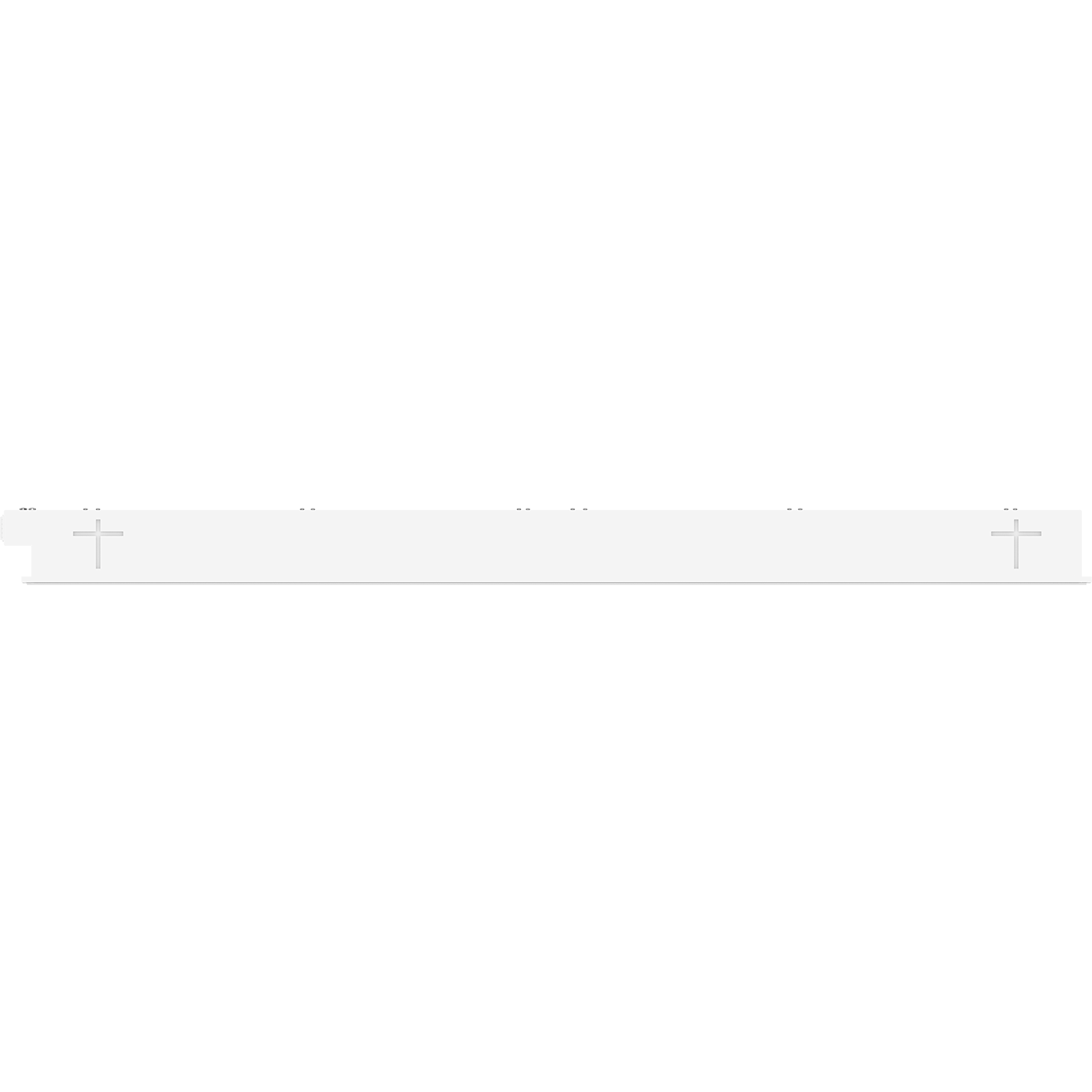

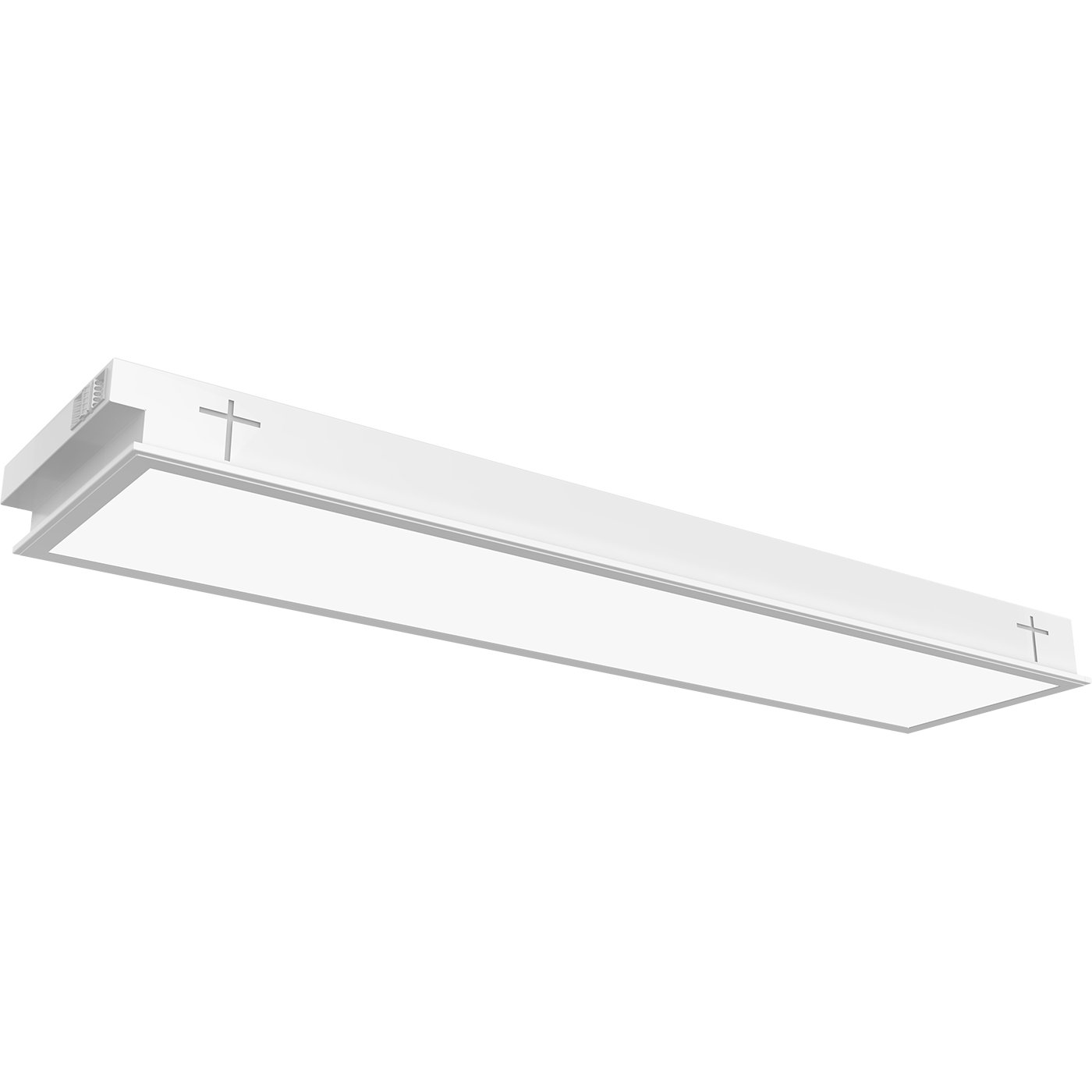

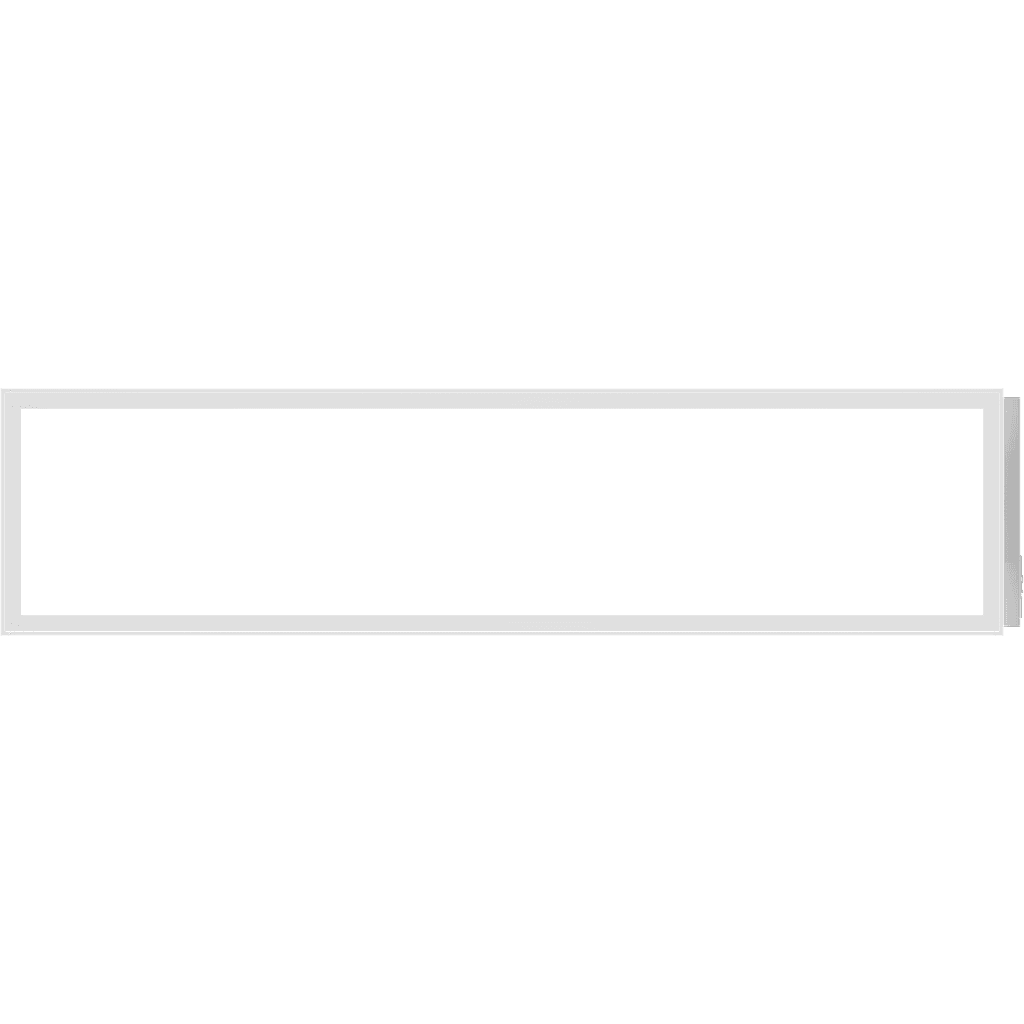

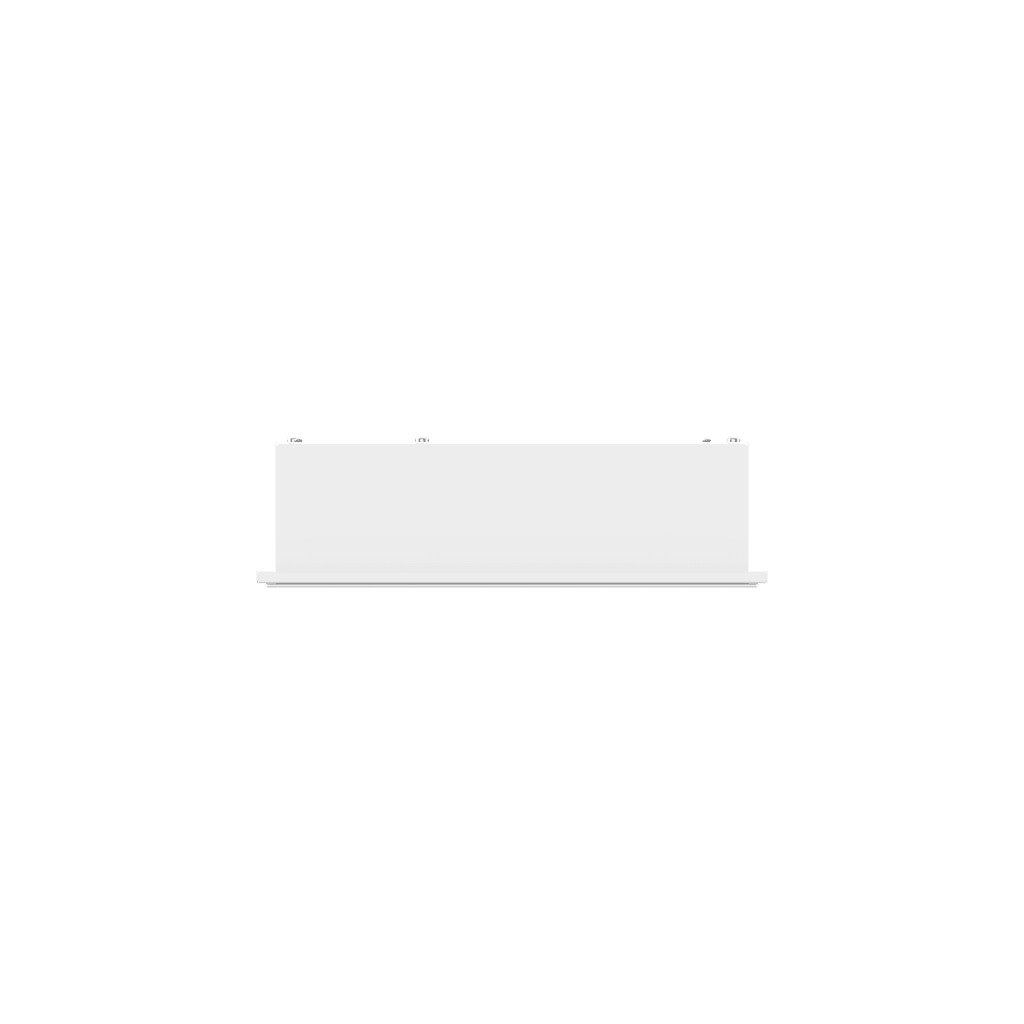

PRIZMA/R 1200 EM 4000K
PRIZMA/R 1200 EM 4000K
33 Wluminaire power
3800 lmlight flow
115 lm/Wenergy efficiency
code1499000360
color temperature4000
beam angleD120
options
свернуть все
electricalconstructionalcommonilluminatingemergency
rated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
198-264 Vsupply voltage, direct current
176-280 Vluminaire power
33 Welectric shock protection
Imaximum cross-section of the connected cable, sq. mm
2.5starting current
23 Astarting current pulse time, µs
352 mkspower factor
> 0,95supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
176-280 V
luminaire power
33 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
23 A
starting current pulse time, µs
352 mks
power factor
> 0,95
supply voltage
230 V
constructional
weight
5.45 kg
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь

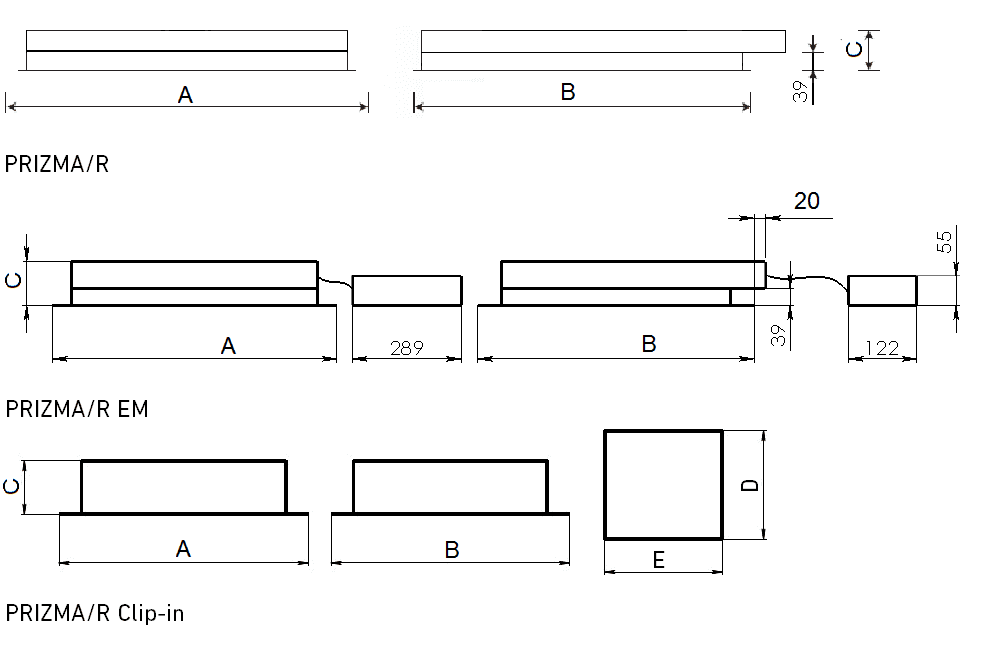

length, mm
1195 mm
width, mm
295 mm
height, mm
85 mm
housing color
Белый
shock resistance (IK)
IK02/0,2 Дж
installation width, mm
275 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1499000360
illuminating
light flow
3800 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
115 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
300 lm
model files
model files
CAD/BIM files

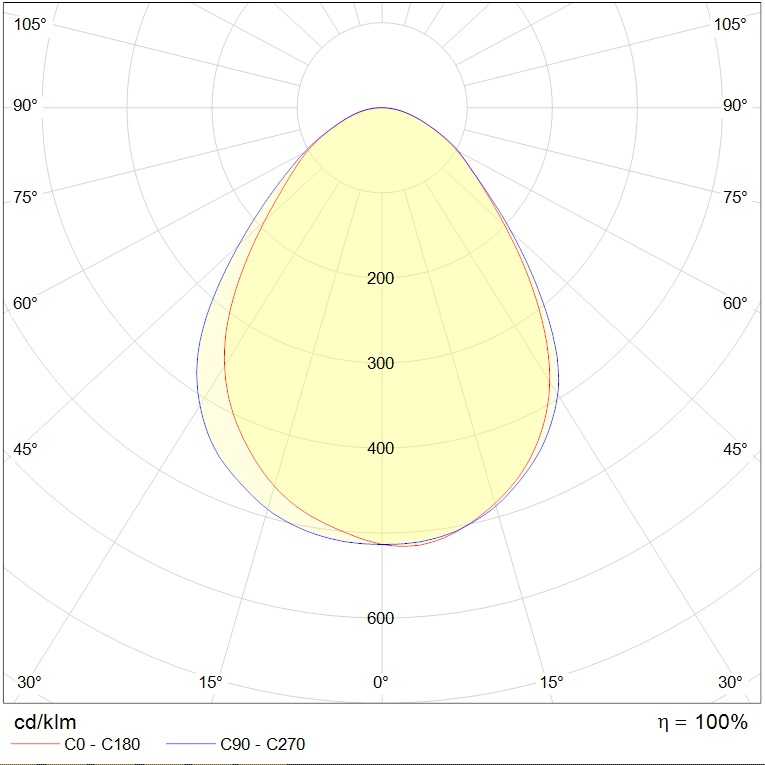

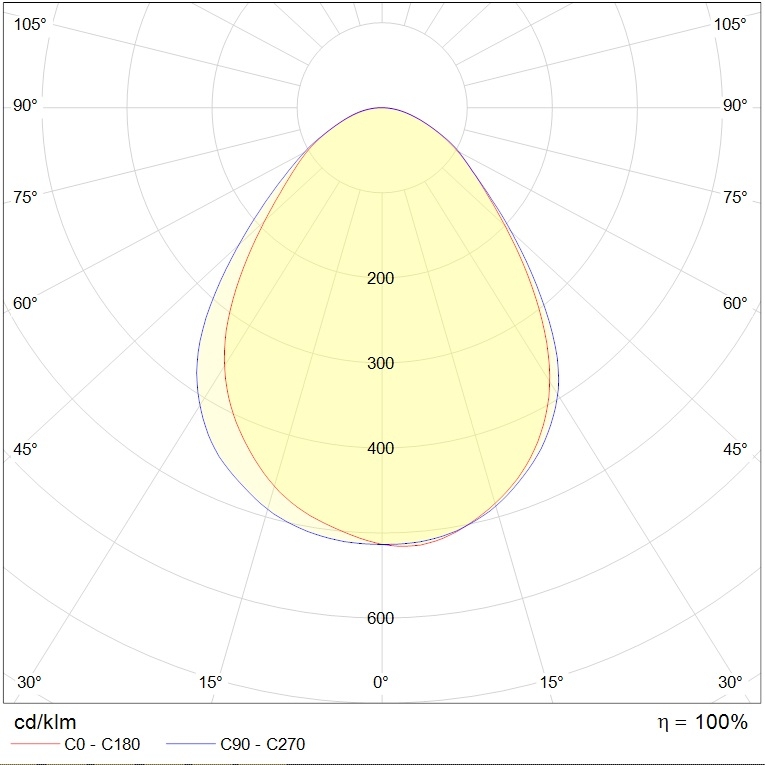

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.5 kB
model 3dMax392 kB
photometric files
ies107 kB
jpg86.8 kB
ldt66.9 kB
documents
passport918.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016154.7 kB
