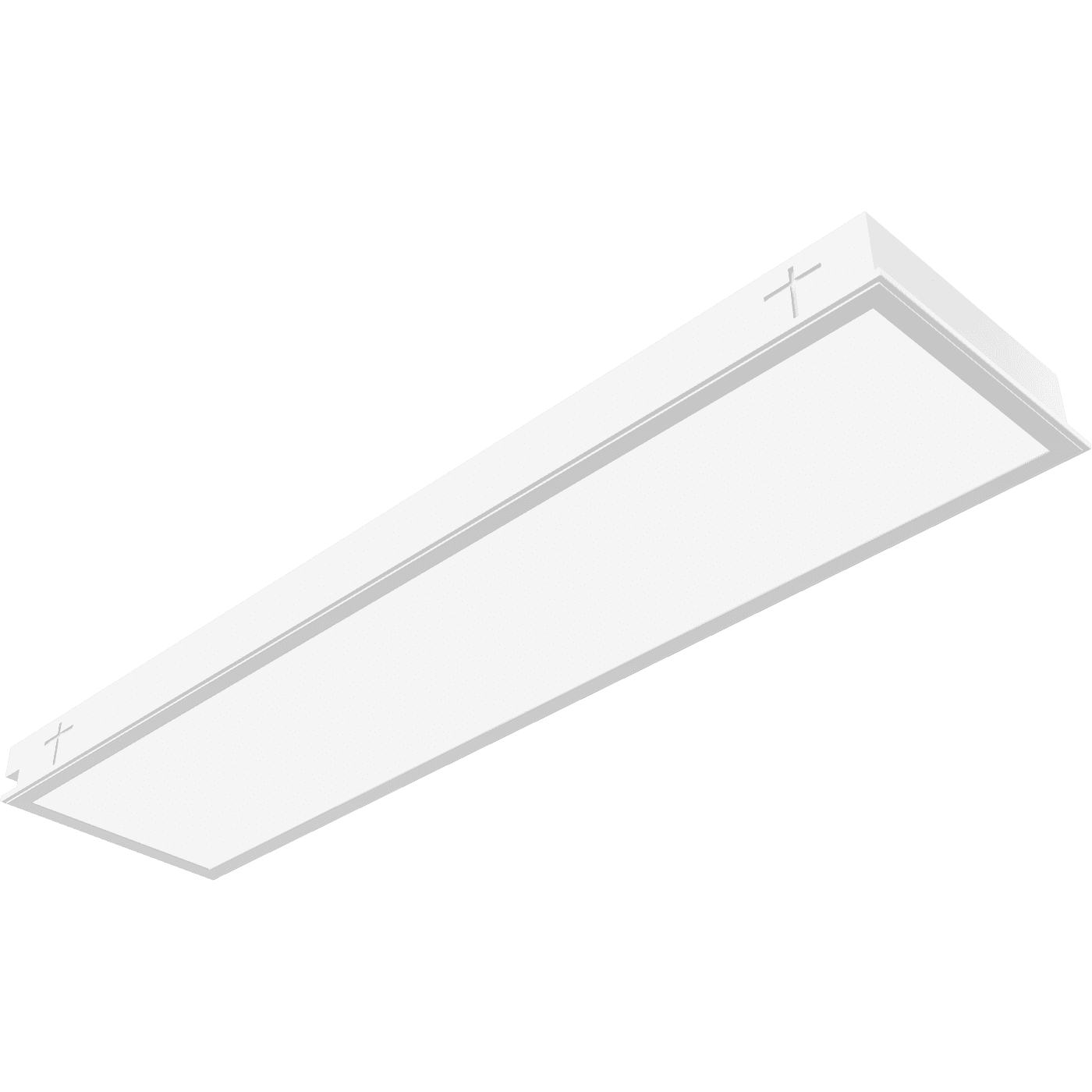

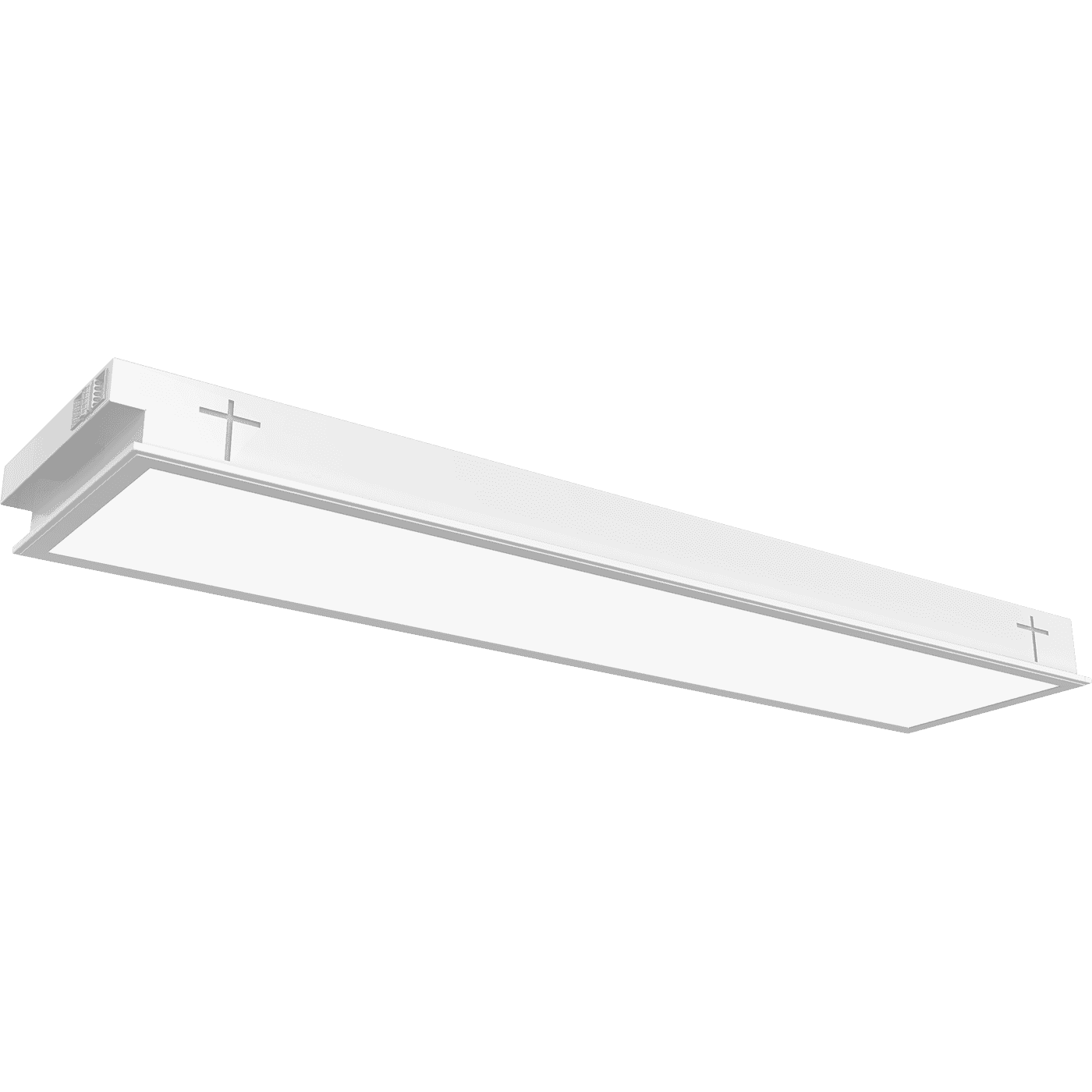

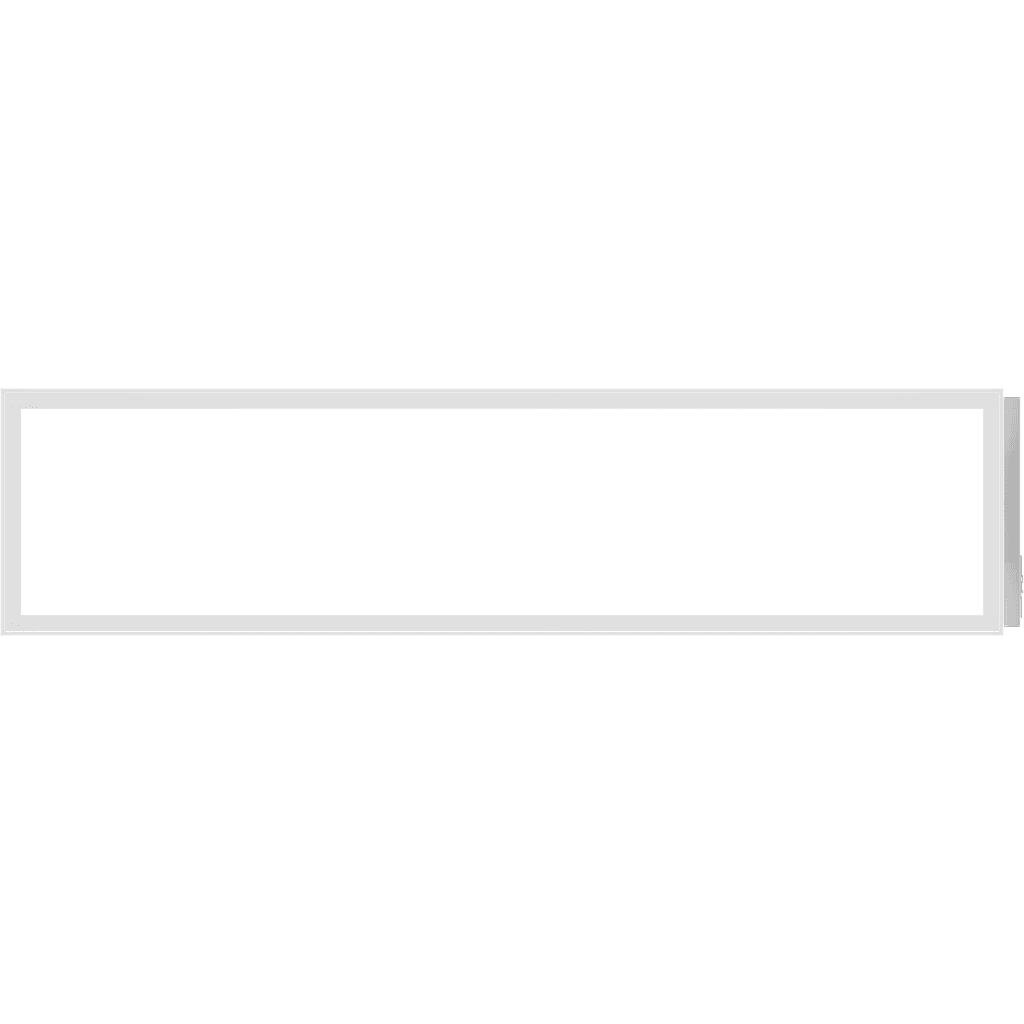

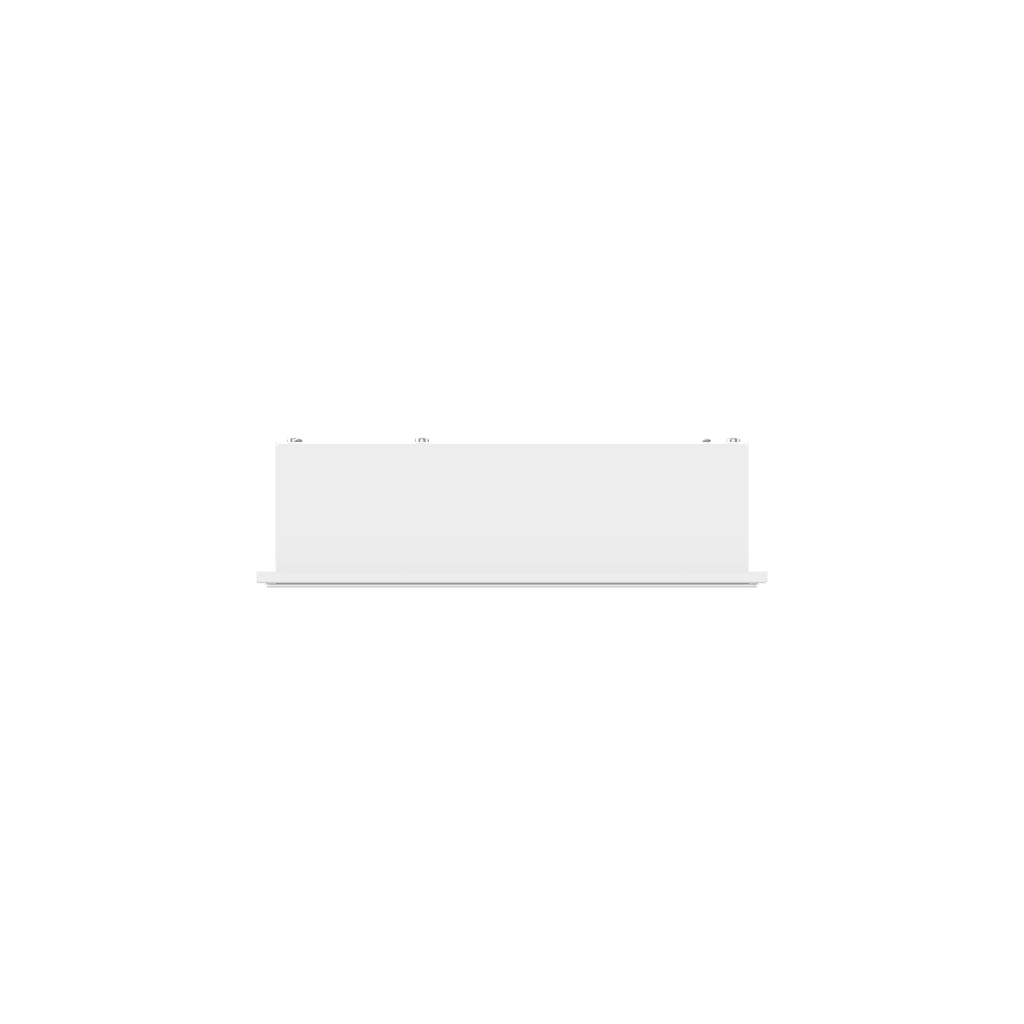

PRIZMA/R 1200 4000K
PRIZMA/R 1200 4000K
33 Wluminaire power
3800 lmlight flow
115 lm/Wenergy efficiency
code1499000030
color temperature4000

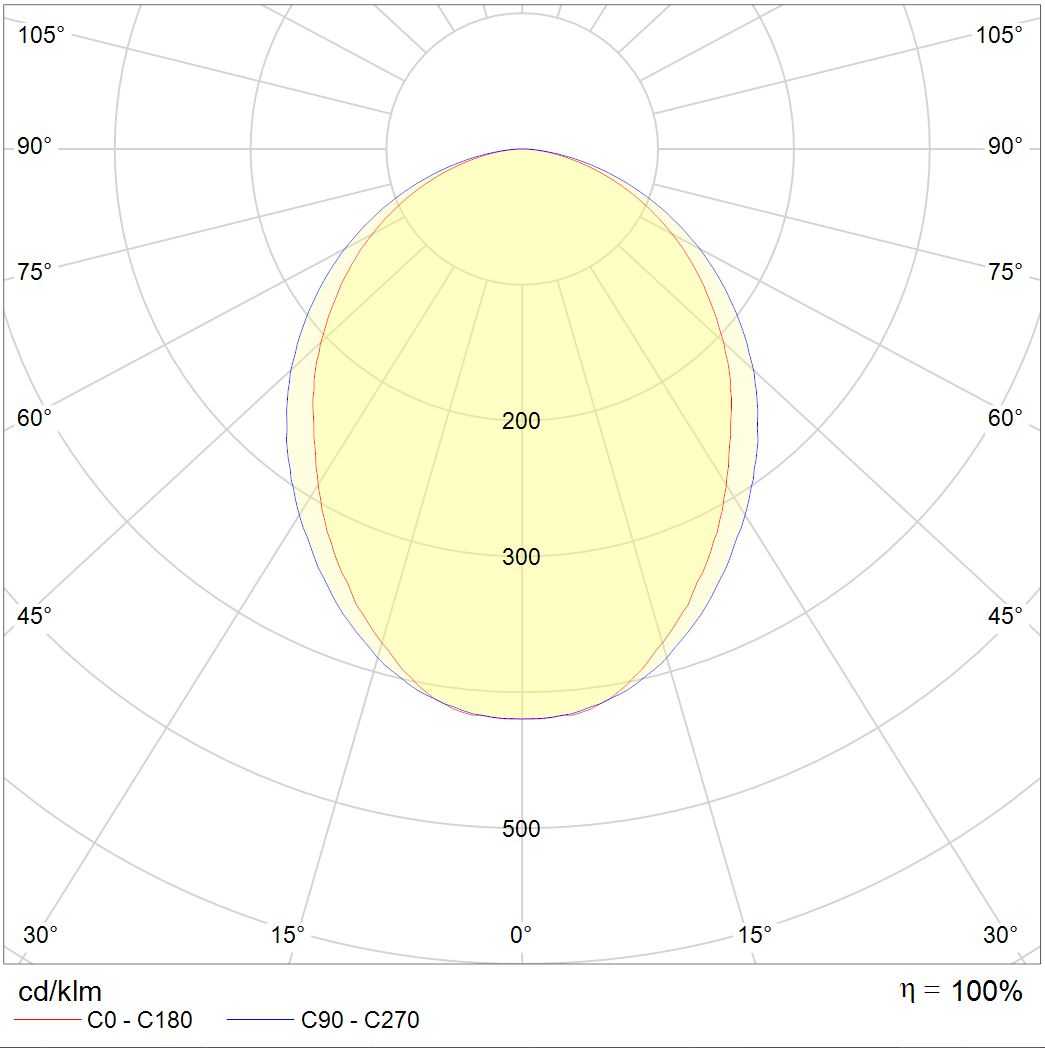

beam angleD120
options
свернуть все
electricalcommonilluminatingconstructional
rated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
198-264 Vsupply voltage, direct current
176-280 Velectric shock protection
Istarting current
23 Astarting current pulse time, µs
352 mksluminaire power
33 Wmaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,95supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
176-280 V
electric shock protection
I
starting current
23 A
starting current pulse time, µs
352 mks
luminaire power
33 W
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,95
supply voltage
230 V
common
warranty
36 month
code
1499000030
ETIM class
Настенно-потолочный светильник
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
light flow
3800 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
115 lm/W

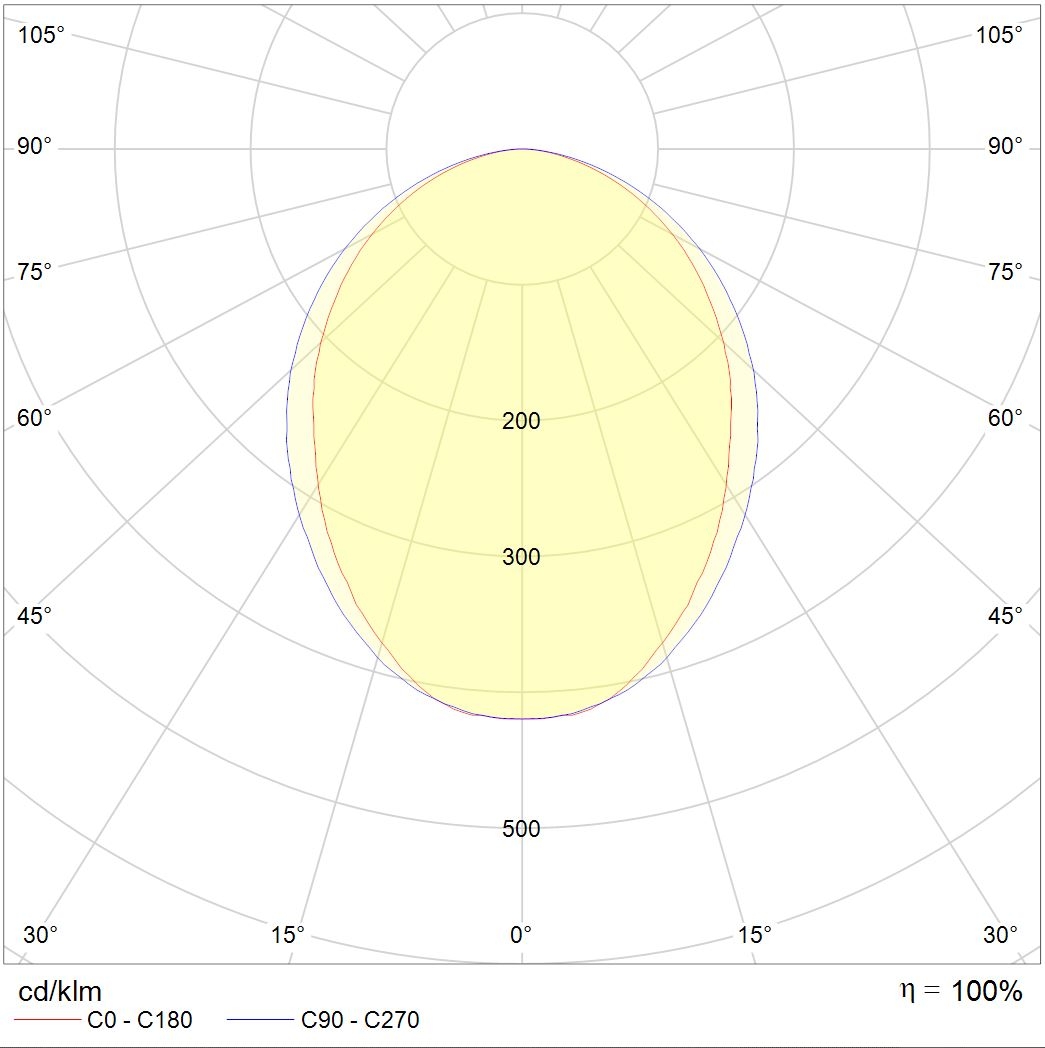

beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP20
material
Сталь
housing color
Белый
length, mm
1195 mm
width, mm
295 mm
height, mm
85 mm
weight
5 kg
climatic performance
УХЛ4*
shock resistance (IK)
IK02/0,2 Дж
installation width, mm
275 mm
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.5 kB
model 3dMax392 kB
photometric files
ies134.1 kB
jpg84.6 kB
ldt84.4 kB
documents
passport918.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016154.1 kB
