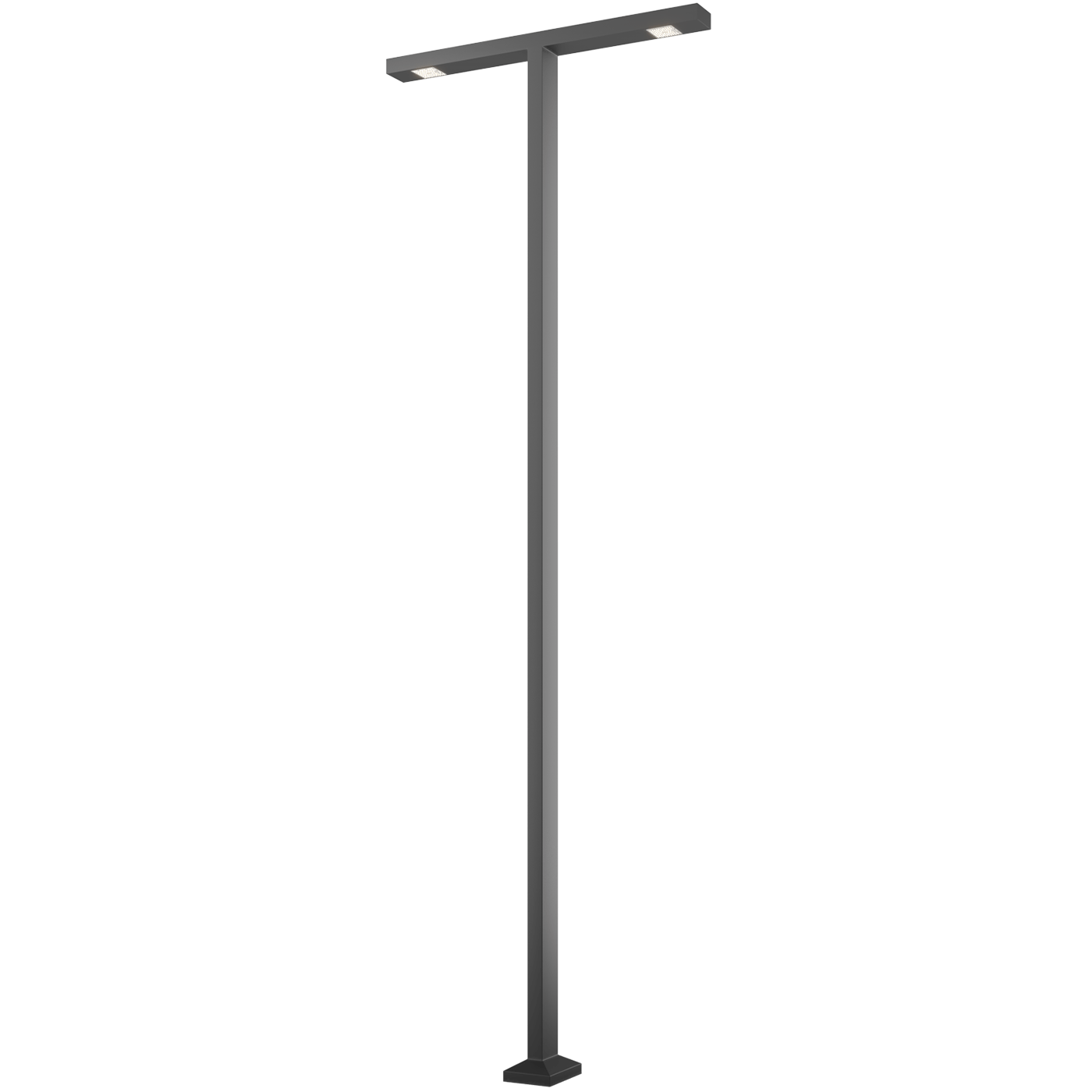

POKER LED 2x55W DW 740 RAL9005 T-SHAPE 6M (в комплекте ЗДФ)
POKER LED 2x55W DW 740 RAL9005 T-SHAPE 6M (в комплекте ЗДФ)
112 Wluminaire power
14600 lmlight flow
130 lm/Wenergy efficiency
code4739000090
beam angleD150/80
color temperature4000 K
weight176 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
130 lm/Wcolor rendition index (CRI)
>70light flow
14600 lmflickering factor
<5%beam angle
D150/80color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
130 lm/W
color rendition index (CRI)
>70
light flow
14600 lm
flickering factor
<5%
beam angle
D150/80
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
112 W
electric shock protection
I
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,95
constructional
climatic performance
УХЛ1
width
172 mm
height
84 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
530 mm
material
Сталь
ingress protection (IP)
IP66
shock resistance (IK)
IK10/20 Дж
weight
176 kg
common
code
4739000090
warranty
36 month
energy efficiency class
A+
temperature range
от -40 до +60 C
service life
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files

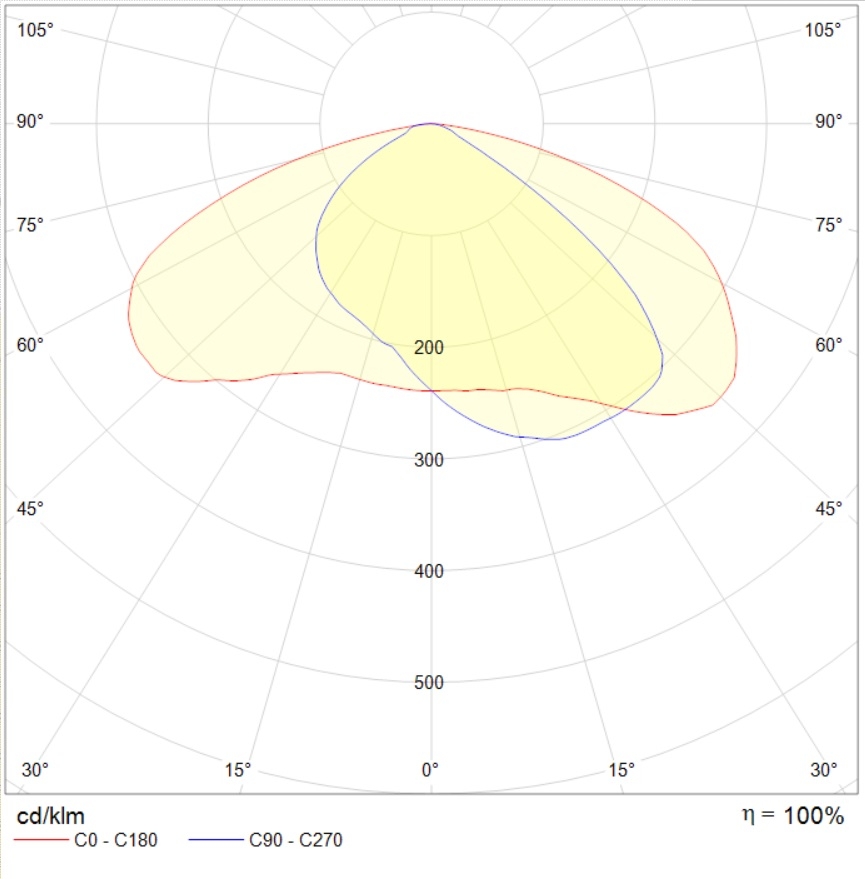

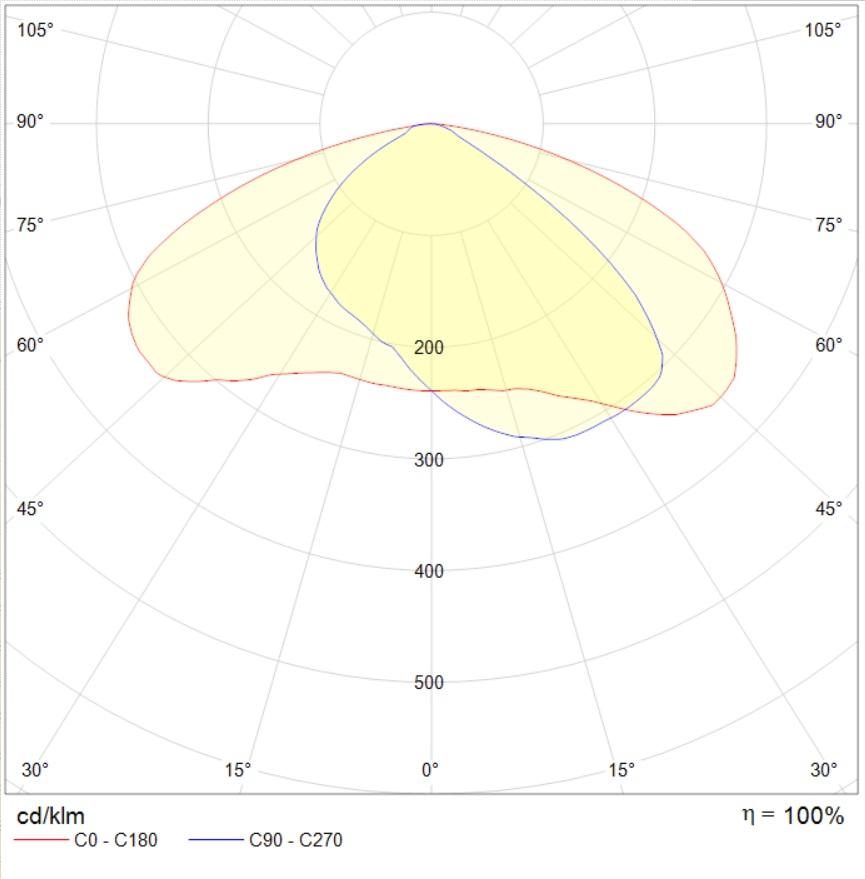

photometric files
сертификаты
photometric files
ies107.1 kB
jpg86.4 kB
ldt66.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016496 kB
