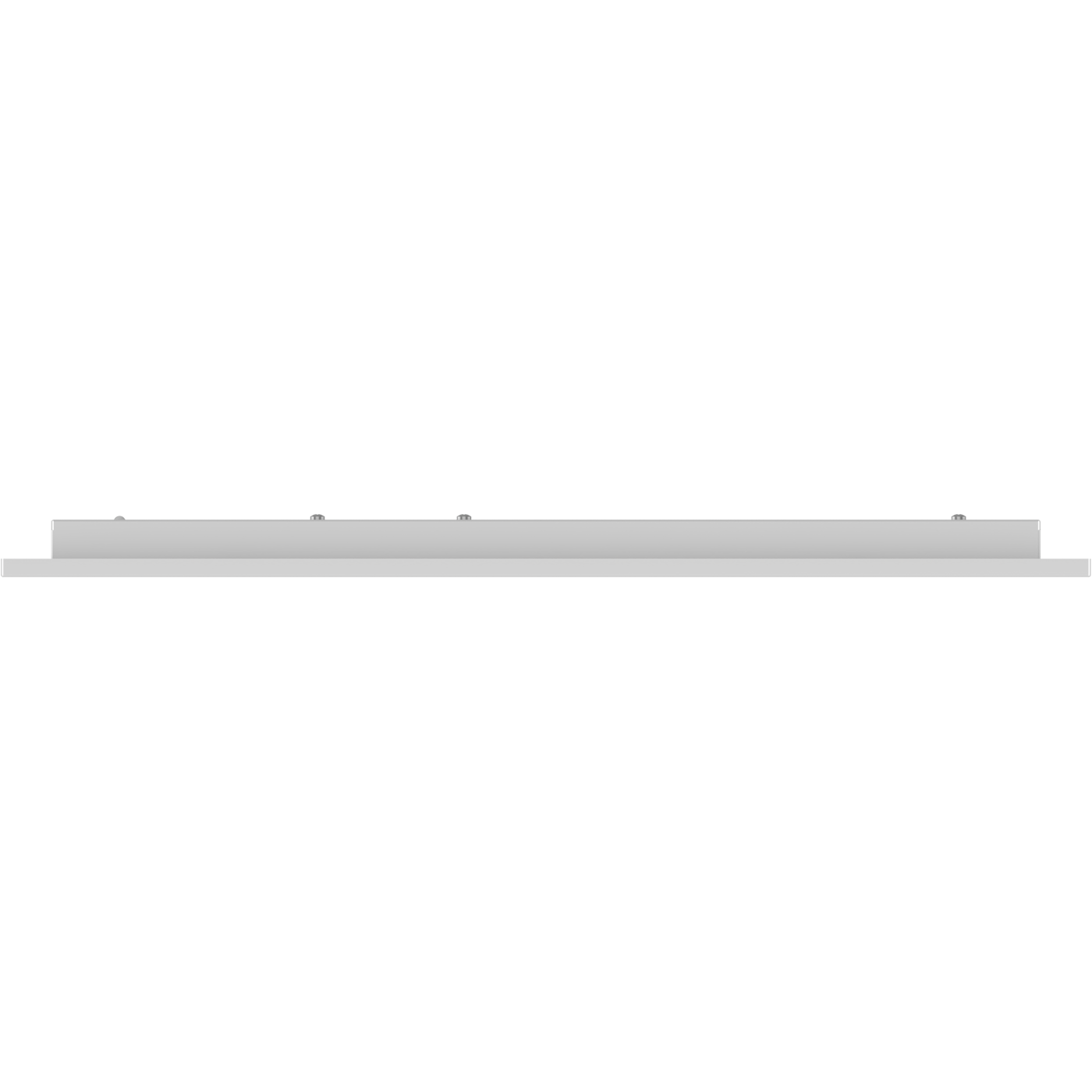

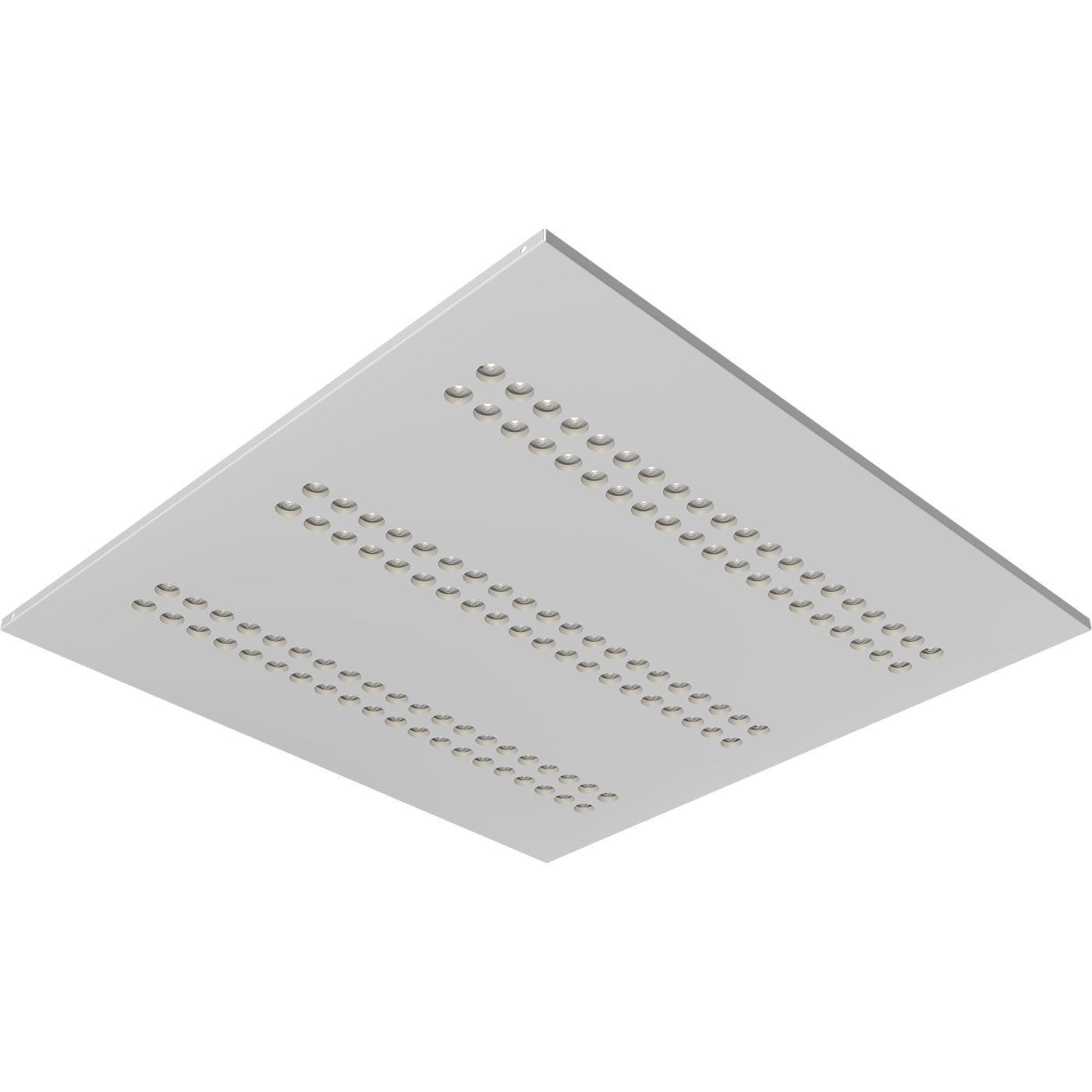

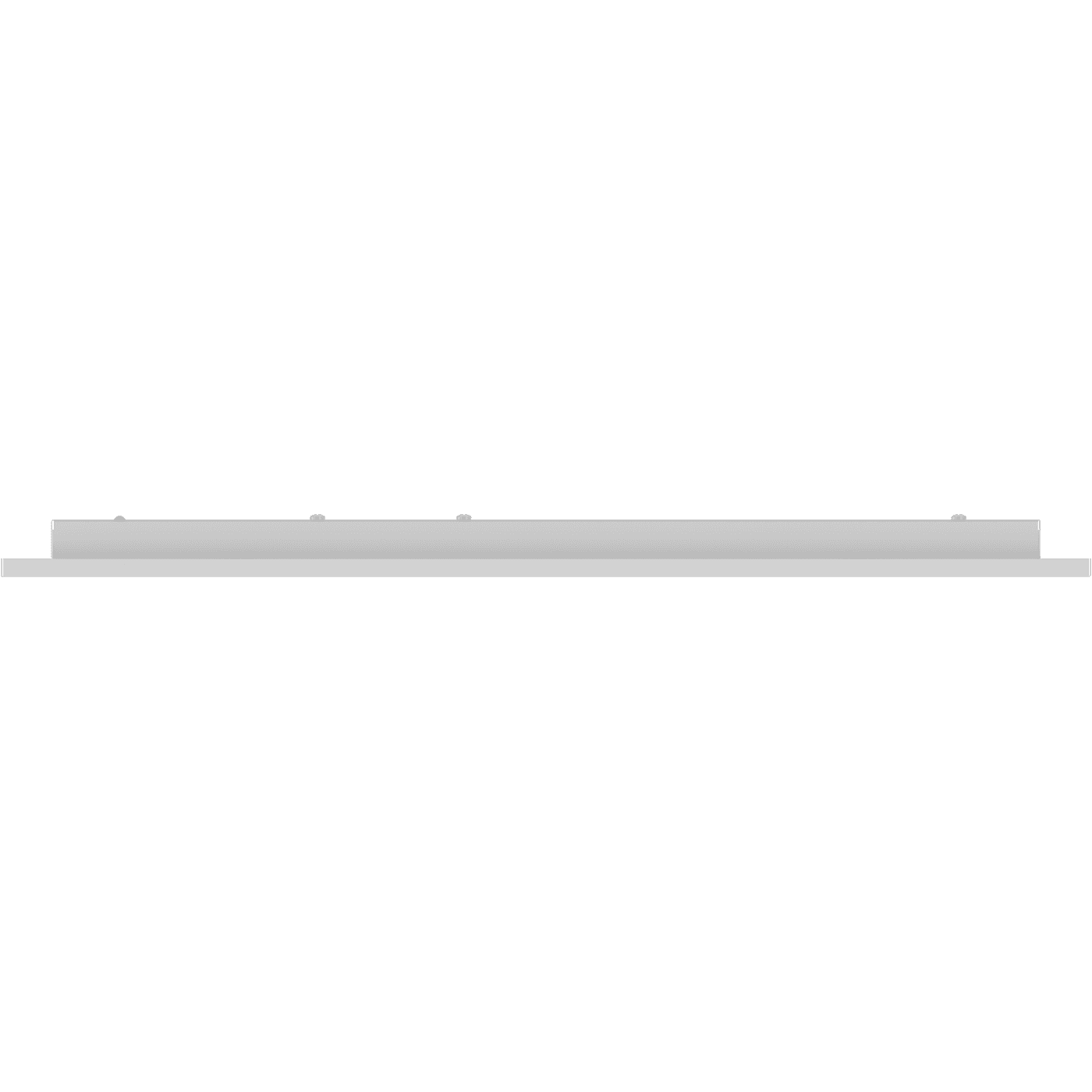

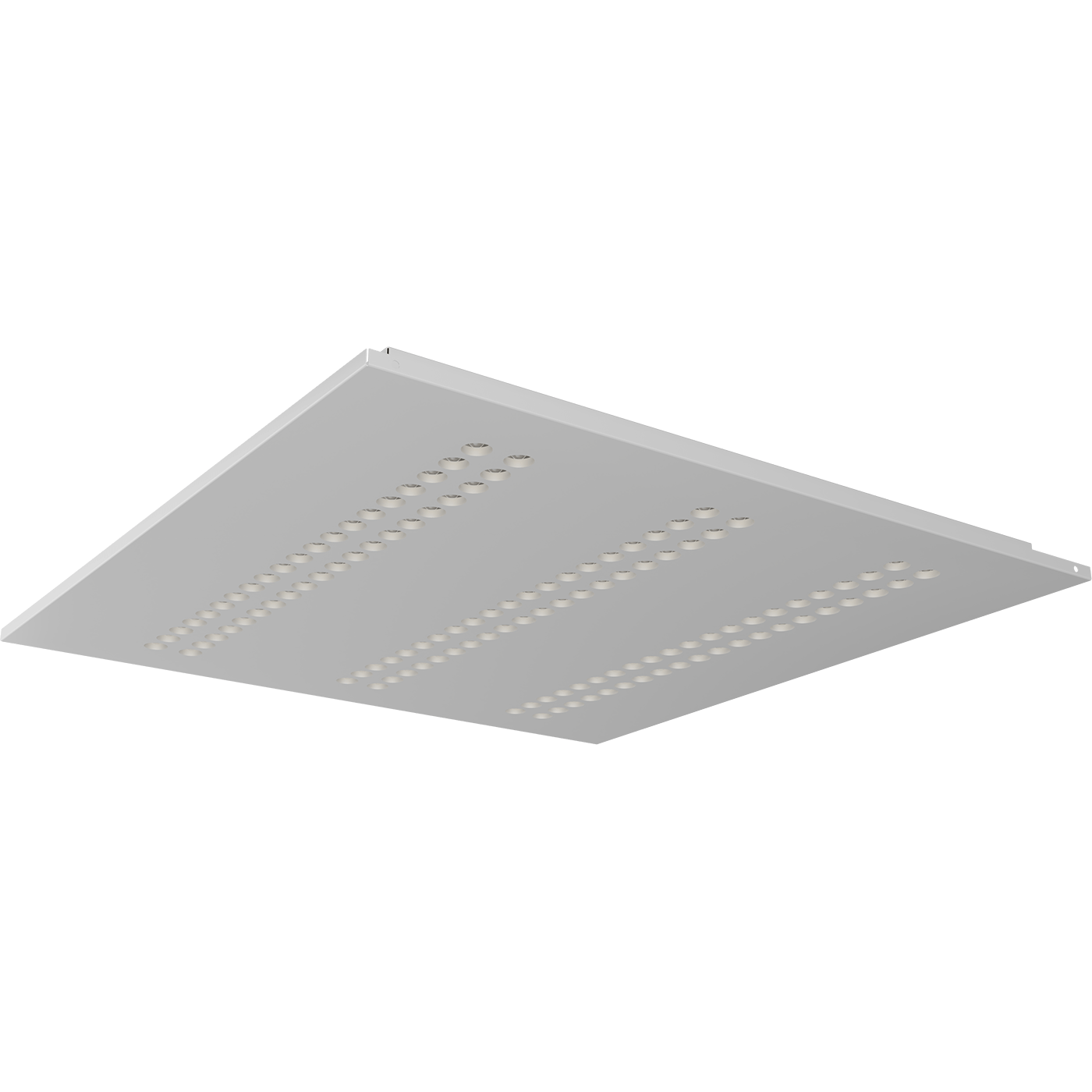

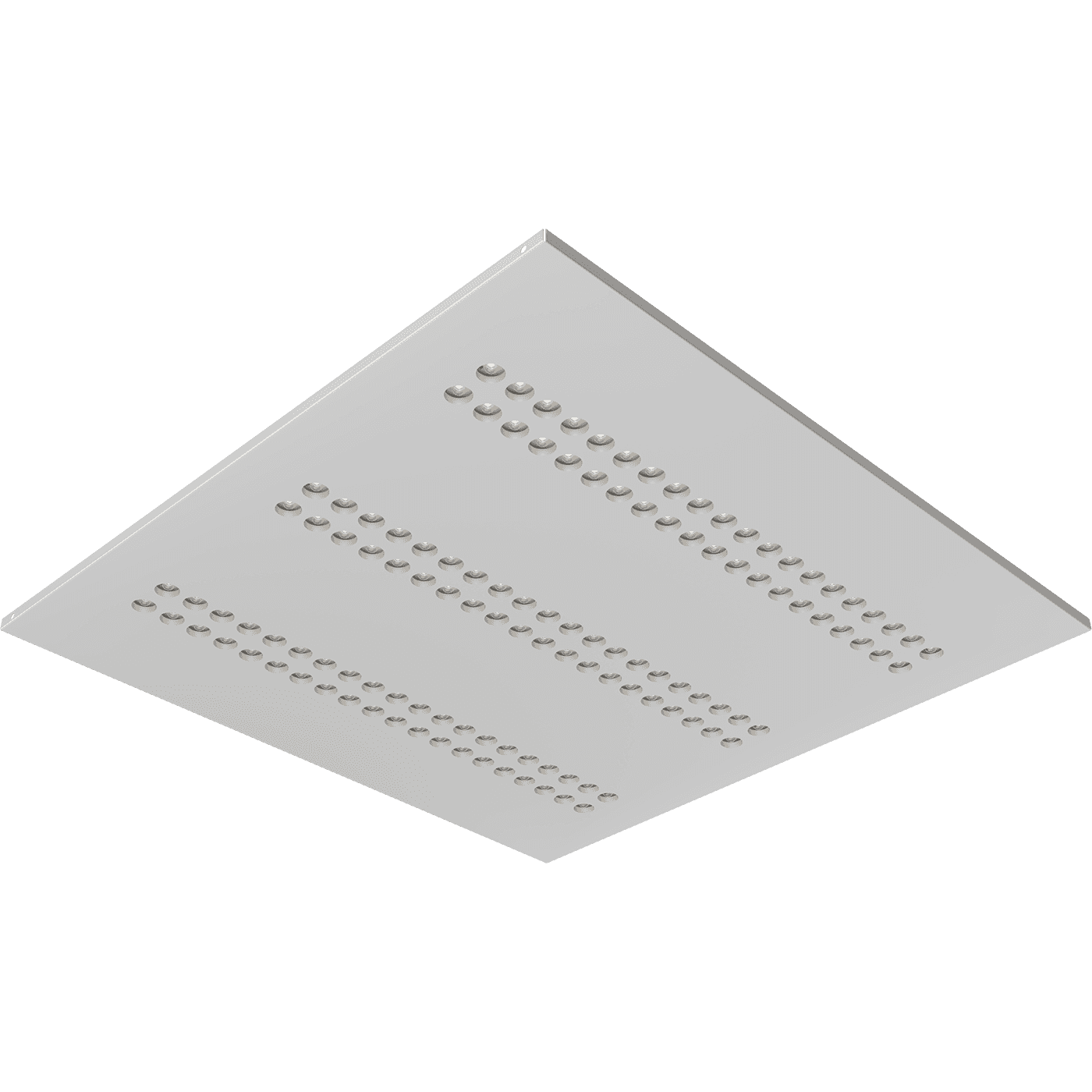

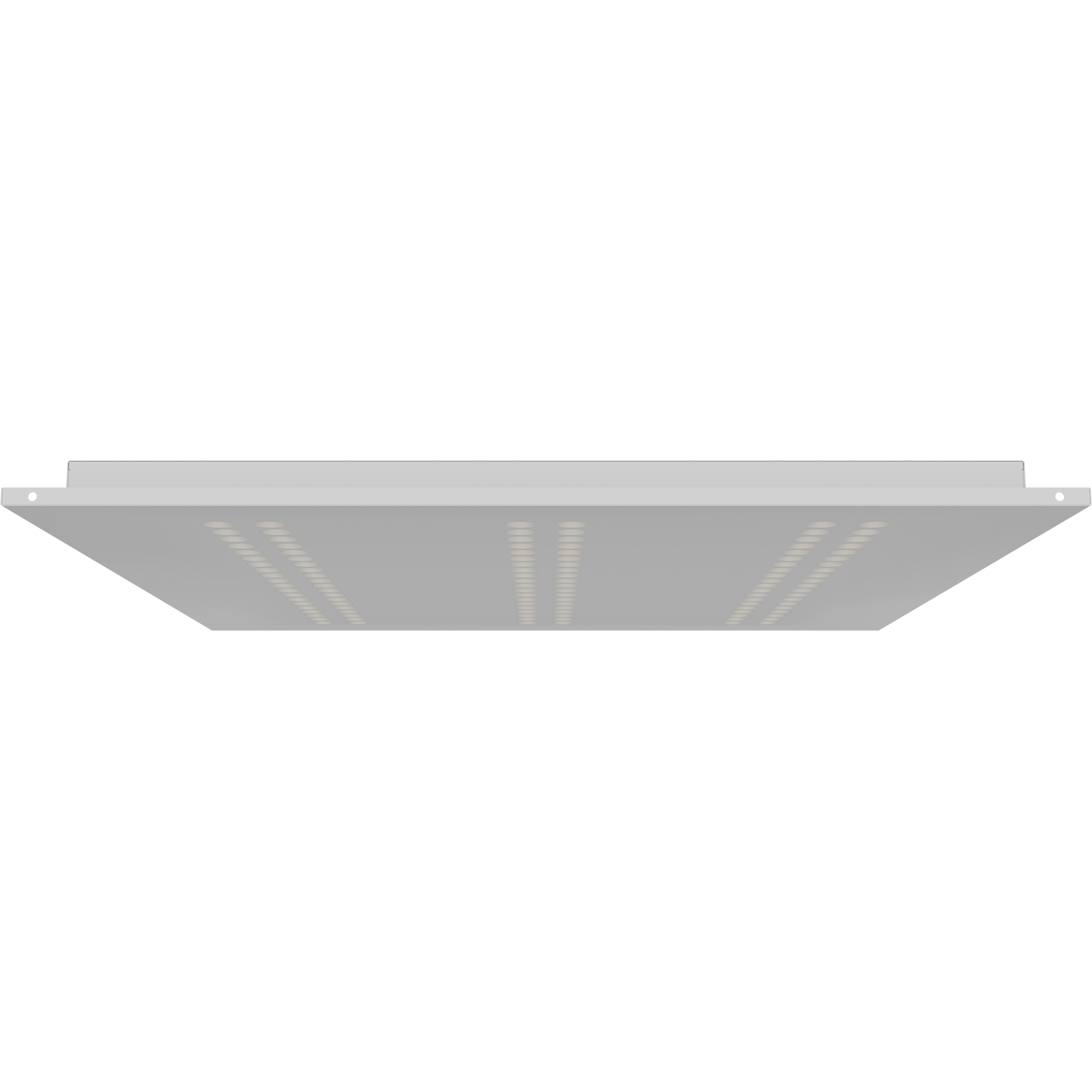

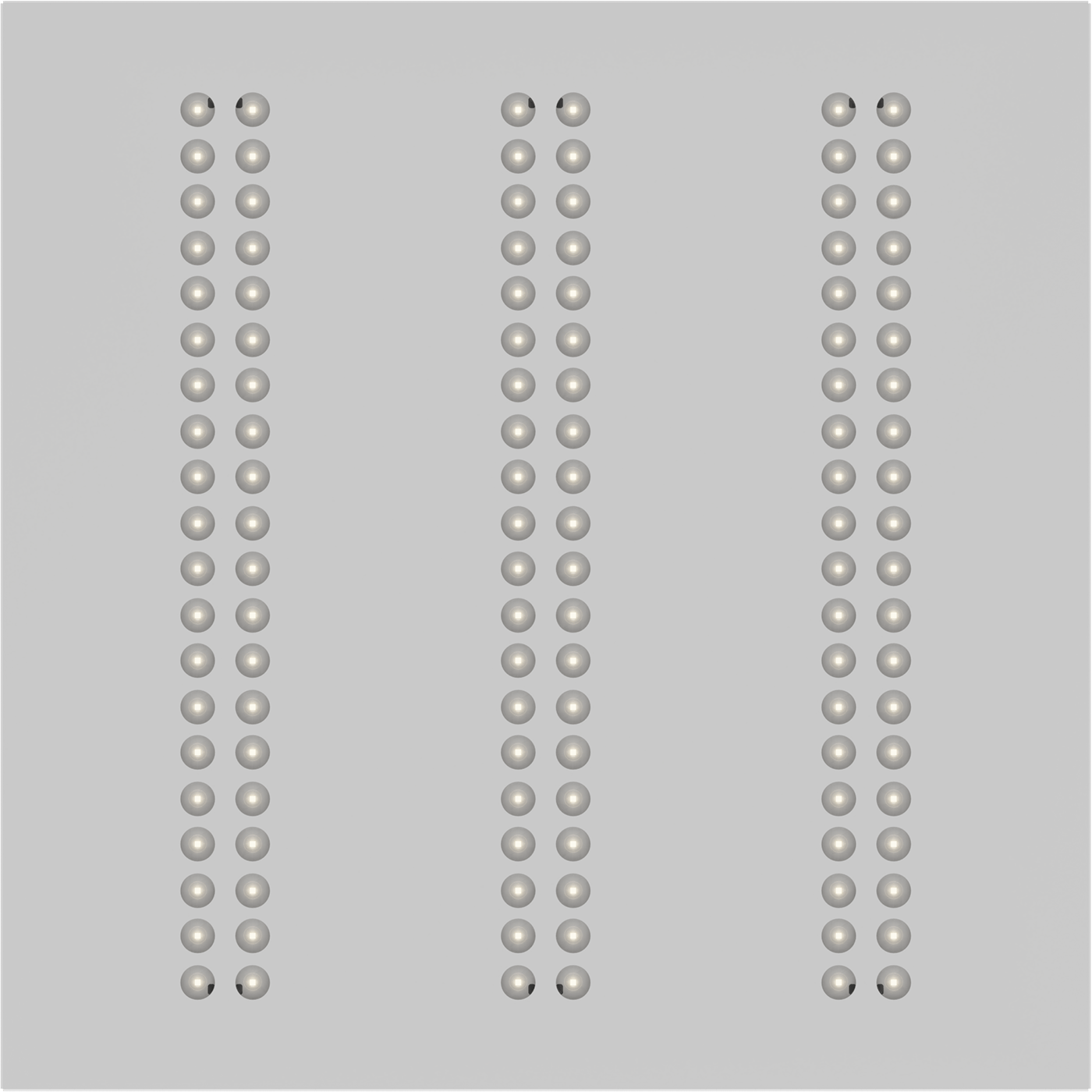

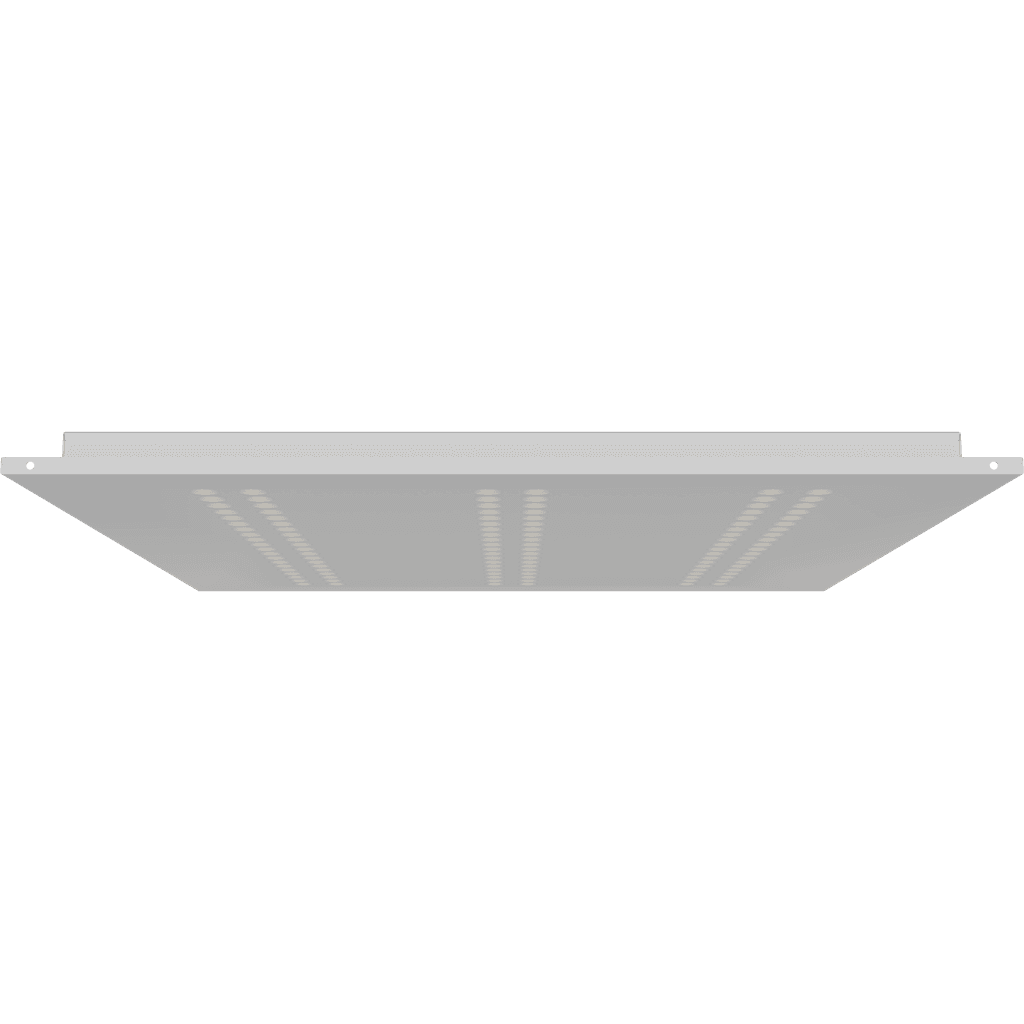

PIXEL LED 595 3L D60 W 4000K CRI90
PIXEL LED 595 3L D60 W 4000K CRI90
26 Wluminaire power
2600 lmlight flow
100 lm/Wenergy efficiency
code
1094000520
color temperature
4000 K
beam angle
D60
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- ceiling
- without IP protection
- PIXEL LED
- PIXEL LED 595 3L D60 W 4000K CRI90
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
100 lm/Wcolor rendition index (CRI)
>90light flow
2600 lmflickering factor
<1%beam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>90
light flow
2600 lm
flickering factor
<1%
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
26 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
constructional
length
596 mm
width
596 mm
height
32 mm
installation length
575 mm
installation width
575 mm
weight
4.4 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1094000520
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

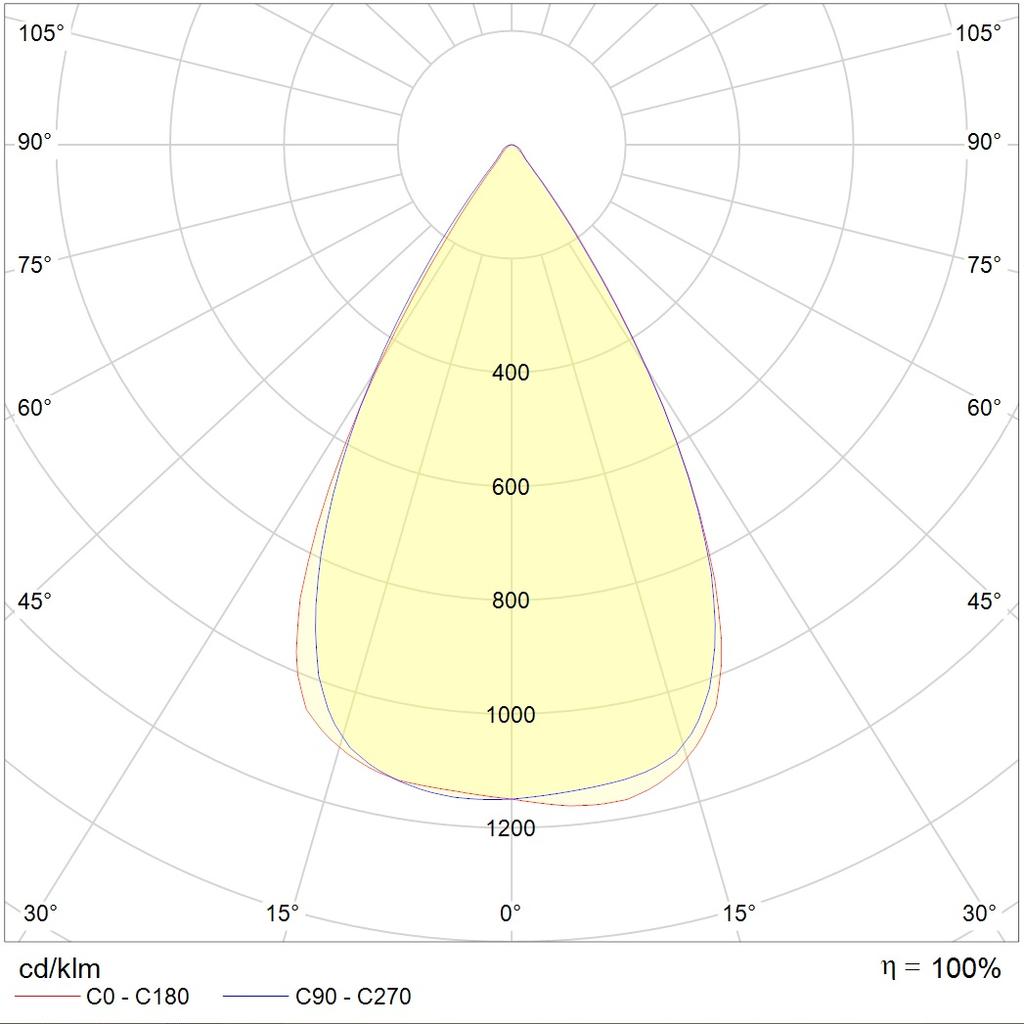

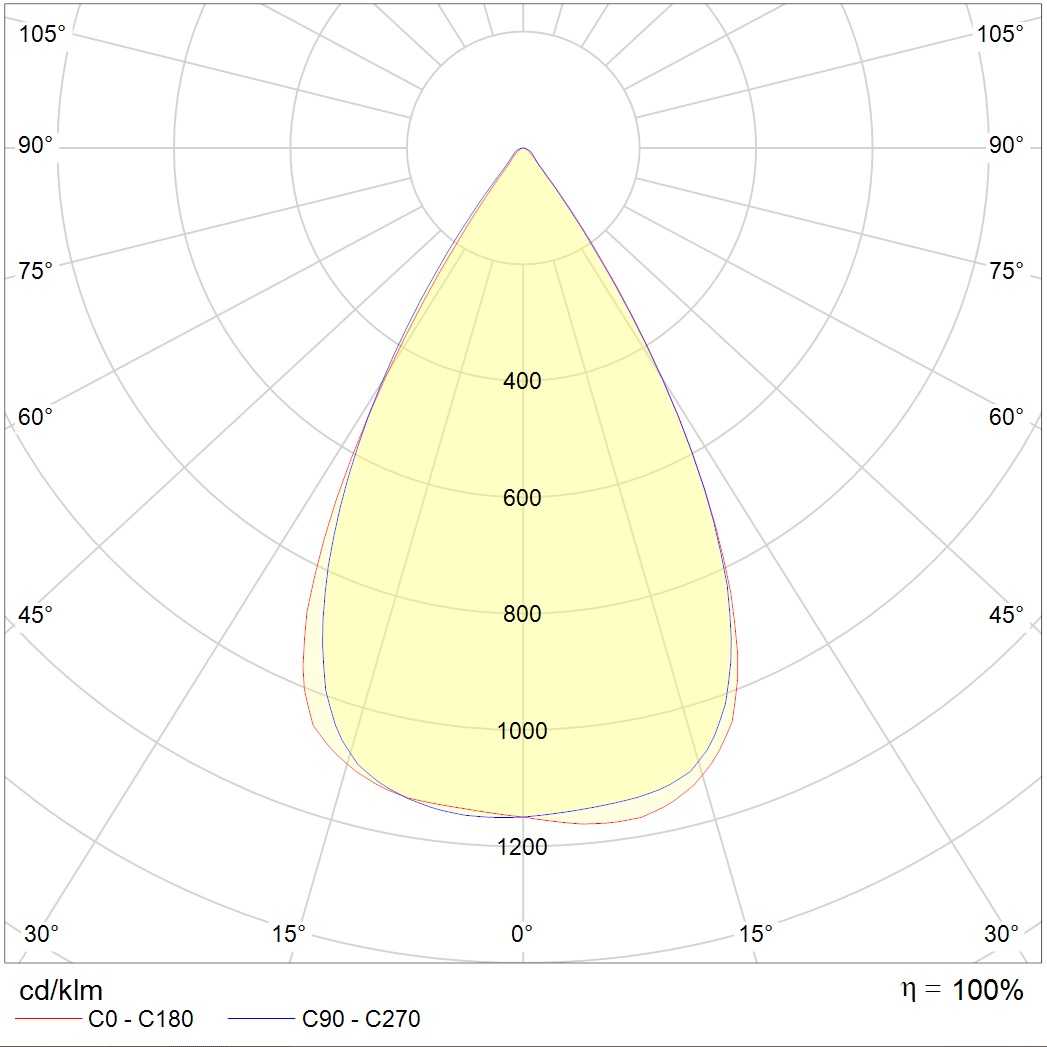

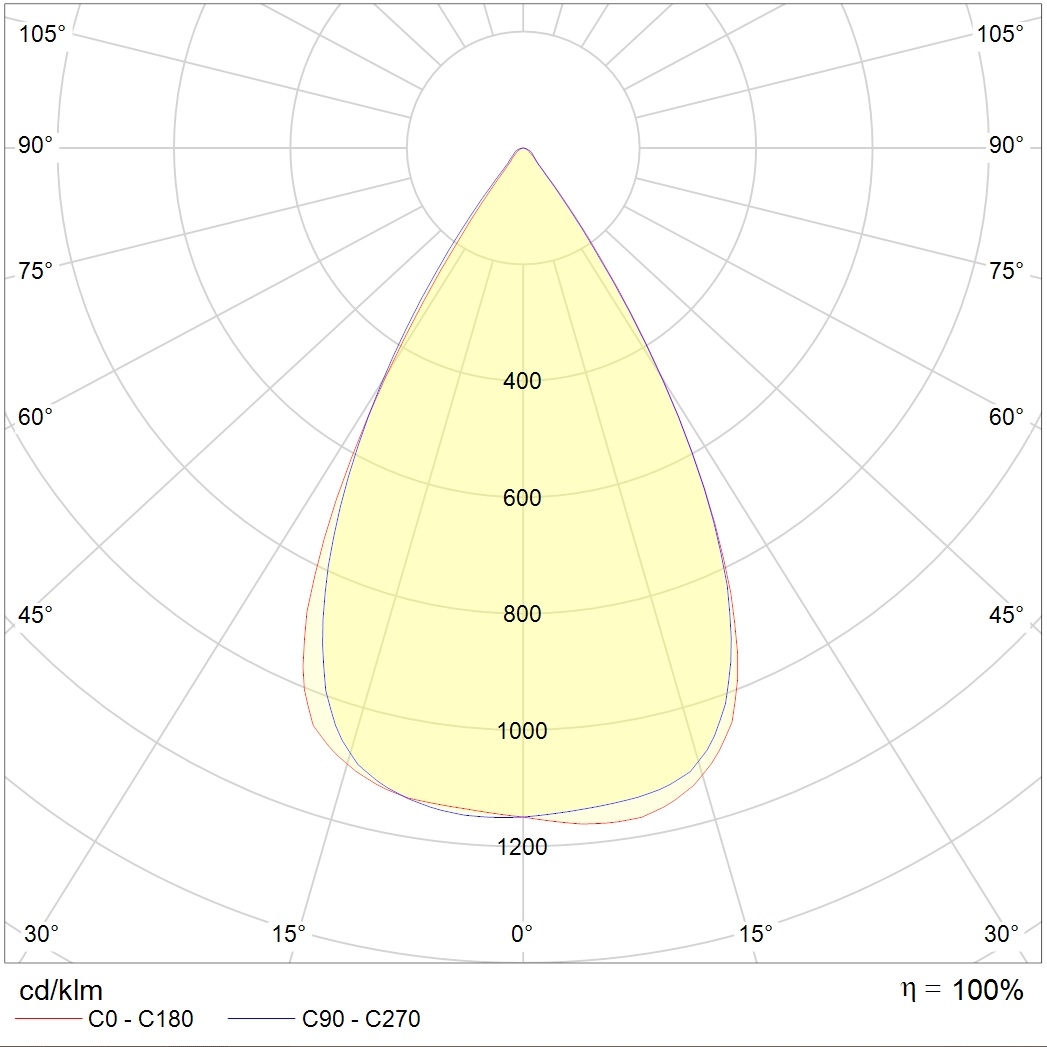

photometric files
сертификаты
photometric files
ies107 kB
jpg133.8 kB
ldt64.2 kB
csv470 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
