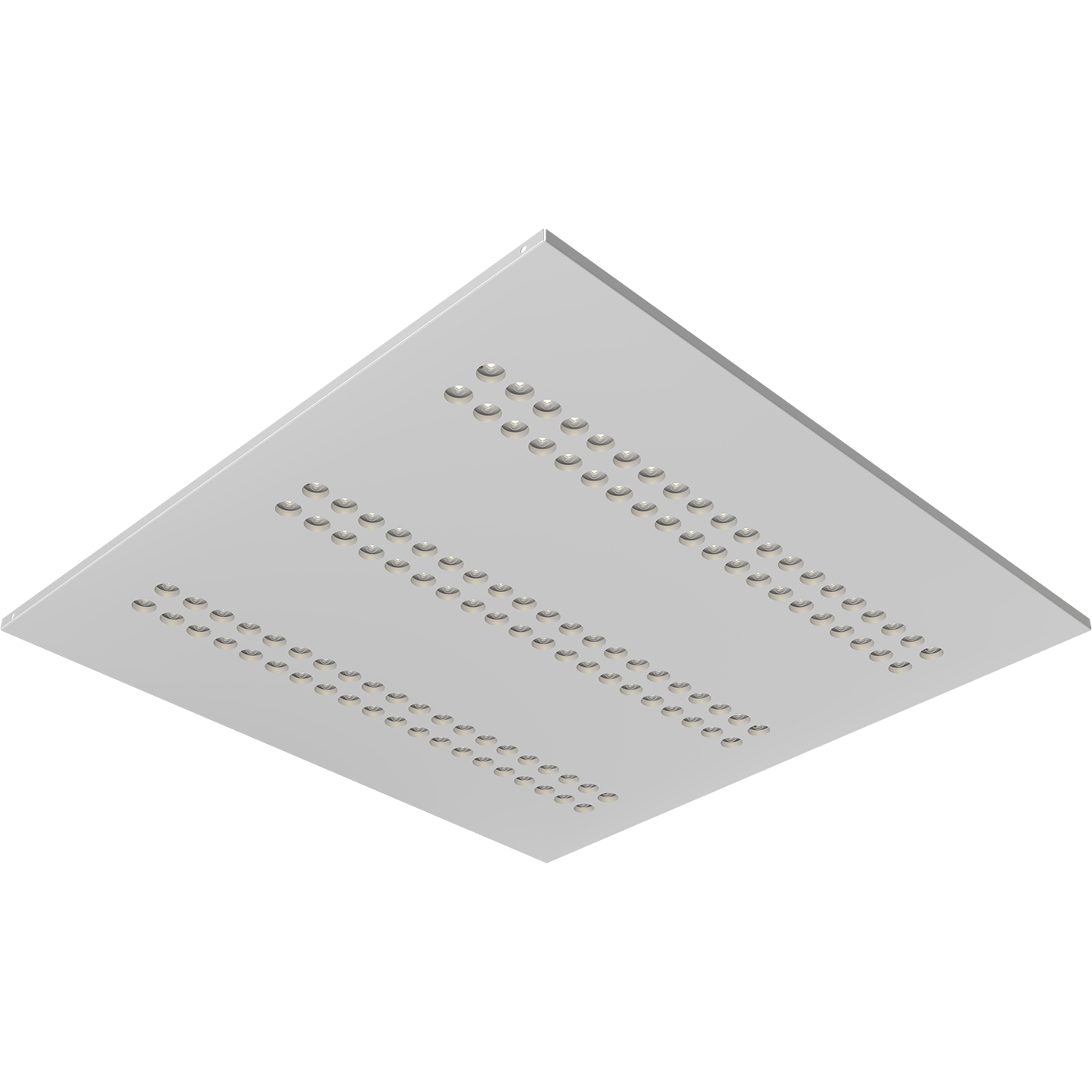

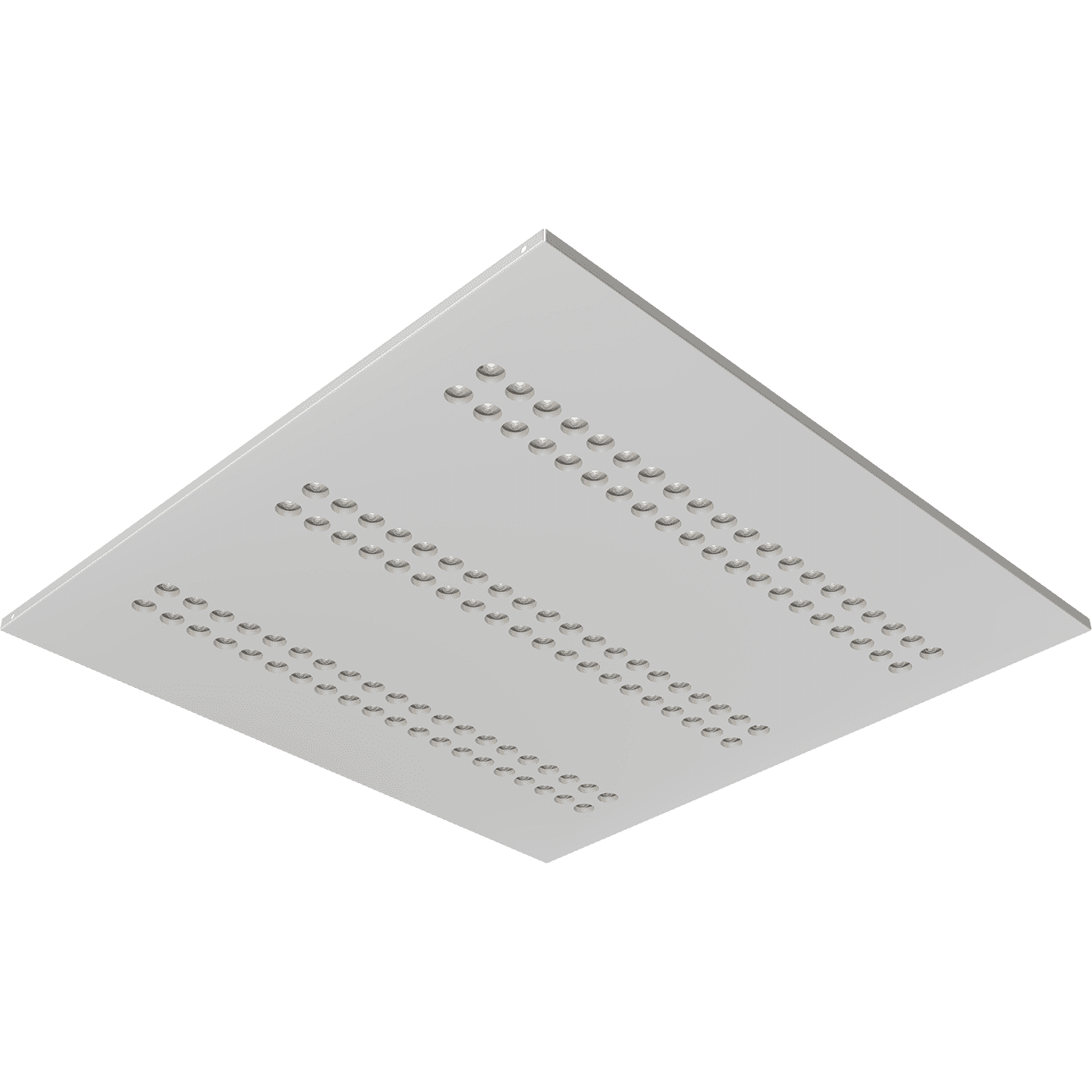

PIXEL LED 595 3L D60 B EM 4000K
PIXEL LED 595 3L D60 B EM 4000K
26 Wluminaire power
3200 lmlight flow
123 lm/Wenergy efficiency
code1094000240
color temperature4000 K
beam angleD60
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
123 lm/Wcolor rendition index (CRI)
>80light flow
3200 lmbeam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
123 lm/W
color rendition index (CRI)
>80
light flow
3200 lm
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
26 W
supply voltage
24 V
power factor
> 0,90
constructional
length
596 mm
width
596 mm
height
32 mm
installation length
575 mm
installation width
575 mm
weight
4 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1094000240
model files
model files

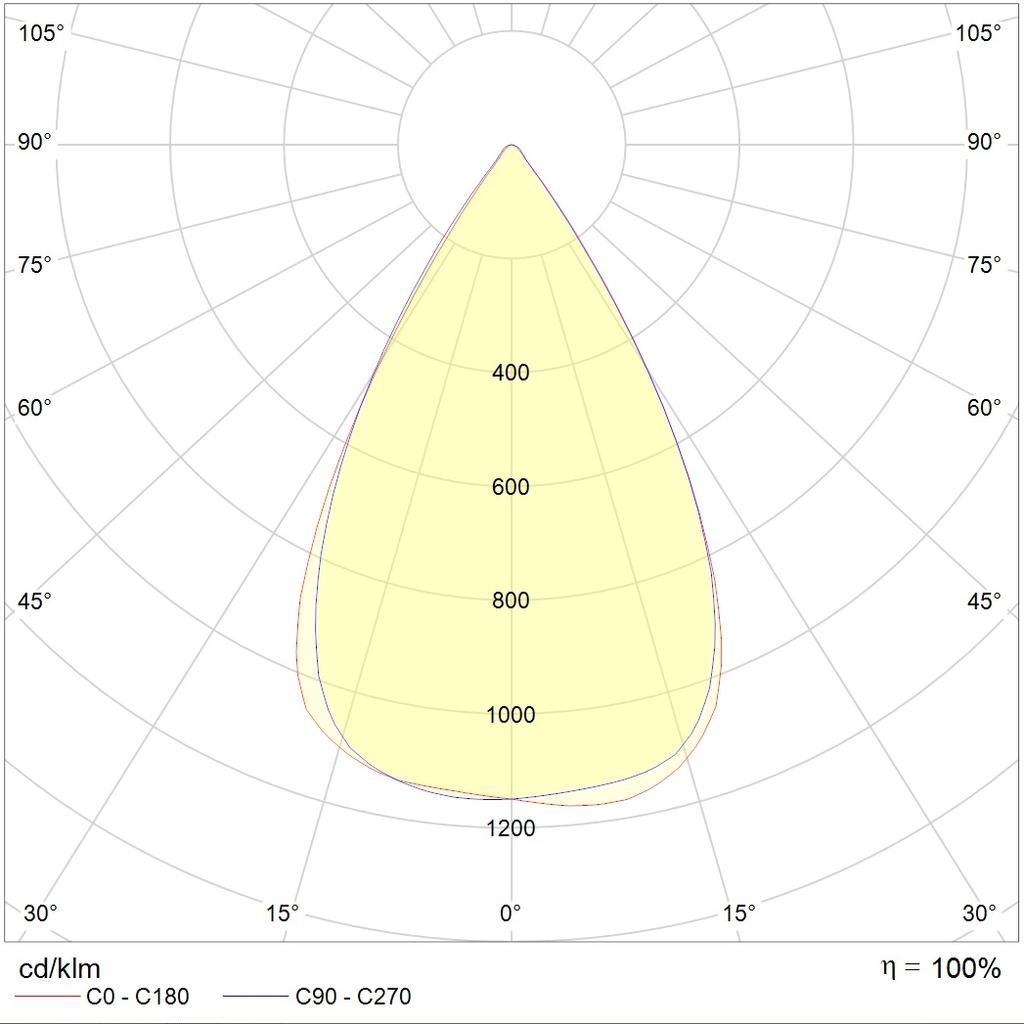

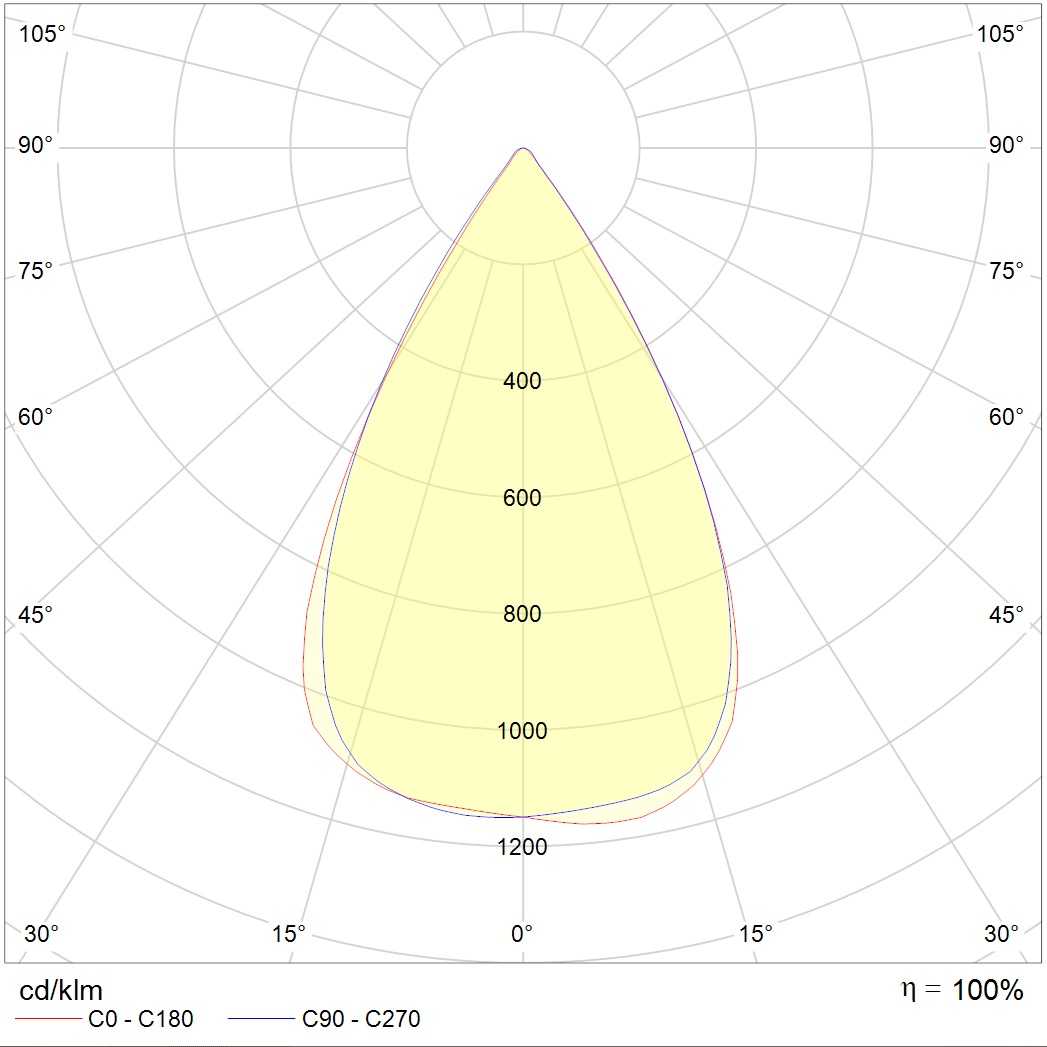

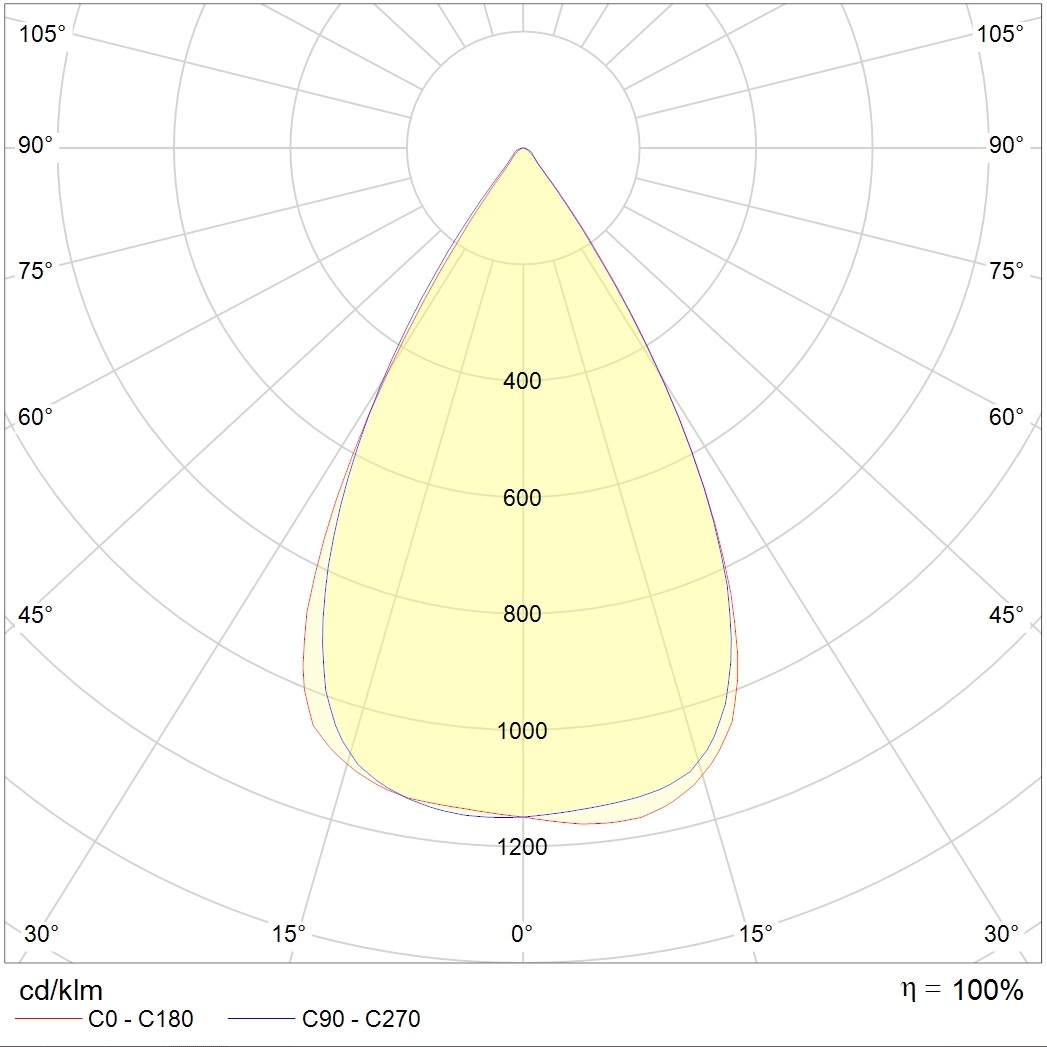

photometric files
сертификаты
photometric files
ies107.1 kB
jpg133.8 kB
ldt64.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
