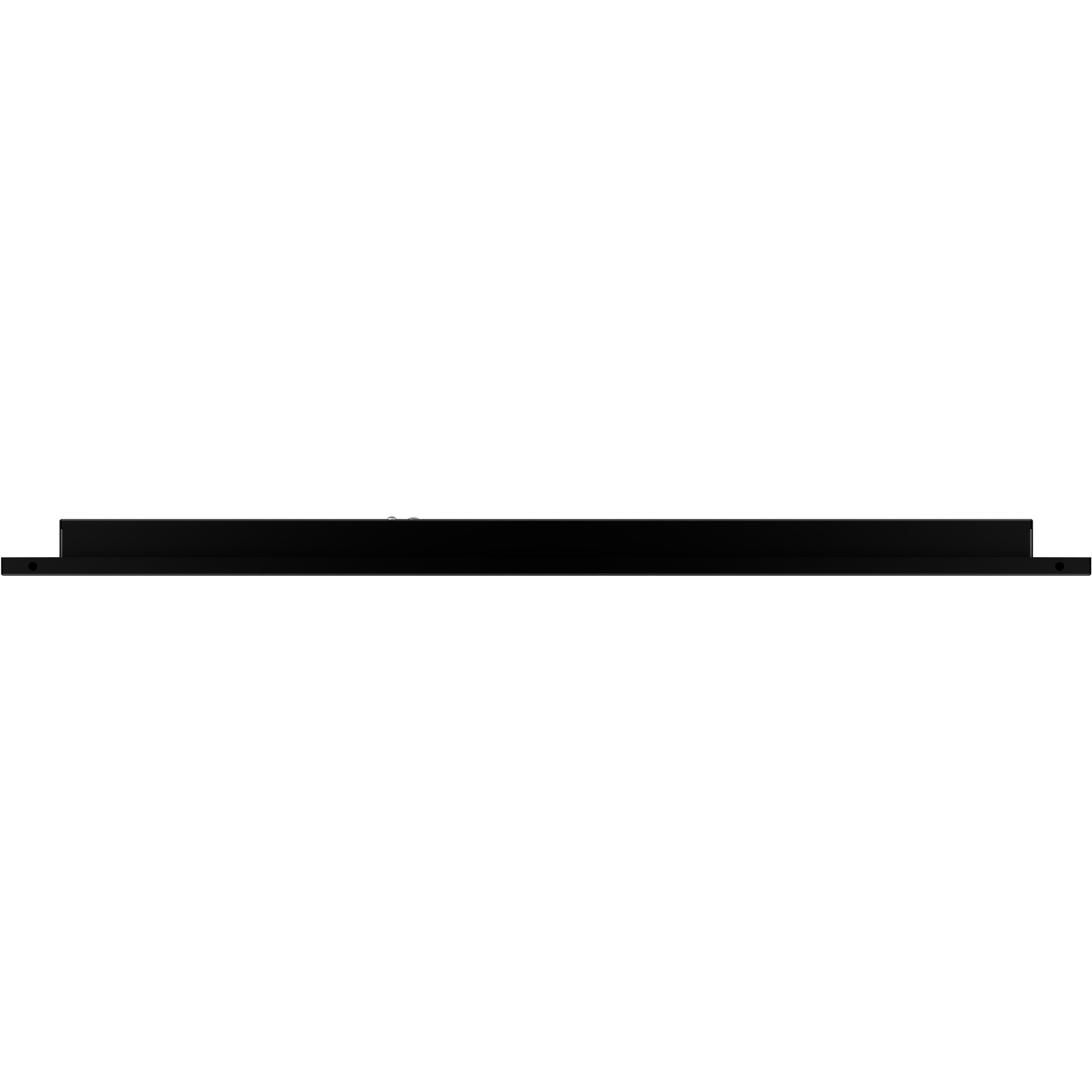

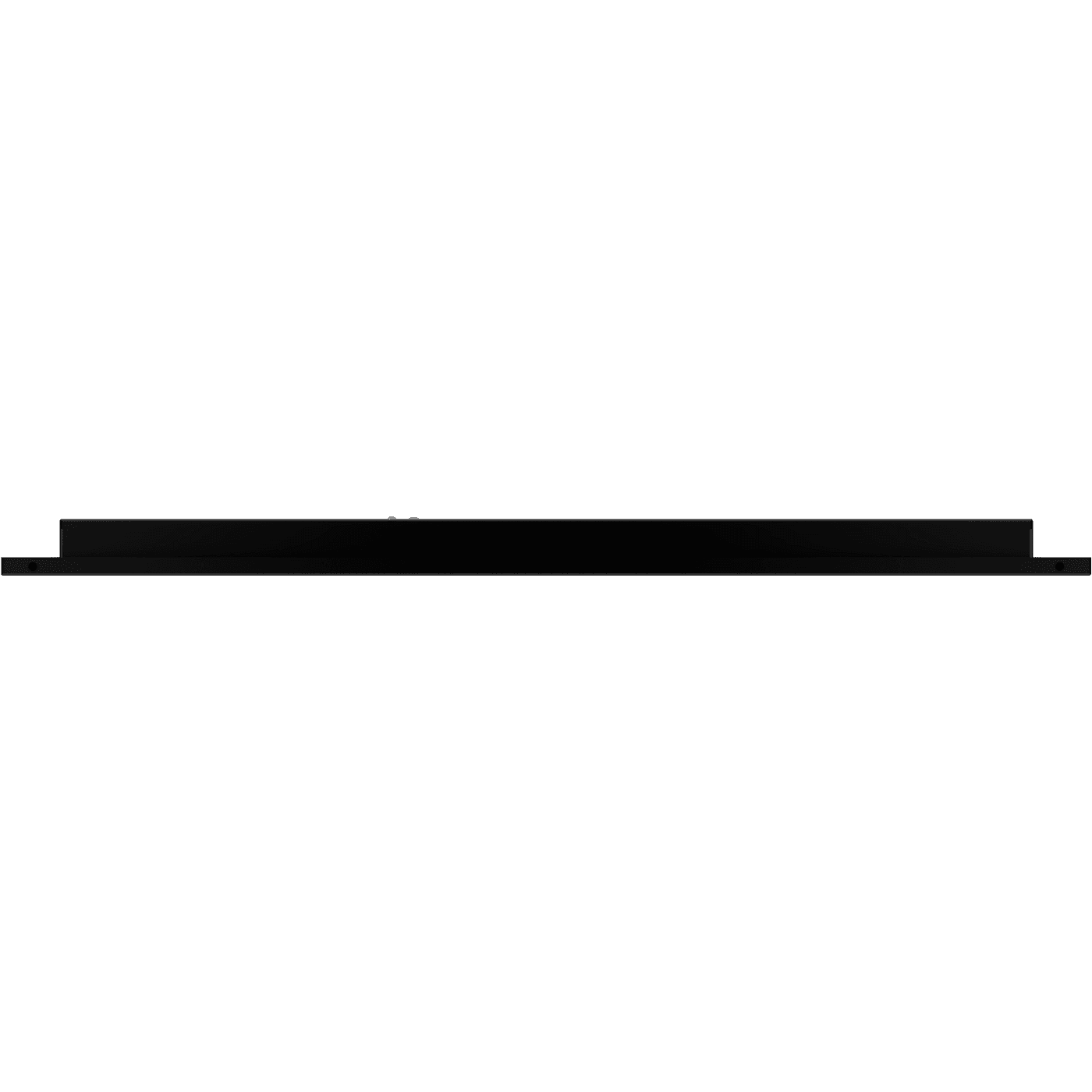

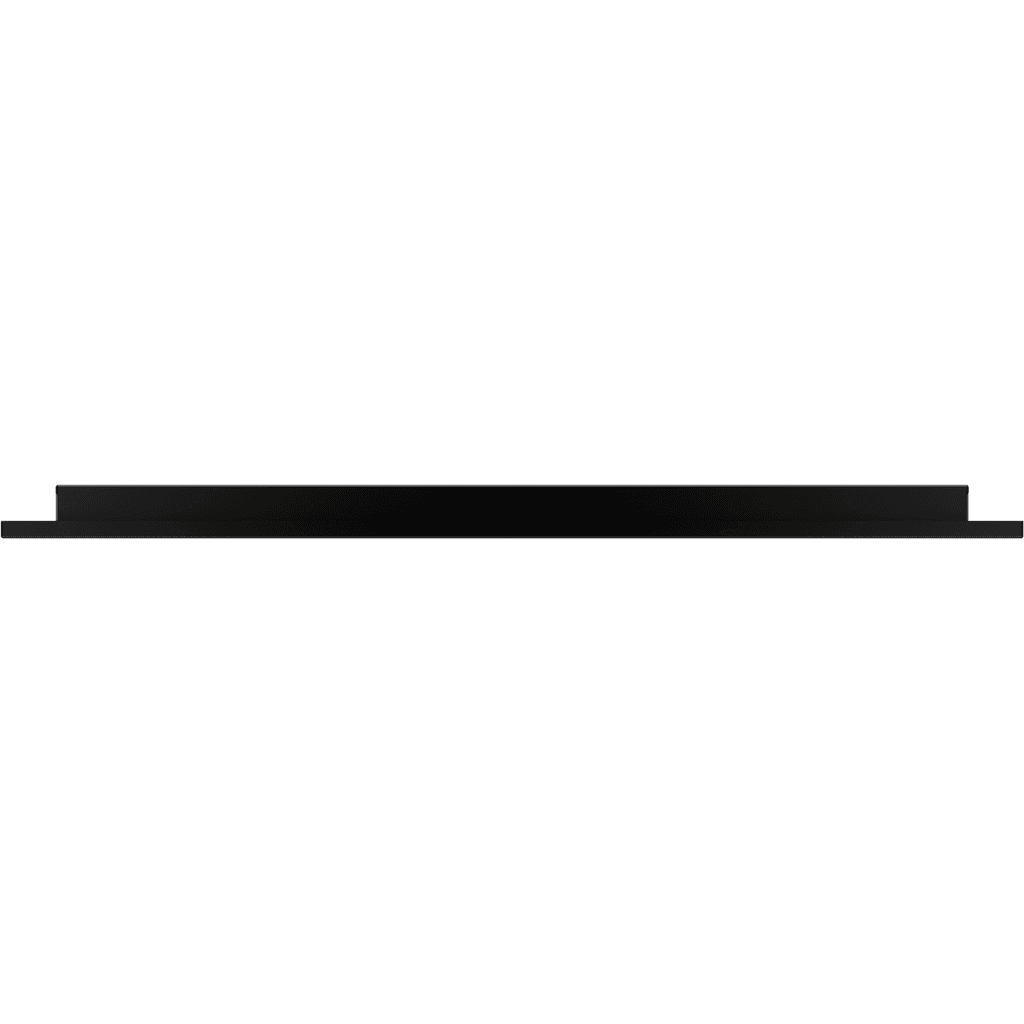

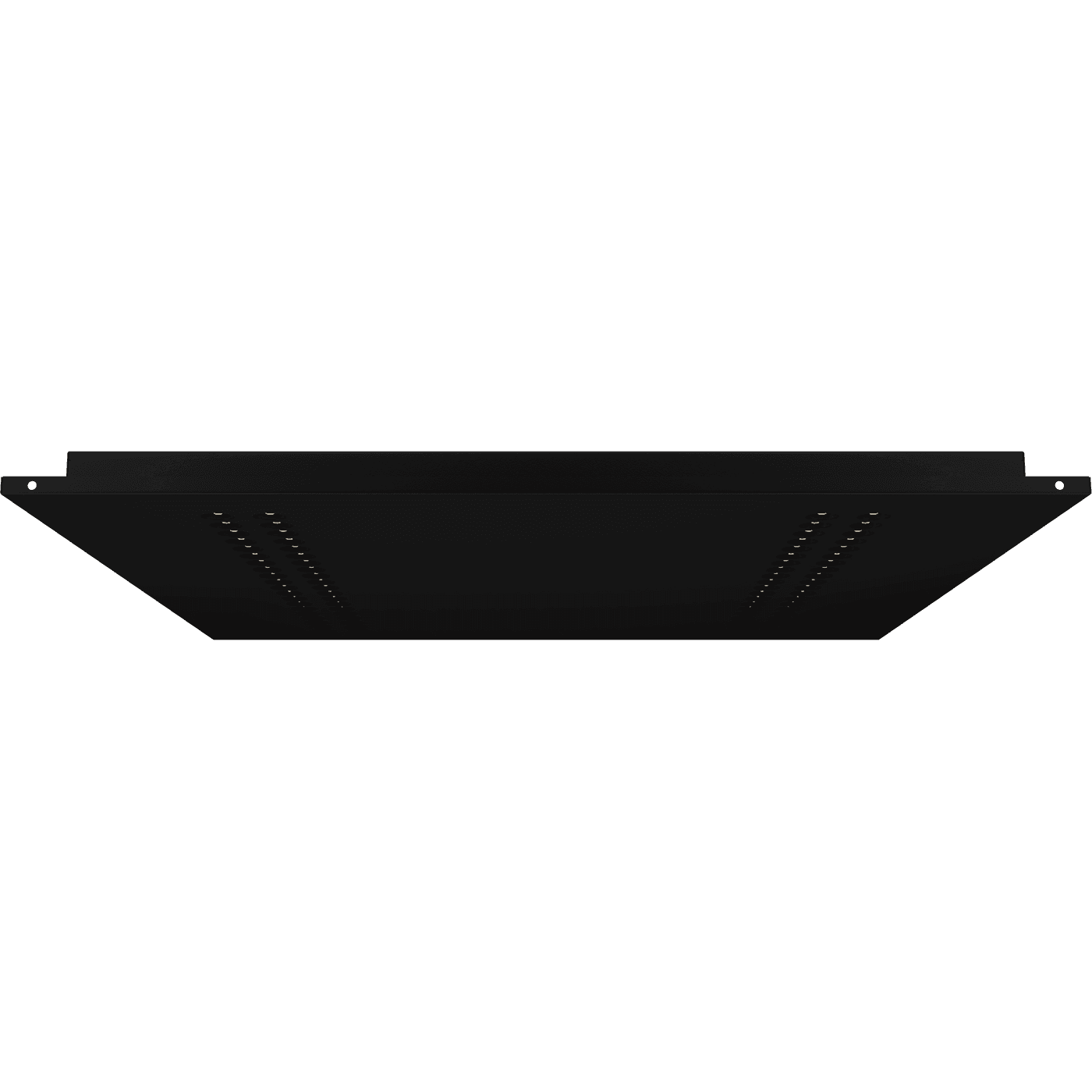

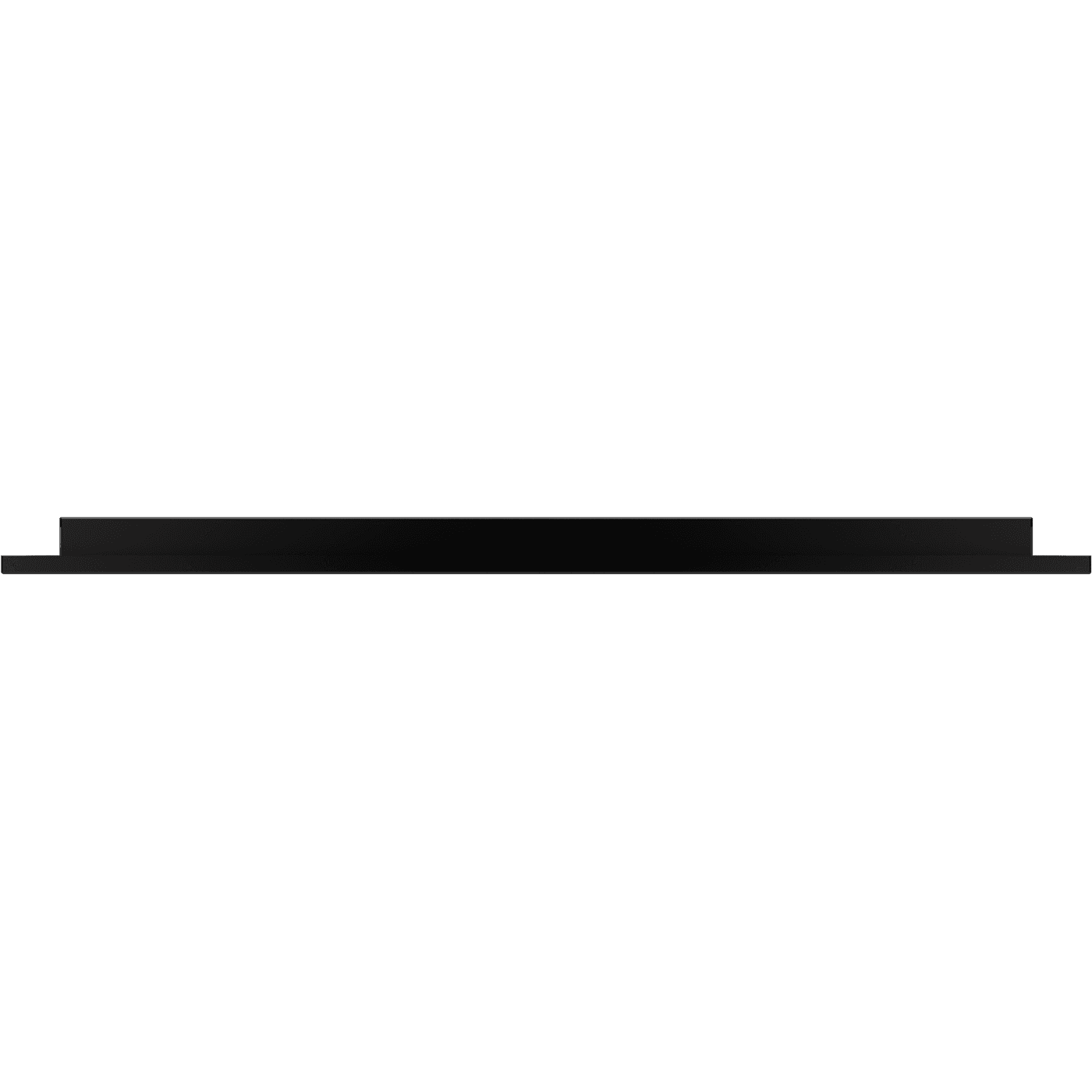

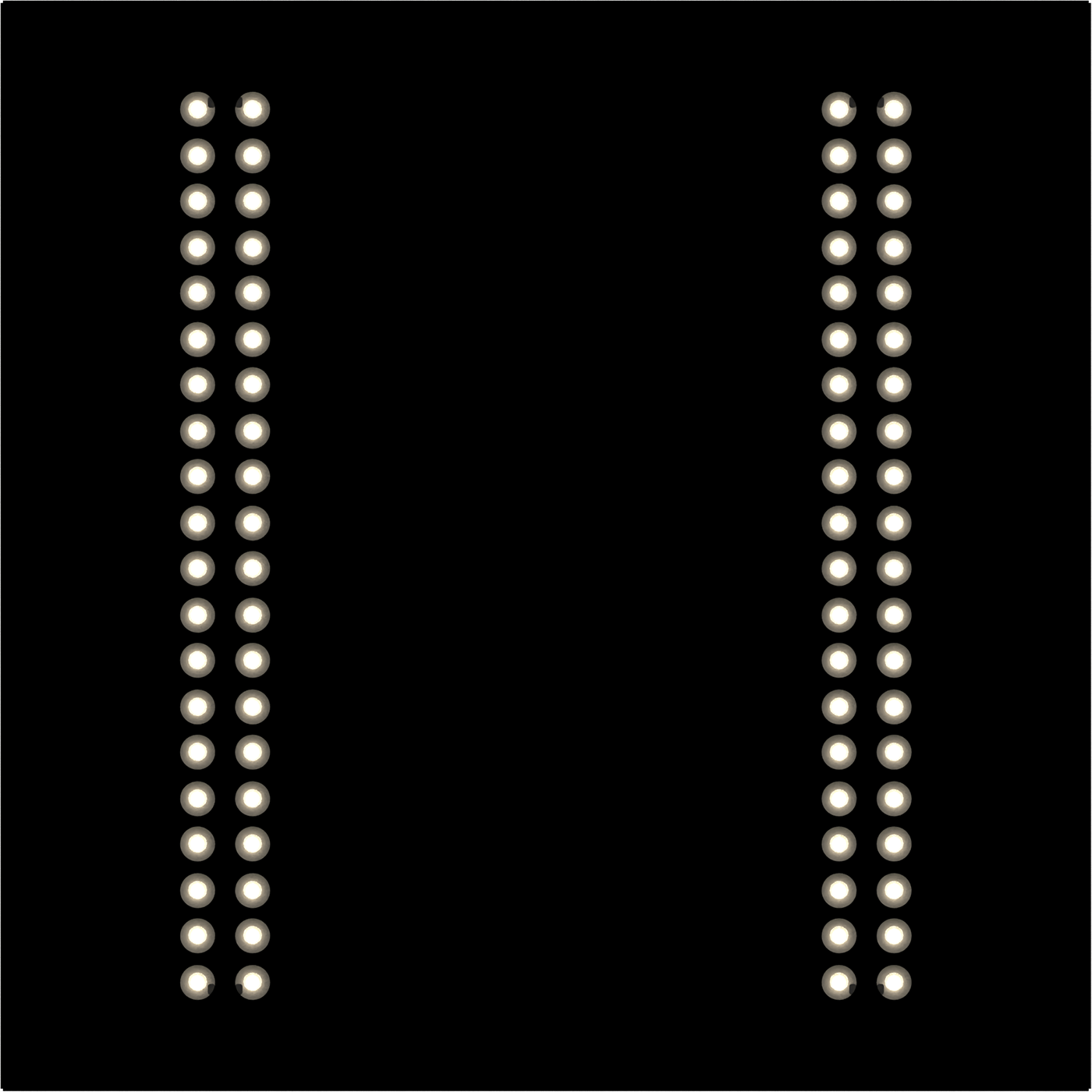

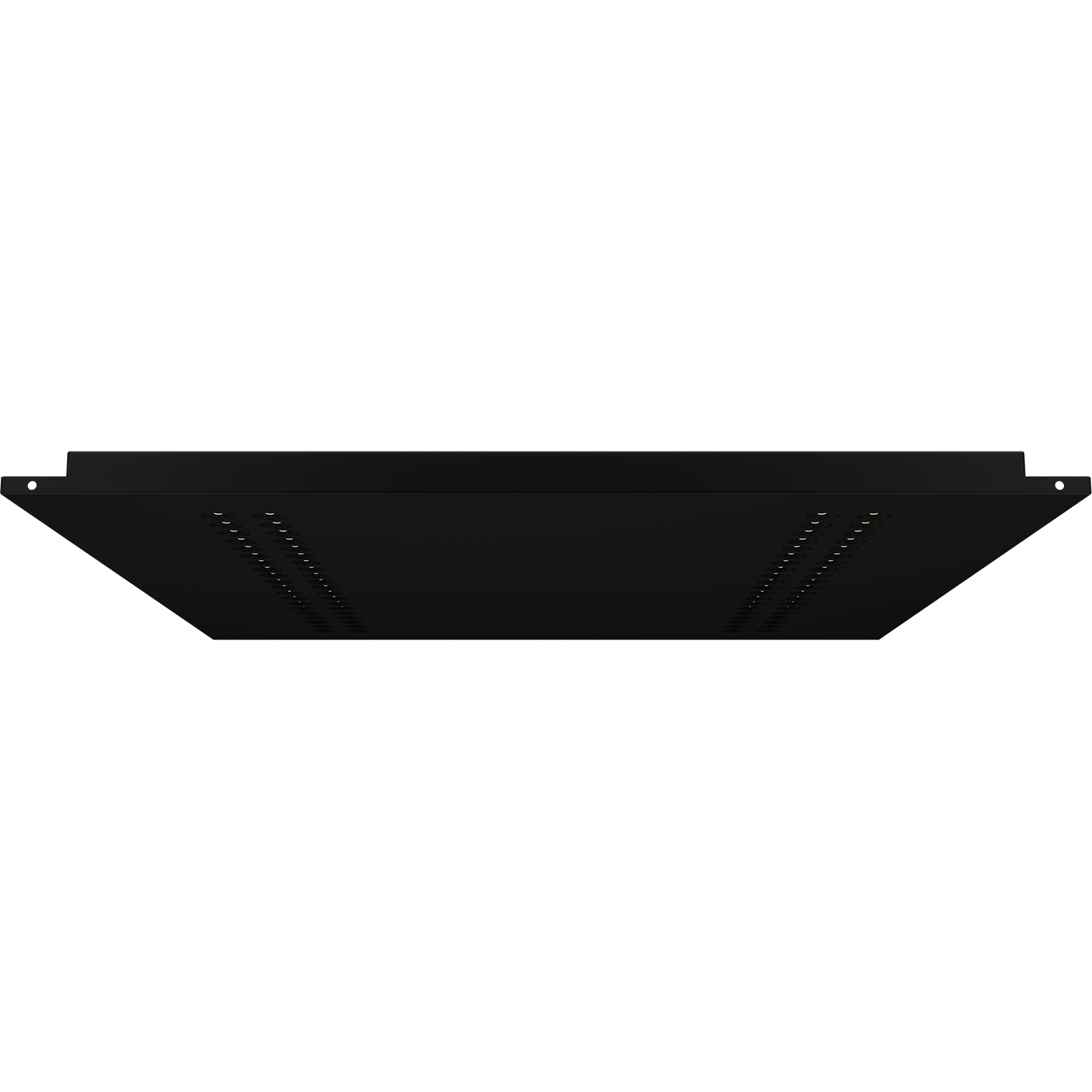

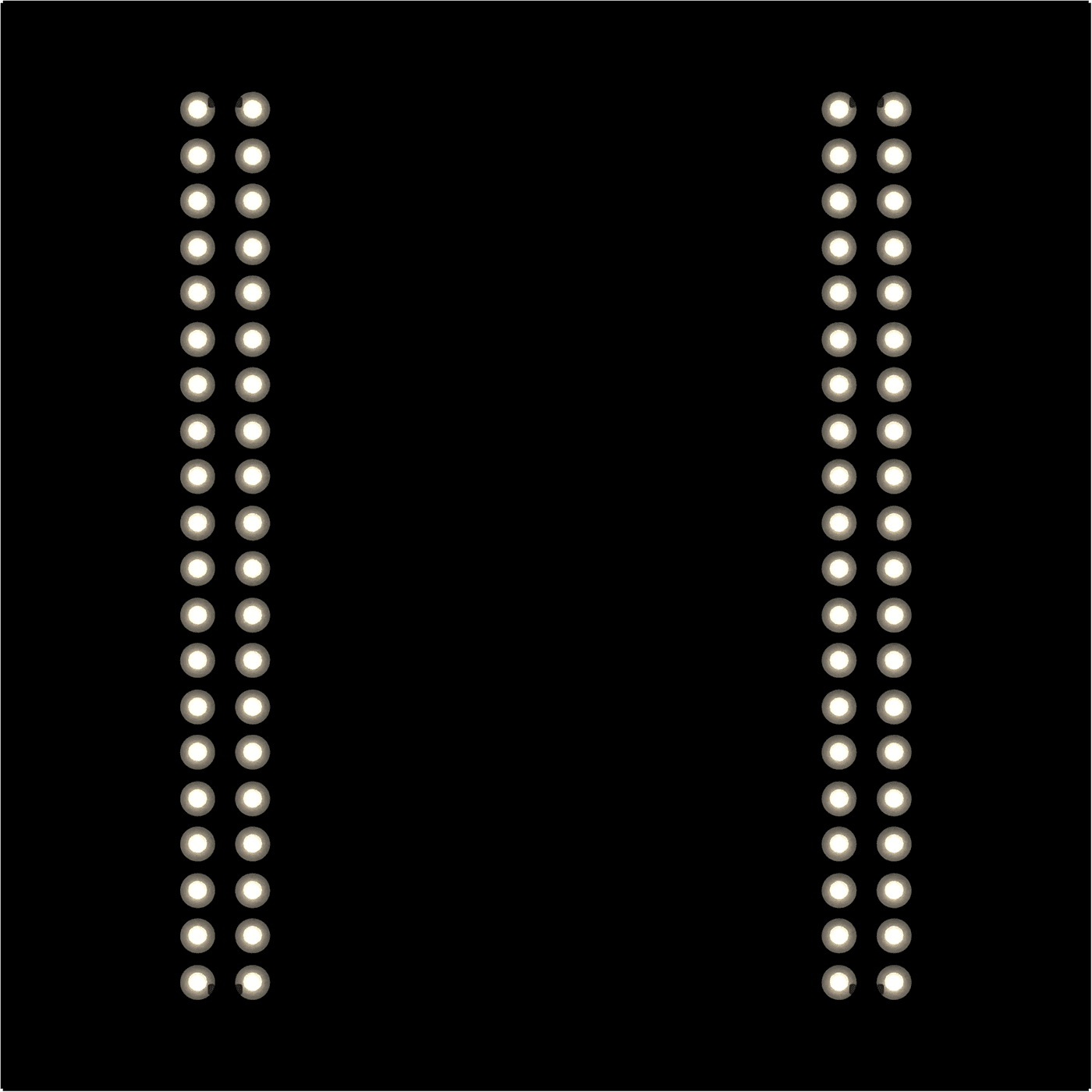

PIXEL LED 595 2L D90 B 4000K CRI90
PIXEL LED 595 2L D90 B 4000K CRI90
30 Wluminaire power
3000 lmlight flow
100 lm/Wenergy efficiency
code
1094000490
color temperature
4000 K
beam angle
D90
performance factor
100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>90light flow
3000 lmflickering factor
<1%beam angle
D90color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>90
light flow
3000 lm
flickering factor
<1%
beam angle
D90
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
30 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
constructional
length
596 mm
width
596 mm
height
32 mm
installation length
575 mm
installation width
575 mm
weight
4.4 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Сталь
housing color
Черный
mounting type
Встраиваемый в потолок
lamp socket
LED
number of lamps
1
ballast
Драйвер
тип потолка
армстронг
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1094000490
model files
model files

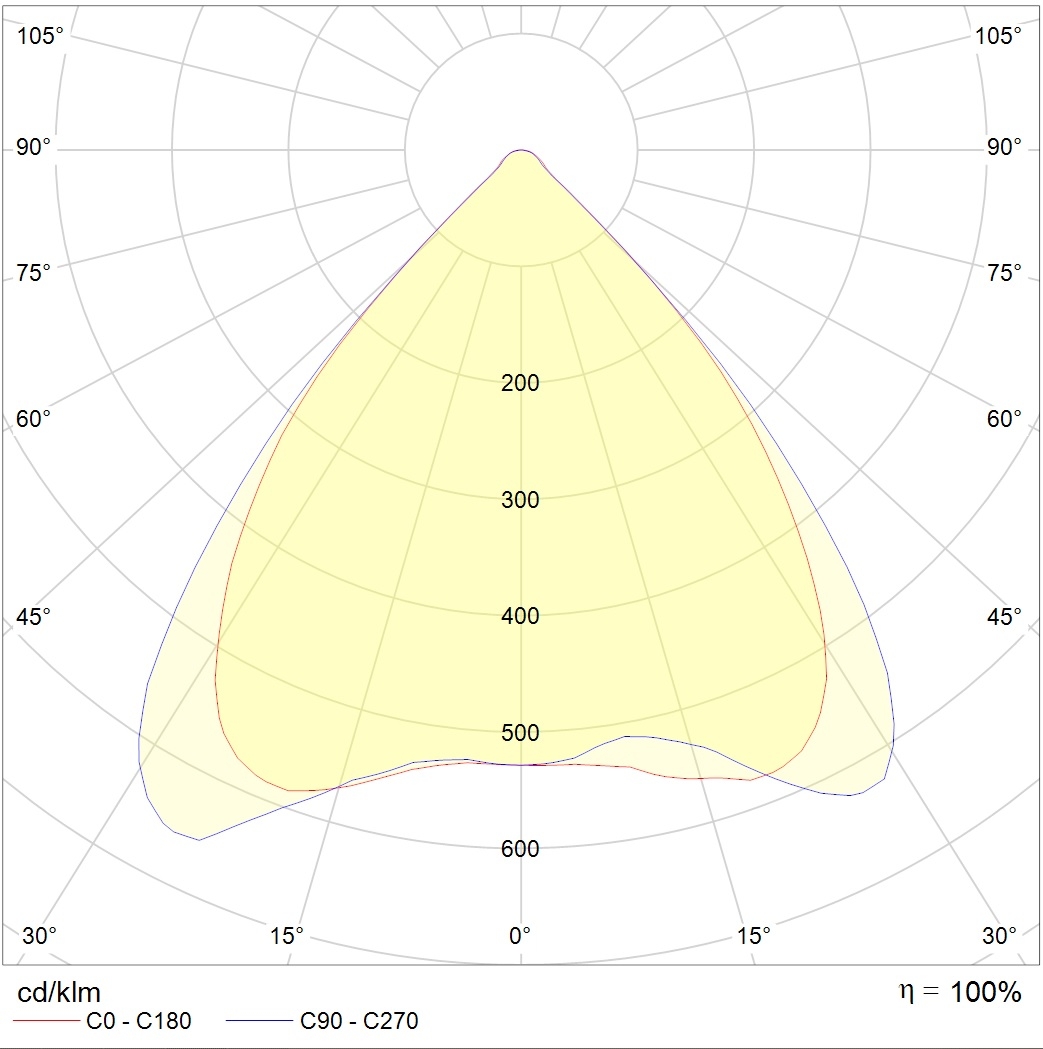

photometric files
сертификаты
photometric files
ies107 kB
jpg139.3 kB
ldt64.4 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
