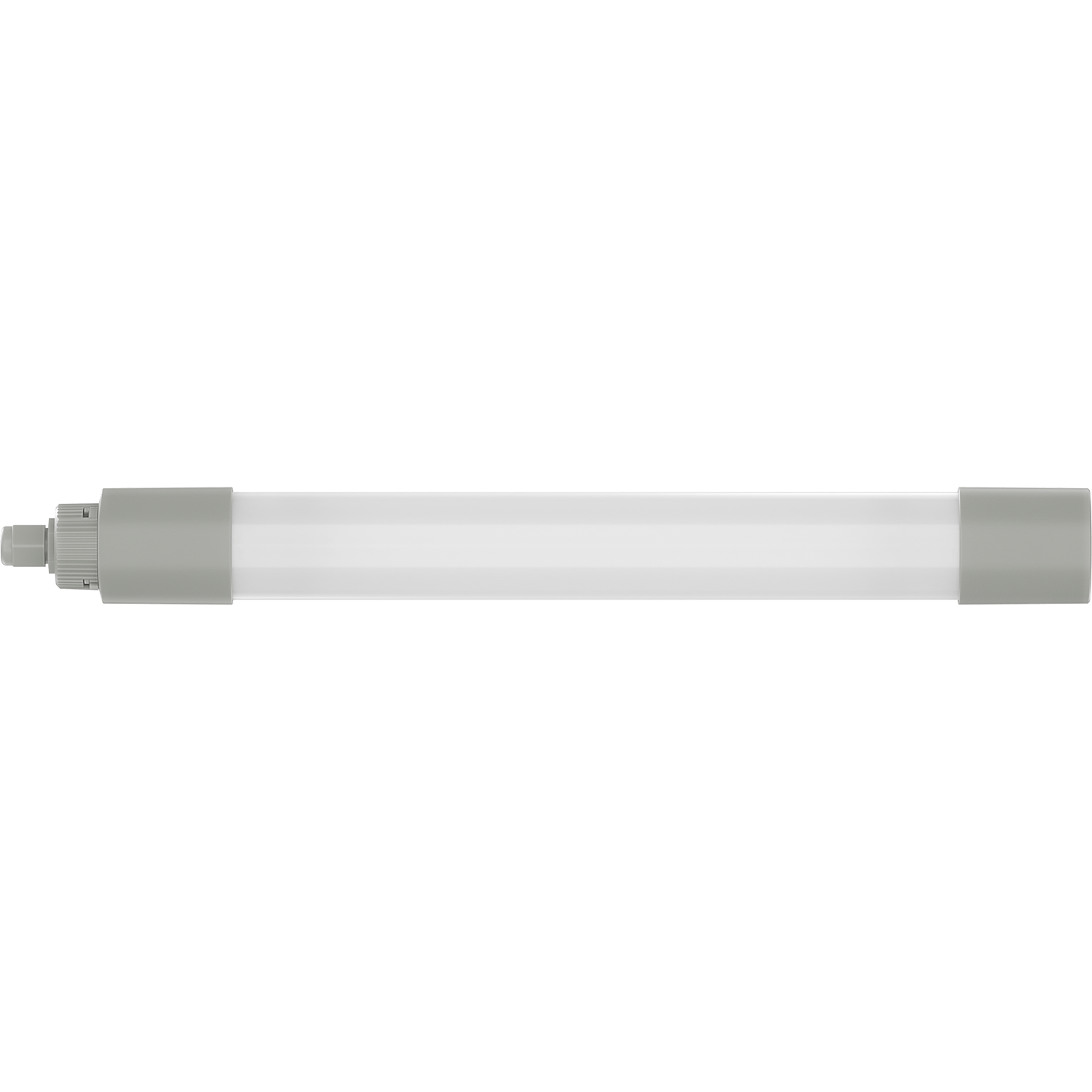

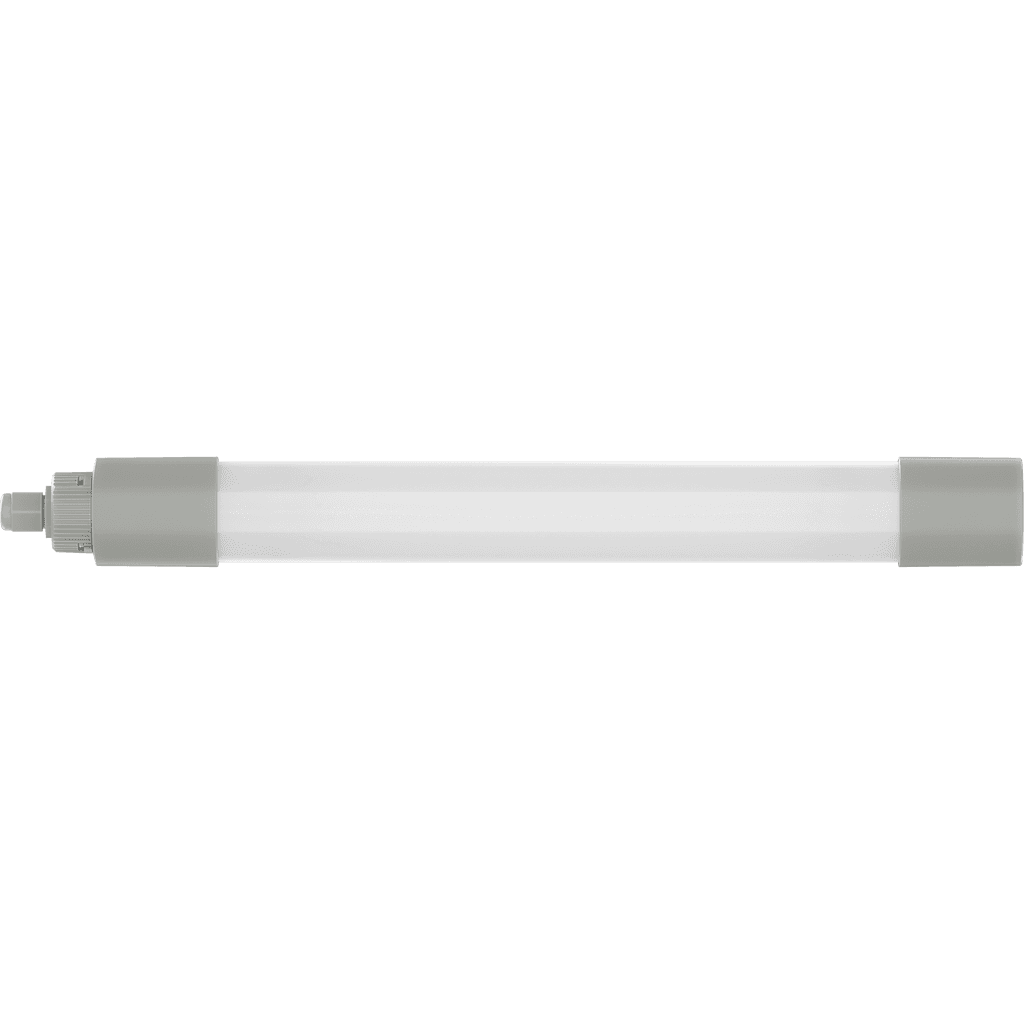

PHILLER STANDARD (600) 20W 840 GR
_20w_840_gr.jpg&w=1920&q=50)
_20w_840_gr.jpg&w=1024&q=50)

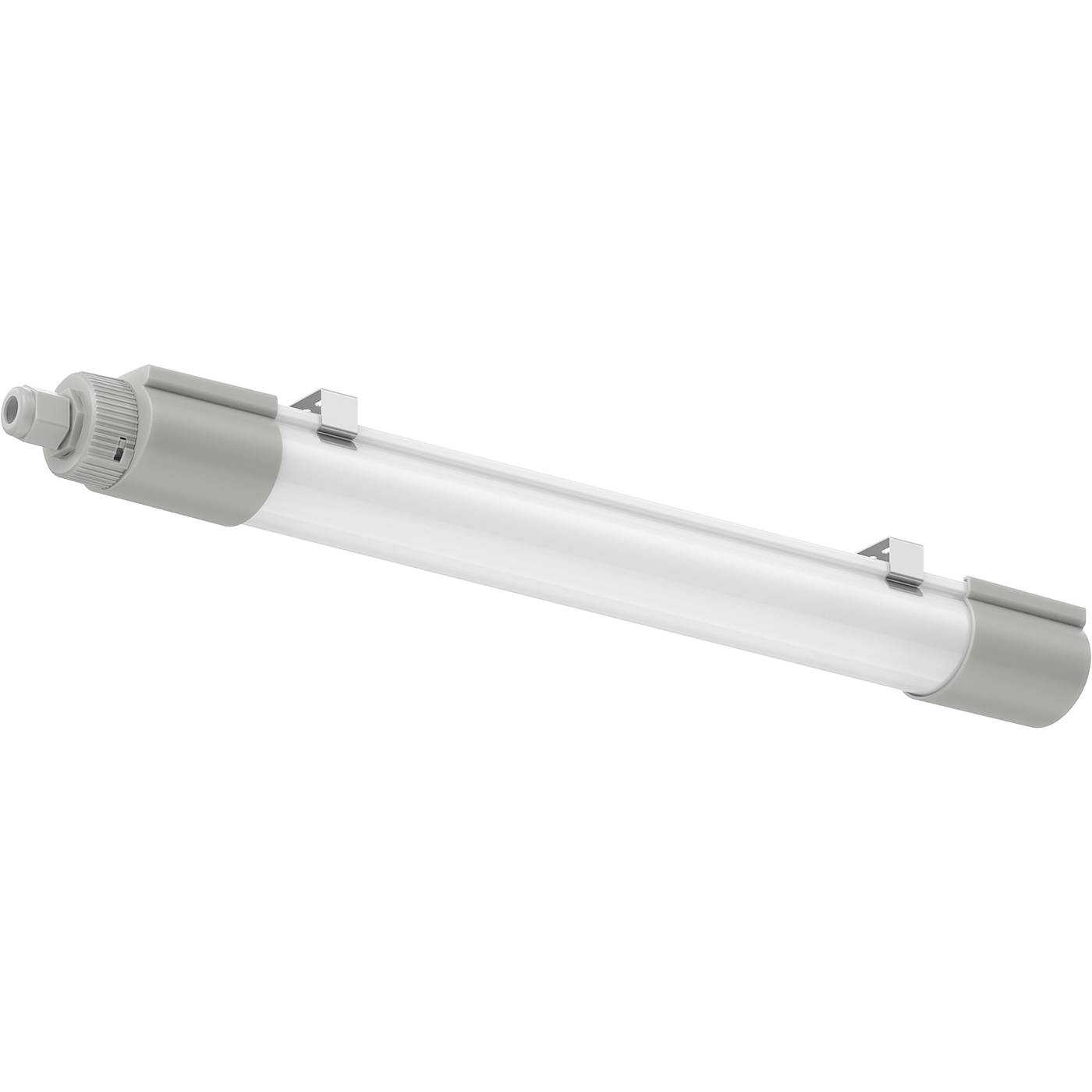

PHILLER STANDARD (600) 20W 840 GR
19 Wluminaire power
2100 lmlight flow
111 lm/Wenergy efficiency
code1794000160
color temperature4000
beam angleD120
weight0.41 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
220-240 Vsupply voltage, direct current
220-240 Vluminaire power
19 Welectric shock protection
IIpower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
220-240 V
supply voltage, direct current
220-240 V
luminaire power
19 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Поликарбонат
weight
0.41 kg
housing color
Серый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
580 mm
width, mm
65 mm
height, mm
51 mm
shock resistance (IK)
IK09/10 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
300 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
code
1794000160
illuminating
light flow
2100 lm
flickering factor
<1%
energy efficiency
111 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

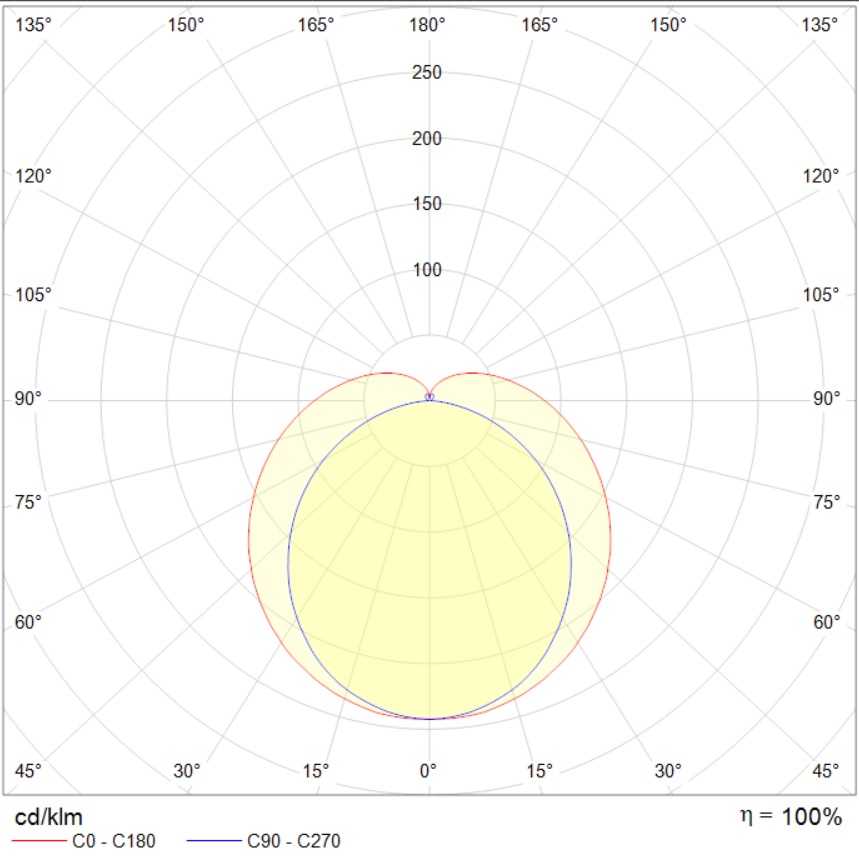

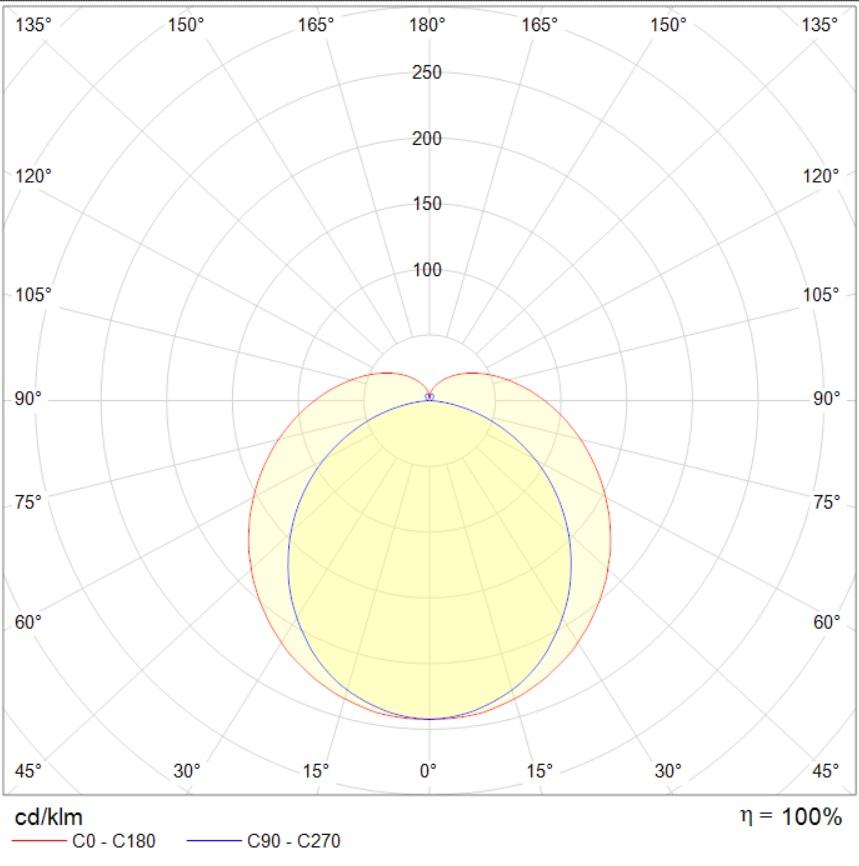

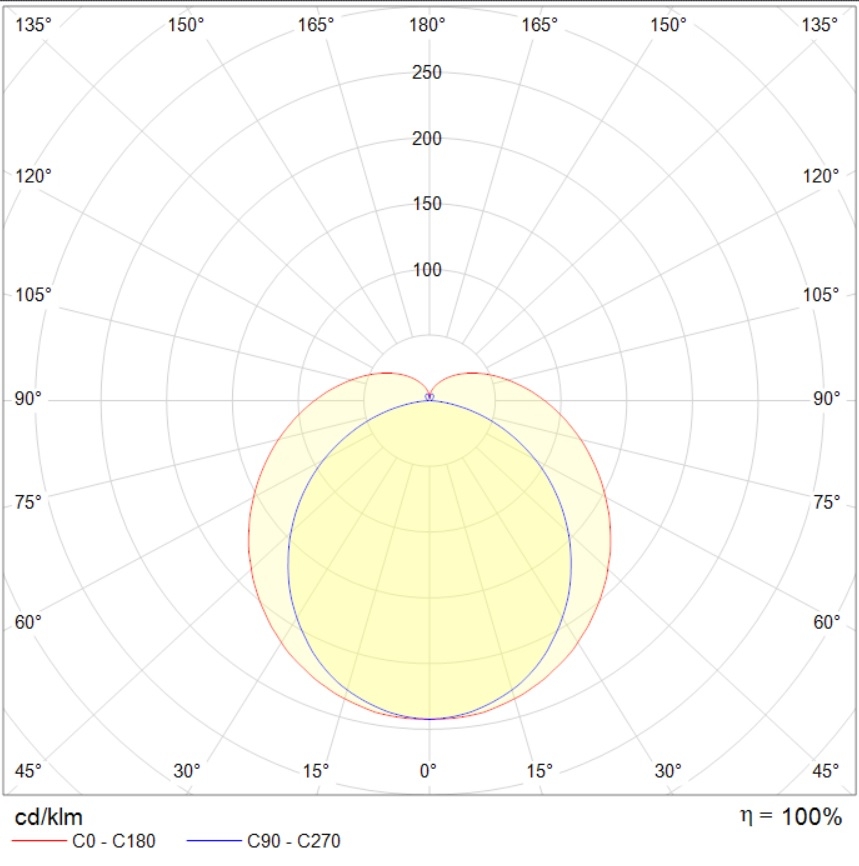

photometric files
documents
сертификаты
photometric files
ies54.6 kB
jpg103 kB
ldt48.8 kB
documents
passport842.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
