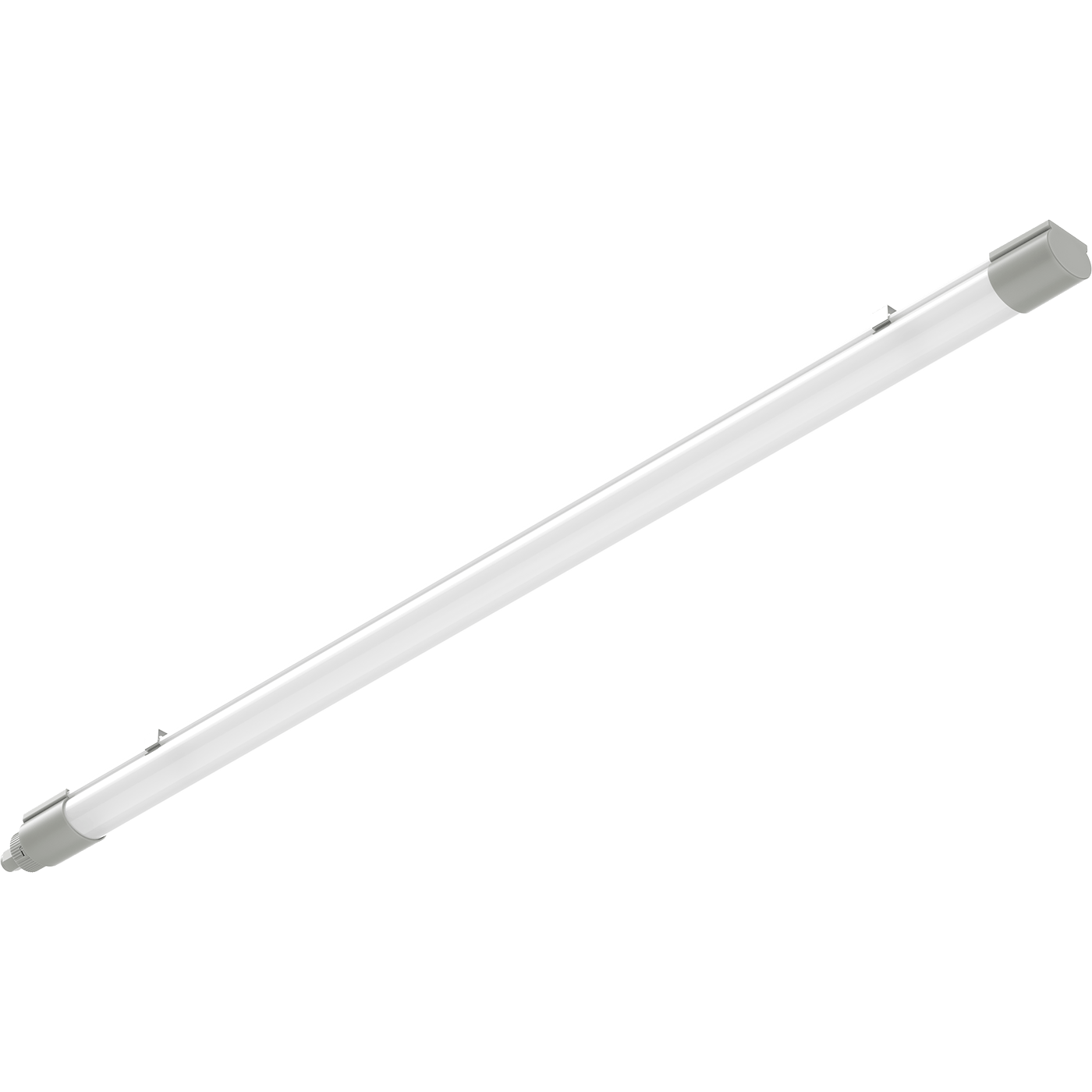

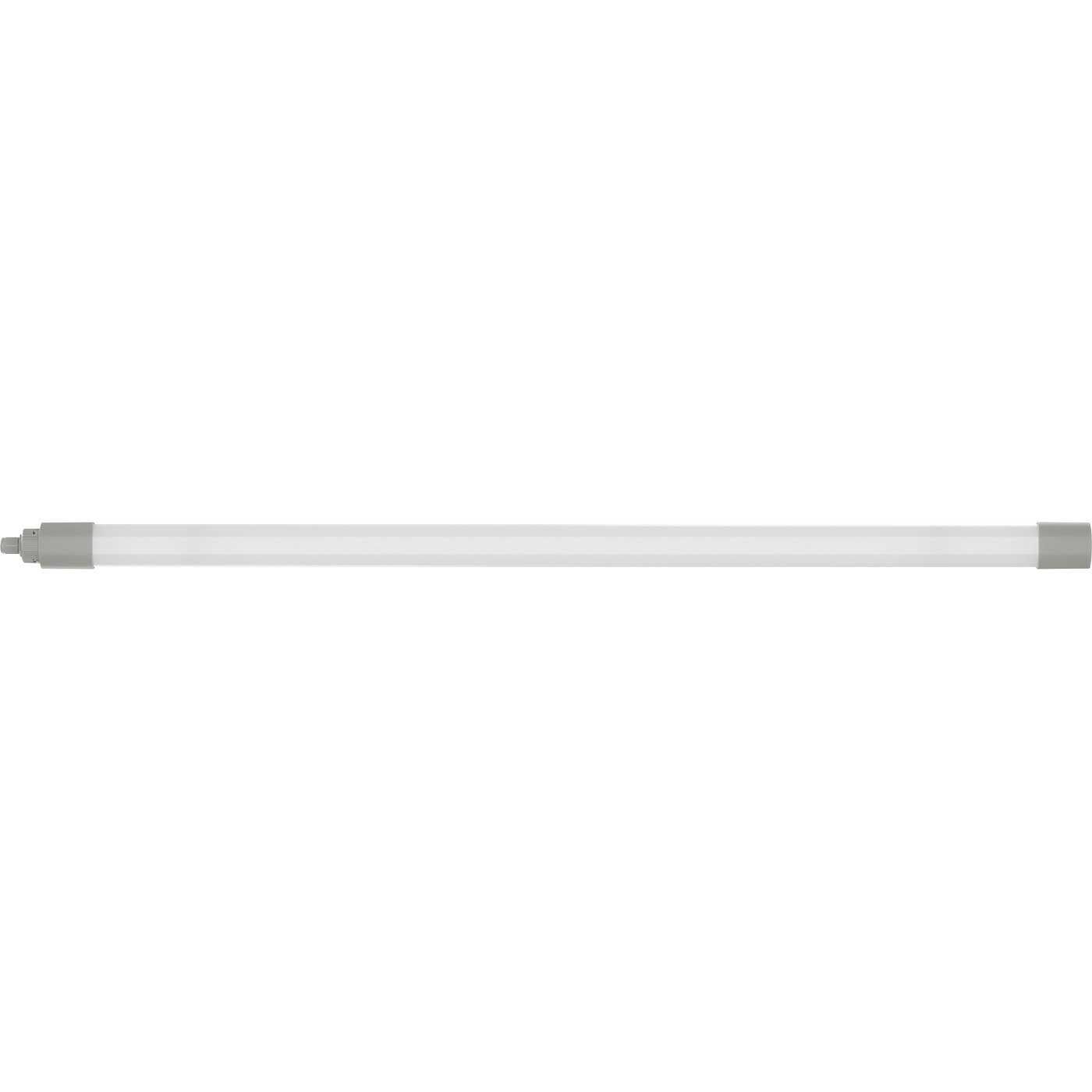

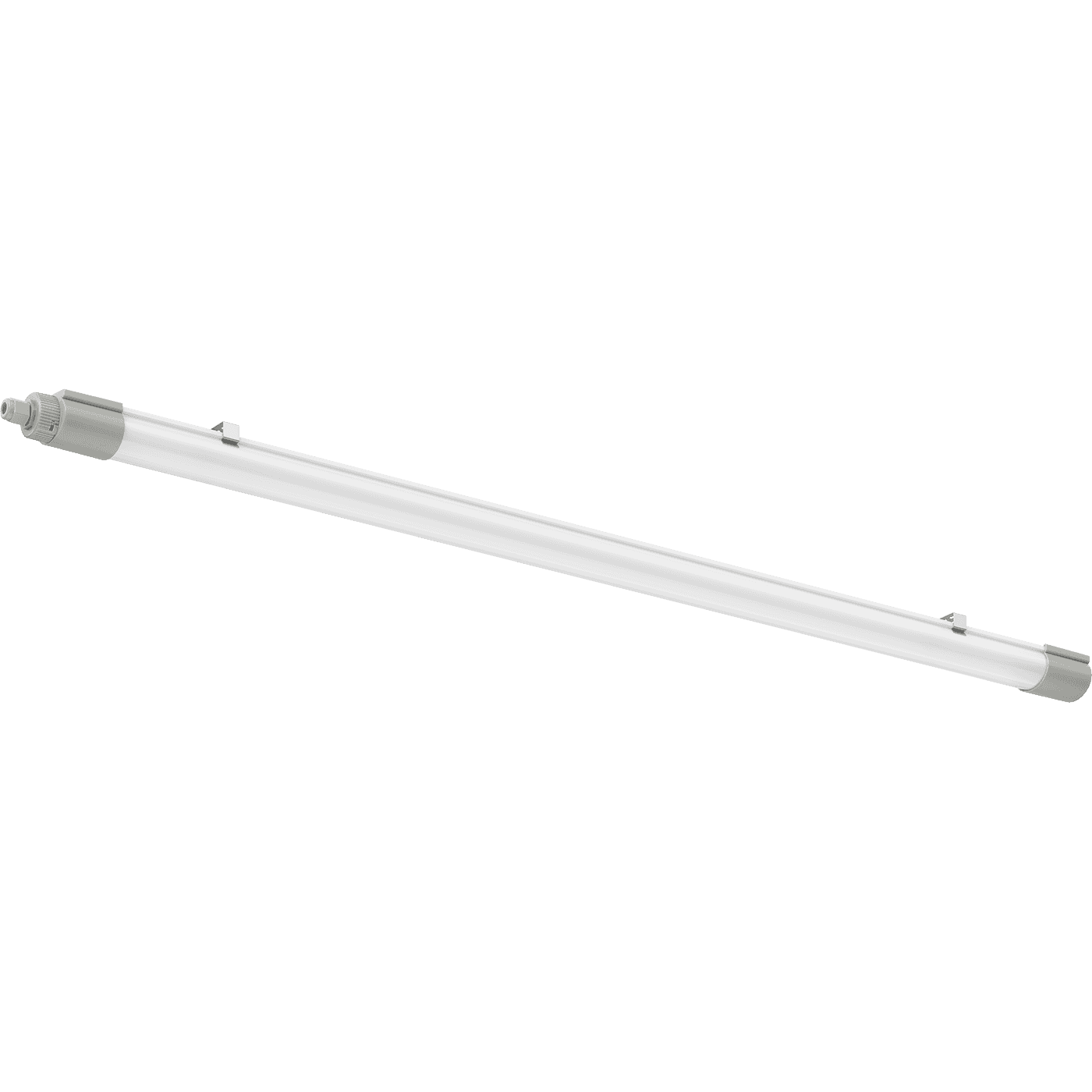

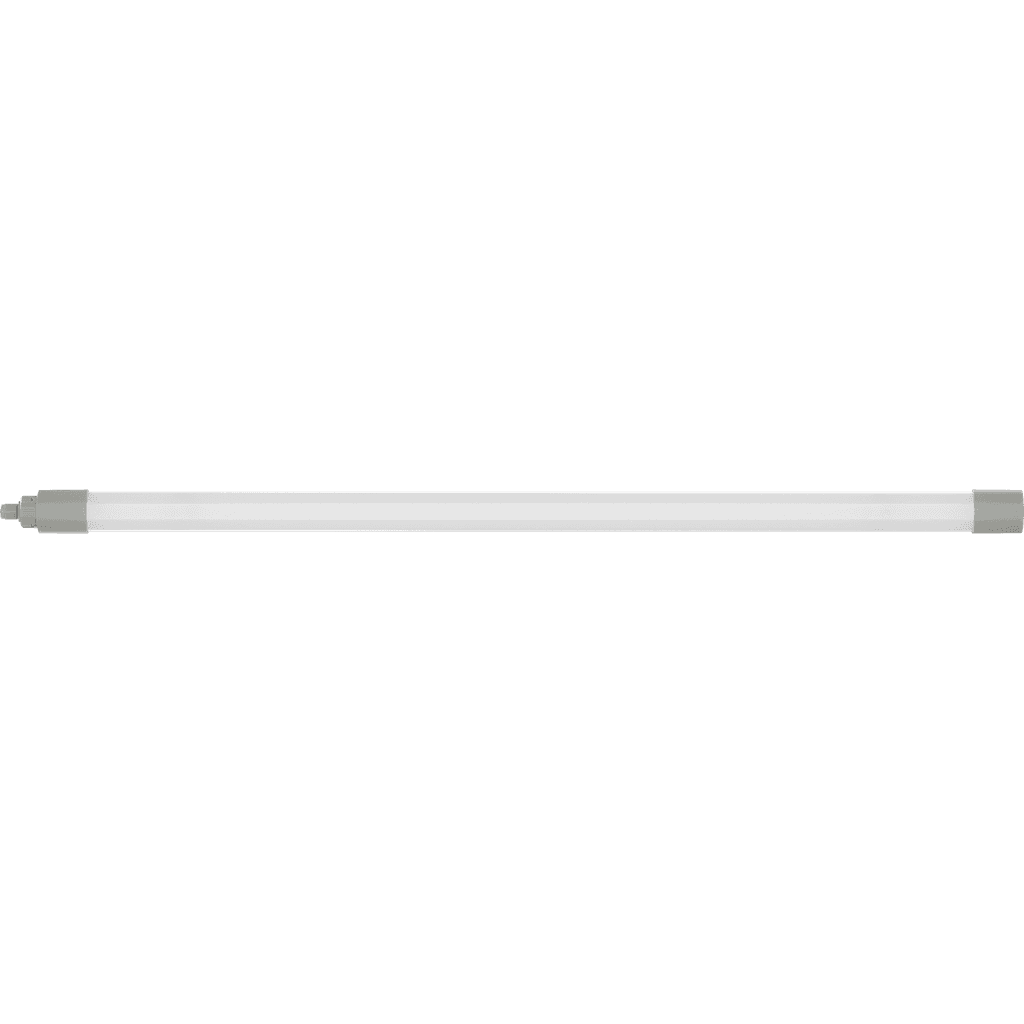

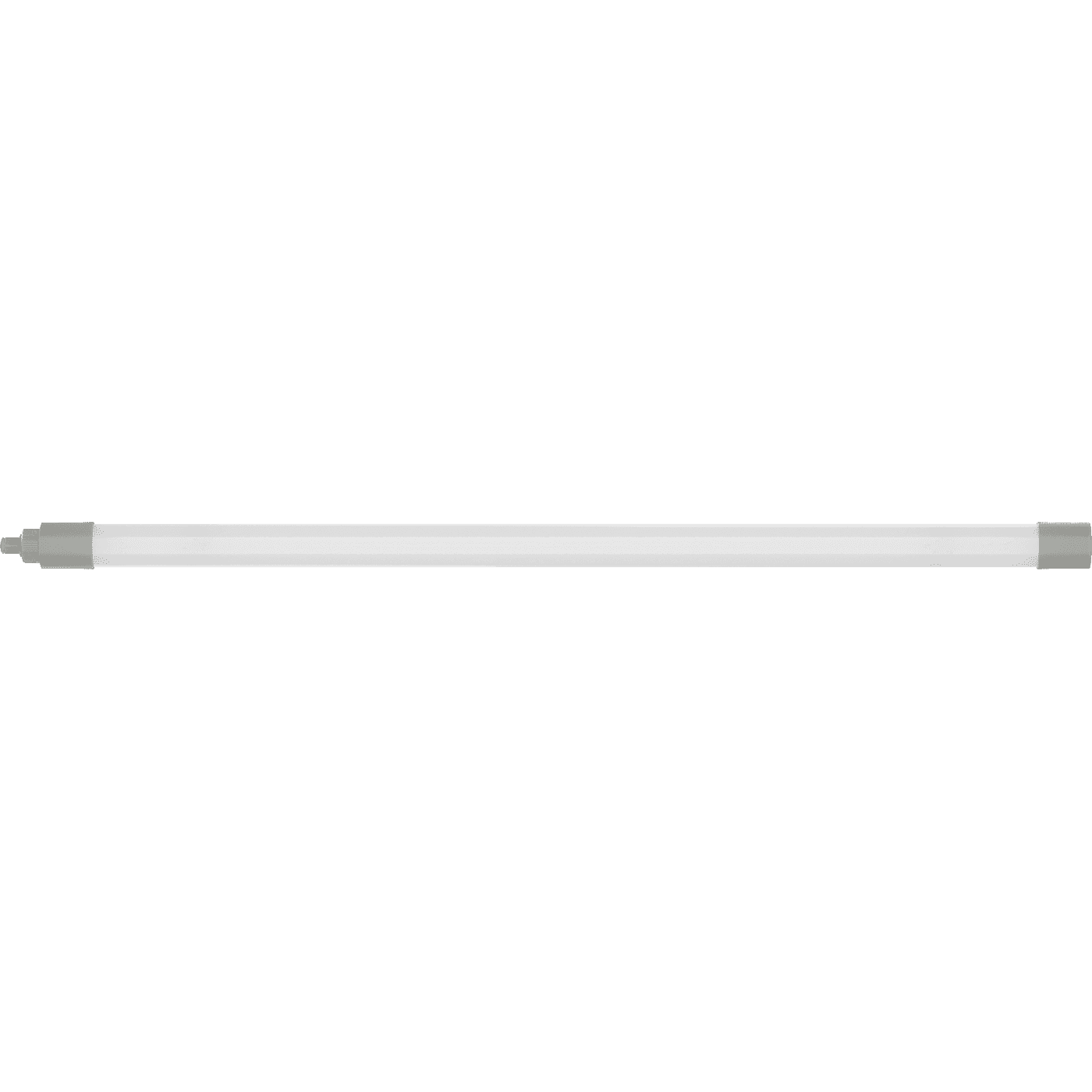

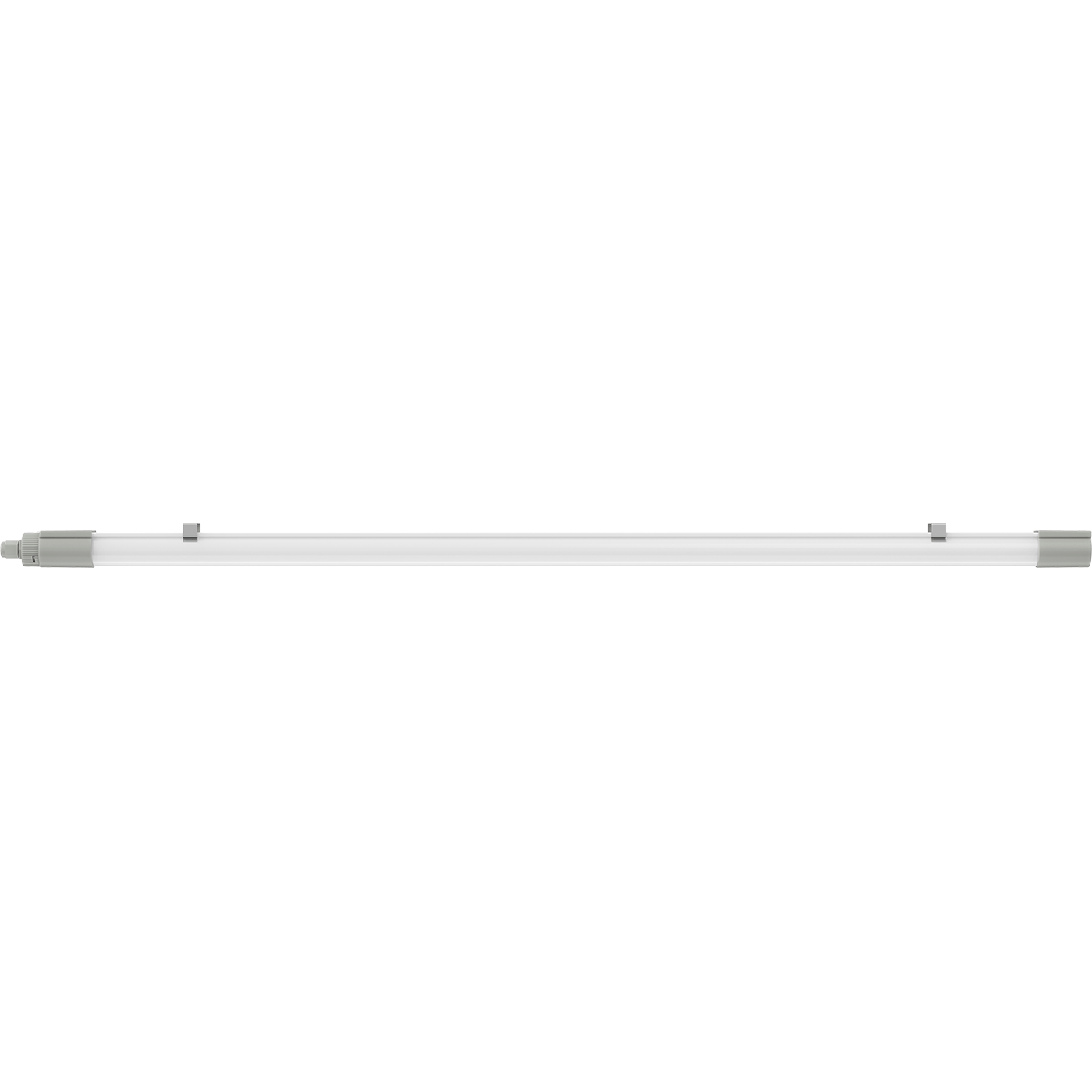

PHILLER STANDARD (1500) 50W 840 GR
_50w_840_gr.jpg&w=1920&q=100)
_50w_840_gr.jpg&w=1024&q=75)
PHILLER STANDARD (1500) 50W 840 GR
50 Wluminaire power
5200 lmlight flow
104 lm/Wenergy efficiency
code1794000180
color temperature4000 K
beam angleD120
weight0.78 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
5200 lmflickering factor
<1%energy efficiency
104 lm/Wbeam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
5200 lm
flickering factor
<1%
energy efficiency
104 lm/W

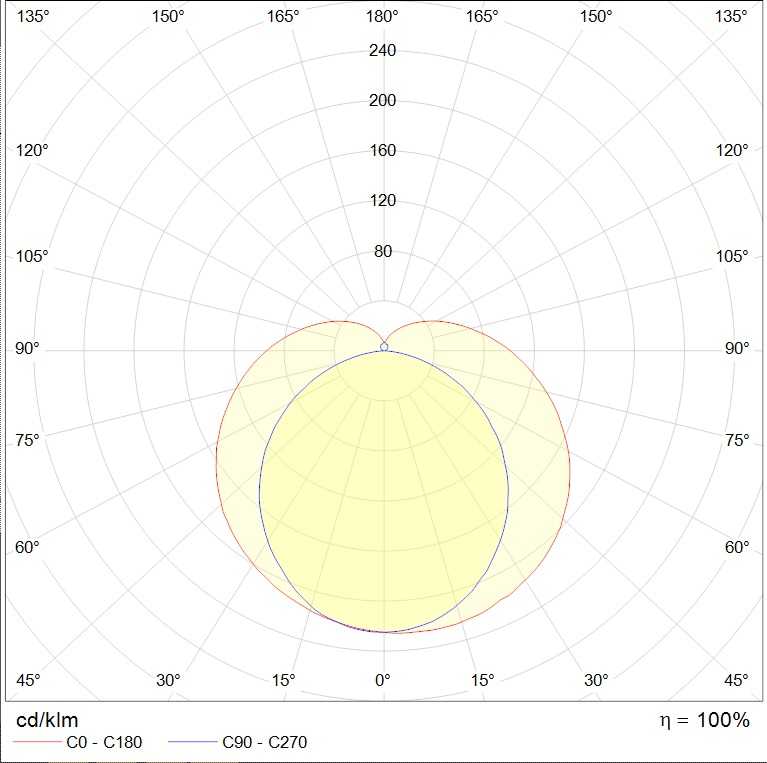

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,98
luminaire power
50 W
electric shock protection
II
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
supply voltage
230 V
constructional
shock resistance (IK)
IK09/10 Дж
climatic performance
УХЛ2*
material
Поликарбонат
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
0.78 kg

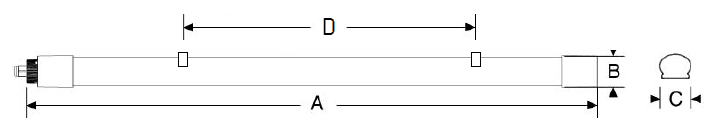

length
1480 mm
width
65 mm
height
51 mm
installation length
900 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +45 C
code
1794000180
model files
model files
photometric files
documents
сертификаты

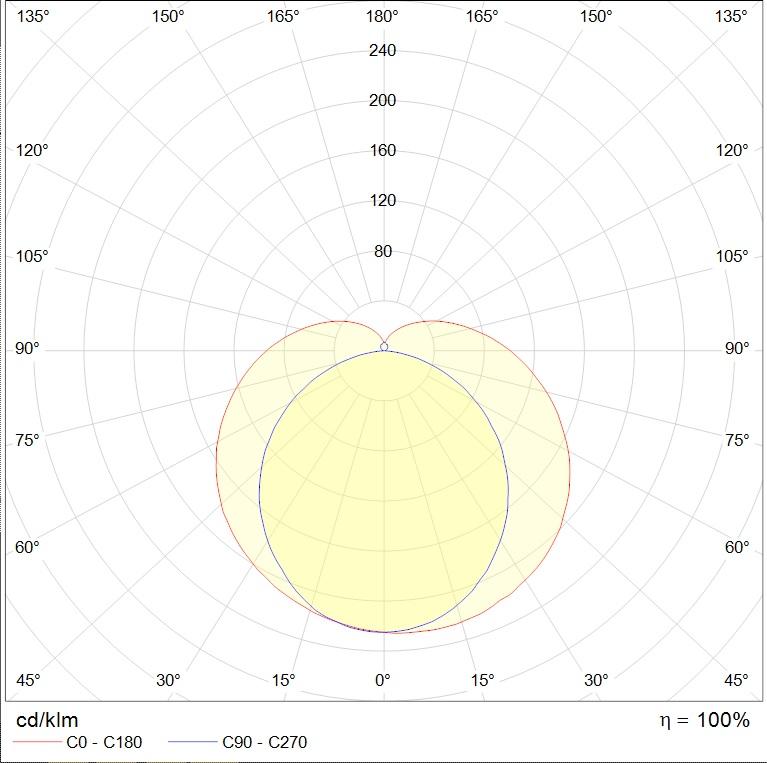

photometric files
ies107.1 kB
jpg109.2 kB
ldt90.5 kB
documents
passport842.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
