OWS/R 418 /595/ IP54/IP20 HF
_ip54_ip20_hf.jpg&w=1920&q=50)
_ip54_ip20_hf.jpg&w=1024&q=50)
OWS/R 418 /595/ IP54/IP20 HF
72 Wluminaire power
1350 lmlight flow
35 lm/Wenergy efficiency
code1379000030
number of lamps4
performance factor46
weight8 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
72 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54/IP20
climatic performance
УХЛ2*
material
Сталь
weight
8 kg
length, mm
595 mm
width, mm
595 mm
height, mm
100 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
4
ballast
ЭПРА
common
code
1379000030
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
energy efficiency class
A
service life, hour
30 000 h
illuminating
light flow
1350 lm
flickering factor
<5%
energy efficiency
35 lm/W
light source type
ЛЛ
emission color
Белый
model files
model files
CAD/BIM files

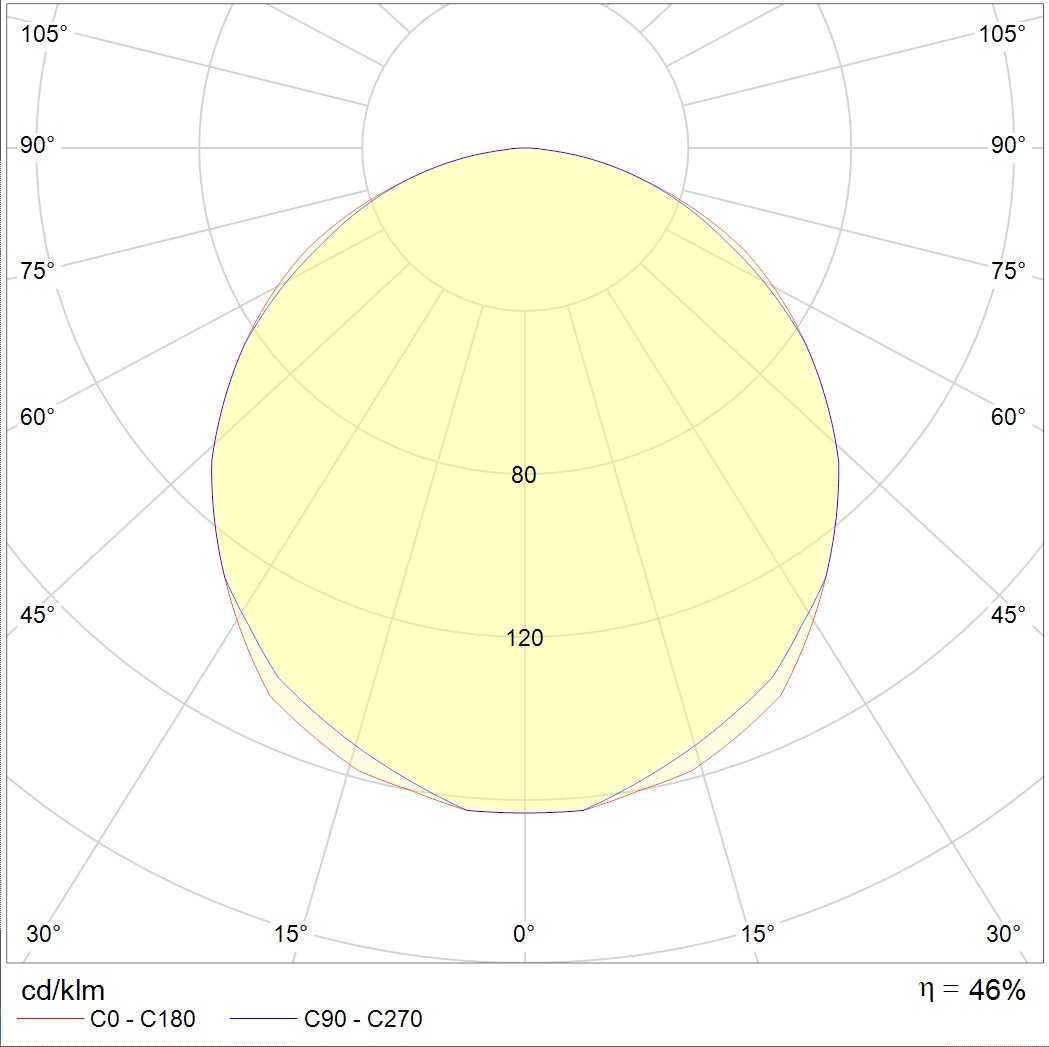

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.3 kB
model 3dMax676 kB
photometric files
ies760 B
jpg121.9 kB
ldt659 B
documents
passport2.7 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Clip0.018kgarticle: 2905000110
