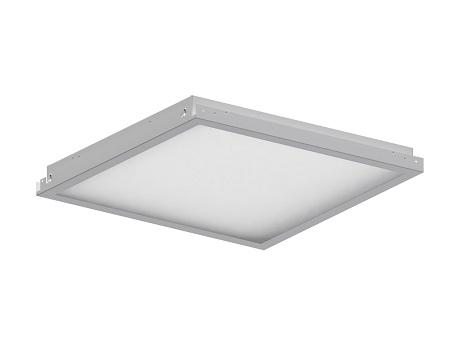

OWS/K ECO LED 1200x600 (30) 4000K mat

OWS/K ECO LED 1200x600 (30) 4000K mat
32 Wluminaire power
3600 lmlight flow
113 lm/Wenergy efficiency
code1377001580
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
illuminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
250 mks
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A

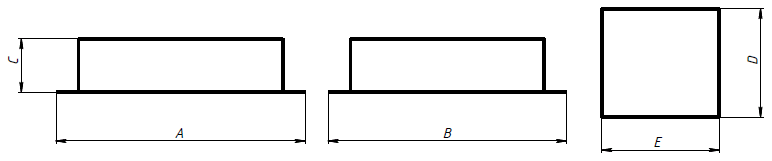

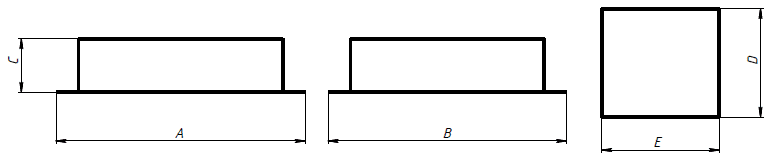

constructional
length, mm
1200 mm
width, mm
600 mm
height, mm
65 mm
installation length, mm
1200 mm
installation width, mm
600 mm
weight
16.5 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +40 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1377001580
