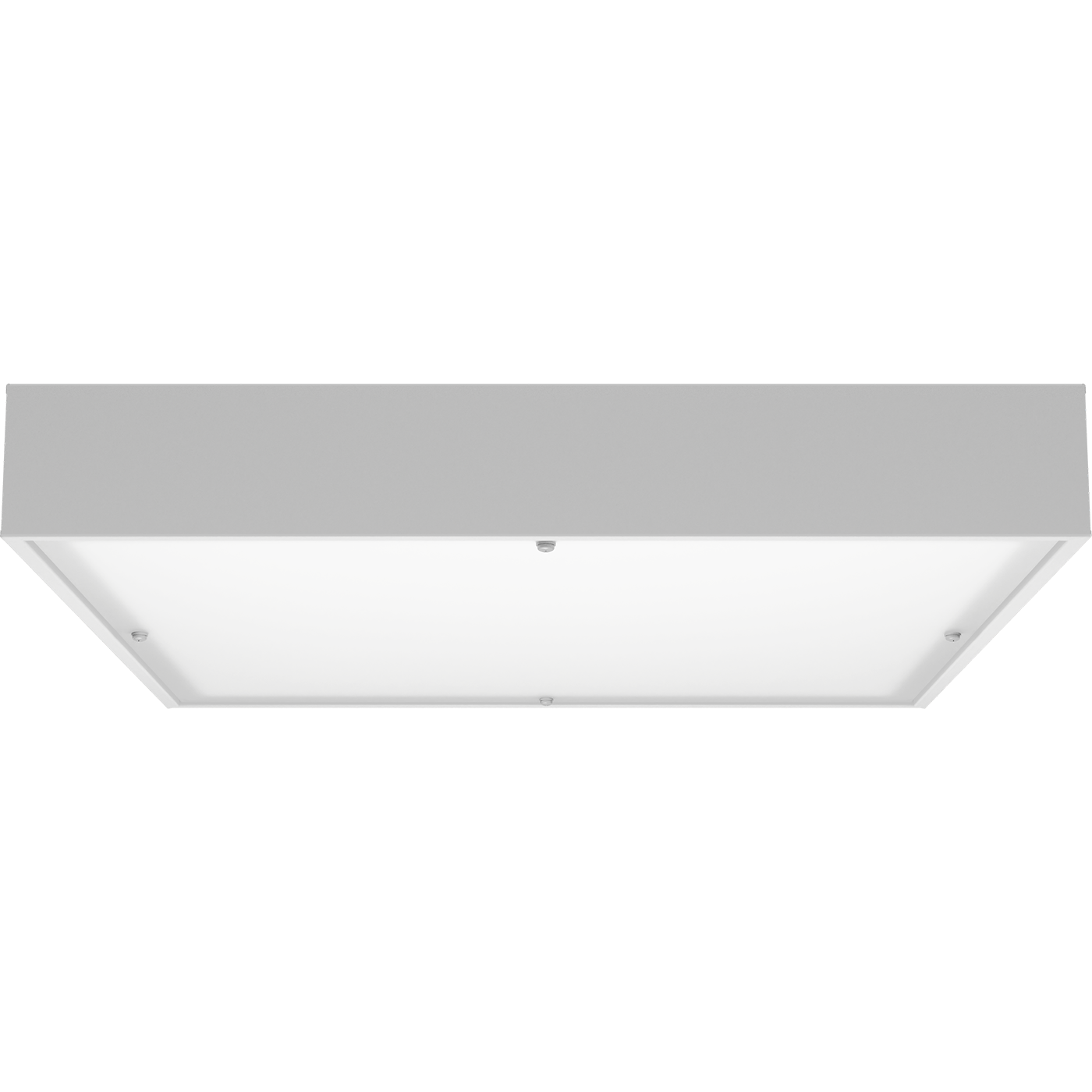

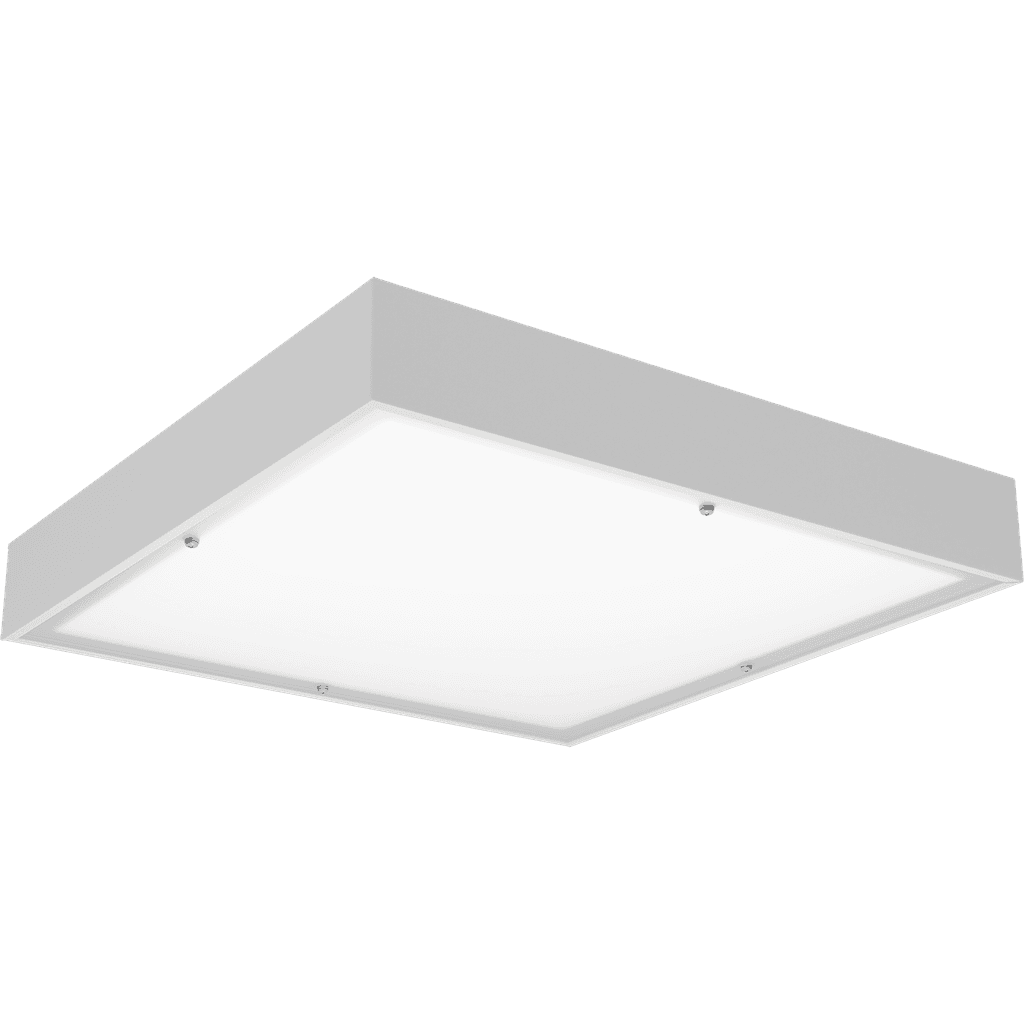

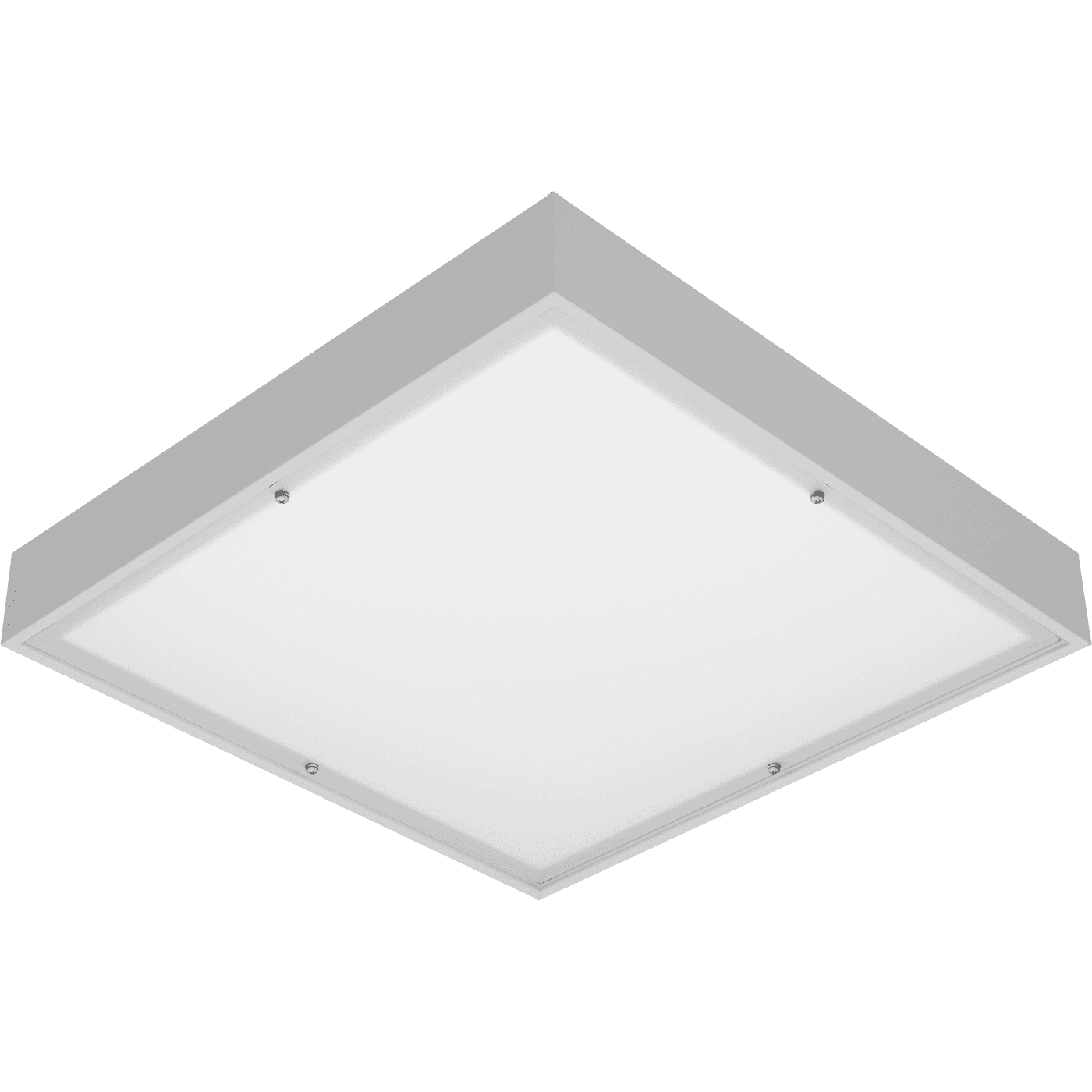

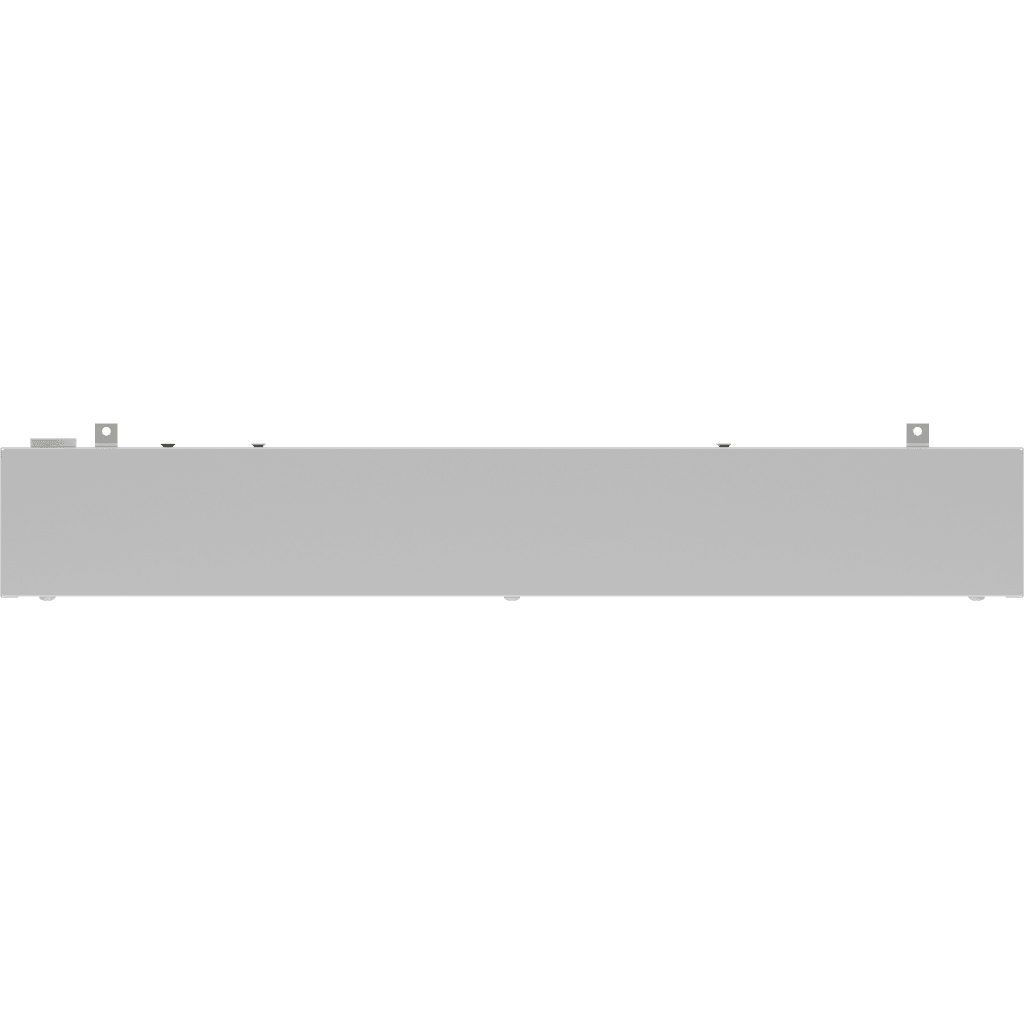

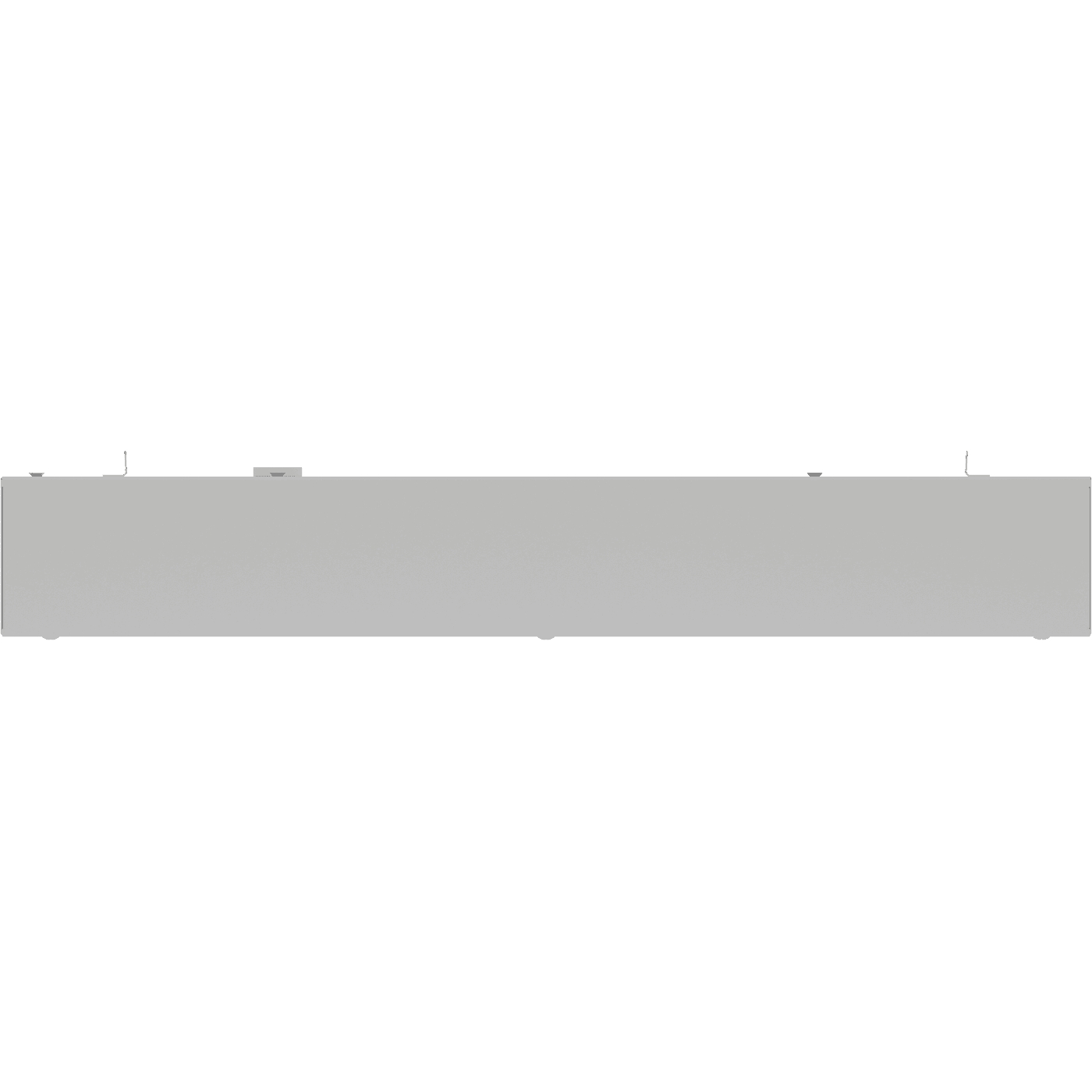

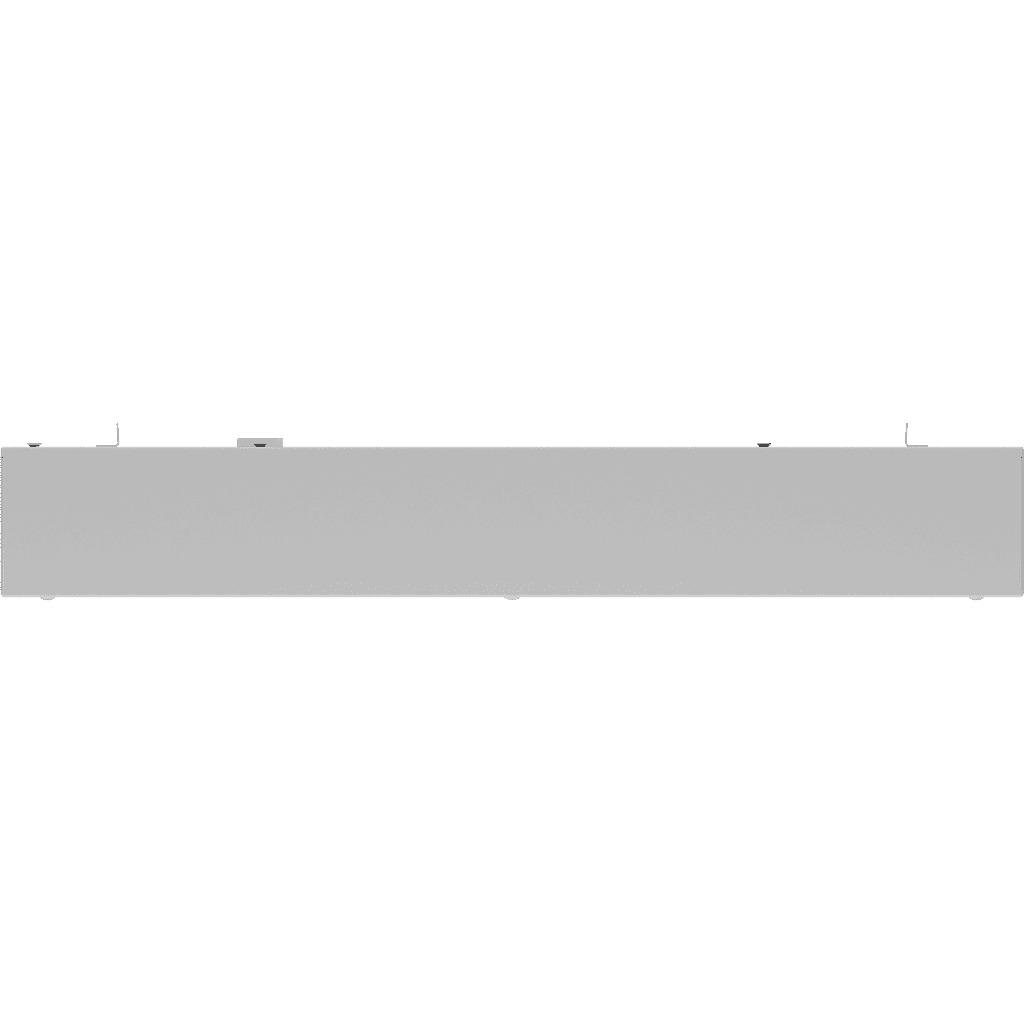

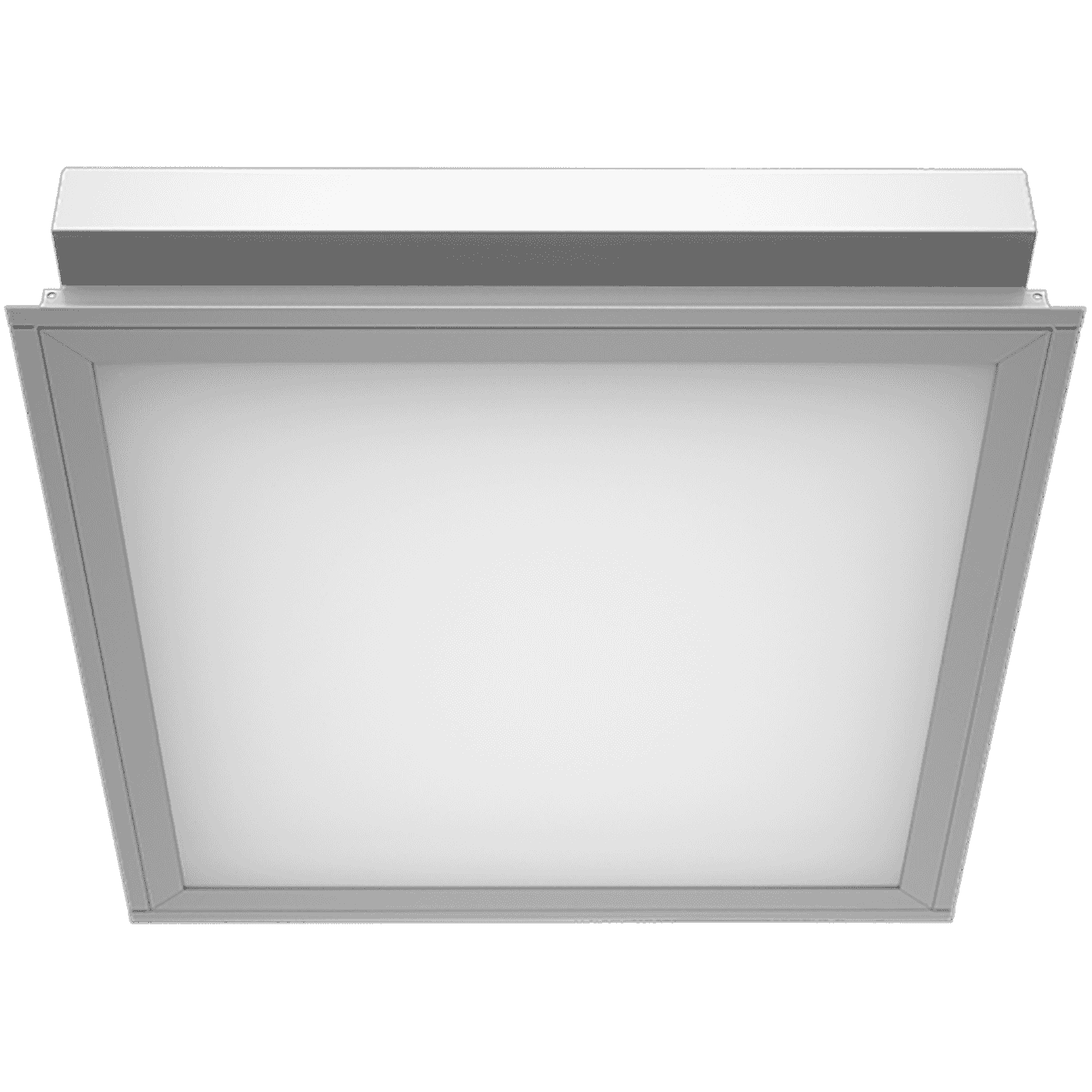

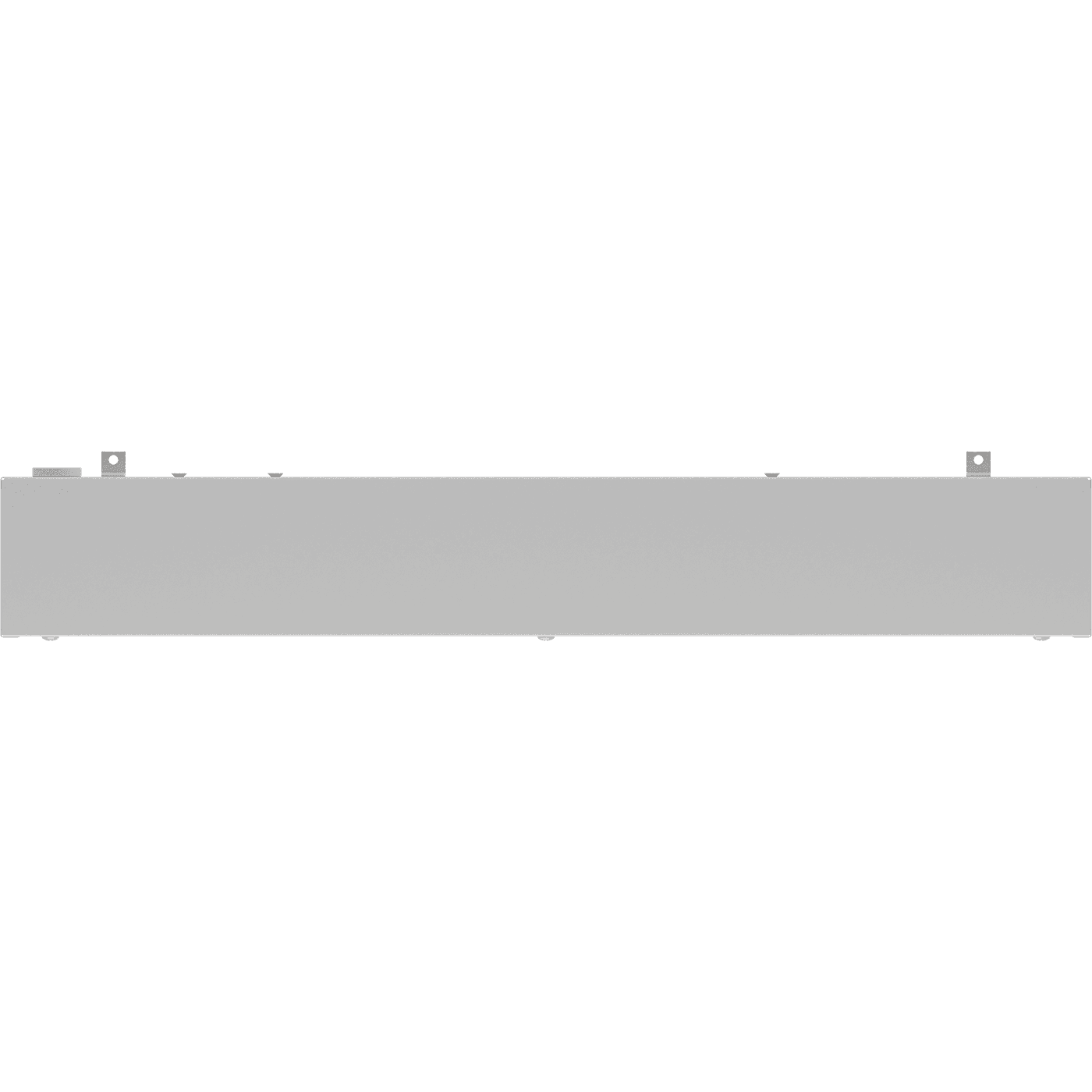

OWP/S 218 IP54/IP54 HF
OWP/S 218 IP54/IP54 HF
36 Wluminaire power
code1375000030
performance factor42
weight3.55 kg
number of lamps2
options
свернуть все
illuminatingelectricalconstructionalcommon
flickering factor
<5%light source type
ЛЛemission color
Белыйilluminating
flickering factor
<5%
light source type
ЛЛ
emission color
Белый
electrical
supply voltage
230 V
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
electric shock protection
I
luminaire power
36 W
constructional
height, mm
100 mm
installation width, mm
180 mm
installation length, mm
440 mm
width, mm
295 mm
length, mm
615 mm
common
energy efficiency class
A
service life, hour
30 000 h
warranty
36 month
code
1375000030
temperature range
от +5 до +40 C
ETIM class
Настенно-потолочный светильник
model files
model files
CAD/BIM files

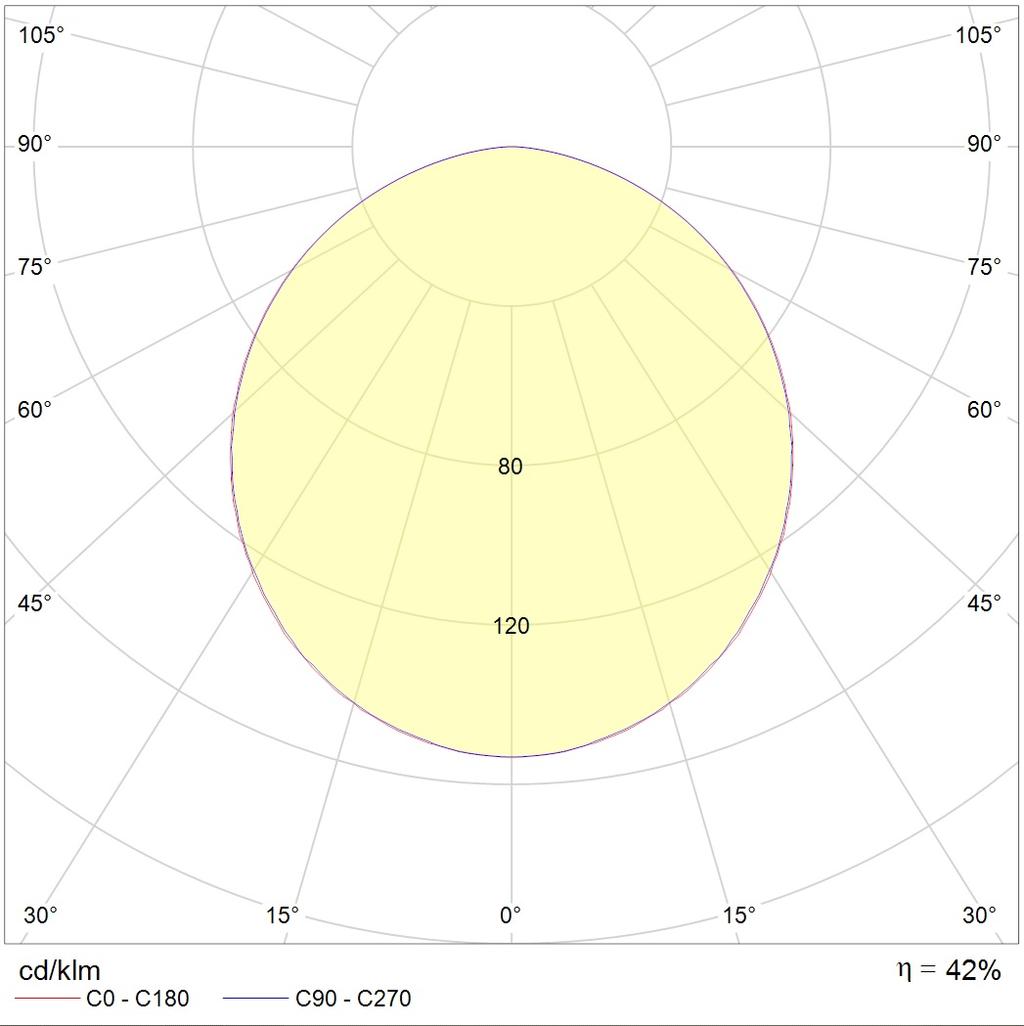

photometric files
