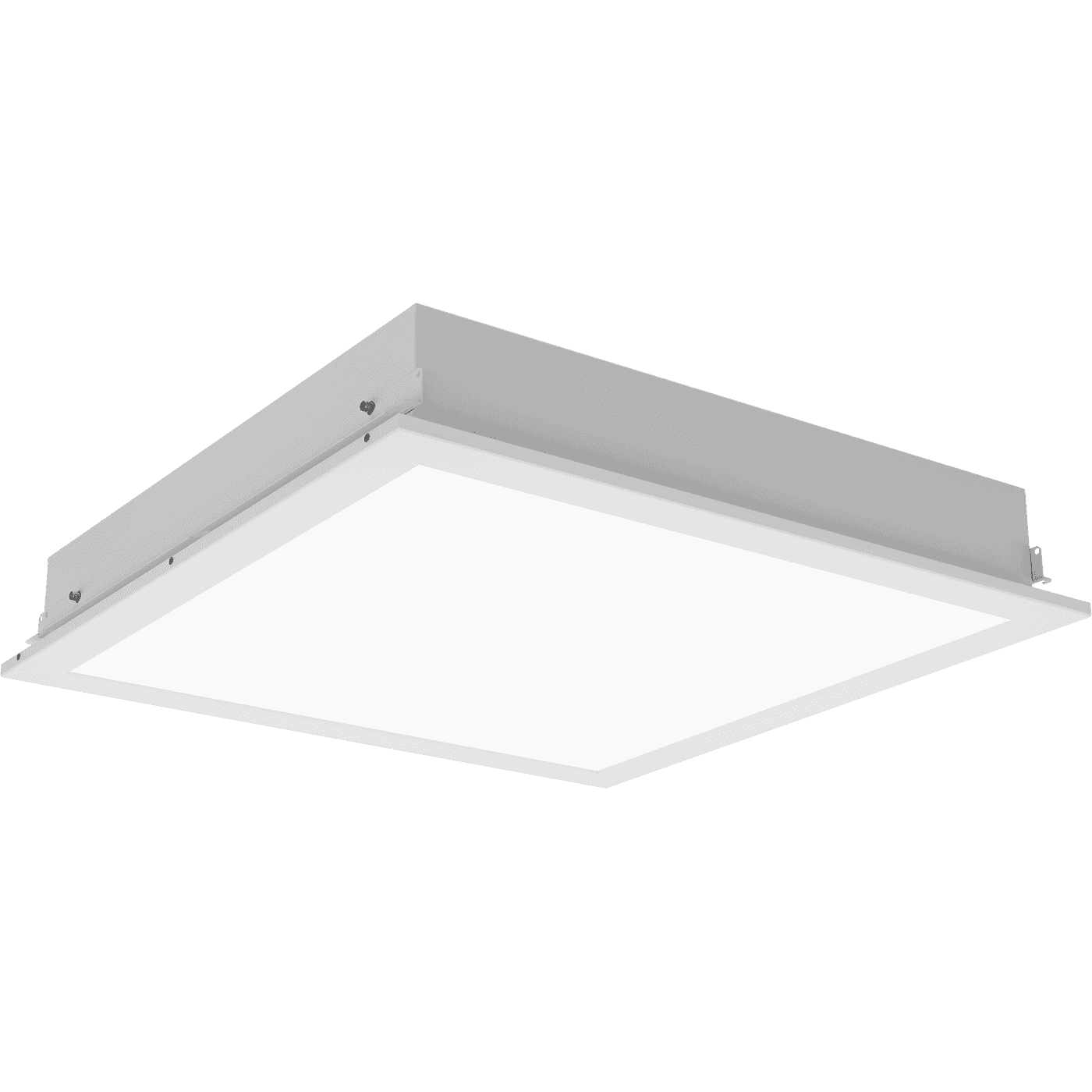

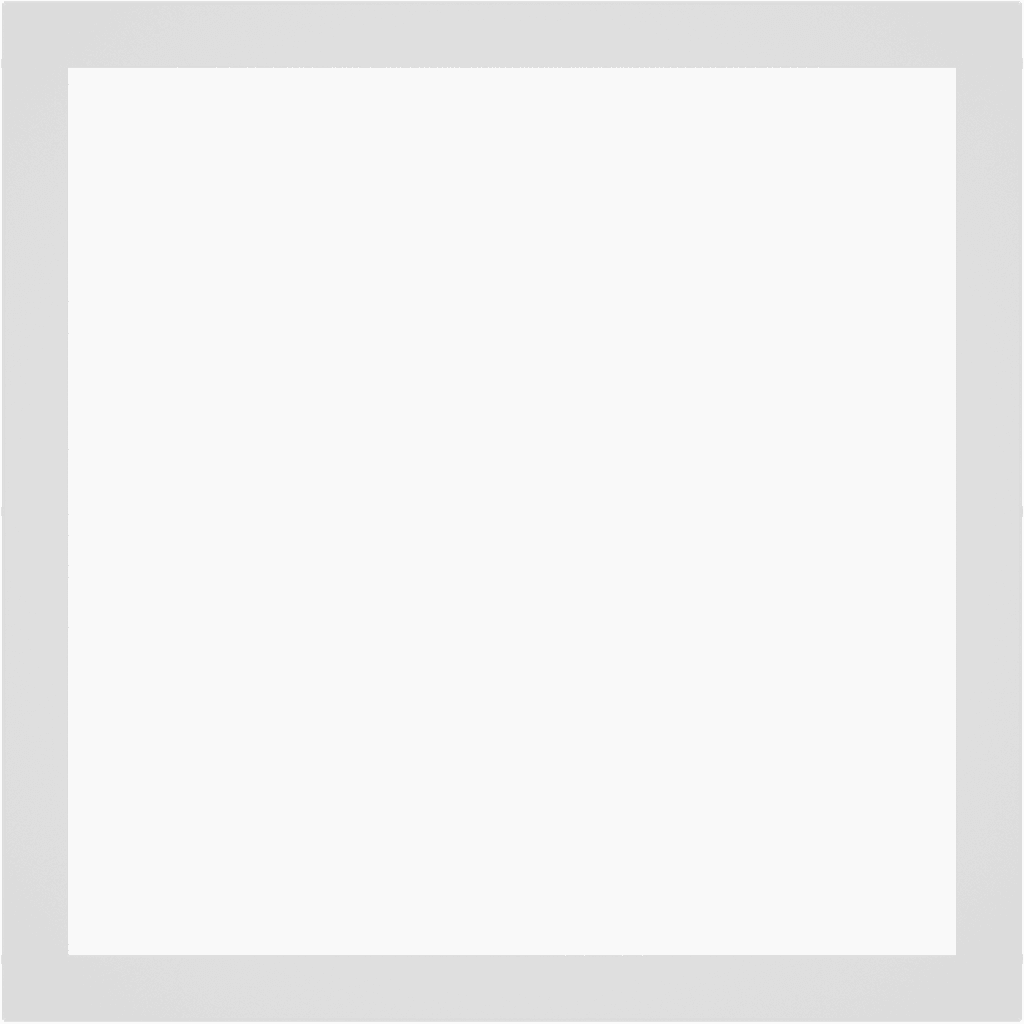

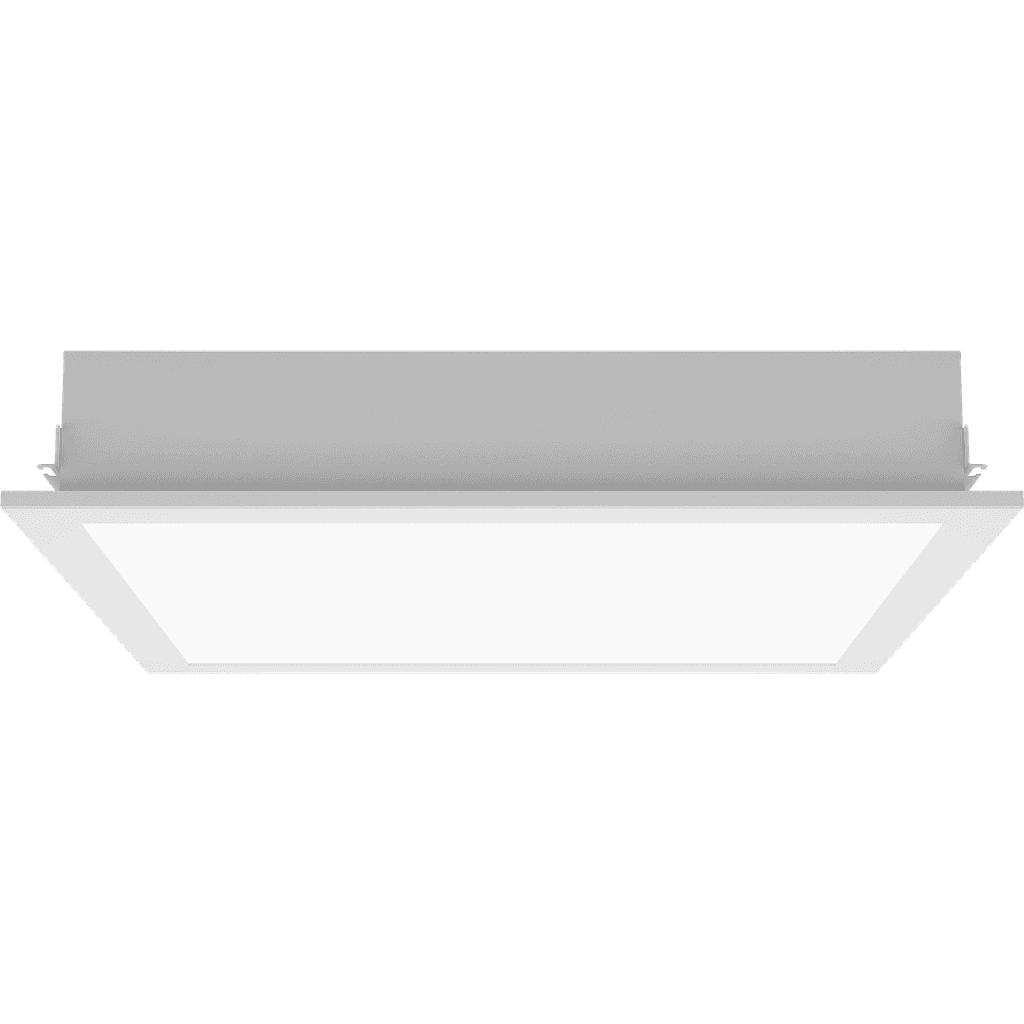

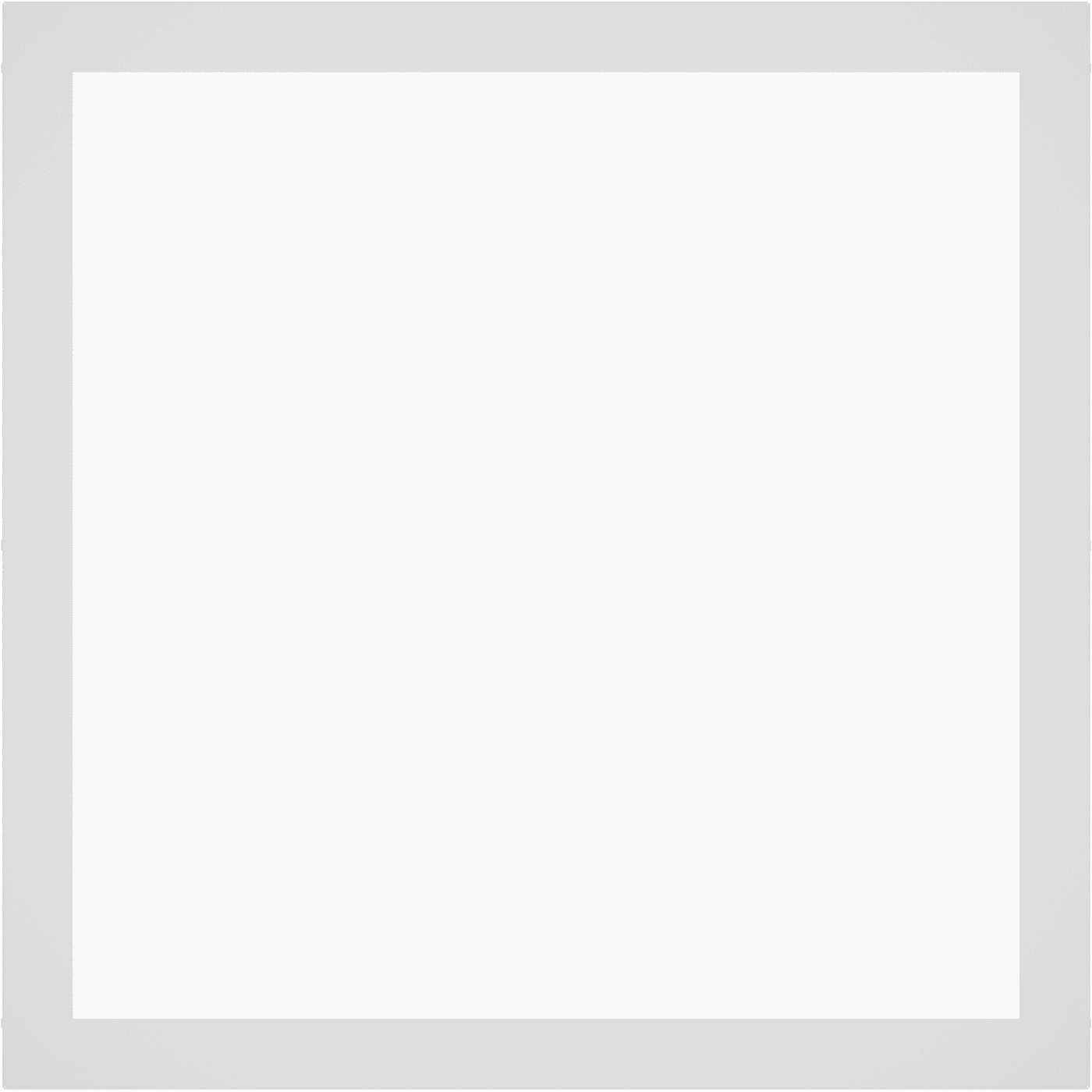

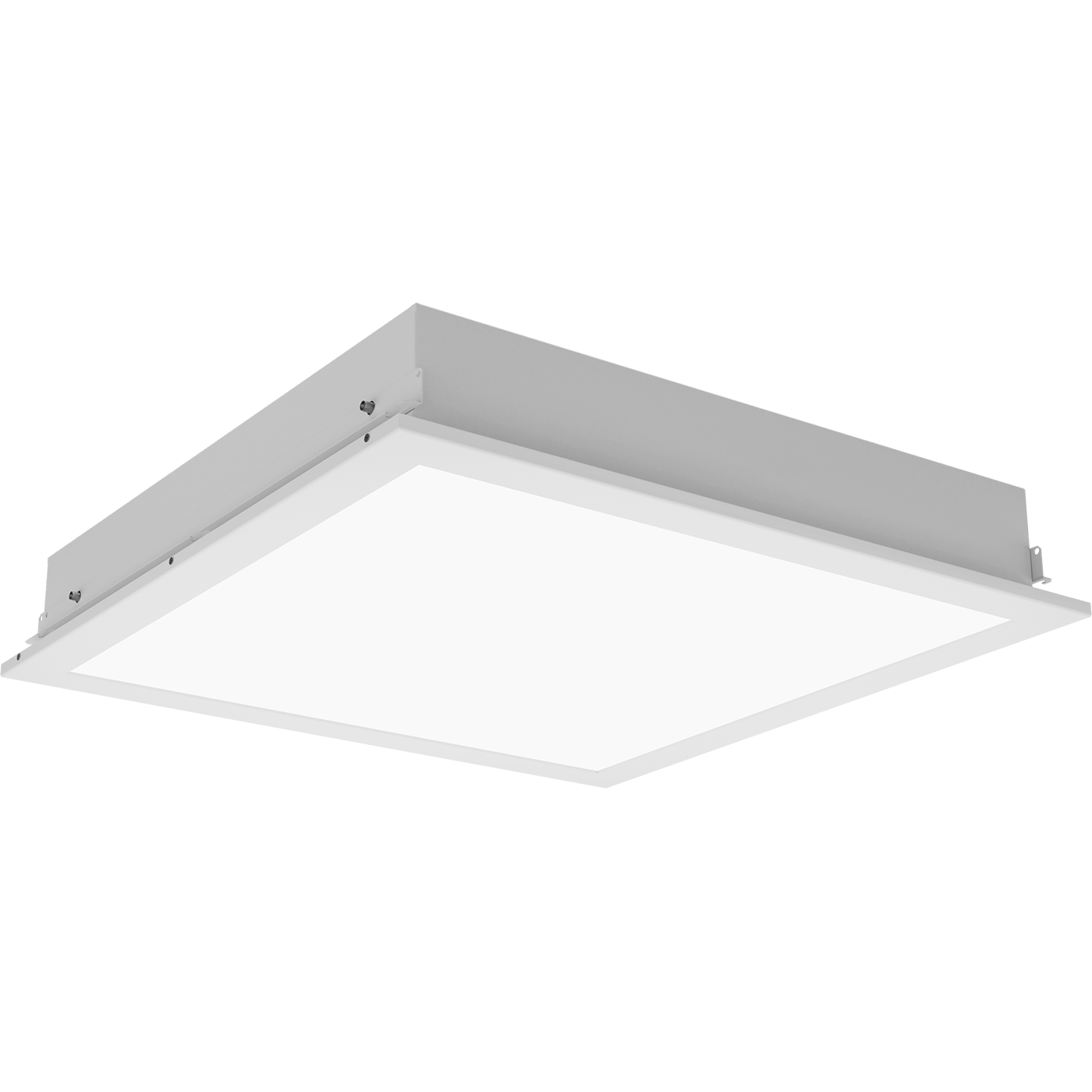

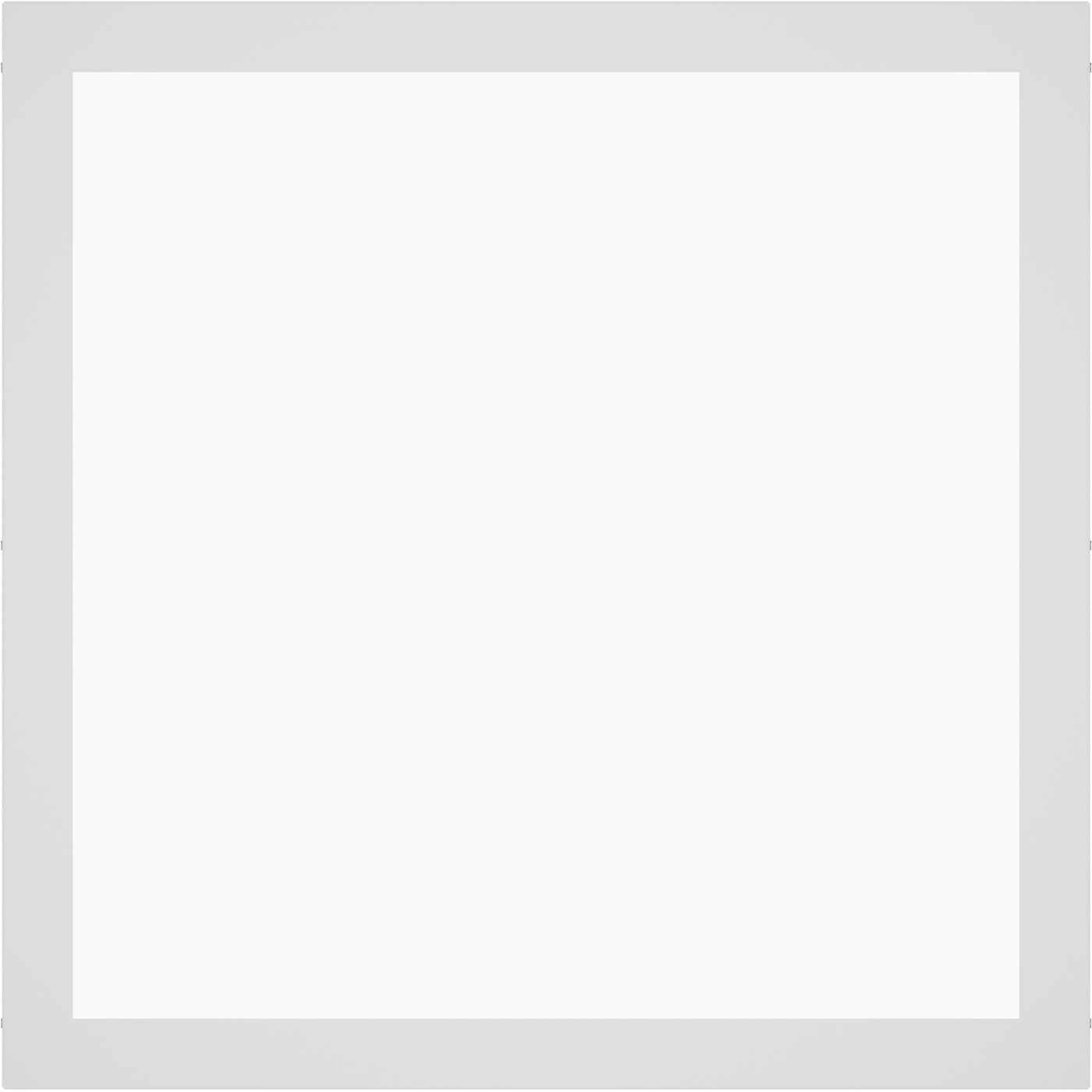

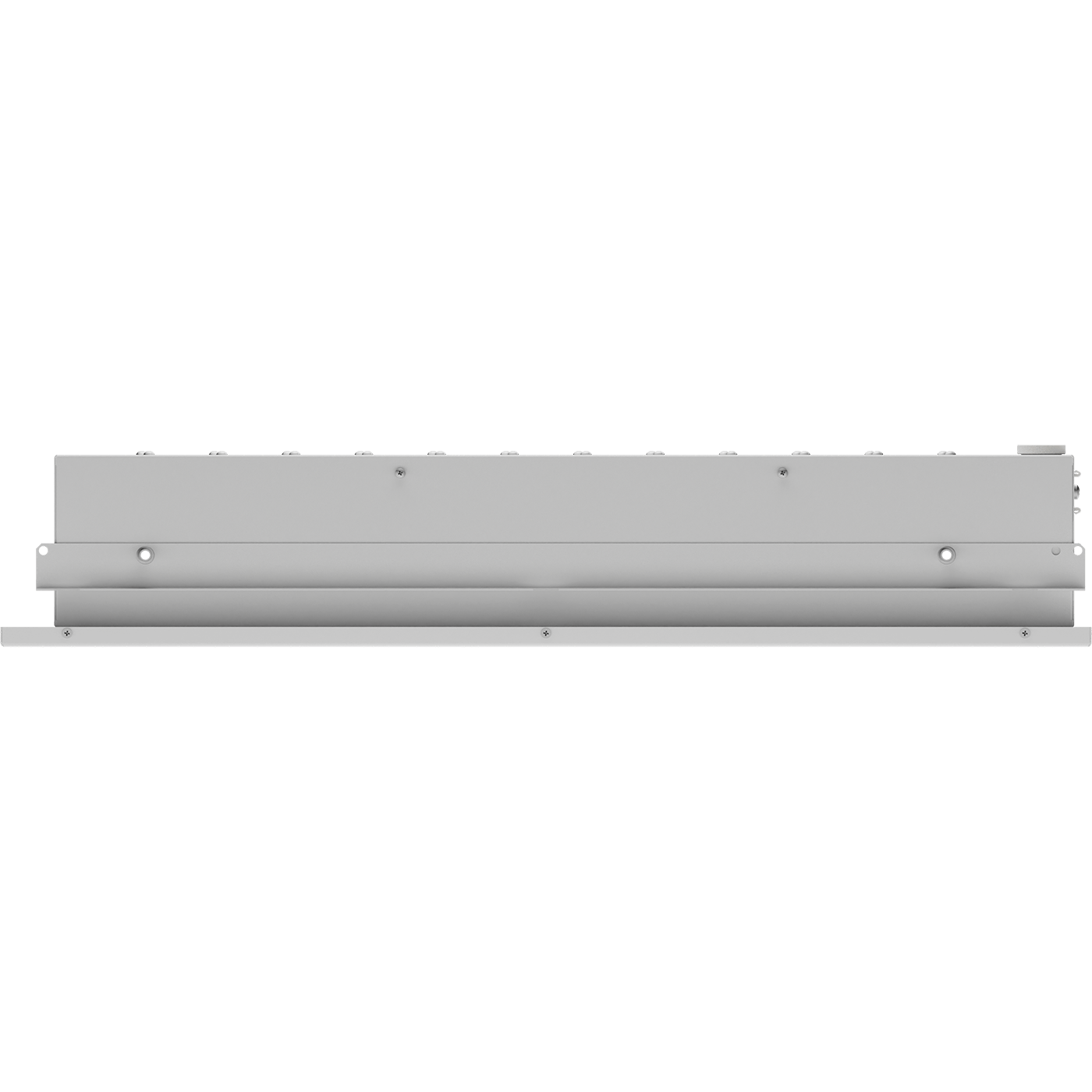

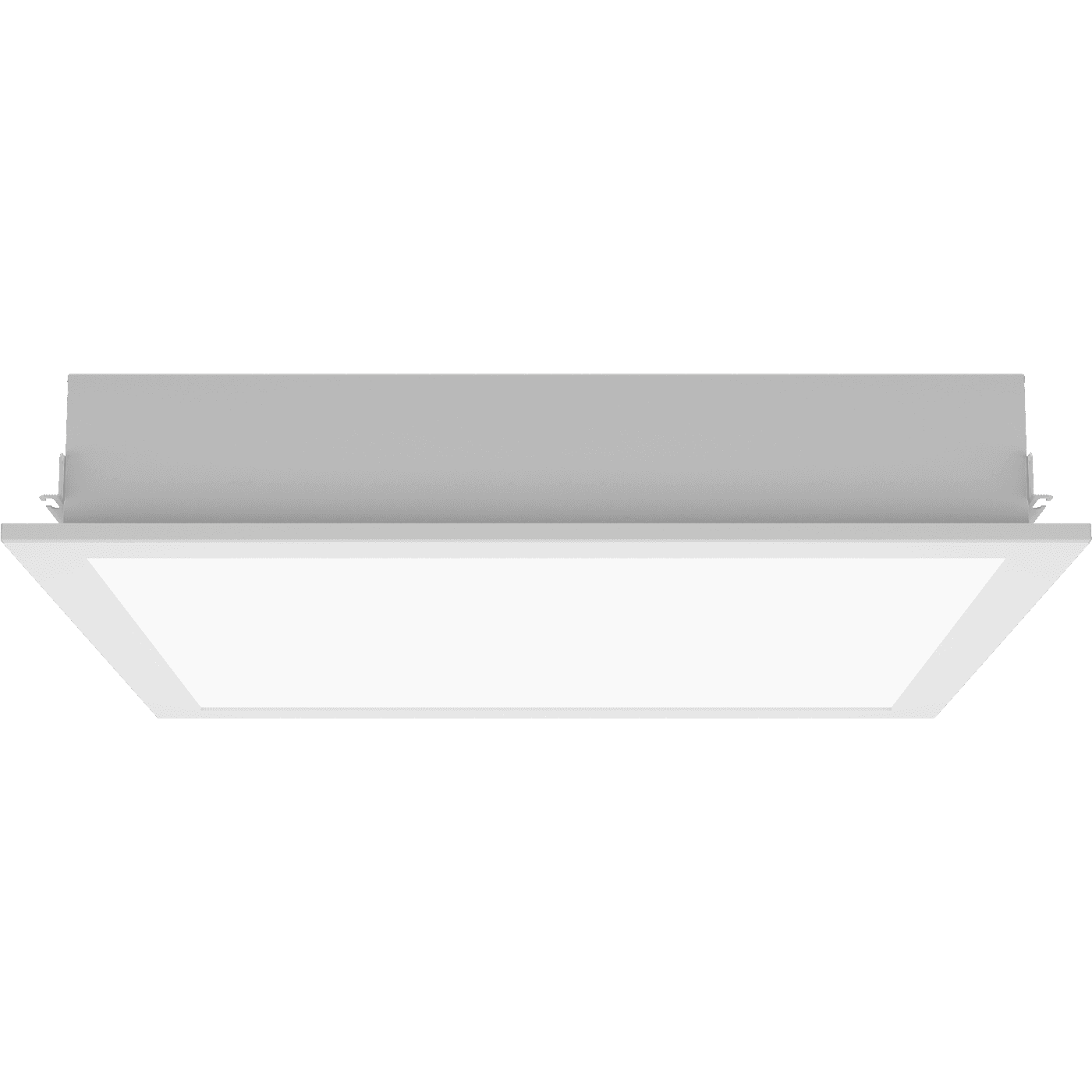

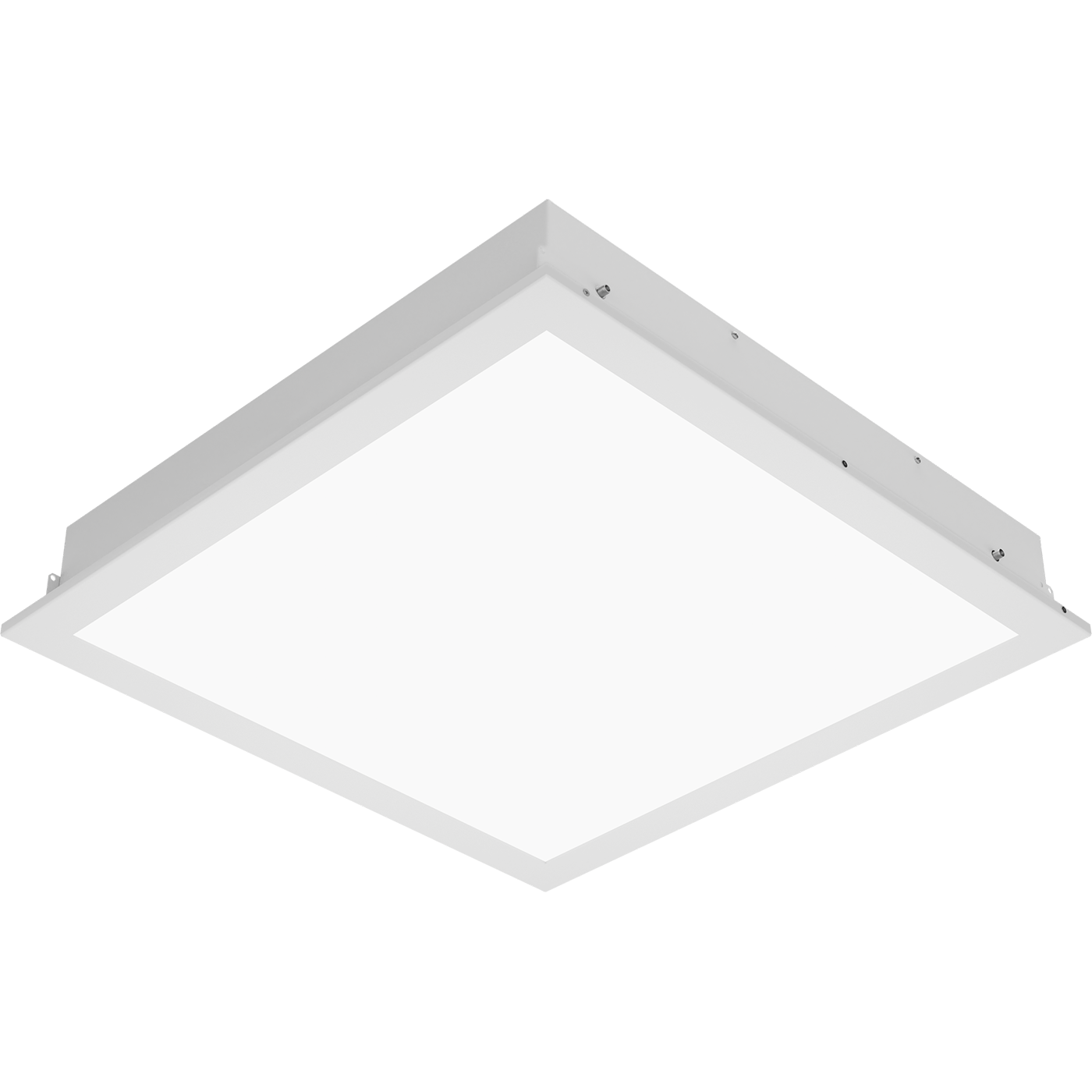

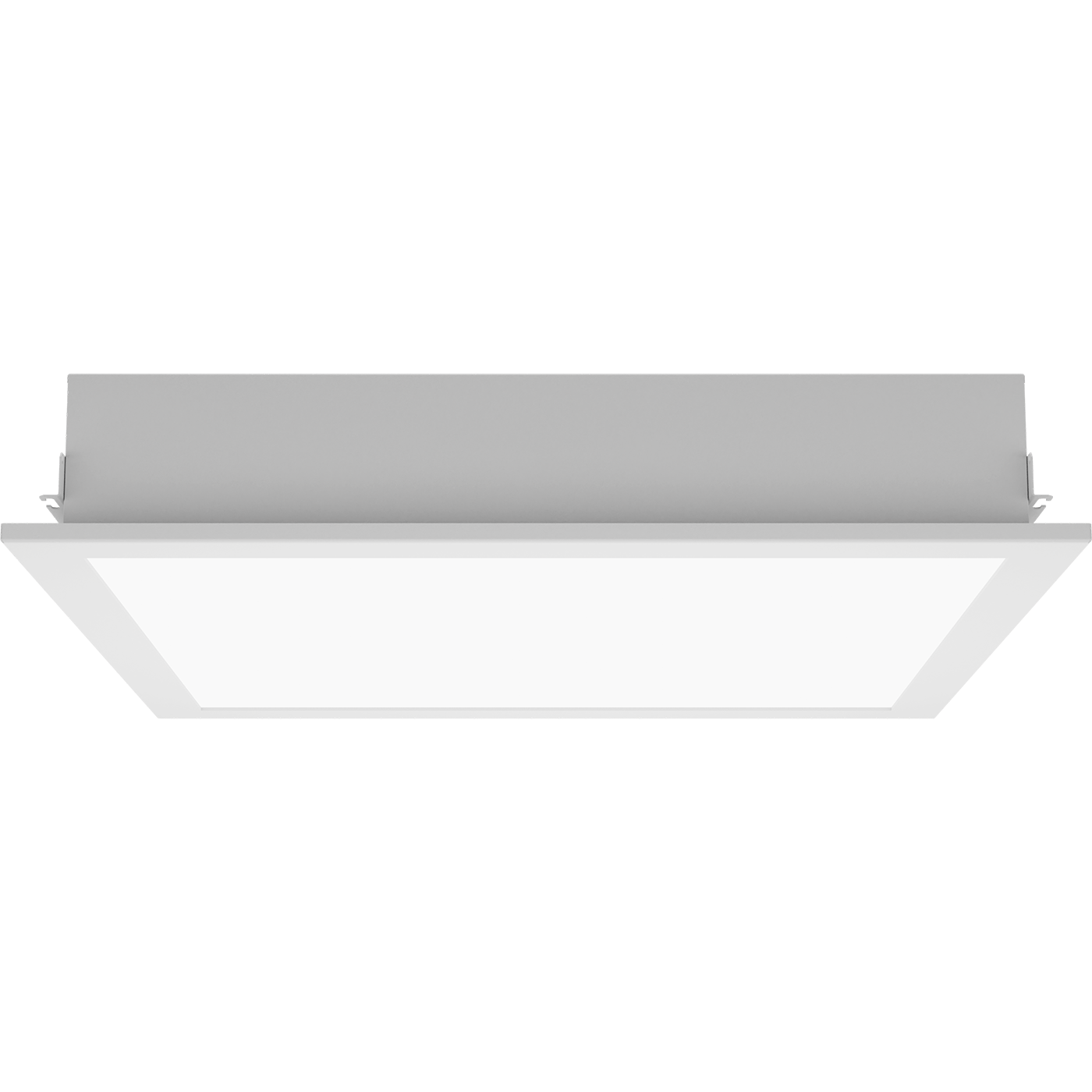

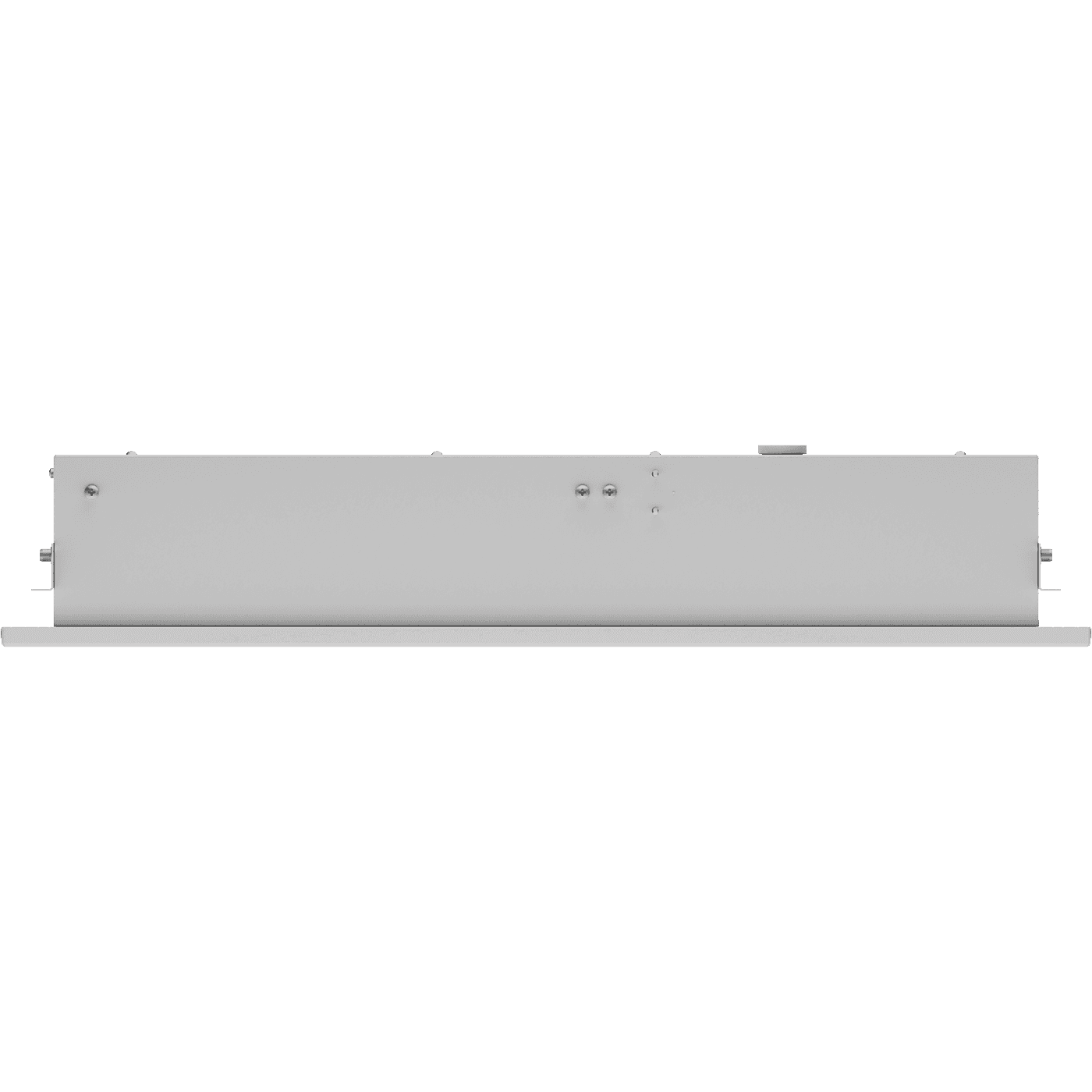

OWP/R 414 /595/ IP54/IP20
_ip54_ip20.jpg&w=1920&q=50)
_ip54_ip20.jpg&w=1024&q=50)
OWP/R 414 /595/ IP54/IP20
56 Wluminaire power
1200 lmlight flow
47 lm/Wenergy efficiency
code1373001530
number of lamps4
performance factor55
weight6.9 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
56 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54/IP20
climatic performance
УХЛ2*
material
Сталь
weight
6.9 kg
length, mm
595 mm
width, mm
595 mm
height, mm
115 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
575 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G5
number of lamps
4
ballast
ЭПРА
common
code
1373001530
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
energy efficiency class
A…A+
service life, hour
30 000 h
illuminating
light flow
1200 lm
flickering factor
<5%
energy efficiency
47 lm/W
light source type
ЛЛ
emission color
Белый
model files
model files
CAD/BIM files

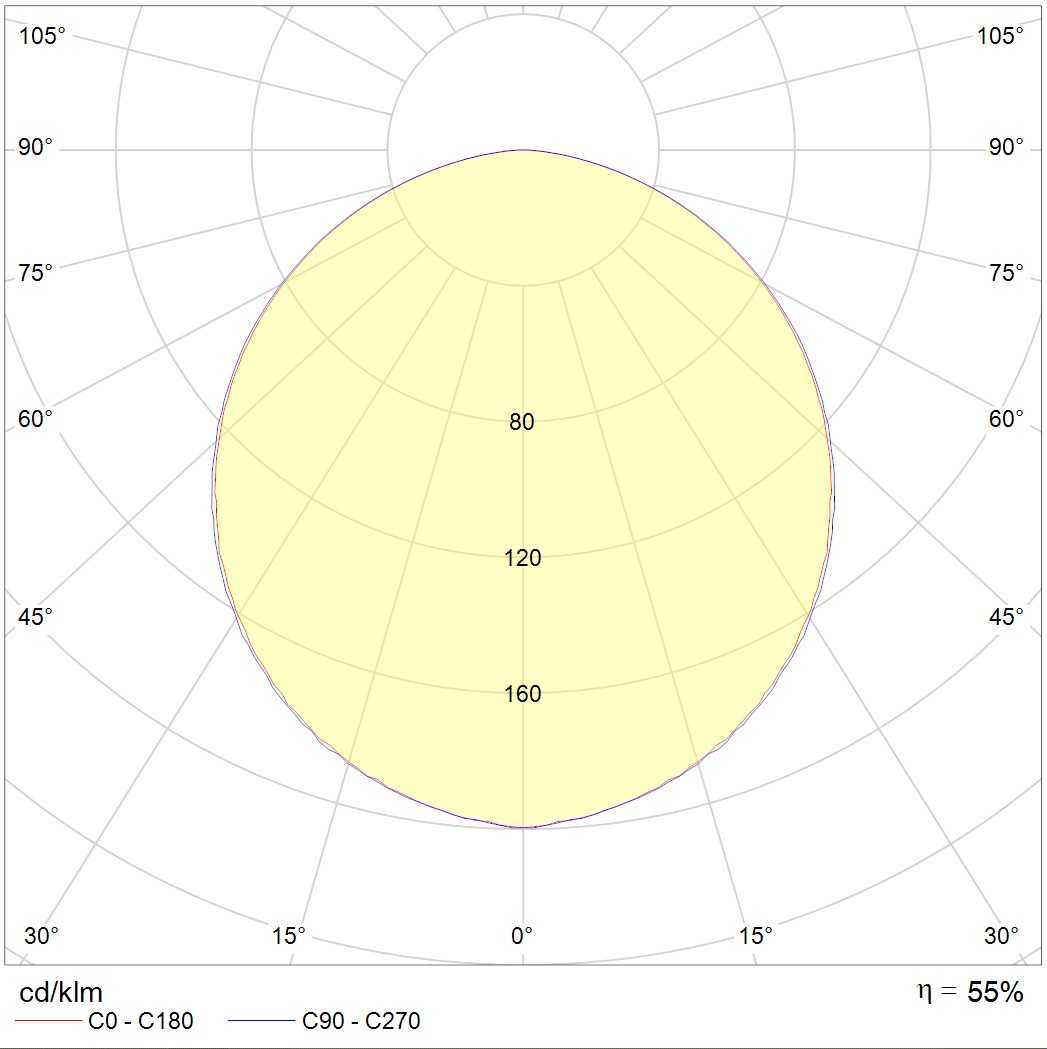

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.2 kB
model 3dMax436 kB

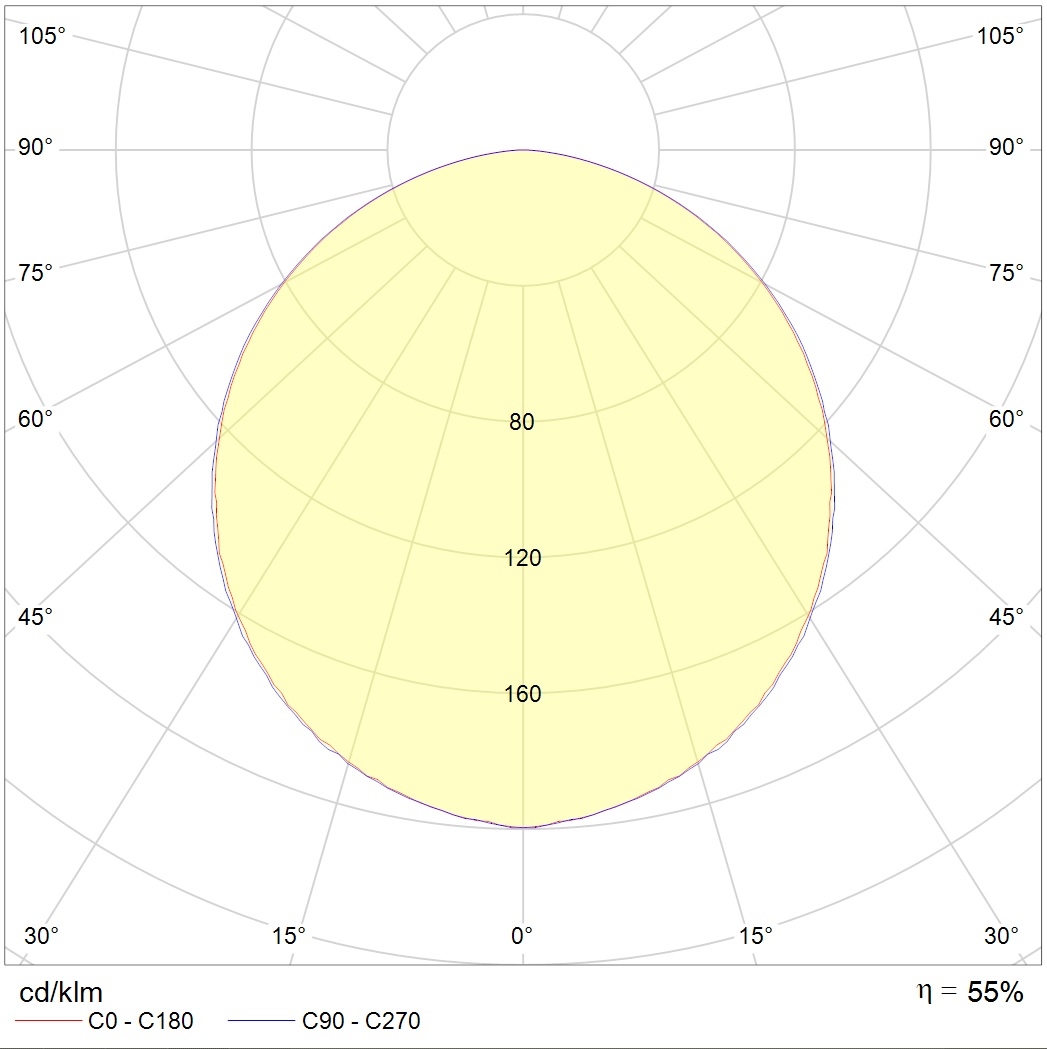

photometric files
ies134.1 kB
jpg122 kB
ldt89.9 kB
csv406 B
documents
passport1.4 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
