OWP/R 236 /595/ IP54/IP54 HF bm

archive
archive

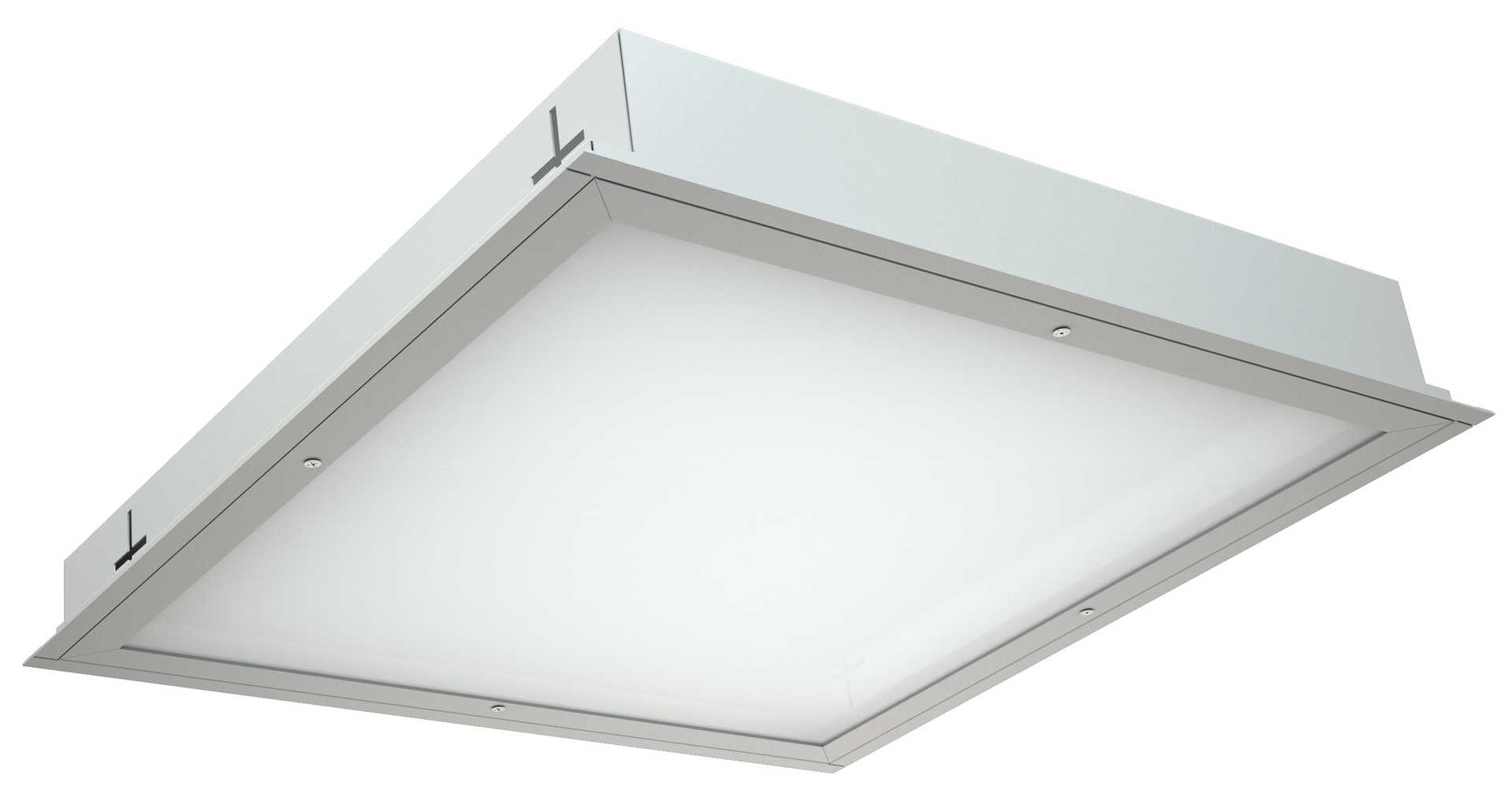

OWP/R 236 /595/ IP54/IP54 HF bm
add to favorites
72 Wluminaire power
3250 lmlight flow
38 lm/Wenergy efficiency
code1373001650
number of lamps2
performance factor42
weight4.7 kg
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. lamp luminaires
  6. OWP/R
  7. OWP/R 236 /595/ IP54/IP54 HF bm
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
electrical
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2
fire safety class
П-II,IIа
material
Сталь
weight
4.7 kg
length, mm
595 mm
width, mm
295 mm
height, mm
85 mm
housing color
Белый
lamp socket
G13
number of lamps
2
ballast
ЭПРА
common
code
1373001650
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A
service life, hour
24 000 h
illuminating
light flow
3250 lm
flickering factor
<5%
energy efficiency
38 lm/W
light source type
ЛЛ
model files
model files
documents
passport896.5 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011626.8 kB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
documents
passport896.5 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011626.8 kB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
