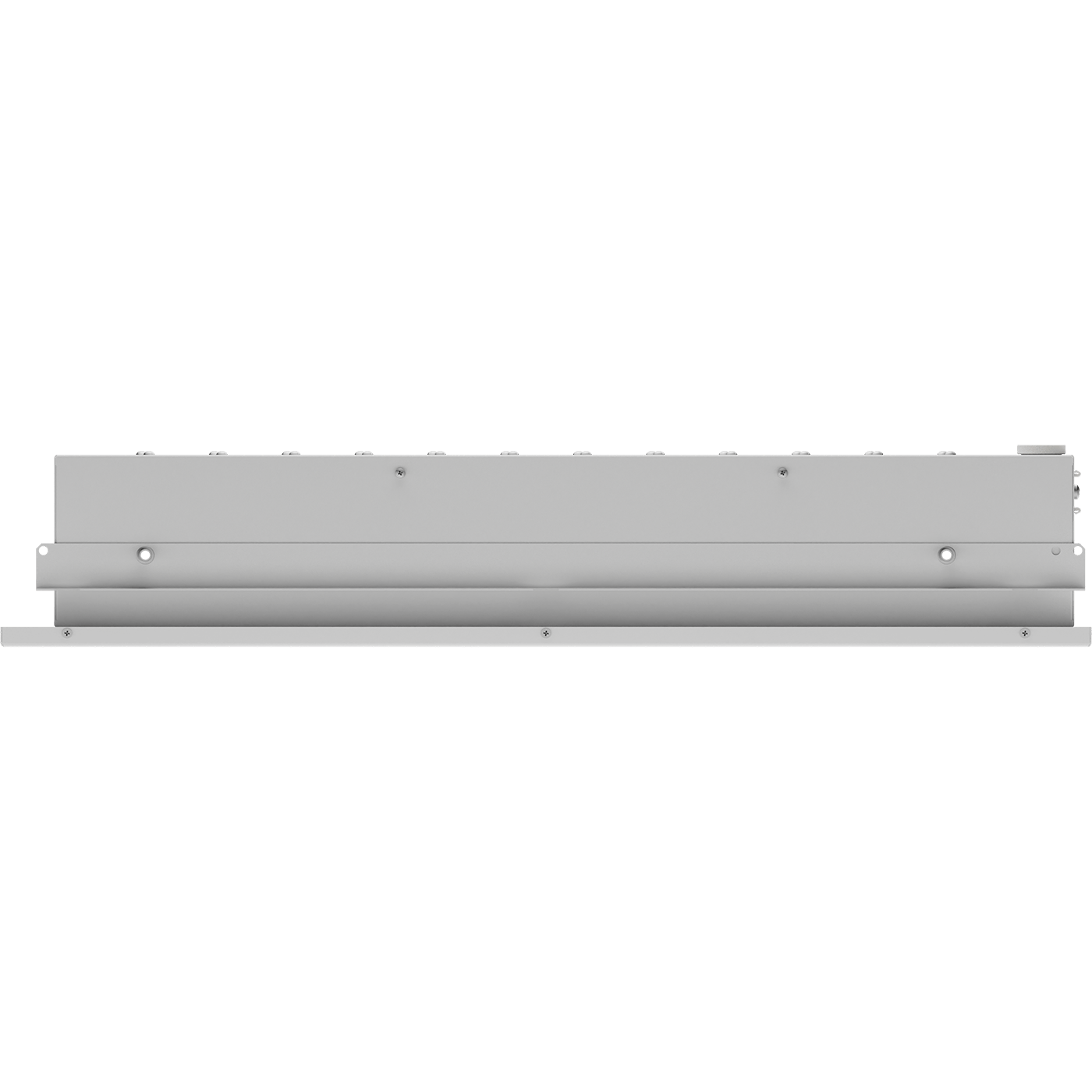

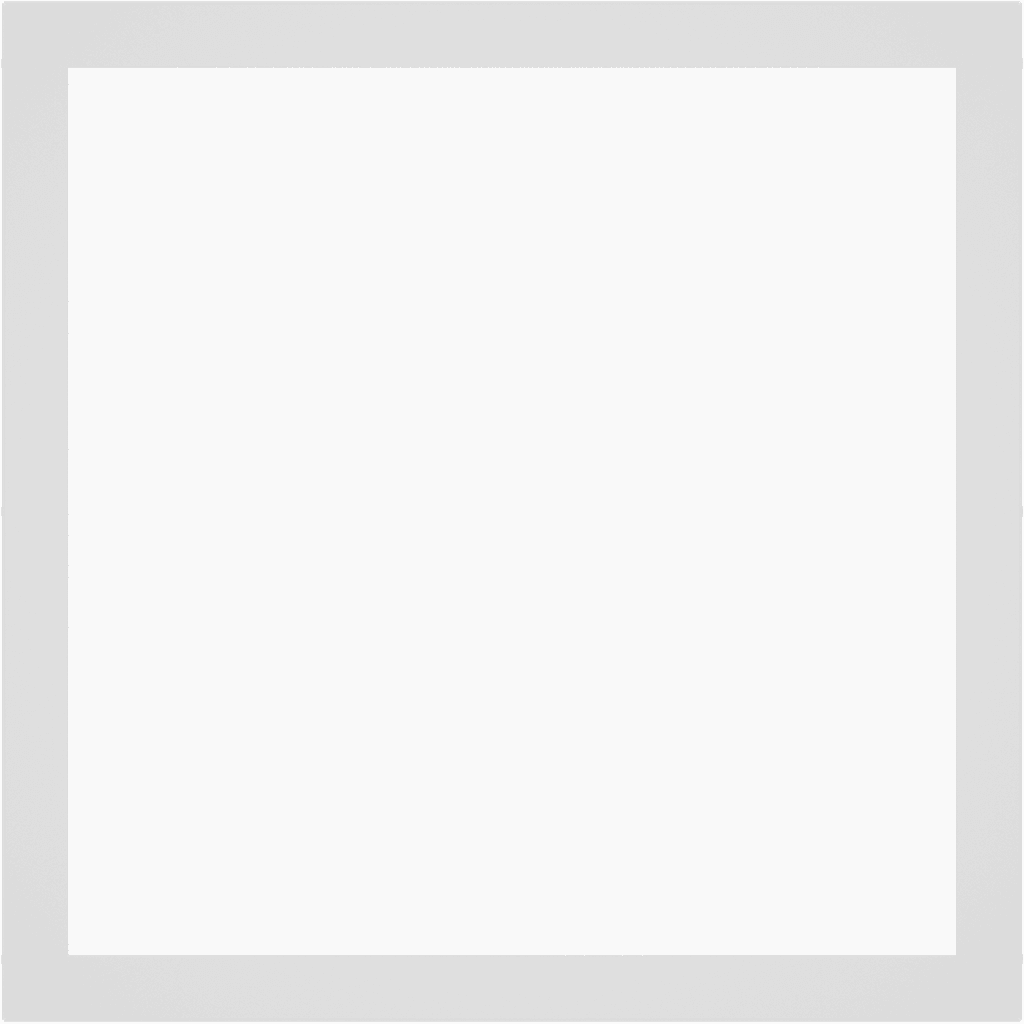

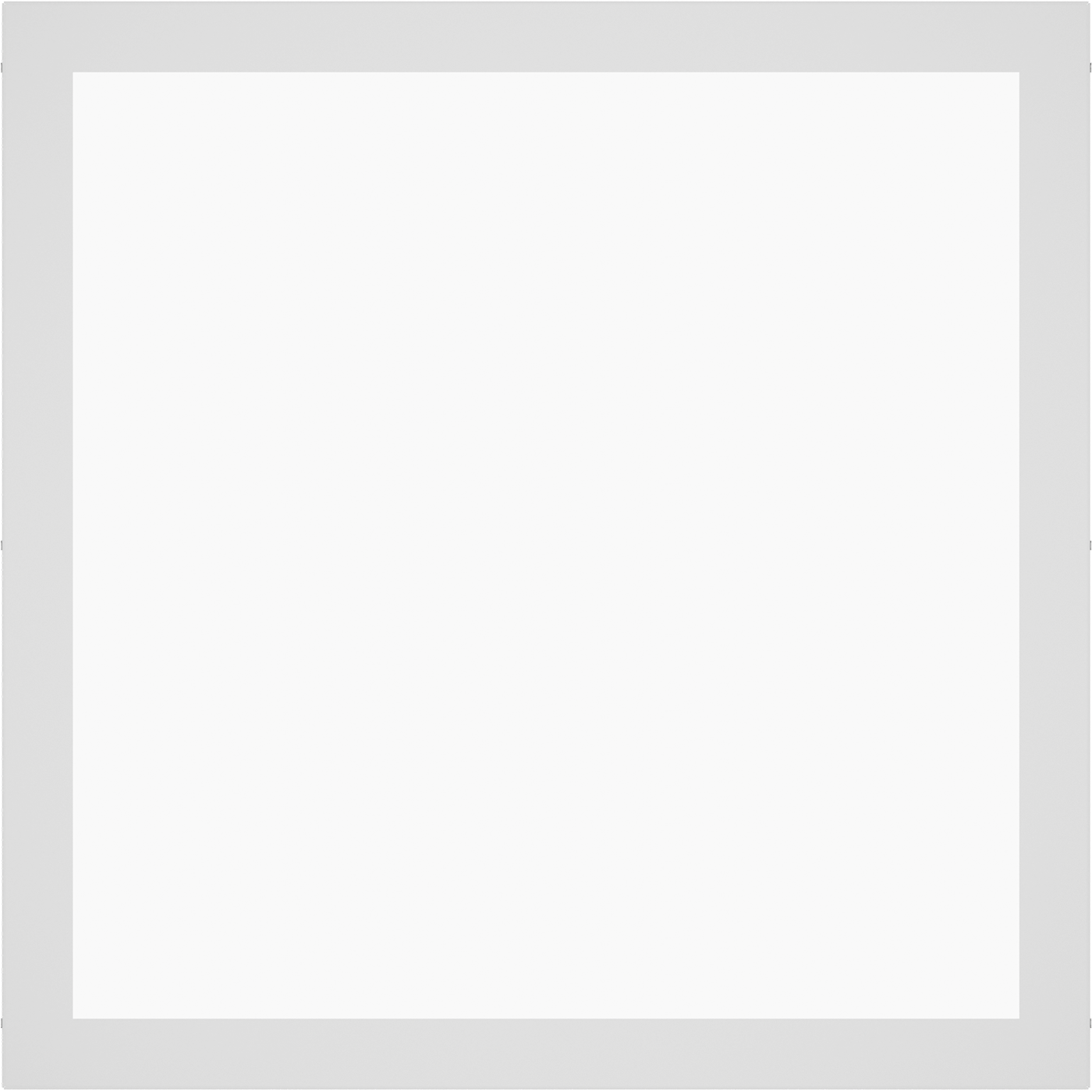

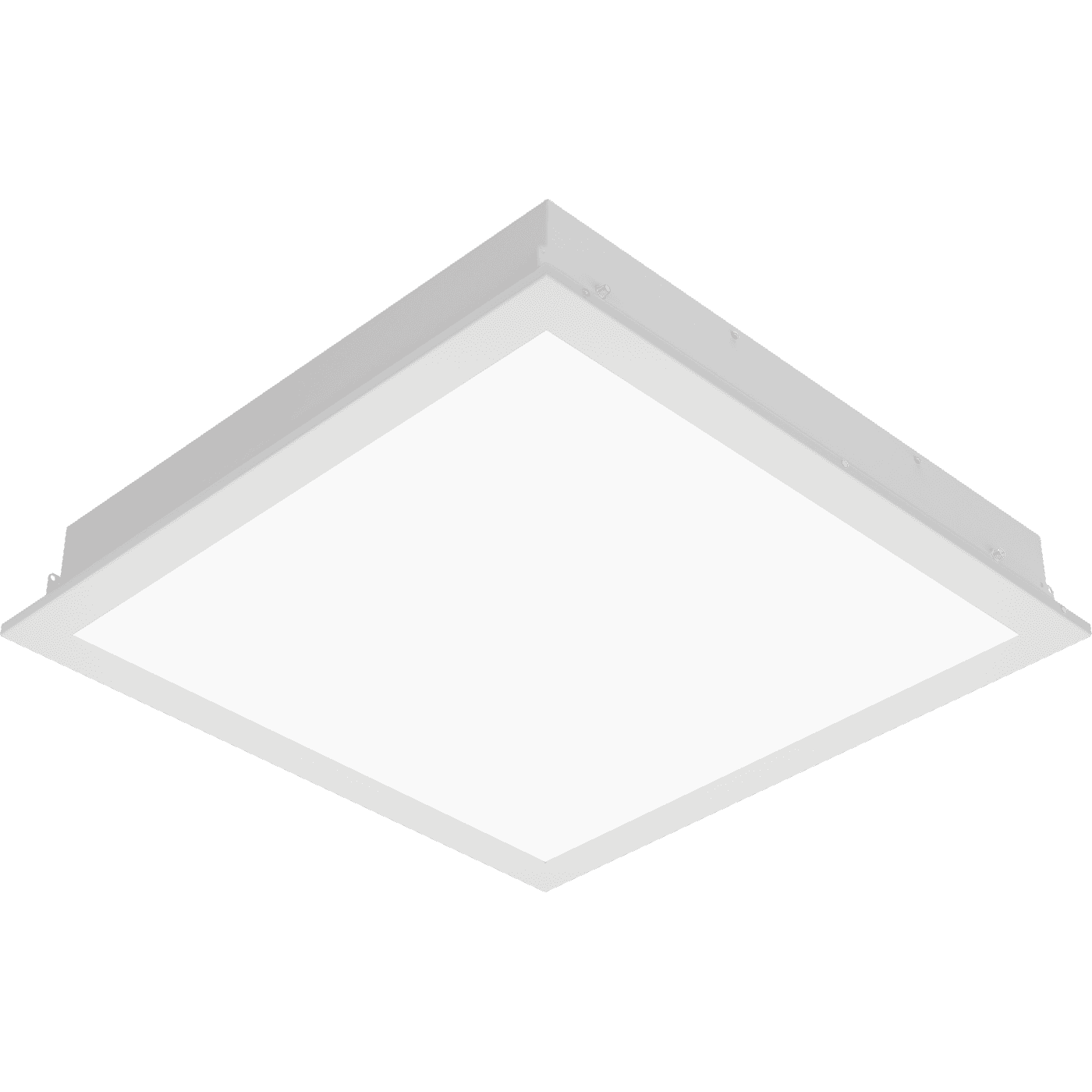

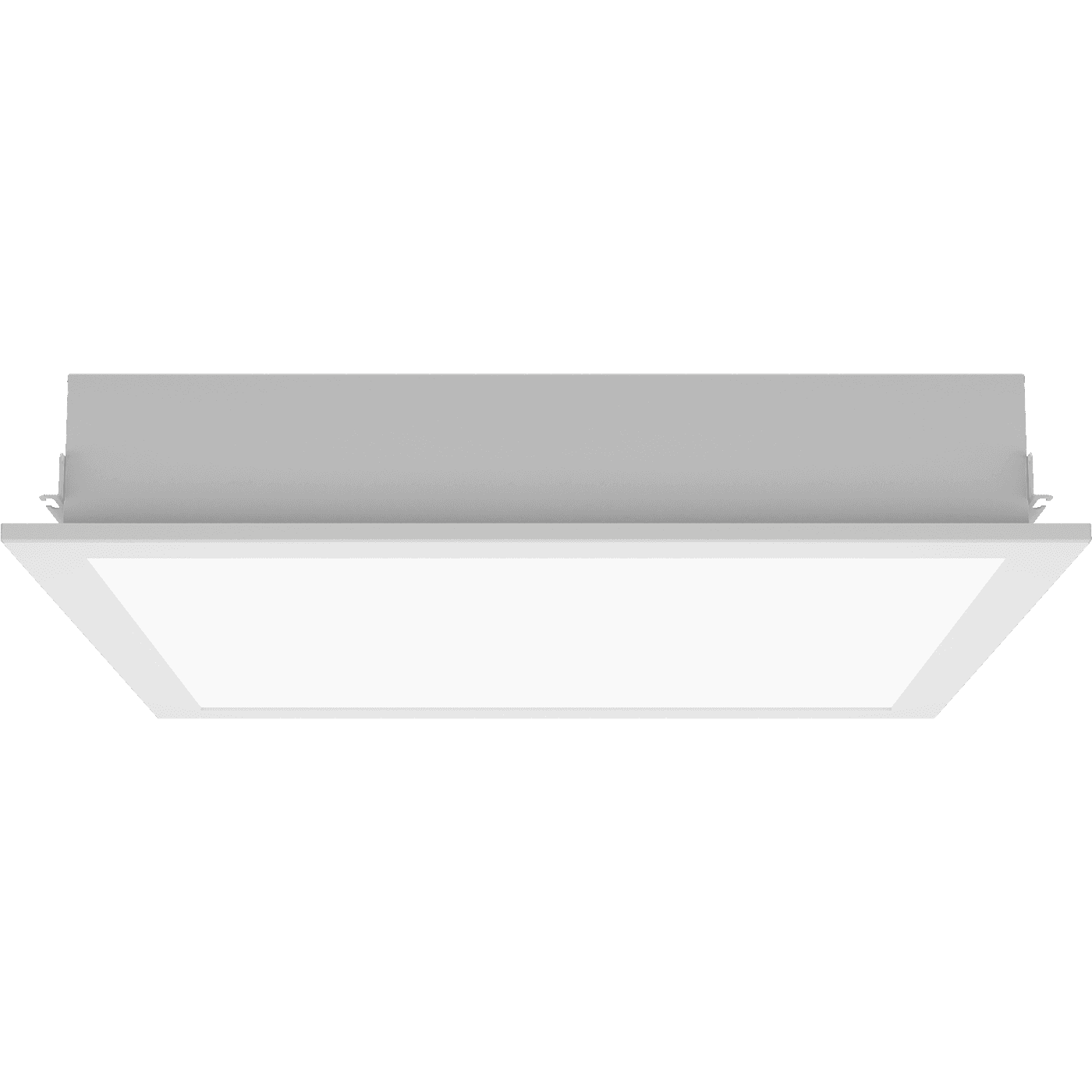

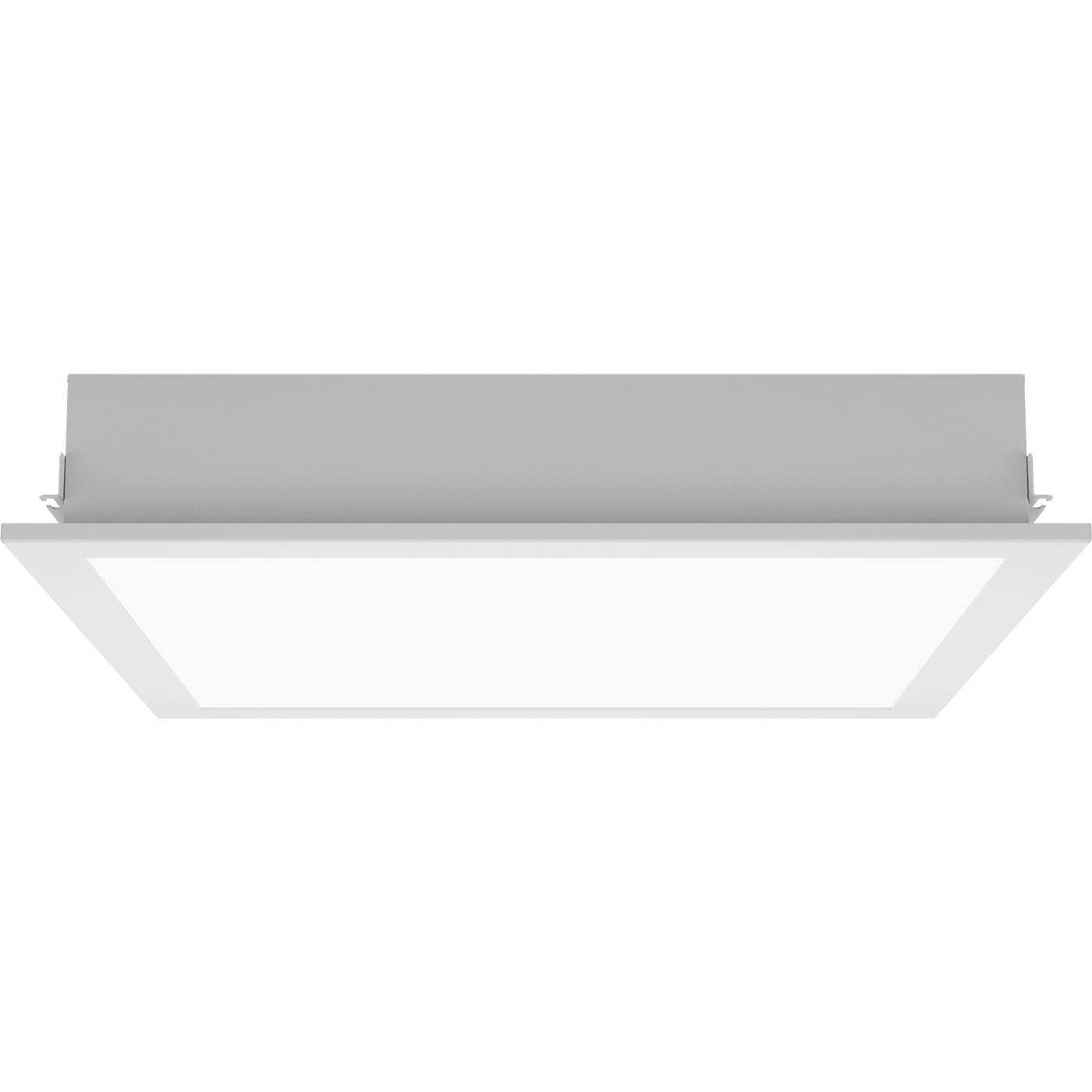

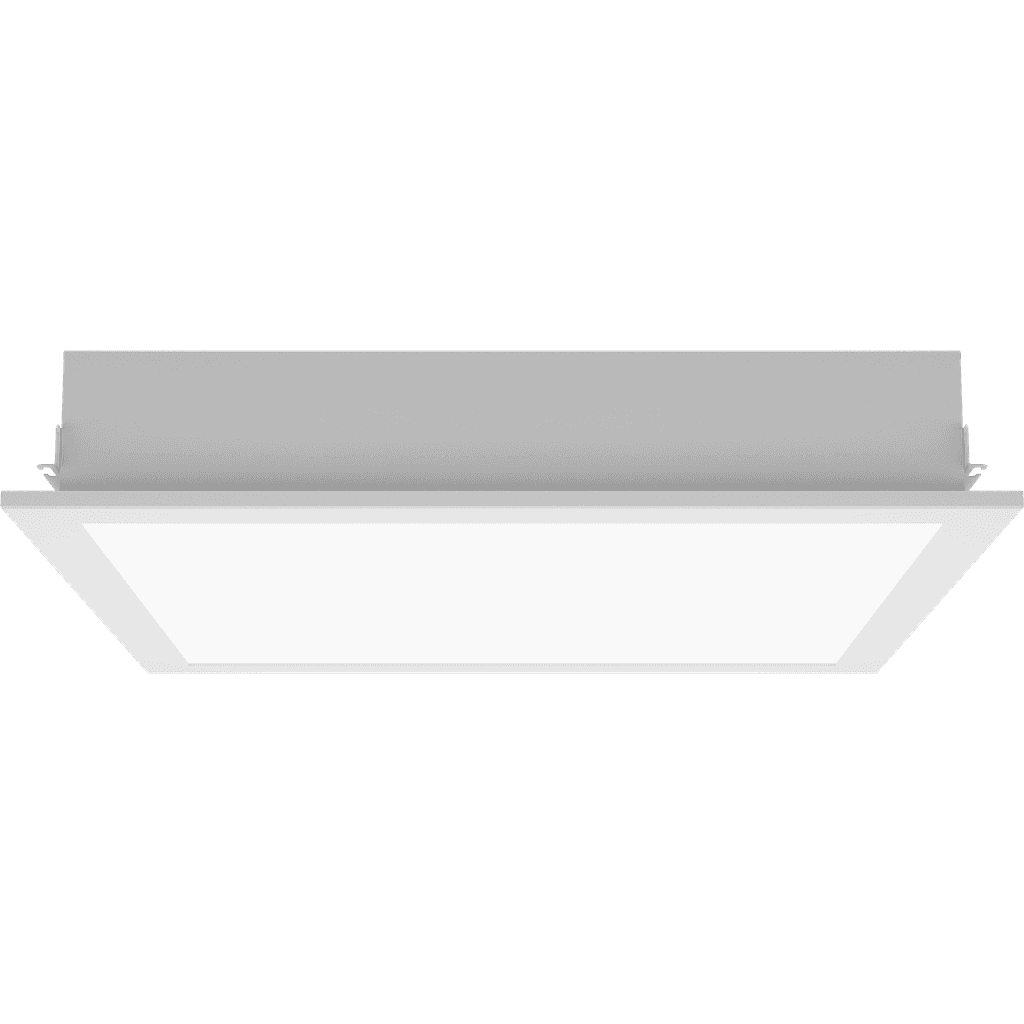

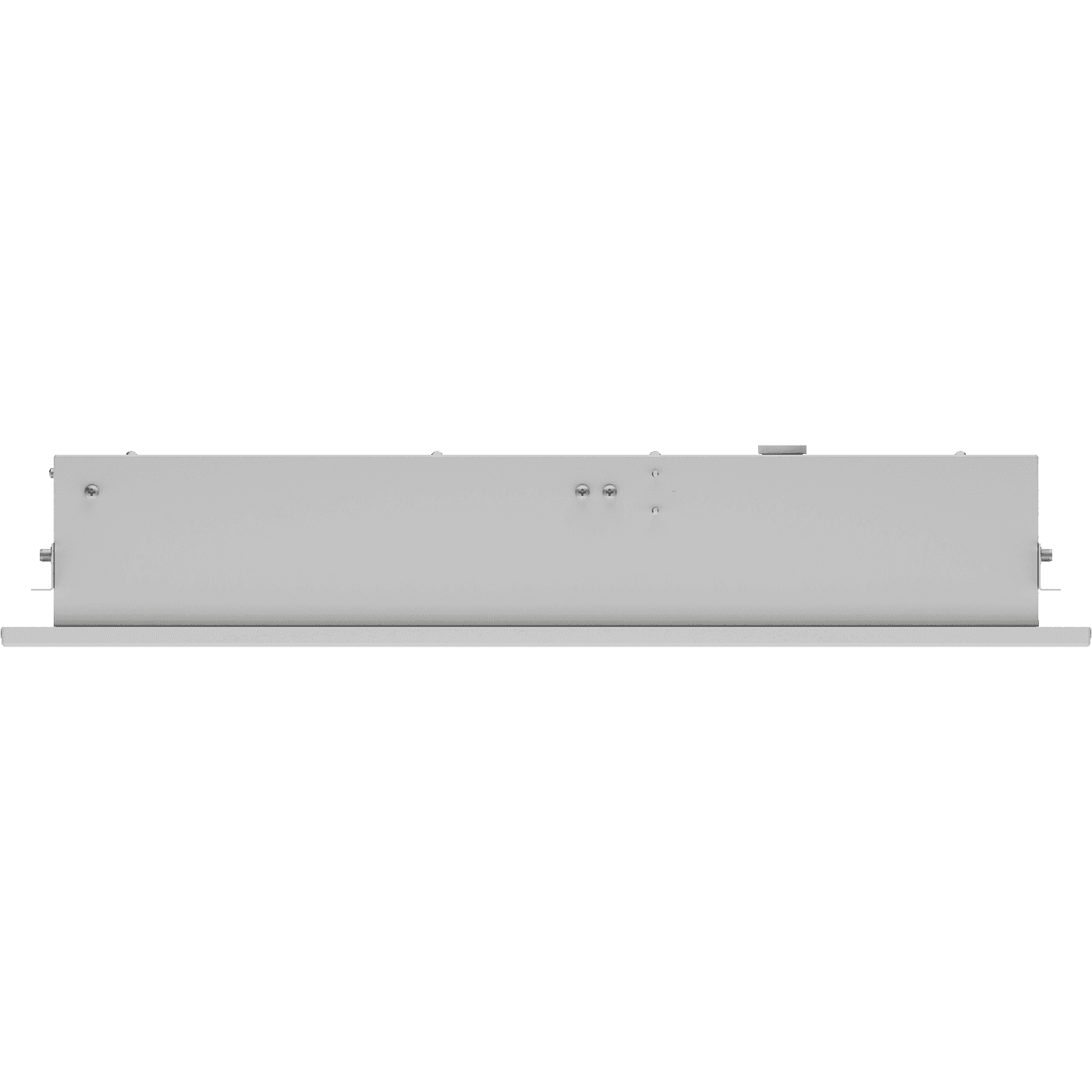

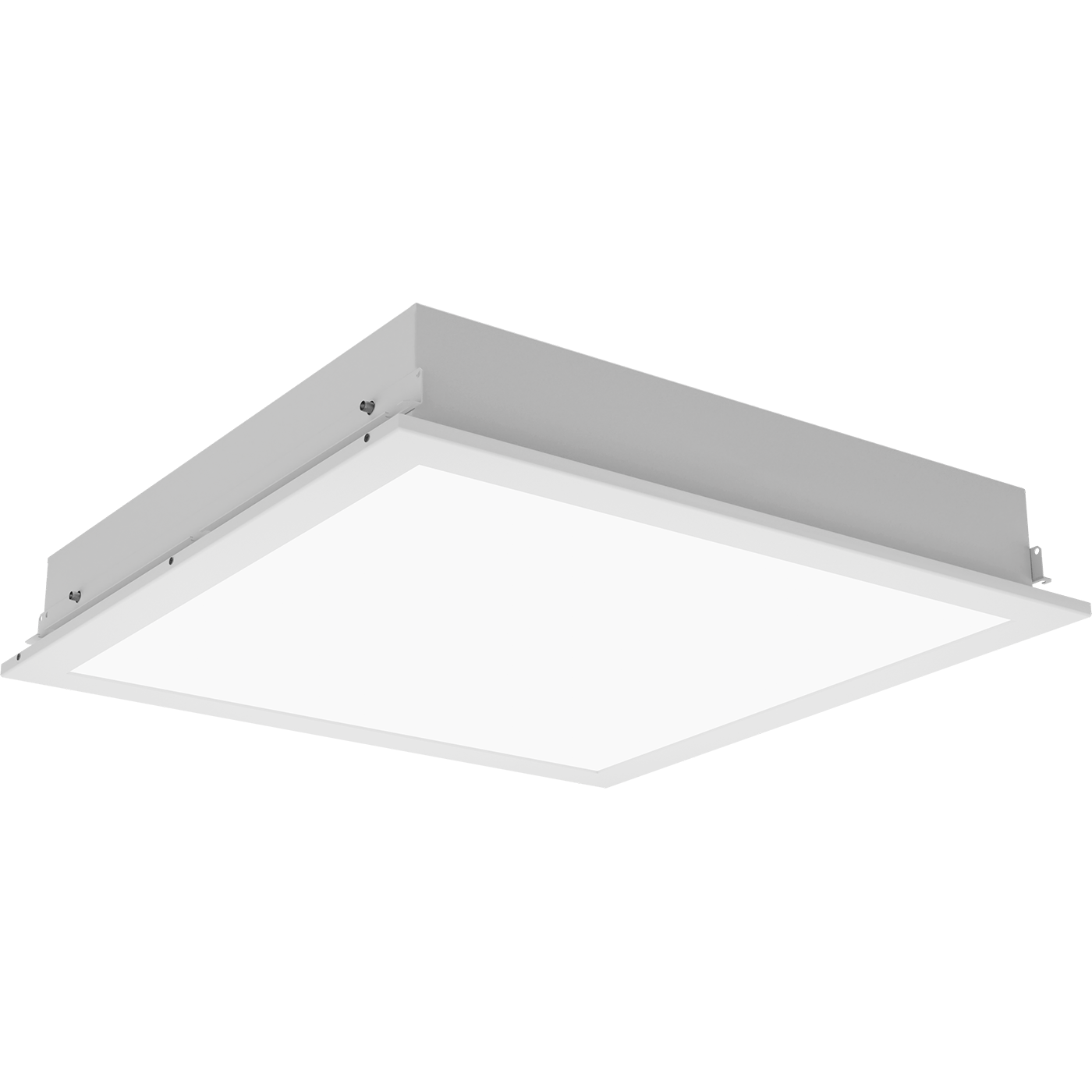

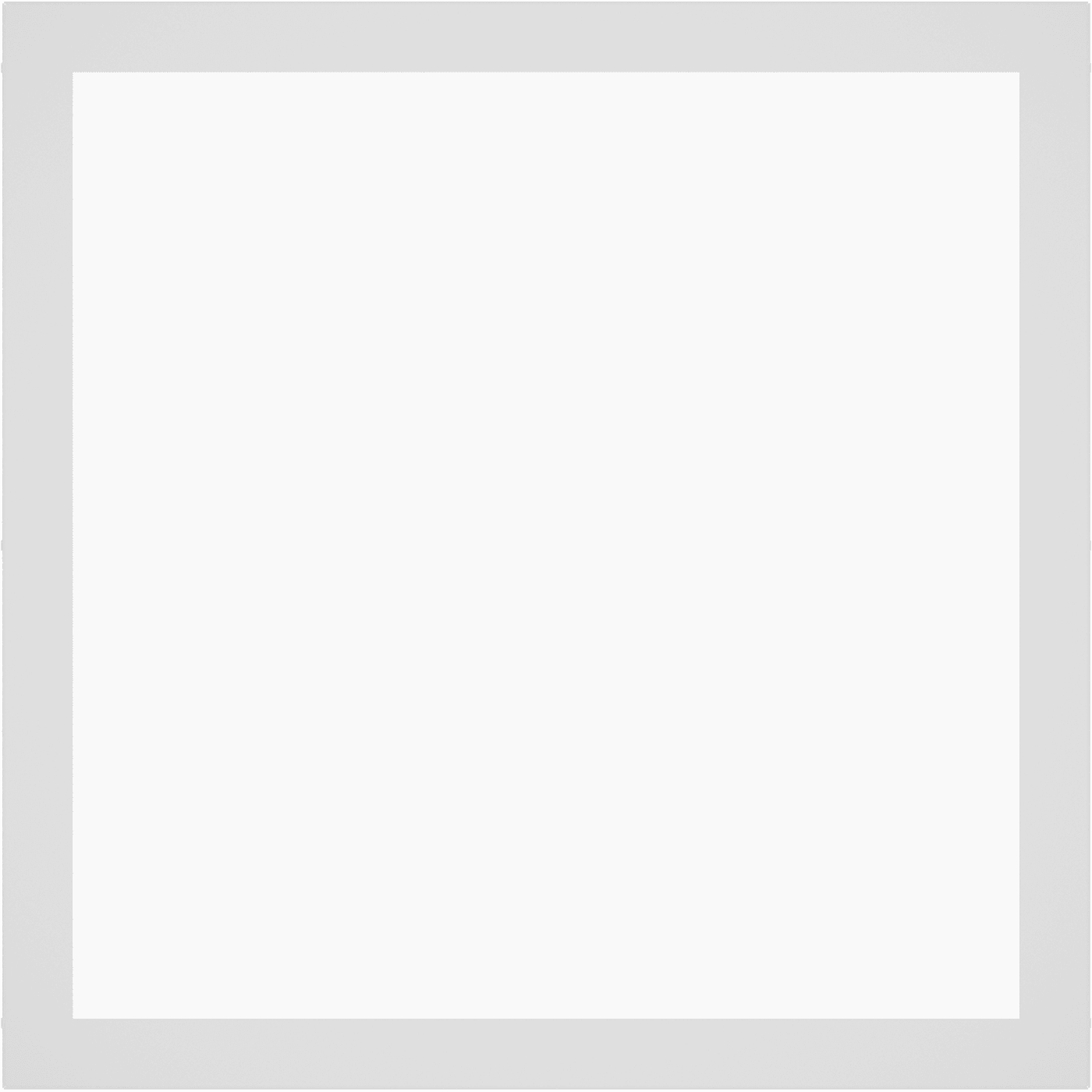

OWP/R 236 /595/ IP54/IP54 HF
archive
archive
OWP/R 236 /595/ IP54/IP54 HF
72 Wluminaire power
2900 lmlight flow
34 lm/Wenergy efficiency
code1373000050
number of lamps2
performance factor42
weight3.4 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
72 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2
material
Сталь
weight
3.4 kg
length, mm
595 mm
width, mm
295 mm
height, mm
110 mm
housing color
Белый
installation length, mm
575 mm
installation width, mm
275 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
2G11
number of lamps
2
ballast
ЭПРА
common
code
1373000050
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
B…A+
service life, hour
30 000 h
illuminating
light flow
2900 lm
flickering factor
<5%
energy efficiency
34 lm/W
light source type
КЛЛ
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.2 kB
model 3dMax436 kB
photometric files
csv150 B
documents
passport1.4 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011626.8 kB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Clip0.018kgarticle: 2905000110
