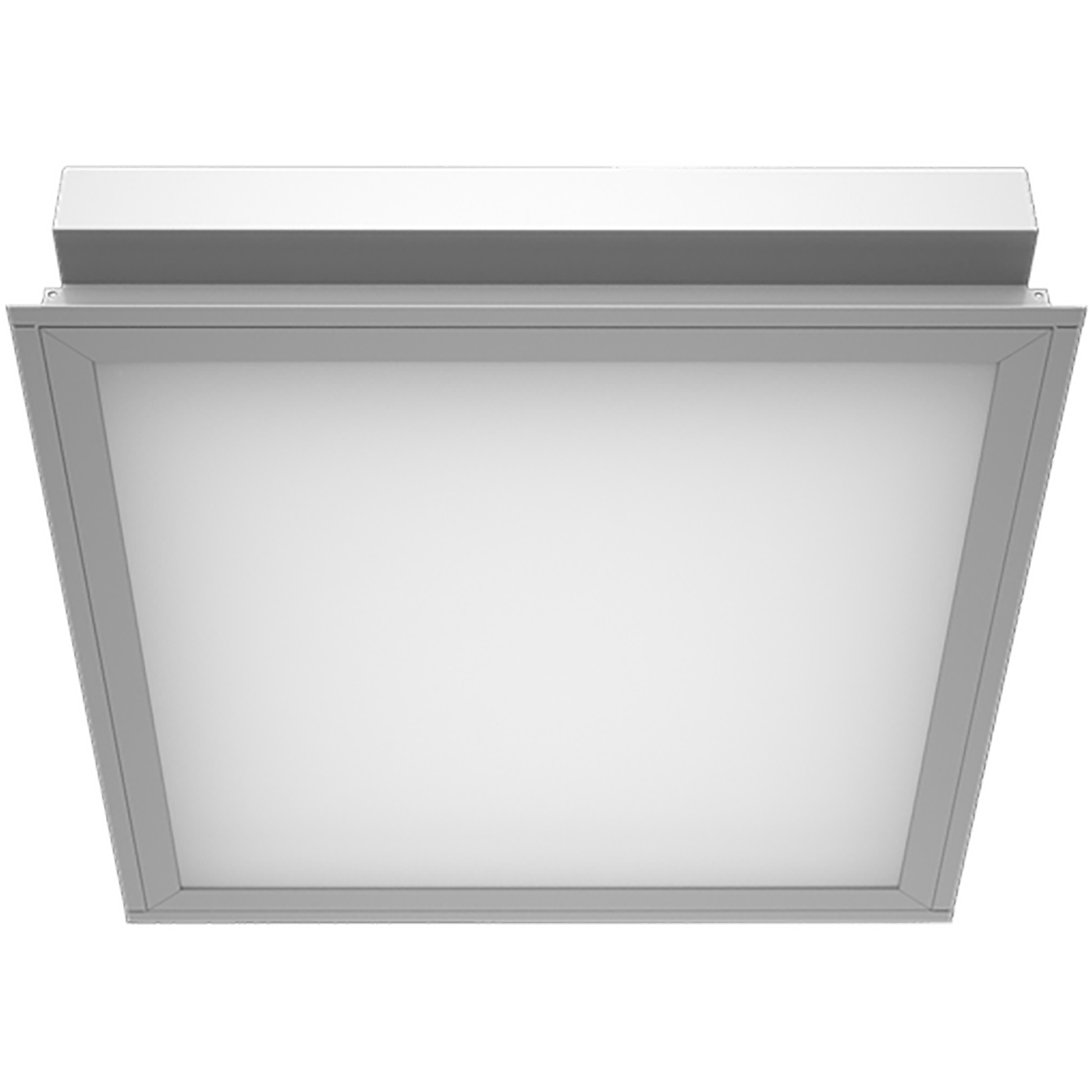

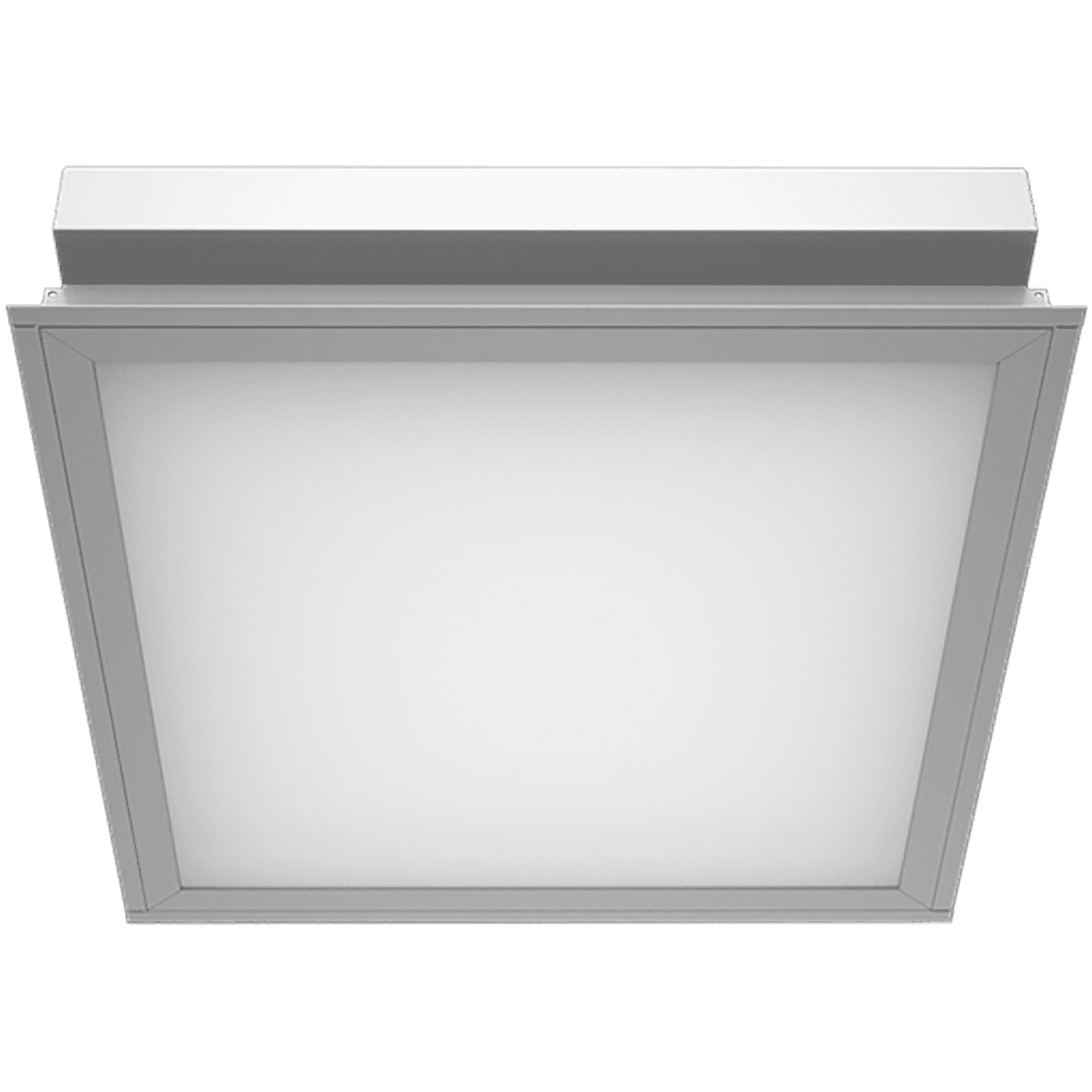

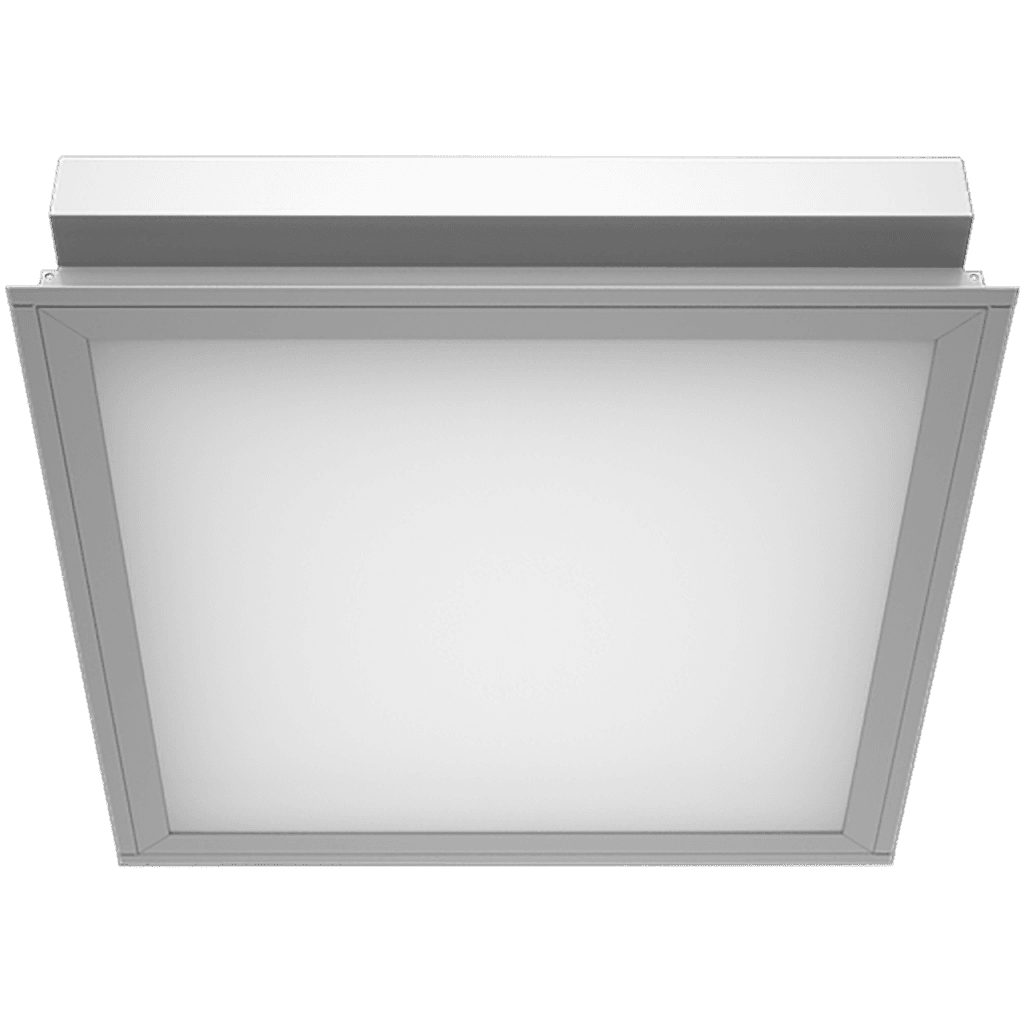

OWP/R OPTIMA LED 595 IP54/IP40 EM 4000K

model is discontinued
model is discontinued
OWP/R OPTIMA LED 595 IP54/IP40 EM 4000K
32 Wluminaire power
3600 lmlight flow
113 lm/Wenergy efficiency
code1376000120
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
595 mm
width
595 mm
height
100 mm
installation length
595 mm
installation width
595 mm
weight
6.7 kg
ingress protection (IP)
IP54/IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
10% lm
common
warranty
36 month
temperature range
от +5 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1376000120
model files
model files
CAD/BIM files
model 3dMax672 kB

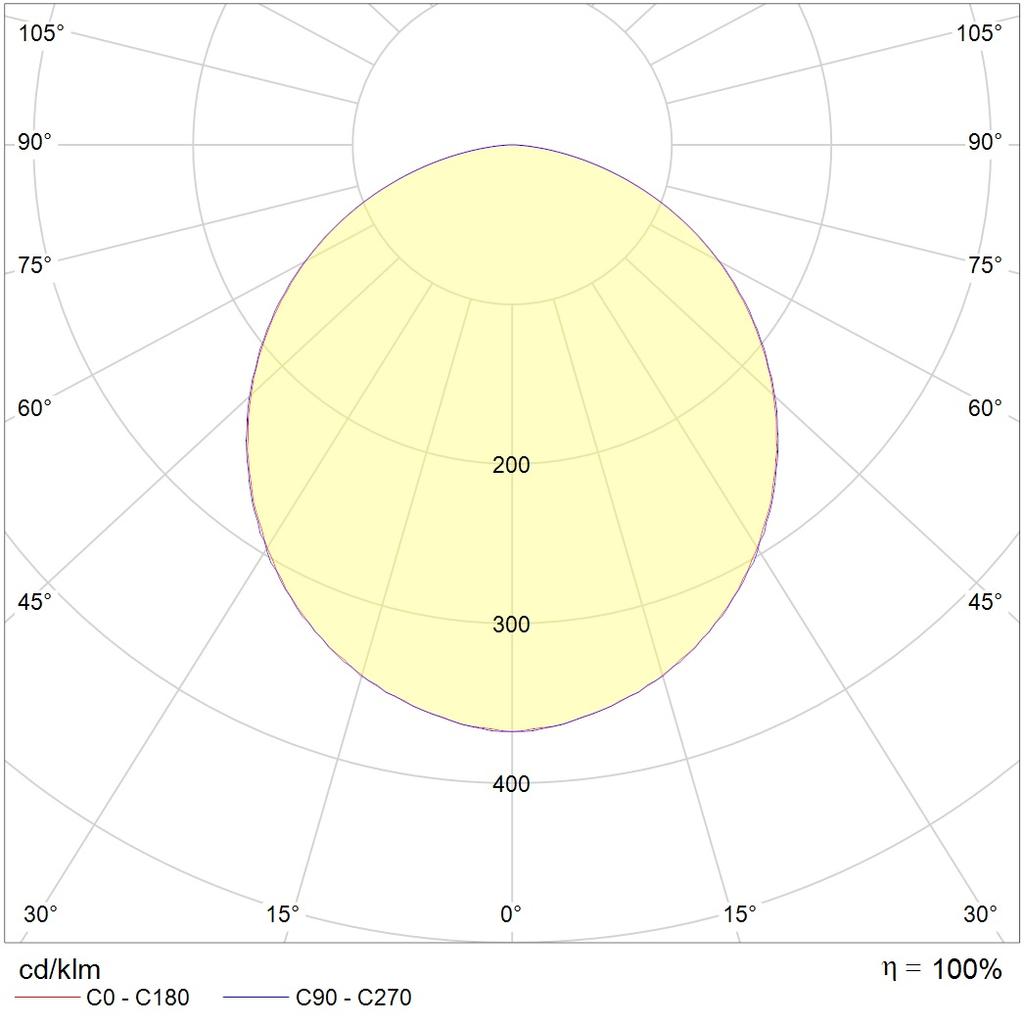

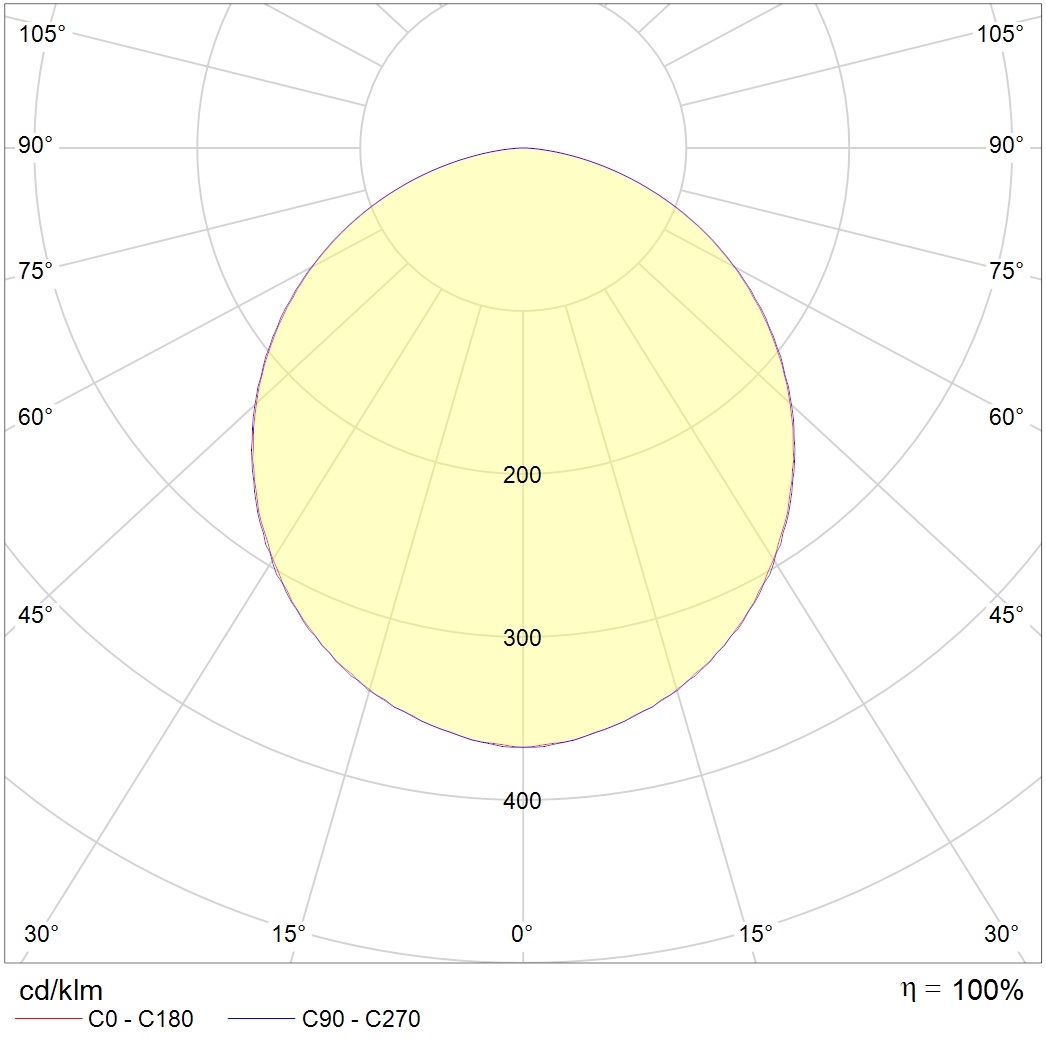

photometric files
ies134.1 kB
jpg112.5 kB
ldt84.5 kB
documents
passport1.3 mB
сертификаты
Russian origin626.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
