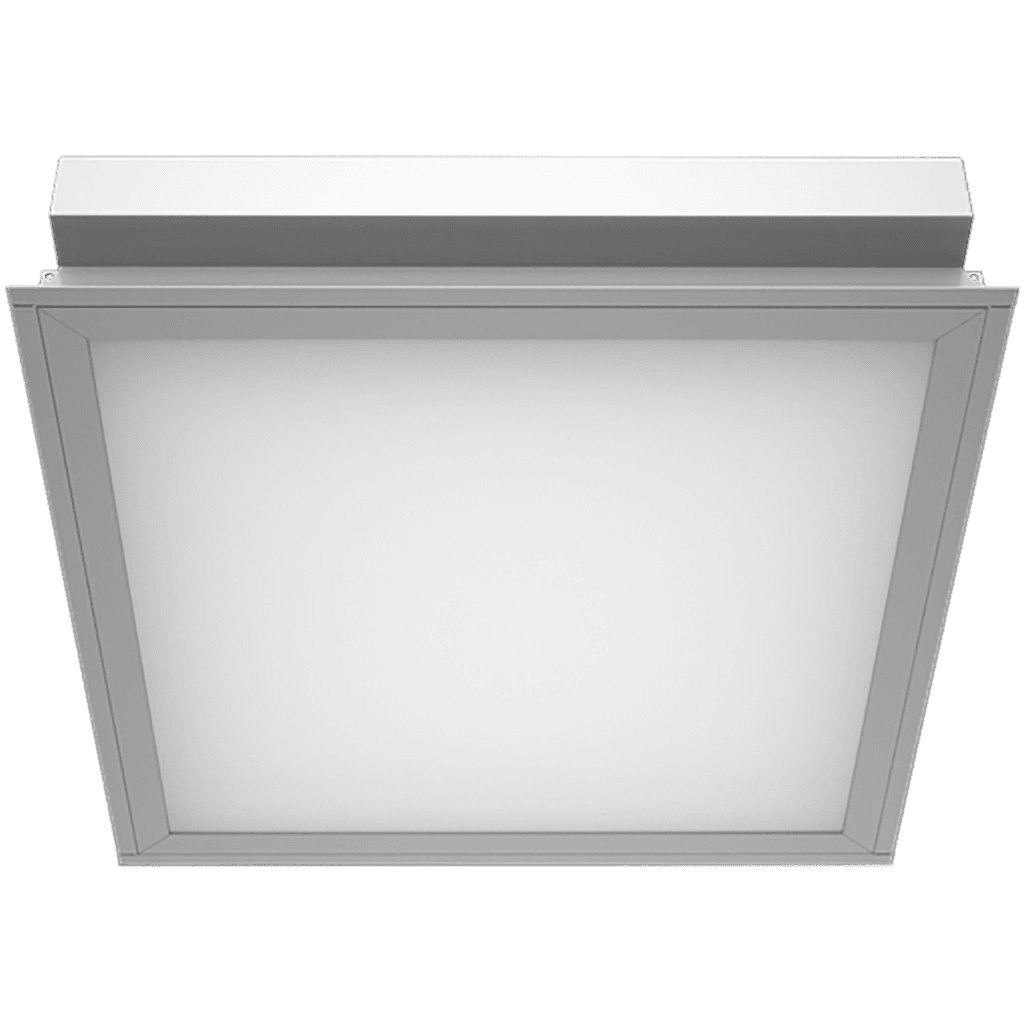

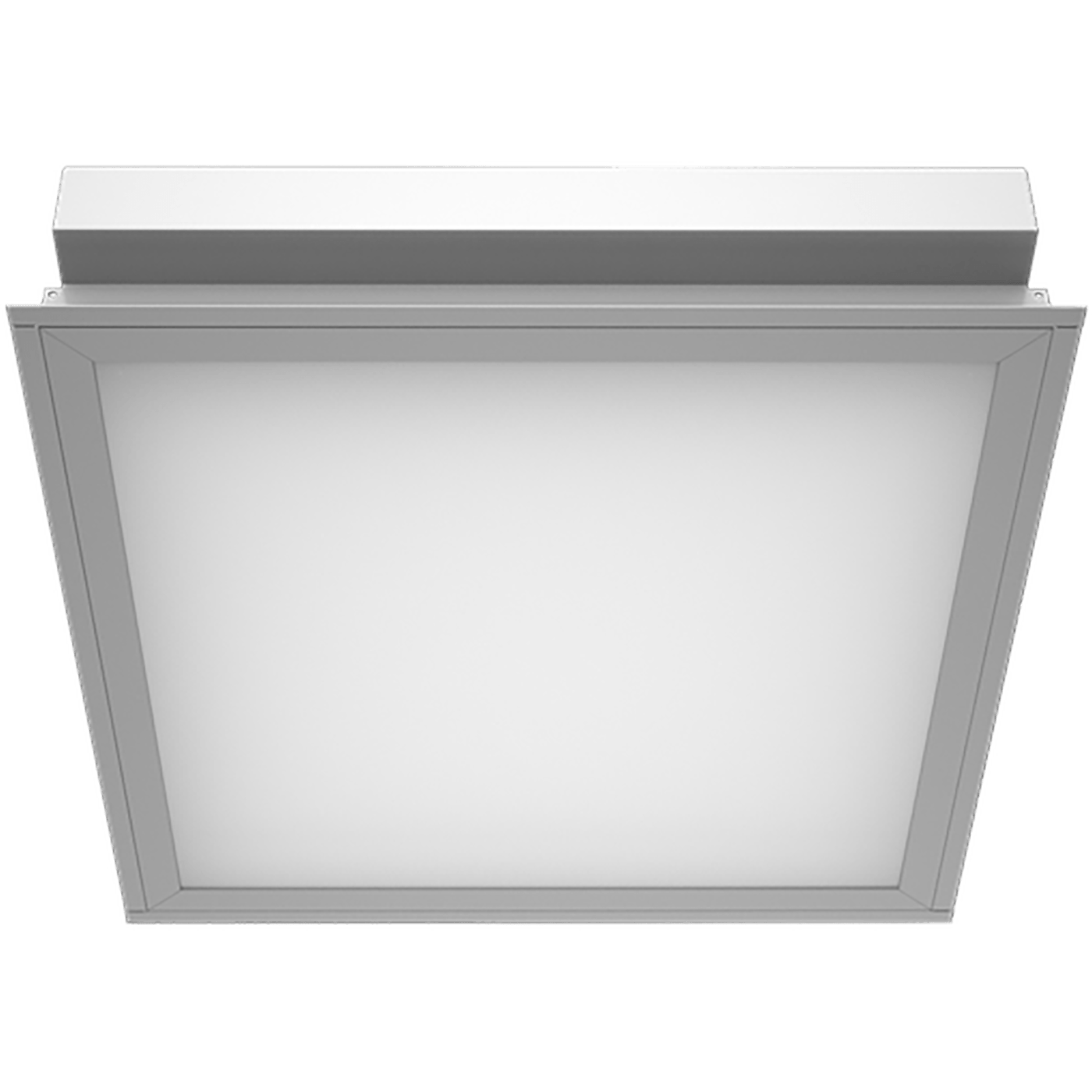

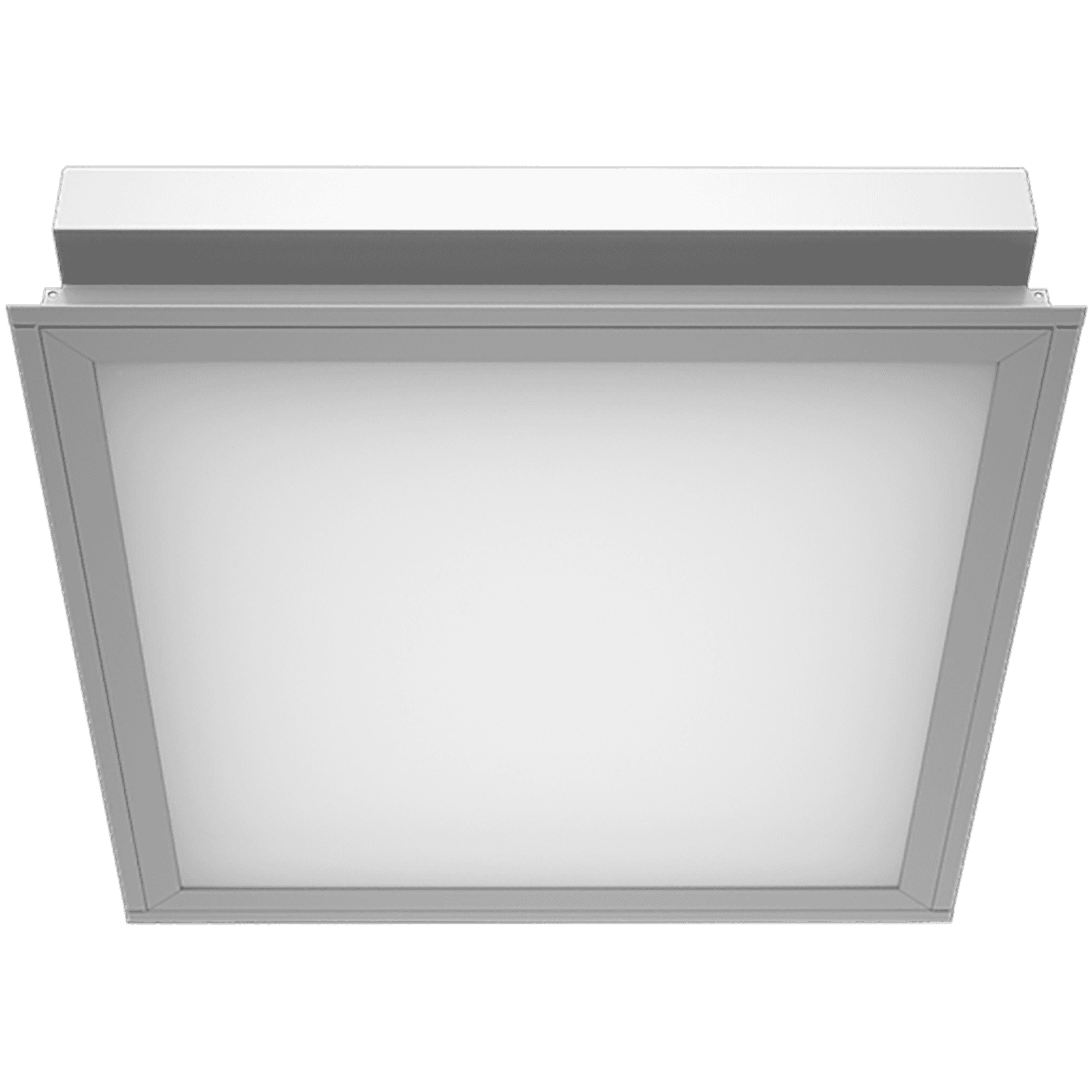

OWP/R OPTIMA LED 595 IP54 HFD 4000K CRI90 mat Clip-In
archive
archive
OWP/R OPTIMA LED 595 IP54 HFD 4000K CRI90 mat Clip-In
32 Wluminaire power
3600 lmlight flow
113 lm/Wenergy efficiency
code1376000260
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
32 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2*
fire safety class
П-II,IIа
material
Сталь
weight
6.4 kg
length, mm
595 mm
width, mm
595 mm
height, mm
100 mm
housing color
Белый
installation length, mm
595 mm
installation width, mm
595 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1376000260
illuminating
color rendition index (CRI)
>90
light flow
3600 lm
flickering factor
<5%
energy efficiency
113 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
сертификаты
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
