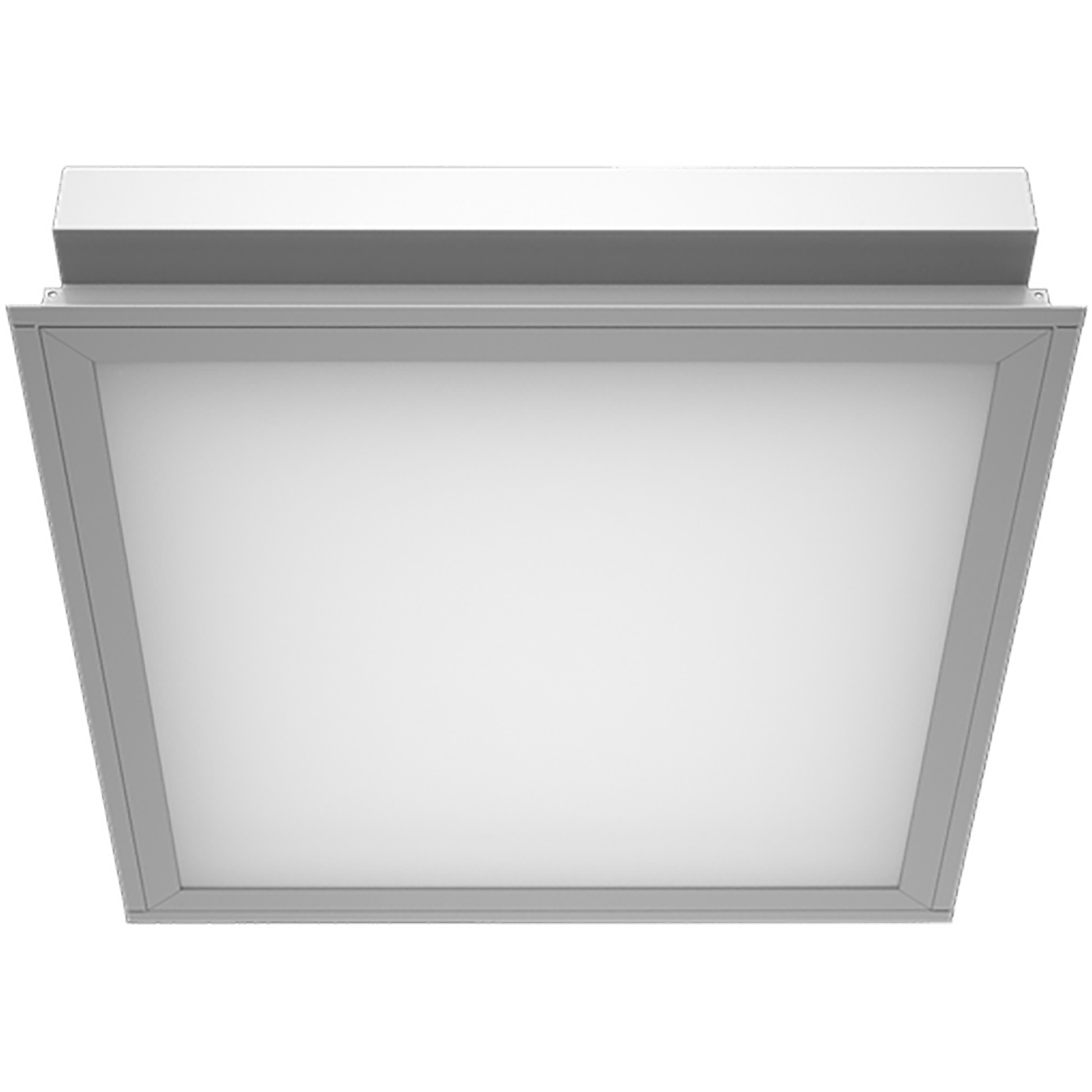

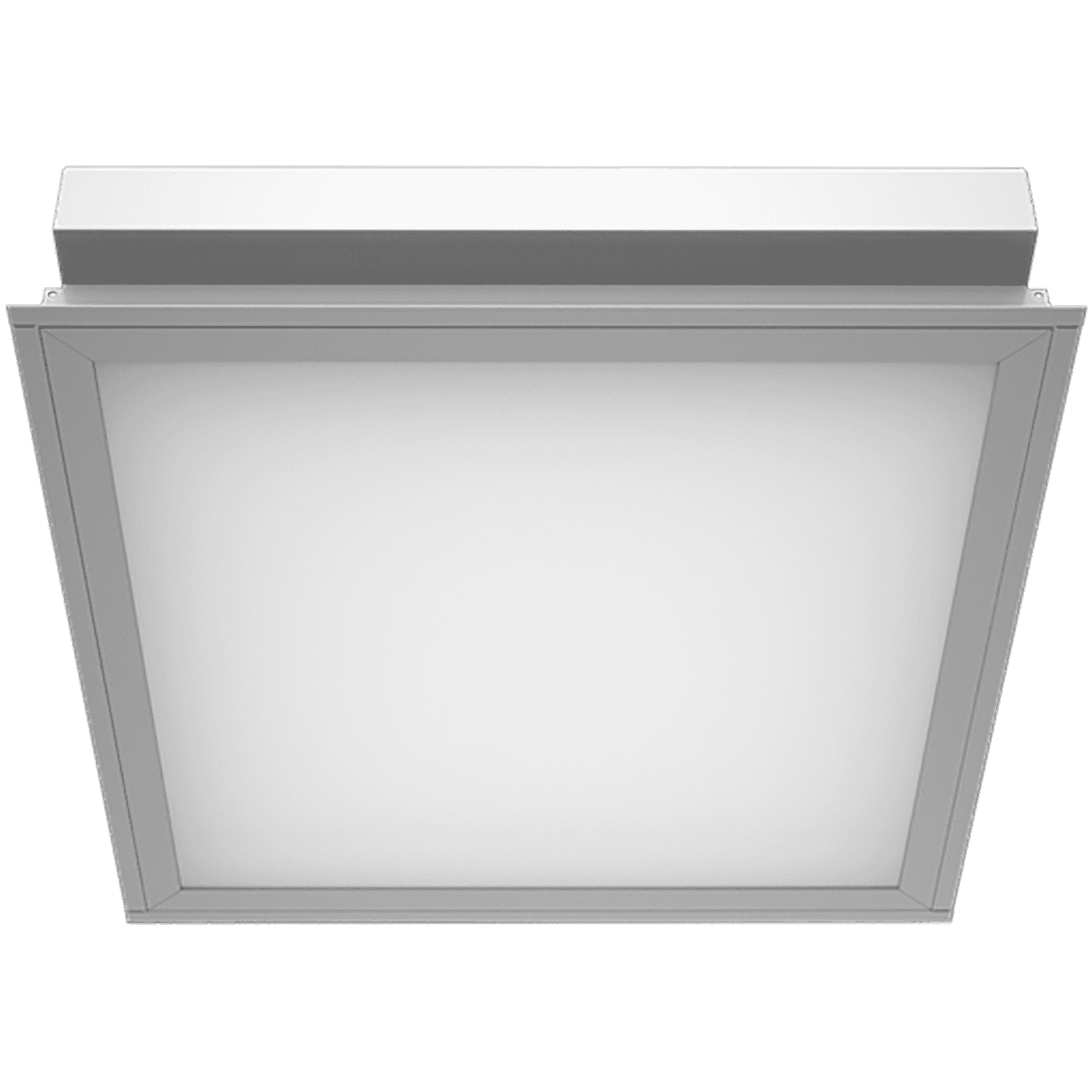

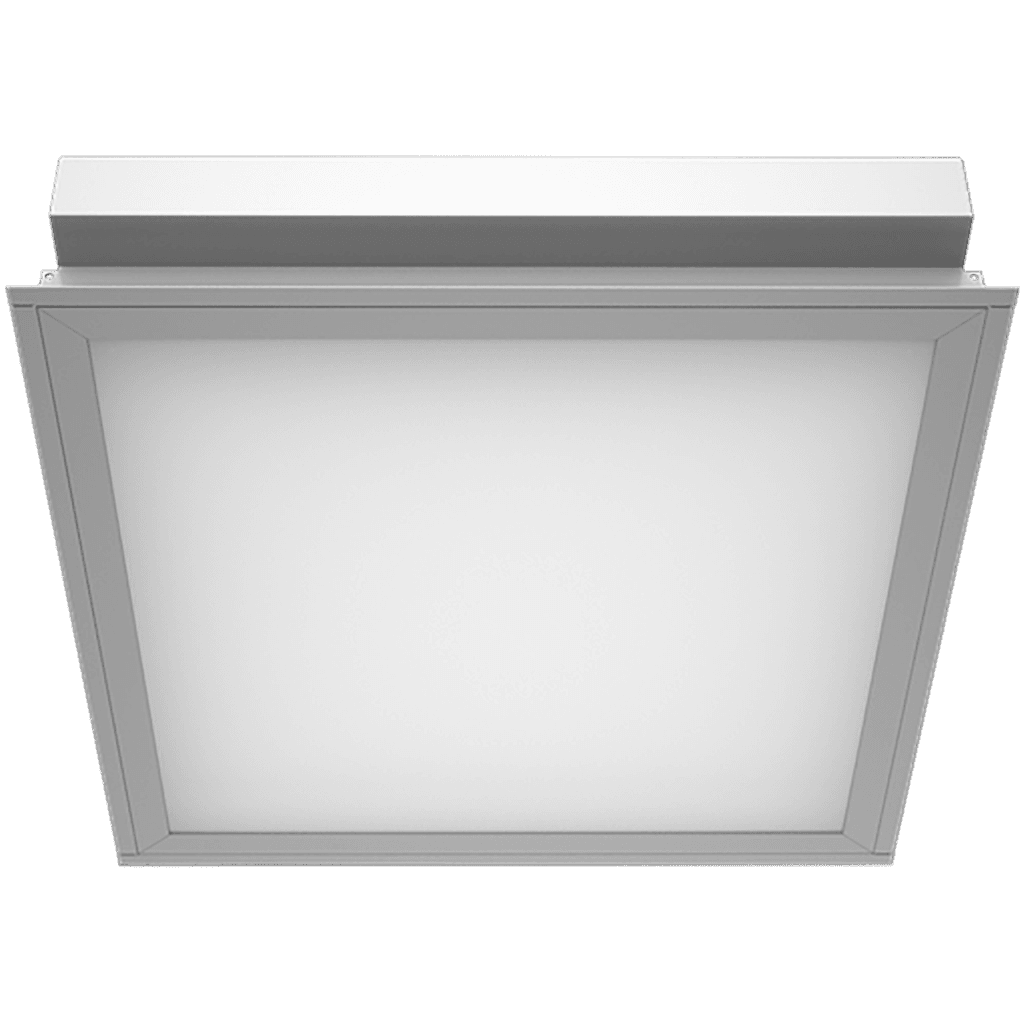

OWP/R OPTIMA LED 595 (70) IP54 HFD 4000K CRI90 mat Clip-In

model is discontinued
model is discontinued
OWP/R OPTIMA LED 595 (70) IP54 HFD 4000K CRI90 mat Clip-In
70 Wluminaire power
7800 lmlight flow
111 lm/Wenergy efficiency
code1372001480
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
111 lm/W
color rendition index (CRI)
>90
light flow
7800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
111 lm/W
color rendition index (CRI)
>90
light flow
7800 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
3 µs
electric shock protection
I
luminaire power
70 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
35 A
constructional
length
595 mm
width
595 mm
height
100 mm
installation length
595 mm
installation width
595 mm
weight
6.4 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
fire safety class
П-II,IIа
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от -20 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1372001480
