OWP/R OPTIMA LED 589 IP54/IP54 4000K GRILIATO
model is discontinued
model is discontinued
OWP/R OPTIMA LED 589 IP54/IP54 4000K GRILIATO
32 Wluminaire power
3600 lmlight flow
113 lm/Wenergy efficiency
code1372000360
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
113 lm/Wcolor rendition index (CRI)
>80light flow
3600 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
113 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
590 mm
width
590 mm
height
90 mm
installation length
590 mm
installation width
590 mm
weight
4.3 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1372000360
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax580 kB

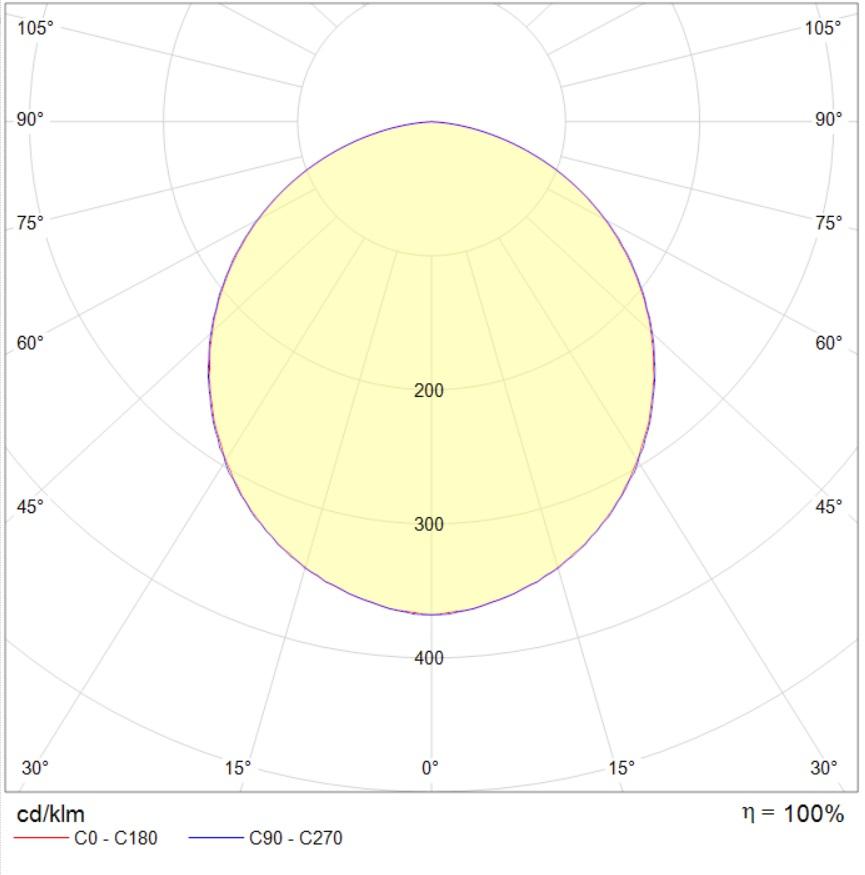

photometric files
ies134.1 kB
jpg79.4 kB
ldt83.3 kB
documents
passport1.3 mB
сертификаты
Russian origin626.1 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016682.2 kB
Fire Safety Certificate1.7 mB
