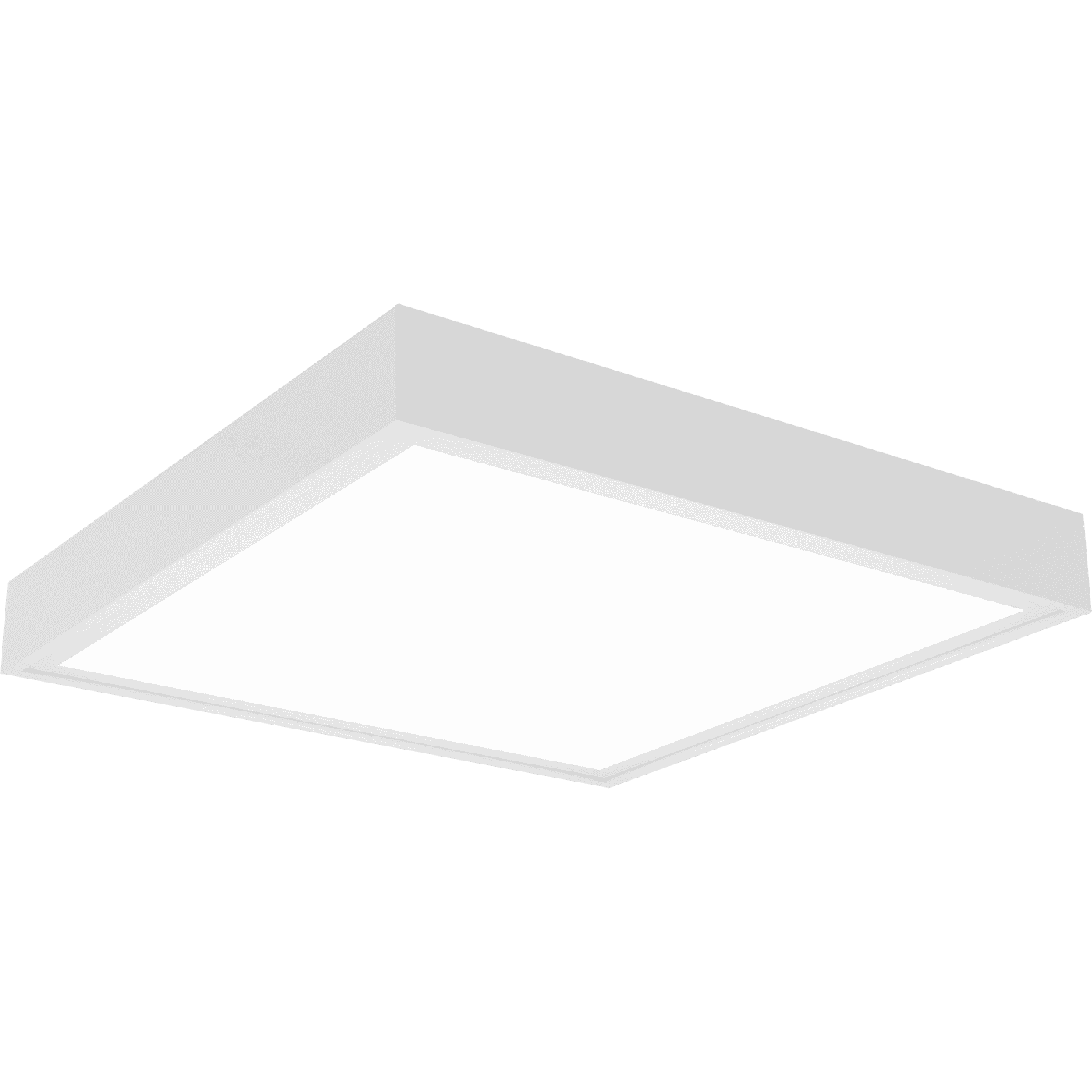

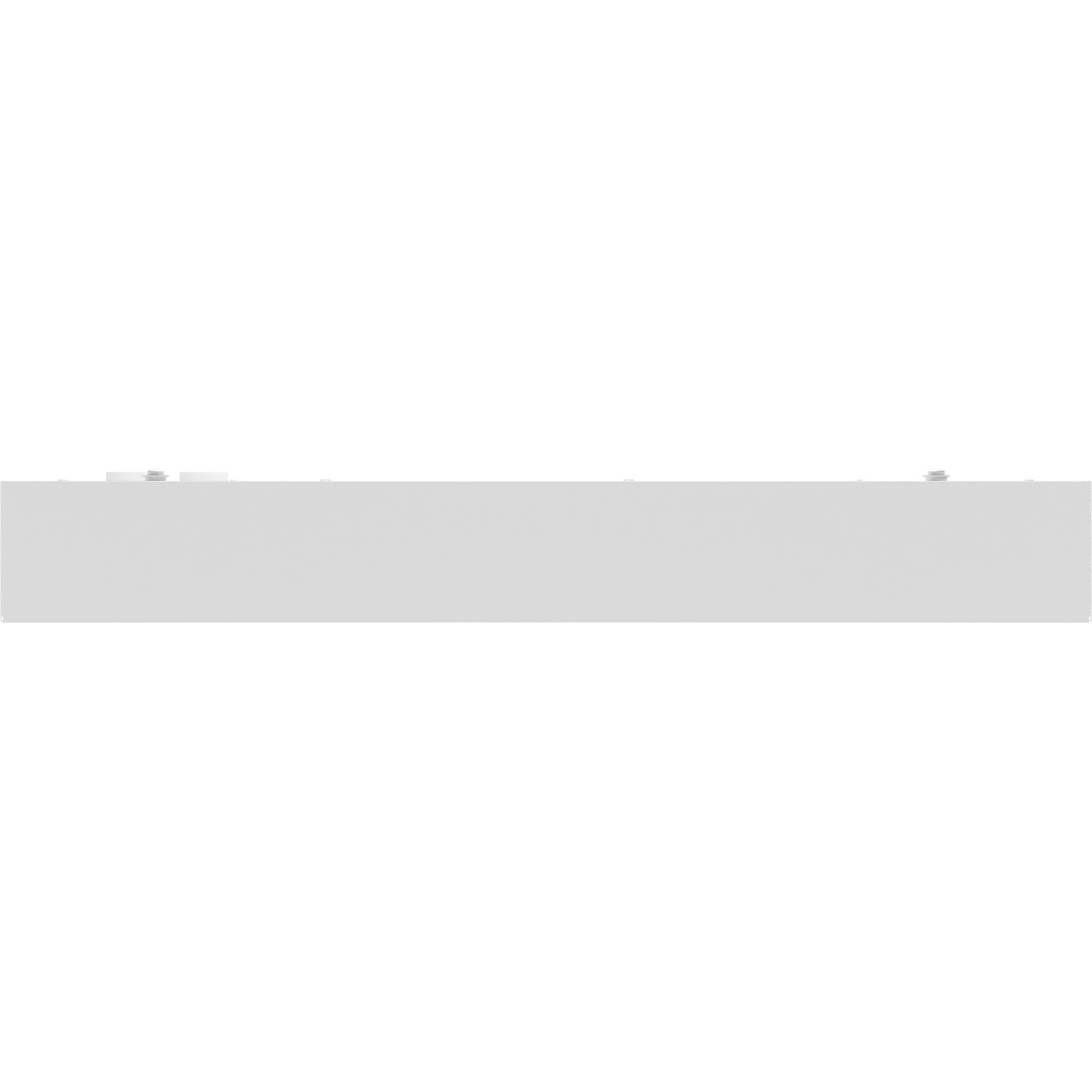

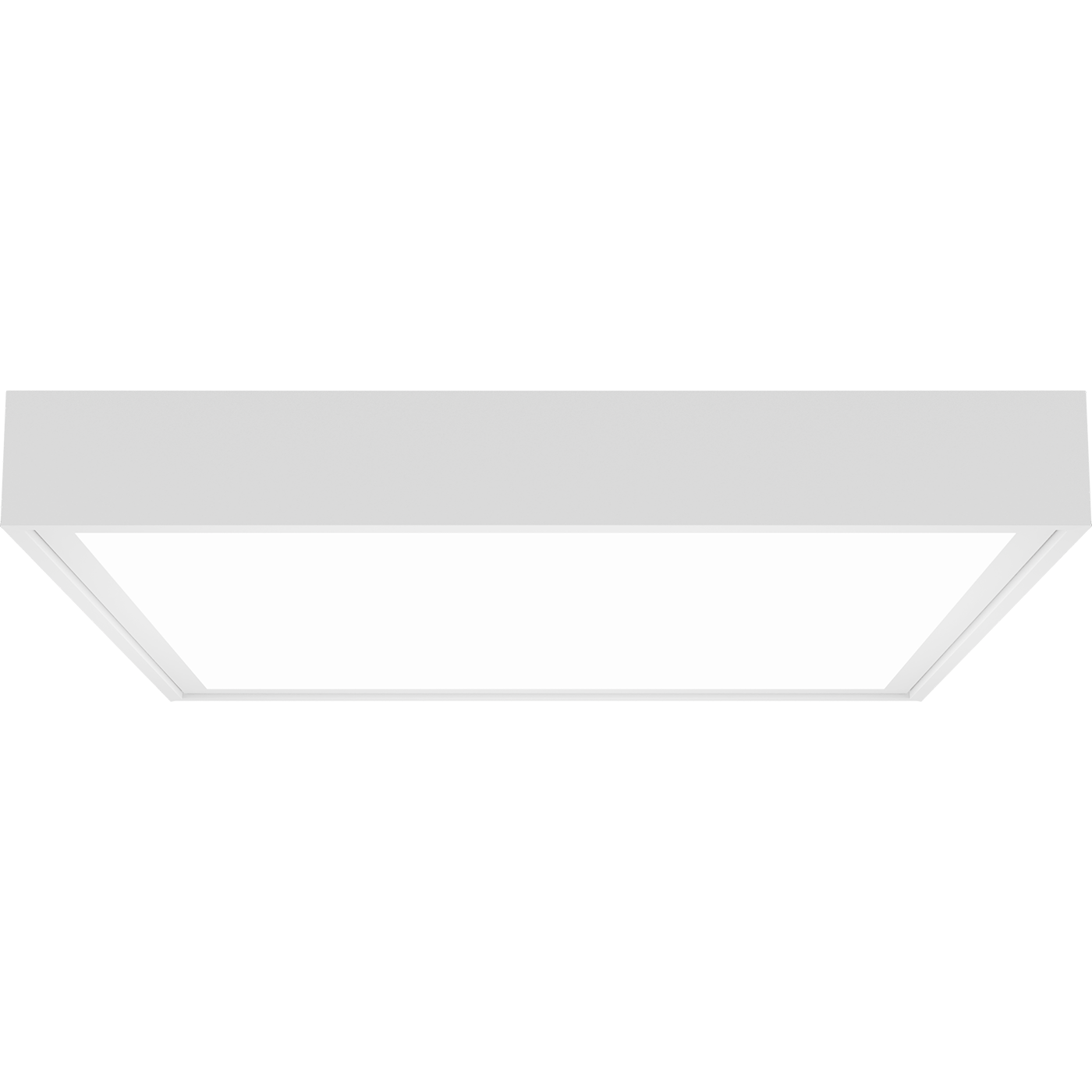

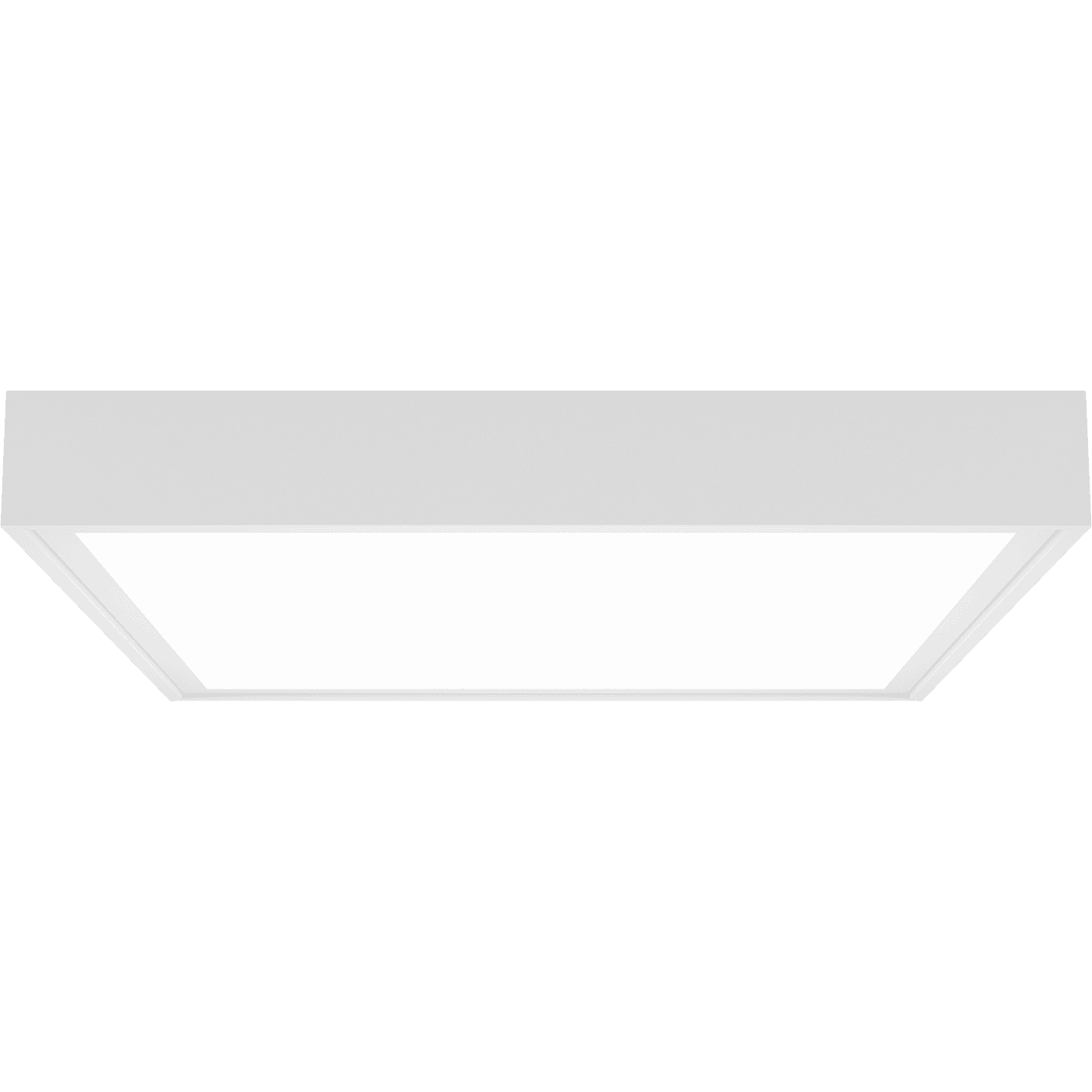

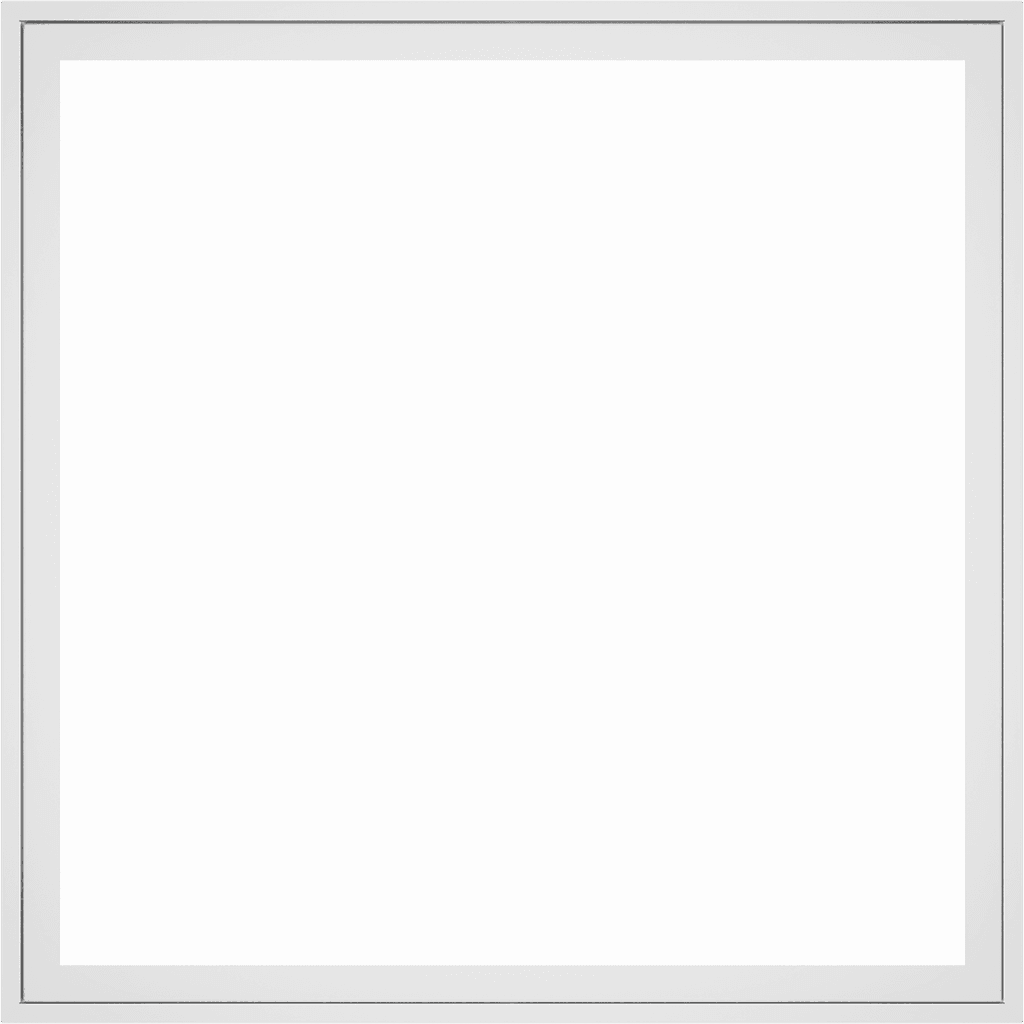

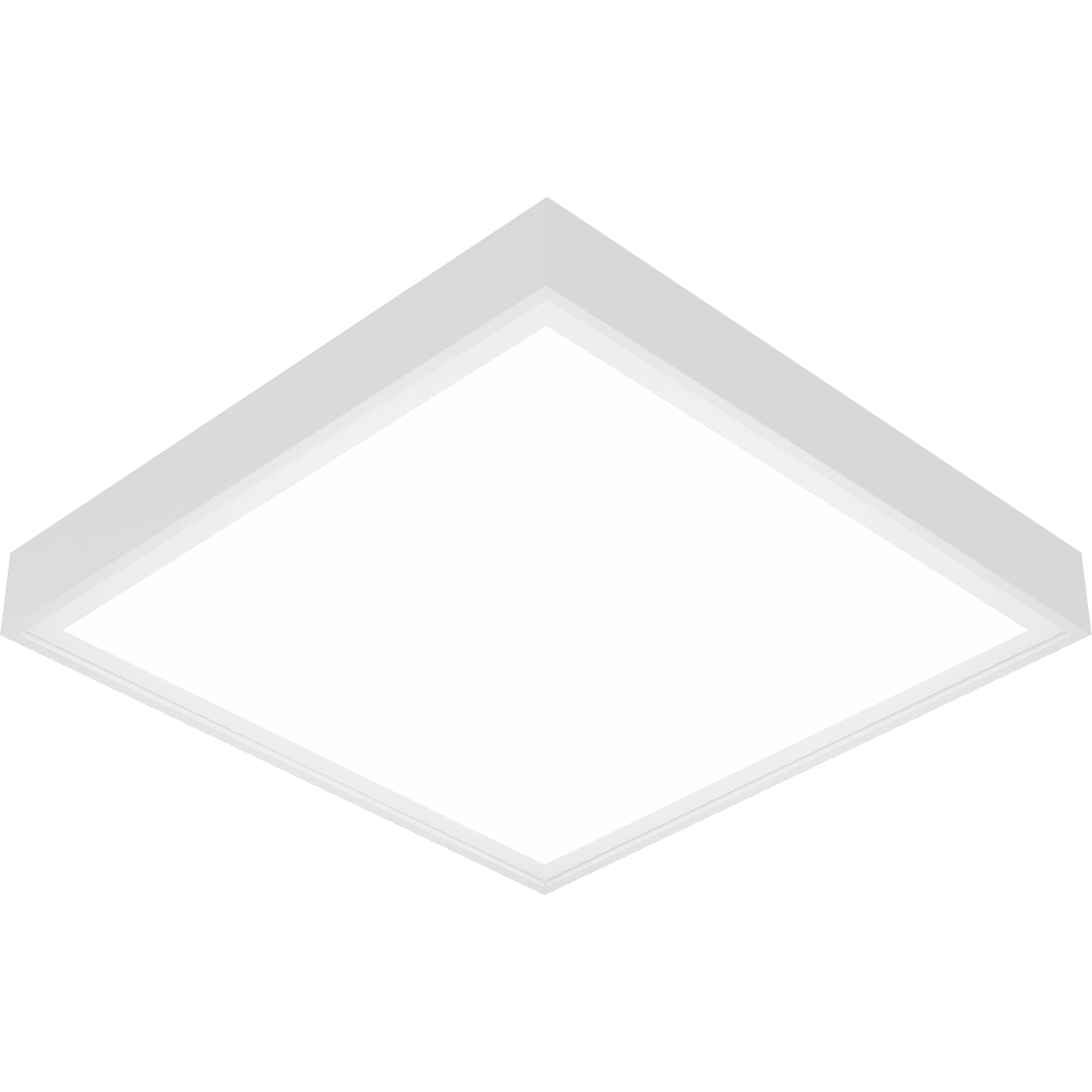

OWP OPTIMA SCHOOL 595 IP54/IP54 4000K mat CRI90
OWP OPTIMA SCHOOL 595 IP54/IP54 4000K mat CRI90
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code
1372002480
color temperature
4000 K
beam angle
D120
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- ceiling
- IP protected
- OWP OPTIMA SCHOOL
- OWP OPTIMA SCHOOL 595 IP54/IP54 4000K mat CRI90
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
100 lm/Wcolor rendition index (CRI)
>90light flow
3200 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>90
light flow
3200 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
32 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
constructional
length
595 mm
width
595 mm
height
80 mm
installation length
425 mm
installation width
425 mm
weight
7.9 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Сталь
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1372002480
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Уплотнительные шайбы - 1 компл.
model files
model files

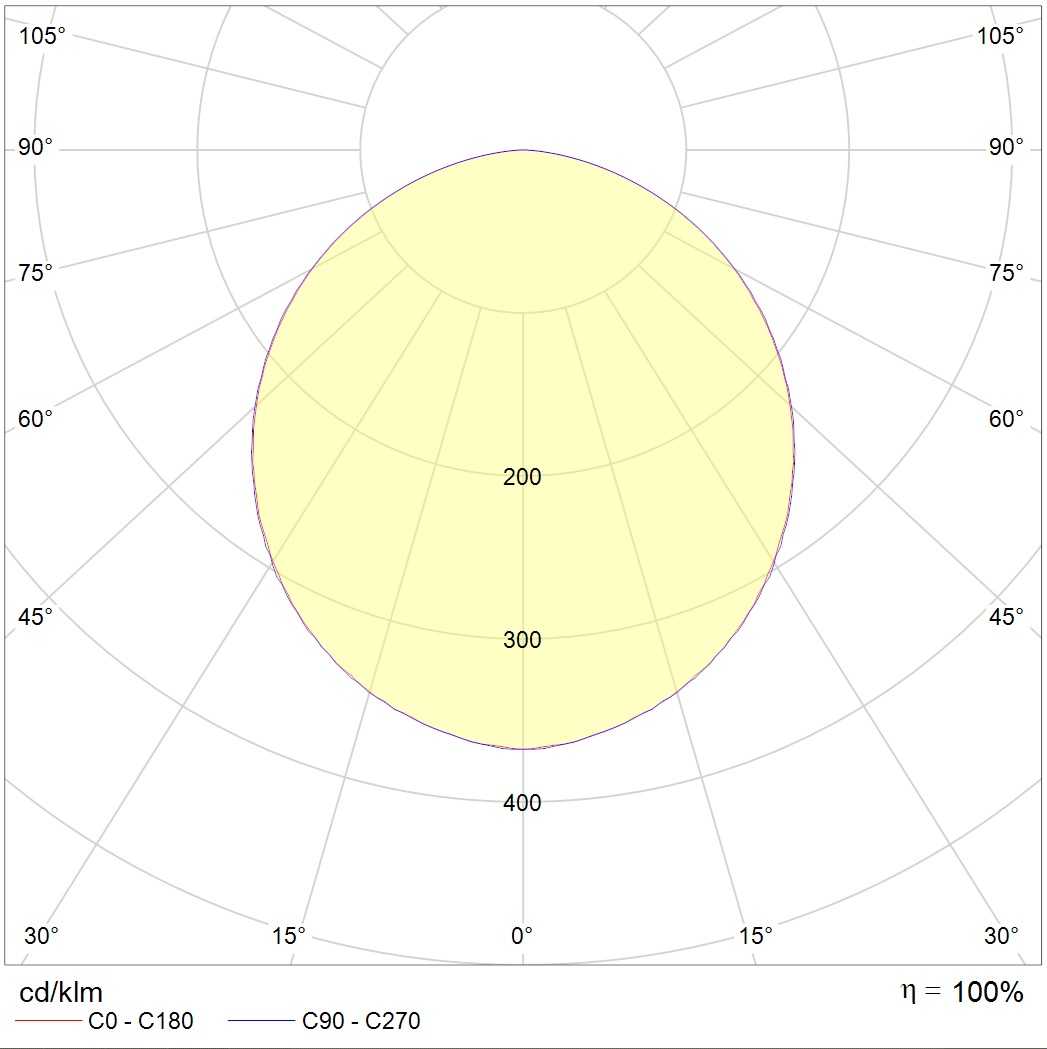

photometric files
сертификаты
photometric files
ies134.1 kB
jpg115.1 kB
ldt84.6 kB
csv454 B
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
